Presentation Transcript

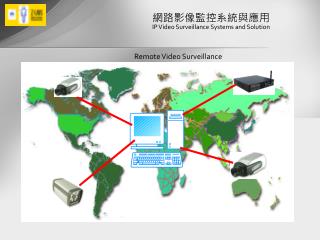

網路影像監控系統與應用IP Video Surveillance Systems and Solution

Remote Video Surveillance


監視系統演進史

第一代:類比CCTV (Closed Circuit Television;閉路電視)+ VCR(VideoCassette Recorder )

第二代:類比CCTV + DVR(Digital Video Recorder )

第三代:IP Camera+ NVR(Network Video Recorder)


監視系統演進史

第一代:類比CCTV

1.錄影帶更換式的監視系統

2.錄影帶容易受潮

3.搭配影像擷取卡,影像品質受限制

4.卡帶常因長時間使用磨損,畫質容易

變差,且保存不易


監視系統演進史

第二代:類比CCTV + DVR(Digital VideoRecorder )

缺點: 1.需要大量電纜及設備(跳台器、信號放大器)

2.搭配影像擷取卡,硬體規格受限,畫質差

3.多路串接時訊號薄弱,需搭配信號放大器來使用


監視系統演進史

第三代:數位網路型攝影機

優點: 1.純IP網路架構,施工簡易,系統擴充無限制

2.搭載POE功能,硬體規格標準

3.影像品質優化,最高可達HDTV等級

4.影像存檔網路化,可配合各種NAS,磁碟陣列


監視系統演進史

連接架構

1.將CAMERAS,以一般網路線連接至Switch上的PoE port上

2.將NVR主機,以一般網路線連接至 Switch任何port上

3.開啟軟體,設定連結NVR主機與CAMERA之間的通訊


監視系統演進史

全網路架構的優點:

您已具備良好基礎架構

安裝維修容易

極穩定的影像傳輸能力

強大的遠端連線功能

絕佳的Redundance機制

高度可擴充性及相容性

遠端可控性


監視系統演進史

支援PoE運作模式

PoE(Power over Ethernet)

直接以網路線透過PoE設備供電,不須另外再接電源。

優點:

擁有較佳效能及穩定的供電效果

簡化安裝配線工程,降低成本支出。

維修容易

強化安防應用


Internet

A factory USA

B factory-China

TCP/IP Net Work

Central Monitoring in HQ

C factory-

Singapore

D factory

Taipei

Network surveillance application in Chained offices

Video Server

Work Station

Hard Disc Storage

C factory- Europe


Gpio applications

Sensor

Alarm

網路影像監控系統與應用IP Video Surveillance Systems and Solution

GPIO Applications


Alarm I/O

Alarm I/O

Alarm I/O

Application with Alarm system

recording file of event trigger

I/O Installation4- Alarm input

LAN


ApplicationwithAccess Control

  • Access Control System


Finger Printer

Analog camera

Control Panel

AC 12V

Ethernet TCP /IP

Video Server

FTP Server

Video Access Control System


Network Remote Monitoring

Multi-voltage control overview

IO Web Controller

1 - Relay output

110V Lamp switch

Internet

TCP /IP

220V Power Switch

Remote Control

380V bearing Switch


Application with Broadcasting System

Broadcasting operation

VPN

TCP/IP

  • Audio system

Remote image viewing

Web Server

Internet

Broadcasting Server




DDNS Server

IP Camera

ISP

Motion Detection or Alarm I/O

Time set up

Mail

FTP

Event

Mobil watching


Central Monitoring System

TCP / IP

Network Managing Software Systems

E-map system

IP cameras equipped

Alarm I/O

Video broadcasting Streaming

Video Server

Analog Cameras

VOD Server


More applications
More Applications

  • Marketing events -Sightseeing, PDA viewing, Product Demo,…


管理、安裝的便利

  • 不用單一的伺服器,只要網路上的電腦有儲存空間,把資料寫入攝影機就可以把影像傳入。

  • 擴充方便,不再受限伺服器上的介面卡。有網路有IP 就可以了。可依實際情形或臨時狀況增加攝影機。

  • 安裝方便,不用再拉一堆電纜線,只要有網路線和電源(POE)就建決了。
