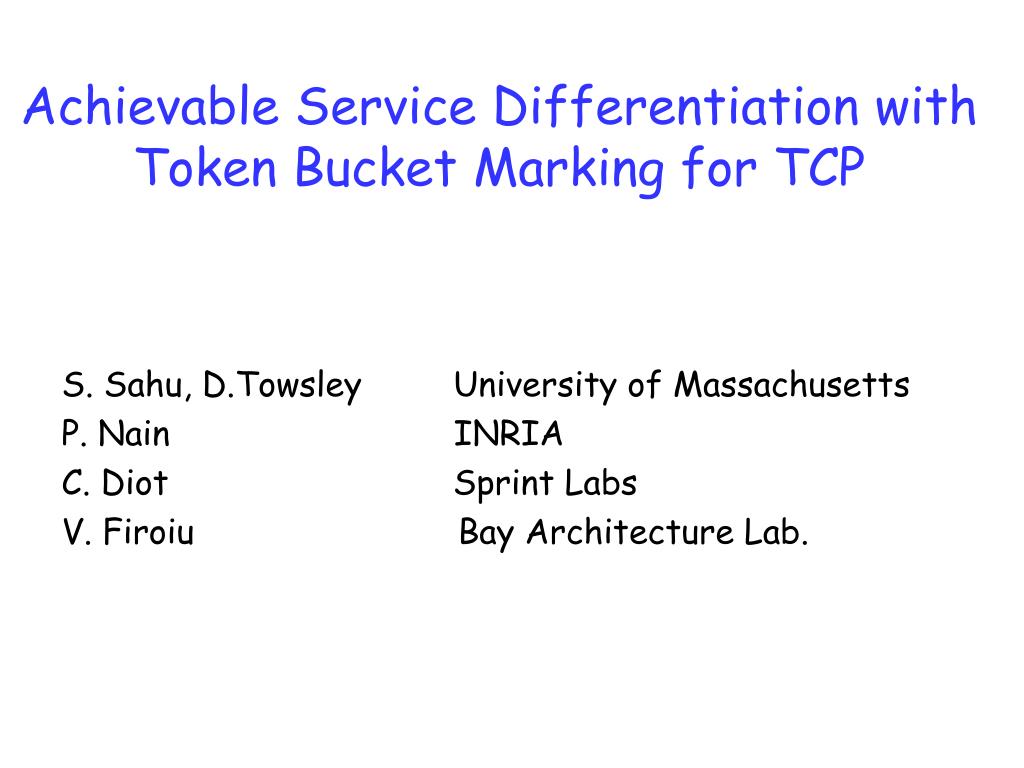

  1. Achievable Service Differentiation with Token Bucket Marking for TCP S. Sahu, D.Towsley University of Massachusetts P. Nain INRIA C. Diot Sprint Labs V. Firoiu Bay Architecture Lab.

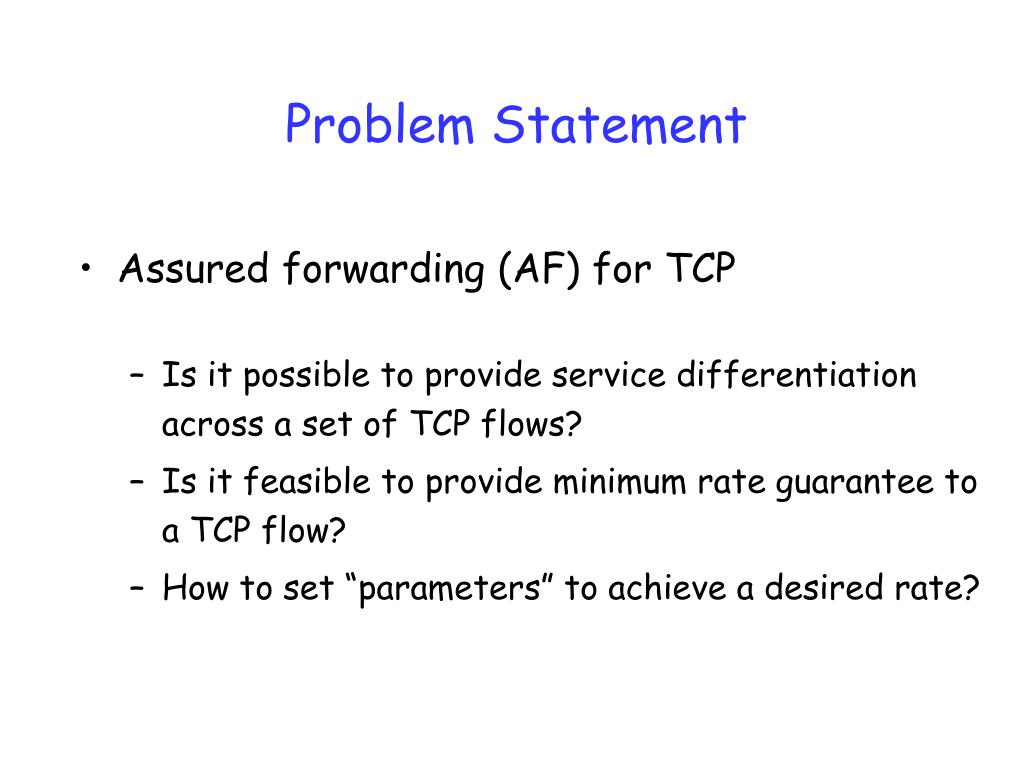

  2. Problem Statement • Assured forwarding (AF) for TCP • Is it possible to provide service differentiation across a set of TCP flows? • Is it feasible to provide minimum rate guarantee to a TCP flow? • How to set “parameters” to achieve a desired rate?

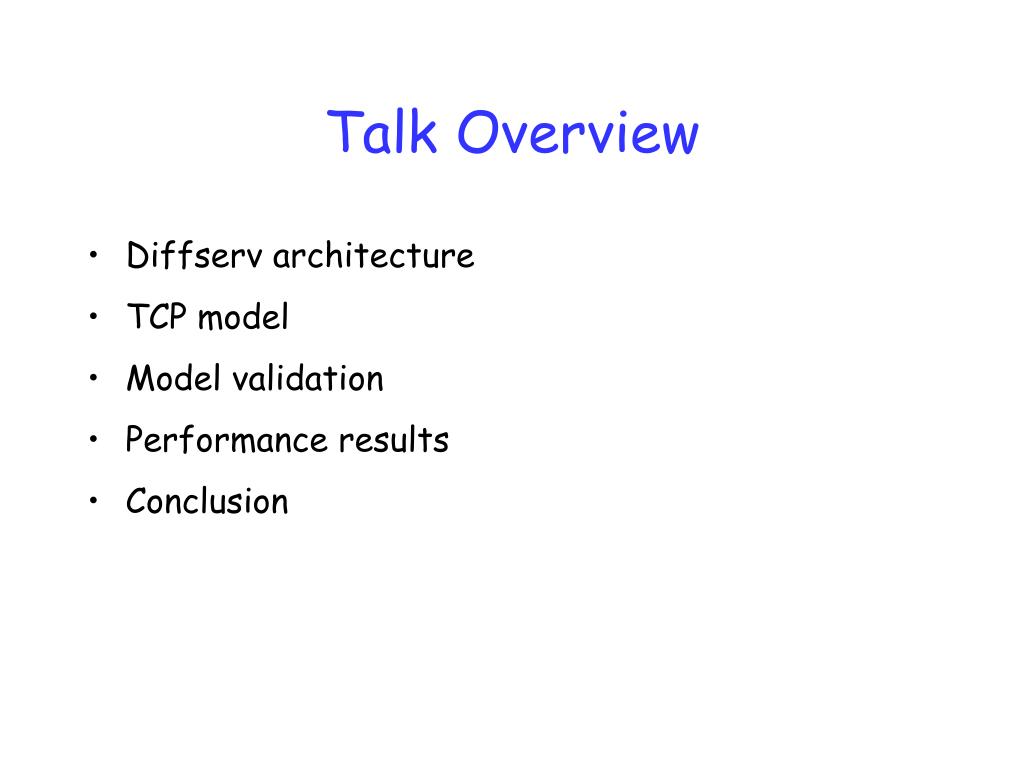

  3. Talk Overview • Diffserv architecture • TCP model • Model validation • Performance results • Conclusion

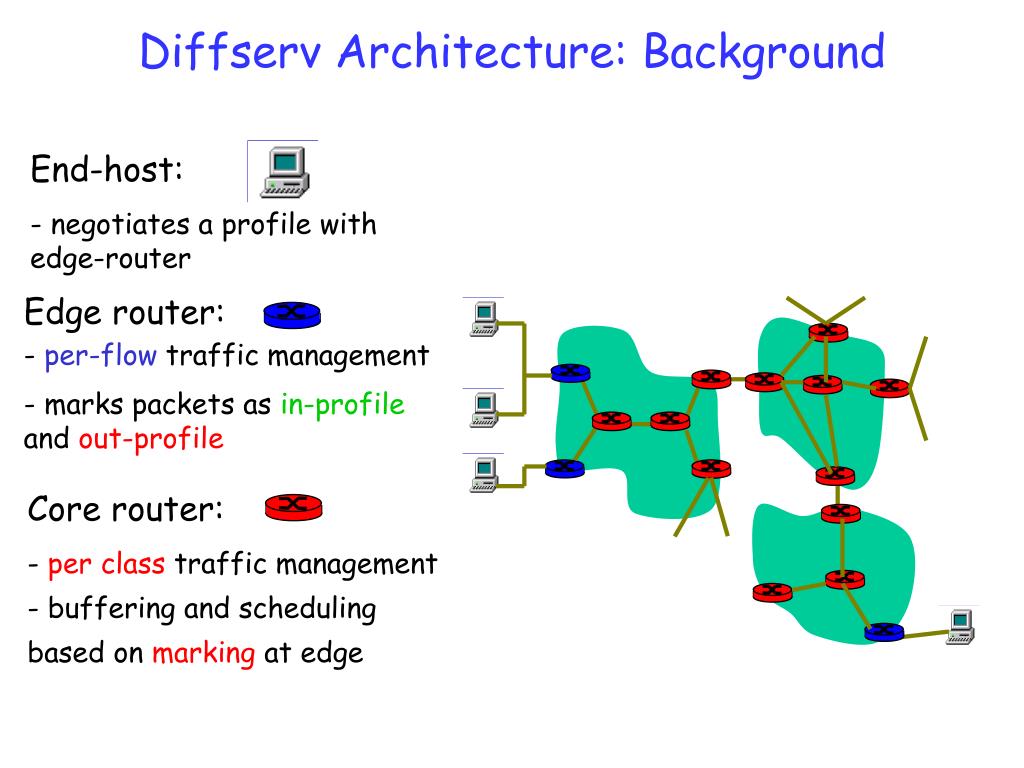

  4. Diffserv Architecture: Background End-host: - negotiates a profile with edge-router Edge router: - per-flow traffic management - marks packets as in-profile and out-profile Core router: - per class traffic management - buffering and scheduling based on marking at edge

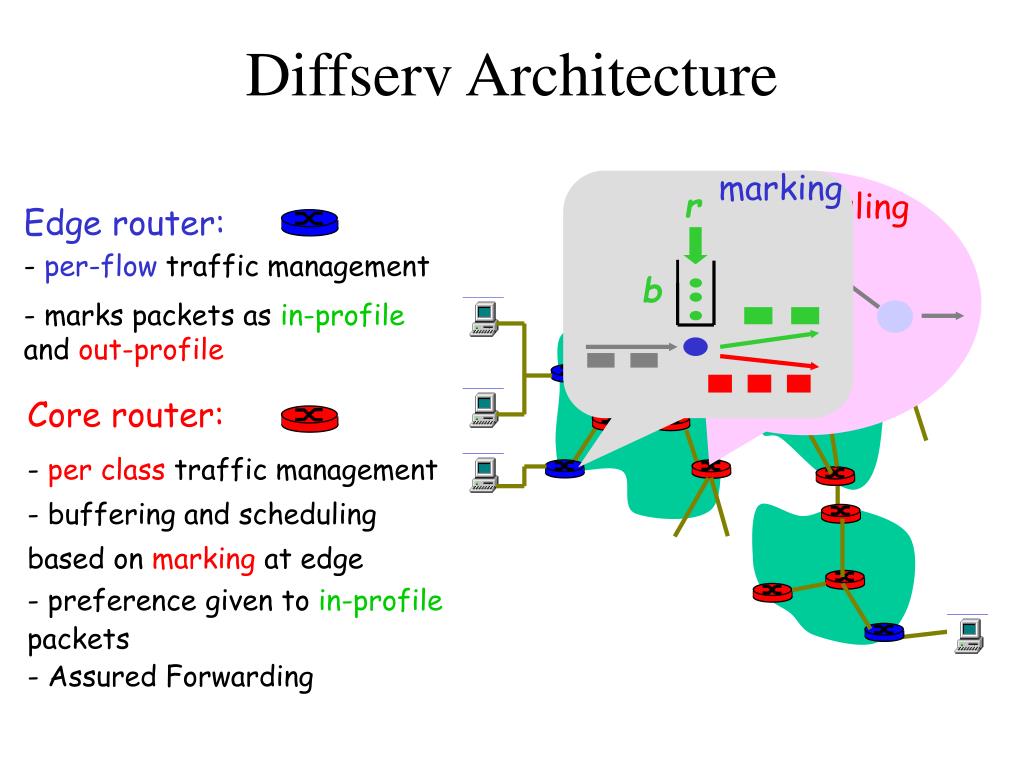

  5. marking r b scheduling . . . Diffserv Architecture Edge router: - per-flow traffic management - marks packets as in-profile and out-profile Core router: - per class traffic management - buffering and scheduling based on marking at edge - preference given to in-profile packets - Assured Forwarding

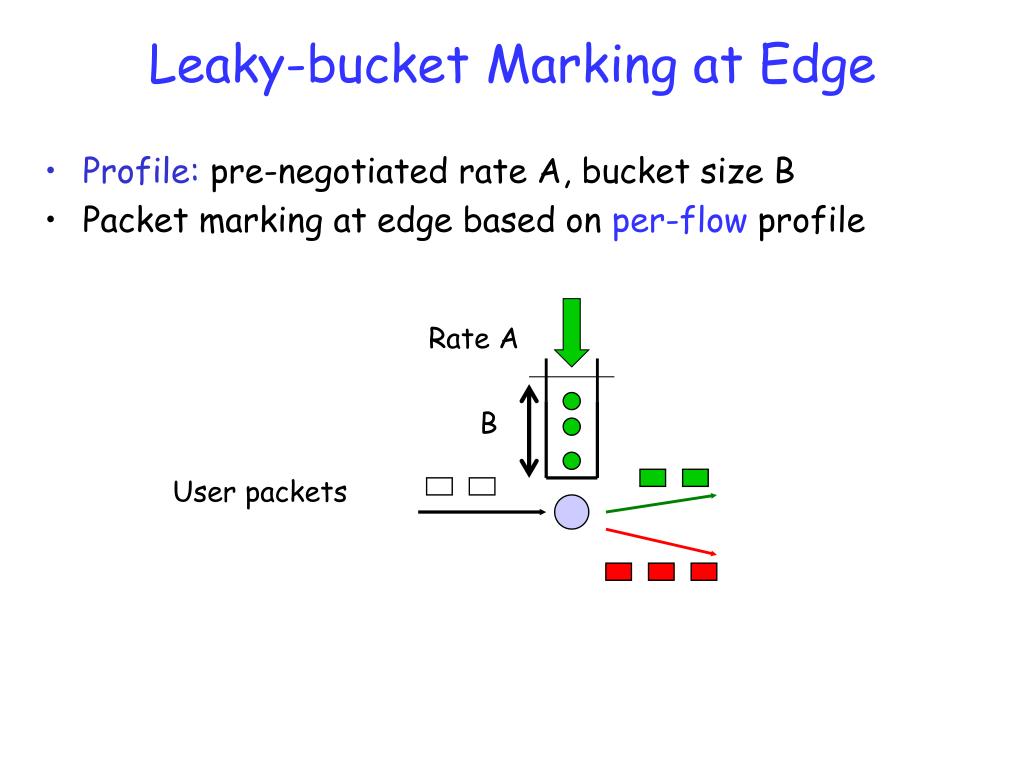

  6. Leaky-bucket Marking at Edge • Profile: pre-negotiatedrate A, bucket size B • Packet marking at edge based on per-flow profile Rate A B User packets

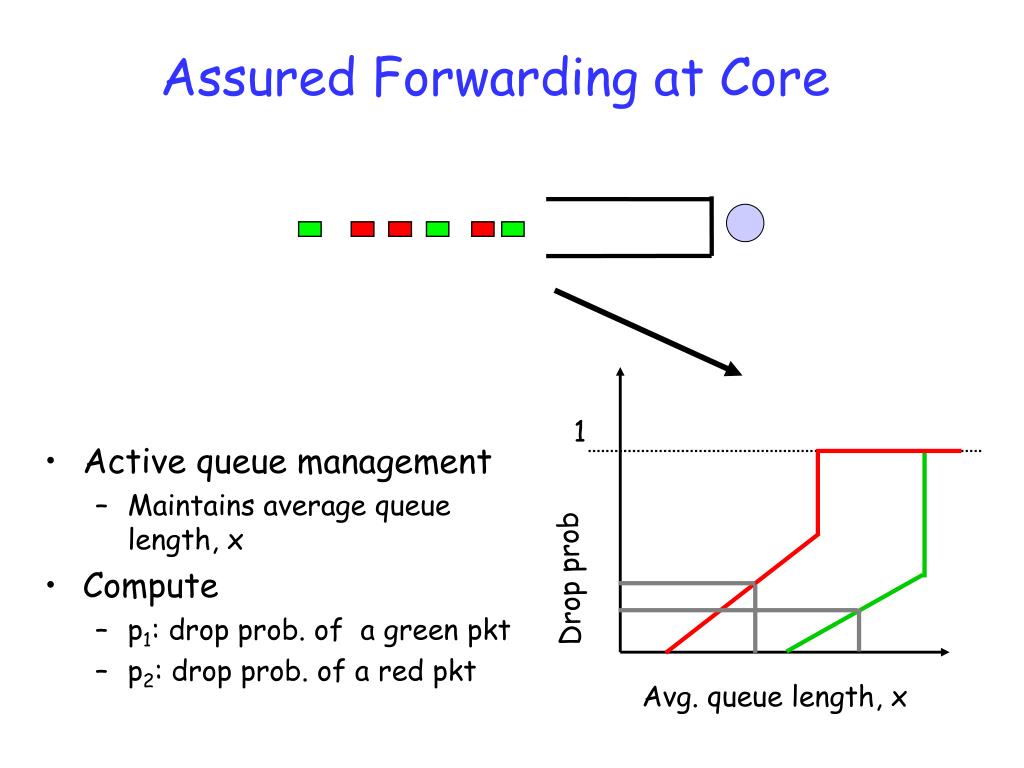

  7. Assured Forwarding at Core • Active queue management • Maintains average queue length, x • Compute • p1: drop prob. of a green pkt • p2: drop prob. of a red pkt 1 Drop prob Avg. queue length, x

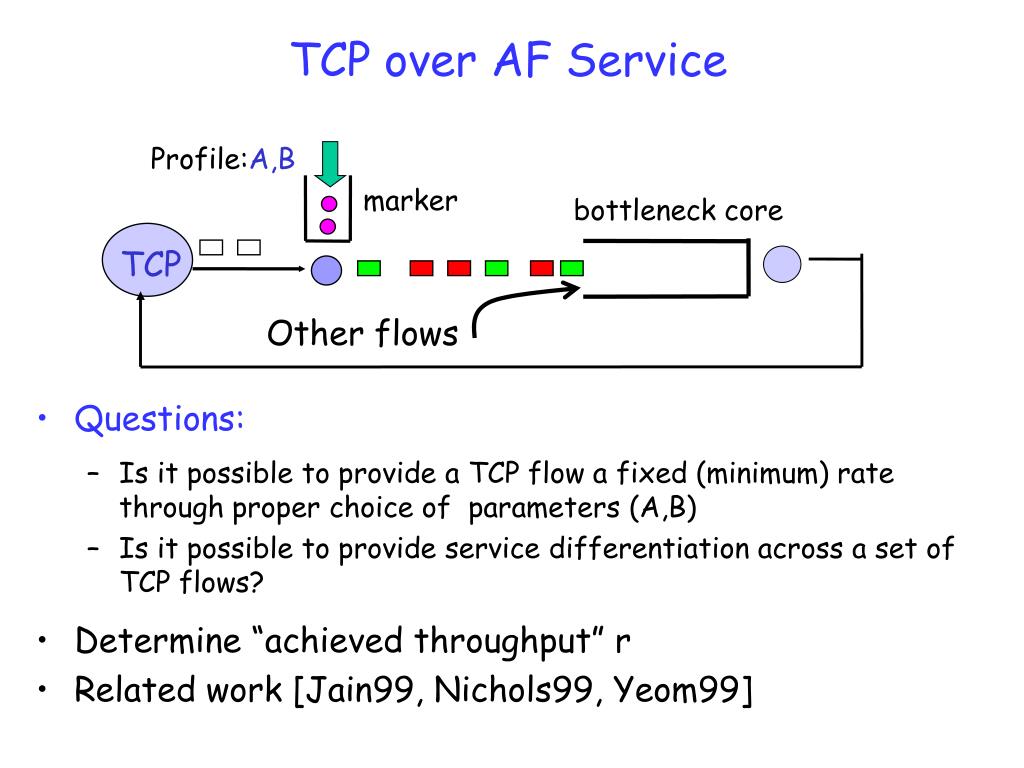

  8. TCP over AF Service Profile:A,B marker bottleneck core • Questions: • Is it possible to provide a TCP flow a fixed (minimum) rate through proper choice of parameters (A,B) • Is it possible to provide service differentiation across a set of TCP flows? • Determine “achieved throughput” r • Related work [Jain99, Nichols99, Yeom99] TCP Other flows

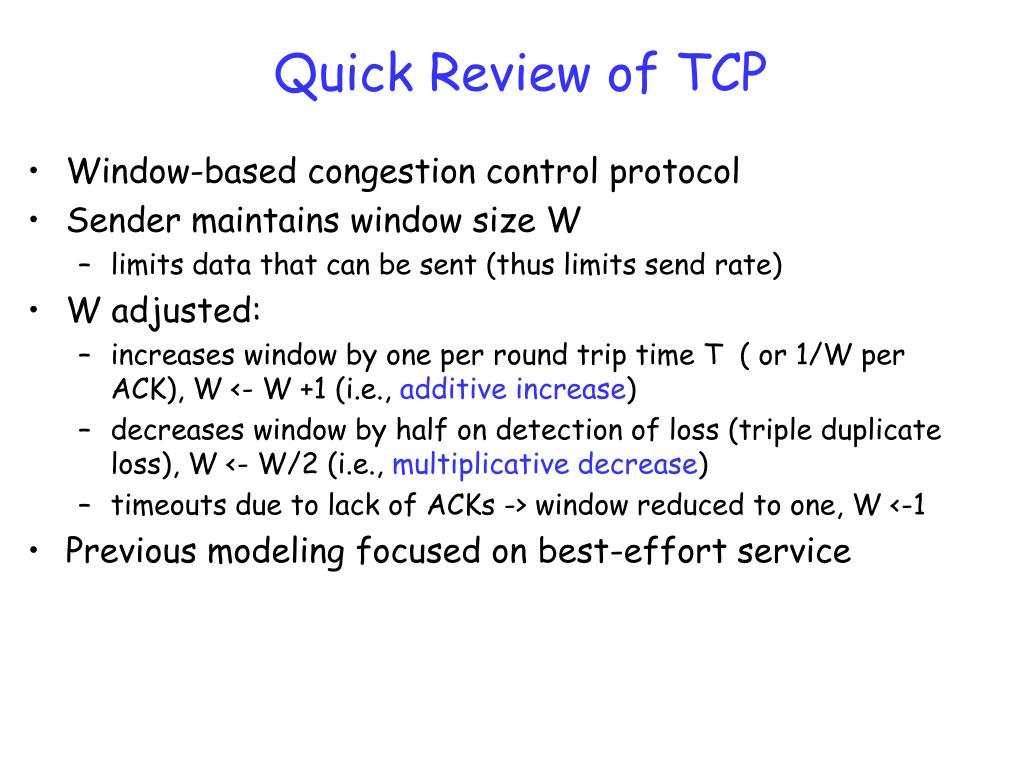

  9. Quick Review of TCP • Window-based congestion control protocol • Sender maintains window size W • limits data that can be sent (thus limits send rate) • W adjusted: • increases window by one per round trip time T ( or 1/W per ACK), W <- W +1 (i.e., additive increase) • decreases window by half on detection of loss (triple duplicate loss), W <- W/2 (i.e., multiplicative decrease) • timeouts due to lack of ACKs -> window reduced to one, W <-1 • Previous modeling focused on best-effort service

  10. p2 p2 p1 Our Approach: Simple Loss Model • non-overlapping loss model • if p2 < 1p1 = 0; under-subscribed case • if p1 > 0p2 = 1; over-subscribed case • derive • “achieved rate” for each case separately • conjecture • overlapping loss model reduces to one or the other 1 Drop probability Avg. queue length x

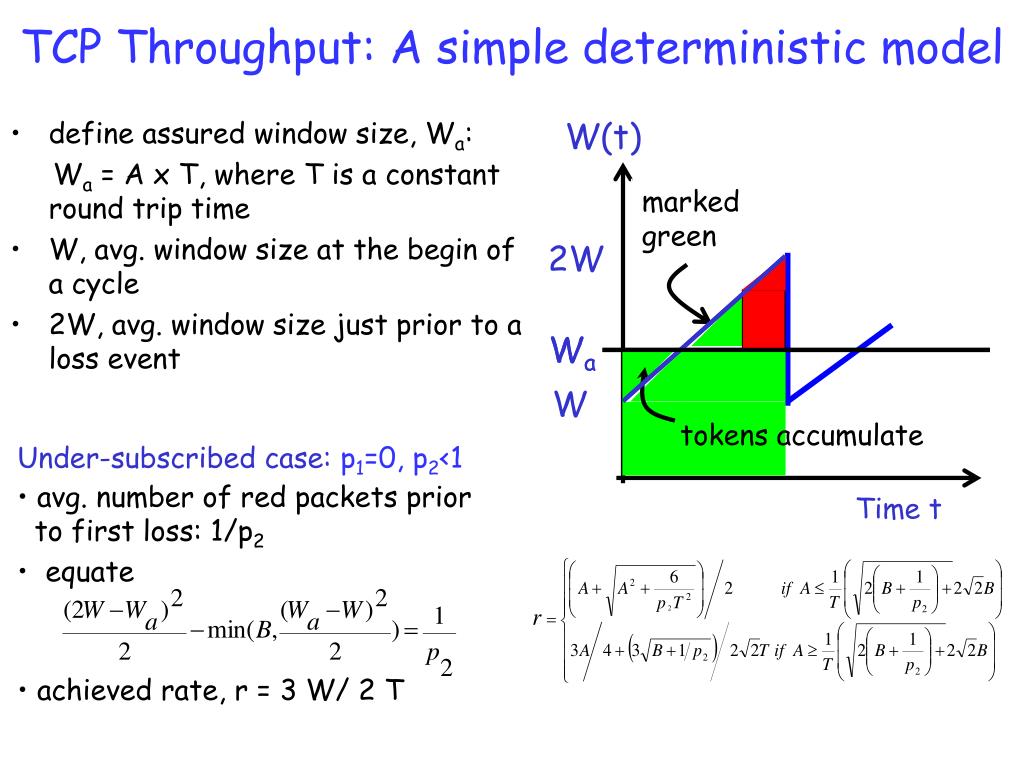

  11. marked green Wa Wa tokens accumulate TCP Throughput: A simple deterministic model W(t) • define assured window size, Wa: Wa = A x T, where T is a constant round trip time • W, avg. window size at the begin of a cycle • 2W, avg. window size just prior to a loss event 2W W • Under-subscribed case: p1=0, p2<1 • avg. number of red packets prior • to first loss: 1/p2 • equate • achieved rate, r = 3 W/ 2 T Time t

  12. TCP Throughput: A simple deterministic model Over-subscribed case: p1>0, p2=1 W(t) marked green • Red packet loss: 2W Wa W tokens accumulate • Green packet loss: • avg. number of green packets prior to first loss: 1/p1 • equate Time t • Sending rate is

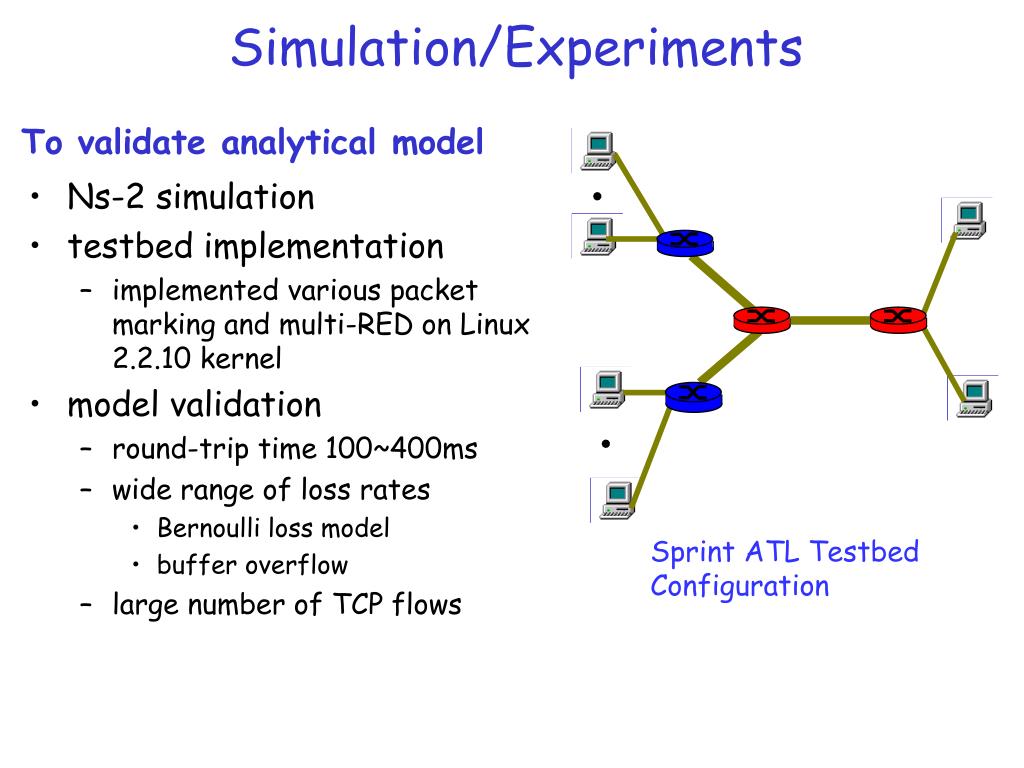

  13. Simulation/Experiments To validate analytical model • Ns-2 simulation • testbed implementation • implemented various packet marking and multi-RED on Linux 2.2.10 kernel • model validation • round-trip time 100~400ms • wide range of loss rates • Bernoulli loss model • buffer overflow • large number of TCP flows Sprint ATL Testbed Configuration

  14. Sample Validation Results Under-subscription case Over-subscription case A = 100kb/s, B=20, T=100ms A=1000kb/s, B=64, T=100ms

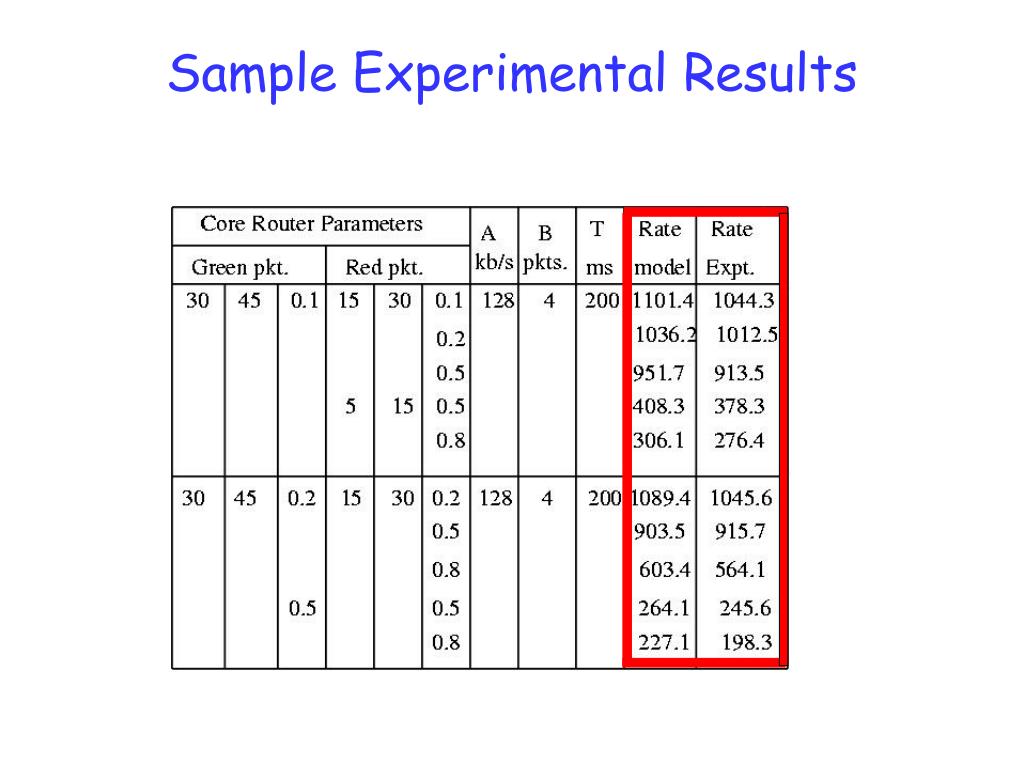

  15. Sample Experimental Results

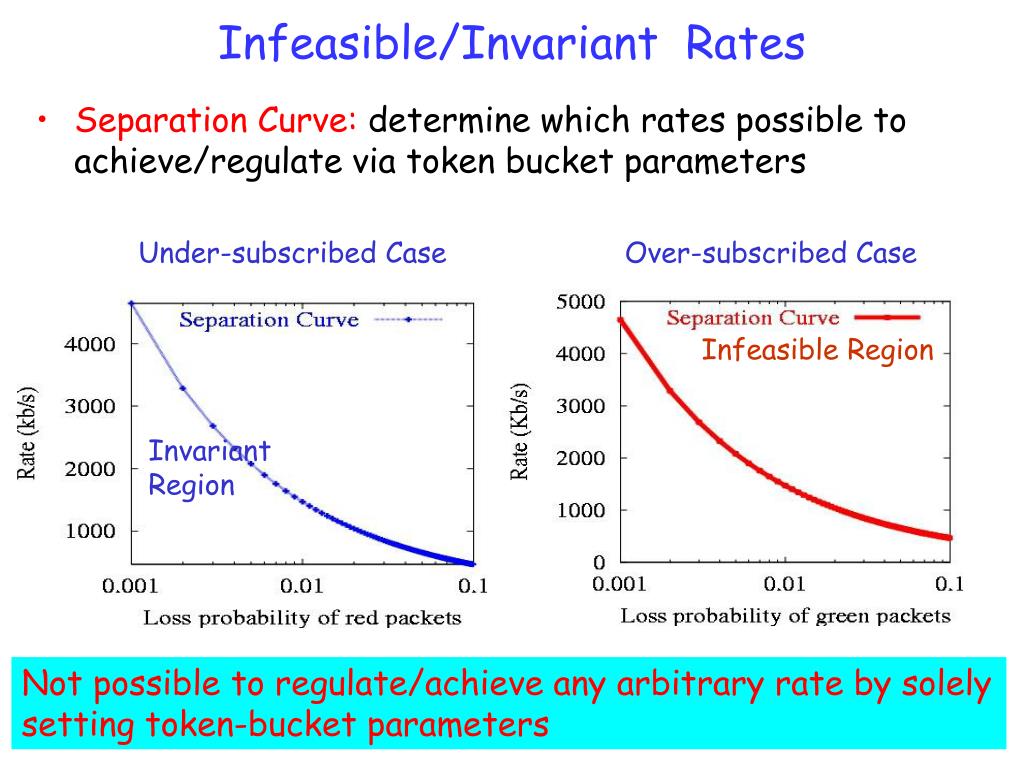

  16. Infeasible/Invariant Rates • Separation Curve:determine which rates possible to achieve/regulate via token bucket parameters Under-subscribed Case Over-subscribed Case Infeasible Region Invariant Region Not possible to regulate/achieve any arbitrary rate by solely setting token-bucket parameters

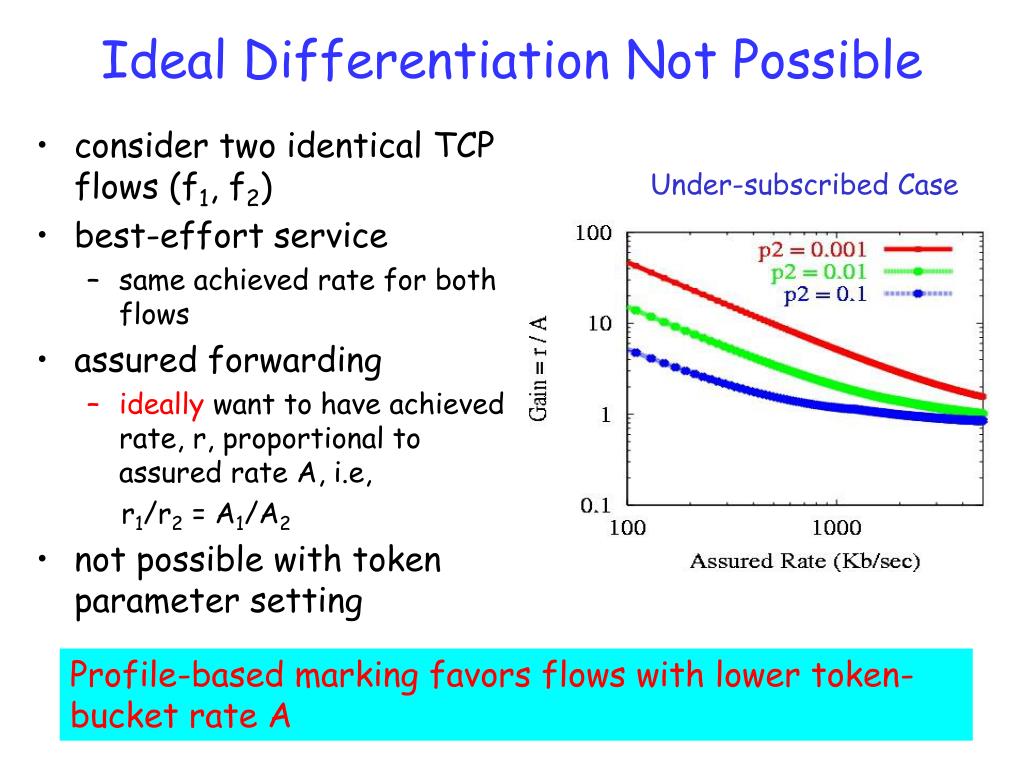

  17. Ideal Differentiation Not Possible Under-subscribed Case • consider two identical TCP flows (f1, f2) • best-effort service • same achieved rate for both flows • assured forwarding • ideally want to have achieved rate, r, proportional to assured rate A, i.e, r1/r2 = A1/A2 • not possible with token parameter setting Profile-based marking favors flows with lower token-bucket rate A

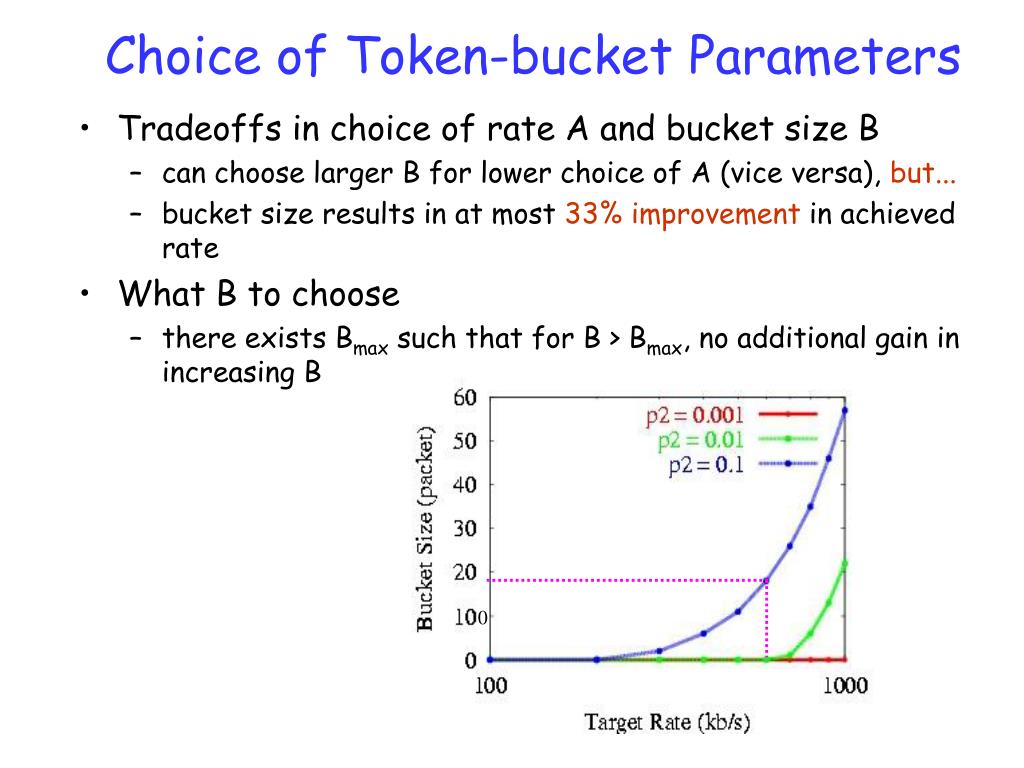

  18. Choice of Token-bucket Parameters • Tradeoffs in choice of rate A and bucket size B • can choose larger B for lower choice of A (vice versa), but... • bucket size results in at most 33% improvement in achieved rate • What B to choose • there exists Bmax such that for B > Bmax, no additional gain in increasing B 0

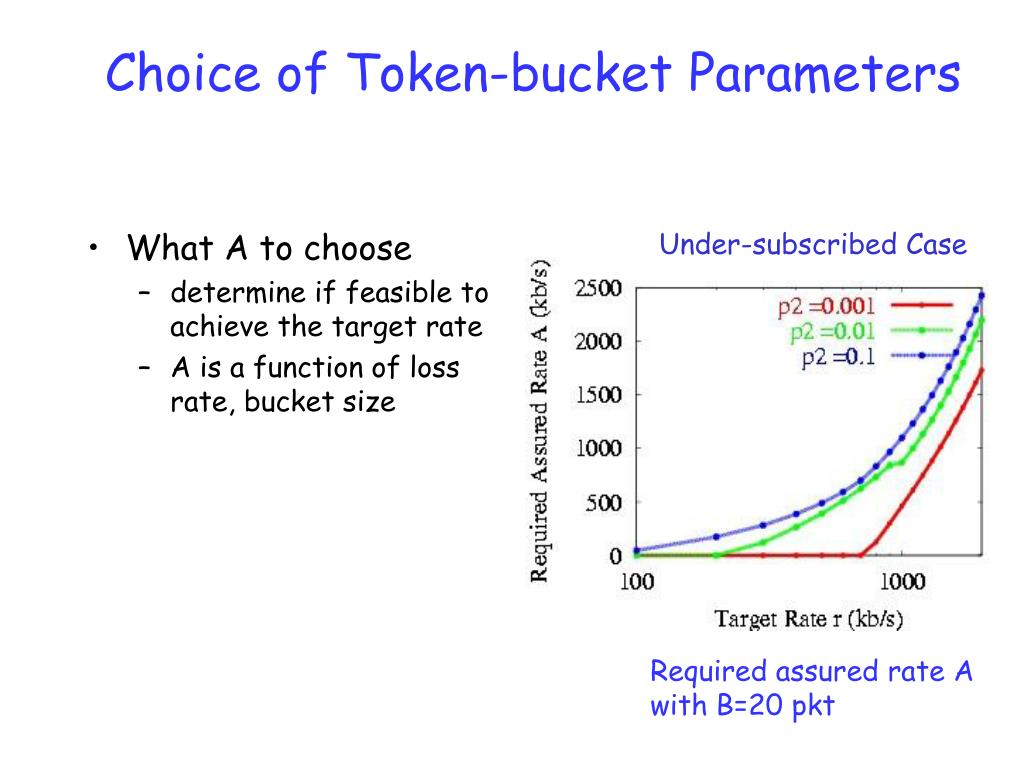

  19. Choice of Token-bucket Parameters • What A to choose • determine if feasible to achieve the target rate • A is a function of loss rate, bucket size Under-subscribed Case Required assured rate A with B=20 pkt

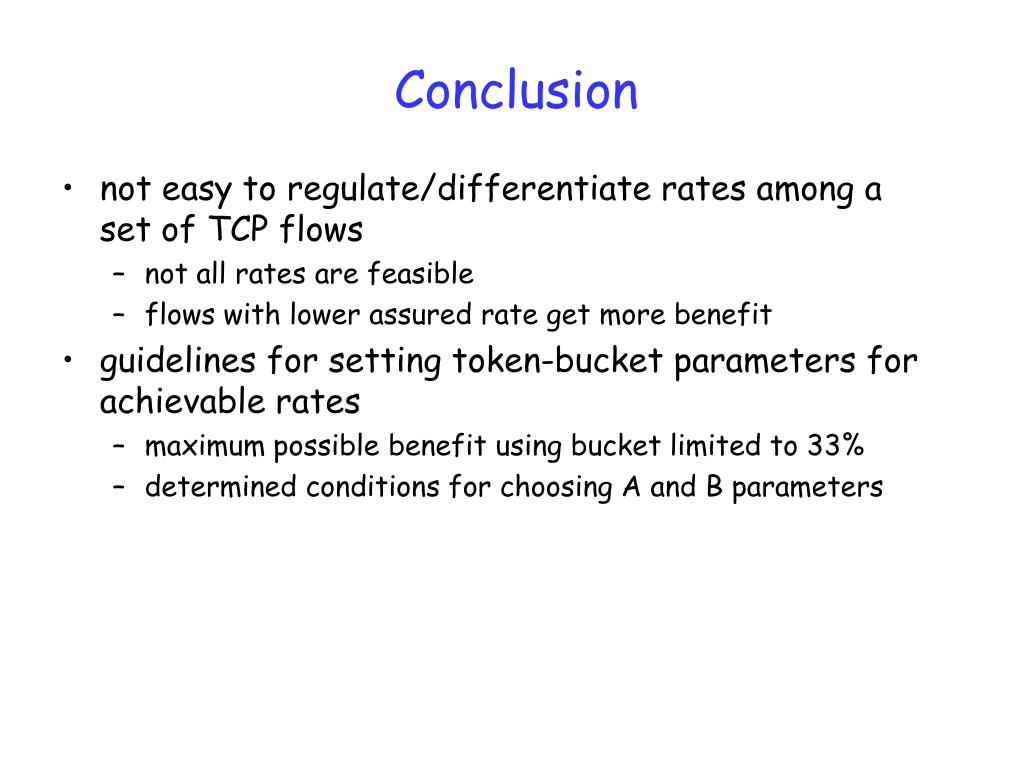

  20. Conclusion • not easy to regulate/differentiate rates among a set of TCP flows • not all rates are feasible • flows with lower assured rate get more benefit • guidelines for setting token-bucket parameters for achievable rates • maximum possible benefit using bucket limited to 33% • determined conditions for choosing A and B parameters
