What is Channel Induction Furnaces?

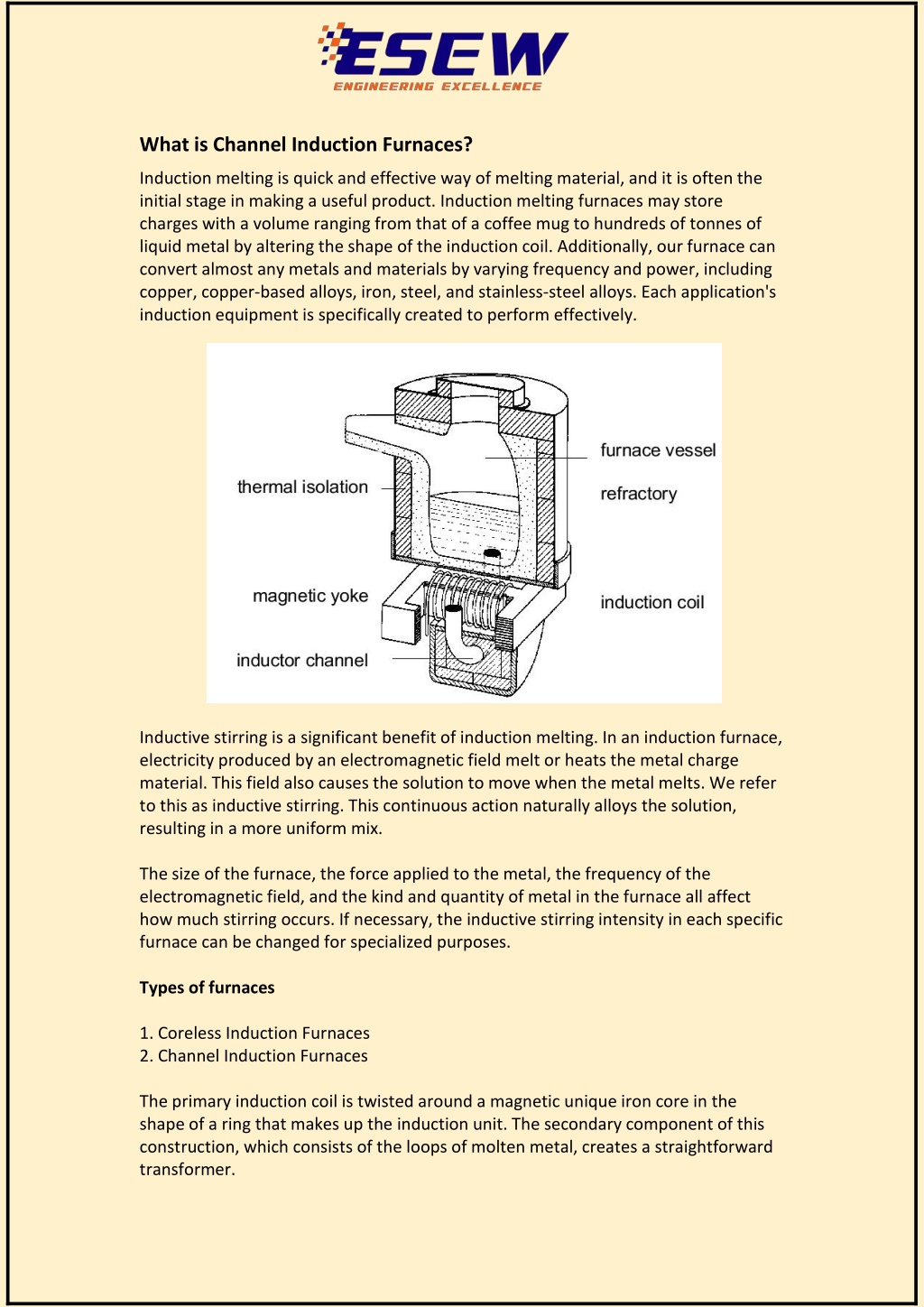

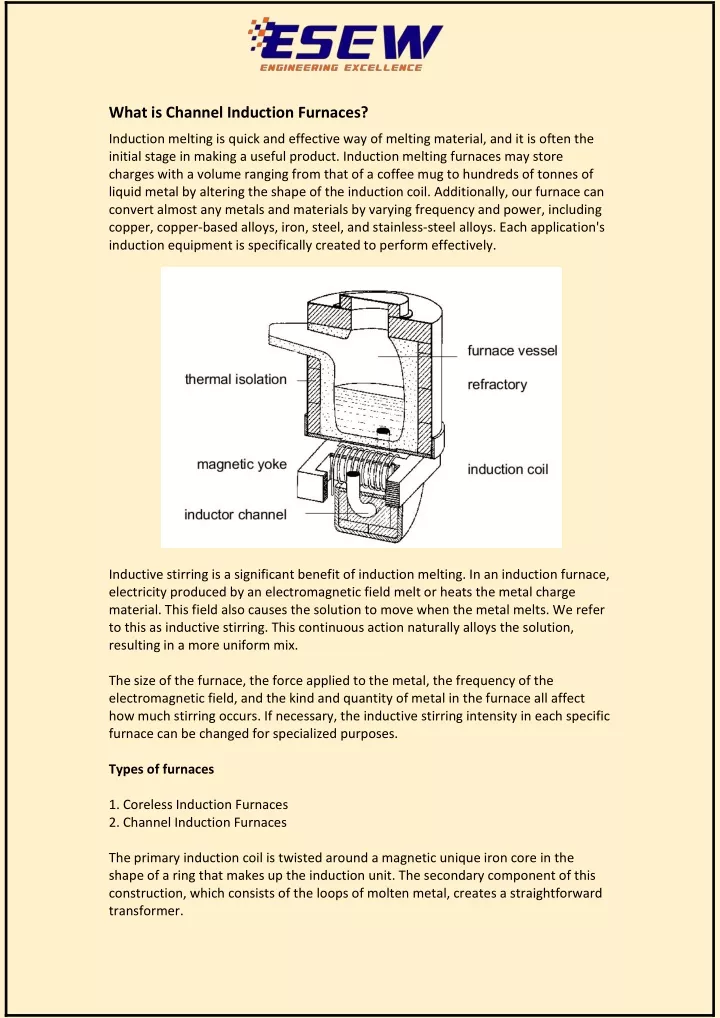

1. What is Channel Induction Furnaces? Induction melting is quick and effective way of melting material, and it is often the initial stage in making a useful product. Induction melting furnaces may store charges with a volume ranging from that of a coffee mug to hundreds of tonnes of liquid metal by altering the shape of the induction coil. Additionally, our furnace can convert almost any metals and materials by varying frequency and power, including copper, copper-based alloys, iron, steel, and stainless-steel alloys. Each application's induction equipment is specifically created to perform effectively. Inductive stirring is a significant benefit of induction melting. In an induction furnace, electricity produced by an electromagnetic field melt or heats the metal charge material. This field also causes the solution to move when the metal melts. We refer to this as inductive stirring. This continuous action naturally alloys the solution, resulting in a more uniform mix. The size of the furnace, the force applied to the metal, the frequency of the electromagnetic field, and the kind and quantity of metal in the furnace all affect how much stirring occurs. If necessary, the inductive stirring intensity in each specific furnace can be changed for specialized purposes. Types of furnaces 1. Coreless Induction Furnaces 2. Channel Induction Furnaces The primary induction coil is twisted around a magnetic unique iron core in the shape of a ring that makes up the induction unit. The secondary component of this construction, which consists of the loops of molten metal, creates a straightforward transformer.

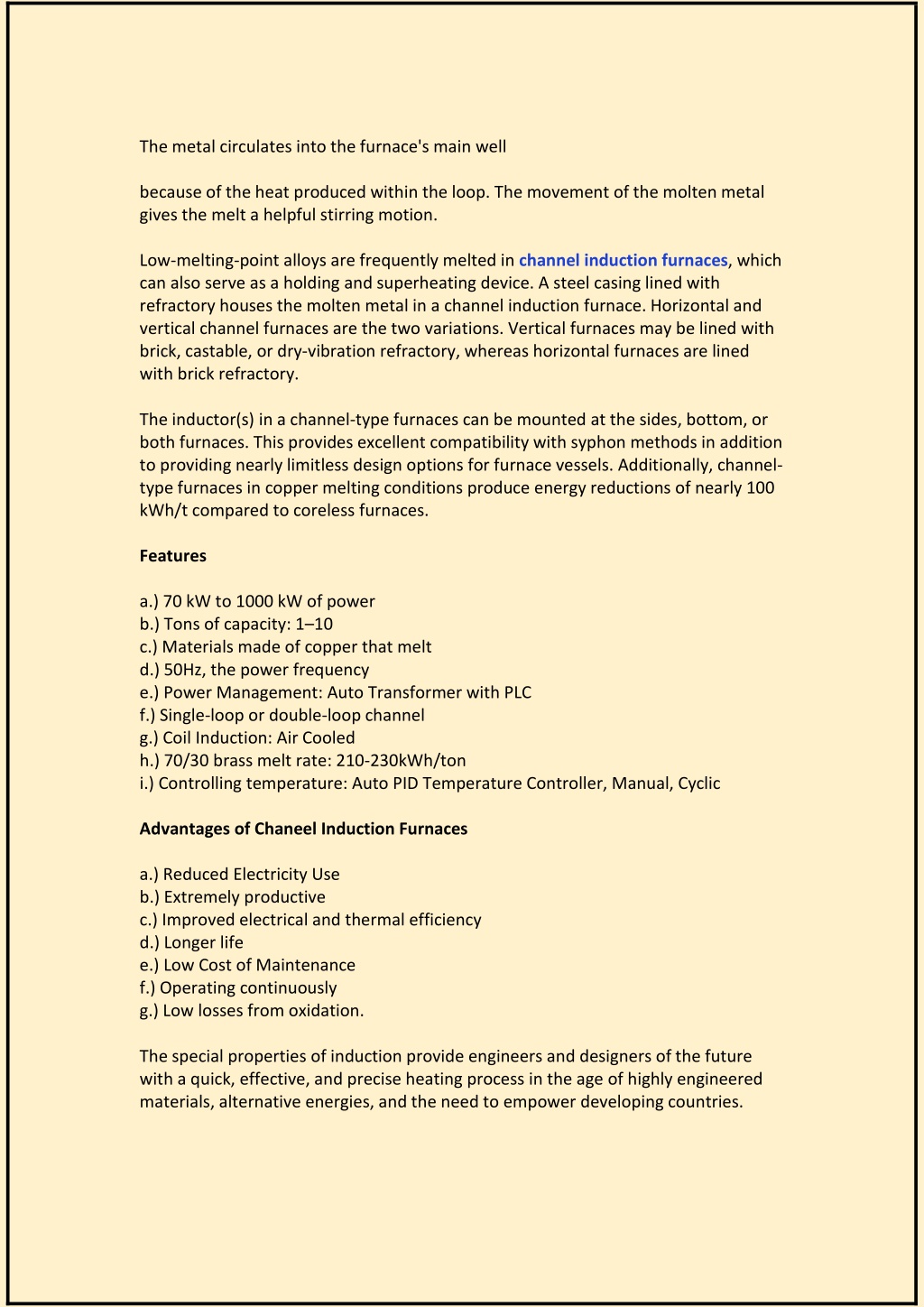

2. The metal circulates into the furnace's main well because of the heat produced within the loop. The movement of the molten metal gives the melt a helpful stirring motion. Low-melting-point alloys are frequently melted in channel induction furnaces, which can also serve as a holding and superheating device. A steel casing lined with refractory houses the molten metal in a channel induction furnace. Horizontal and vertical channel furnaces are the two variations. Vertical furnaces may be lined with brick, castable, or dry-vibration refractory, whereas horizontal furnaces are lined with brick refractory. The inductor(s) in a channel-type furnaces can be mounted at the sides, bottom, or both furnaces. This provides excellent compatibility with syphon methods in addition to providing nearly limitless design options for furnace vessels. Additionally, channel- type furnaces in copper melting conditions produce energy reductions of nearly 100 kWh/t compared to coreless furnaces. Features a.) 70 kW to 1000 kW of power b.) Tons of capacity: 1–10 c.) Materials made of copper that melt d.) 50Hz, the power frequency e.) Power Management: Auto Transformer with PLC f.) Single-loop or double-loop channel g.) Coil Induction: Air Cooled h.) 70/30 brass melt rate: 210-230kWh/ton i.) Controlling temperature: Auto PID Temperature Controller, Manual, Cyclic Advantages of Chaneel Induction Furnaces a.) Reduced Electricity Use b.) Extremely productive c.) Improved electrical and thermal efficiency d.) Longer life e.) Low Cost of Maintenance f.) Operating continuously g.) Low losses from oxidation. The special properties of induction provide engineers and designers of the future with a quick, effective, and precise heating process in the age of highly engineered materials, alternative energies, and the need to empower developing countries.
