  1. Elgin’s Butler Structural Glazed Tile Product for creative Architecture

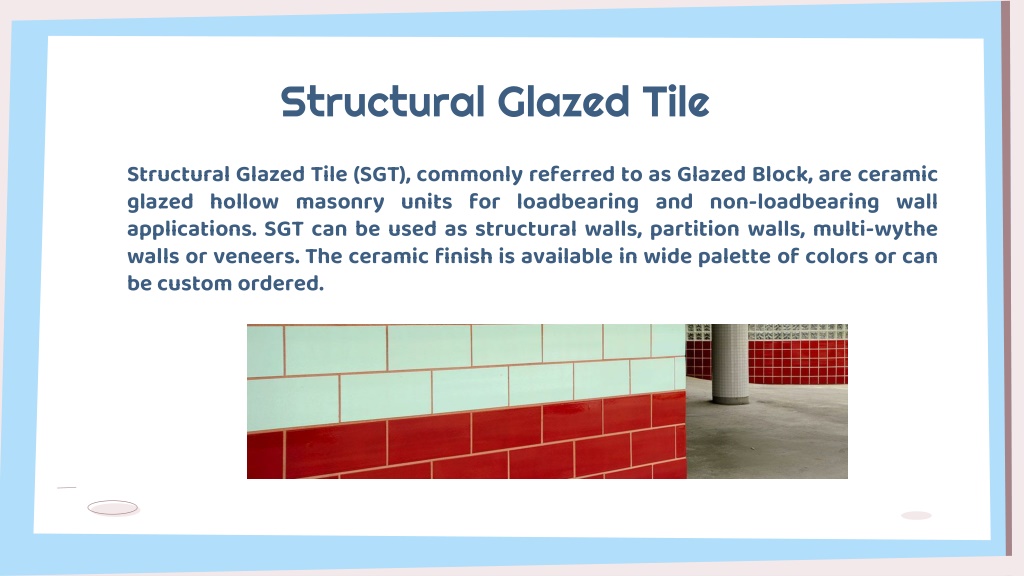

  2. Structural Glazed Tile Structural Glazed Tile (SGT), commonly referred to as Glazed Block, are ceramic glazed hollow masonry units for loadbearing and non-loadbearing wall applications. SGT can be used as structural walls, partition walls, multi-wythe walls or veneers. The ceramic finish is available in wide palette of colors or can be custom ordered.

  3. Product Benefits Integral ceramic finish is resistant to fading and most chemicals Will never peel, discolor or need painting 01 03 Cost competitive for the life of the building Available in 60 colors, or can be custom blended 02 04

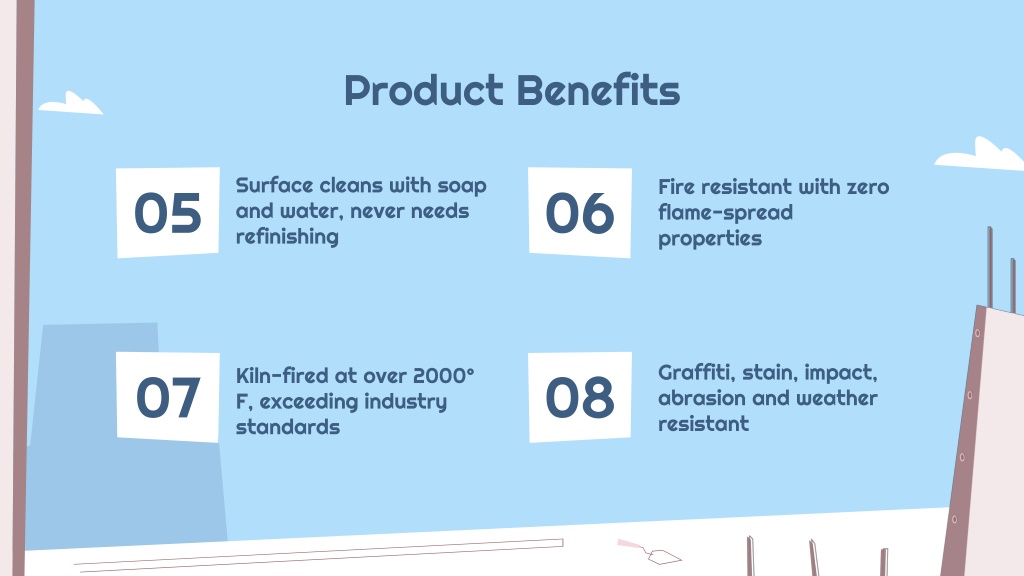

  4. Product Benefits Surface cleans with soap and water, never needs refinishing Fire resistant with zero flame-spread properties 05 06 Kiln-fired at over 2000° F, exceeding industry standards Graffiti, stain, impact, abrasion and weather resistant 07 08

  5. 01 Applications From decorative trim to load-bearing structural wall systems

  6. INTRODUCTION From decorative trim to load-bearing structural wall systems, Elgin Butler offers Glazed Brick, Structural Glazed Tile and other ceramic glazed masonry units for residential and commercials projects of every size.

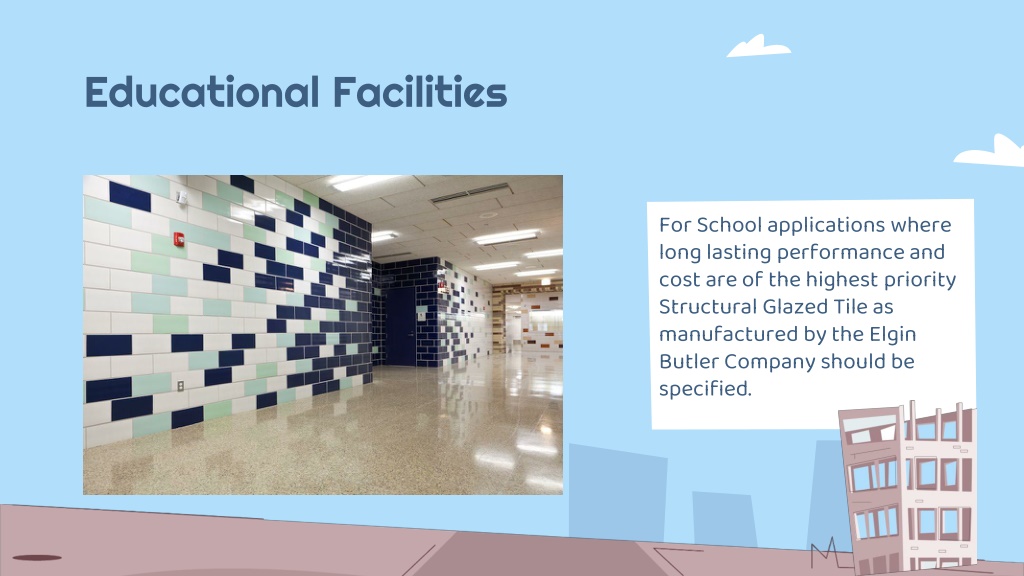

  7. Educational Facilities For School applications where long lasting performance and cost are of the highest priority Structural Glazed Tile as manufactured by the Elgin Butler Company should be specified.

  8. REQUIREMENTS The following ASTM Standards apply: • ASTM C-126 Ceramic Glaze Chemical Resistant Fade Resistant Impervious Finish that is fires into the body of the fireclay unit at over 2000*F. • Chip Resistant Never peels or needs refinishing Fire Resistant Zero Smoke Density Zero Flame Spread Zero Toxic Fumes Impact Resistant ASTM C-126 and/or ASTM C-652 Physical Properties Load Bearing and Non-Load Bearing applications

  9. FOOD PROCESSING We have been in the business of manufacturing and selling Structural Clay Products, with many installations in the food processing industry. We continue to meet or exceed the standards set forth by the FDA and the USDA for use in the food processing facilities and will certify the same

  10. REQUIREMENTS The following ASTM Standards apply: • ASTM C-126 Ceramic Glaze Chemical Resistant Fade Resistant Impervious Finish that is fires into the body of the fireclay unit at over 2000*F. • Chip Resistant Never peels or needs refinishing Fire Resistant o Zero Smoke Density o Zero Flame Spread o Zero Toxic Fumes Impact Resistant • ASTM C-126 and/or ASTM C-652 Physical Properties Load Bearing and Non-Load Bearing applications

  11. AWESOME SHAPES

  12. 4WHA 4WCA 4W2A 4W SERIES

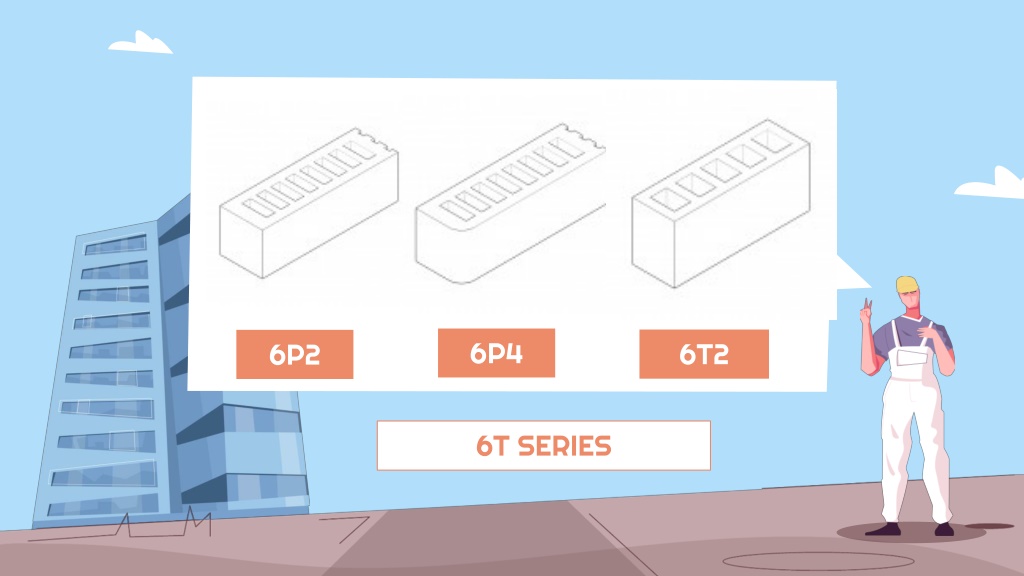

  13. 6T2 6P4 6P2 6T SERIES

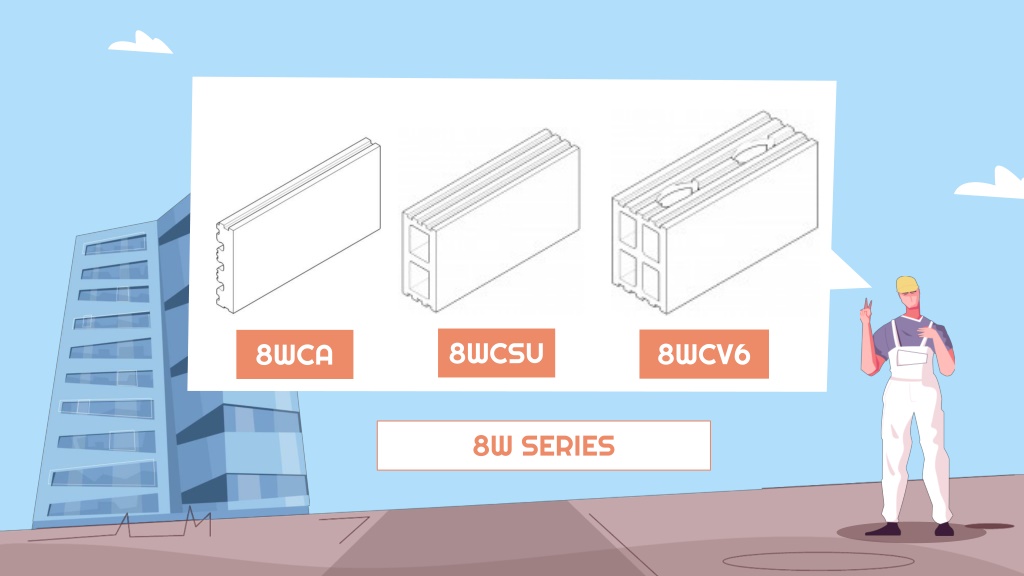

  14. 8WCV6 8WCSU 8WCA 8W SERIES

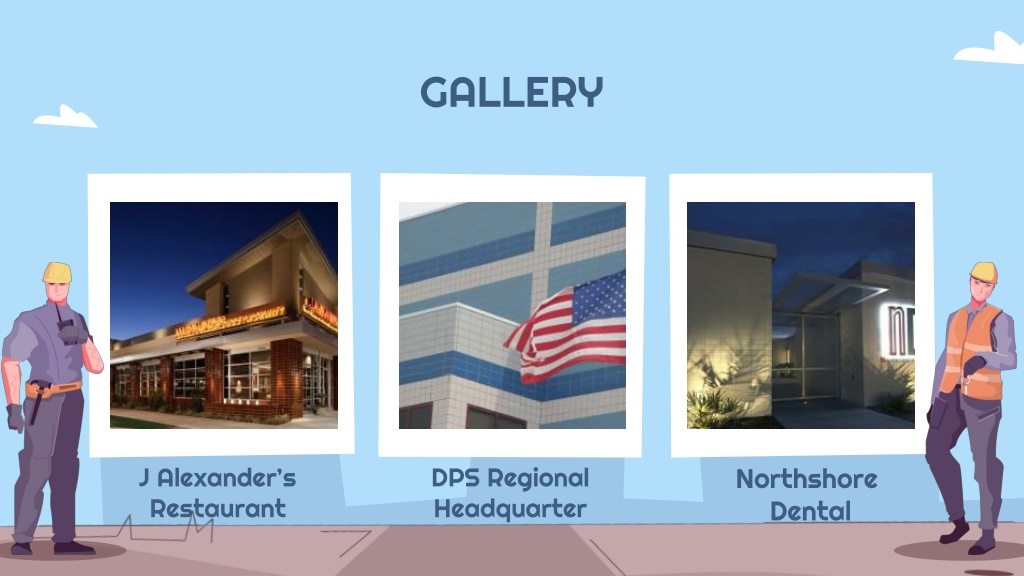

  15. GALLERY J Alexander’s Restaurant DPS Regional Headquarter Northshore Dental

  16. DELIVERY, STORAGE, HANDLING Deliver SGT to jobsite as packaged by manufacturer. Offload SGT packages using equipment that will not damage SGT. No SGT is allowed to be in direct contact with the ground. Do not double stack cubes of SGT. Cover SGT with non-staining waterproof membrane covering. Keep units dry. Allow air circulation around stacked units. Installation of wet or stained SGT is prohibited.

  17. Our History You The Elgin-Butler Brick Company Story

  18. Elgin Butler, Product for creative Architecture

  19. Our Principles After being passed down with pride and care through many generations, Elgin-Butler Brick Company remains loyal to the principles on which it was founded.

  20. The Elgin Butler brand products were designed to offer a custom look as well as exceptional quality. We proudly offer Structural Glazed Tile in countless colors and shapes, creating an attractive and attractive option for both residential and commercial projects alike.

  21. THANKS Do you have any questions? customerservice@elginbutler.com +512.285.3356 https://elginbutler.com/
