  1. 3/10/03, Minute Paper • You have to slow down and show all your steps…If they are messy & hard & you skip over them, how do you expect us to be able to do? • If I, hypothetically of course, were to get 25 points out of 100 on my homework, does that mean I’m going to fail the course? • Is there a easier way to do ac circuit analysis? • Set of office hours? • Lab data and graphs have to be clearly presented in the report. Not just raw data sheet! • 1:30 meeting

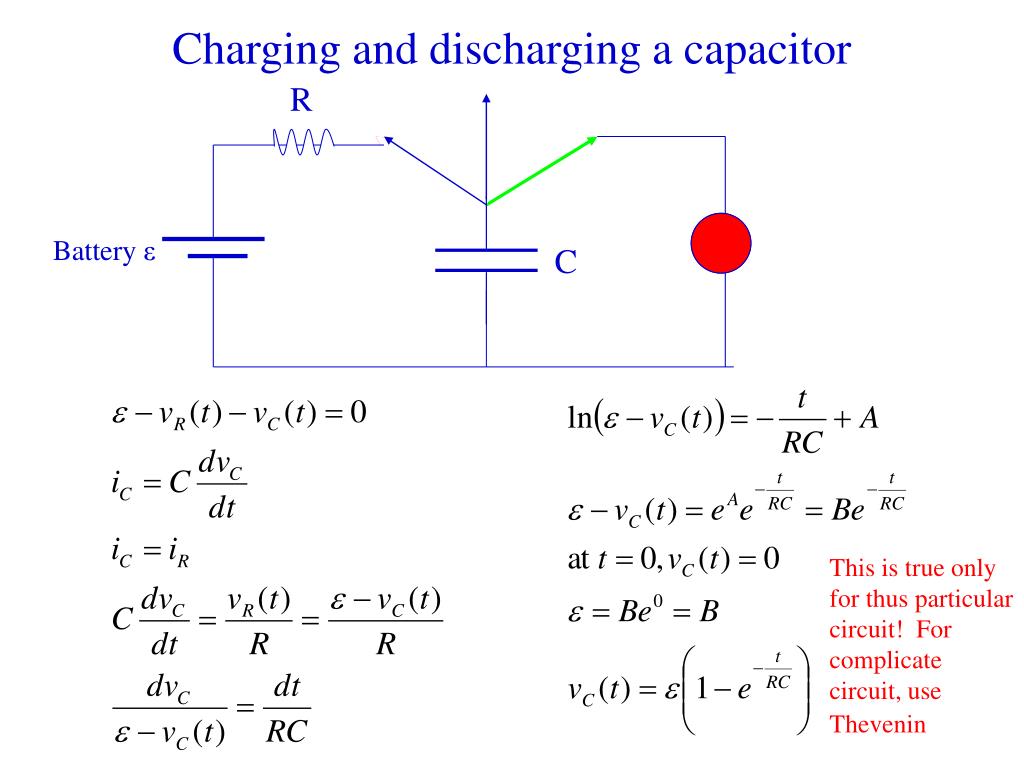

  2. + + + + + + - - - - - - - Charging and discharging a capacitor R Battery ε C This is true only for thus particular circuit! For complicate circuit, use Thevenin

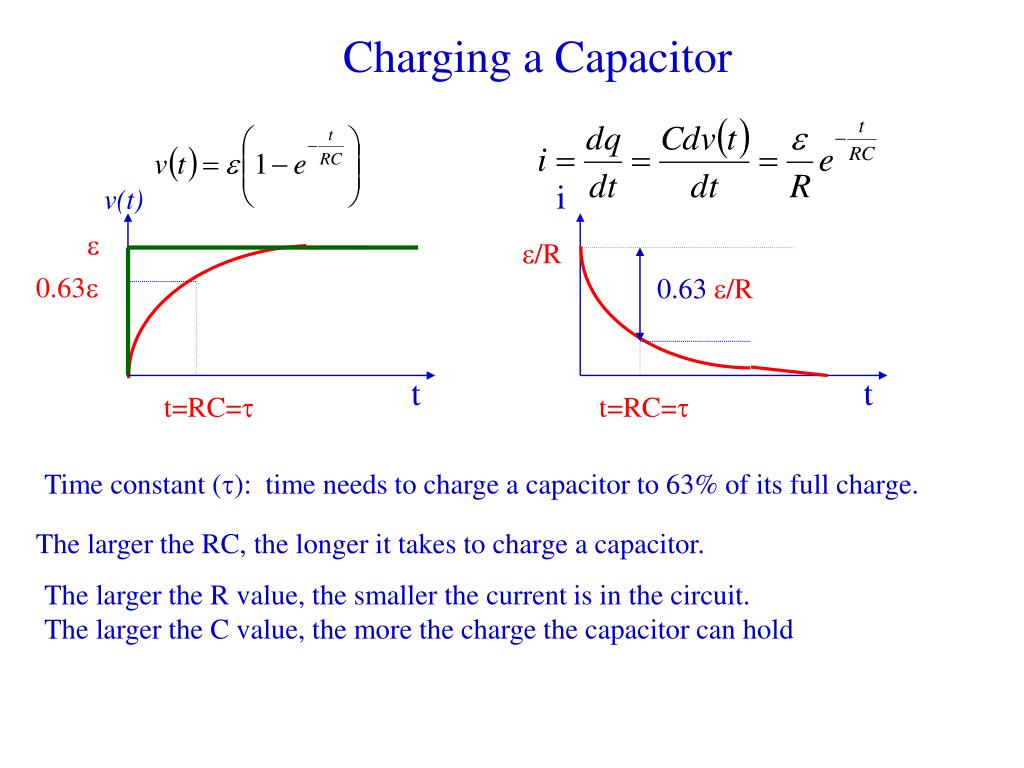

  3. i v(t) e e/R 0.63e 0.63 e/R t t t=RC=t t=RC=t Charging a Capacitor Time constant (t): time needs to charge a capacitor to 63% of its full charge. The larger the RC, the longer it takes to charge a capacitor. The larger the R value, the smaller the current is in the circuit. The larger the C value, the more the charge the capacitor can hold

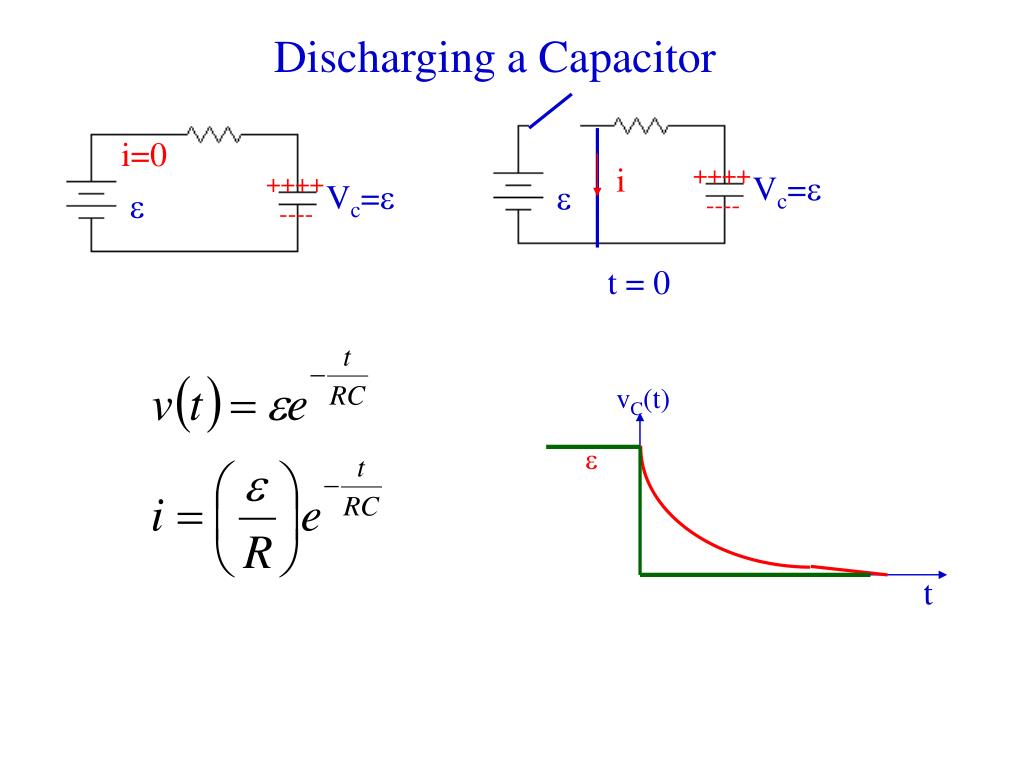

  4. i=0 i ++++ ++++ Vc=e Vc=e e e vC(t) ---- ---- t = 0 e t Discharging a Capacitor
