  1. We can learn a lot about agriculture in ancient Egypt from their art.

  2. 4-5 million people during the New Kingdom Greek historian Herodotus wrote “Egypt is truly a gift of the Nile” http://www.artsci.wustl.edu/~anthro/courses/306/Nile%20Delta.jpg http://lexicorient.com/e.o/atlas/maps/nile.gif

  3. ~ 120 million tons of sediment accumulate behind the dam each year High Aswan Dam constructed beginning in 1960 Most of Egypt is desert ! This sediment contains ~ 10,000 tons of biologically available P and N ! 6 TRILLION CFT 1.2 TRILLION CFT High Aswan Dam Hoover Dam

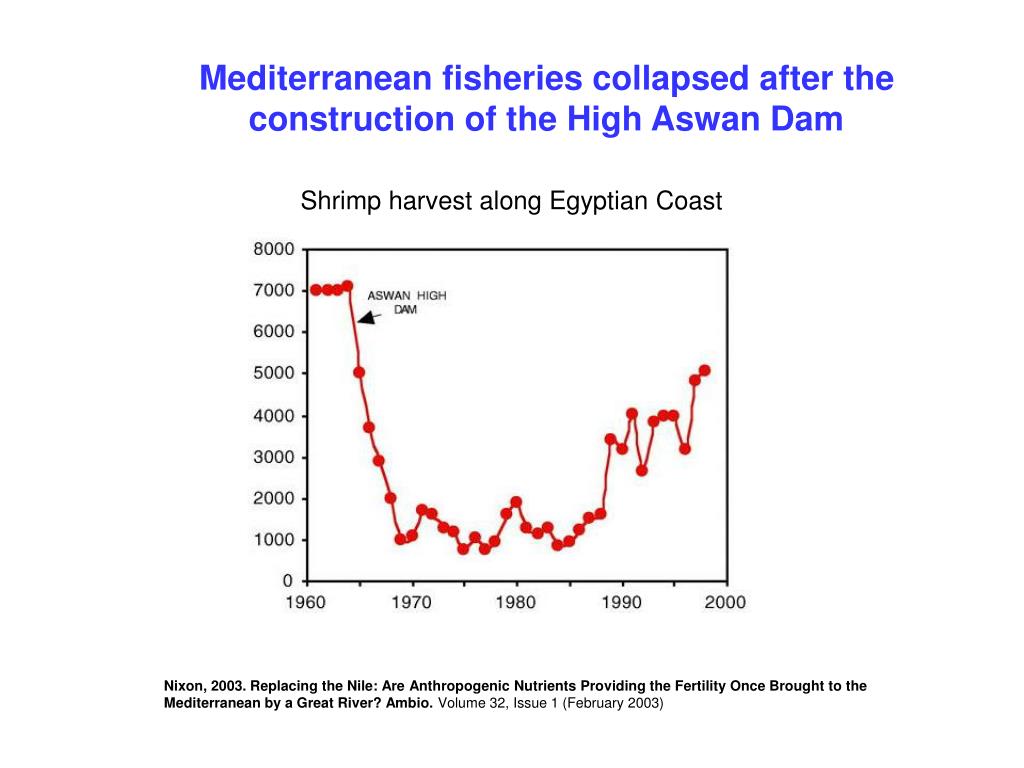

  4. Mediterranean fisheries collapsed after the construction of the High Aswan Dam Shrimp harvest along Egyptian Coast Nixon, 2003. Replacing the Nile: Are Anthropogenic Nutrients Providing the Fertility Once Brought to the Mediterranean by a Great River? Ambio. Volume 32, Issue 1 (February 2003)

  5. Stercutius Roman art also reveals a lot about their agriculture. In addition to Saturn and Ceres (Roman god and goddess of Agriculture), the Romans had a god of manure named Stercutius who was worshiped by old women and children. Ceres

  6. A number of Roman authors (e.g., Cato, Columella, Pliny the Elder) wrote detailed textbooks on agriculture that described the use of animal manures, green manures and crop rotations to improve soil productivity. These books were considered important sources of information about agriculture for over a thousand years.

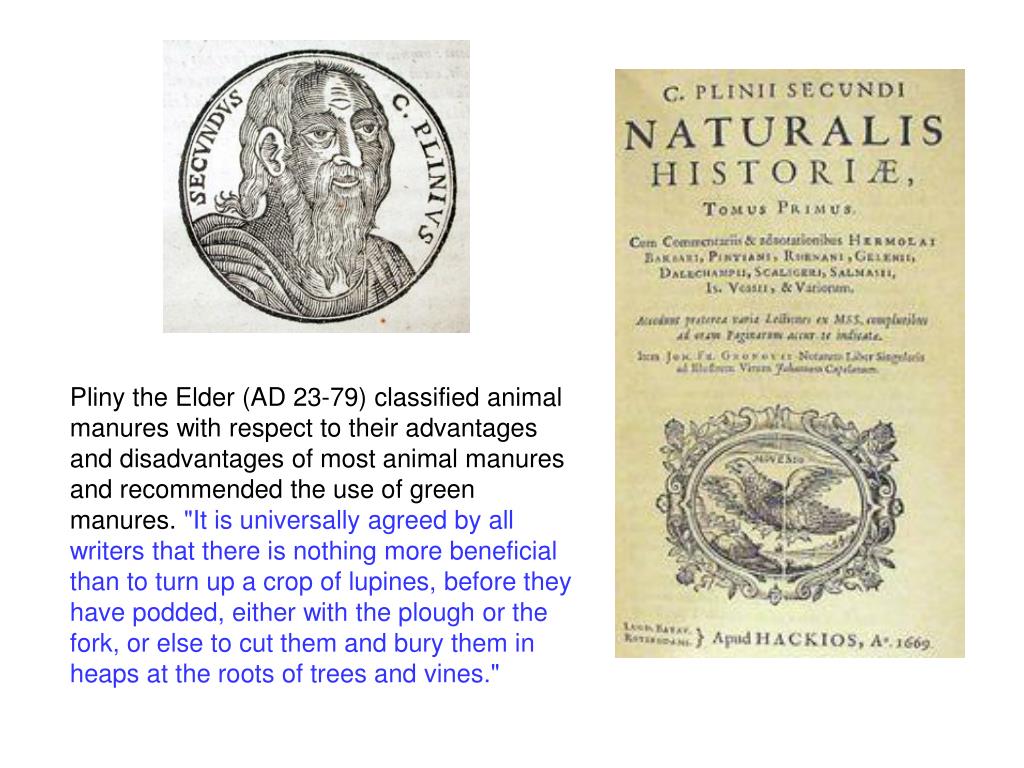

  7. Pliny the Elder (AD 23-79) classified animal manures with respect to their advantages and disadvantages of most animal manures and recommended the use of green manures. "It is universally agreed by all writers that there is nothing more beneficial than to turn up a crop of lupines, before they have podded, either with the plough or the fork, or else to cut them and bury them in heaps at the roots of trees and vines."

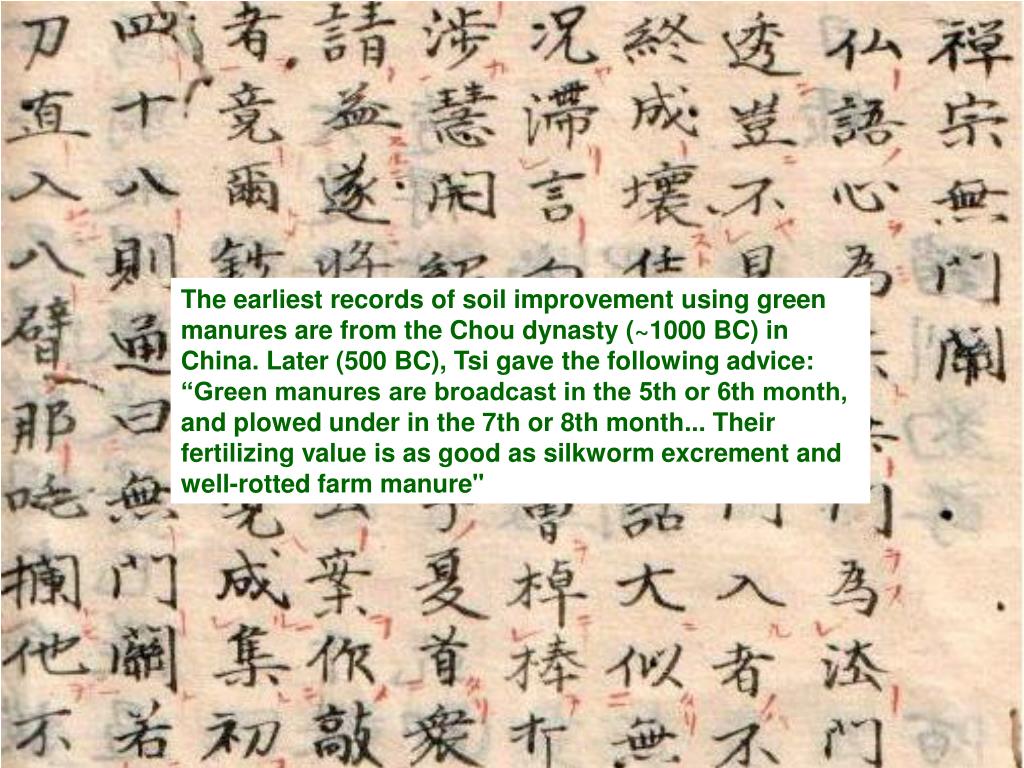

  8. The earliest records of soil improvement using green manures are from the Chou dynasty (~1000 BC) in China. Later (500 BC), Tsi gave the following advice: “Green manures are broadcast in the 5th or 6th month, and plowed under in the 7th or 8th month... Their fertilizing value is as good as silkworm excrement and well-rotted farm manure"

  9. “ We desired to learn how it is possible, after twenty and perhaps thirty or even forty centuries, for their soils to be made to produce sufficiently for the maintenance of such dense populations.. “ FH King, 1911

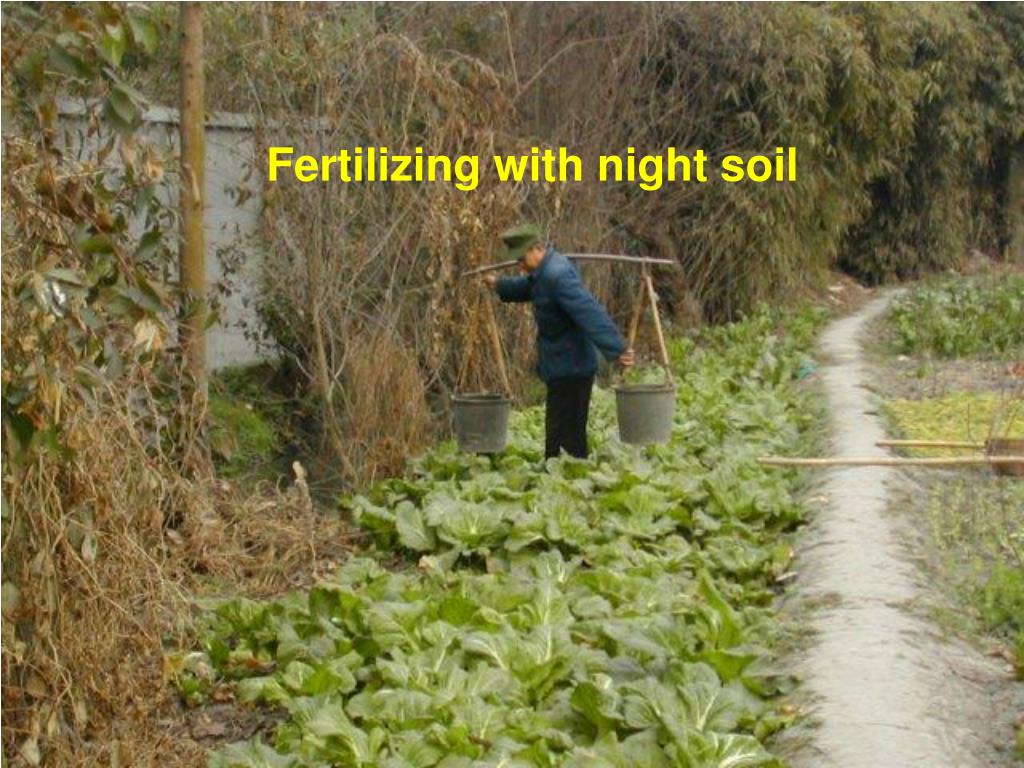

  10. Fertilizing with night soil

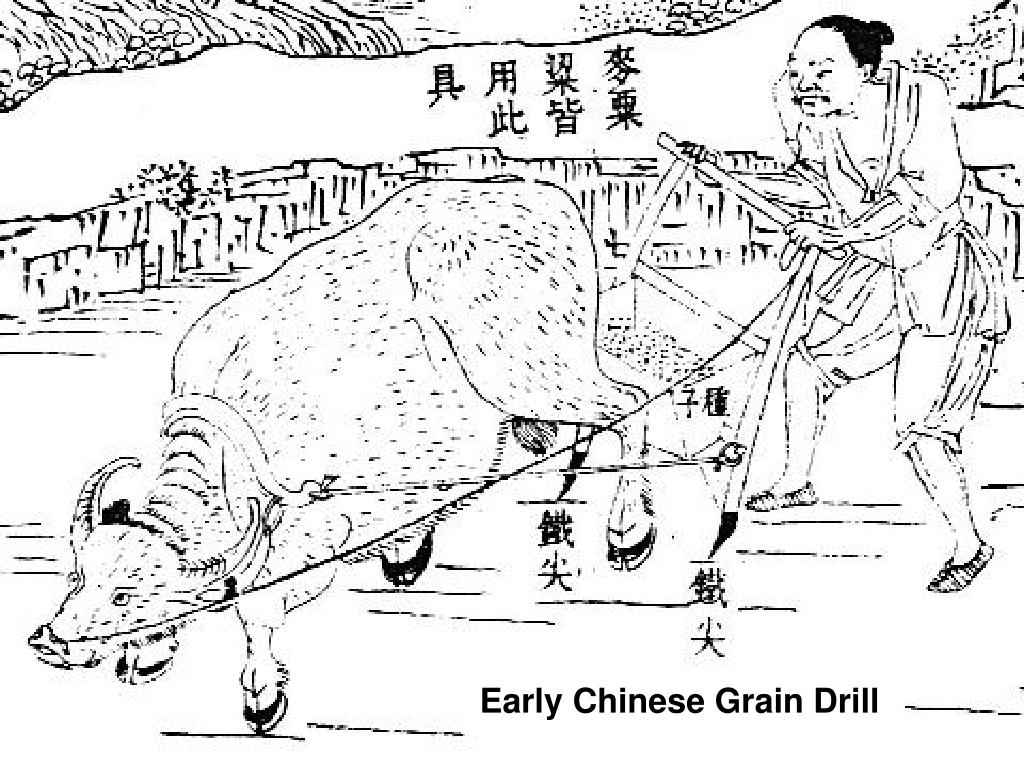

  11. Early Chinese Grain Drill

  12. Chinampas Agriculture in Central America http://library.thinkquest.org/C006206F/images/images/pint5.jpg

  13. http://www.icarito.cl/vgn/images/portal/FOTO042005/221466640lamina-chinampas.jpghttp://www.icarito.cl/vgn/images/portal/FOTO042005/221466640lamina-chinampas.jpg

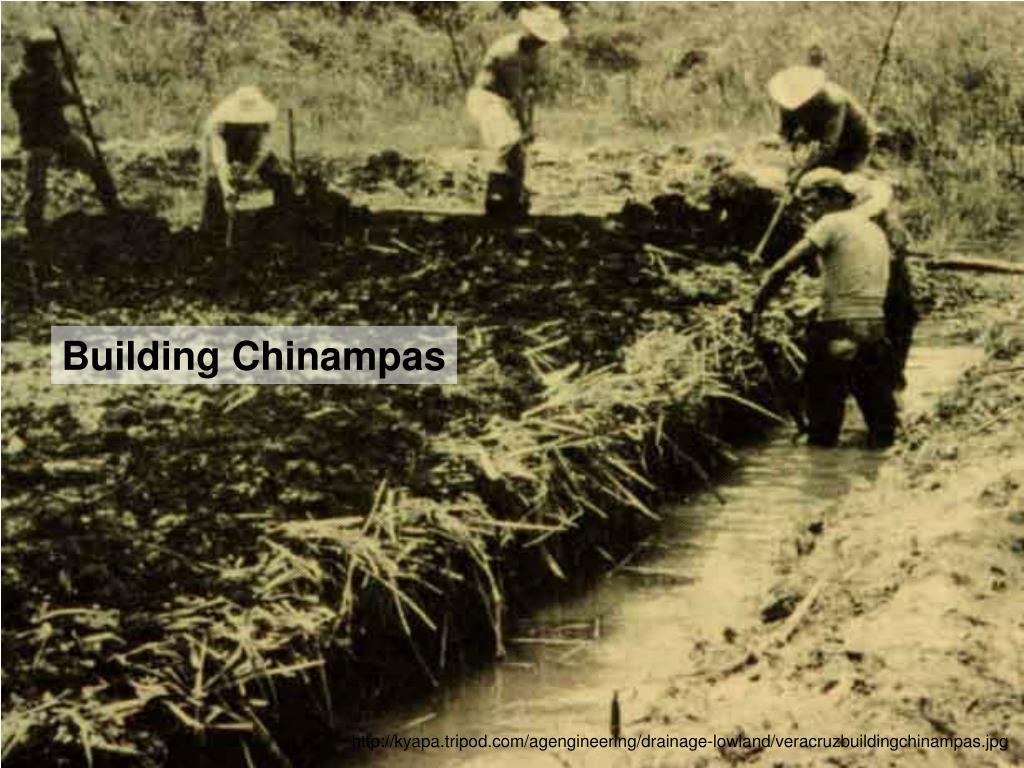

  14. Building Chinampas http://kyapa.tripod.com/agengineering/drainage-lowland/veracruzbuildingchinampas.jpg

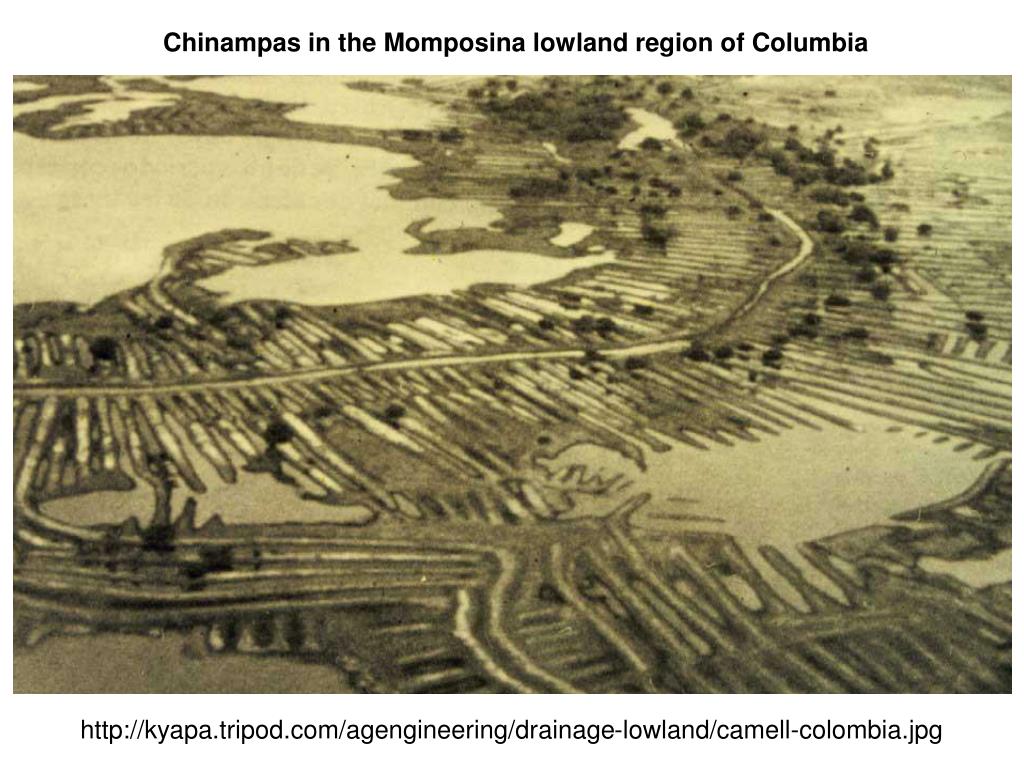

  15. Chinampas in the Momposina lowland region of Columbia http://kyapa.tripod.com/agengineering/drainage-lowland/camell-colombia.jpg

  16. In 1240, Roman literature was summarized by Crescentius. http://www.abbeville.com/Products/InteriorImages/0896599191Interiors.htm

  17. Bernard Palissy (1510-1589) Far ahead of his time, Palissy wrote: ”Manure is carried to the field for the purpose of restoring to the latter a part of what had been removed... Proceeding thus you will restore to the soil the same substances that have been removed by previous crops and which following crops will regain to their advantage."

  18. Van Helmont’s pot experiment 169 lbs of plant 5 lbs of plant For 5 years only water is added 199 lbs, 14oz of soil 200 lbs of soil

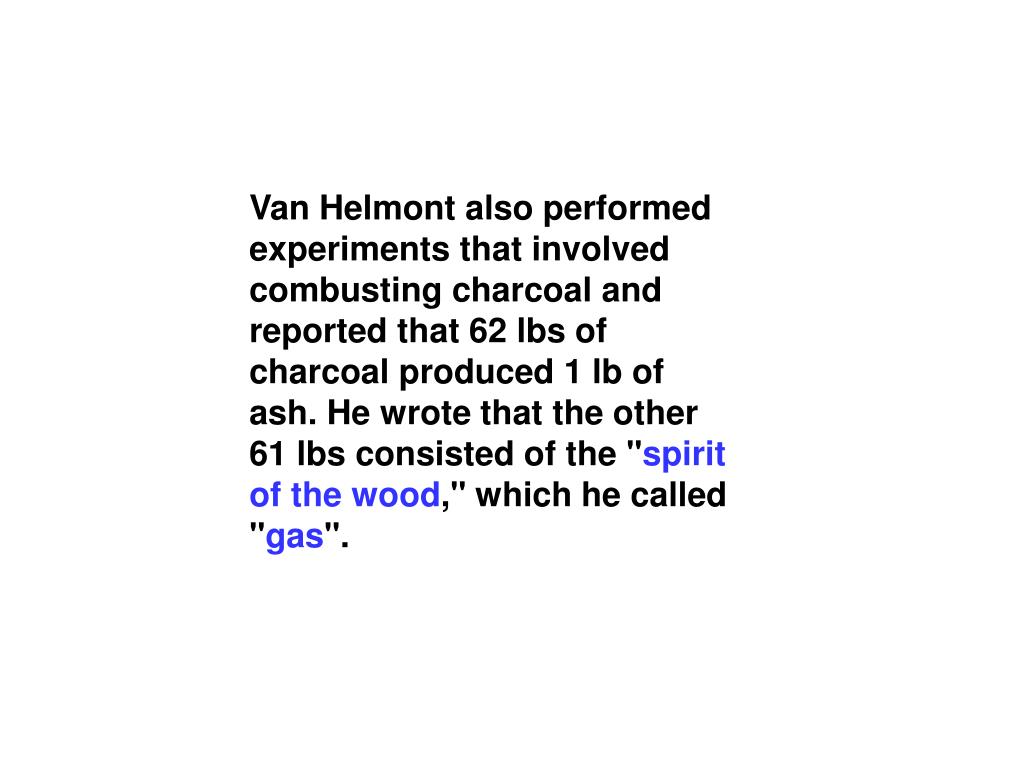

  19. Van Helmont also performed experiments that involved combusting charcoal and reported that 62 lbs of charcoal produced 1 lb of ash. He wrote that the other 61 lbs consisted of the "spirit of the wood," which he called "gas".

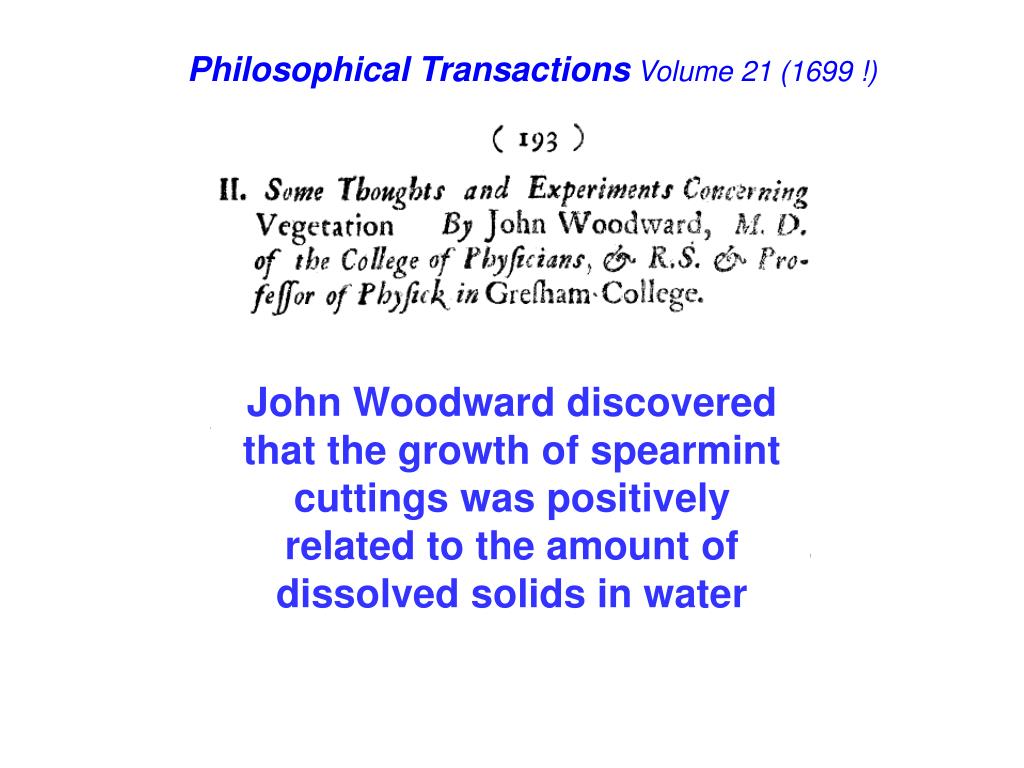

  20. Philosophical TransactionsVolume 21(1699 !) John Woodward discovered that the growth of spearmint cuttings was positively related to the amount of dissolved solids in water

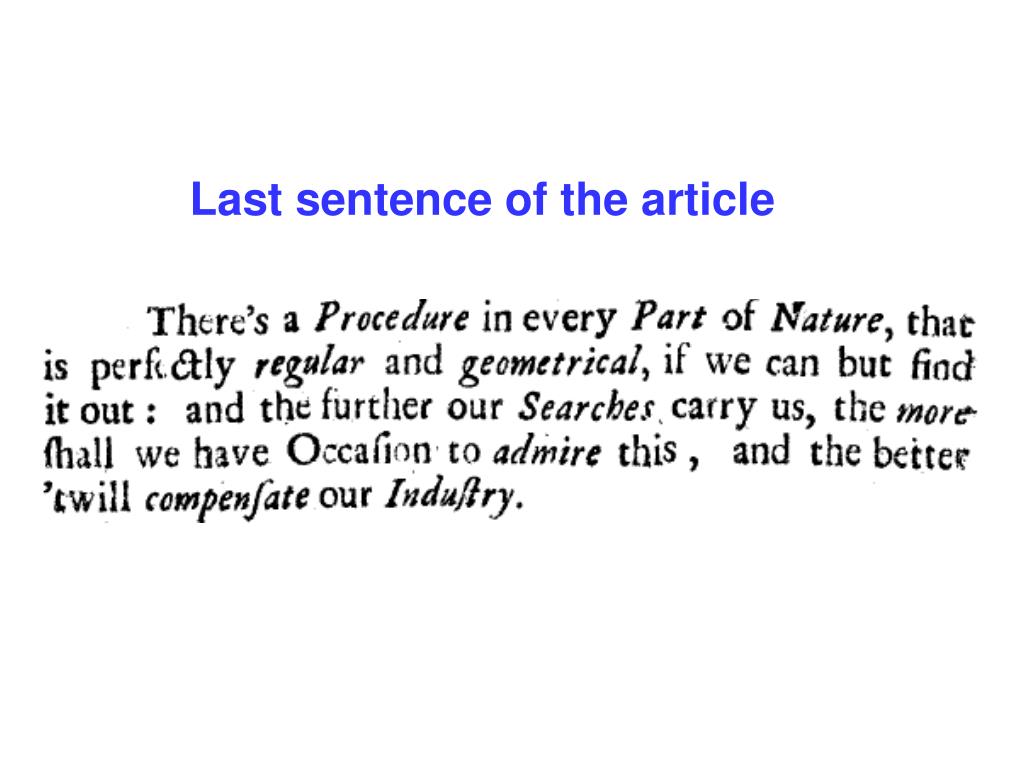

  21. Last sentence of the article

  22. Jethro Tull invented the grain drill and many other complementary technologies that resulted in large increases in grain yields during the 18th century. Jethro Tull, 1731

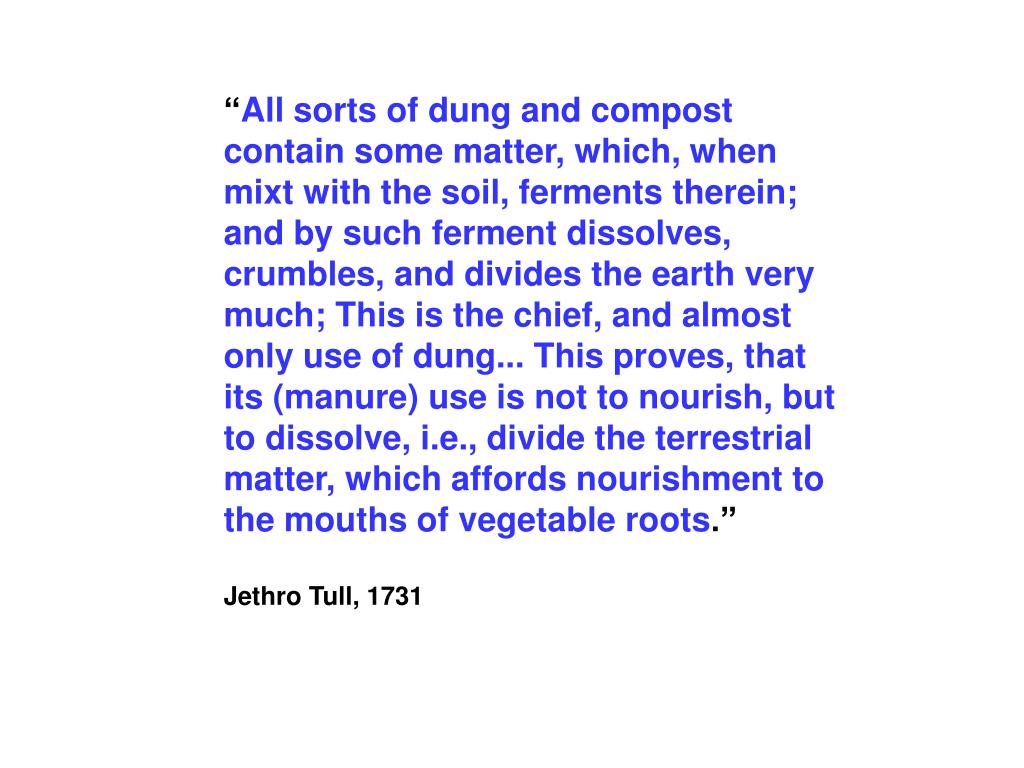

  23. “All sorts of dung and compost contain some matter, which, when mixt with the soil, ferments therein; and by such ferment dissolves, crumbles, and divides the earth very much; This is the chief, and almost only use of dung... This proves, that its (manure) use is not to nourish, but to dissolve, i.e., divide the terrestrial matter, which affords nourishment to the mouths of vegetable roots.” Jethro Tull, 1731

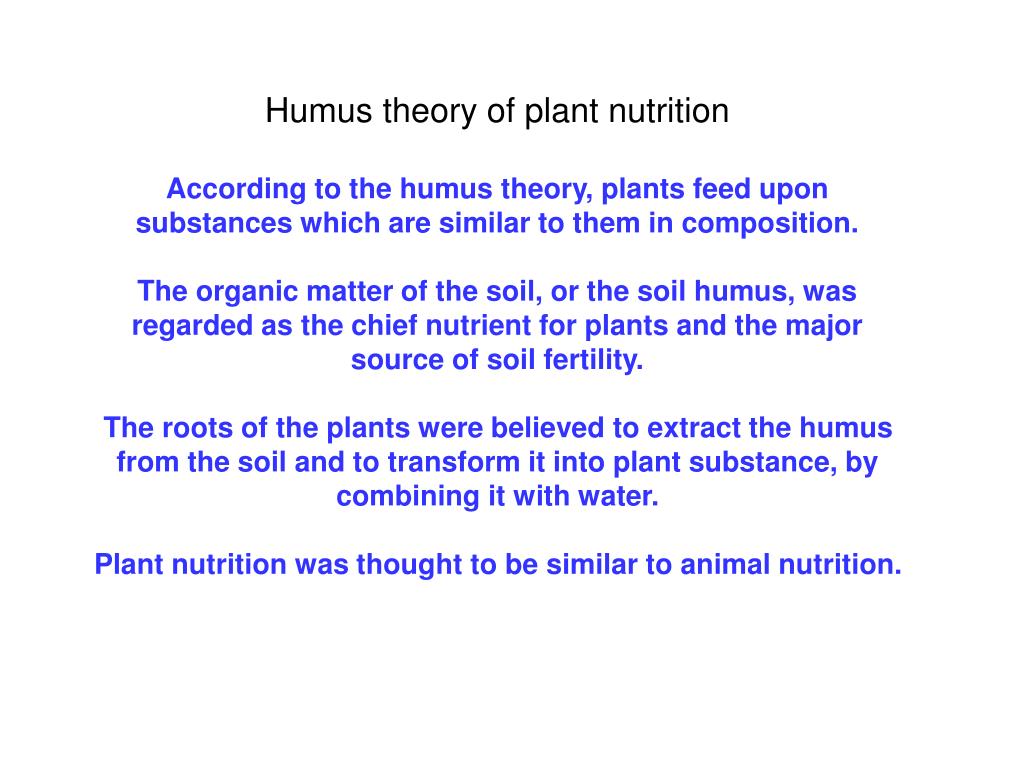

  24. Humus theory of plant nutrition According to the humus theory, plants feed upon substances which are similar to them in composition. The organic matter of the soil, or the soil humus, was regarded as the chief nutrient for plants and the major source of soil fertility. The roots of the plants were believed to extract the humus from the soil and to transform it into plant substance, by combining it with water. Plant nutrition was thought to be similar to animal nutrition.

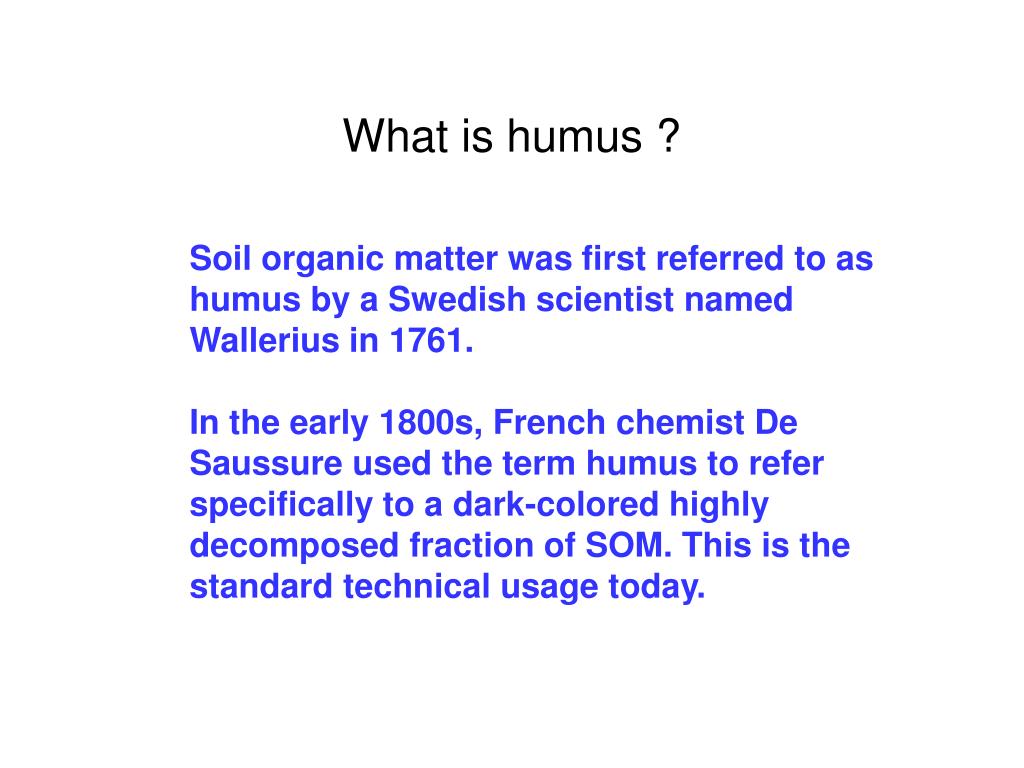

  25. What is humus ? Soil organic matter was first referred to as humus by a Swedish scientist named Wallerius in 1761. In the early 1800s, French chemist De Saussure used the term humus to refer specifically to a dark-colored highly decomposed fraction of SOM. This is the standard technical usage today.

  26. Wallerius wrote that "Plants derive no growth from any mineral earths ... substances that promote plant growth must be (1) identical or analogous to the substances in plants, or (2) capable of being transmuted and combined into a nature that belongs to plants" He thought that humus was the "nutritiva" or source of plant food while all other soil constituents were the "instrumentalia" that assisted in making this food available.

  27. Theodore de Saussure was a famous Swiss chemist who rejected most of the transmutation and "principle of vegetation" concepts of his predecessors and arrived at many ground breaking conclusions: 1) soil, not air, is the supplier of N 2) roots are active absorbers of water and salts, not just filters 3) the ash constituents of plants all occur in humus 4) plants do not spontaneously generate potash. De Saussure, however, was a defender of the humus theory.

  28. Rejection of the humus theory “ The conclusion should have been reached long ago that humus is not such an important substance as we have been led to believe, and that the current doctrine of humus is exceedingly full of contradictions.” Carl Sprengel 1838

  29. Liebig did not actually discover the Law of the Minimum but deserves credit for popularizing the concept Justus von Liebig was a pioneering German chemist who wrote and lectured extensively about the mineral nutrition of plants. As the first professor to use the laboratory method of teaching chemistry, he is regarded as one of the greatest chemistry educators of all time. He was held in such high esteem that few dared to question his pronouncements about mineral nutrition. Law of the Minimum Justus von Liebig (1803 -1873)

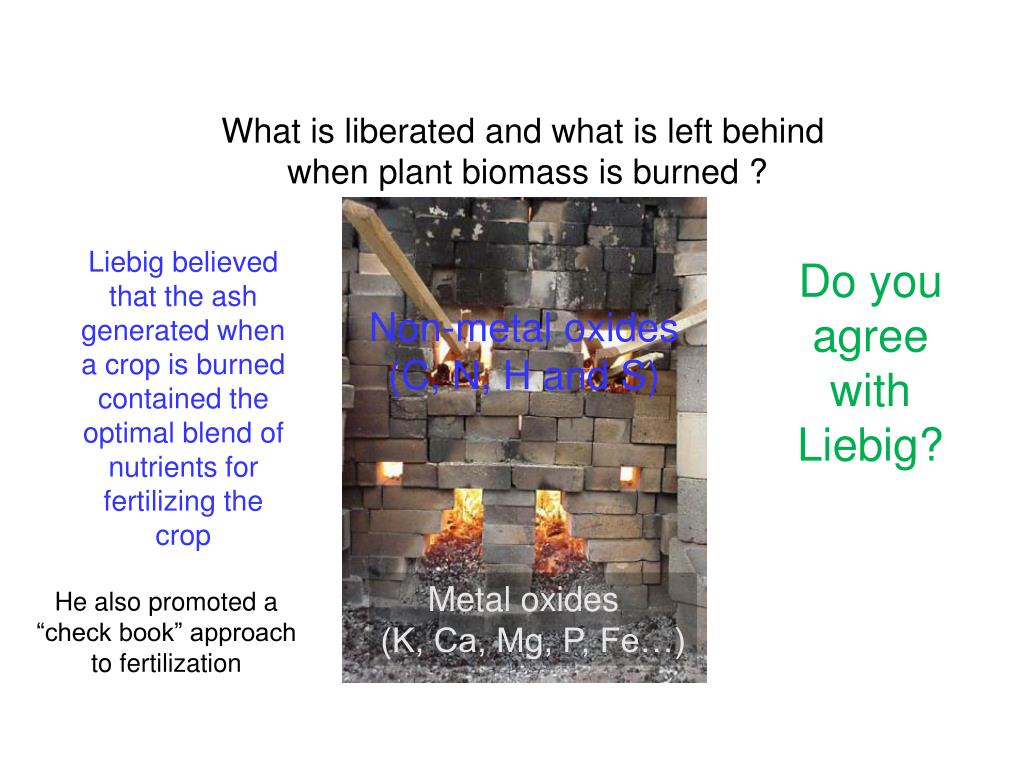

  30. What is liberated and what is left behind when plant biomass is burned ? Liebig believed that the ash generated when a crop is burned contained the optimal blend of nutrients for fertilizing the crop Do you agree with Liebig? Non-metal oxides (C, N, H and S) Metal oxides (K, Ca, Mg, P, Fe…) He also promoted a “check book” approach to fertilization

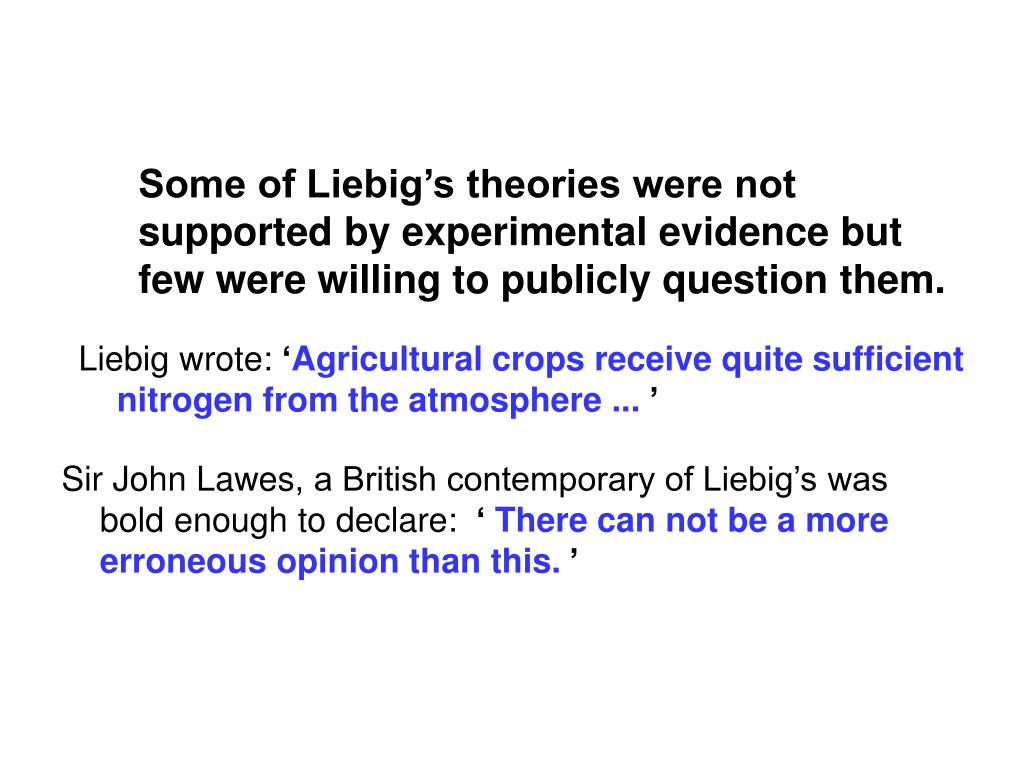

  31. Some of Liebig’s theories were not supported by experimental evidence but few were willing to publicly question them. Liebig wrote: ‘Agricultural crops receive quite sufficient nitrogen from the atmosphere ... ’ Sir John Lawes, a British contemporary of Liebig’s was bold enough to declare: ‘There can not be a more erroneous opinion than this. ’

  32. Sir John Lawes Sir Henry Gilbert Rothamsted Experiment Station Lawes and Gilbert founded the first agricultural experiment station http://nolimits.nmw.ac.uk/IEN/rotham.jpg

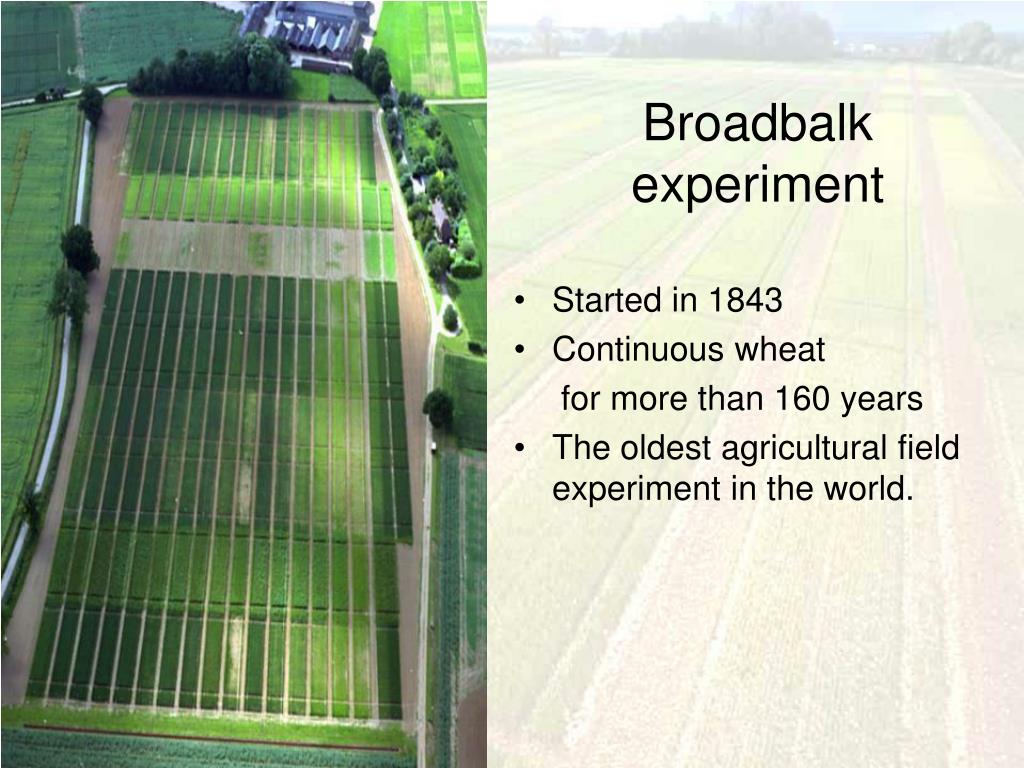

  33. Broadbalk experiment • Started in 1843 • Continuous wheat • for more than 160 years • The oldest agricultural field experiment in the world.

  34. JB Lawes opened one of the first fertilizer factories in Europe and needed to convince farmers that they should use his fertilizers

  35. Broadbalk grain yields, selected treatments Introduction of: liming fungicides fallowing herbicides 1st wheat in rotation: FYM+96 kg NBest NPK Continuous wheat: FYMPK+144 kg N Unmanured, continuous wheat Flanders Brimstone Apollo Hereward Red Club Red Rostock Squ. Master Red Standard Squ. Master Cappelle Desp.

  36. Broadbalk demonstrated the value of N and P fertilizer and that manure was not necessary to produce high crop yields… The plots receiving both manure and fertilizer have frequently produced the highest yields.

  37. The Broadbalk archive currently contains over 200,000 bottles of hay, grain and soil Why do they keep all these old samples ? Old samples provide answers to new questions !

  38. Morrow Plots - started in 1876 at the U of I - oldest agronomic experiment in the US http://agronomyday.cropsci.uiuc.edu/2001/morrow-plots/

  39. “The farmer should be as familiar with the names of the ten essential elements of plant food as he is with the names of his ten nearest neighbors” " ... it is not the land itself that constitutes the farmer's wealth, but it is in the constituents of the soil, which serve for the nutrition of plants, that this wealth truly consists." Cyril Hopkins (right), head of the U of Illinois Department of Agronomy, and James H.Pettit (left), assistant in Soil Analysis at the Ag Experiment Station, take a soil sample from the Morrow Plots

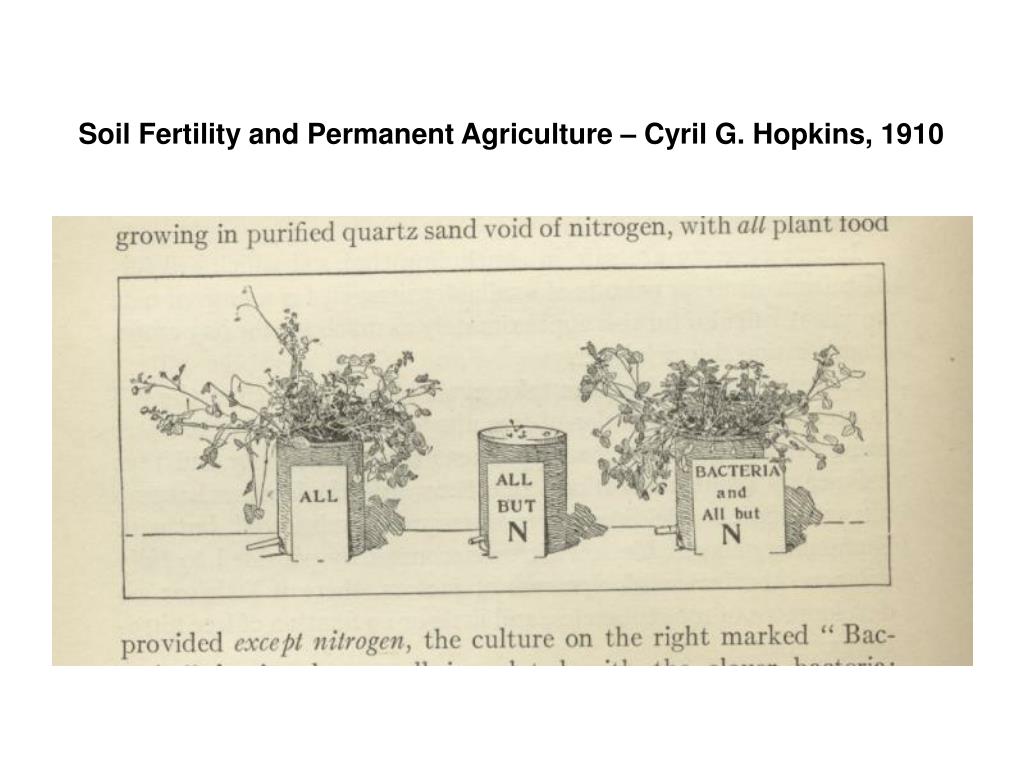

  40. Soil Fertility and Permanent Agriculture – Cyril G. Hopkins, 1910 “In recent years, Whitney and Cameron have revived the theory of toxic excreta from plant roots, in support of a more radical theory announced by them, to the effect that soils do not wear out or become depleted by cultivation or cropping. While this theory is advanced with no adequate foundation and in direct opposition to practical experience and to so many facts of mathematics, chemistry, and geology, that it is in itself quite unworthy of further consideration, the fact is that it has been promoted by Professor Whitney as Chief of the United States Bureau of Soils, and by Doctor Cameron as the chief chemist of the same Bureau; and, consequently, it cannot be ignored”

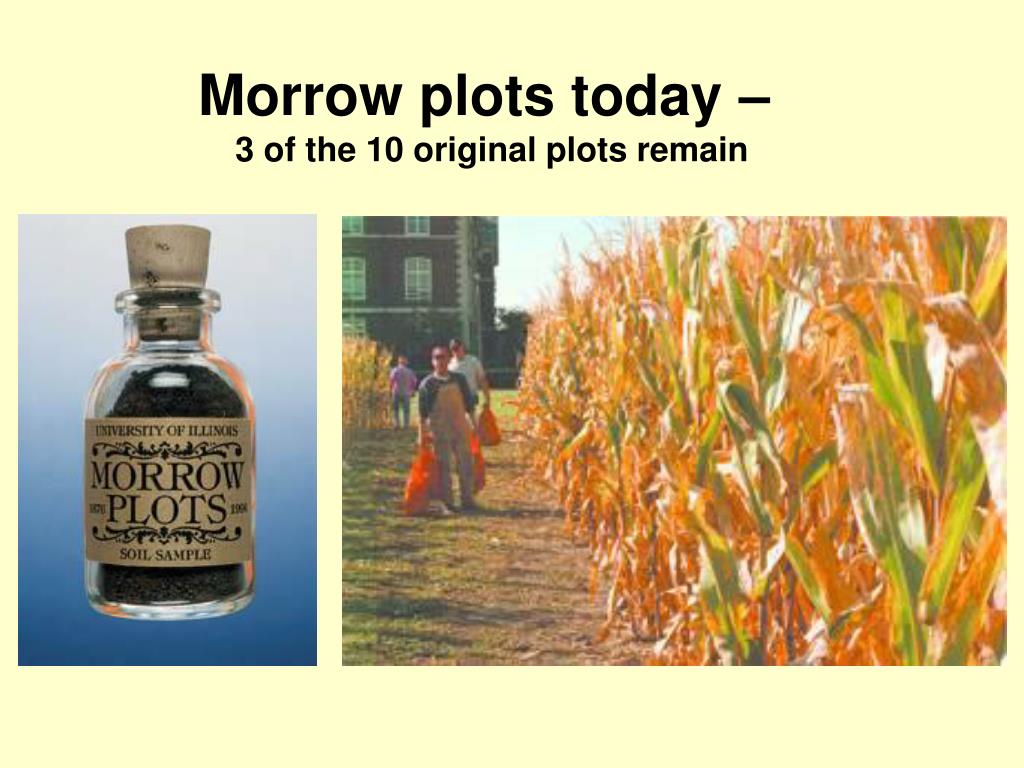

  41. Morrow plots today – 3 of the 10 original plots remain

  42. Impact of nutrients and rotation on SOM Long rotations with fertilization retained more OM but all rotations (with and without fertilization) led to loss of OM http://www.cropsci.uiuc.edu/research/rdc/urbana/morrow.cfm MLP = Manure, lime and phosphorus added

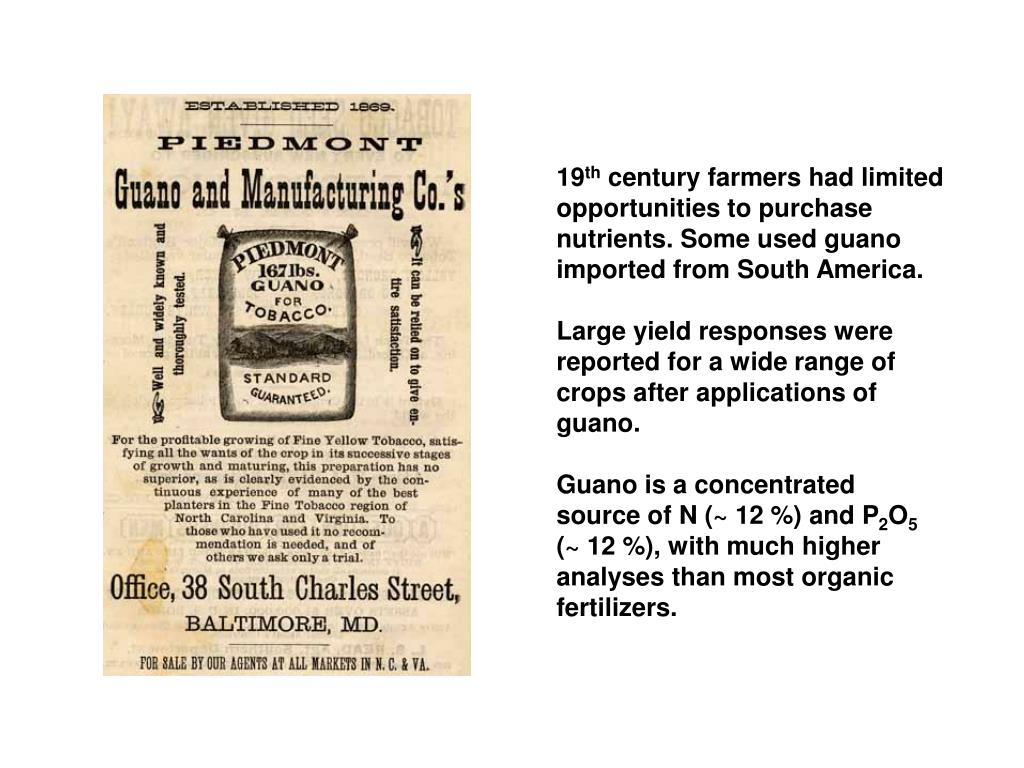

  43. 19th century farmers had limited opportunities to purchase nutrients. Some used guano imported from South America. Large yield responses were reported for a wide range of crops after applications of guano. Guano is a concentrated source of N (~ 12 %) and P2O5 (~ 12 %), with much higher analyses than most organic fertilizers.

  44. Guano was mined intensively off the west coast of S. America during the mid-to late 1800s. During the peak years of guano mining, Great Britain imported over 150,000 tons annually. PERU

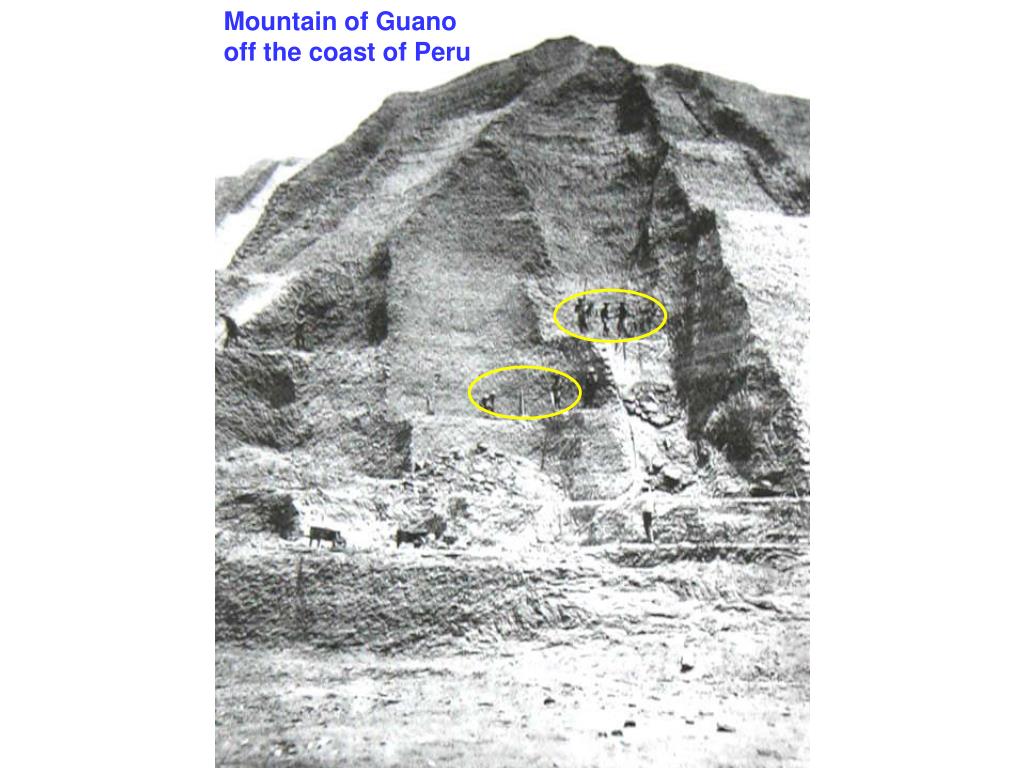

  45. Mountain of Guano off the coast of Peru

  46. Fritz Haber – a man with many faces

  47. Laboratory apparatus designed by Fritz Haber for producing NH3 from H2 and N2. The catalytic process took place in the large cylinder on the left.

  48. Founded in 1865, BASF is the world's largest chemical company, ahead of Dow and DuPont, ~ 100,000 employees, >80 billion in sales in 2007. Karl Bosch worked for BASF and designed the technology for upscaling Haber’s method of NH3 production. Nitrates and ammonia made up 59 percent of BASF sales in 1919.

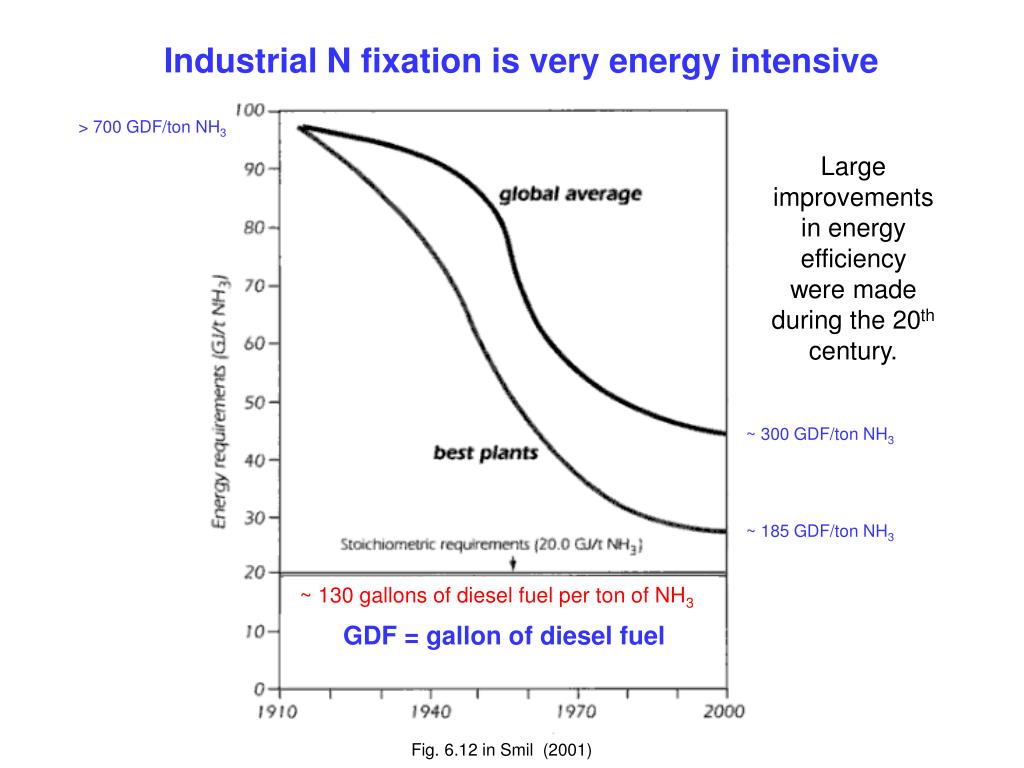

  49. Industrial N fixation is very energy intensive > 700 GDF/ton NH3 Large improvements in energy efficiency were made during the 20th century. ~ 300 GDF/ton NH3 ~ 185 GDF/ton NH3 ~ 130 gallons of diesel fuel per ton of NH3 GDF = gallon of diesel fuel Fig. 6.12 in Smil (2001)
