  1. What Happens Next? Source: http://runryder.com/helicopter/gallery/62/105_0569.jpg

  2. The Problem: • Little or no on-site tactical information available to firefighters at the scene of an emergency. The Solution: • Geographic Information Systems (GIS) allow users easy access to a wide variety of relevant data on site, on time, and on target.

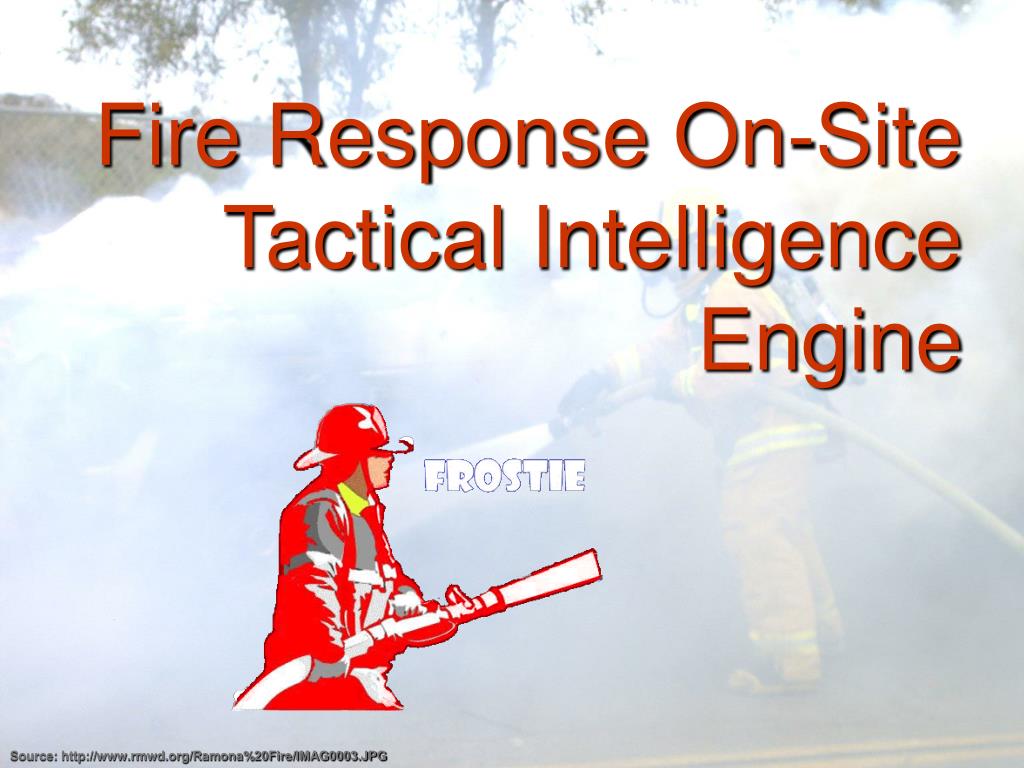

  3. Fire Response On-Site Tactical Intelligence Engine

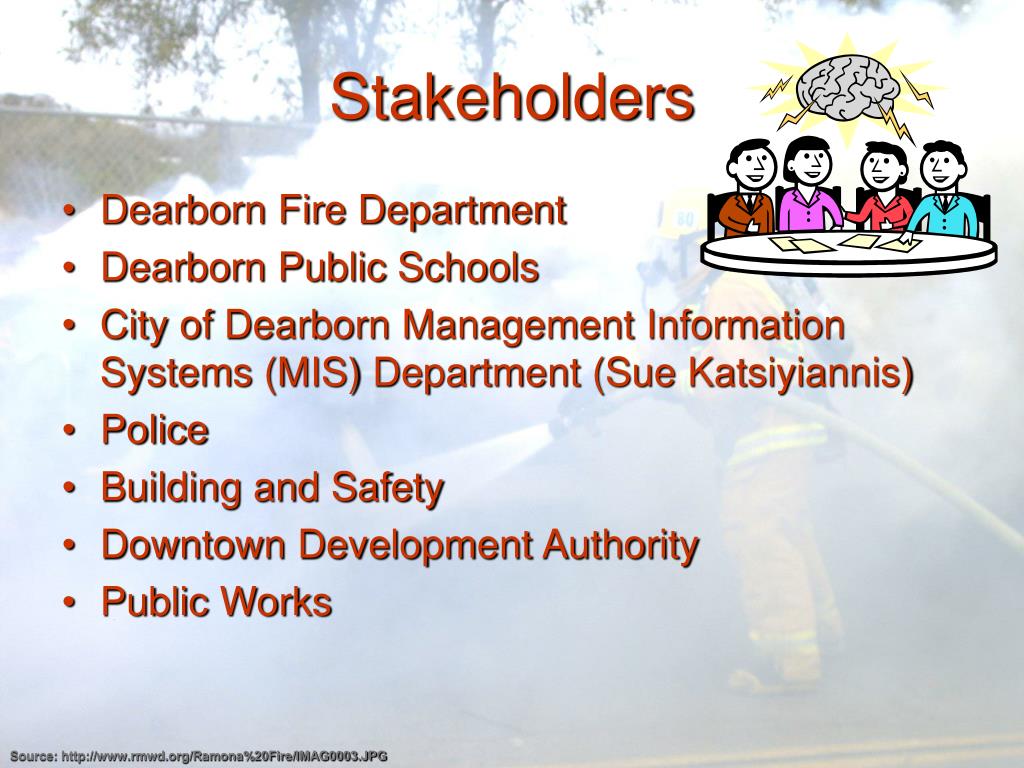

  4. Stakeholders • Dearborn Fire Department • Dearborn Public Schools • City of Dearborn Management Information Systems (MIS) Department (Sue Katsiyiannis) • Police • Building and Safety • Downtown Development Authority • Public Works

  5. Extent • Map extent: One quarter mile beyond Dearborn city limit. • Project Extent: Limited to City Hall complex at Michigan Avenue and Schaefer.

  6. Resources People Data Hardware Software

  7. Human 5 second-year GIS students at MBCC (GeoDudes). Instructor-John Bayerl Dearborn GIS Supervisor-Sue Katsiyiannis.

  8. Streets (TeleAtlas) (Wayne County Emergency Management—Jay Timco) Railroads (US Census) City Boundries (US Census) Water (MIS) Sewers (MIS) Gas Lines (DTE-Simulated) Hydrants (MIS/Fire) Fire stations (Planning) Police stations (Planning) Hospitals (Planning) 2002 Orthophoto (MIS) 2005 Pictometry (Wayne County Emergency Management—Jay Timco) Data

  9. Hardware Development (what we used): Dell Optiplex GX280 • P-IV 2.81 GHz processor • 1 GB RAM • 32MB Video Adapter • Access to network drives HP Laser Printer

  10. Hardware Deployment (What is used in the field) Requirements (From www.esri.com) • Pentium or Xeon Processor (2GHz+) • 1+ GB RAM recommended • 50+ MB Hard Drive • Advanced Video Adaper (256 MB RAM)

  11. Hardware Other Considerations: • Durablity • Fire and Water Resistance • Portability • WiFi Compatibility • Long Battery Life • Outdoor Visibility

  12. Hardware • (Best) “Money is no object” • (Better) “Lots of features” • (Budget) “Meets minimum requirements”

  13. Best Toughbook CF-29 • Large Memory • Fire/Water/Shock Resistant • WiFi Capable • Tablet PC Capable $3,425

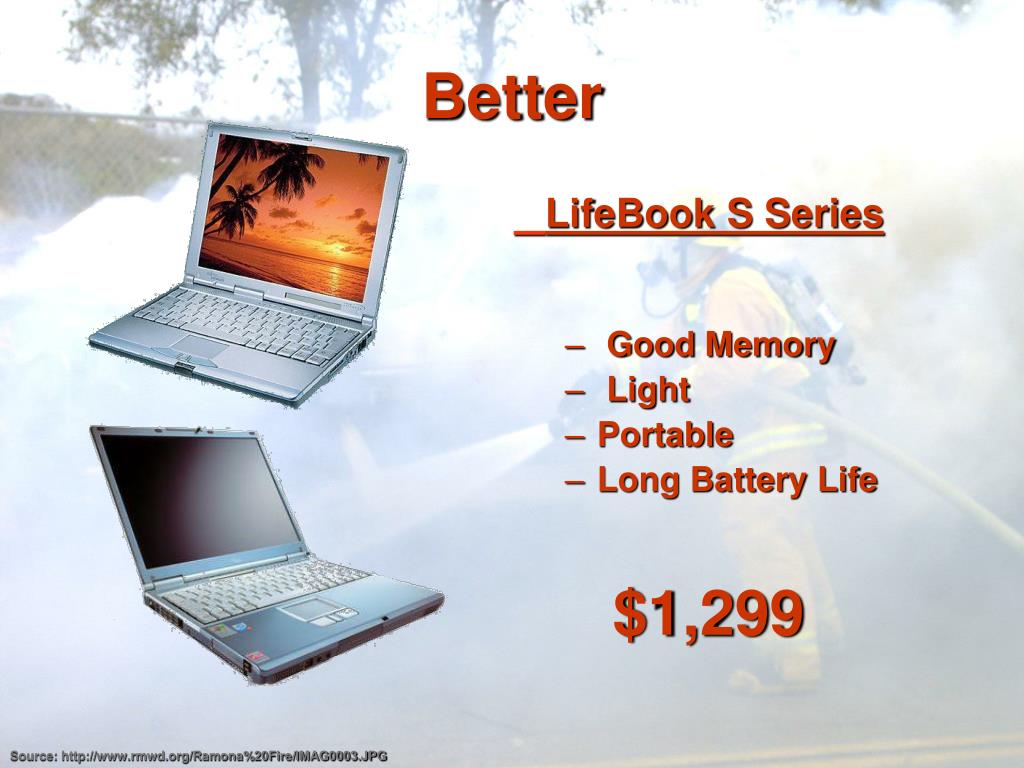

  14. Better LifeBook S Series • Good Memory • Light • Portable • Long Battery Life $1,299

  15. Budget Inspiron B130 • Inexpensive • Very Light • Slower Performance $688

  16. SoftwareDevelopment Deployment • Arc Reader (free) • Arc View (licensed) • Arc GIS 8.3 and 9.1 • Image Analyst • Adobe Photoshop • Macromedia Fireworks. • Microsoft Office XP (Word, Excel, Power Point) • Electronic Field Study (EFS)

  17. Building a GIS • Geographic Information Systems • A GIS is a collection of computer, information and people used to display and interpret data based on location.

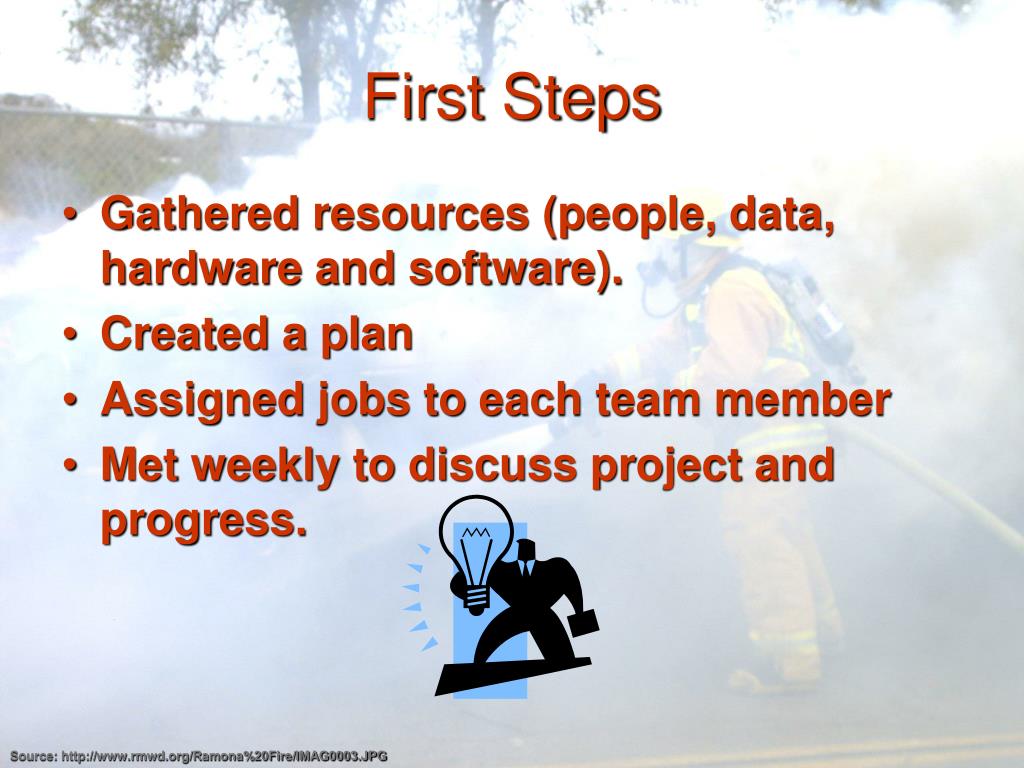

  18. First Steps • Gathered resources (people, data, hardware and software). • Created a plan • Assigned jobs to each team member • Met weekly to discuss project and progress.

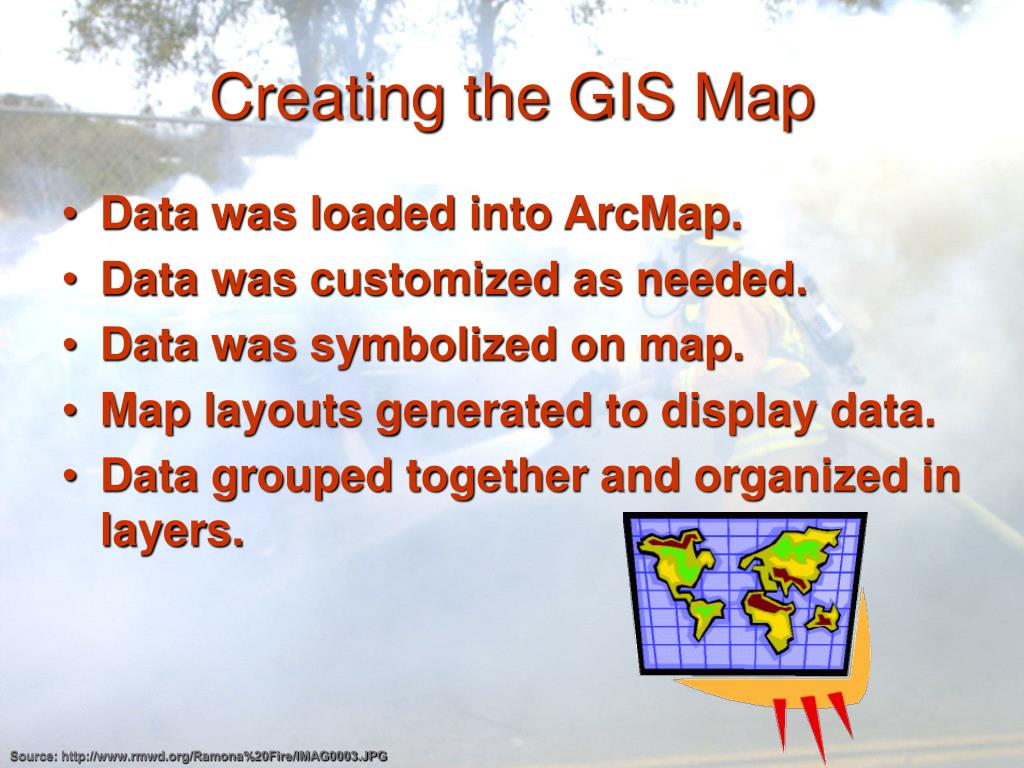

  19. Creating the GIS Map • Data was loaded into ArcMap. • Data was customized as needed. • Data was symbolized on map. • Map layouts generated to display data. • Data grouped together and organized in layers.

  20. Data Layers • Base Map Layer • Ground Transportation • Utilities • Emergency Services • Aerial Imagery • Floor Plans (Engineering Drawings) • Other

  21. Base Map Data

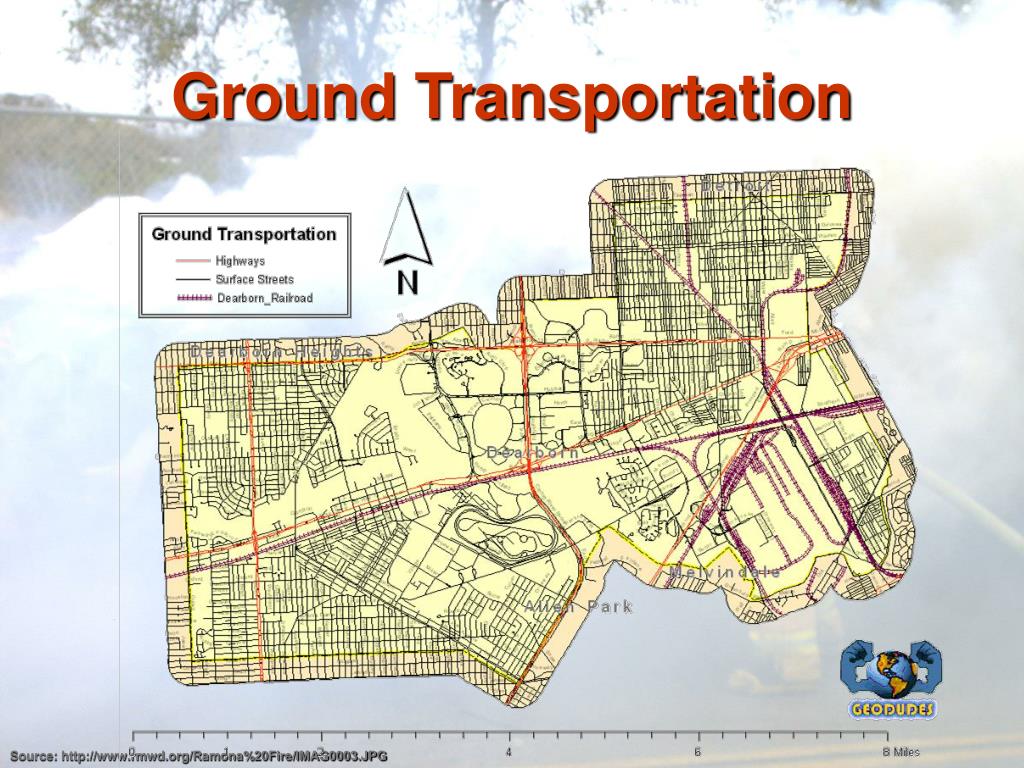

  22. Ground Transportation

  23. Utilities

  24. Emergency Services

  25. Aerial Imagery

  26. Final Map

  27. First Floor Plans

  28. First Floor Plans

  29. Demonstration

  30. This Presentation has been brought to you by the “Unleashing the Power of GIS in Your Home Town”
