  1. Advanced Pipelining • Optimally Scheduling Code • Optimally Programming Code • Scheduling for Superscalars (6.9) • Exceptions (5.6, 6.8)

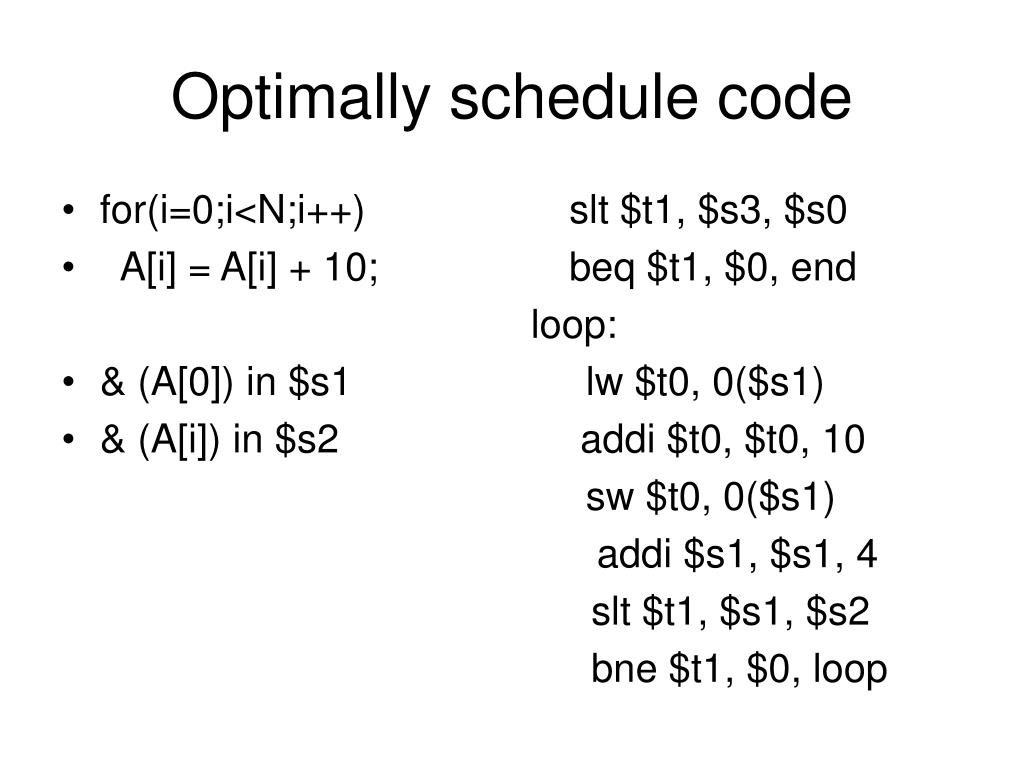

  2. for(i=0;i<N;i++) A[i] = A[i] + 10; & (A[0]) in $s1 & (A[i]) in $s2 slt $t1, $s3, $s0 beq $t1, $0, end loop: lw $t0, 0($s1) addi $t0, $t0, 10 sw $t0, 0($s1) addi $s1, $s1, 4 slt $t1, $s1, $s2 bne $t1, $0, loop Optimally schedule code

  3. lw $t0, 0($s1) addi $t0, $t0, 10 sw $t0, 0($s1) addi $s1, $s1, 4 slt $t1, $s1, $s2 bne $t1, $0, loop 1. Identify Dependencies $t0 – lw->addi – RAW $t0 – addi->sw - RAW

  4. lw $t0, 0($s1) addi $t0, $t0, 10 sw $t0, 0($s1) addi $s1, $s1, 4 slt $t1, $s1, $s2 bne $t1, $0, loop Draw timing diagramWITH DATA FORWARDING F D X M W

  5. lw $t0, 0($s1) addi $t0, $t0, 10 sw $t0, 0($s1) addi $s1, $s1, 4 slt $t1, $s1, $s2 bne $t1, $0, loop 3. Remove WAR/WAW dependencies lw addi RAW, WAR, WAW Target the false dependencies sw addi F D X M W F D X M W F D X M W F D X M W F D X M W F D X M W slt D F bne F

  6. lw $t0, 0($s1) sw $t0, 0($s1) addi $s1, $s1, 4 3. Remove WAR/WAW dependencies Correct Incorrect Original lw $t0, 0($s1) addi $s1, $s1, 4 sw $t0, 0($s1) lw $t0, 0($s1) addi sw

  7. lw $t0, 0($s1) addi $t0, $t0, 10 sw $t0, 0($s1) addi $s1, $s1, 4 slt $t1, $s1, $s2 bne $t1, $0, loop lw $t0, 0($s1) addi $s1, $s1, 4 addi $t0, $t0, 10 sw $t0, ____($s1) slt $t1, $s1, $s2 bne $t1, $0, loop

  8. lw $t0, 0($s1) addi $s1, $s1, 4 addi $t0, $t0, 10 slt $t1, $s1, $s2 sw $t0, -4($s1) bne $t1, $0, loop 3. Remove WAR/WAW dependencies lw addi addi slt F D X M W F D X M W F D X M W F D X M W F D X M W F D X M W sw bne

  9. Software Control Hazard Removal If ( (x % 2) == 1) isodd = 1;

  10. Software Control Hazard Removal If ( x == true) y = false; else y = true;

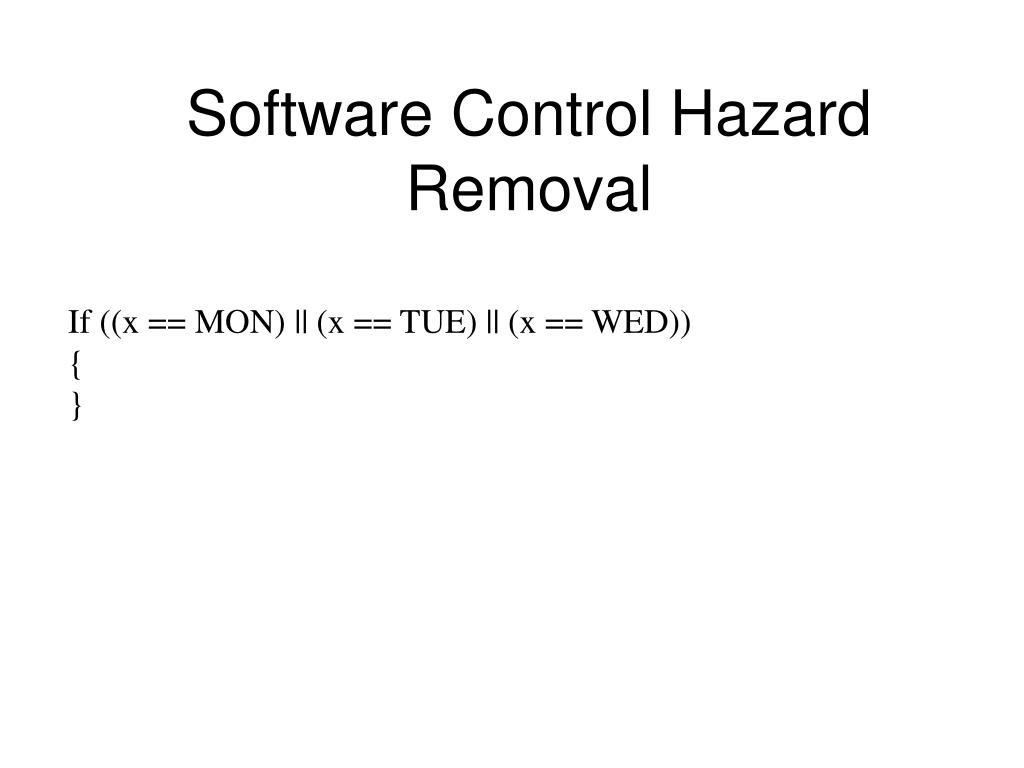

  11. Software Control Hazard Removal If ((x == MON) || (x == TUE) || (x == WED)) { }

  12. Increasing Branch Performance If ((TheCoinTossIsHeads) || (StudentStudiedForExam)) { }

  13. What does it all mean? • Does that mean that error-checking code is bad? That is a whole lot of branches if you do it well!!!

  14. The moral is….. • Calculation is less expensive than …..

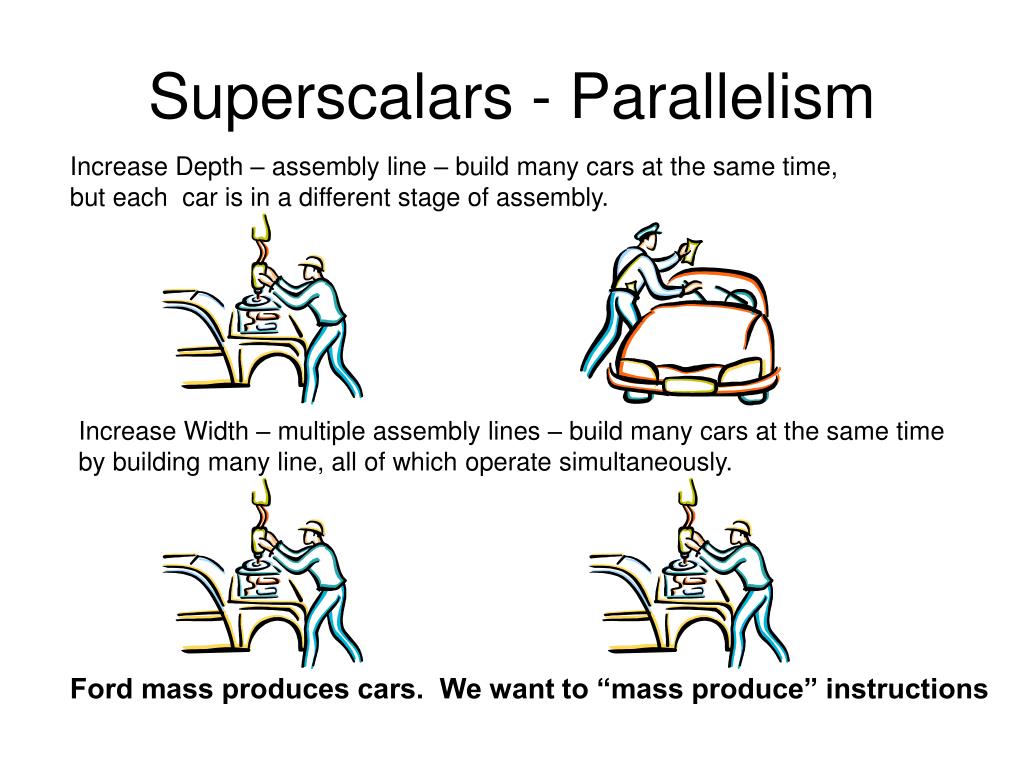

  15. Superscalars - Parallelism Increase Depth – assembly line – build many cars at the same time, but each car is in a different stage of assembly. Increase Width – multiple assembly lines – build many cars at the same time by building many line, all of which operate simultaneously. Ford mass produces cars. We want to “mass produce” instructions

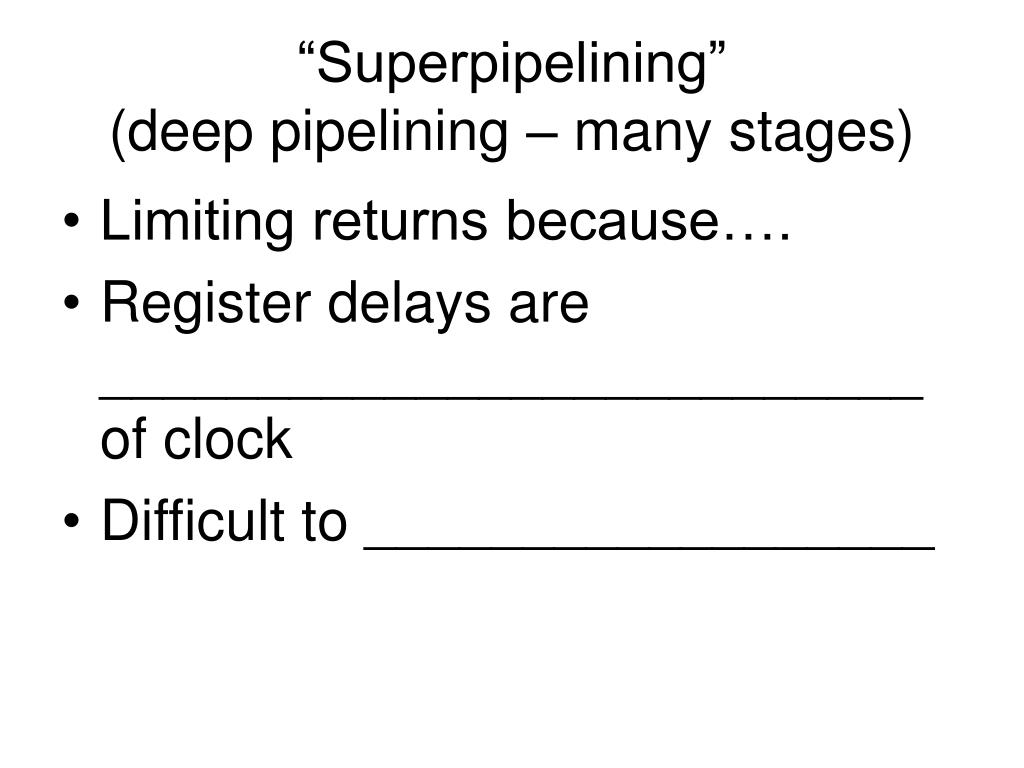

  16. “Superpipelining” (deep pipelining – many stages) • Limiting returns because…. • Register delays are __________________________ of clock • Difficult to __________________

  17. SuperScalars • __________ parts of pipeline • Multiple instructions in _______ stage at once

  18. SuperScalars • Which instructions can execute in parallel? • Fetching multiple instructions per cycle

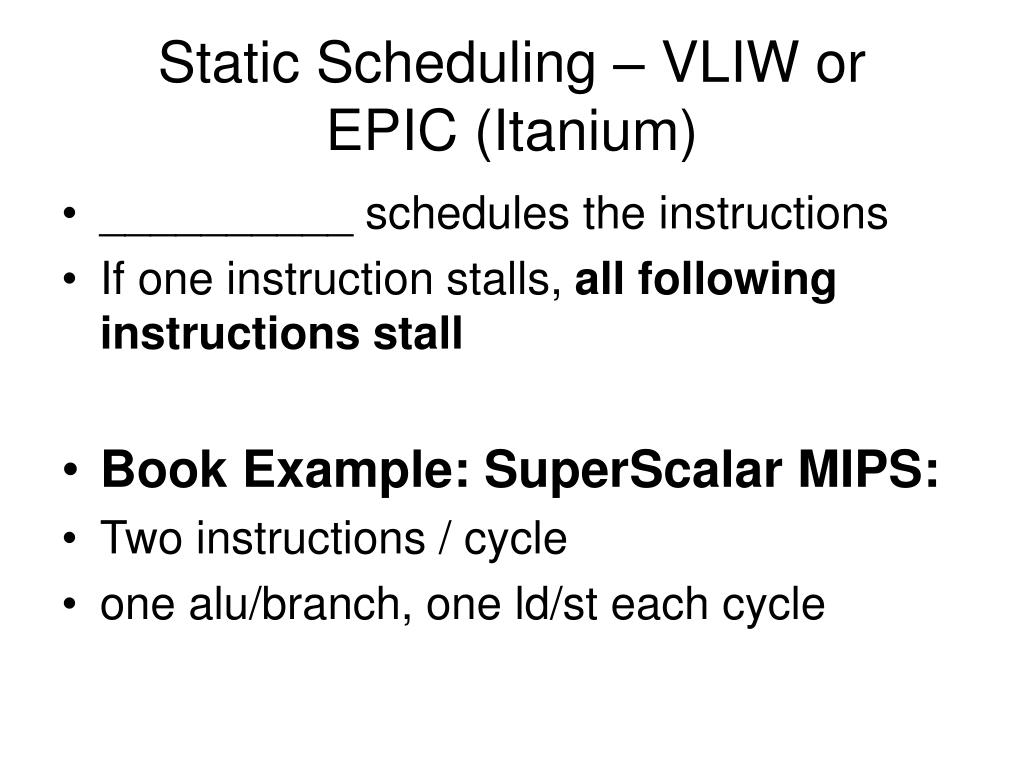

  19. Static Scheduling – VLIW or EPIC (Itanium) • __________ schedules the instructions • If one instruction stalls, all following instructions stall • Book Example: SuperScalar MIPS: • Two instructions / cycle • one alu/branch, one ld/st each cycle

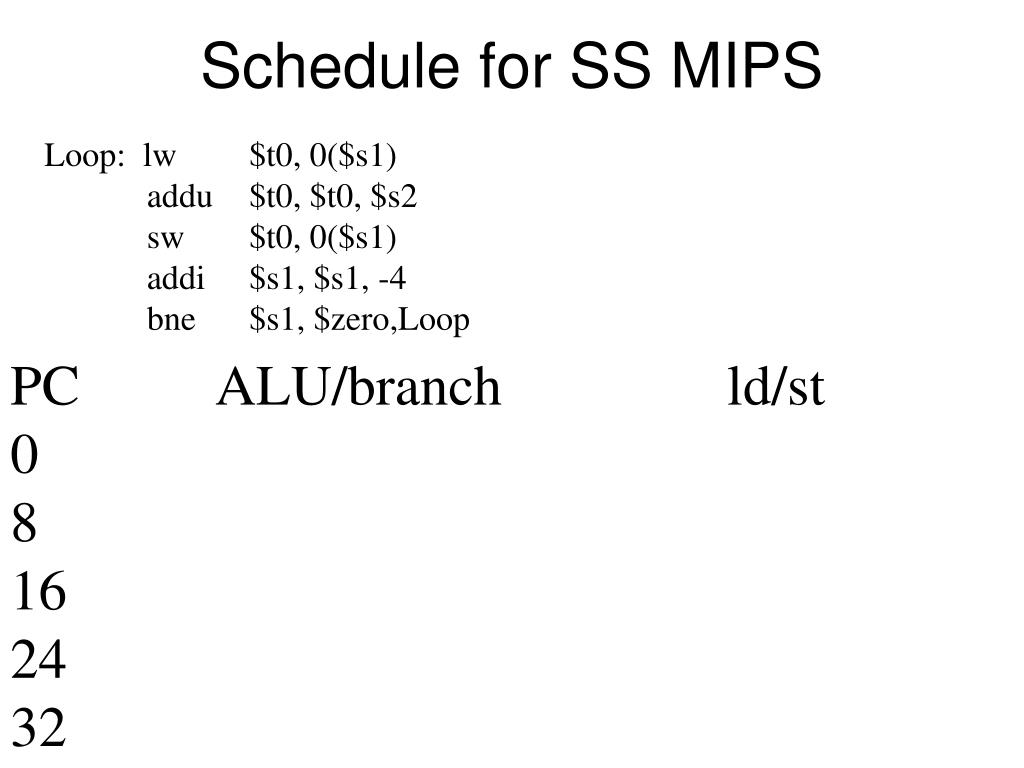

  20. Schedule for SS MIPS Loop: lw $t0, 0($s1) addu $t0, $t0, $s2 sw $t0, 0($s1) addi $s1, $s1, -4 bne $s1, $zero,Loop PC ALU/branch ld/st 0 8 16 24 32

  21. SuperScalars - Static Fetch Decode Execute Memory WriteBack bne addu addi sw lw Write Values Read Values

  22. Loop Problem • Problem: • Too many _______________ in loop • Not enough ______________ to fill in holes • Solution: • Do ______________ at once • More instructions • Only one branch

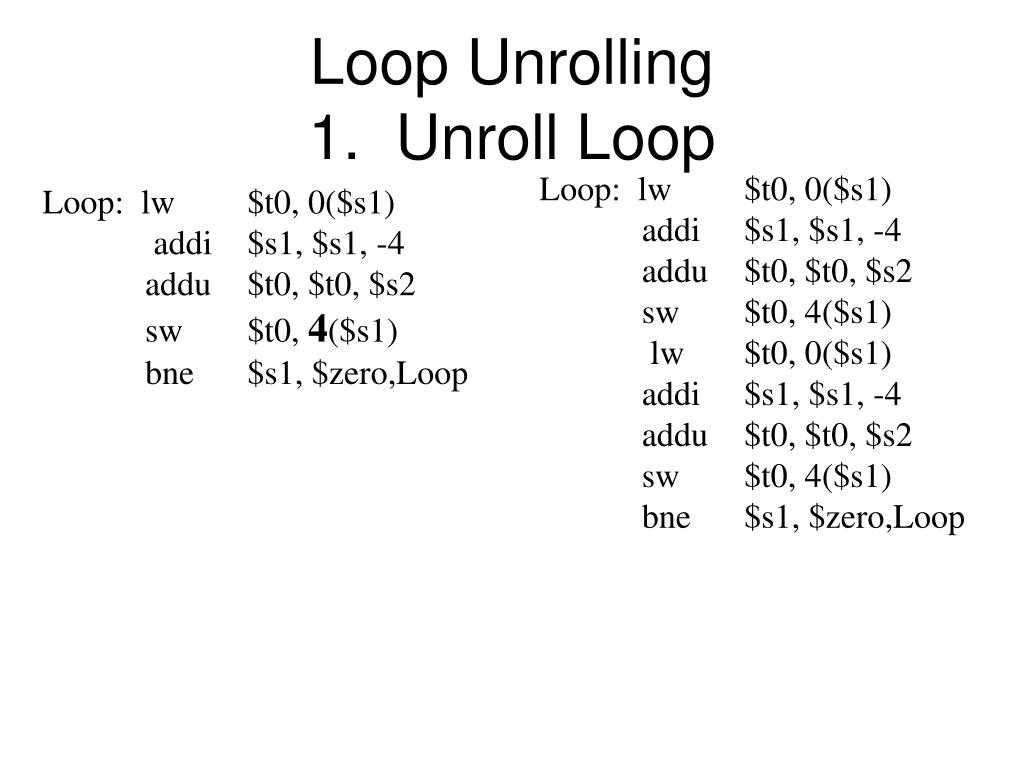

  23. Loop Unrolling1. Unroll Loop Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) bne $s1, $zero,Loop Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) bne $s1, $zero,Loop

  24. Loop Unrolling2. Rename Registers Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) lw $t1, 0($s1) addi $s1, $s1, -4 addu $t1, $t1, $s2 sw $t1, 4($s1) bne $s1, $zero,Loop But wait!!! How has this helped? There are tons of dependencies? Whatever are we to do? Register Renaming!!!

  25. Loop Unrolling2. Rename Registers Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) lw $t1, 0($s1) addi $s1, $s1, -4 addu $t1, $t1, $s2 sw $t1, 4($s1) bne $s1, $zero,Loop Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, 4($s1) bne $s1, $zero,Loop (Repeated slide for your reference)

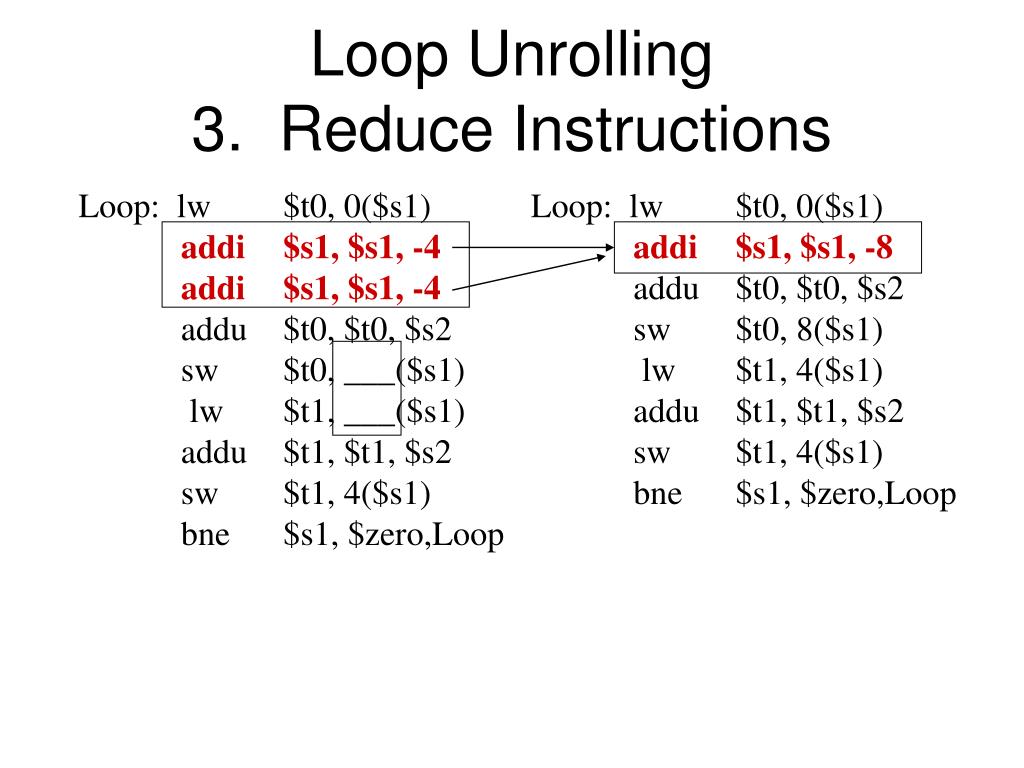

  26. Loop Unrolling3. Reduce Instructions Loop: lw $t0, 0($s1) addi $s1, $s1, -4 addi $s1, $s1, -4 addu $t0, $t0, $s2 sw $t0, ___($s1) lw $t1, ___($s1) addu $t1, $t1, $s2 sw $t1, 4($s1) bne $s1, $zero,Loop Loop: lw $t0, 0($s1) addi $s1, $s1, -8 addu $t0, $t0, $s2 sw $t0, 8($s1) lw $t1, 4($s1) addu $t1, $t1, $s2 sw $t1, 4($s1) bne $s1, $zero,Loop

  27. Loop Unrolling4. Schedule Loop: lw1 $t0, 0($s1) addi $s1, $s1, -8 addu1 $t0, $t0, $s2 sw1 $t0, 8($s1) lw2 $t1, 4($s1) addu2 $t1, $t1, $s2 sw2 $t1, 4($s1) bne $s1, $zero,Loop ALU/branch lw/sw lw1

  28. Performance Comparison Original Unrolled ALU/branch ld/st lw $t0, 0($s1) addi $s1, $s1, -4 addu $t0, $t0, $s2 bne $s1, $zero,L sw $t0, 4($s1)

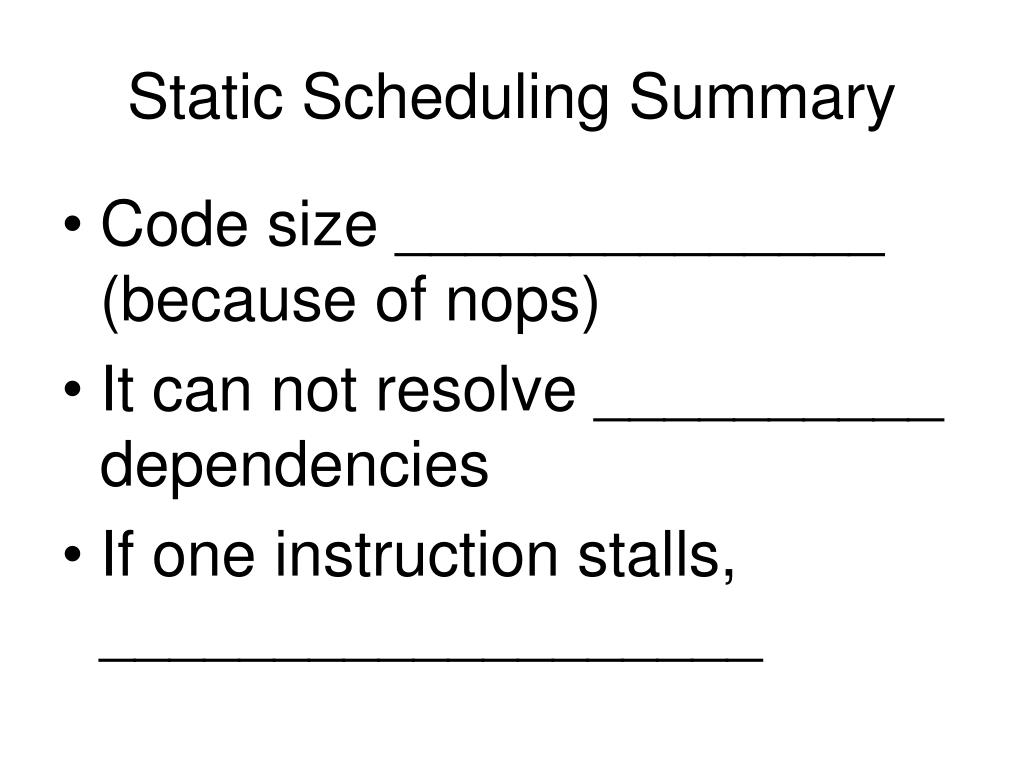

  29. Static Scheduling Summary • Code size ______________ (because of nops) • It can not resolve __________ dependencies • If one instruction stalls, ___________________

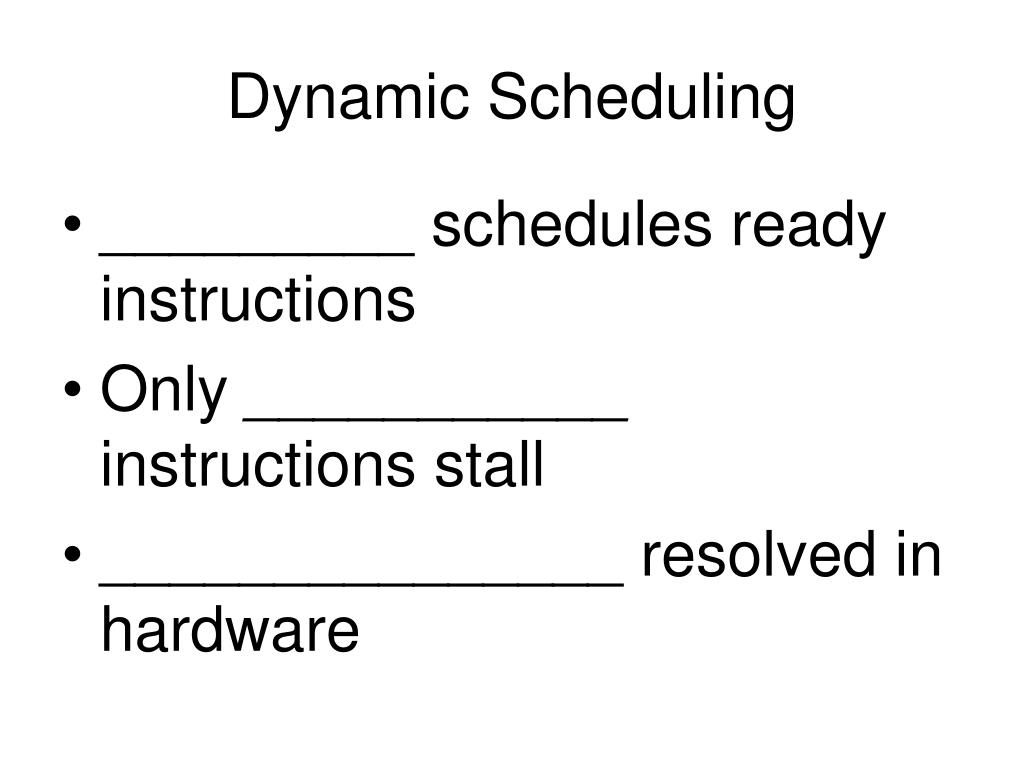

  30. Dynamic Scheduling • _________ schedules ready instructions • Only ___________ instructions stall • _______________ resolved in hardware

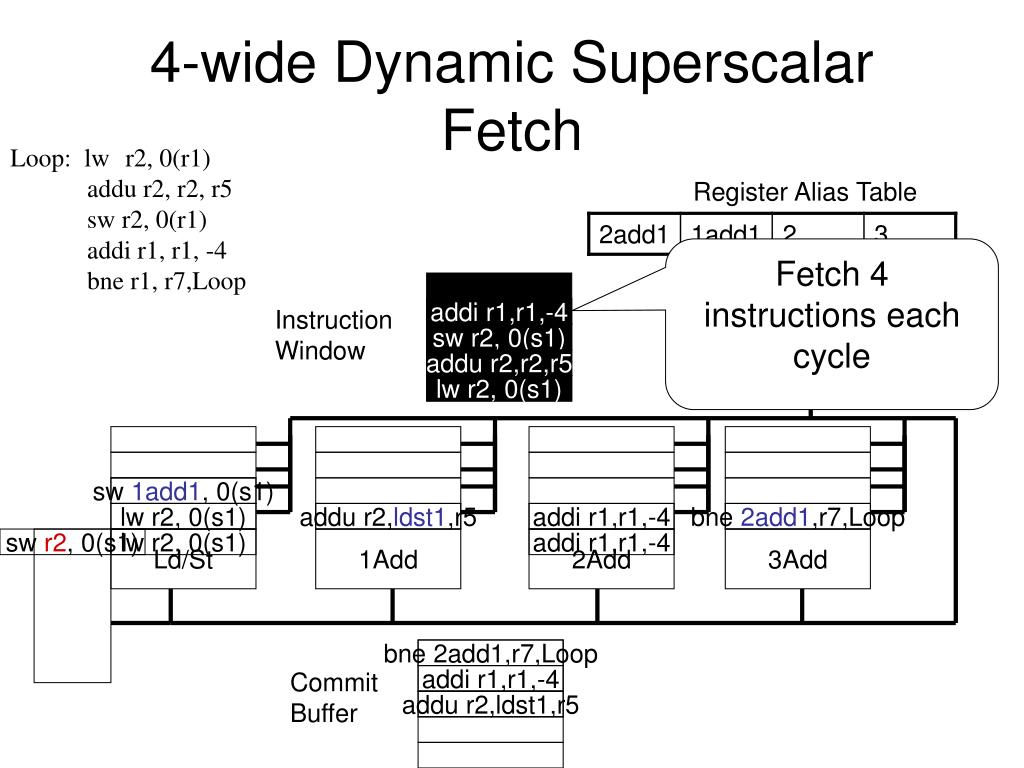

  31. 4-wide Dynamic SuperscalarFetch Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Register Alias Table Fetch 4 instructions each cycle Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

  32. 4-wide Dynamic Superscalar Decode • Register Alias Table records • Current Register Number • (WAW/WAR Register Renaming) • or Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

  33. 4-wide Dynamic Superscalar Decode • Register Alias Table records • Current Register Number • (WAW/WARRegister Renaming) • or • 2. Functional Unit • (RAW – result not ready) Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

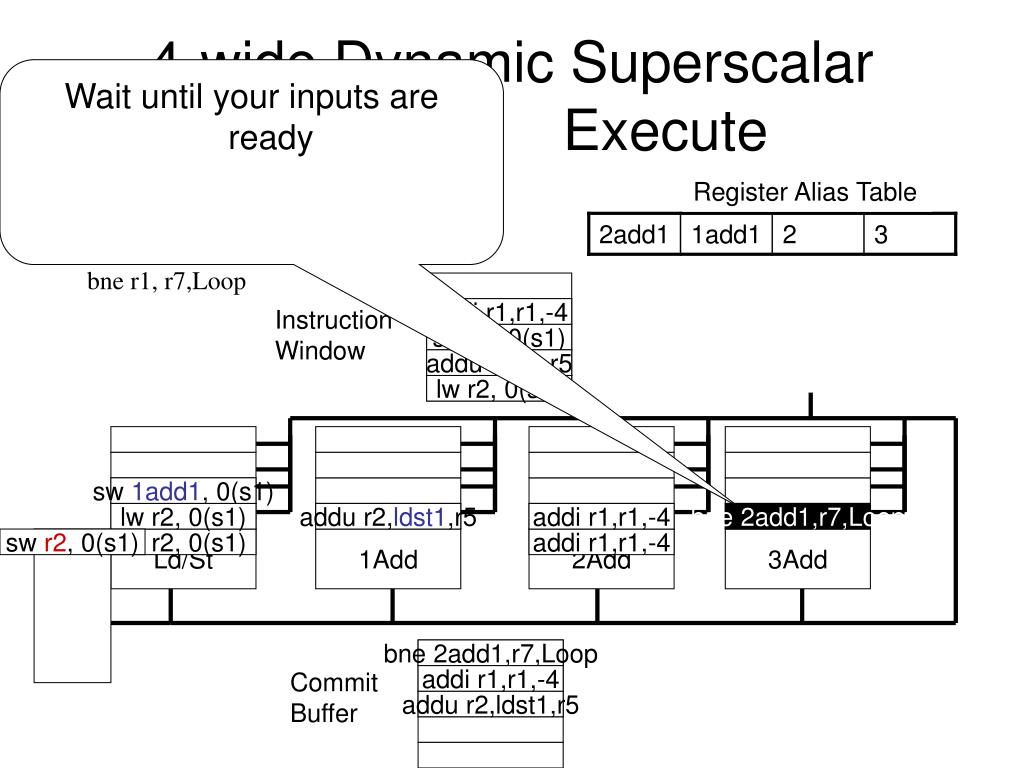

  34. 4-wide Dynamic Superscalar Execute Wait until your inputs are ready Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

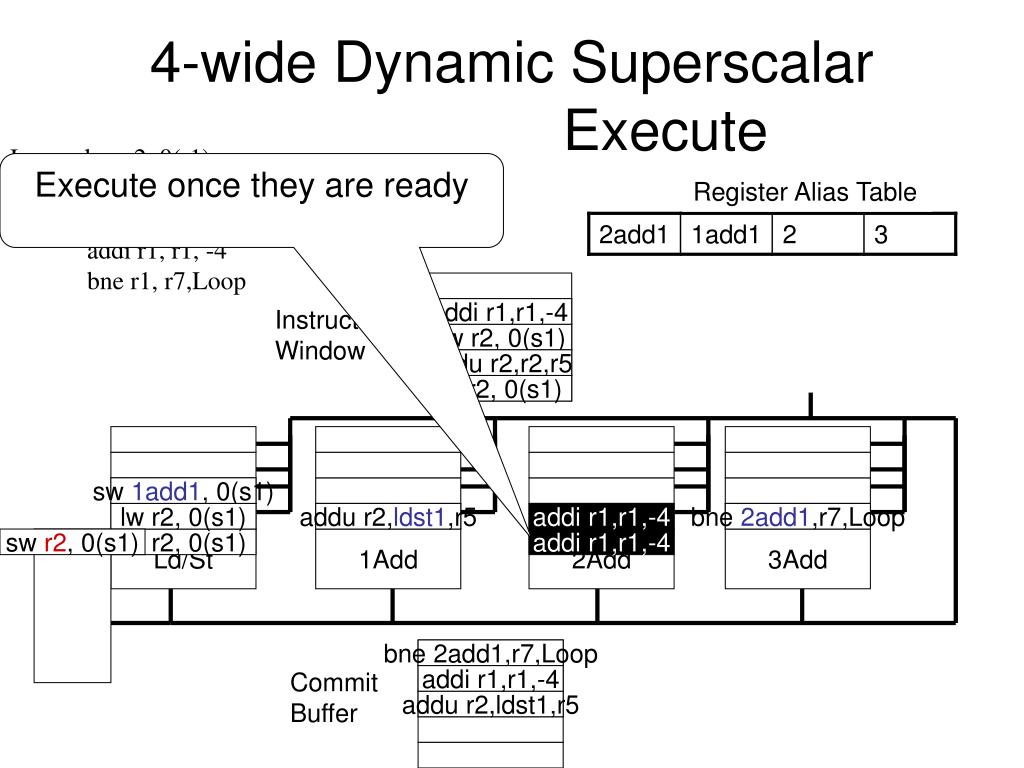

  35. 4-wide Dynamic Superscalar Execute Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Execute once they are ready Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

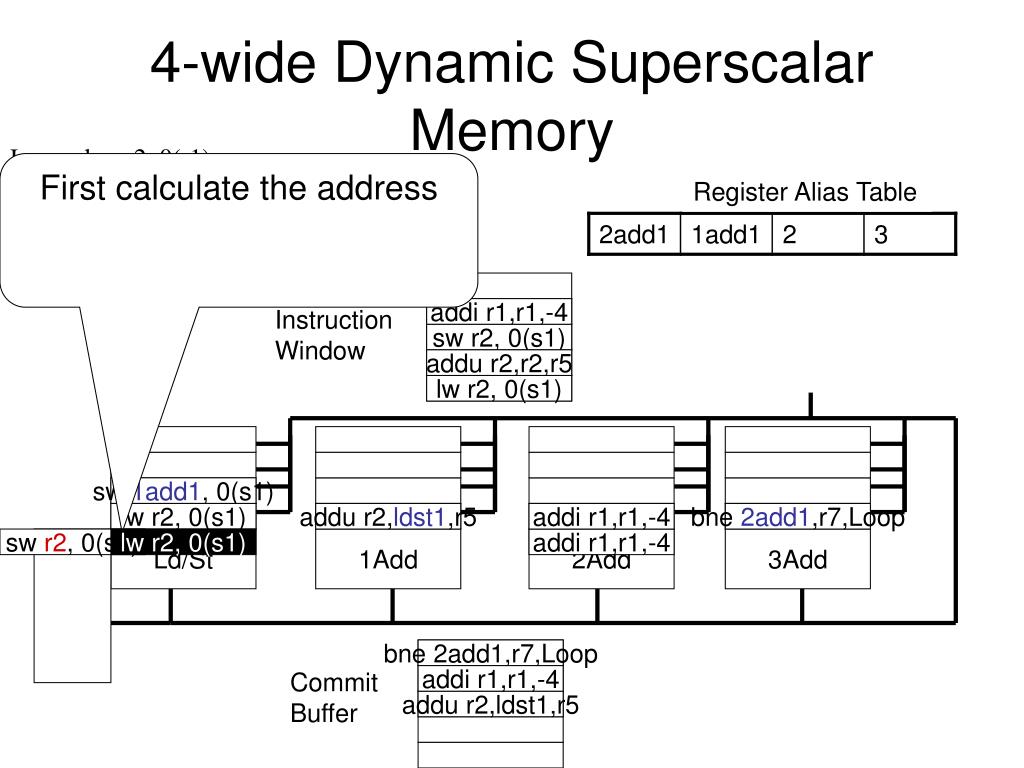

  36. 4-wide Dynamic SuperscalarMemory Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop First calculate the address Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue lw r2, 0(s1) Ld/St 1Add 2Add addi r1,r1,-4 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

  37. 4-wide Dynamic SuperscalarMemory Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Ld/St Queue checks memory addresses – out of order lw/sw Register Alias Table Register File Instruction Window addi r1,r1,-4 sw r2, 0(s1) addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue Ld/St lw r2, 0(s1) 1Add addi r1,r1,-4 2Add 3Add bne 2add1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,ldst1,r5

  38. 4-wide Dynamic SuperscalarCommit Loop: lw r2, 0(r1) addu r2, r2, r5 sw r2, 0(r1) addi r1, r1, -4 bne r1, r7,Loop Register Alias Table Register File KEY Waiting for value Reading value Instruction Window addi r1,r1,-4 sw r2, 0(s1) Instructions wait until all previous instructions have completed addu r2,r2,r5 lw r2, 0(s1) sw 1add1, 0(s1) lw r2, 0(s1) addu r2,ldst1,r5 addi r1,r1,-4 bne 2add1,r7,Loop sw r2, 0(s1) Ld/St Queue lw r2, 0(s1) Ld/St 1Add 2Add addi r1,r1,-4 3Add bne r1,r7,Loop Commit Buffer addi r1,r1,-4 addu r2,r2,r5

  39. Fallacies & Pitfalls • Pipelining is easy • ______________ is difficult • Instruction set has no impact on pipelining • Complicated _____________ & _____________________ instructions complicate pipelining immensely

  40. Technology Influences • Pipelining ideas are good ideas regardless of technology • Only recently, with extra chip space, has ___________________ become better than ____________________ • Now, pipelining limited by ________

  41. Internal External Exceptions –Unexpected Events

  42. Definitions • Anything unexpected happens • External event occurs • Internal event occurs • Change in control flow

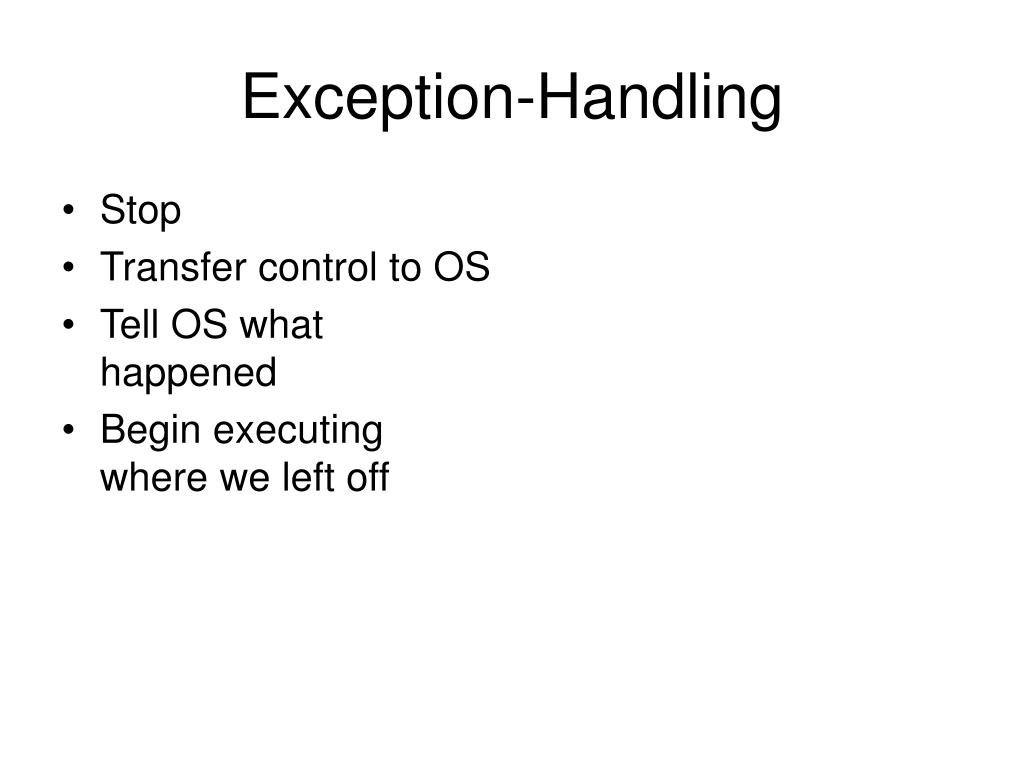

  43. Stop Transfer control to OS Tell OS what happened Begin executing where we left off Exception-Handling

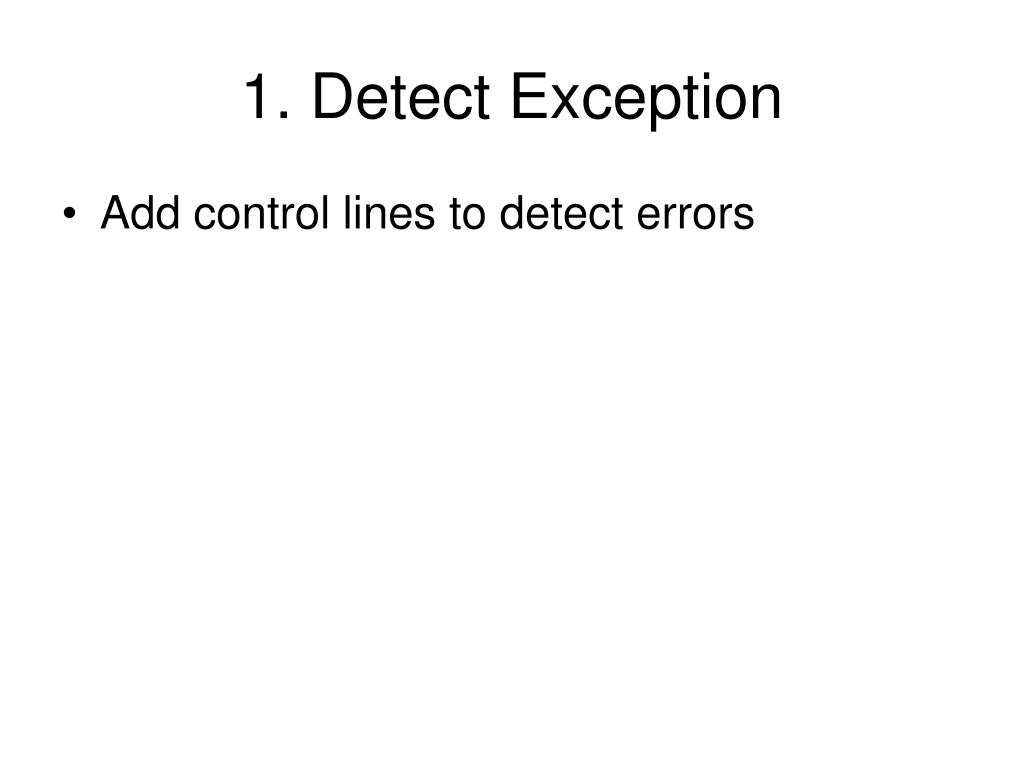

  44. 1. Detect Exception • Add control lines to detect errors

  45. Step 2: Store PC into EPC << 2 << 2 4 Addr Out Data Data Memory In Data src1 src1data src2 src2data Register File destreg destdata PC op/fun rs rt rd imm Read Addr Out Data Instruction Memory Inst 16 Sign Ext 32

  46. Step 3: Tell OS the problem • Store error code in the _________ • Use vectored interrupts • Use error code to determine _________

  47. Cause Register • Set a flag in the cause register • How does the OS find out if an overflow occurred if the bit corresponding to an overflow is bit 5?

  48. Vectored Interrupts • The address of trap handler is determined by cause

  49. Cause Register – Go to OS Handler PC << 2 Cause -4 << 2 4 EPC Addr Out Data Data Memory In Data src1 src1data src2 src2data Register File destreg destdata PC op/fun rs rt rd imm Read Addr Out Data Instruction Memory Inst 16 Sign Ext 32

  50. Vectored Interrupt – Go to OS Cause Vector Table << 2 -4 << 2 4 EPC Addr Out Data Data Memory In Data src1 src1data src2 src2data Register File destreg destdata PC op/fun rs rt rd imm Read Addr Out Data Instruction Memory Inst 16 Sign Ext 32
