Presentation Transcript

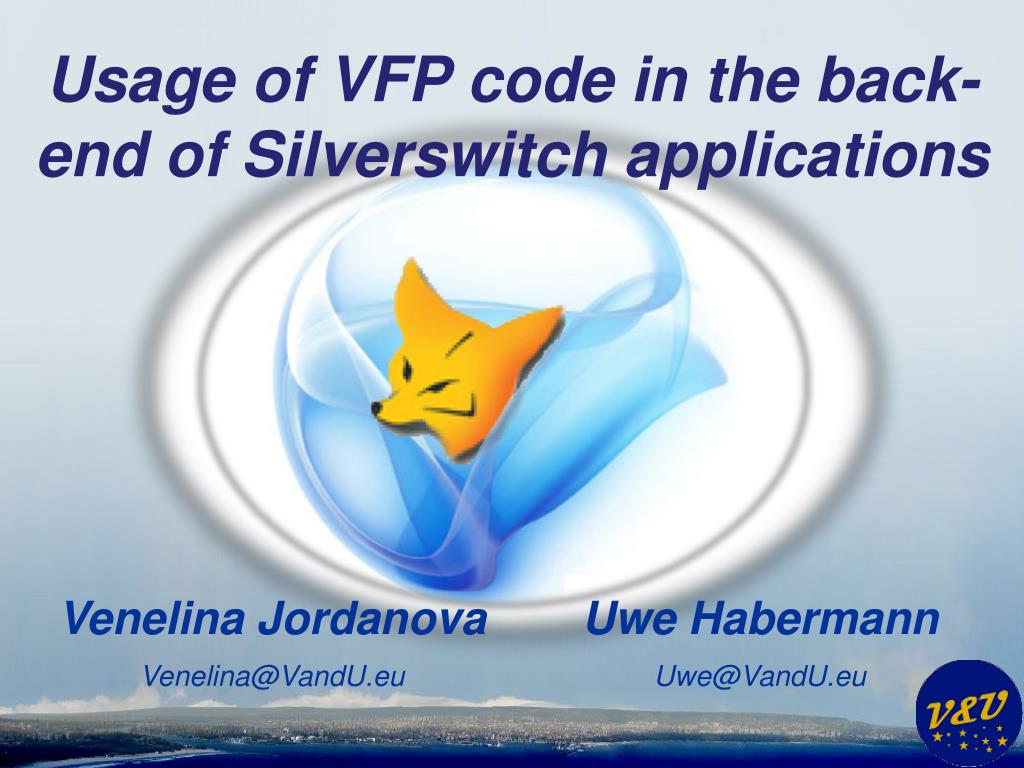

usage of vfp code in the back end of silverswitch applications
Usage of VFP code in the back-end of Silverswitchapplications

VenelinaJordanova

Venelina@VandU.eu

Uwe Habermann

Uwe@VandU.eu

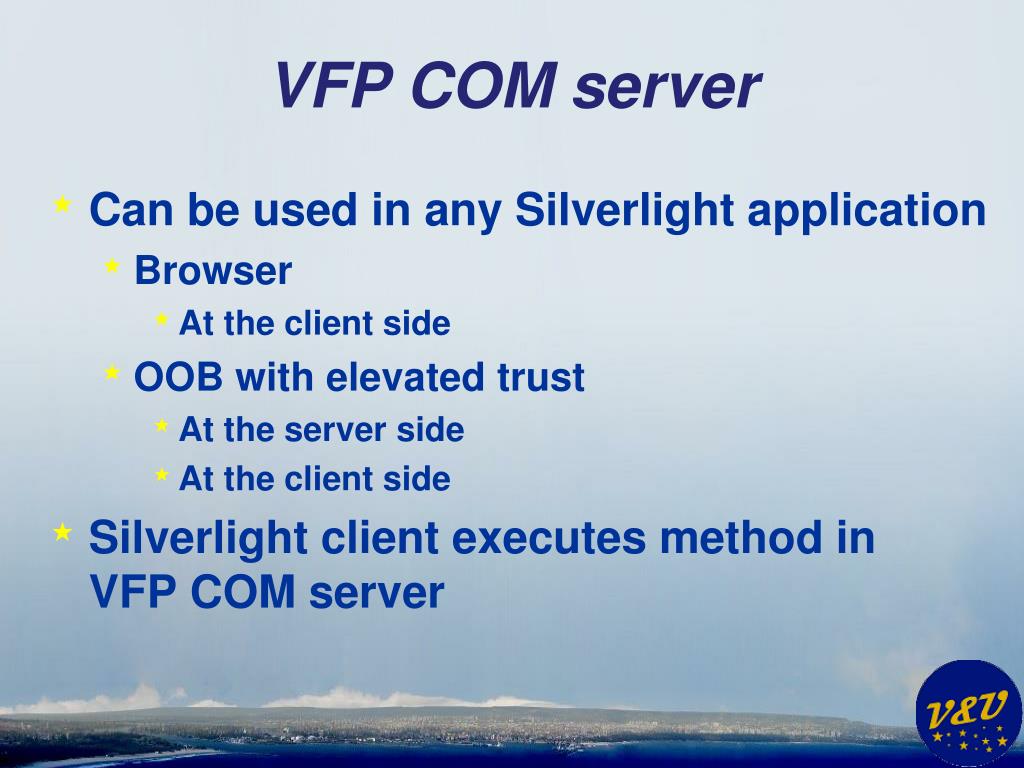

vfp com server
VFP COM server
  • Can be used in any Silverlight application
    • Browser
      • At the client side
    • OOB with elevated trust
      • At the server side
      • At the client side
  • Silverlight client executes method in VFP COM server

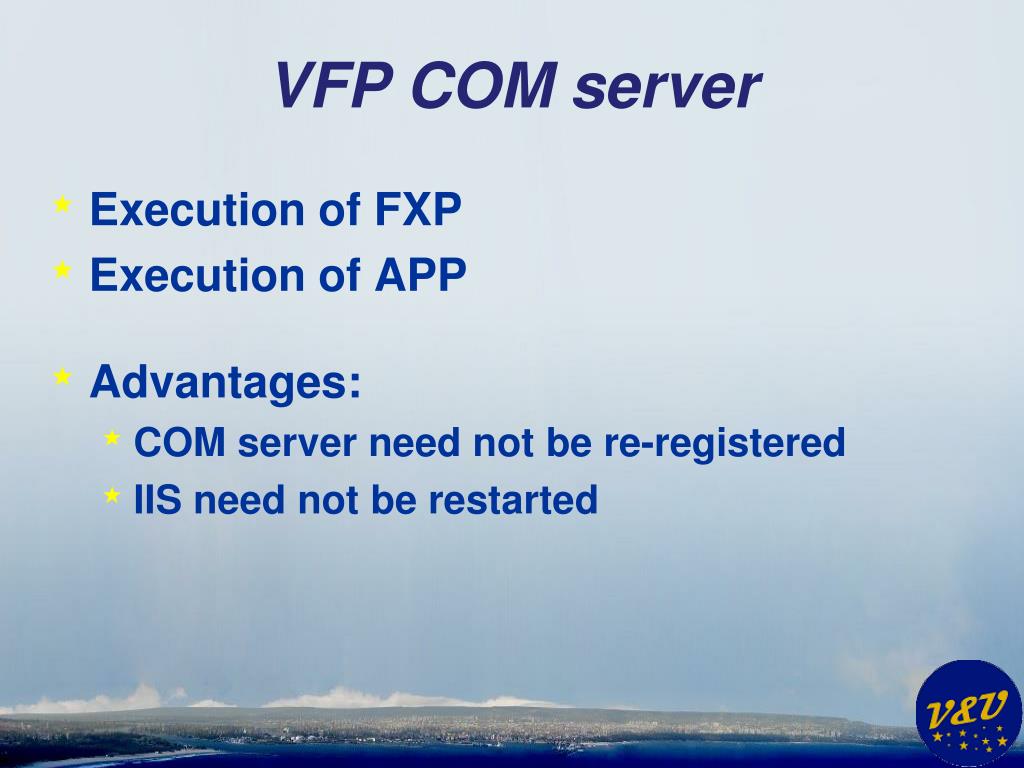

vfp com server1
VFP COM server
  • Execution of FXP
  • Execution of APP
  • Advantages:
    • COM server need not be re-registered
    • IIS need not be restarted
vfp com server2
VFP COM server
  • Data access
    • Cursoradapter
      • VFP database
      • SQL database
      • All ODBC data sources
        • MySQL
        • Oracle
        • DB2
  • Set-up database to use
vfp com server3
VFP COM server
  • Business logic
    • Everything, but nothing visible(no user interface)
vfp com server4
VFP COM server
  • DEFINE CLASS COMTastrade AS SESSION OLEPUBLIC
  • Build as “Multi-threaded COM server (dll)”
  • VFP9.exe must be started with Administrator rights explicitly!

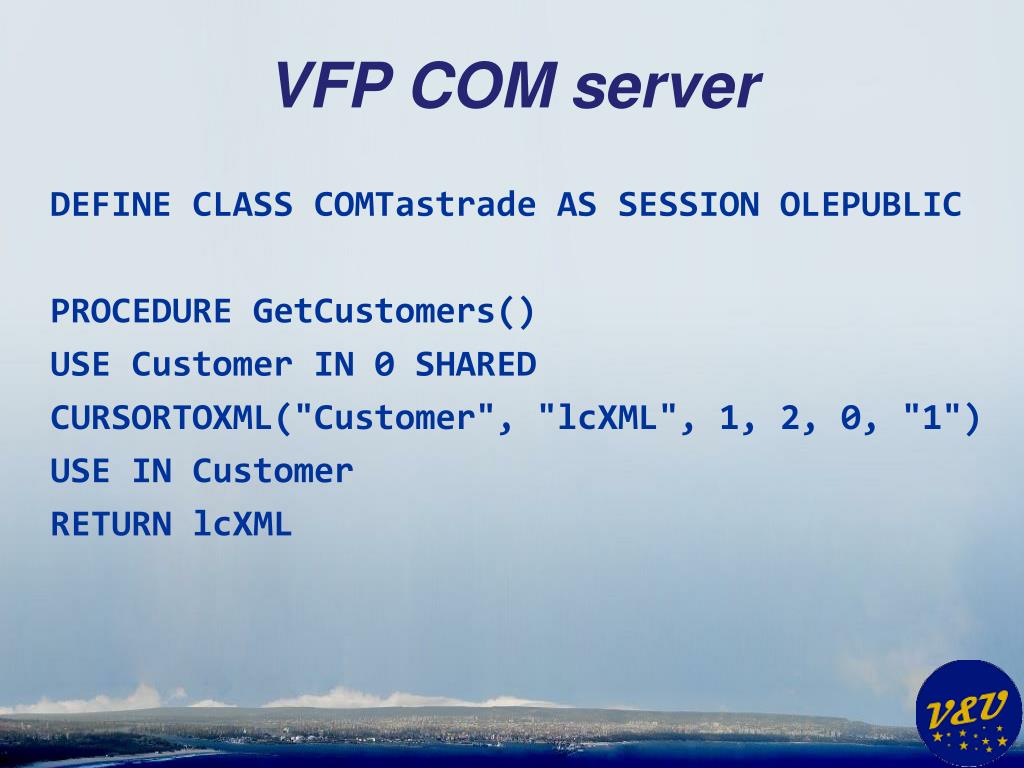

vfp com server5
VFP COM server

DEFINE CLASS COMTastrade AS SESSION OLEPUBLIC

PROCEDURE GetCustomers()

USE Customer IN 0 SHARED

CURSORTOXML("Customer", "lcXML", 1, 2, 0, "1")

USE IN Customer

RETURN lcXML

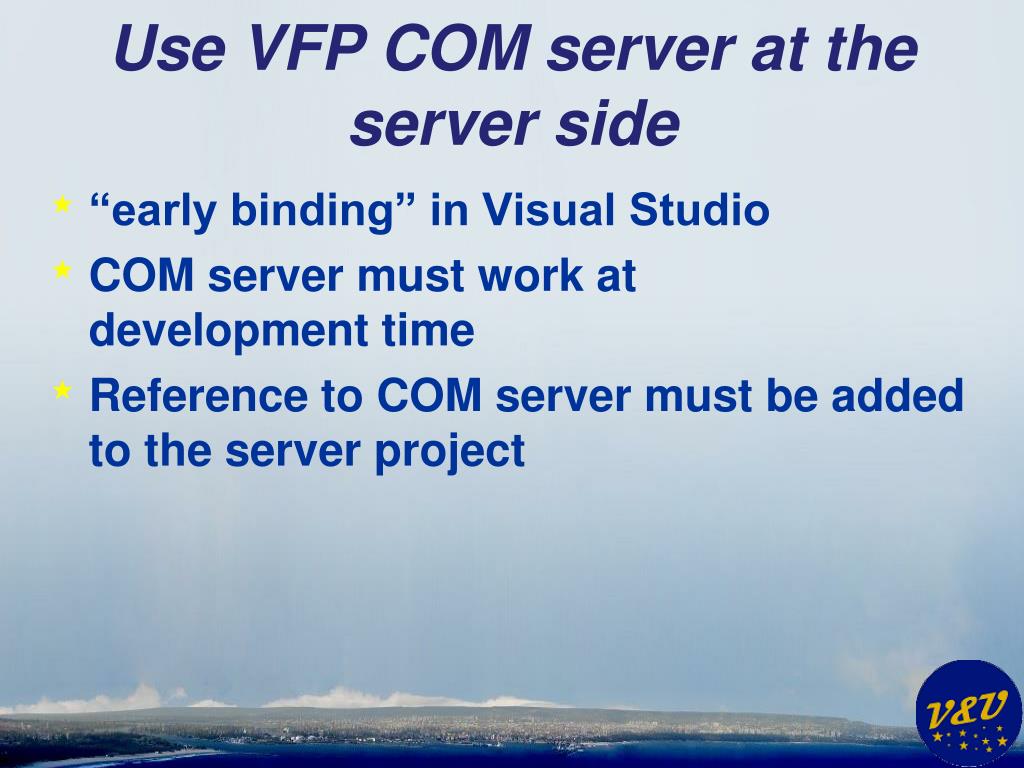

use vfp com server at the server side
Use VFP COM serverattheserverside
  • “early binding” in Visual Studio
  • COM server must work at development time
  • Reference to COM server must be added to the server project
call a vfp function
Call a VFP function

private void xpgfPageFramePage1cmdProper_Click(

object sender, RoutedEventArgs e)

{

VfxSystemDomainContext context =

new VfxSystemDomainContext();

EventHandler handler =

new EventHandler(ExecuteVFPCommand_Completed);

var ExecuteVFPCommand =

context.ExecuteCommandService("proper",

xpgfPageFramePage1txtCustomername.Text.ToString(),

VfxAppObject.CurrentConnectionInfo.ClientName);

ExecuteVFPCommand.Completed += handler;

}

call a vfp function1
Call a VFP function

void ExecuteVFPCommand_Completed(

object sender, EventArgs e)

{

var result = sender as InvokeOperation<string>;

VfxCommandServiceResultBase ValueResult = (VfxCommandServiceResultBase)VfxSerializer.

DeserializeObject<VfxCommandServiceResultBase>

(result.Value);

lblResult.Text = ValueResult.CommandServiceInfo.result;

}

action button
Action Button
  • Progammatical call of COM server method, procedure or new instanceof an object from the client side
  • Call from Button
  • Demo
action button1
Action Button
  • Pass multiple parameters
  • Pass data as parameter
