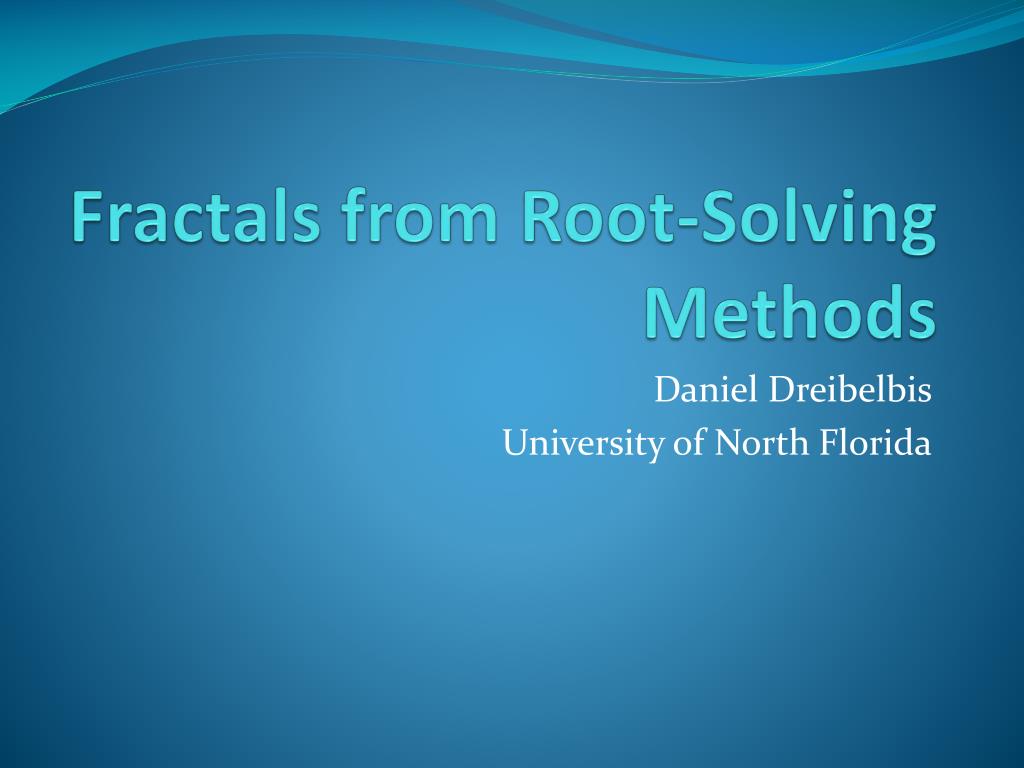

  1. Fractals from Root-Solving Methods Daniel Dreibelbis University of North Florida

  2. Outline • Define the problem • Explore Newton’s Method, leading up to Newton’s Fractals • Mess with Newton’s Method • Try this with other root-solving methods

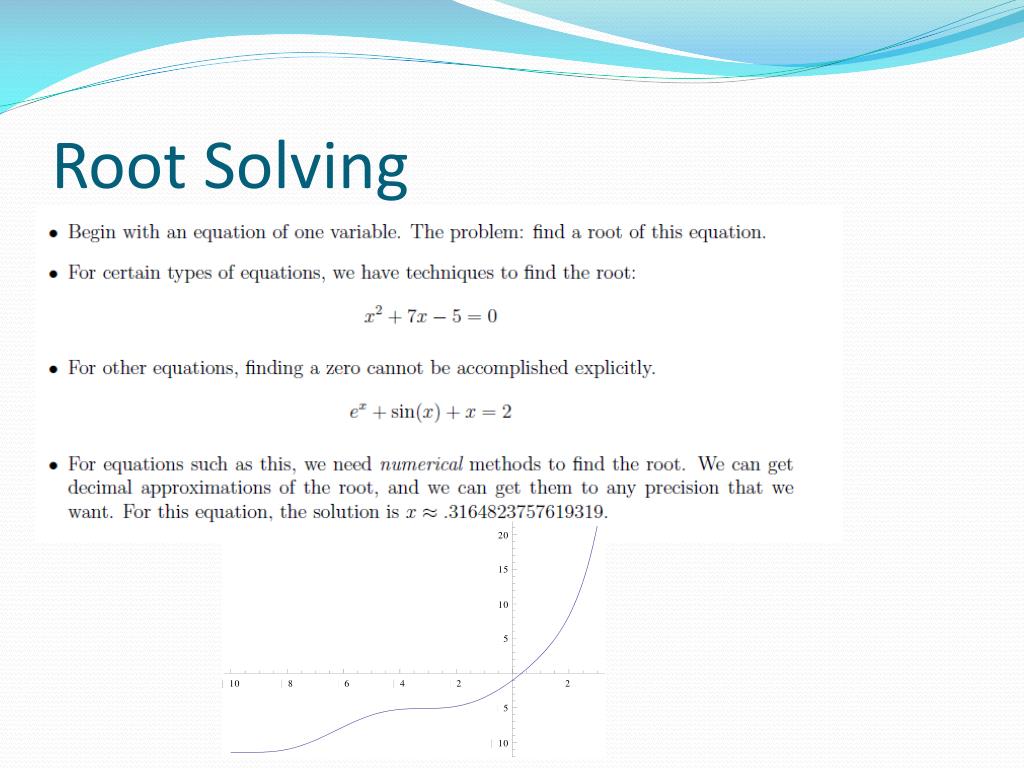

  3. Root Solving

  4. Newton’s Method

  5. Newton’s Method

  6. Visualizing Newton’s Method

  7. Quadratic: Lame z2 – 1 = 0

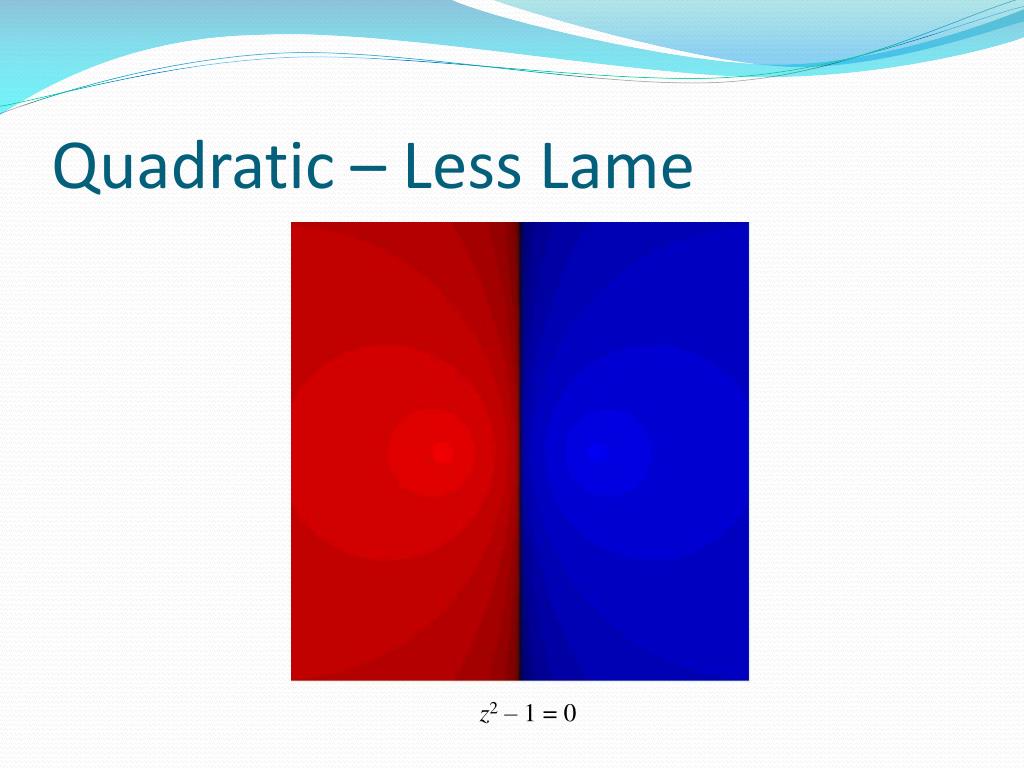

  8. Quadratic – Less Lame z2 – 1 = 0

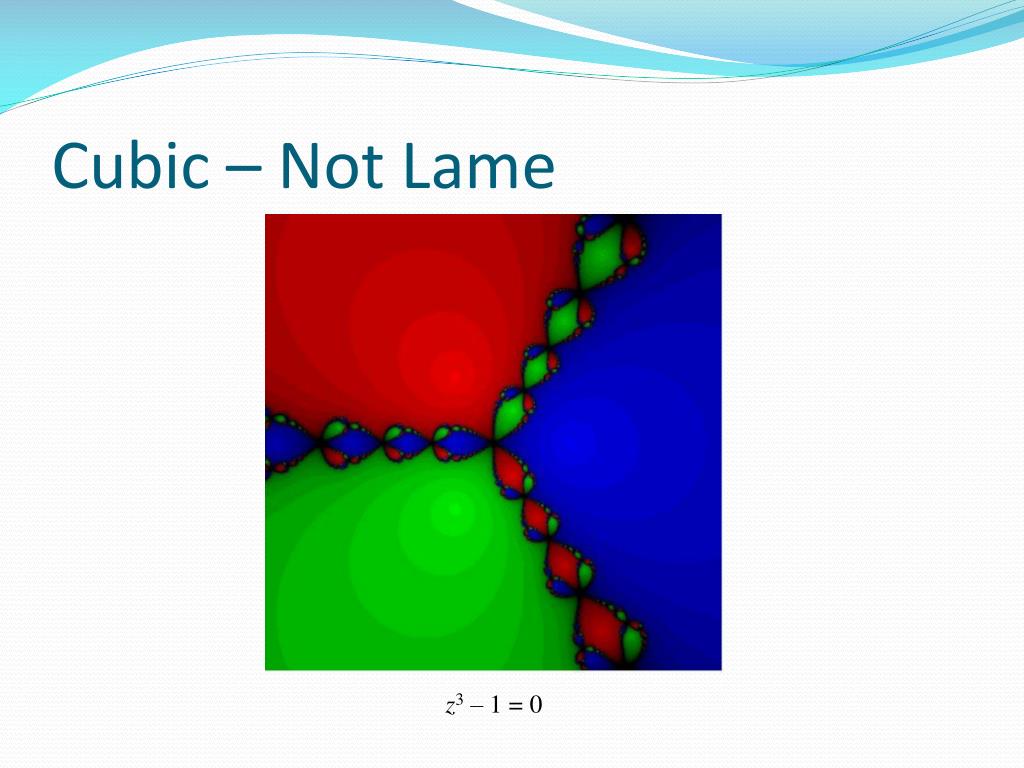

  9. Cubic – Not Lame z3– 1 = 0

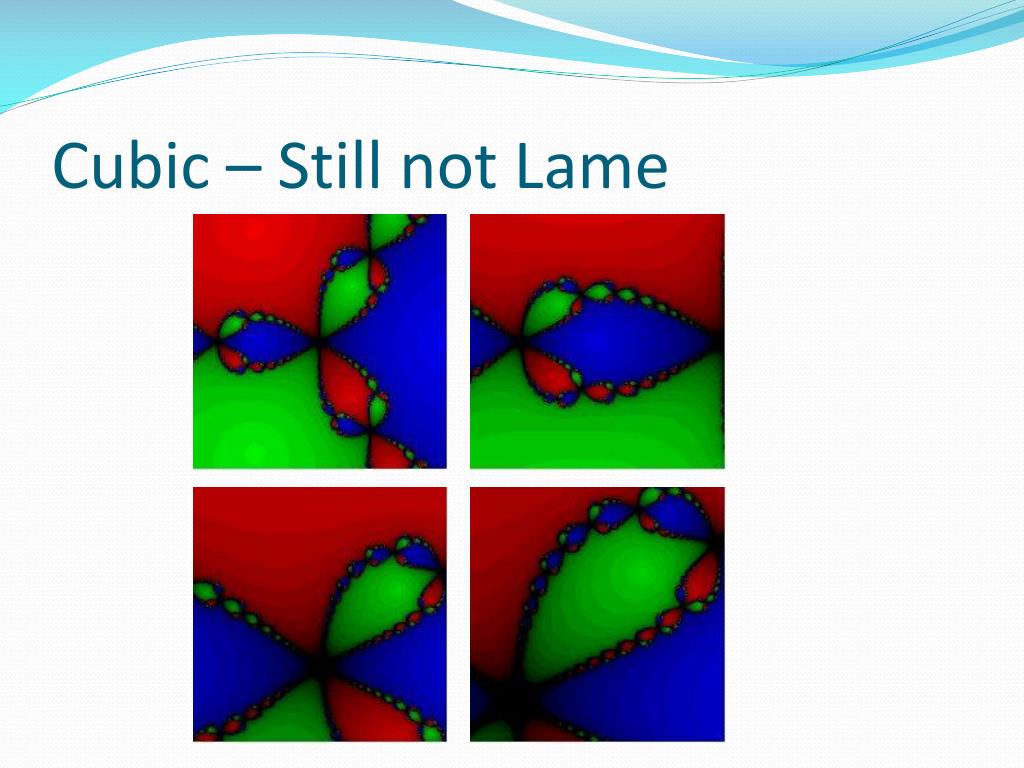

  10. Cubic – Still not Lame

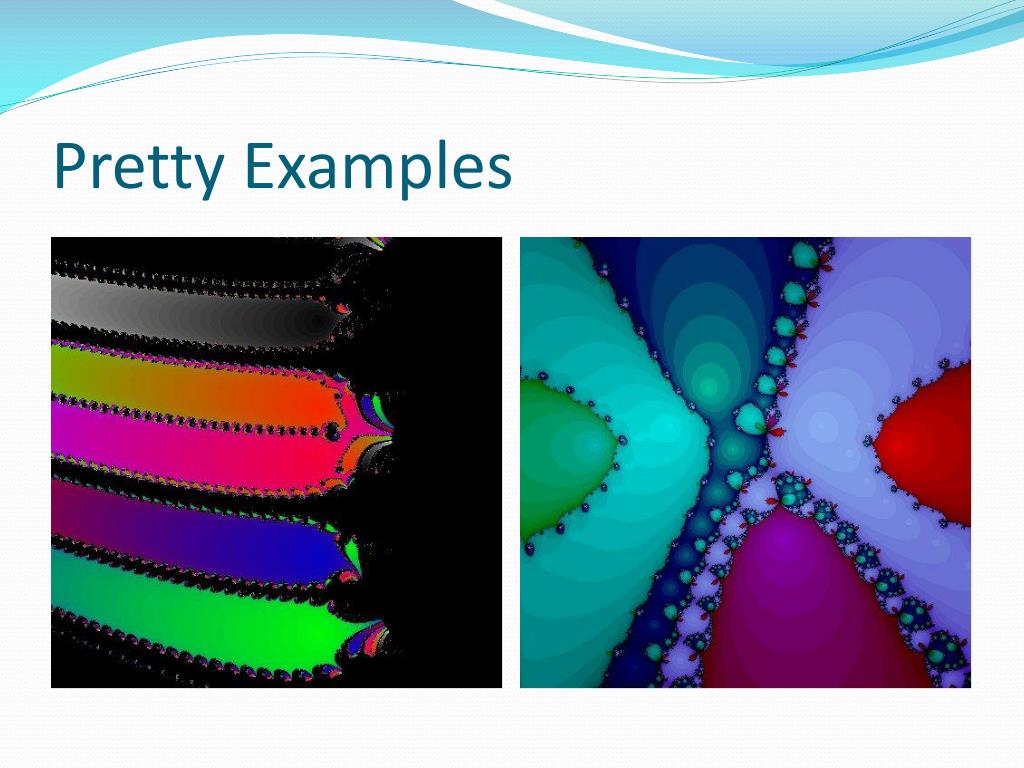

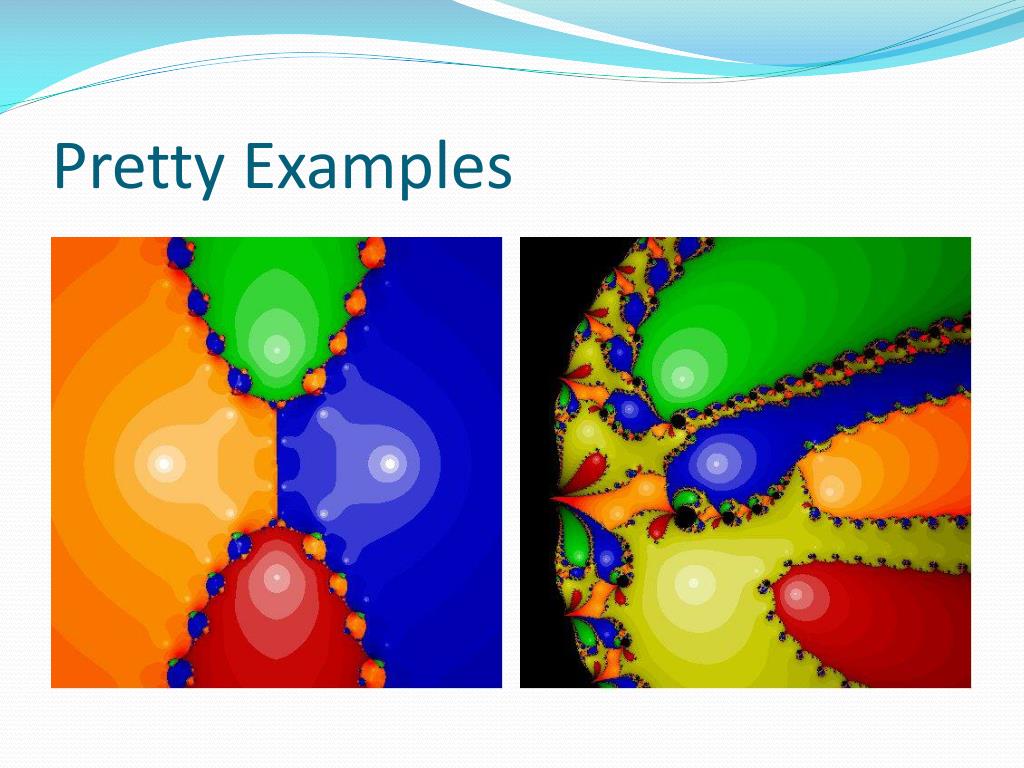

  11. Pretty Examples

  12. Pretty Examples

  13. Pretty Examples

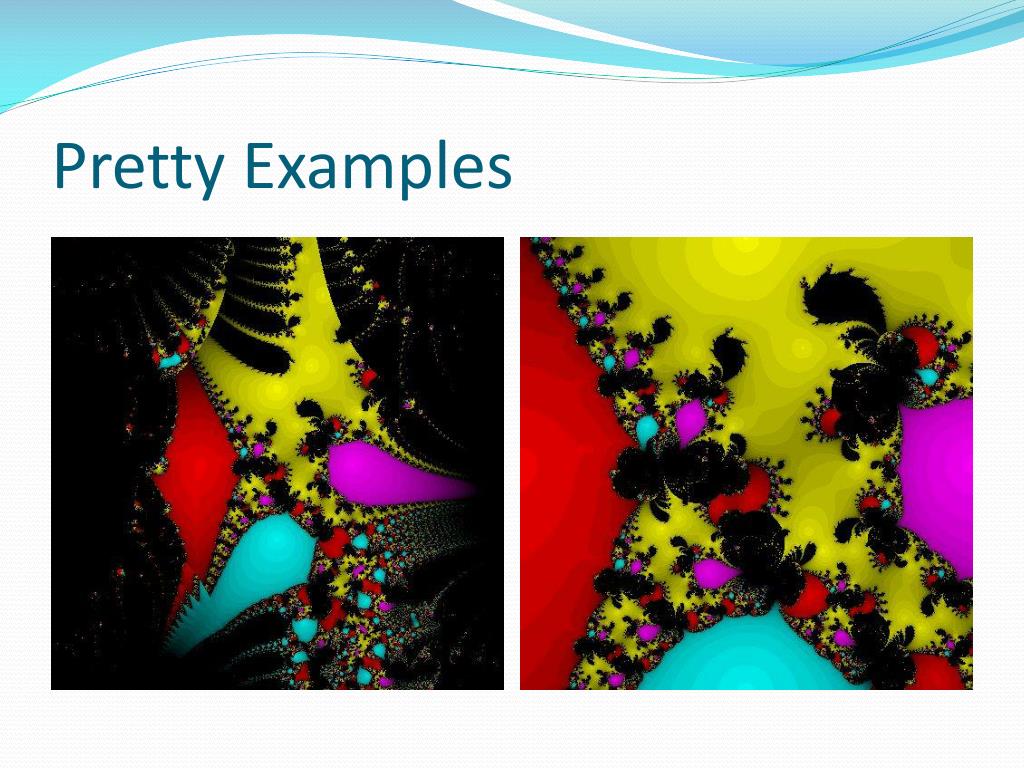

  14. Pretty Examples

  15. Pretty Examples

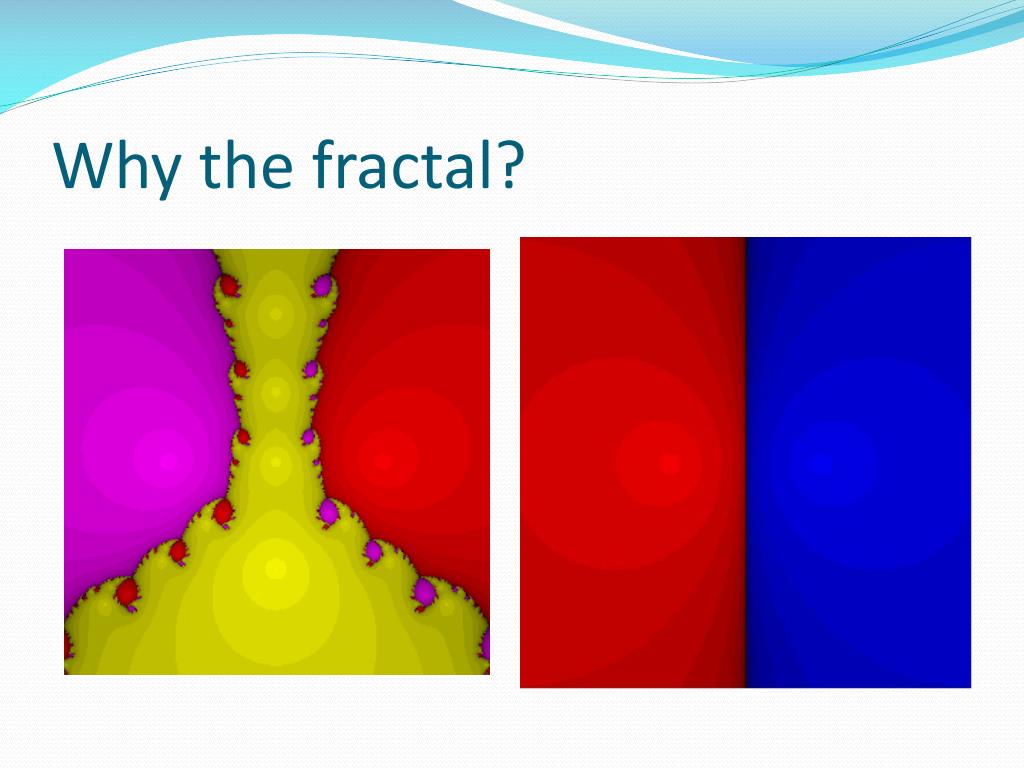

  16. Why the fractal? • Near a critical point, the tangent lines hit most of the x-axis. Thus most of the domain is mirrored near the critical point. • With two or more critical points, each critical point mirrors all of the other critical points.

  17. Why the fractal?

  18. Why Newton’s Method?

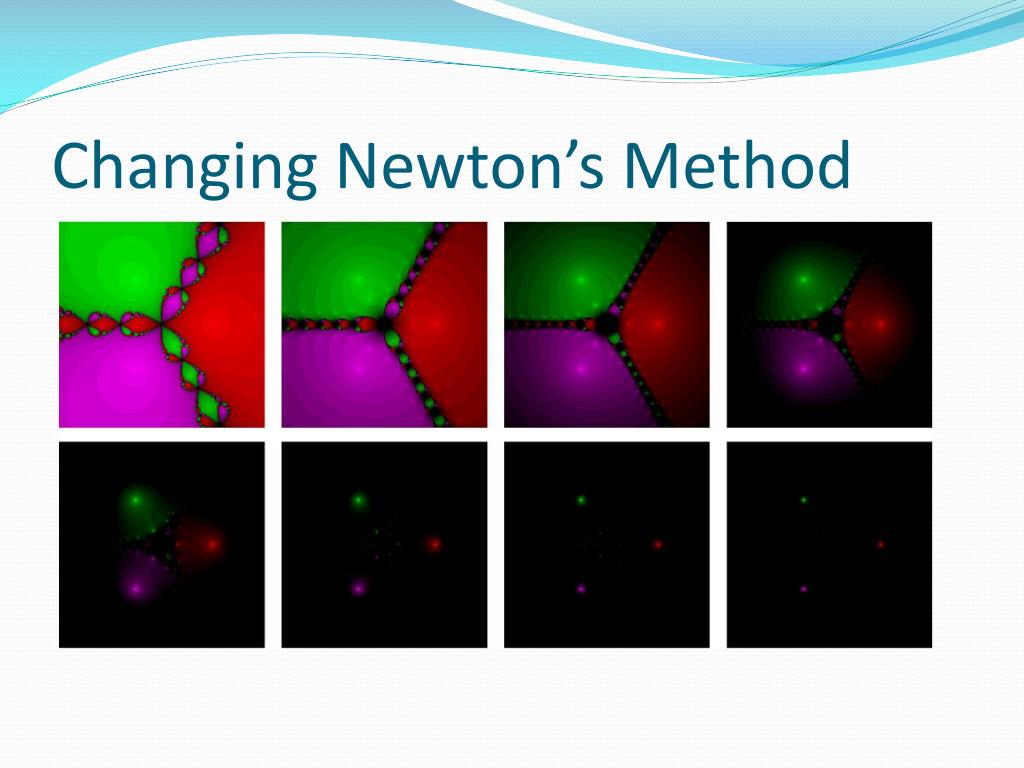

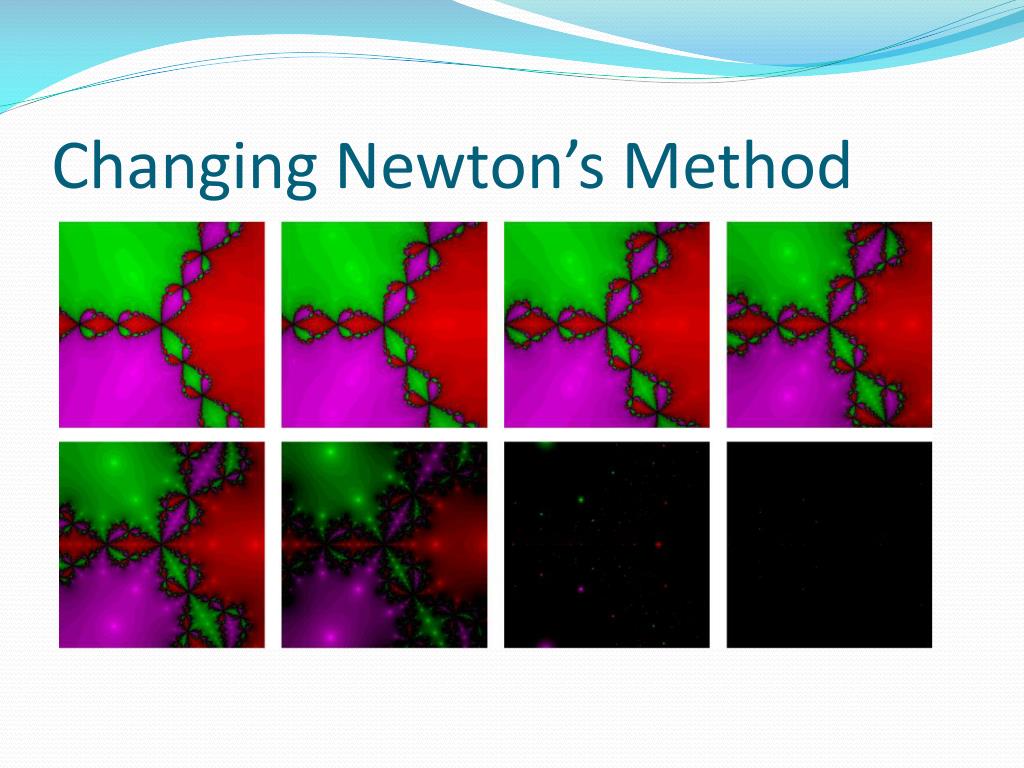

  19. Changing Newton’s Method

  20. Changing Newton’s Method

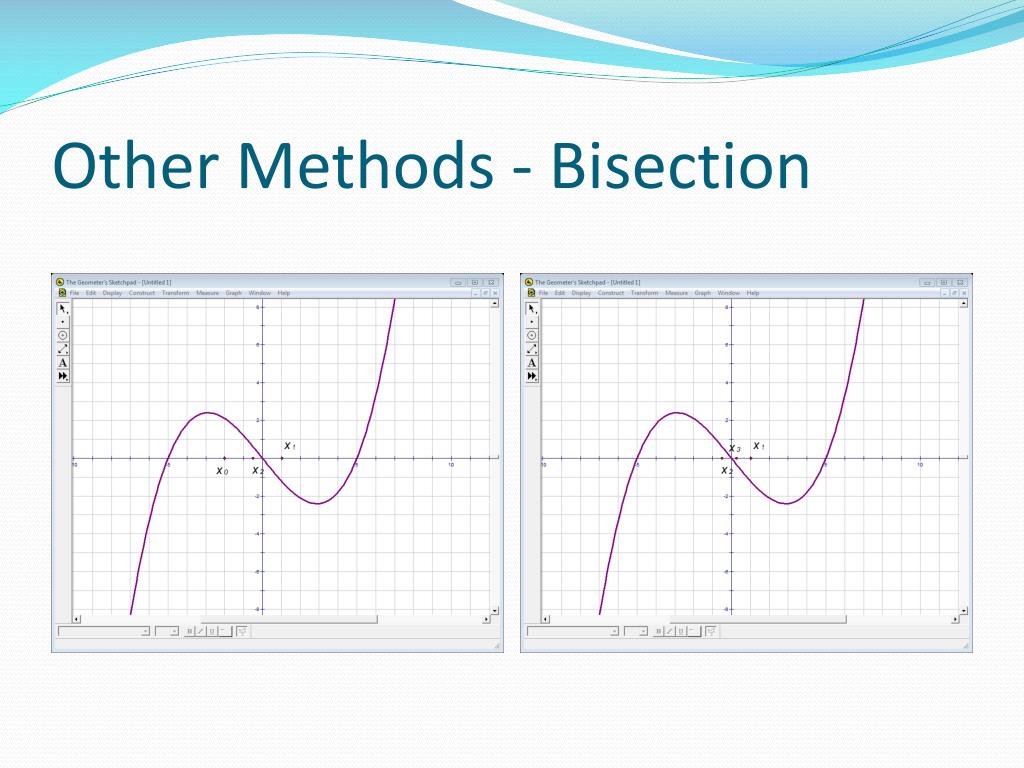

  21. Other Methods - Bisection

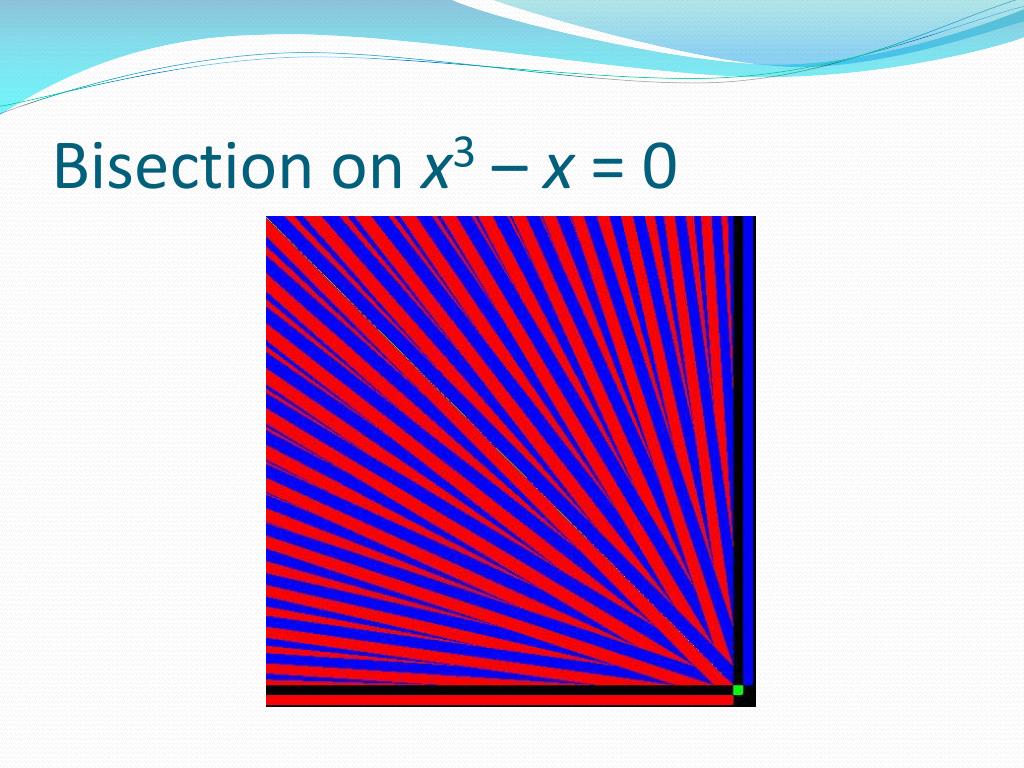

  22. Bisection on x3 – x = 0

  23. Other Methods - Secant

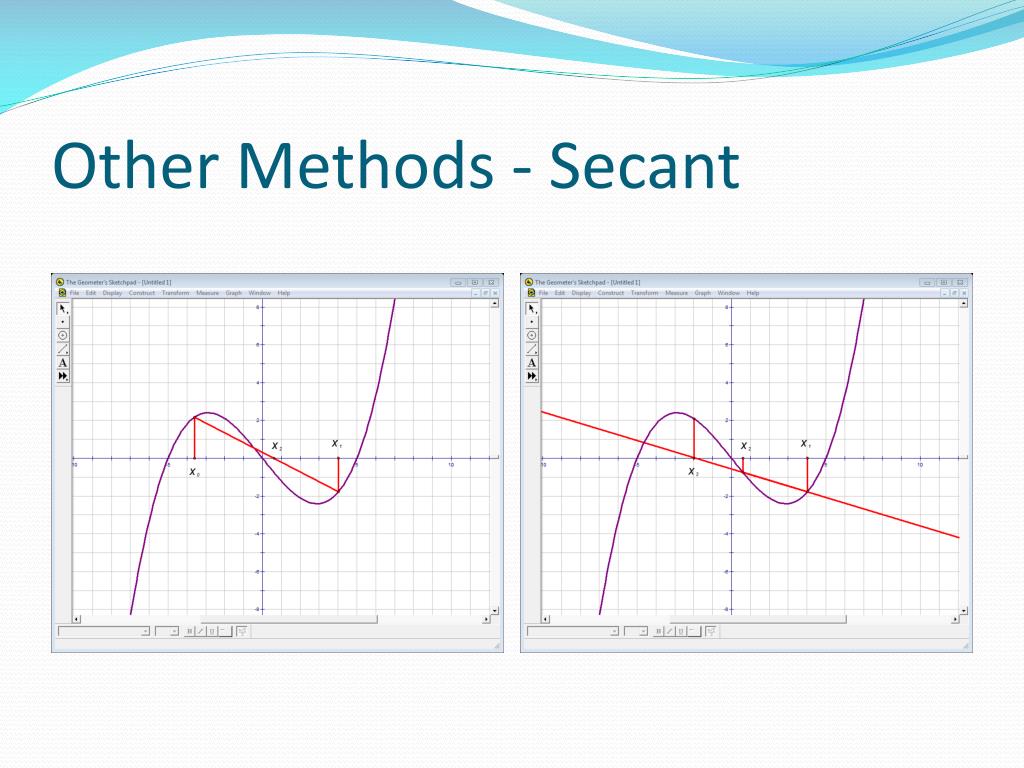

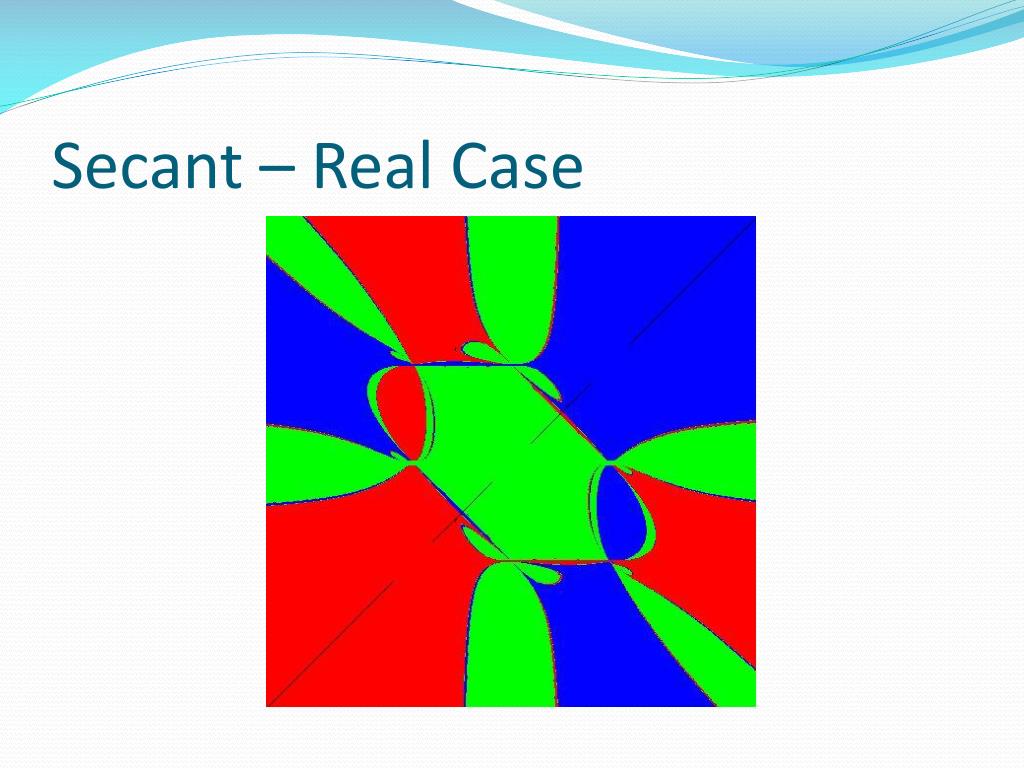

  24. Secant – Real Case

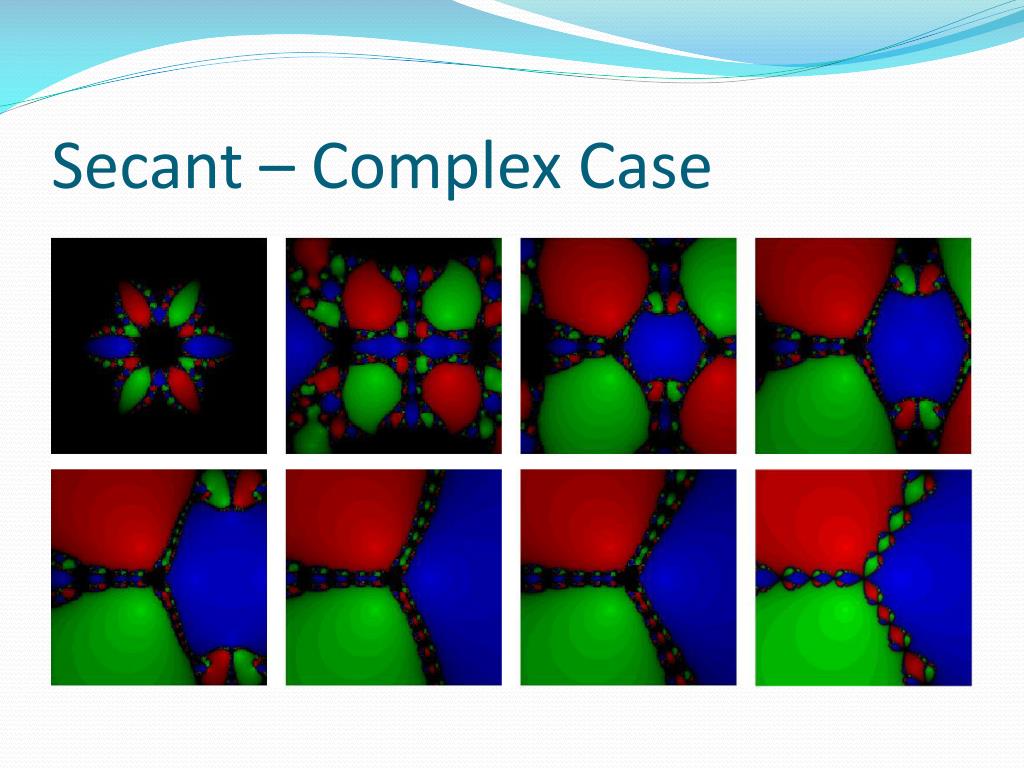

  25. Secant – Complex Case

  26. Other Methods – Steepest Descent f(x, y)=0 and g(x, y)=0 f(x, y)2 + g(x, y)2

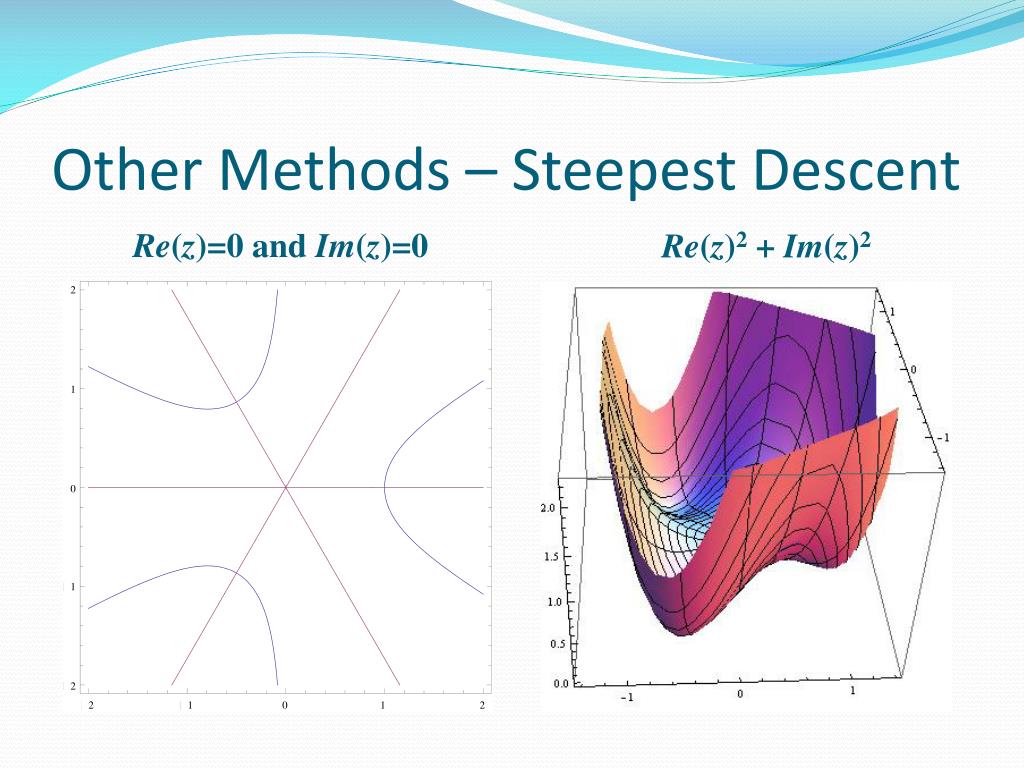

  27. Other Methods – Steepest Descent Re(z)=0 and Im(z)=0 Re(z)2 + Im(z)2

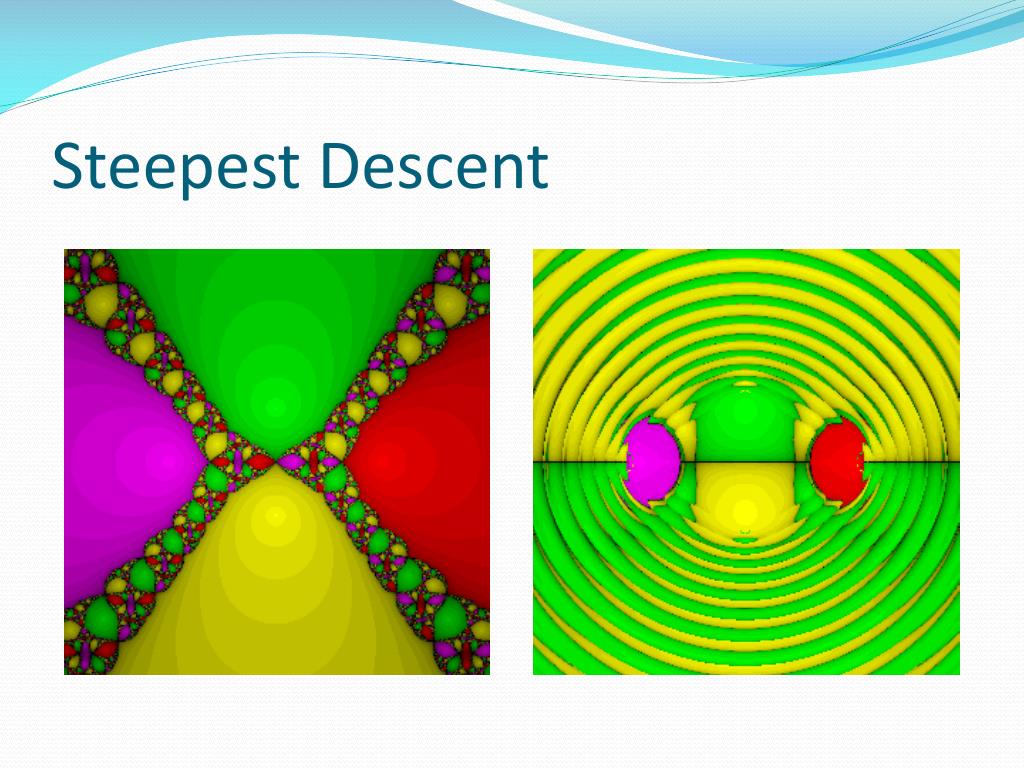

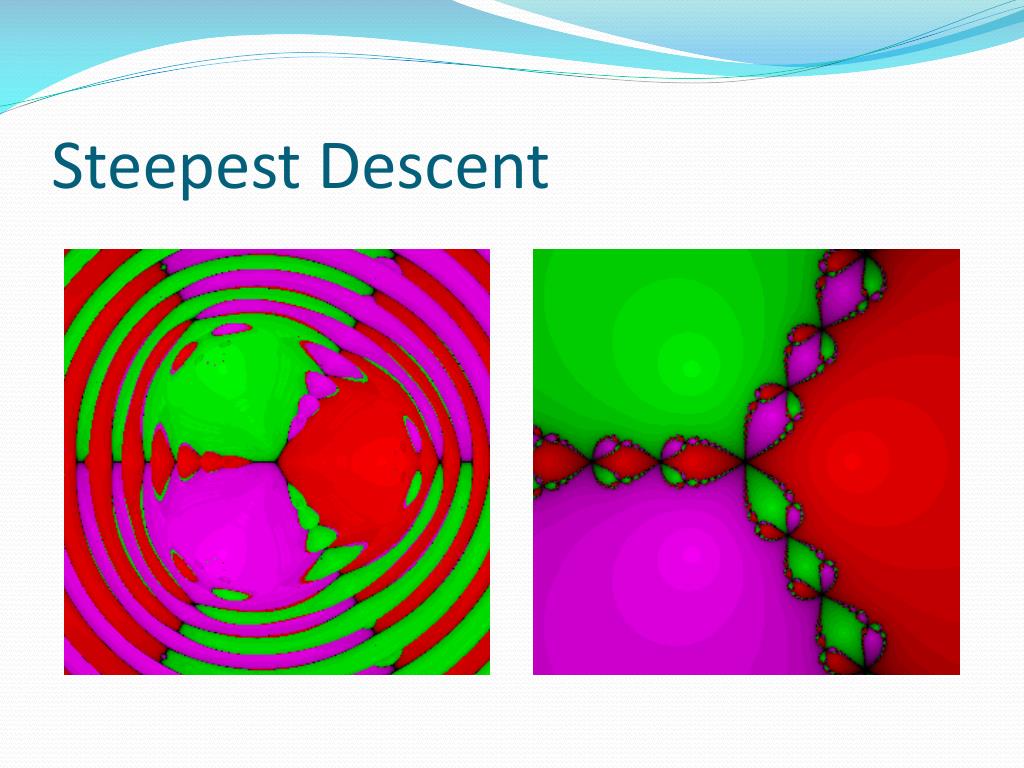

  28. Steepest Descent

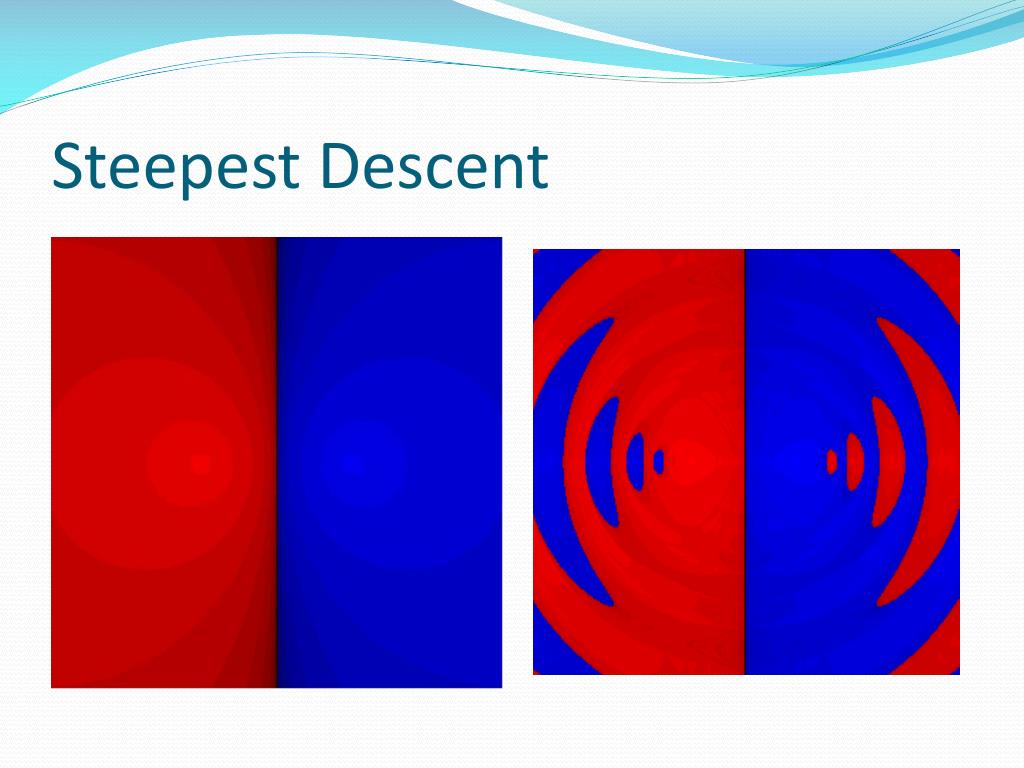

  29. Steepest Descent

  30. Steepest Descent

  31. Steepest Descent

  32. The End! • Thanks! • www.unf.edu/~ddreibel
