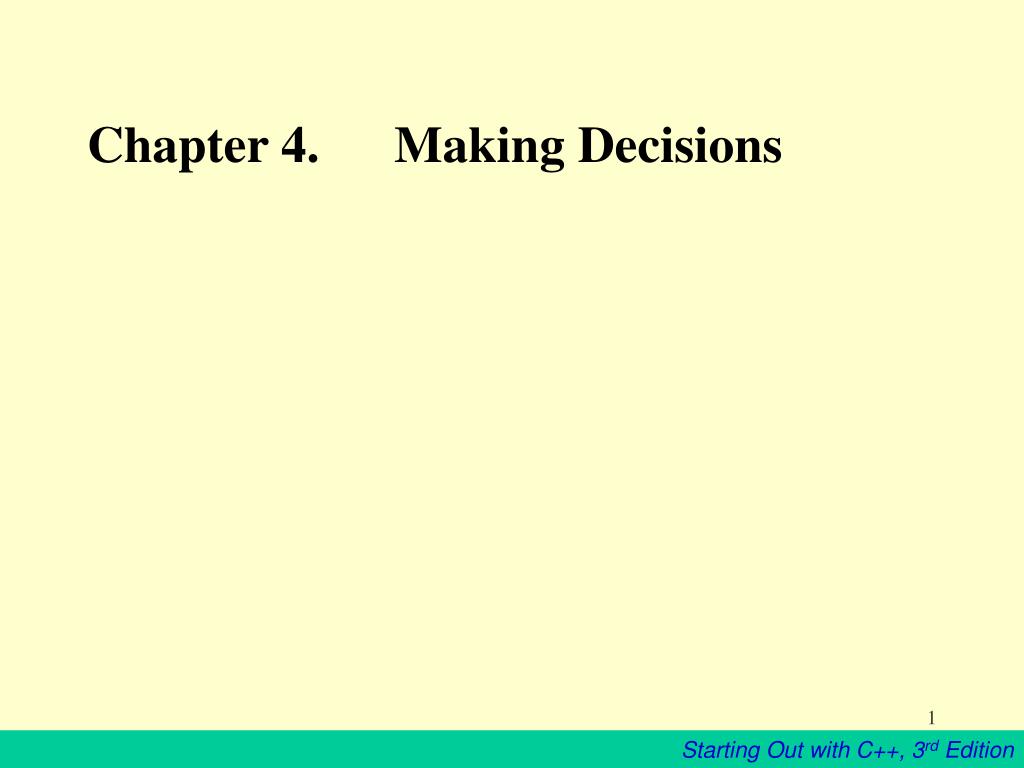

  1. Chapter 4. Making Decisions

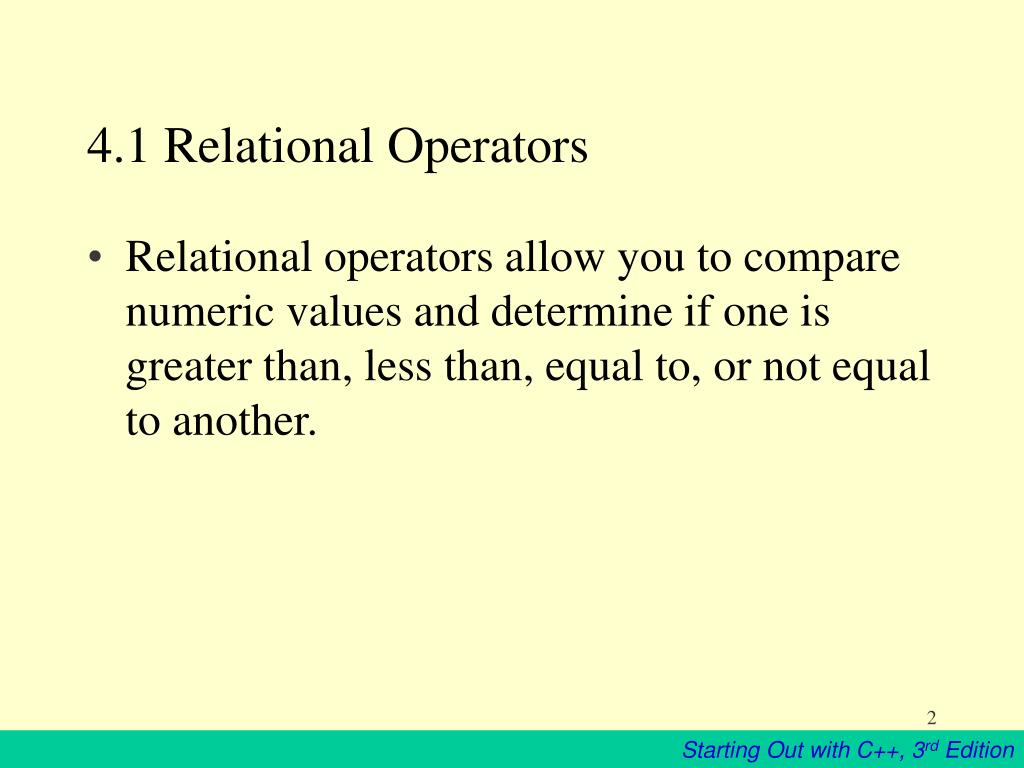

  2. 4.1 Relational Operators • Relational operators allow you to compare numeric values and determine if one is greater than, less than, equal to, or not equal to another.

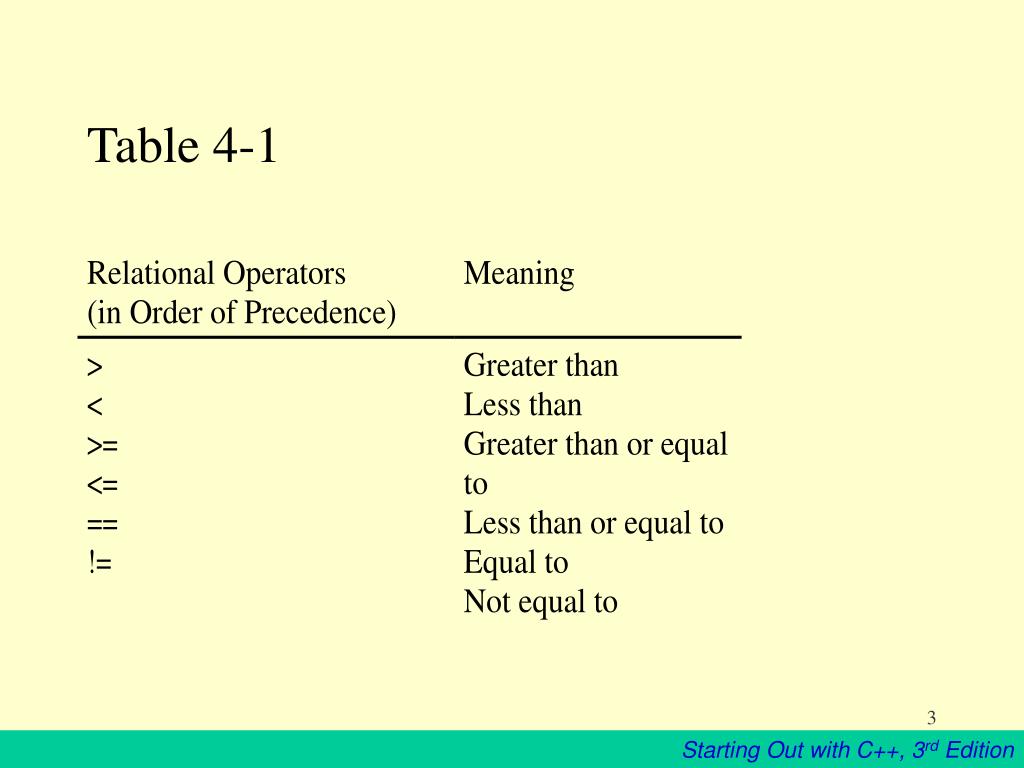

  3. Table 4-1

  4. Table 4-2

  5. The Value of a Relationship • Relational expressions are also know as a Boolean expression • Warning! The equality operator is two equal signs together ==

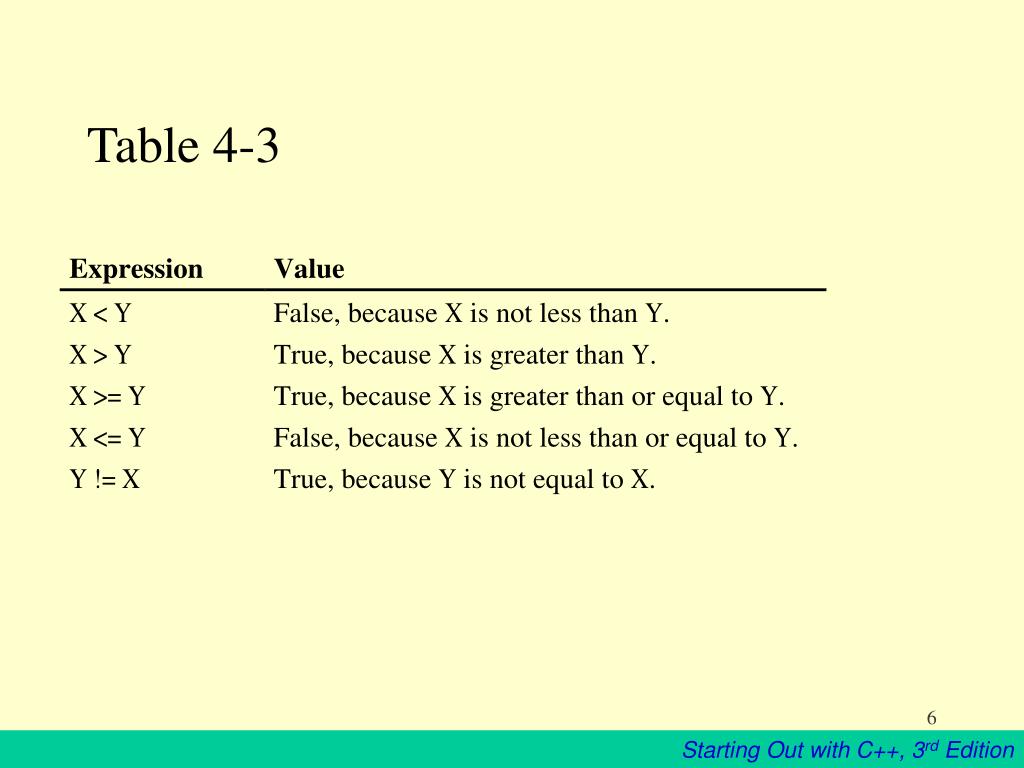

  6. Table 4-3

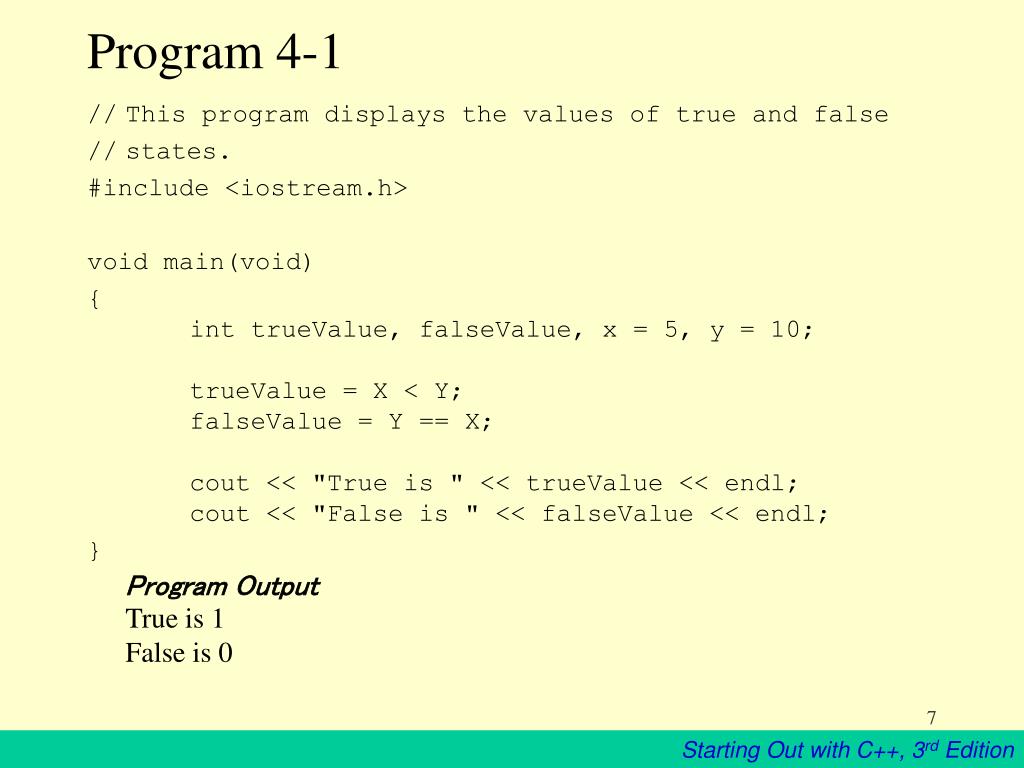

  7. Program 4-1 // This program displays the values of true and false // states. #include <iostream.h> void main(void) { int trueValue, falseValue, x = 5, y = 10;trueValue = X < Y;falseValue = Y == X; cout << "True is " << trueValue << endl; cout << "False is " << falseValue << endl; } Program OutputTrue is 1False is 0

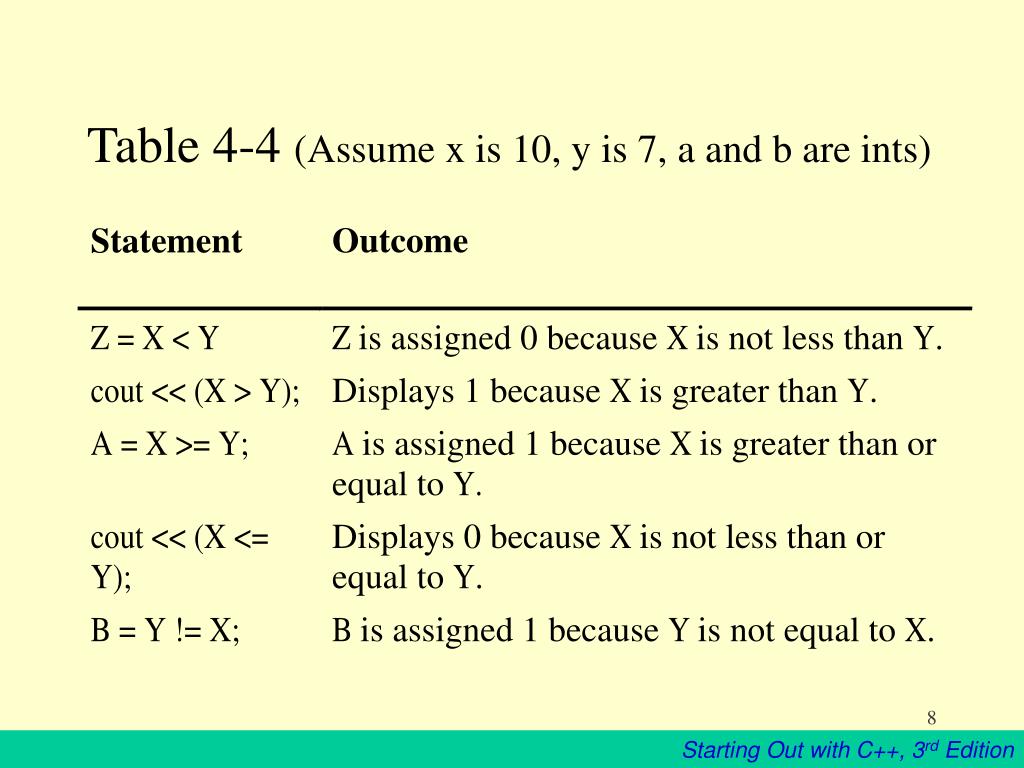

  8. Table 4-4 (Assume x is 10, y is 7, a and b are ints)

  9. 4.2 The if Statement • The if statement can cause other statements to execute only under certain conditions.

  10. Program 4-2 // This program averages 3 test scores #include <iostream.h> void main(void) { int score1, score2, score3; float average; cout << "Enter 3 test scores and I will average them: "; cin >> score1 >> score2 >> score3; average = (score1 + score2 + score3) / 3.0; cout.precision(1); cout.setf(ios::showpoint | ios::fixed); cout << "Your average is " << average << endl; if (average > 95) cout << "Congratulations! That's a high score!\n"; }

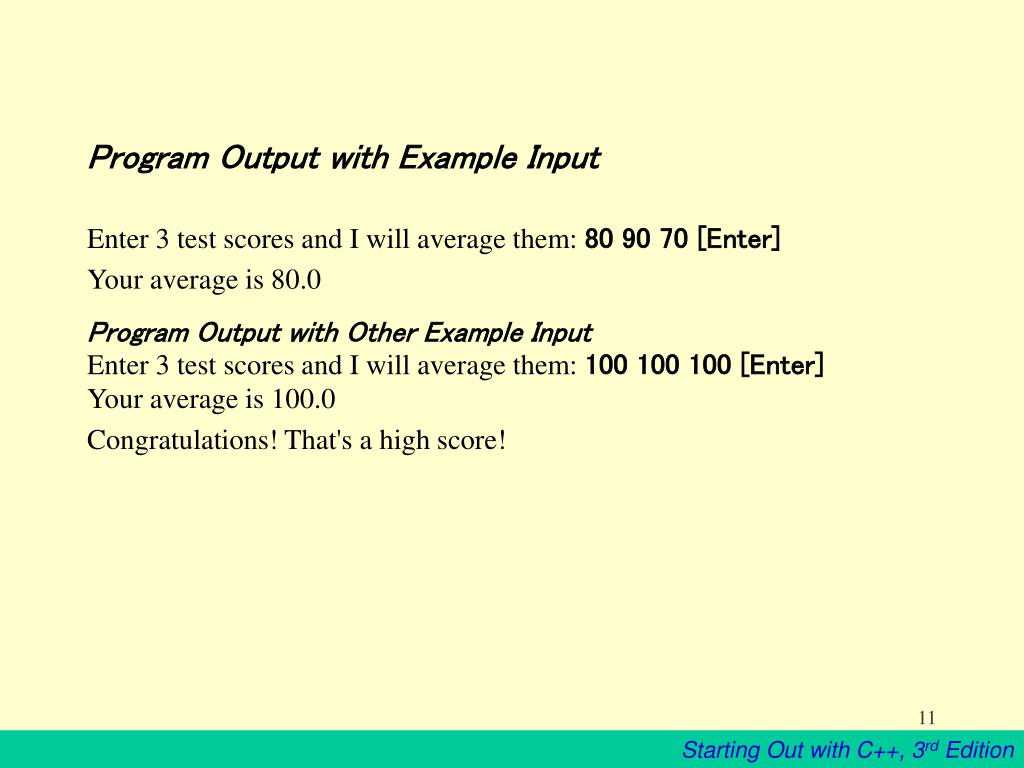

  11. Program Output with Example Input Enter 3 test scores and I will average them: 80 90 70 [Enter] Your average is 80.0 Program Output with Other Example Input Enter 3 test scores and I will average them: 100 100 100 [Enter] Your average is 100.0 Congratulations! That's a high score!

  12. Table 4-5

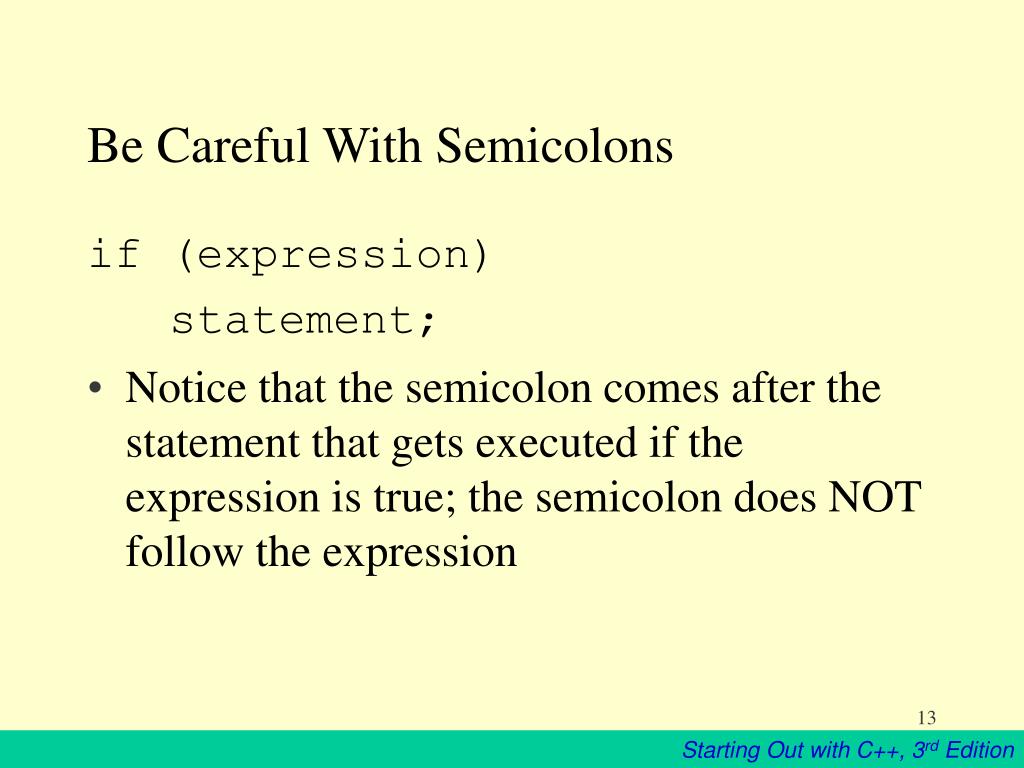

  13. Be Careful With Semicolons if (expression) statement; • Notice that the semicolon comes after the statement that gets executed if the expression is true; the semicolon does NOT follow the expression

  14. Program 4-3 // This program demonstrates how a misplaced semicolon // prematurely terminates an if statement. #include <iostream.h> void main(void) { int x = 0, y = 10; cout << “x is " << x << " and y is " << y << endl; if (x > y); // misplaced semicolon! cout << “x is greater than y\n"; // Always executed } Program Output X is 0 and Y is 10 X is greater than Y

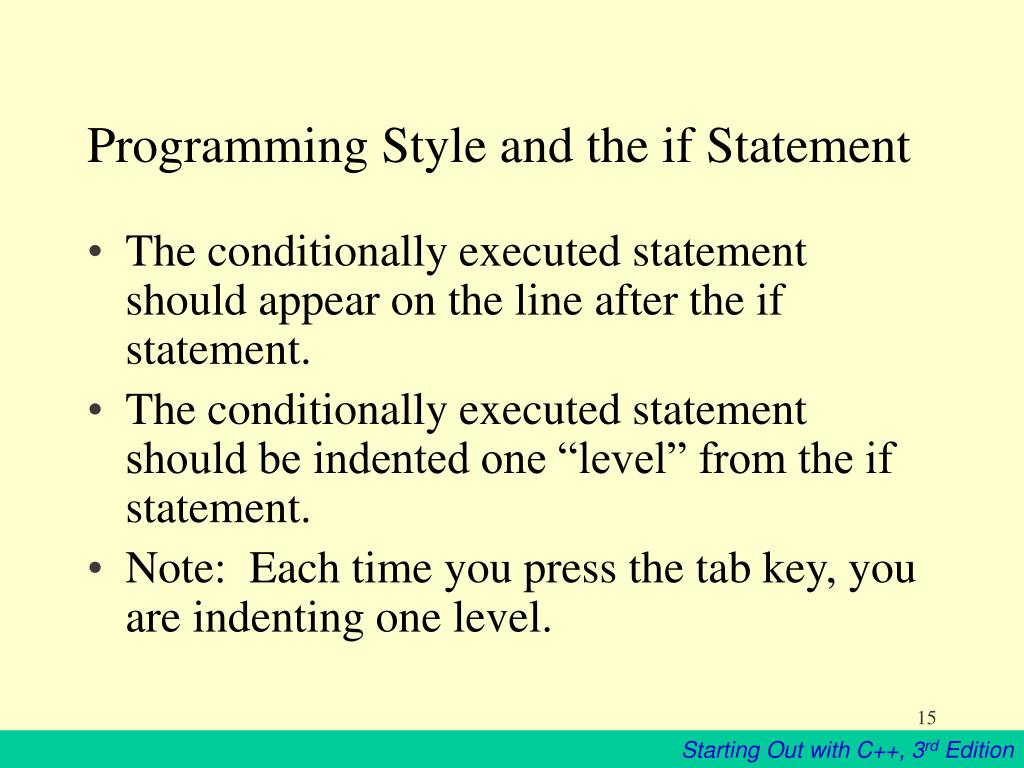

  15. Programming Style and the if Statement • The conditionally executed statement should appear on the line after the if statement. • The conditionally executed statement should be indented one “level” from the if statement. • Note: Each time you press the tab key, you are indenting one level.

  16. Comparing Floating Point Numbers • Round-off errors can cause problems when comparing floating point numbers with the equality operator (==)

  17. Program 4-4 // This program demonstrates how floating point round-off // errors can make equality comparisons unreliable. #include <iostream.h> void main(void) { float result; result = 6.0 * 0.666666; // Round-off error if (result == 4.0) cout << "It's true!"; else cout << "It's false!"; } Program Output It's false!

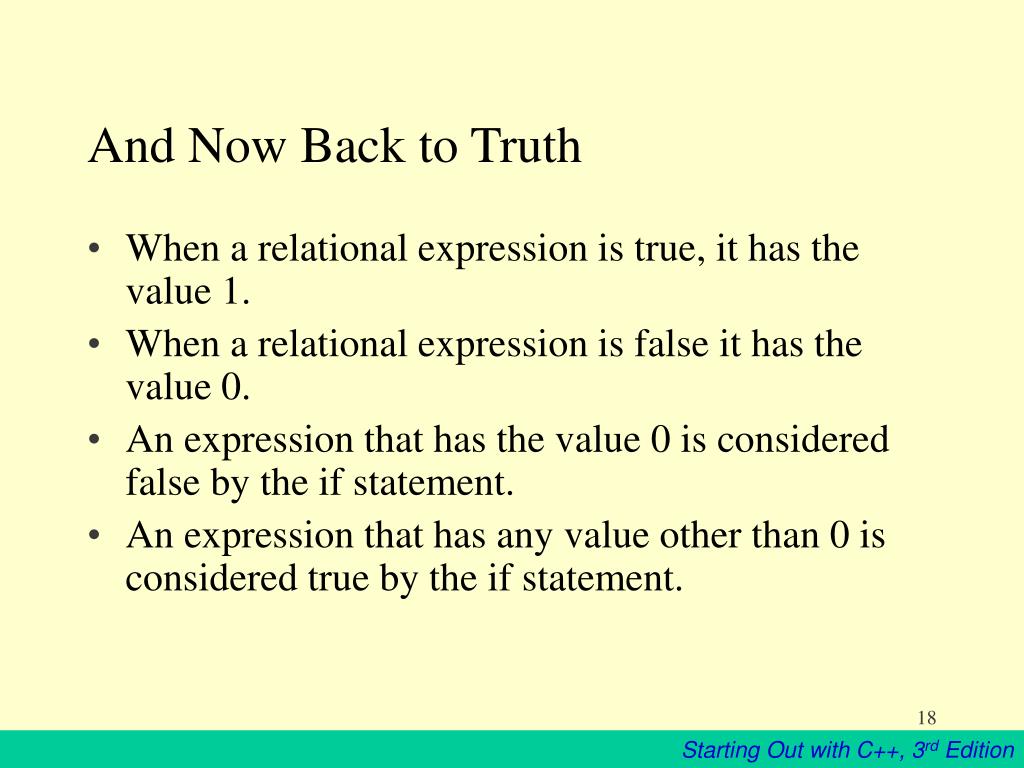

  18. And Now Back to Truth • When a relational expression is true, it has the value 1. • When a relational expression is false it has the value 0. • An expression that has the value 0 is considered false by the if statement. • An expression that has any value other than 0 is considered true by the if statement.

  19. Not All Operators Are “Equal” • Consider the following statement: if (x = 2) // caution here! cout << “It is True!”; • This statement does not determine if x is equal to 2, it assigns x the value 2, therefore, this expression will always be true because the value of the expression is 2, a non-zero value

  20. Program 4-5 // This program averages 3 test scores. The if statement uses // the = operator, but the == operator was intended. #include <iostream.h> void main(void) { int score1, score2, score3; float average; cout << "Enter 3 test scores and I will average them: "; cin >> score1 >> score2 >> score3; average = (score1 + score2 + score3) / 3.0; cout.precision(1); cout.setf(ios::showpoint | ios::fixed); cout << "Your average is " << average << endl; if (average = 100) // Wrong cout << "Congratulations! That's a high score!\n"; }

  21. Program 4-5 Output With Example Input Program Output with Example Input Enter your 3 test scores and I will average them: 80 90 70[Enter] Your average is 80.0 Congratulations! That’s a perfect score!

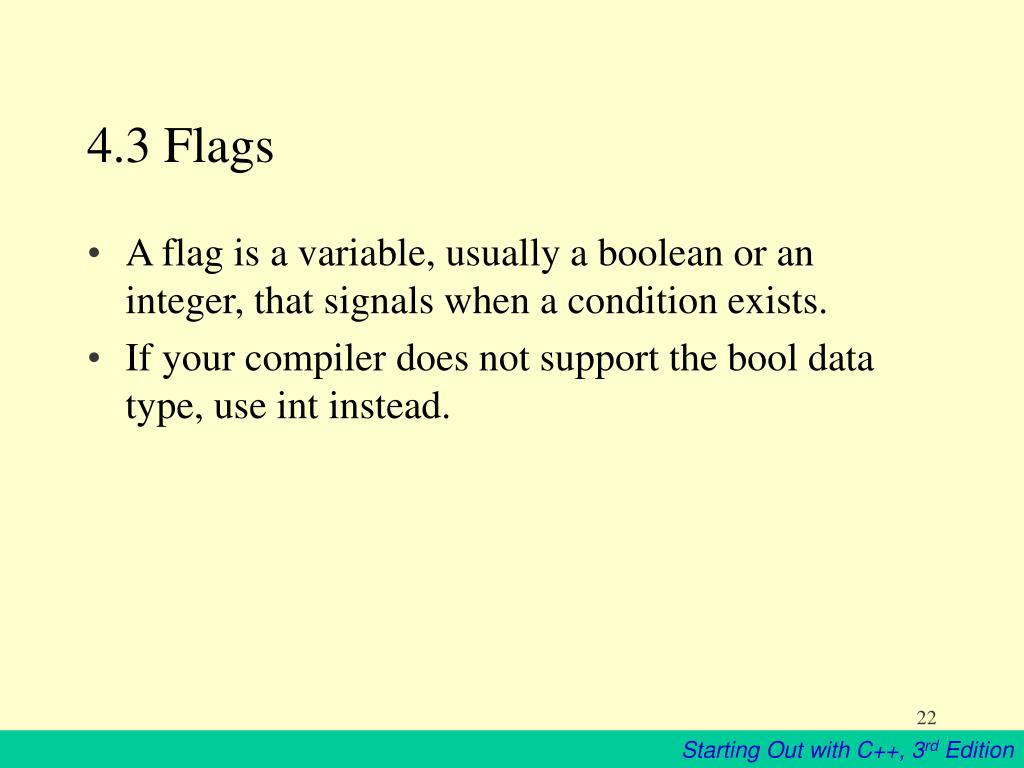

  22. 4.3 Flags • A flag is a variable, usually a boolean or an integer, that signals when a condition exists. • If your compiler does not support the bool data type, use int instead.

  23. Program 4-6 // This program averages 3 test scores. It uses the variable highScore as a flag. #include <iostream.h> void main(void) { int score1, score2, score3; float average; bool highScore = false; cout << "Enter your 3 test scores and I will average them: "; cin >> score1 >> score2 >> score3; average = (score1 + score2 + score3) / 3.0; if (average > 95) highScore = true; // Set the flag variable cout.precision(1); cout.setf(ios::showpoint | ios::fixed); cout << "Your average is " << average << endl; if (highScore) cout << "Congratulations! That's a high score!\n";\ } Program Output with Example Input Enter your 3 test scores and I will average them: 100 100 100 [Enter] Your average is 100.0 Congratulations! That's a high score!

  24. 4.4 Expanding the if Statement • The if statement can conditionally execute a block of statement enclosed in braces. if (expression) { statement; statement; // Place as many statements here as necessary. }

  25. Program 4-7 // This program averages 3 test scores. // It uses the variable highScore as a flag. #include <iostream.h> void main(void) { int score1, score2, score3; float average; bool highScore = false; cout << "Enter 3 test scores and I will average them: "; cin >> score1 >> score2 >> score3; average = (score1 + score2 + score3) / 3.0; if (average > 95) highScore = true; // Set the flag variable Program continues on next slide…

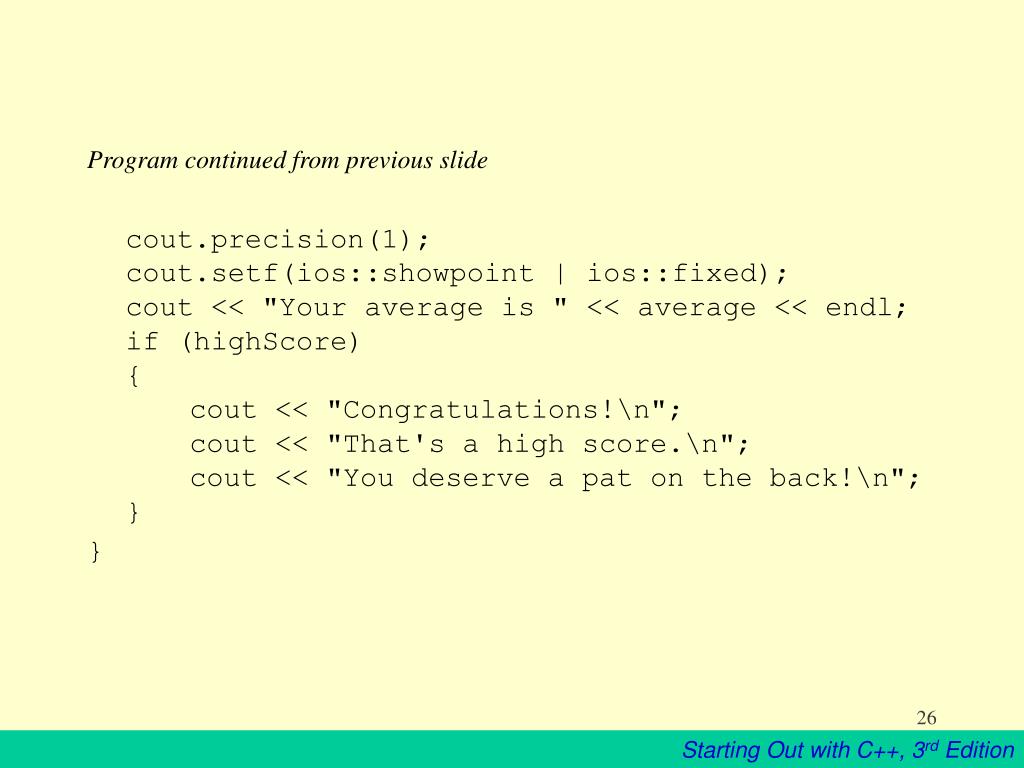

  26. Program continued from previous slide cout.precision(1); cout.setf(ios::showpoint | ios::fixed); cout << "Your average is " << average << endl; if (highScore) { cout << "Congratulations!\n"; cout << "That's a high score.\n"; cout << "You deserve a pat on the back!\n"; } }

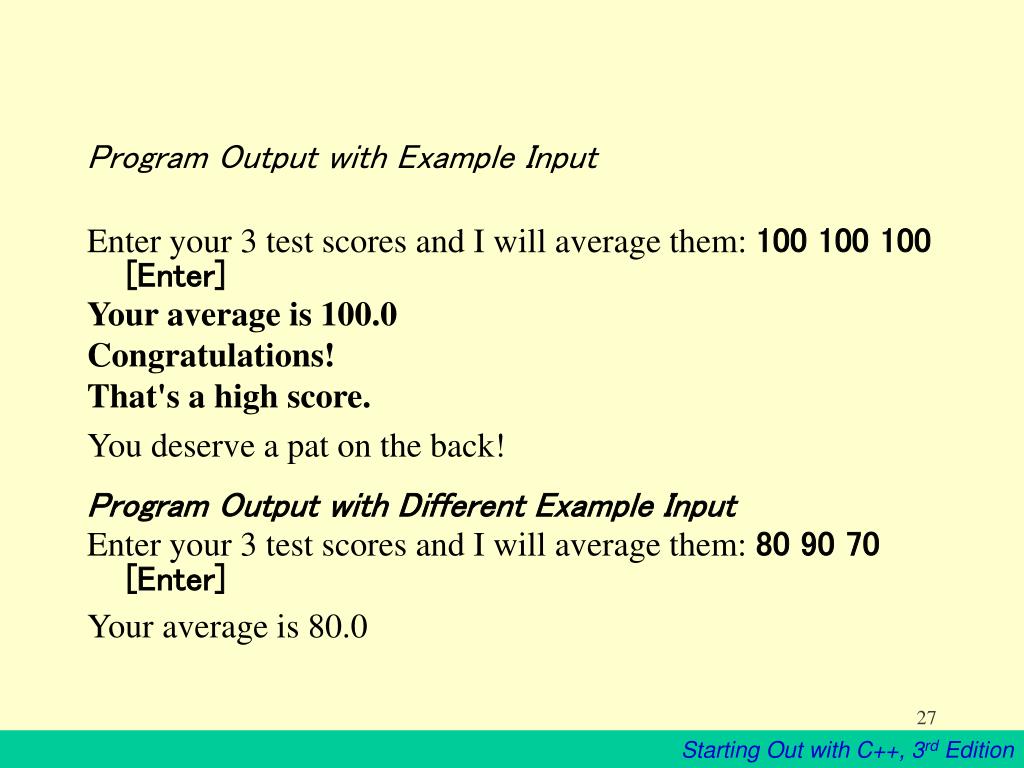

  27. Program Output with Example Input Enter your 3 test scores and I will average them: 100 100 100 [Enter] Your average is 100.0 Congratulations! That's a high score. You deserve a pat on the back! Program Output with Different Example Input Enter your 3 test scores and I will average them: 80 90 70 [Enter] Your average is 80.0

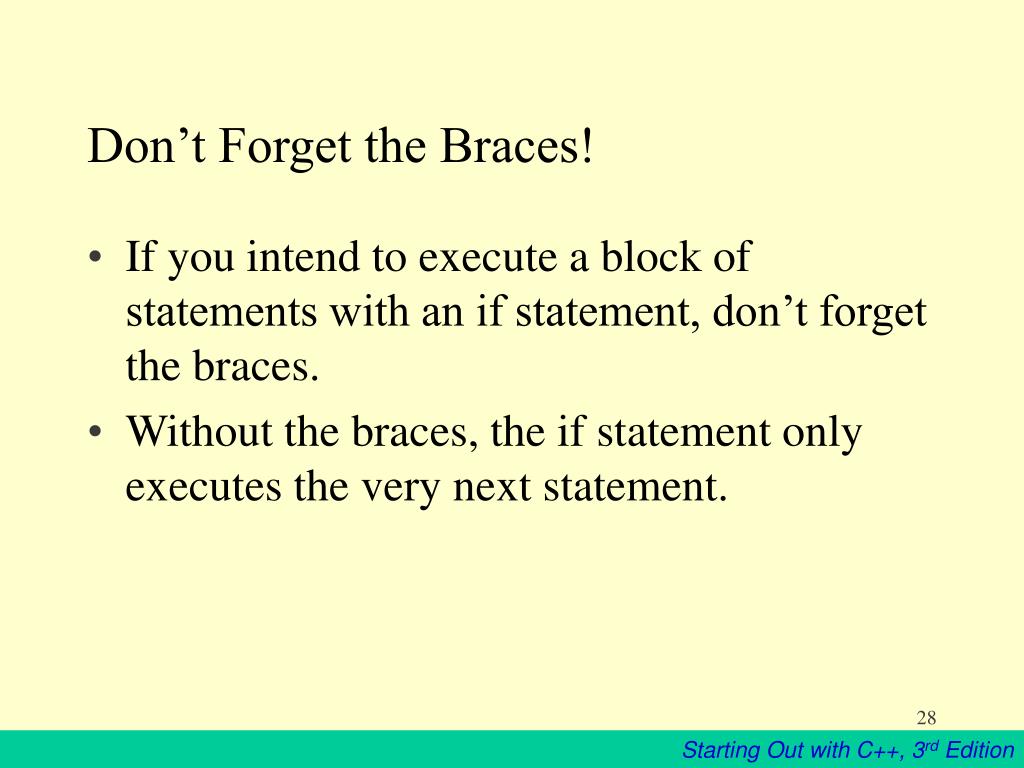

  28. Don’t Forget the Braces! • If you intend to execute a block of statements with an if statement, don’t forget the braces. • Without the braces, the if statement only executes the very next statement.

  29. Program 4-8 // This program averages 3 test scores. // It uses the variable highScore as a flag. #include <iostream.h> void main(void) { int score1, score2, score3; float average; bool highScore = false; cout << "Enter 3 test scores and I will average them: "; cin >> score1 >> score2 >> score3; average = (score1 + score2 + score3) / 3.0; if (average > 95) highScore = true; // Set the flag variable Program continues on next slide…

  30. Program continued from previous slide cout.precision(1); cout.setf(ios::showpoint | ios::fixed); cout << "Your average is " << average << endl; // The following if statement is // missing its braces! if (highScore) cout << "Congratulations!\n"; cout << "That's a high score.\n"; cout << "You deserve a pat on the back!\n"; }

  31. Program Output with Example Input Enter your 3 test scores and I will average them: 100 100 100[Enter]Your average is 100Congratulations!That’s a high score.You deserve a pat on the back! Program Output with Different Example Input Enter your 3 test scores and I will average them: 80 90 70[Enter]Your average is 100Congratulations!That’s a high score.You deserve a pat on the back!

  32. 4.5 The if/else Statement • The if/else statement will execute one group of statements if the expression is true, or another group of statements if the expression is false. if (expression) statement or block of statements; else statement or block of statements;

  33. Program 4-9 // This program uses the modulus operator to determine // if a number is odd or even. If the number is evenly divided // by 2, it is an even number. A remainder indicates it isodd. #include <iostream.h> void main(void) { int number; cout << "Enter an integer and I will tell you if it\n"; cout << "is odd or even. "; cin >> number; if (number % 2 == 0) cout << number << " is even.\n"; else cout << number << " is odd.\n"; }

  34. Program Output with Example Input Enter an integer and I will tell you if it is odd or even. 17 [Enter] 17 is odd.

  35. Program 4-10 // This program asks the user for two numbers, num1 andnum2. // num1 is divided by num2 and the result is displayed. // Before the division operation, however, num2 is tested // for the value 0. If it contains 0, the division does not // take place. #include <iostream.h> void main(void) { float num1, num2, quotient; cout << "Enter a number: "; cin >> num1; cout << "Enter another number: "; cin >> num2; Program continues on next slide…

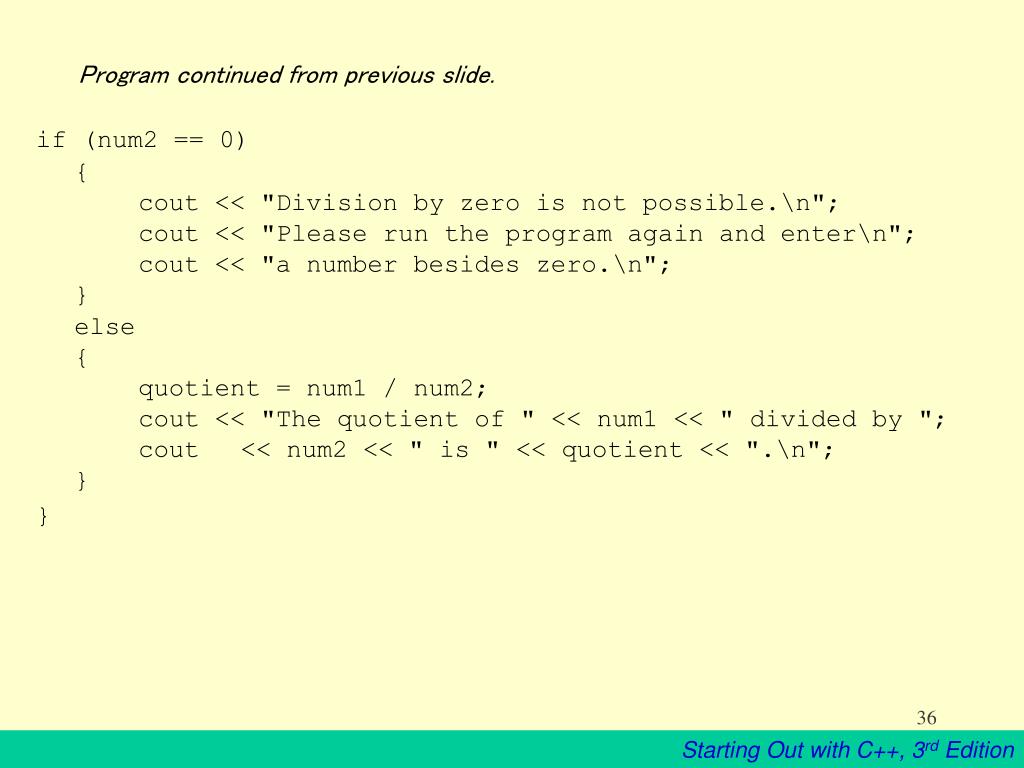

  36. Program continued from previous slide. if (num2 == 0) { cout << "Division by zero is not possible.\n"; cout << "Please run the program again and enter\n"; cout << "a number besides zero.\n"; } else { quotient = num1 / num2; cout << "The quotient of " << num1 << " divided by "; cout << num2 << " is " << quotient << ".\n"; } }

  37. Program Output (When the user enters 0 for num2) Enter a number: 10 [Enter] Enter another number: 0 [Enter] Division by zero is not possible. Please run the program again and enter a number besides zero.

  38. 4.6 The if/elseif Construct The if/else if statement is a chain of if statements. The perform their tests, one after the other, until one of them is found to be true. If (expression) statement or block of statements; else if (expression) statement or block of statements; // put as many else it’s as needed here else if (expression) statement or block of statements;

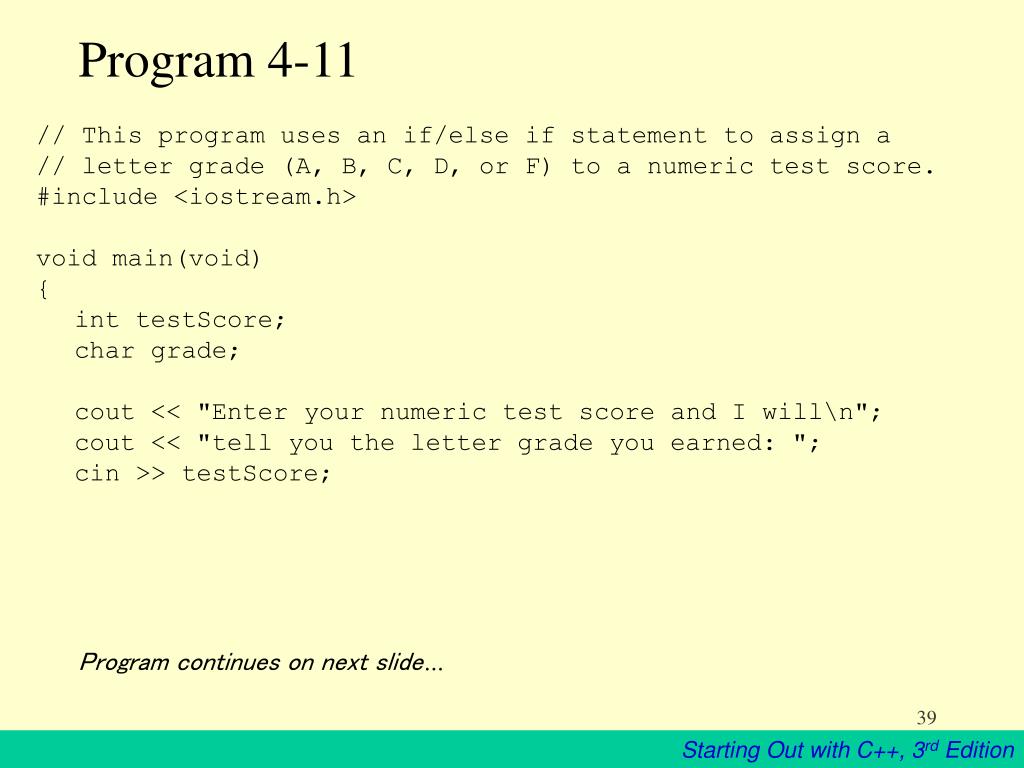

  39. Program 4-11 // This program uses an if/else if statement to assign a // letter grade (A, B, C, D, or F) to a numeric test score. #include <iostream.h> void main(void) { int testScore; char grade; cout << "Enter your numeric test score and I will\n"; cout << "tell you the letter grade you earned: "; cin >> testScore; Program continues on next slide…

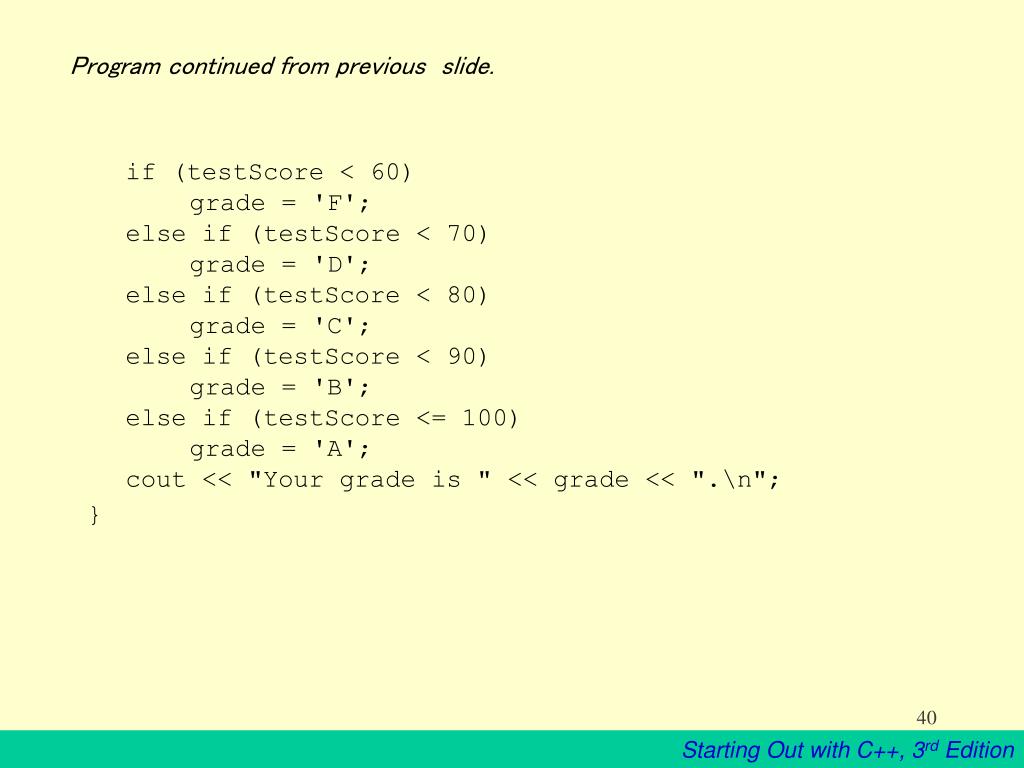

  40. if (testScore < 60) grade = 'F'; else if (testScore < 70) grade = 'D'; else if (testScore < 80) grade = 'C'; else if (testScore < 90) grade = 'B'; else if (testScore <= 100) grade = 'A'; cout << "Your grade is " << grade << ".\n"; } Program continued from previous slide.

  41. Program Output with Example Input Enter your test score and I will tell you the letter grade you earned: 88 [Enter] Your grade is B.

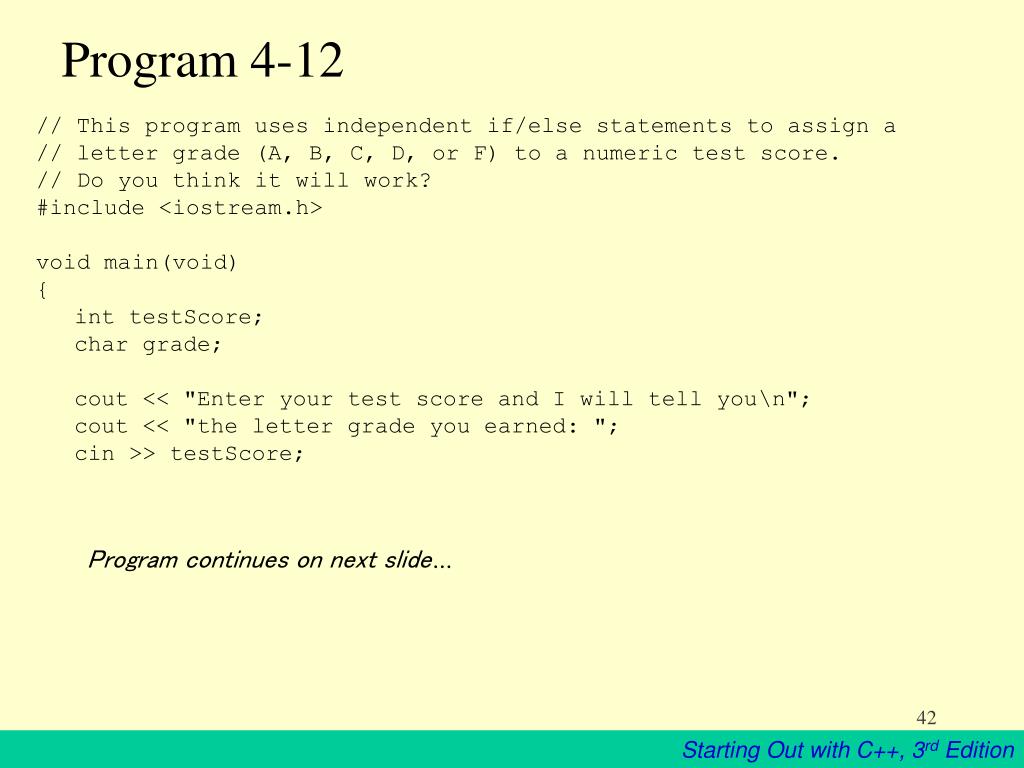

  42. Program 4-12 // This program uses independent if/else statements to assign a // letter grade (A, B, C, D, or F) to a numeric test score. // Do you think it will work? #include <iostream.h> void main(void) { int testScore; char grade; cout << "Enter your test score and I will tell you\n"; cout << "the letter grade you earned: "; cin >> testScore; Program continues on next slide…

  43. if (testScore < 60) grade = 'F'; if (testScore < 70) grade = 'D'; if (testScore < 80) grade = 'C'; if (testScore < 90) grade = 'B'; if (testScore <= 100) grade = 'A'; cout << "Your grade is " << grade << ".\n"; } Program continued from previous slide.

  44. Program Output with Example Input Enter your test score and I will tell you the letter grade you earned: 40 [Enter] Your grade is A.

  45. Program 4-13 //This program uses an if/else if statement to //assign a letter grade ( A, B, C, D, or F ) //to a numeric test score. #include<iostream.h> void main(void) { int testScore; cout << "Enter your test score and I will tell you\n"; cout << "the letter grade you earned: "; cin >> testScore; if (testScore < 60) { cout << "Your grade is F.\n"; cout << "This is a failing grade. Better see your "; cout << "instructor.\n"; } else if (testScore < 70) { cout << "Your grade is D.\n"; cout << "This is below average. You should get "; cout << "tutoring.\n"; } Program continues on next slide…

  46. else if (testScore < 80) { cout << "Your grade is C.\n"; cout << "This is average.\n"; } else if(testScore < 90) { cout << "Your grade is B.\n"; cout << "This is an above average grade.\n"; } else if (testScore <= 100) { cout << "Your grade is A.\n"; cout << "This is a superior grade. Good work!\n"; } } Program continued from previous slide.

  47. Program Output with Example Input Enter your test score and I will tell you the letter grade you earned: 94 [Enter] Your grade is A. This is a superior grade. Good work!

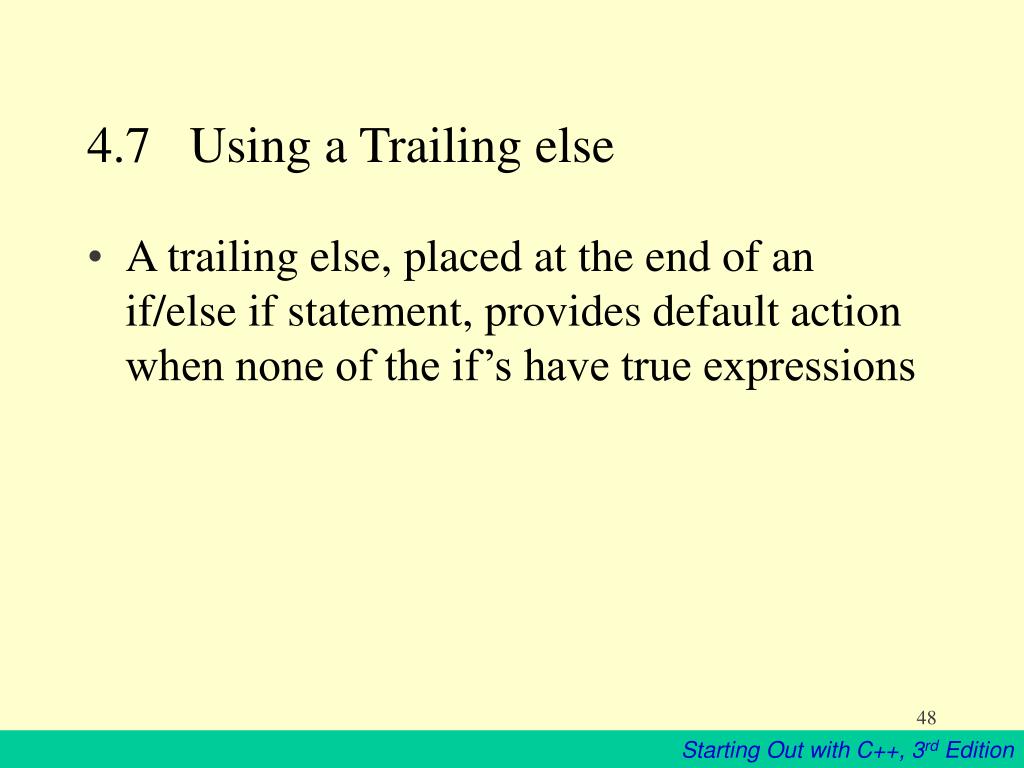

  48. 4.7 Using a Trailing else • A trailing else, placed at the end of an if/else if statement, provides default action when none of the if’s have true expressions

  49. Program 4-14 // This program uses an if/else if statement to assign a // letter grade (A, B, C, D, or F) to a numeric test score. // A trailing else has been added to catch test scores > 100. #include <iostream.h> void main(void) { int testScore; cout << "Enter your test score and I will tell you\n"; cout << "the letter grade you earned: "; cin >> testScore; Program continues on next slide…

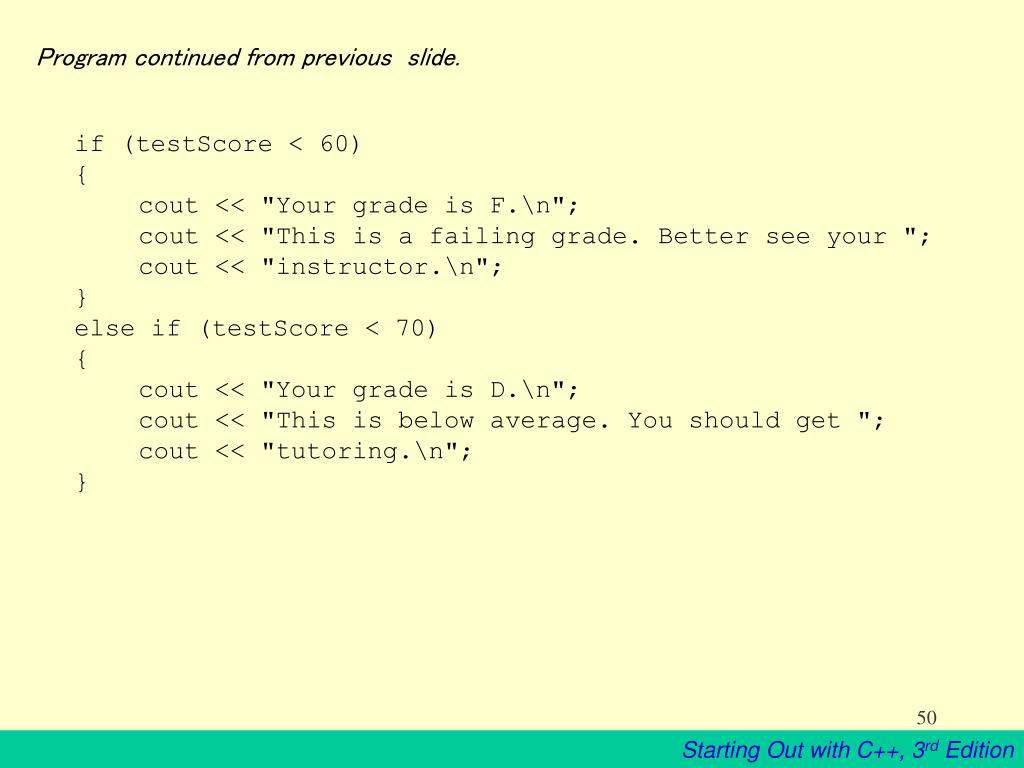

  50. if (testScore < 60) { cout << "Your grade is F.\n"; cout << "This is a failing grade. Better see your "; cout << "instructor.\n"; } else if (testScore < 70) { cout << "Your grade is D.\n"; cout << "This is below average. You should get "; cout << "tutoring.\n"; } Program continued from previous slide.
