  1. Techpedia Platform Understanding and Platform Architecture Vision

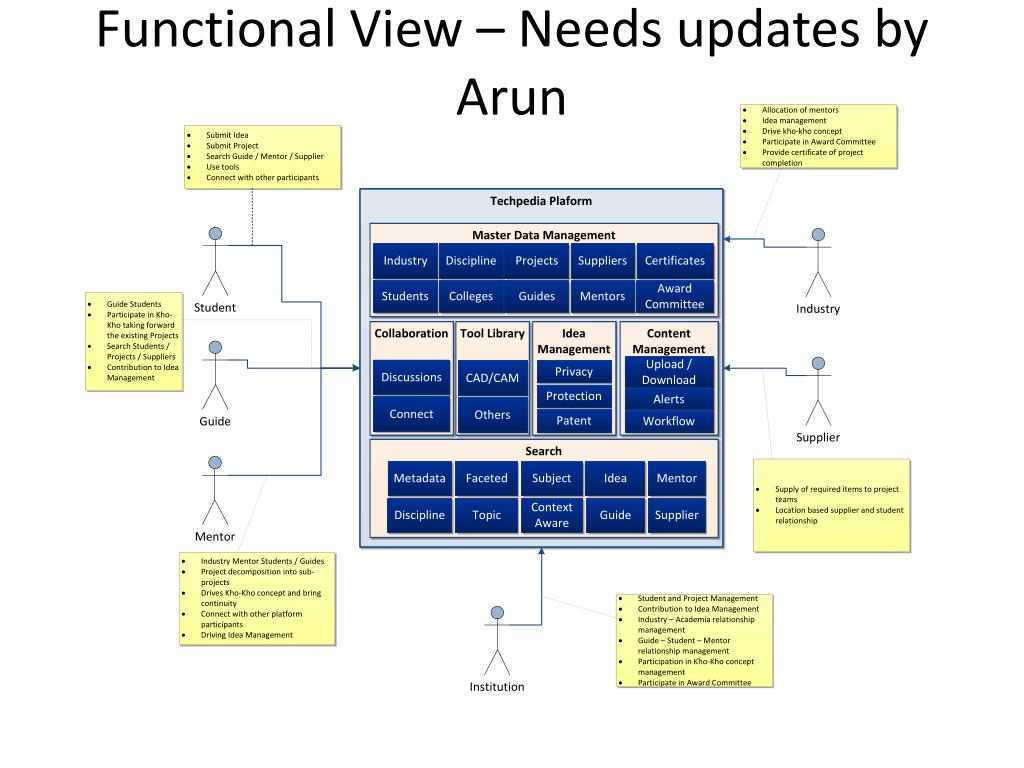

  2. Functional View – Needs updates by Arun

  3. Techpedia Platform Architecture Vision - Principles • No Vendor lock-in, pure open source frameworks / tools / product utilization • API (Interface) driven component architecture • Stateless Services • Social driven features and context driven content search / delivery • Segregation and differential handling of online and offline processing needs • Transaction oriented synchronous interactions • Eventually consistent offline asynchronous interactions • Comprehensive search capability across all data sources structured, semi-structured & unstructured (comments / feedback / reviews / chats) data • Inherent capabilities to participate / support information analytics

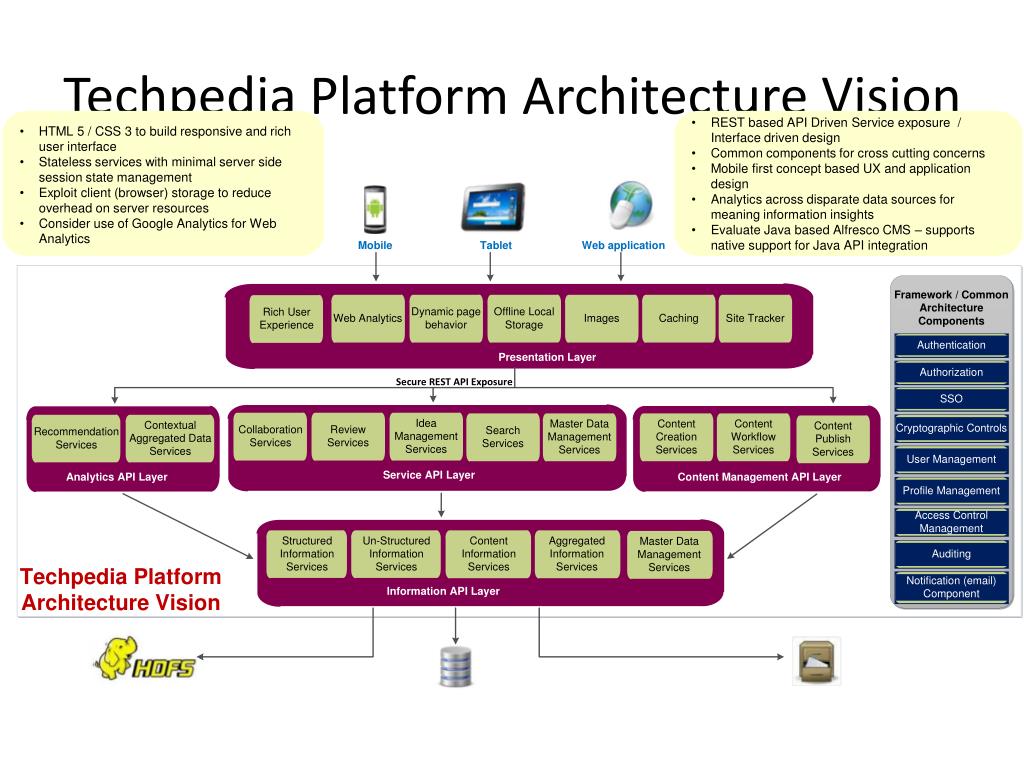

  4. Techpedia Platform Architecture Vision • HTML 5 / CSS 3 to build responsive and rich user interface • Stateless services with minimal server side session state management • Exploit client (browser) storage to reduce overhead on server resources • Consider use of Google Analytics for Web Analytics • REST based API Driven Service exposure / Interface driven design • Common components for cross cutting concerns • Mobile first concept based UX and application design • Analytics across disparate data sources for meaning information insights • Evaluate Java based Alfresco CMS – supports native support for Java API integration

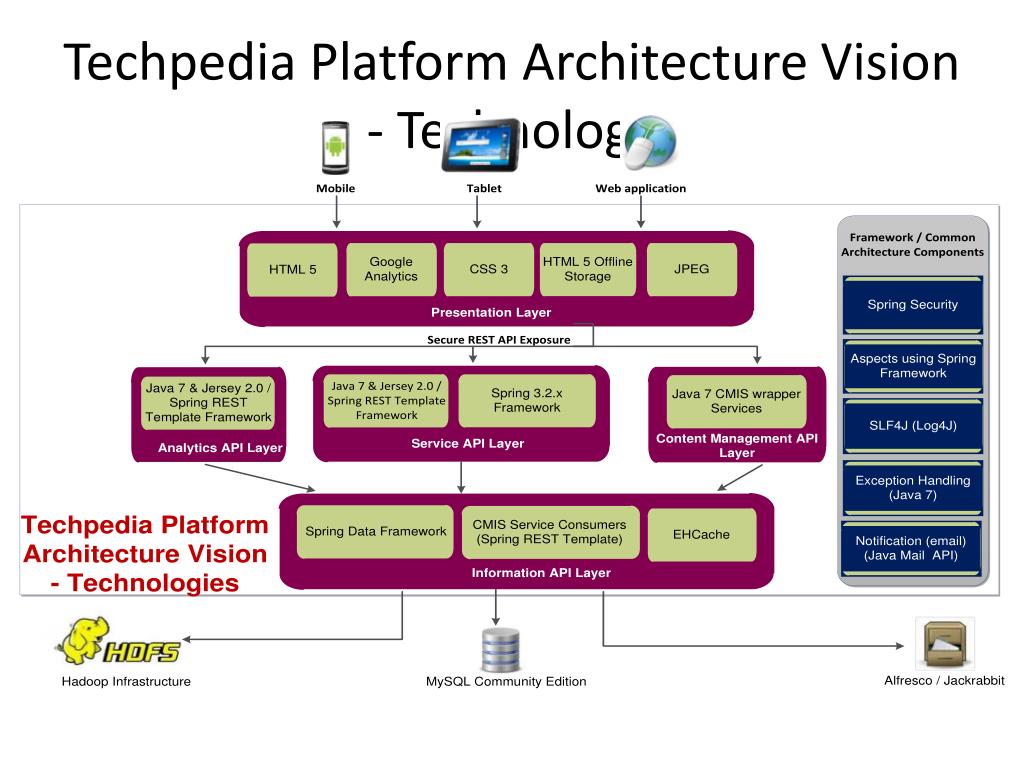

  5. Techpedia Platform Architecture Vision - Technology

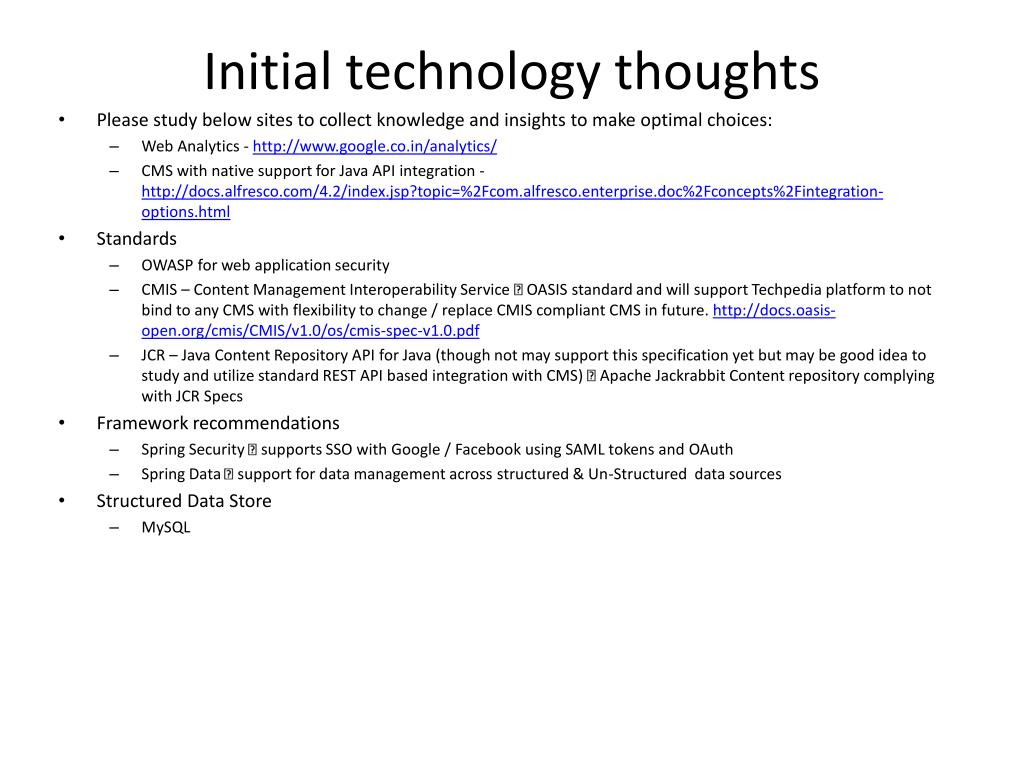

  6. Initial technology thoughts • Please study below sites to collect knowledge and insights to make optimal choices: • Web Analytics - http://www.google.co.in/analytics/ • CMS with native support for Java API integration - http://docs.alfresco.com/4.2/index.jsp?topic=%2Fcom.alfresco.enterprise.doc%2Fconcepts%2Fintegration-options.html • Standards • OWASP for web application security • CMIS – Content Management Interoperability Service  OASIS standard and will support Techpedia platform to not bind to any CMS with flexibility to change / replace CMIS compliant CMS in future. http://docs.oasis-open.org/cmis/CMIS/v1.0/os/cmis-spec-v1.0.pdf • JCR – Java Content Repository API for Java (though not may support this specification yet but may be good idea to study and utilize standard REST API based integration with CMS)  Apache Jackrabbit Content repository complying with JCR Specs • Framework recommendations • Spring Security  supports SSO with Google / Facebook using SAML tokens and OAuth • Spring Data  support for data management across structured & Un-Structured data sources • Structured Data Store • MySQL

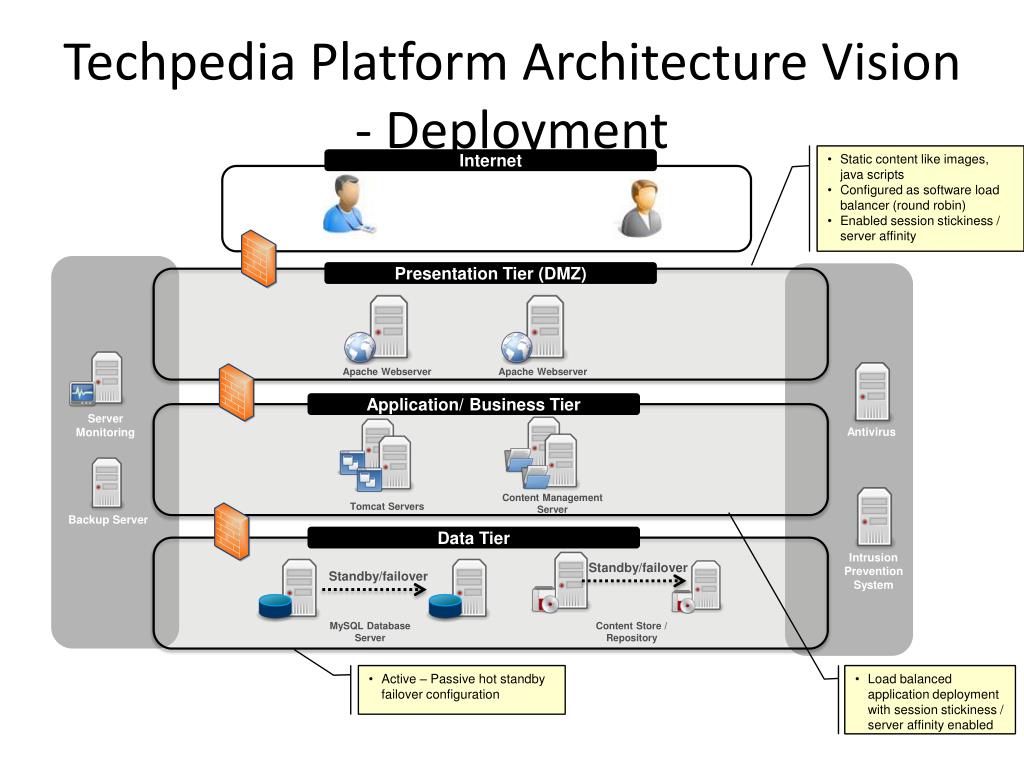

  7. Techpedia Platform Architecture Vision - Deployment • Static content like images, java scripts • Configured as software load balancer (round robin) • Enabled session stickiness / server affinity Internet Presentation Tier (DMZ) Apache Webserver Apache Webserver Application/ Business Tier Server Monitoring Antivirus Content Management Server Tomcat Servers Backup Server Data Tier Intrusion Prevention System Standby/failover Standby/failover MySQL Database Server Content Store / Repository • Load balanced application deployment with session stickiness / server affinity enabled • Active – Passive hot standby failover configuration

  8. Name : Dinesh Sharma Email : Dinesh_Sharma@mindtree.com www.mindtree.com/social
