recrystallisation and grain growth
Recrystallisation and Grain Growth
  • Cold working: for malleable in cold and weak and brittle when heated materials –

often in finishing stages of production

to get clean smooth finish;

to straighten (in some);

to get required degree of hardness

  • Hot working: Increase in temperature increases interatomic spacing; decreases bond strength. Dislocations moved more easily through crystal. Becomes softer more malleable, less energy for deformation.

Carried at temperatures above RECRYSTALLISATION

slide2

Relief of stresses:At low temperatures-atoms move to positions nearer to equilibrium

Small movements-reduces local strain& stress, without change in shape

Hardness & tensile strength, as in cold worked, are high

slide3

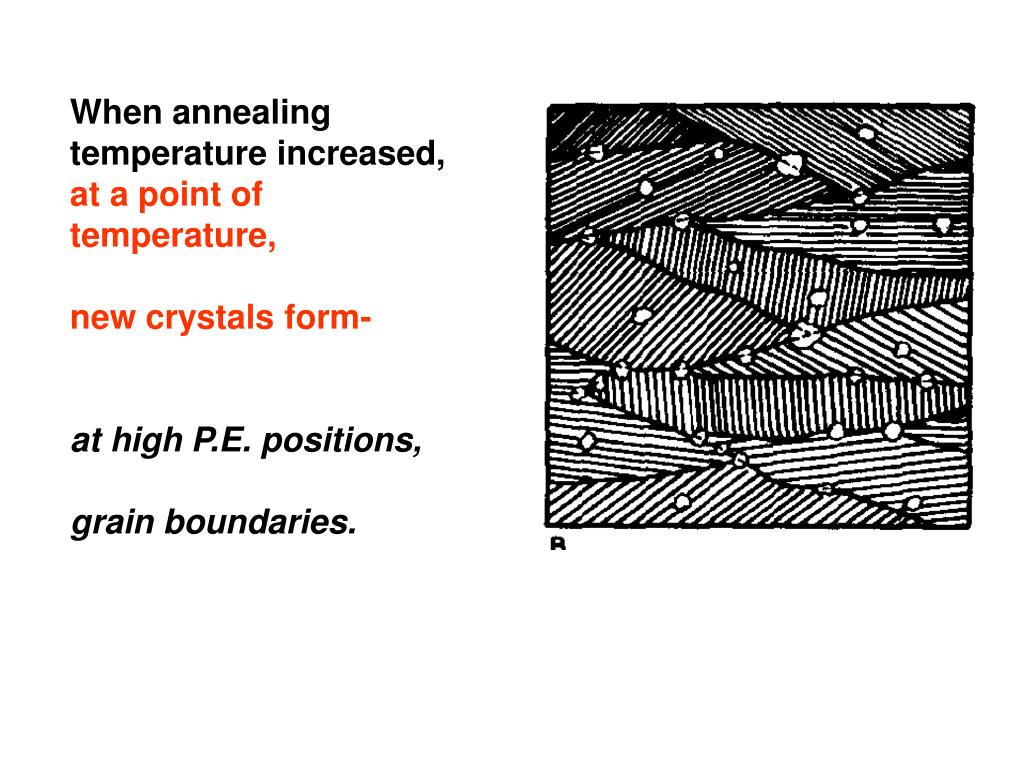

When annealing temperature increased, at a point of temperature,

new crystals form-

at high P.E. positions,

grain boundaries.

slide4

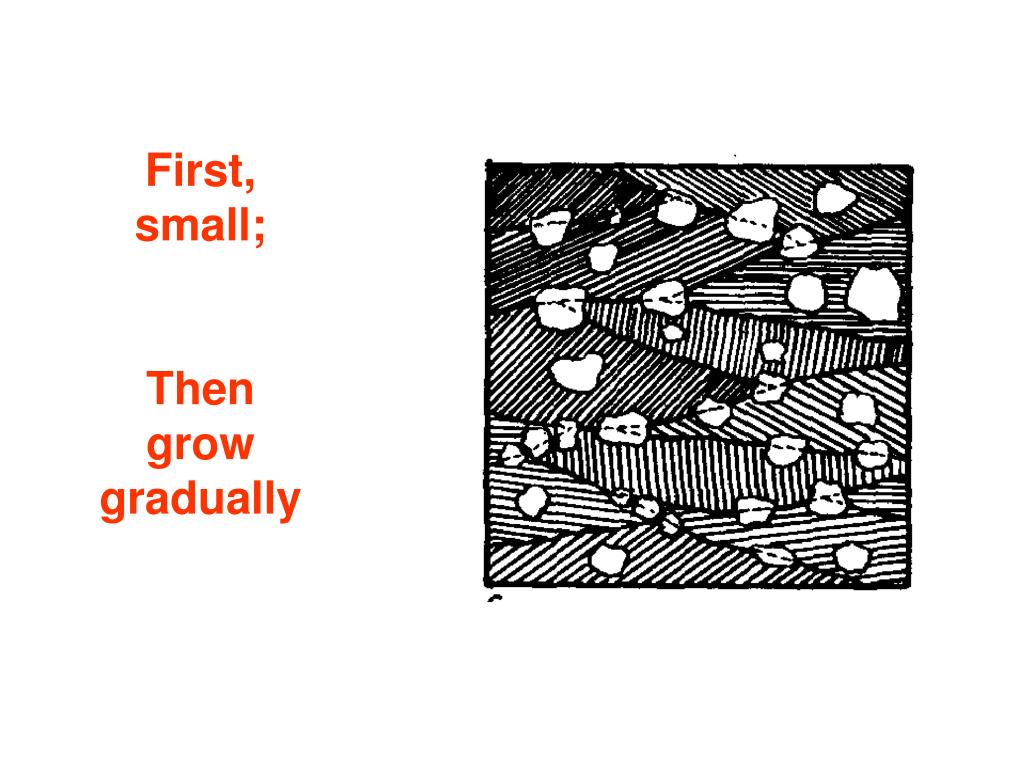

First, small;

Then

grow gradually

slide6

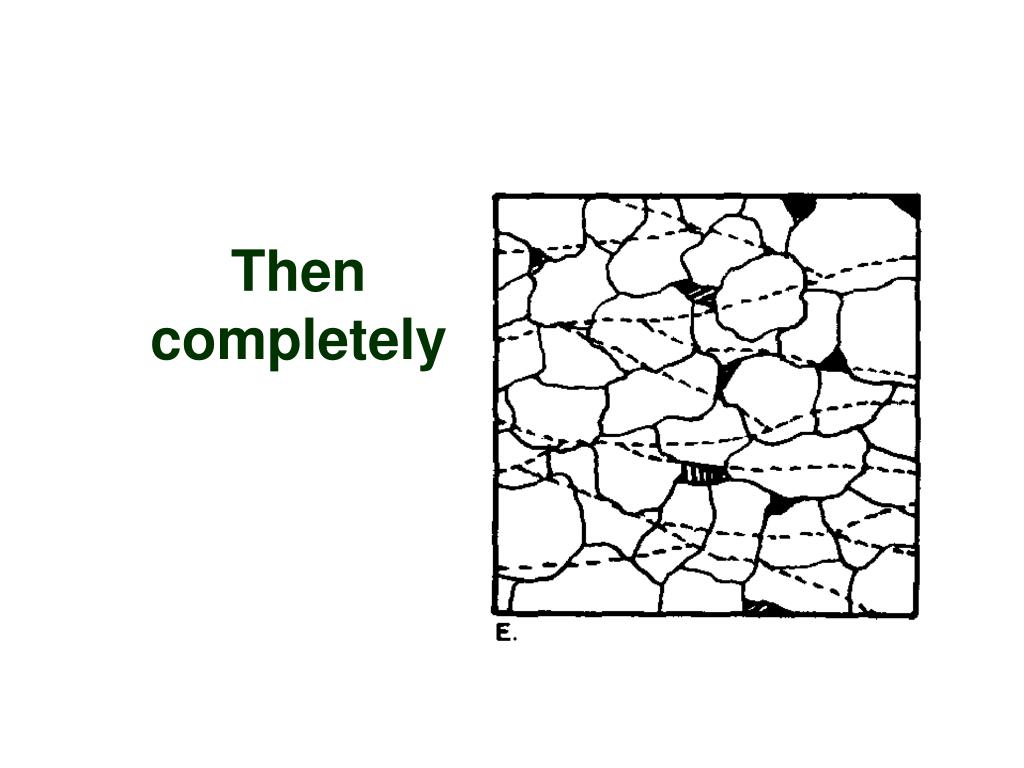

Then

completely

slide7

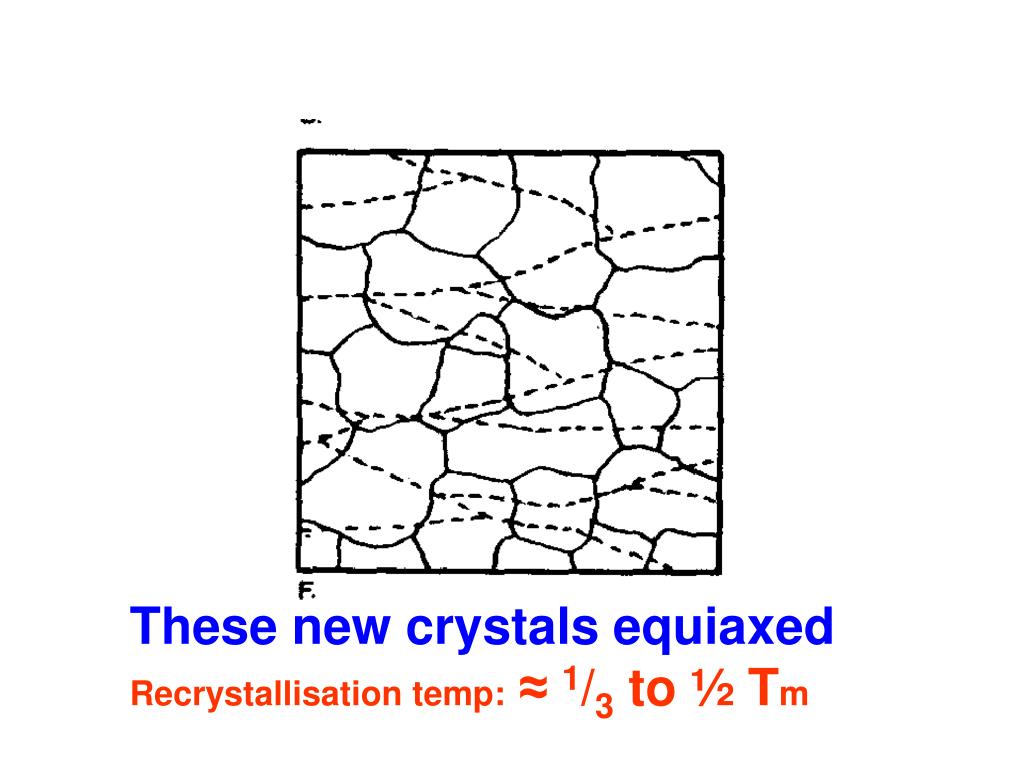

These new crystals equiaxed

Recrystallisation temp:≈ 1/3 to ½ Tm

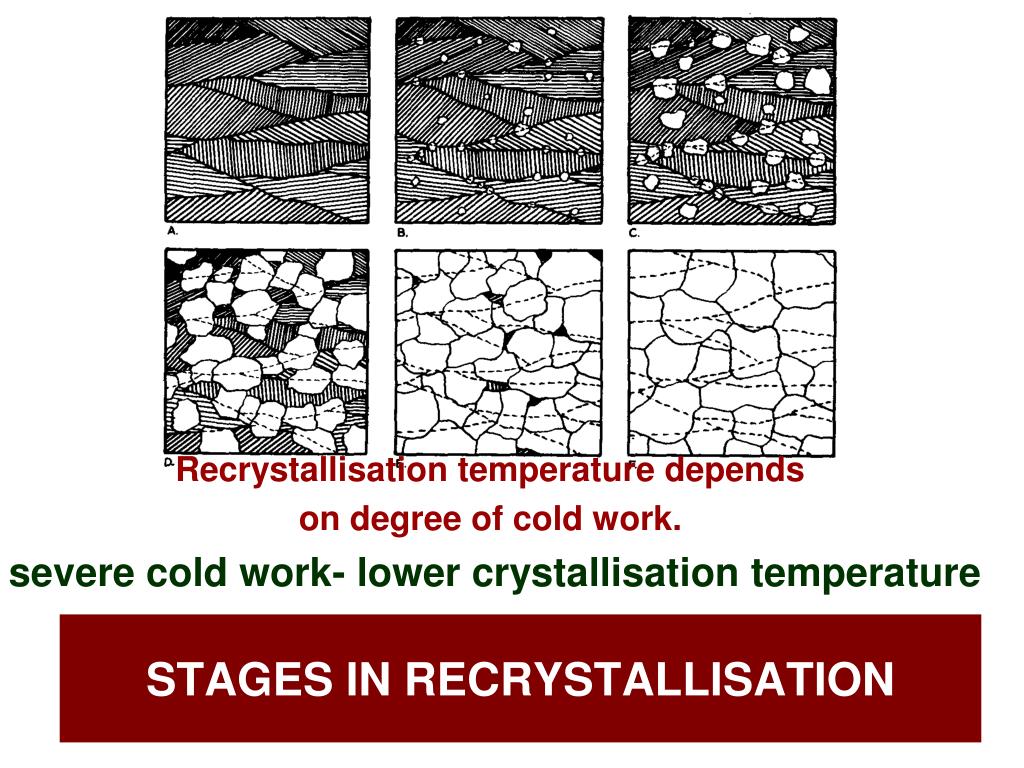

stages in recrystallisation
STAGES IN RECRYSTALLISATION

Recrystallisation temperature depends

on degree of cold work.

severe cold work- lower crystallisation temperature

grain growth
GRAIN GROWTH

When annealing temperature above recrystallisation, newly formed crystals continue to grow

By absorbing each other (in a cannibal fashion)

Final structure - coarse grained.

Crystal boundary moves towards centre of curvature

impurities in steel

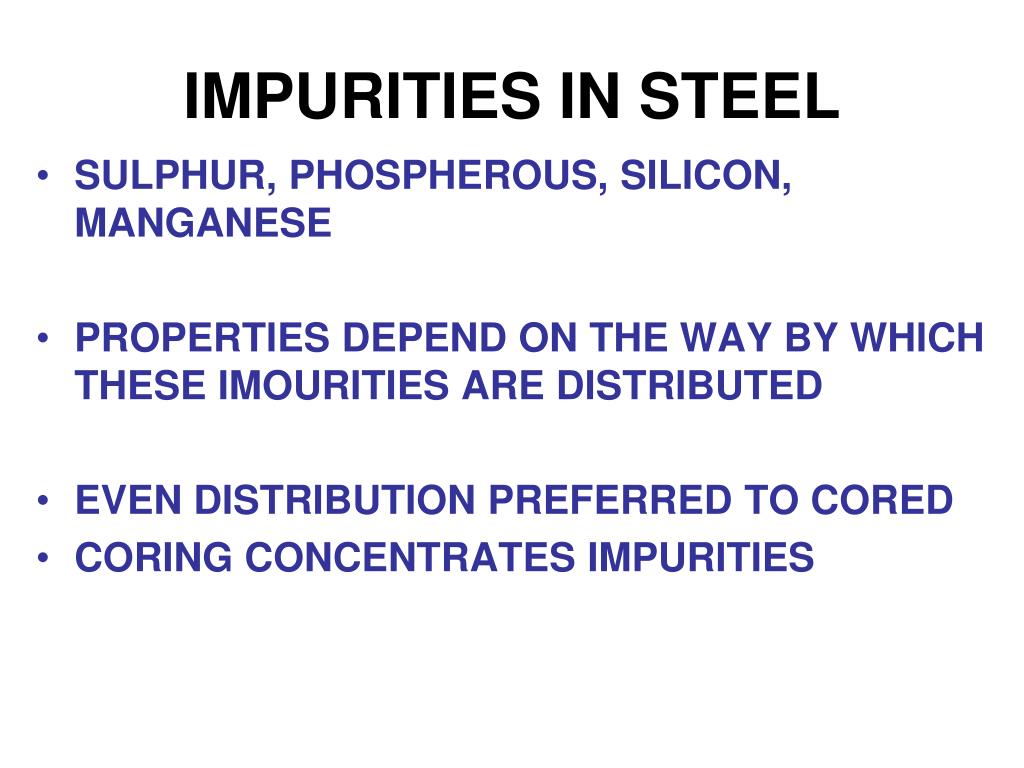

IMPURITIES IN STEEL
  • SULPHUR, PHOSPHEROUS, SILICON, MANGANESE
  • PROPERTIES DEPEND ON THE WAY BY WHICH THESE IMOURITIES ARE DISTRIBUTED
  • EVEN DISTRIBUTION PREFERRED TO CORED
  • CORING CONCENTRATES IMPURITIES
slide11

Sulphur & Phosphorus segregate and precipitate at grain boundaries----- coring.

Silicon & Manganese evenly distributed (Even 0.3% effect is minimum)

Si- imparts fluidity, upto 0.3%- [In HCS, kept lower (decomposes to graphite)]

Mn- soluble in Austenite and Ferrite Mn3C. Increases ‘depth’ of hardening, improves strength & toughness, max 0.3%

slide13

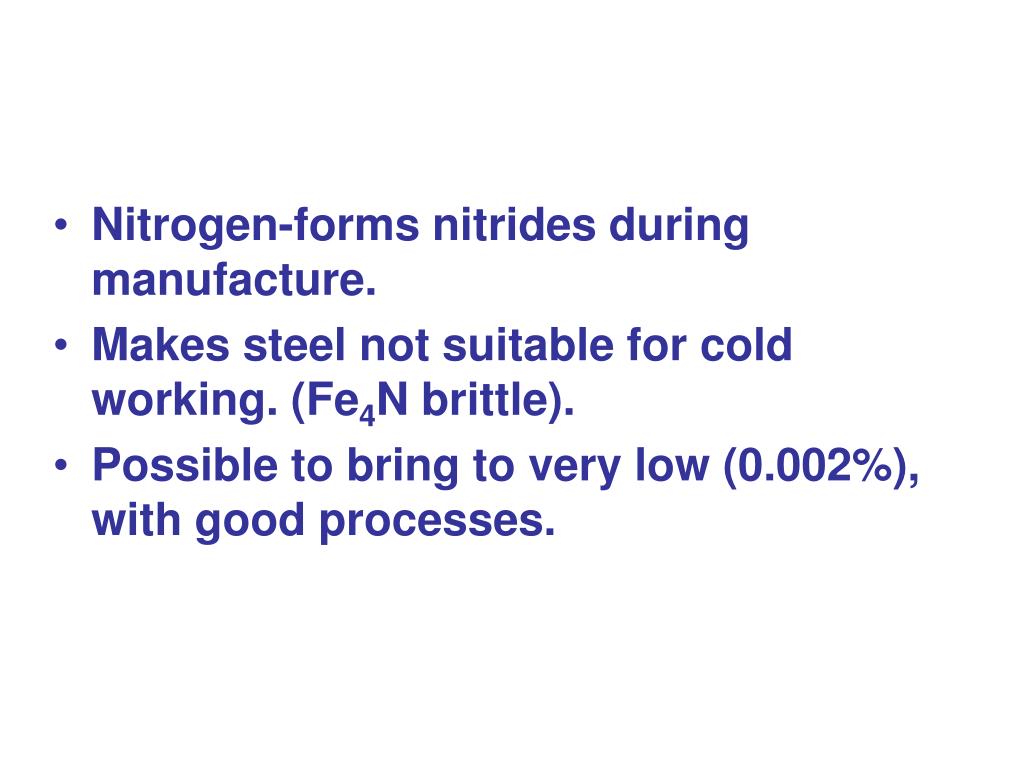

Nitrogen-forms nitrides during manufacture.
  • Makes steel not suitable for cold working. (Fe4N brittle).
  • Possible to bring to very low (0.002%), with good processes.
slide14

HARDENING- From above A3 when cooled RAPIDLY,

HARDENS.

Degree of hardening –

on initial quenching temperature, size, constitution, properties

and temperature of quenching medium

IRON ATOMS

CARBON ATOMS

From FCC Austenite

to

BCC Tetragonal based cell on ABCD

In 10-7 seconds

By

DIFFUSIONLESS PHASE TRANSFORMATION

AB = ao/√2

slide15

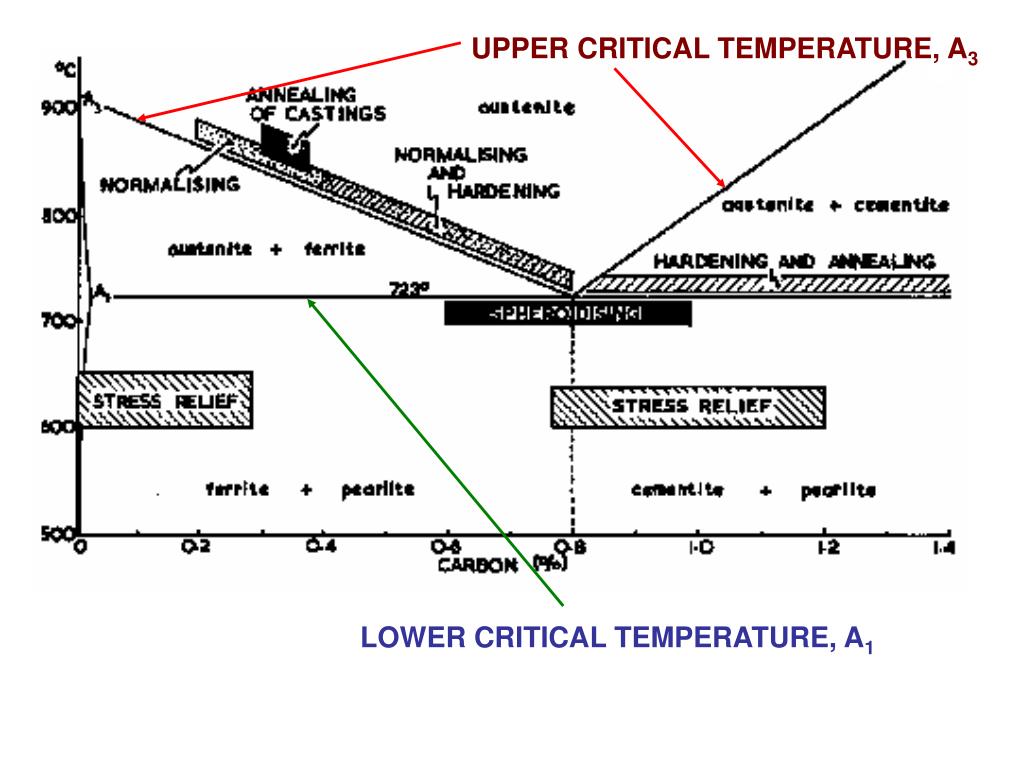

UPPER CRITICAL TEMPERATURE, A3

LOWER CRITICAL TEMPERATURE, A1
