POWER TAPPING GUIDE

Based on material find s uggested cutting speed range (given in Feet Per Minute) Adjust to upper or lower end of range based on other conditions Find desired spindle speed based on tap diameter and cutting speed

dustin
Download Presentation

POWER TAPPING GUIDE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

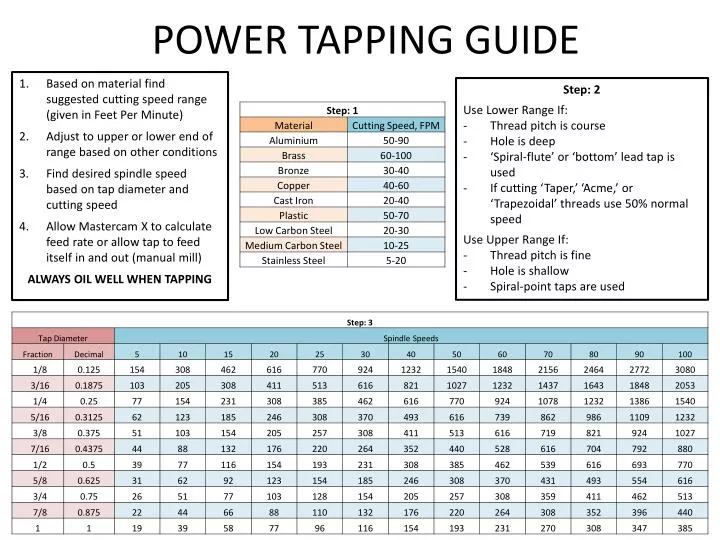

  1. Based on material find suggested cutting speed range (given in Feet Per Minute) Adjust to upper or lower end of range based on other conditions Find desired spindle speed based on tap diameter and cutting speed Allow Mastercam X to calculate feed rate or allow tap to feed itself in and out (manual mill) ALWAYS OIL WELL WHEN TAPPING • Step: 2 • Use Lower Range If: • Thread pitch is course • Hole is deep • ‘Spiral-flute’ or ‘bottom’ lead tap is used • If cutting ‘Taper,’ ‘Acme,’ or ‘Trapezoidal’ threads use 50% normal speed • Use Upper Range If: • Thread pitch is fine • Hole is shallow • Spiral-point taps are used POWER TAPPING GUIDE
