DEF Header for Freightliner Applications

This DEF Header is specifically tailored for Freightliner models, ensuring a perfect fit and compatibility. You can trust that this product will integrate seamlessly with your existing systems, eliminating the guesswork involved in aftermarket parts.

dura4
Download Presentation

DEF Header for Freightliner Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

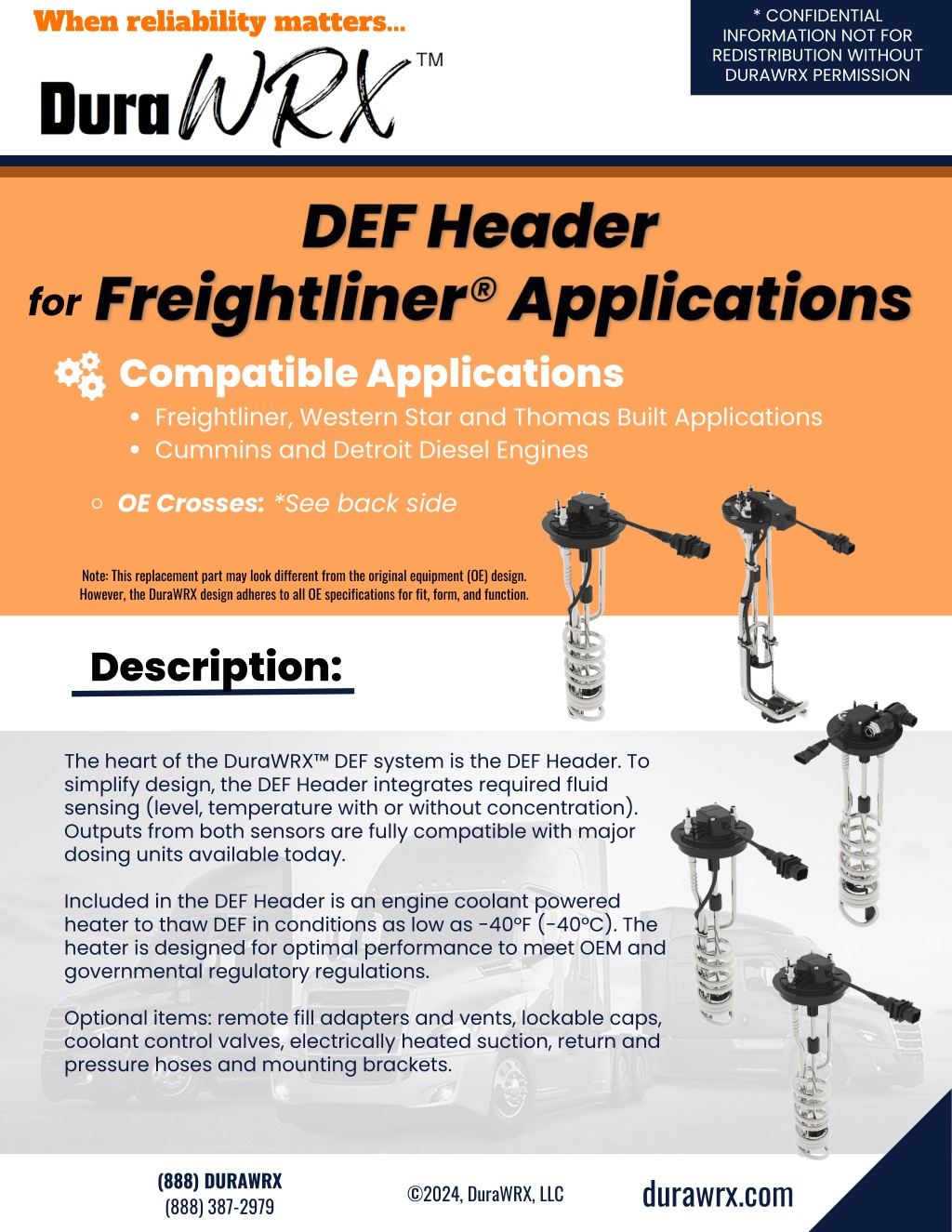

  1. When reliability matters... * CONFIDENTIAL INFORMATION NOT FOR REDISTRIBUTION WITHOUT DURAWRX PERMISSION for Compatible Applications Freightliner, Western Star and Thomas Built Applications Cummins and Detroit Diesel Engines OE Crosses: *See back side Note: This replacement part may look different from the original equipment (OE) design. However, the DuraWRX design adheres to all OE specifications for fit, form, and function. Description: The heart of the DuraWRX™ DEF system is the DEF Header. To simplify design, the DEF Header integrates required fluid sensing (level, temperature with or without concentration). Outputs from both sensors are fully compatible with major dosing units available today. Included in the DEF Header is an engine coolant powered heater to thaw DEF in conditions as low as -40°F (-40°C). The heater is designed for optimal performance to meet OEM and governmental regulatory regulations. Optional items: remote fill adapters and vents, lockable caps, coolant control valves, electrically heated suction, return and pressure hoses and mounting brackets. (888) DURAWRX (888) 387-2979 durawrx.com ©2024, DuraWRX, LLC

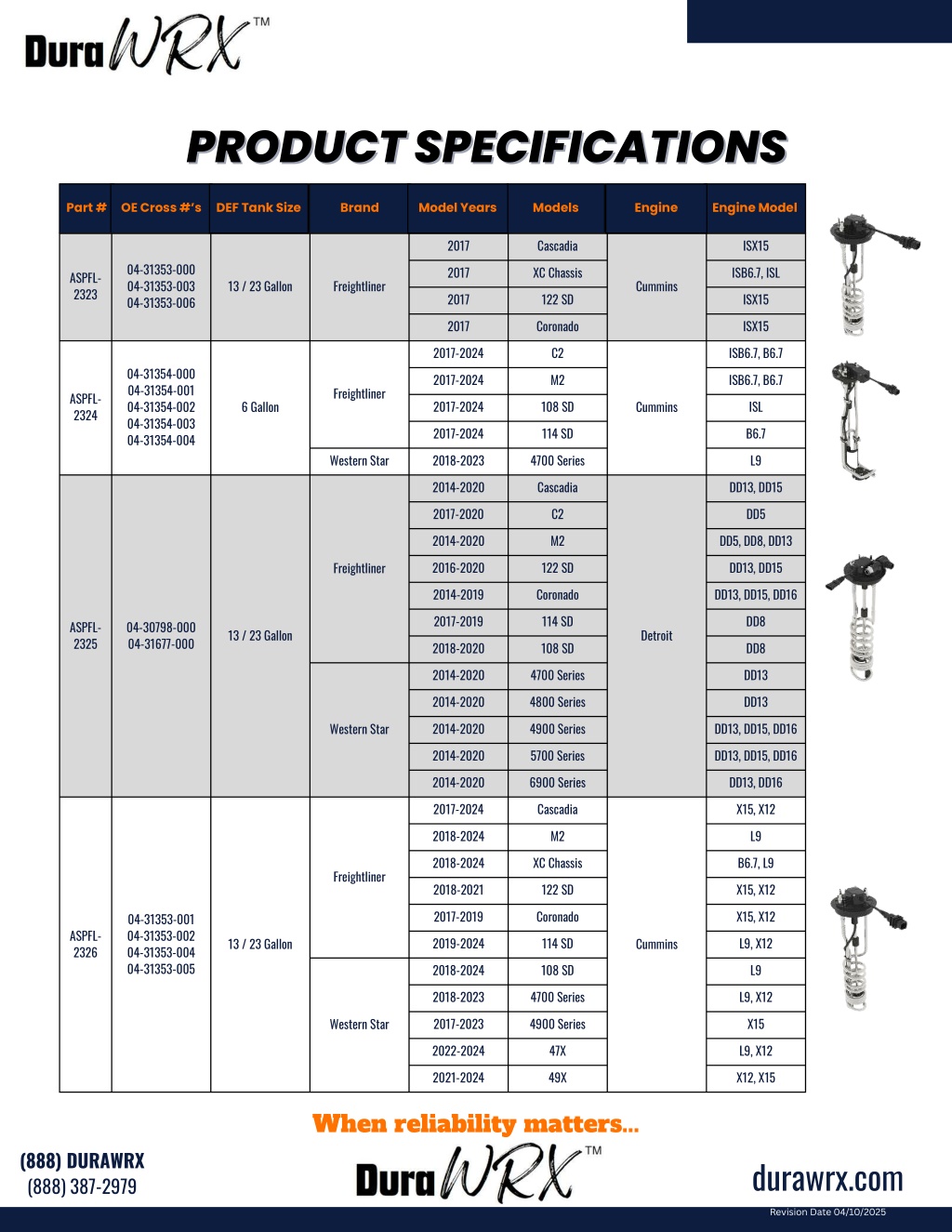

  2. PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS Part # OE Cross #’s DEF Tank Size Brand Model Years Models Engine Engine Model 2017 Cascadia ISX15 04-31353-000 04-31353-003 04-31353-006 2017 XC Chassis ISB6.7, ISL ASPFL- 2323 13 / 23 Gallon Freightliner Cummins 2017 122 SD ISX15 2017 Coronado ISX15 2017-2024 C2 ISB6.7, B6.7 04-31354-000 04-31354-001 04-31354-002 04-31354-003 04-31354-004 2017-2024 M2 ISB6.7, B6.7 Freightliner ASPFL- 2324 2017-2024 108 SD ISL 6 Gallon Cummins 2017-2024 114 SD B6.7 Western Star 2018-2023 4700 Series L9 2014-2020 Cascadia DD13, DD15 2017-2020 C2 DD5 2014-2020 M2 DD5, DD8, DD13 2016-2020 122 SD DD13, DD15 Freightliner 2014-2019 Coronado DD13, DD15, DD16 2017-2019 114 SD DD8 ASPFL- 2325 04-30798-000 04-31677-000 13 / 23 Gallon Detroit 2018-2020 108 SD DD8 2014-2020 4700 Series DD13 2014-2020 4800 Series DD13 2014-2020 4900 Series DD13, DD15, DD16 Western Star 2014-2020 5700 Series DD13, DD15, DD16 2014-2020 6900 Series DD13, DD16 2017-2024 Cascadia X15, X12 2018-2024 M2 L9 2018-2024 XC Chassis B6.7, L9 Freightliner 2018-2021 122 SD X15, X12 2017-2019 Coronado X15, X12 04-31353-001 04-31353-002 04-31353-004 04-31353-005 ASPFL- 2326 2019-2024 114 SD L9, X12 13 / 23 Gallon Cummins 2018-2024 108 SD L9 2018-2023 4700 Series L9, X12 2017-2023 4900 Series X15 Western Star 2022-2024 47X L9, X12 2021-2024 49X X12, X15 When reliability matters... (888) DURAWRX (888) 387-2979 durawrx.com Revision Date 04/10/2025

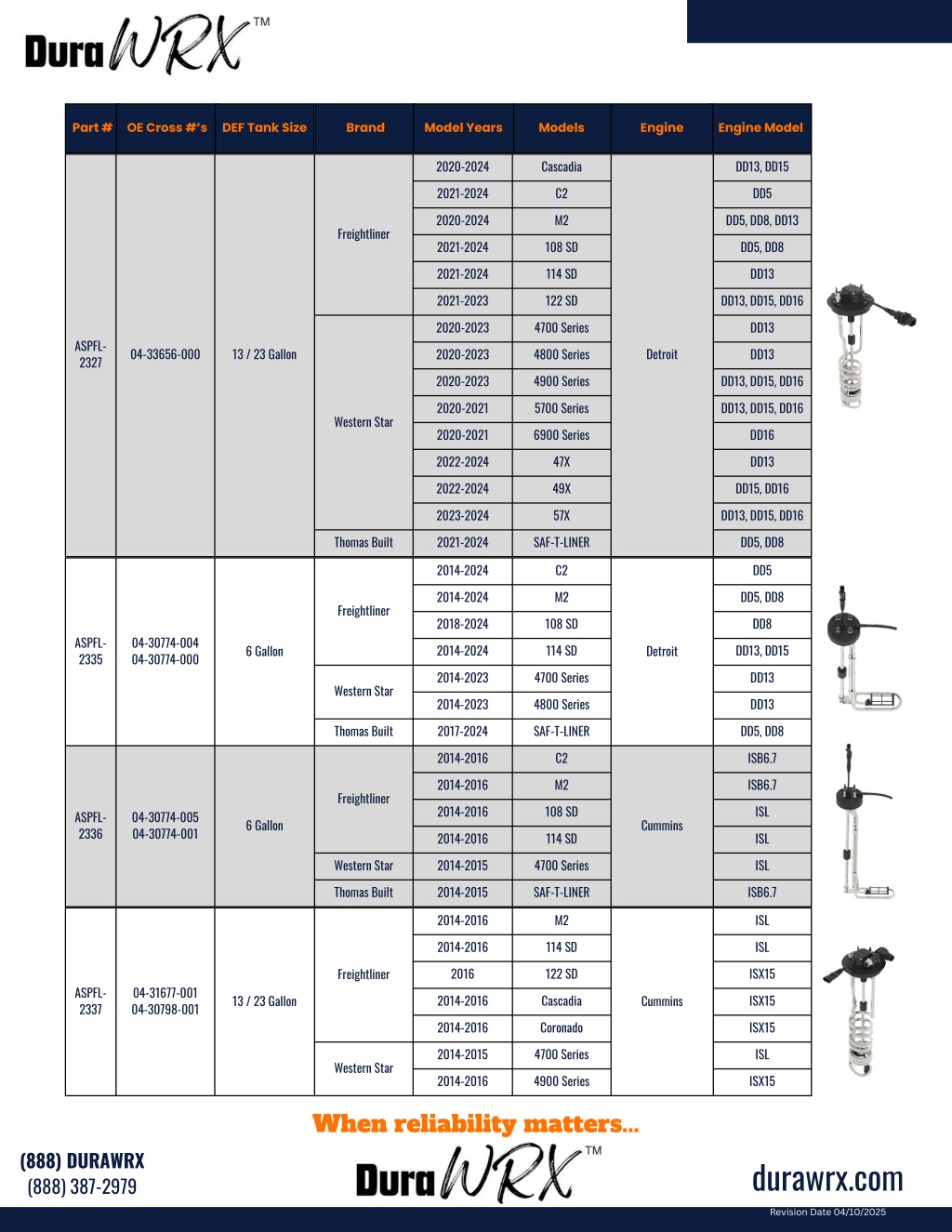

  3. Part # OE Cross #’s DEF Tank Size Brand Model Years Models Engine Engine Model 2020-2024 Cascadia DD13, DD15 2021-2024 C2 DD5 2020-2024 M2 DD5, DD8, DD13 Freightliner 2021-2024 108 SD DD5, DD8 2021-2024 114 SD DD13 2021-2023 122 SD DD13, DD15, DD16 2020-2023 4700 Series DD13 ASPFL- 2327 04-33656-000 13 / 23 Gallon Detroit 2020-2023 4800 Series DD13 2020-2023 4900 Series DD13, DD15, DD16 2020-2021 5700 Series DD13, DD15, DD16 Western Star 2020-2021 6900 Series DD16 2022-2024 47X DD13 2022-2024 49X DD15, DD16 2023-2024 57X DD13, DD15, DD16 Thomas Built 2021-2024 SAF-T-LINER DD5, DD8 2014-2024 C2 DD5 2014-2024 M2 DD5, DD8 Freightliner 2018-2024 108 SD DD8 ASPFL- 2335 04-30774-004 04-30774-000 2014-2024 114 SD DD13, DD15 6 Gallon Detroit 2014-2023 4700 Series DD13 Western Star 2014-2023 4800 Series DD13 Thomas Built 2017-2024 SAF-T-LINER DD5, DD8 2014-2016 C2 ISB6.7 2014-2016 M2 ISB6.7 Freightliner 2014-2016 108 SD ISL ASPFL- 2336 04-30774-005 04-30774-001 6 Gallon Cummins 2014-2016 114 SD ISL Western Star 2014-2015 4700 Series ISL Thomas Built 2014-2015 SAF-T-LINER ISB6.7 2014-2016 M2 ISL 2014-2016 114 SD ISL 2016 122 SD ISX15 Freightliner ASPFL- 2337 04-31677-001 04-30798-001 2014-2016 Cascadia ISX15 13 / 23 Gallon Cummins 2014-2016 Coronado ISX15 2014-2015 4700 Series ISL Western Star 2014-2016 4900 Series ISX15 When reliability matters... (888) DURAWRX (888) 387-2979 durawrx.com Revision Date 04/10/2025
