winsock2
Winsock2
  • Network 통신을 위한 프로그래밍 API
  • Berkeley Socket 계승 (4.3BSD)
  • Windows CE를 제외한 모든 Platform에서 사용가능
socket
Socket의 종류
  • 연결지향형(Connection-oriented)
    • TCP ( Transmission Control Protocol )
    • Streaming Protocol
    • HTTP, FTP
  • 비연결형(Connectionless)
    • UDP ( User Datagram Protocol )
    • Message-based Protocol
    • DNS
server
Server흐름

Socket() 또는 WSASocket()

bind()

listen()

accept() 또는 WSAAccept()

client
Client흐름

Socket() 또는 WSASocket()

주소해석

connect() 또는 WSAConnect()

slide5
Demo
  • BasicServer
  • BasicClient
well known ports
Well-known Ports
  • Well-known Ports: 0 ~ 1023
  • Registered Ports: 1024 ~ 49151
  • Dynamic and/or Private Ports: 49152 ~ 65535
well known ports1
Well-known Ports(계속)
  • Win9x, WinMe
    • %windows%
  • WinNT, Win2K
    • %Windows%\system32\drivers\etc
  • IANA
    • http://www.iana.org/assignments/port-numbers
socket mode
Socket Mode
  • Blocking
    • I/O작업이 끝날 때 까지 대기
  • Non-Blocking
    • 함수 호출 즉시 return
    • WSAEWOULDBLOCK
socket i o model
Socket I/O Model
  • Blocking
  • select
  • WSAAsyncSelect
  • WSAEventSelect
  • Overlapped I/O
  • I/O Completion Port
blocking
Blocking
  • WinCE를 포함한 모든 Platform
  • 장점
    • 구현이 쉽다.
  • 단점
    • 많은 Thread가 필요하다.
slide11

bind

listen

accept

…….

recv

recv

send

send

select
select
  • WinCE를 포함한 모든 Platform
  • UNIX기반 Berkeley Socket에서 사용되던 모델
  • 장점
    • 여러 Socket처리 가능
  • 단점
    • 64 < FD_SETSIZE < 1024
slide13
SOCKET s;

fd_set fdread;

int ret;

//socket생성

While(TRUE)

{

FD_ZERO(&fdread);

FD_SET(s, &fdread);

if((ret = select(0, &fdread, NULL, NULL, NULL)) == SOCK_ERROR)

{

// error 처리

}

if(ret > 0)

{

if(FD_ISSET(s, &fdread))

{

// socket에 read event발생

}

}

}

slide14

bind

listen

accept

64 ~ 1024

64 ~ 1024

…….

select

recv/send

select

recv/send

wsaasyncselect
WSAAsyncSelect
  • Win95(Winsock1)이상
  • MFC CAsyncSocket
  • 장점
    • select모델과 같은 부하 없이 많은 연결 처리
  • 단점
    • Window 필요
slide16
#define WM_SOCKET WM_USER + 10

#include <winsock2.h>

#include <windows.h>

Int WINAPI WinMain(…)

{

HWND hWnd;

SOCKET scktListen;

hWnd = CreateWindow(…);

// socket생성

bind(scktListen, …);

WSAAsyncSelect(scktListen, hWnd, WM_SOCKET, FD_ACCEPT | FD_CLOSE);

listen(scktListen, …);

while(GetMessage(&msg, NULL, 0, 0))

{

// message pump

}

}

slide17
BOOL CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)

{

SOCKET scktAccept;

switch(message)

{

case WM_PAINT:

break;

case WM_SOCKET:

if(WSAGETSELECTERROR(lParam))

{

// 에러처리

closesocket((SOCKET)wParam);

break;

}

switch(WSAGETSELECTEVENT(lParam))

{

//다음 장 참조

}

}

break;

}

return TRUE;

}

slide18
switch(WSAGETSELECTEVENT(lParam))

{

case FD_ACCEPT:

scktAccept = accept(wParam, NULL, NULL);

WSAAsyncSelect(scktAccept, hWnd, WM_SOCKET, FD_READ | FD_WRITE | FD_CLOSE);

break;

case FD_READ:

break;

case FD_WRITE:

break;

case FD_WRITE:

closesocket((SOCKET)wParam);

break;

}

break;

}

slide19

Bind

WSAAsyncSelect

listen

Message pump

accept recv send

accept처리

WSAAsyncSelect

send처리

.

.

recv처리

.

.

wsaeventselect
WSAEventSelect
  • Win95(Winsock2)이상
  • WSAEvent Object를 사용
  • 장점
    • Window 불필요
  • 단점
    • 한 Thread에서 64개의 Socket만을 처리
slide21
SOCKET scktArray[WSA_MAXIMUM_WAIT_EVENTS];

WSAEVENT evtArray[WSA_MAXIMUM_WAIT_EVENTS];

WSAEVENT evt;

int nEvt = 0;

// socket생성

bind(…);

evt = WSACreateEvent();

WSAEventSelect(scktListen, evt, FD_ACCEPT | FD_CLOSE);

listen(…);

scktArray[nEvt] = scktListen;

evtArray[nEvt] = evt;

nEvt++;

While(TREU)

{

iIndex = WSAWaitForMultipleEvents(nEvt, evtArray, FALSE, WSA_INFINITE, FALSE);

iIndex = iIndex = WSA_WAIT_EVENT_0;

if(NetworkEvents.lNetworkEvents & FD_ACCEPT)

{

if(0 != NetworkEvents.iErrorCode[FD_ACCEPT_BIT])

{

// error 처리

break;

}

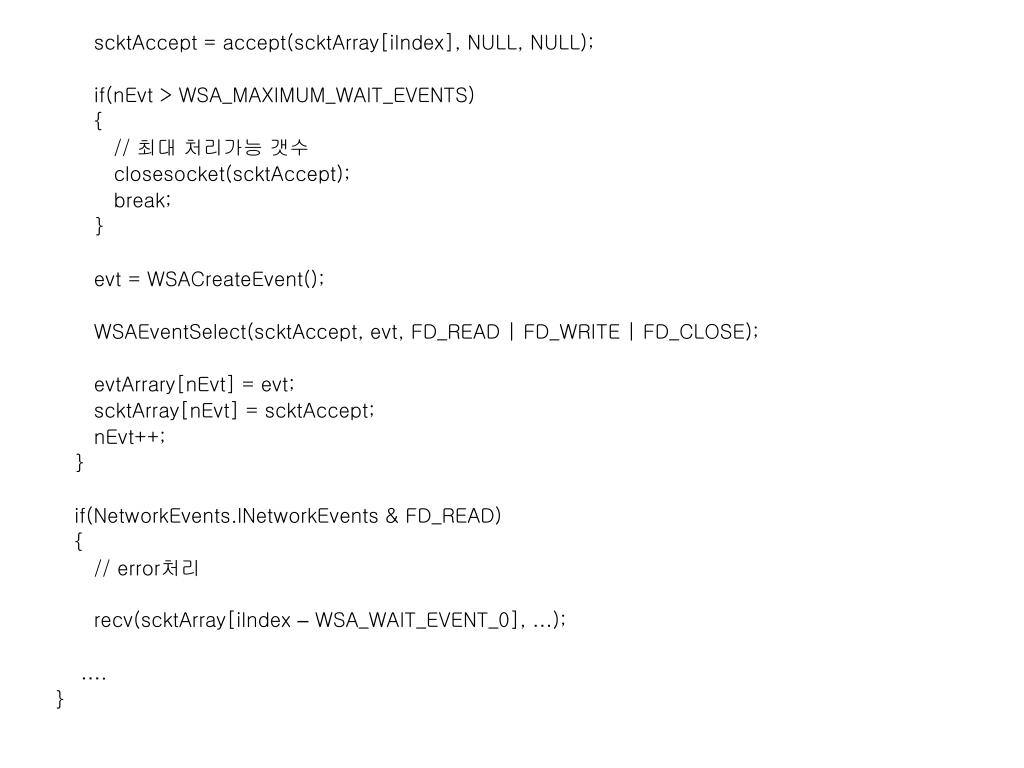

slide22
scktAccept = accept(scktArray[iIndex], NULL, NULL);

if(nEvt > WSA_MAXIMUM_WAIT_EVENTS)

{

// 최대 처리가능 갯수

closesocket(scktAccept);

break;

}

evt = WSACreateEvent();

WSAEventSelect(scktAccept, evt, FD_READ | FD_WRITE | FD_CLOSE);

evtArrary[nEvt] = evt;

scktArray[nEvt] = scktAccept;

nEvt++;

}

if(NetworkEvents.lNetworkEvents & FD_READ)

{

// error처리

recv(scktArray[iIndex – WSA_WAIT_EVENT_0], …);

….

}

slide23

bind

listen

accept

WSAEventSelect

64

64

…….

WSAWaitForMultipleEvents

recv/send

WSAWaitForMultipleEvents

recv/send

overlapped i o
Overlapped I/O
  • Win95(Winsock2)이상
  • 장점
    • 고성능 Socket I/O
    • 시스템이 Buffer관리
  • 단점
    • 한 Thread에서 64개의 Socket만을 처리

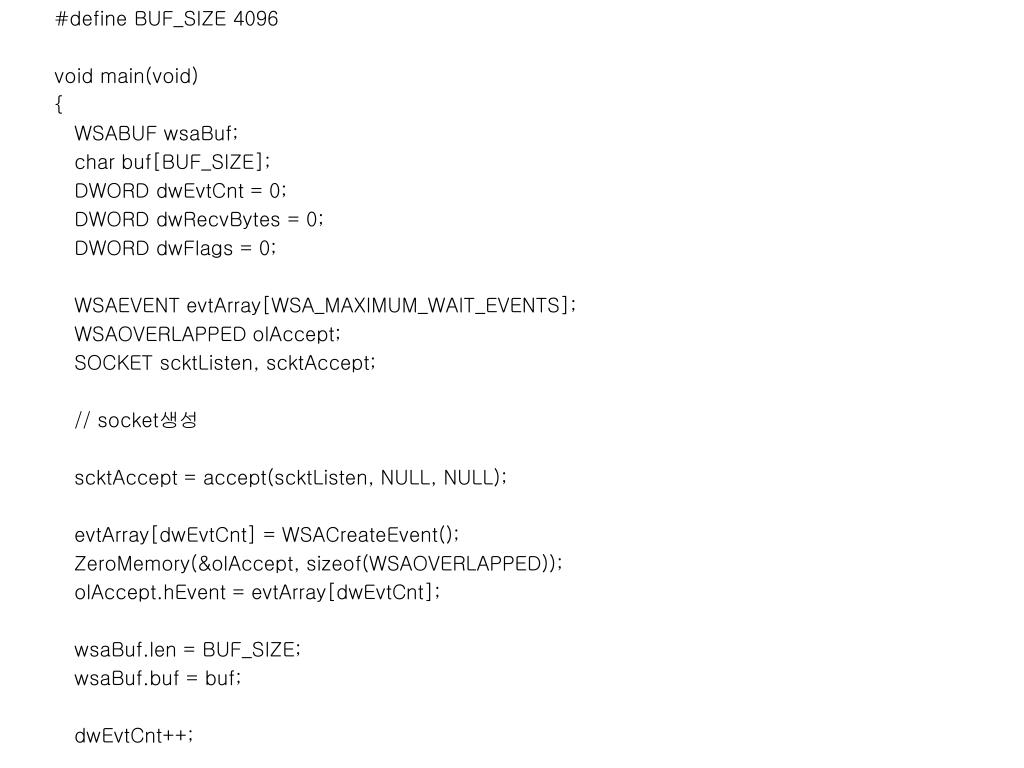

slide25
#define BUF_SIZE 4096

void main(void)

{

WSABUF wsaBuf;

char buf[BUF_SIZE];

DWORD dwEvtCnt = 0;

DWORD dwRecvBytes = 0;

DWORD dwFlags = 0;

WSAEVENT evtArray[WSA_MAXIMUM_WAIT_EVENTS];

WSAOVERLAPPED olAccept;

SOCKET scktListen, scktAccept;

// socket생성

scktAccept = accept(scktListen, NULL, NULL);

evtArray[dwEvtCnt] = WSACreateEvent();

ZeroMemory(&olAccept, sizeof(WSAOVERLAPPED));

olAccept.hEvent = evtArray[dwEvtCnt];

wsaBuf.len = BUF_SIZE;

wsaBuf.buf = buf;

dwEvtCnt++;

slide26
if(SOCK_ERROR == WSARecv(scktAccept, &wsaBuf, 1, &dwRecvBytes, &dwFlags, &olAccept, NULL))

{

if(WSA_IO_PENDING != WSAGetLastError())

{

// error 처리

}

}

while(TRUE)

{

DWORD dwIndex = WSAWaitForMultipleEvents(dwEvtCnt, evtArray, FALSE, WSA_INFINITE, FALSE);

WSAResetEvent(evtArray[dwIndex – WSA_WAIT_EVENT_0]);

WSAGetOverlappedResult(scktAccept, &olAccept, &dwRecvBytes, FALSE, &dwFlags);

if(0 == dwRecvBytes)

{

closesocket(scktAccept);

WSACloseEvent(evtArray[dwIndex – WSA_WAIT_EVENT_0]);

return;

}

// wsaBuf에 수신된 Data처리

slide27
dwFlags = 0;

ZeroMemory(&olAccept, sizeof(WSAOVERLAPPED));

olAccept.hEvent = evtArray[dwEvtCnt];

wsaBuf.len = BUF_SIZE;

wsaBuf.buf = buf;

if(SOCK_ERROR == WSARecv(scktAccept, &wsaBuf, 1, &dwRecvBytes, &dwFlags, &olAccept, NULL))

{

if(WSA_IO_PENDING != WSAGetLastError())

{

// error 처리

}

}

}

}

slide28

bind

listen

accept

WSARecv

64

64

…….

WSAWaitForMultipleEvents

WSAGetOverlappedResult

WSARecv

WSAWaitForMultipleEvents

WSAGetOverlappedResult

WSARecv

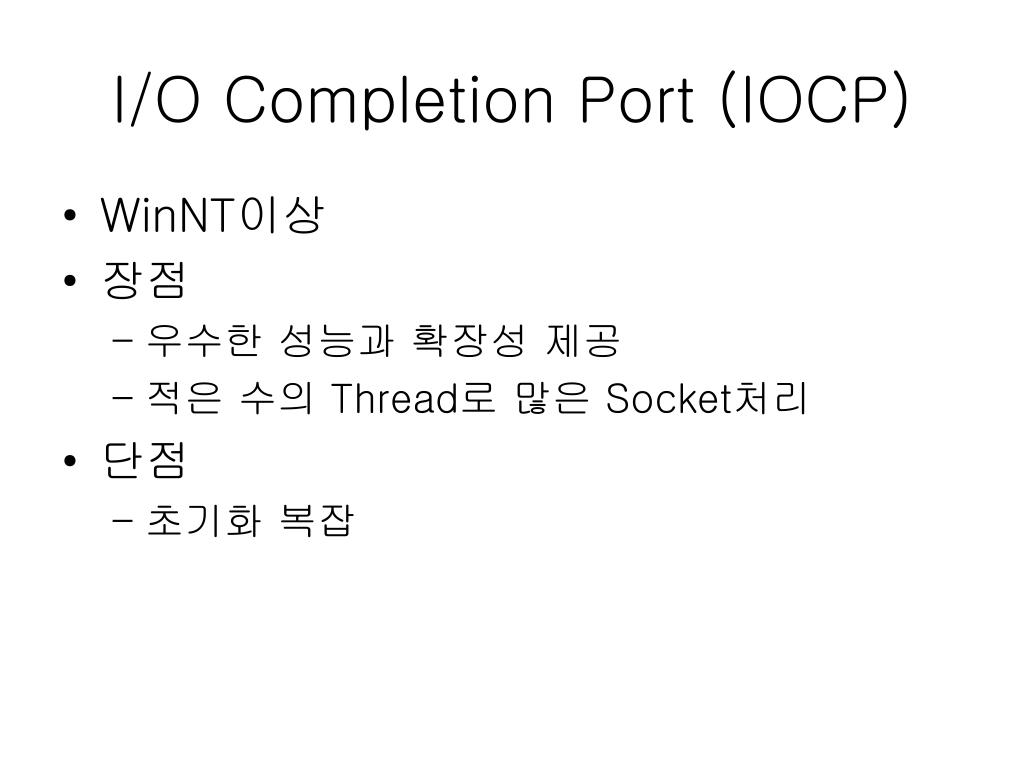

i o completion port iocp
I/O Completion Port (IOCP)
  • WinNT이상
  • 장점
    • 우수한 성능과 확장성 제공
    • 적은 수의 Thread로 많은 Socket처리
  • 단점
    • 초기화 복잡
slide30
Typedef struct _PER_HANDLE_DATA

{

SOCKET sckt;

SOCKADDR_STORAGE addrClient;

} PER_HANDLE_DATA, * LPPER_HANDLE_DATA

hIOCP = CreateIoCompletionPort(INVALID_HANDLE_VALUE, NULL, 0, 0);

for(…) // 적정한 수의 WorkerThread를 생성

{

CreateThread(NULL, 0, WorkerThread, hIOCP, 0, NULL);

}

// socket생성

scktAccept = WSAAccept(scktListen, …);

// PER_HANDLE_DATA 생성

// accept된 socket을 생성된 PER_HANDLE_DATA에 할당

CreateIoCompletionPort((HANDLE)scktAccept, hIOCP, (DWORD)phd, 0);

WSARecv(… );

slide31
DWORD WINAPI WorkerThrea(LPVOID lpParam)

{

HANDLE hIOCP = (HANDLE)lpParam;

while(TRUE)

{

GetQueueCompletionStatus(hIOCP, …, INFINITE);

// PER_HANDLE_DATA에 대한 처리

WSARecv(…);

}

return 0;

}

slide32

CreateIoCompletionPort

Create Threads

bind

listen

WSAAccept

CreateIoCompletionPort

WSARecv

GetQueuedCompletionStatus

WSARecv

GetQueuedCompletionStatus

WSARecv

Overlapped I/O

GetQueuedCompletionStatus

WSARecv

NT I/O System

GetQueuedCompletionStatus

WSARecv

slide33
참고자료
  • Network Programming for MS Windows
  • Windows Sockets 2.0: Write Scalable Winsock Apps Using Completion Ports
    • http://msdn.microsoft.com/msdnmag/issues/1000/Winsock/default.aspx
io completion port overlapped i o
IO Completion Port + Overlapped I/O

Main Thread

NT I/O System

CreateIoCompletePort(0,0,0,0)

Worker Thread 생성 (CPU 갯수)

Overlapped I/Os

I/O Completion Port

WSARecv

FIFO Queue of Completed I/O

Listen Sock 생성(lsock)

WSASend

CreateIoCompletePort(lsock,..)

LIFO queue of blocked Work Threads

Bind

Listen (ls, 100)

csock = Accept

CreateIoCompletePort(csock,..)

GetQueuedCompletionStatus

Worker Thread

Worker Thread
