  1. Concept Design Review Micro Air Vehicle Project: P07121 02.09.07 Sponsored by Impact Technologies The Boeing Company Jeffrey Kozak Customer / Guide Mechanical Engineering Geoff Amey Computer Engineering Benjamin Metz Mechanical Engineering Timothy Nowicki Mechanical Engineering David Blonski Industrial Engineering Team Leader Mark Baybutt Electrical Engineering Patrick O’Neil Mechanical Engineering Daniel Segar Mechanical Engineering Andrea Wyant Electrical Engineering Perry Young Mechanical Engineering

  2. Team Breakdown

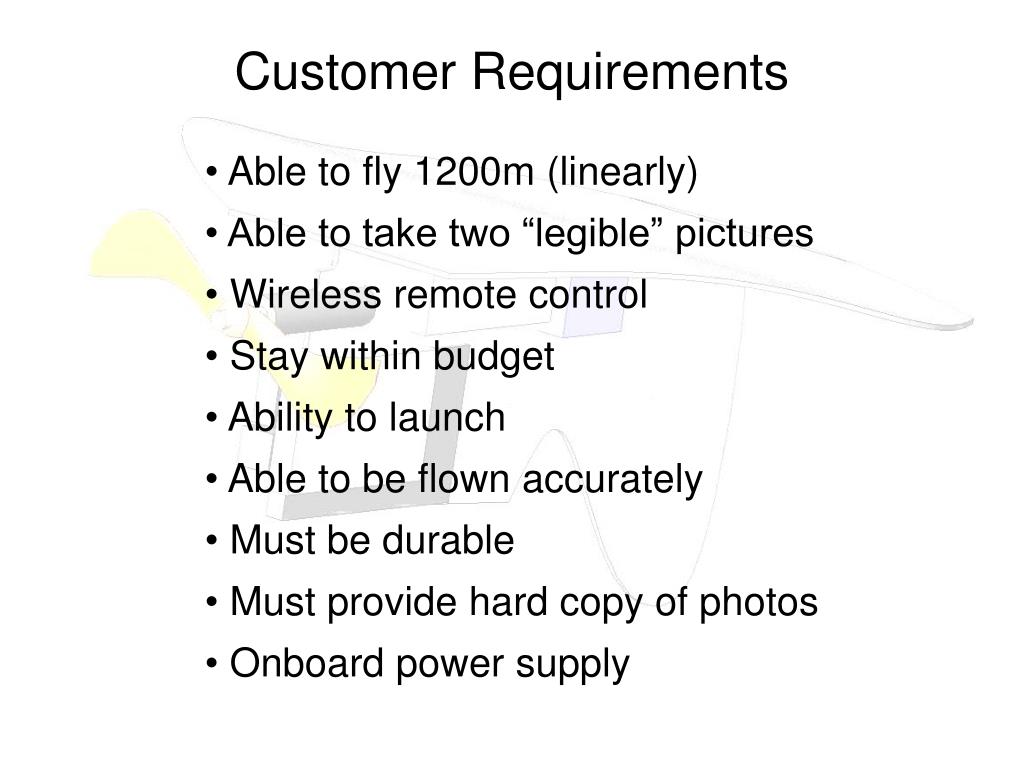

  3. Customer Requirements • Able to fly 1200m (linearly) • Able to take two “legible” pictures • Wireless remote control • Stay within budget • Ability to launch • Able to be flown accurately • Must be durable • Must provide hard copy of photos • Onboard power supply

  4. Customer Needs

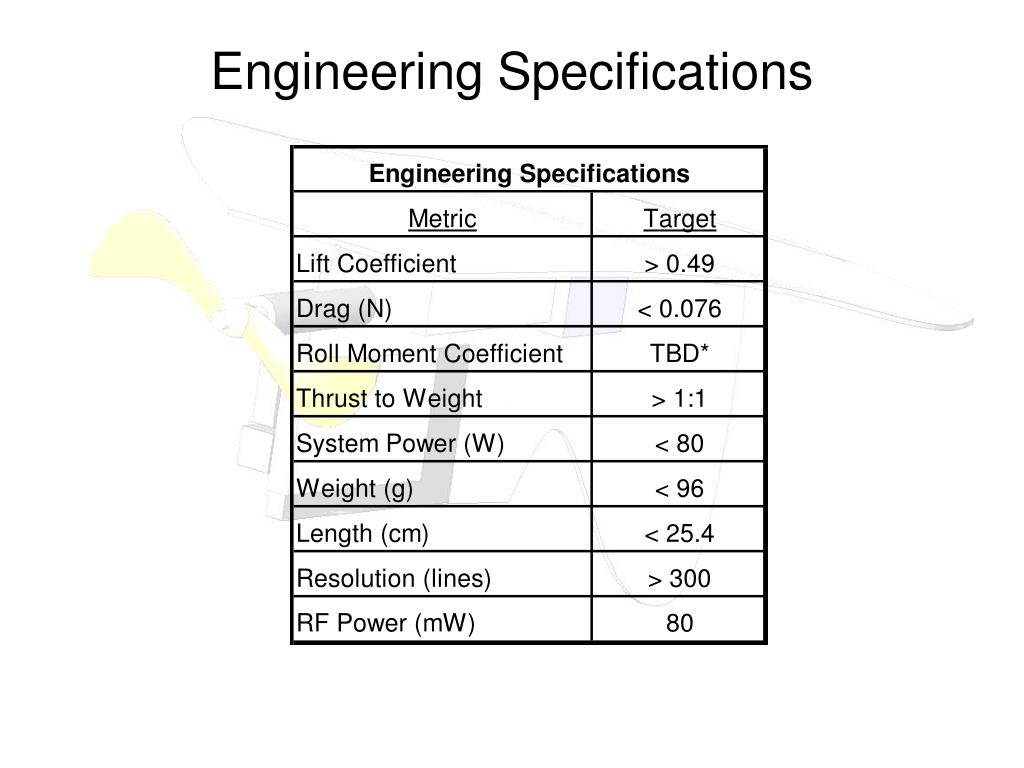

  5. Engineering Specifications

  6. QFD Analysis Part 1

  7. QFD Analysis Part 2

  8. Morphological Analysis Stronger Antennae New Controller New Servos Decrease # of Servos New Receivers Increase Motor RPM Decrease Propeller Size Fewer Batteries Timing System Smaller Smaller Tail Standard Body Morphable Wing Pod Smaller Angle of Attack Winglets Thermoset Scalability

  9. Pugh Analysis Part 1

  10. Pugh Analysis Part 2

  11. Ranking

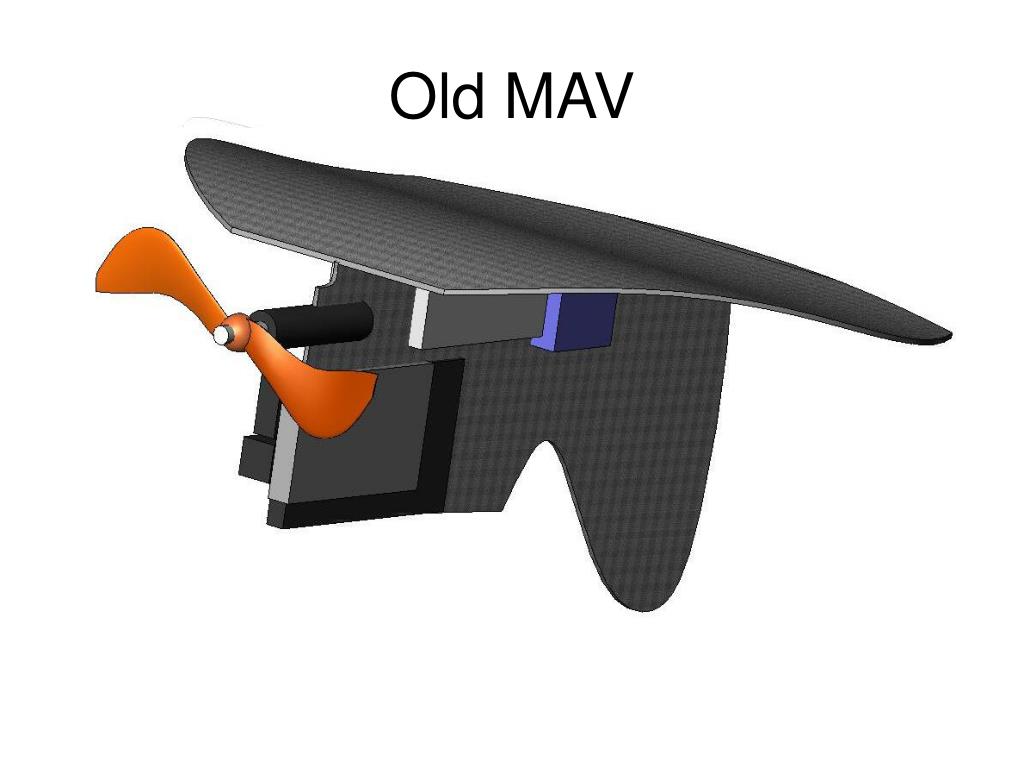

  12. Old MAV

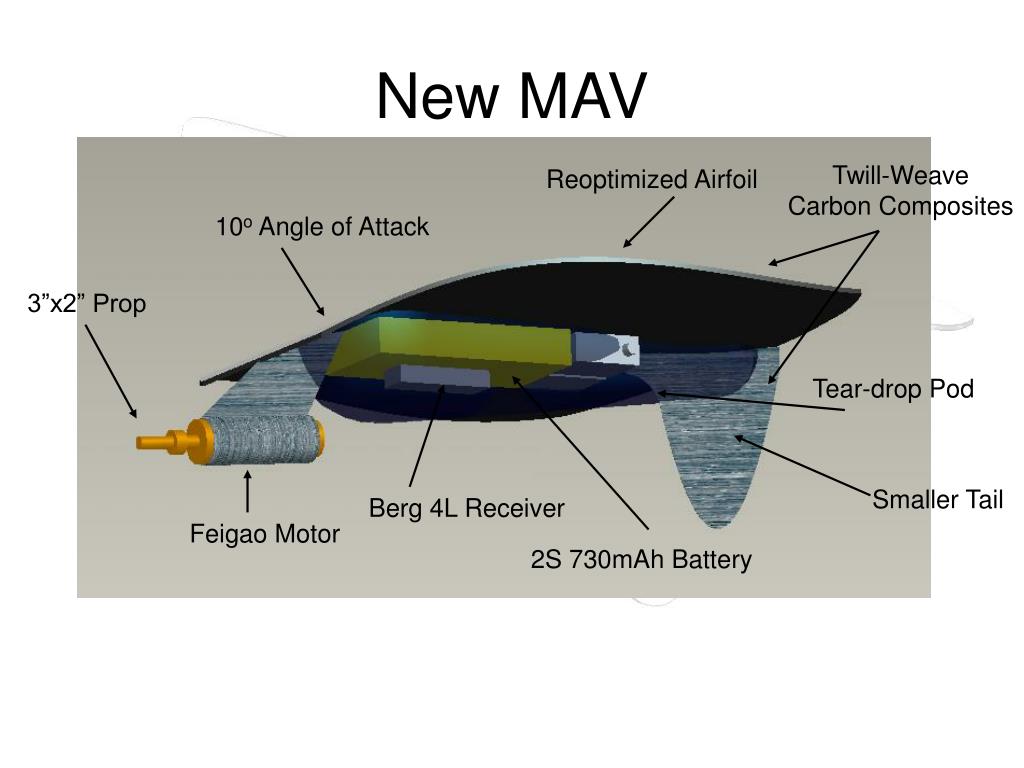

  13. New MAV Twill-Weave Carbon Composites Reoptimized Airfoil 10o Angle of Attack 3”x2” Prop Tear-drop Pod Smaller Tail Berg 4L Receiver Feigao Motor 2S 730mAh Battery

  14. Theoretical Motor Analysis

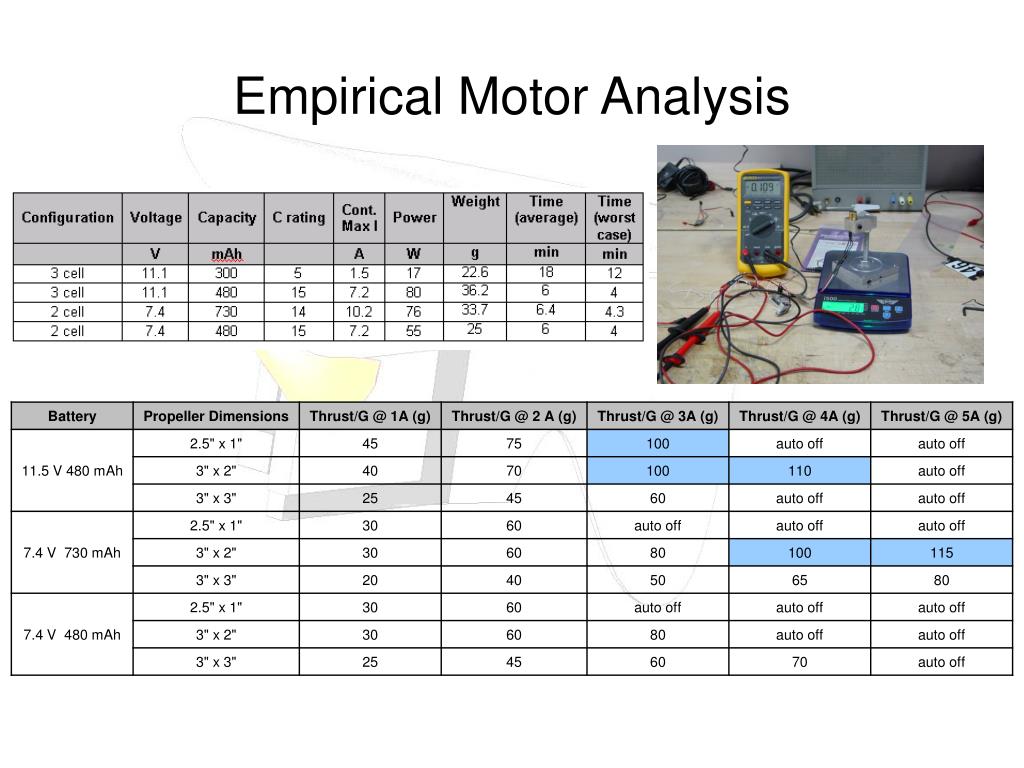

  15. Empirical Motor Analysis

  16. Weight Breakdown (Last Year)

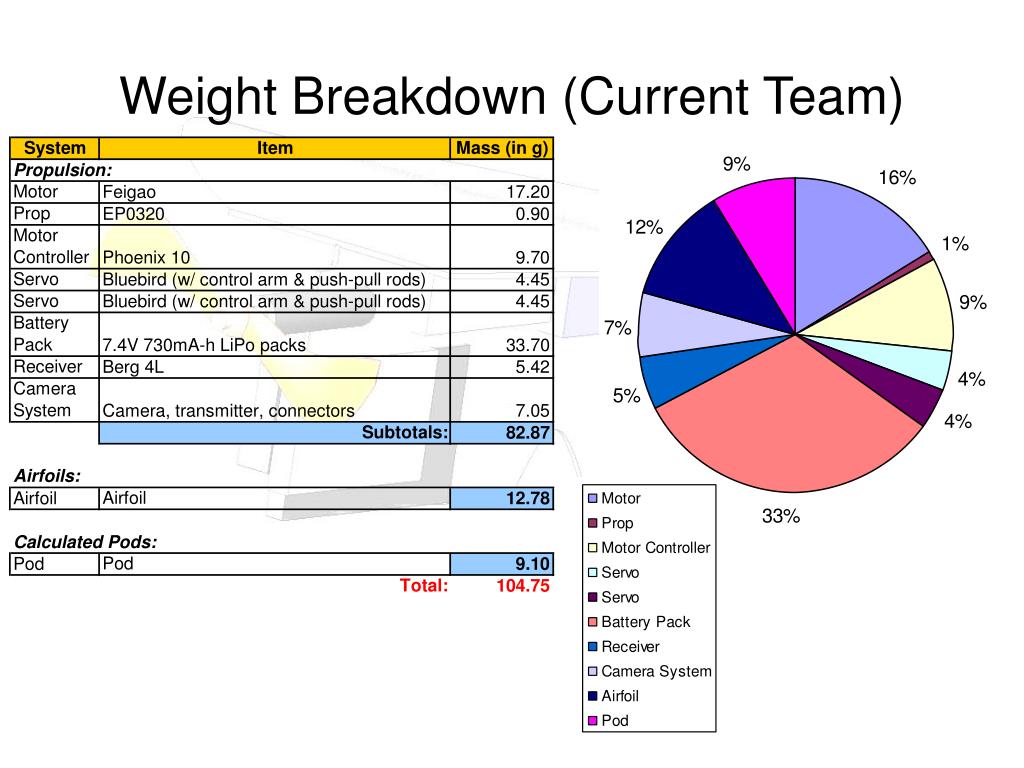

  17. Weight Breakdown (Current Team)

  18. Budget

  19. SDII Schedule
