clic cost drivers

CLIC cost drivers

Philippe Lebrun

on behalf of theC&S WG

CLIC Technical Committee

3 November 2009

clic cost schedule wg mandate
CLIC Cost & Schedule WGMandate

April 2009

  • Establish and optimize the cost of the CLIC complexat the nominal collidingbeamenergy of 3 TeV, as well as that of an optional first phase with a collidingbeamenergy of 500 GeV
  • Define and optimize the generalschedule for the 3 TeV and 500GeVprojectsdefinedabove
  • Estimate the electrical power consumption of the 3 TeV and 500 GeVprojectsdefinedabove
  • Identify possible modifications of parameters and/or equipmentleading to substantial capital and/or operationalcostsavings, in order to define best compromise between performance and cost
  • Developcollaboration with ILCproject on costestimatemethodology and cost of common or comparable systems, aimingatmutualtransparency
  • Document the process and conclusions in the CDR in 2010

Ph. Lebrun – CTC 091103

clic cost schedule wg activities 2009
CLIC Cost & Schedule WGActivities 2009

April 2009

  • Establish responsibilities, procedures & workpackages in cost assessment
  • Reception specified costing tool, including currency conversion & price escalation procedures, and start applying it
  • Identify domains of analytical costing and perform estimates
  • Identify cost drivers and areas of potential cost reduction
  • Conduct first round of analytical costing of CLIC 3TeV
  • Establish proper technical/cost scaling of CLIC 500 GeV
  • Refine general schedule and derive manufacturing/reception testing/installation constraints
  • Update estimates of power & energy consumption, including part-load operation
  • Collaborate with ILC on previously defined cost topics
    • Cost risk analysis
    • Cost of normal conducting magnets

Ph. Lebrun – CTC 091103

analytical costing based on pbs
Analytical costing based on PBS

Component level

Coordinators per domain/subdomain

Identified for analytical costing based on level 5 description

List of systems standardized

Contact experts per system

Ph. Lebrun – CTC 091103

status of analytical cost estimates
Status of analytical cost estimates
  • CLIC Study Costing Tool
    • Operational
    • Based on PBS for CLIC 3 TeV and 500 GeV, as defined by TC for the CDR

⇒ analytical cost upload just started

  • Questionnaire sent to Domain/Subdomain Coordinators (3 August 2009)
    • Preparation of analytical cost estimate review
    • Identification of cost drivers, risks and reduction issues

⇒ one received so far!

  • Presentations at C&S WG meetings
    • 24 September 2009: Main beam production - damping rings (Y. Papaphilippou)
    • 29 October 2009: Drive beam production (B. Jeanneret), Two-beam accelerator modules (G. Riddone)
    • 5 November 2009: Infrastructure & services (J. Osborne)
    • 26 November 2009: Main beam production - injectors & beam transport (L. Rinolfi), [Interaction region (L. Gatignon)]

⇒ work in progress

⇒ technical definition for analytical costing not available for all domains/subdomains

Ph. Lebrun – CTC 091103

main linacs are the cost drivers

CLIC 3 TeV cost estimate 2007 (H. Braun & G. Riddone)

Indirect impact

Direct

Main linacs are the cost drivers
  • The main linacsaccount for a large fraction of CLIC cost, and impact strongly on other capital (tunnel, infrastructure, services) and operation (electricity, cooling, maintenance) costs
  • Veryhigh, unprecedentedmultiplicity of components, willrequirenovel solutions for manufacturing, installation, maintenance, reliabilityassessment

CLIC 3 TeV (per linac)

Modules: 10462

Accelerating str.: 71406 PETS: 35703

MB quadrupoles: 1996 DB quadrupoles: 20924

CLIC 500 GeV (per linac)

Modules: 2124

Accelerating str.: 13156 PETS: 6578

MB quadrupoles: 929 DB quadrupoles: 4248

Ph. Lebrun – CTC 091103

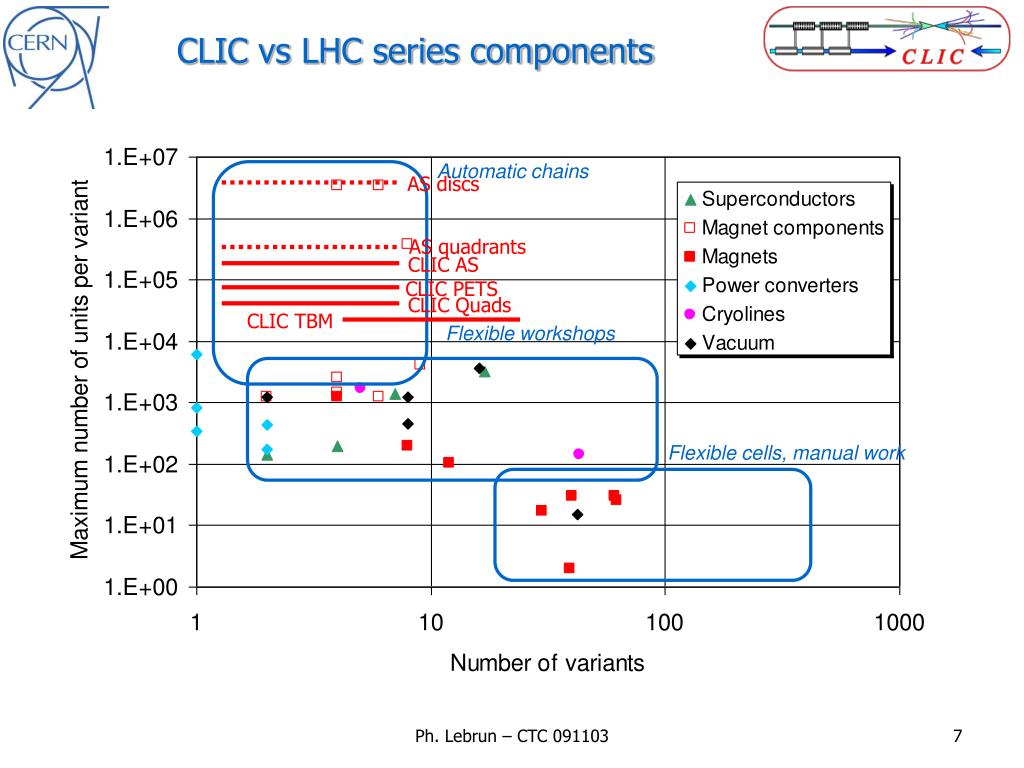

clic vs lhc series components

Automatic chains

AS discs

AS quadrants

CLIC AS

CLIC PETS

CLIC Quads

CLIC TBM

Flexible workshops

Flexible cells, manual work

CLIC vs LHC series components

Ph. Lebrun – CTC 091103

cost drivers potential saving options main and drive beam production
Cost drivers & potential saving options Main and drive beam production

Cost impact

L Order of 10 MCHF M Order of 100 MCHF H Order of 1 BCHF

C&S WG review not completed!

Ph. Lebrun – CTC 091103

cost drivers potential saving options two beam modules 1 2
Cost drivers & potential saving optionsTwo-beam modules [1/2]

Cost impact

L Order of 10 MCHF M Order of 100 MCHF H Order of 1 BCHF

Ph. Lebrun – CTC 091103

cost drivers potential saving options two beam modules 2 2
Cost drivers & potential saving optionsTwo-beam modules [2/2]

Cost impact

L Order of 10 MCHF M Order of 100 MCHF H Order of 1 BCHF

Ph. Lebrun – CTC 091103

cost drivers potential saving options interaction regions
Cost drivers & potential saving options Interaction regions

Cost impact

L Order of 10 MCHF M Order of 100 MCHF H Order of 1 BCHF

C&S WG review not completed!

Ph. Lebrun – CTC 091103

cost drivers potential saving options infrastructure and services
Cost drivers & potential saving options Infrastructure and services

Cost impact

L Order of 10 MCHF M Order of 100 MCHF H Order of 1 BCHF

C&S WG review not completed!

Ph. Lebrun – CTC 091103

summary
Summary
  • Costconsciousnesswellestablished in CLIC technicalworking groups (Module, RF structures, CES,…)
  • Somecost drivers and costreduction areas identified - as well as theirinterplay - analysis not yet exhaustive
  • Costscalingmodelsonlyexist for limitednumber of components or subsystems
  • Analyticalcostingexerciseunderway by domaincoordinatorswith input fromtechnical system experts, in domainswheretechnicalbaselineexists
  • Technicalbaseline to bedefined in otherdomains
  • Significantdifferencesobserved w r to 2007 costestimate
  • Feedback provided to technical system design
  • Targetedcoststudies by industrialcompaniesconsidered, in particular for large-series components
  • Reliability/availabilityassessment to beconducted (TC?) for system design and possible cost impact

Ph. Lebrun – CTC 091103
