Presentation Transcript

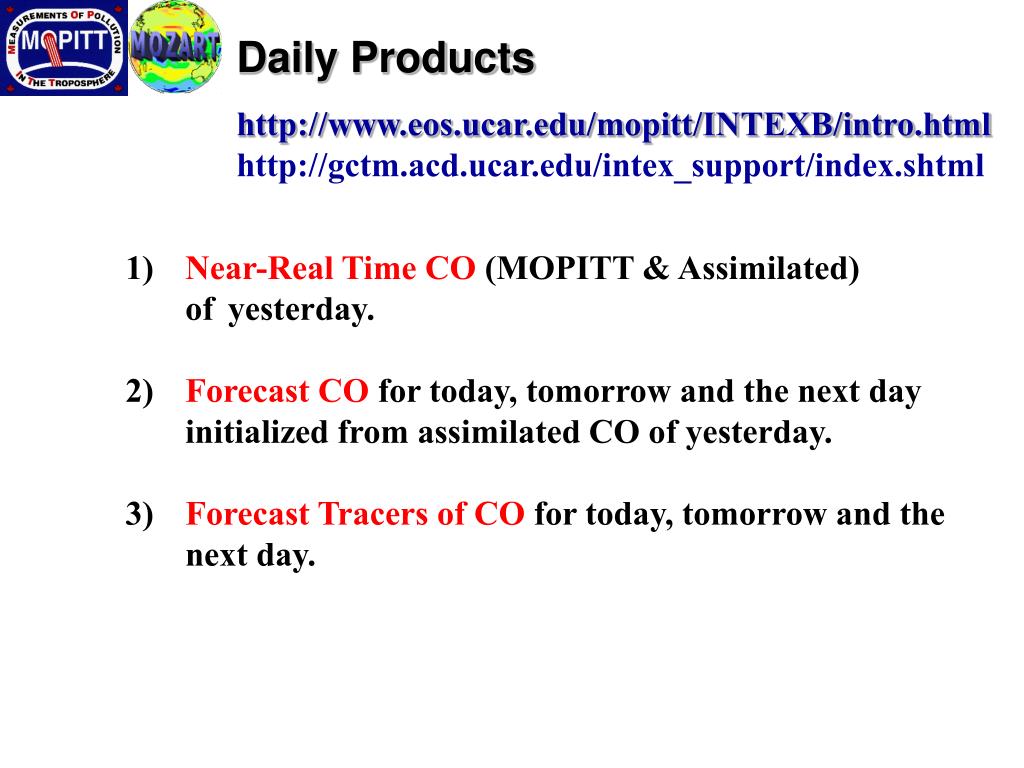

  1. Daily Products http://www.eos.ucar.edu/mopitt/INTEXB/intro.html http://gctm.acd.ucar.edu/intex_support/index.shtml • Near-Real Time CO (MOPITT & Assimilated) • of yesterday. • Forecast CO for today, tomorrow and the next day • initialized from assimilated CO of yesterday. • Forecast Tracers of CO for today, tomorrow and the • next day.

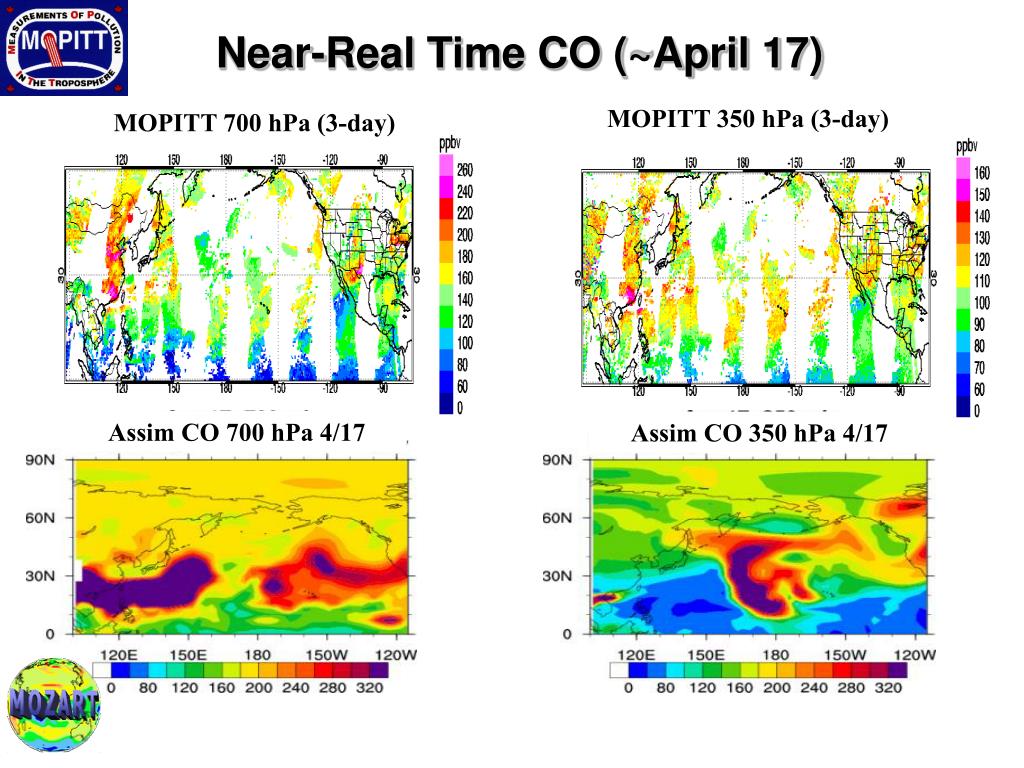

  2. Near-Real Time CO (~April 17) MOPITT 350 hPa (3-day) MOPITT 700 hPa (3-day) Assim CO 700 hPa 4/17 Assim CO 350 hPa 4/17

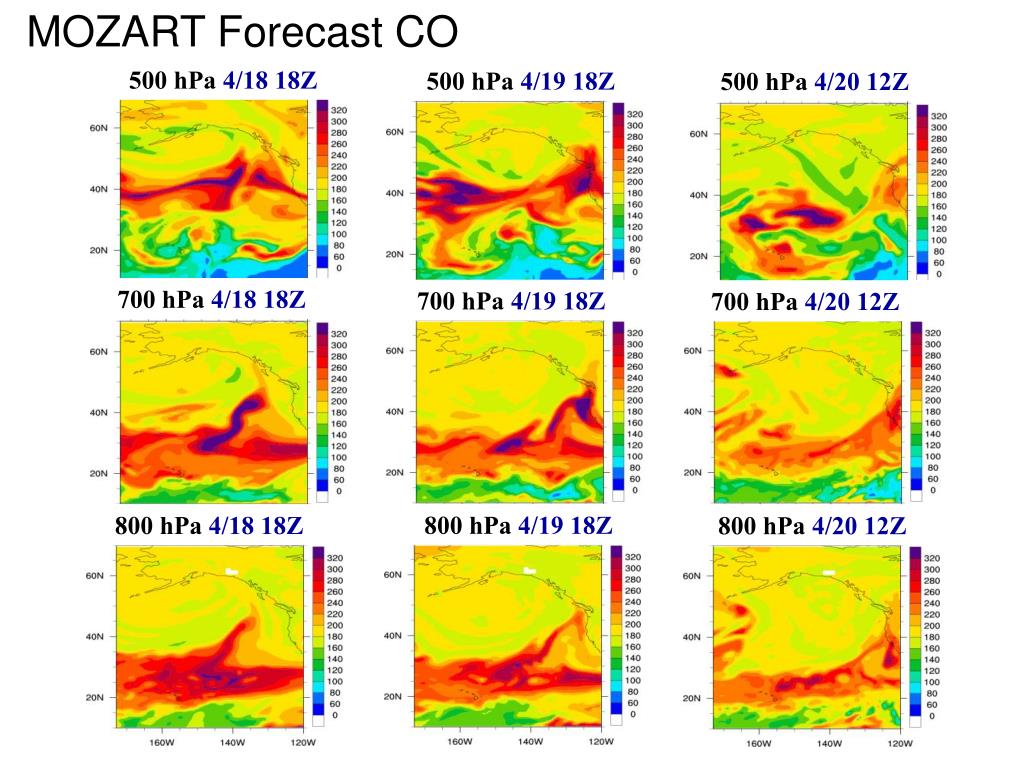

  3. MOZART Forecast CO 500 hPa 4/18 18Z 500 hPa 4/19 18Z 500 hPa 4/20 12Z 700 hPa 4/18 18Z 700 hPa 4/19 18Z 700 hPa 4/20 12Z 800 hPa 4/19 18Z 800 hPa 4/18 18Z 800 hPa 4/20 12Z

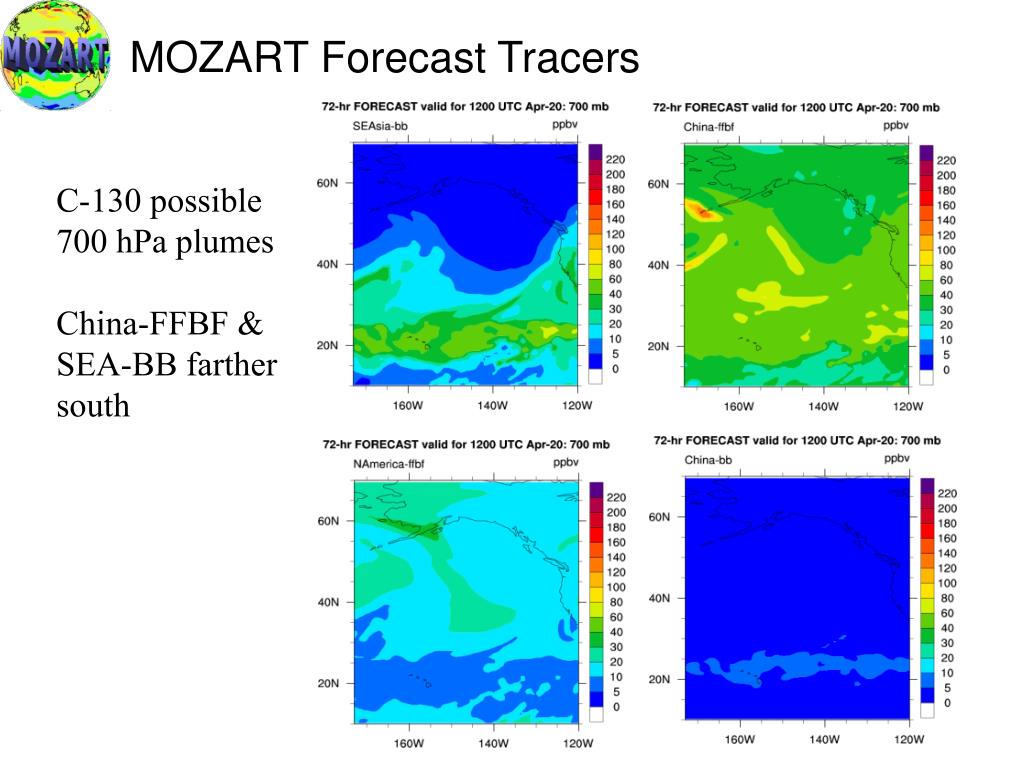

  4. MOZART Forecast Tracers C-130 possible 700 hPa plumes China-FFBF & SEA-BB farther south

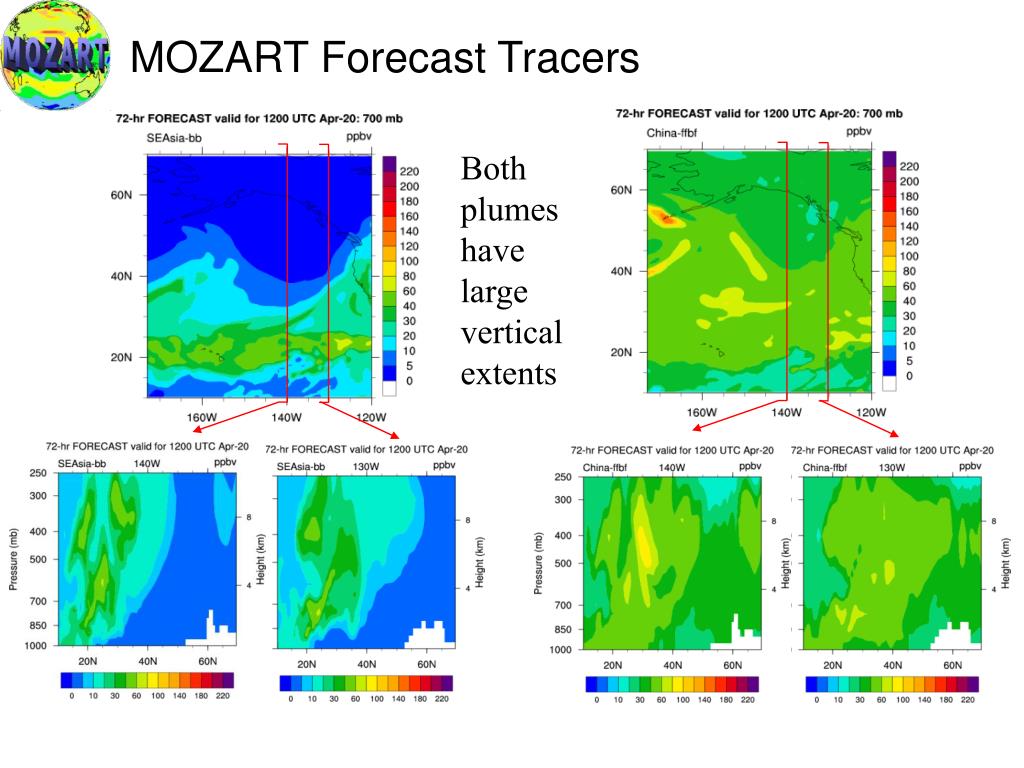

  5. MOZART Forecast Tracers Both plumes have large vertical extents

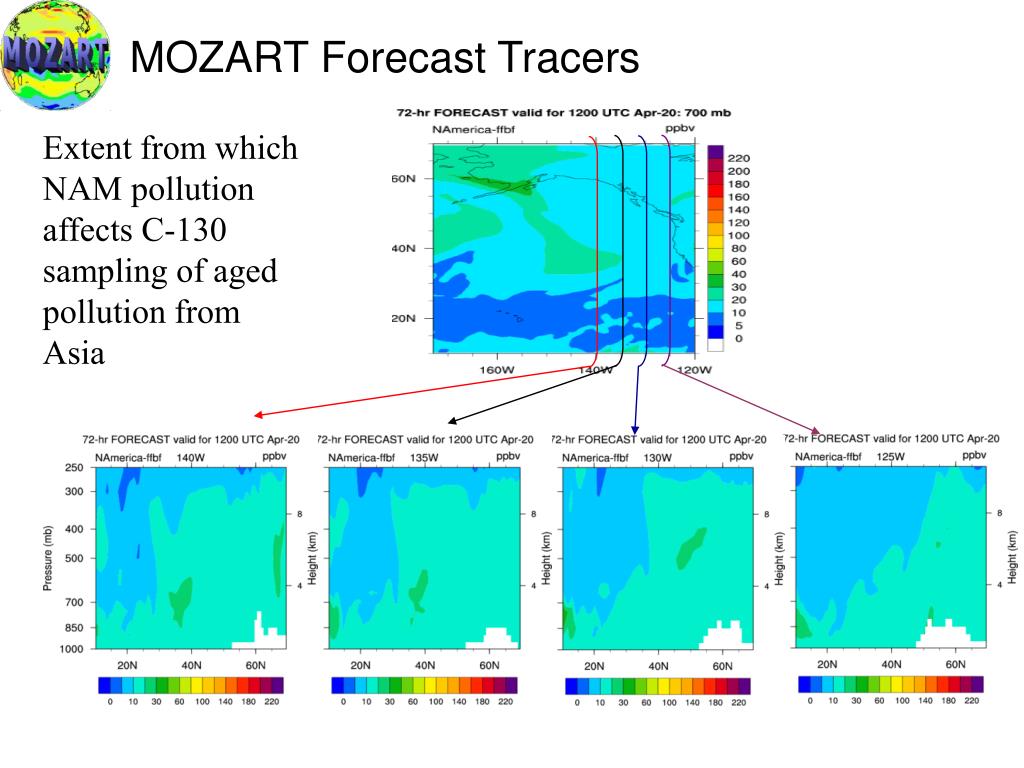

  6. MOZART Forecast Tracers Extent from which NAM pollution affects C-130 sampling of aged pollution from Asia

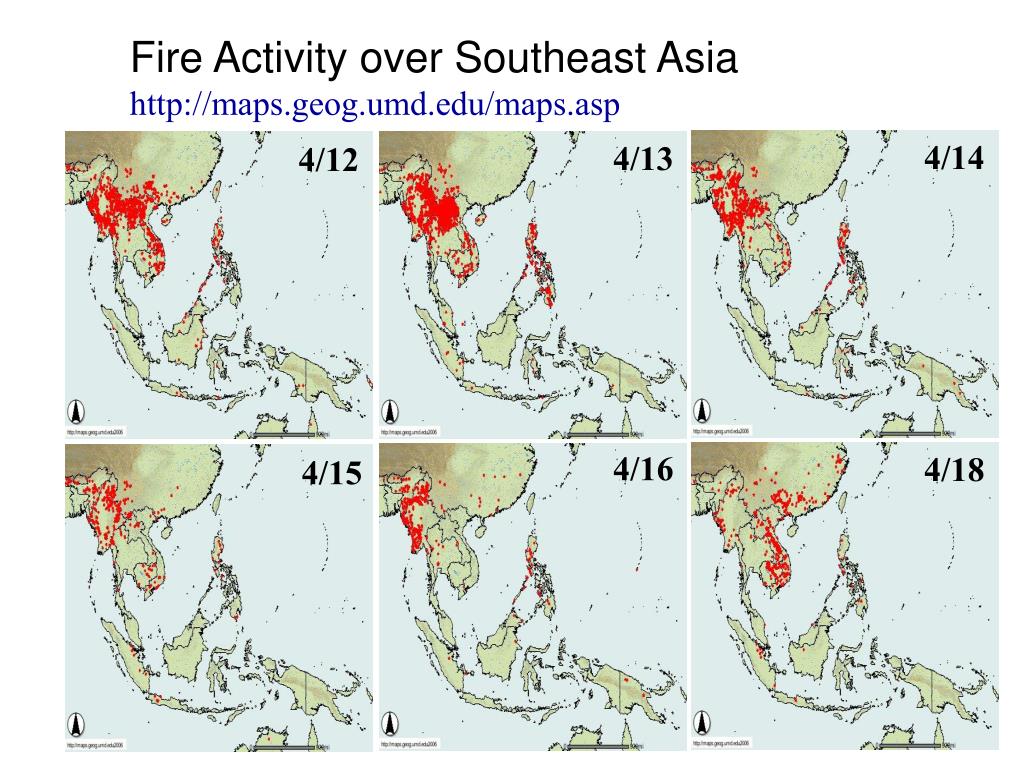

  7. Fire Activity over Southeast Asia http://maps.geog.umd.edu/maps.asp 4/14 4/13 4/12 4/16 4/18 4/15

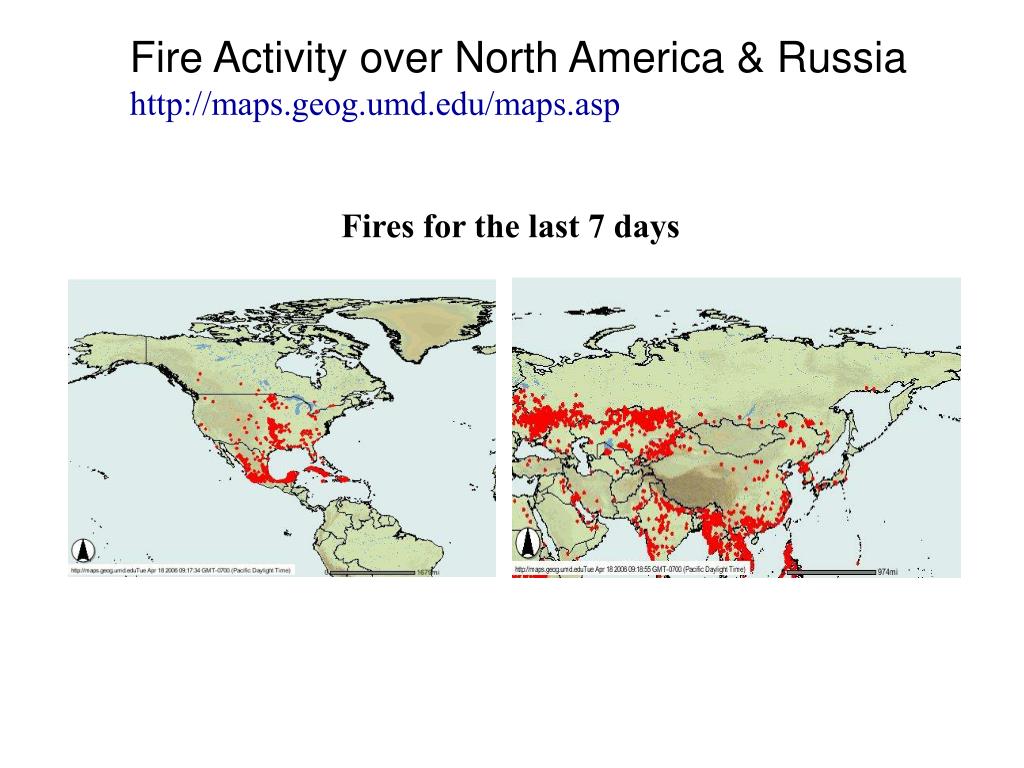

  8. Fire Activity over North America & Russia http://maps.geog.umd.edu/maps.asp Fires for the last 7 days
