building an automated malware behavioral analysis environment using free and open source tools

Building an Automated Malware Behavioral Analysis Environment Using Free and Open-Source Tools

Jim Clausing, PMTS, AT&T CSO

18 Jun 2009

jim clausing gcia gcfa grem gcih gcfw gsip gsoc ssp mpa cissp
Jim Clausing, GCIA, GCFA, GREM, GCIH, GCFW, GSIP, GSOC, SSP-MPA, CISSP
  • GCIA (Gold) #64 – 2000
  • GCFA (Gold) #25 – 2002
  • GREM (Gold) #48 – 2005
  • And other certs along the way…
  • SANS Mentor, StaySharp/STAR instructor, CommunitySANS instructor, Internet Storm Center handler since 2002
  • Instrument-rated private pilot – 2003/2004
the patches and scripts
The patches and scripts
  • http://handlers.sans.org/jclausing/grem_gold/
  • http://www.giac.org/certified_professionals/practicals/grem/48.php
submission
Submission
  • [jac@fltruman001 ~]$ for i in 090???-*.piz; do sudo submit.sh $i && mv $i old-malware/; sleep 10; done
  • Archive: 090529-rnd_jpg.piz
  • inflating: rnd.jpg
  • *****Processing rnd.jpg - ONEBOOT******
  • interface: eth1 (4.0.0.0/255.0.0.0)
  • filter: (ip) and ( not port 45612 and not port 45611 and not tcp port 6987 and not udp port 32785 )
  • tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
  • listening on eth1, link-type EN10MB (Ethernet), capture size 96 bytes
  • tcpdump: listening on eth1, link-type EN10MB (Ethernet), capture size 1514 bytes
  • Starting Faux FTP Server Emulation on port 21
  • Starting Faux MySQL Server Emulation on port 3306
  • Starting Faux SMTP Server Emulation on port 25
  • Starting Faux SMB Server Emulation on port 445
  • Starting Faux IRC Server Emulation on port 6667
  • Starting Faux DNS Server Emulation on port 53
monitoring
Monitoring
  • [jac@fltruman001 ~]$ alias status
  • alias status='cat /tmp/current.txt && echo "" && cat /tmp/sandnet*.log | tr -c "[:print:][:blank:]\r\n" "." ; tcpdump -nnr /tmp/sandnet.pcap -w - "not broadcast and (not src net 4.5.6 or not dst net 4.5.6)" | ipaudit -CST -r - -l 4.5.6.7 ; ngrep -I /tmp/sandnet.pcap "GET|POST|HEAD|OPTIONS|JOIN" "tcp port 80 and not host 4.5.6.1" | tr -c "[:print:][:blank:]\r\n" "."‘
monitoring cont d
Monitoring, cont’d
  • [jac@fltruman001 ~]$ status
  • Server.exe
  • request: name=ftp.sickbassline.com, class=IN, type=A, peer=4.5.6.7
  • responseIP: 4.3.2.86
  • responseIP: 4.3.2.63
  • response: rcode=NOERROR, … …, auth=, add=, aa=1
  • request: name=time.windows.com, class=IN, type=A, peer=4.5.6.7
  • responseIP: 4.5.6.1
  • response: rcode=NOERROR, ans=…, auth=, add=, aa=1
  • Connection from 4.5.6.7
  • USER 0wn@sickbassline.com
  • PASS smokeweed
  • TYPE A
  • PORT 4,5,6,7,4,7
  • STOR User.mps
  • reading from file /tmp/sandnet.pcap, link-type EN10MB (Ethernet)
  • 4.5.6.7 4.3.2.86 6 1030 21 674 578 9 9 2009-06-04-11:24:02.2148 2009-06-04-11:24:03.3459 1 1
  • 4.5.6.7 224.0.0.22 2 0 0 0 108 0 2 2009-06-04-11:24:09.5569 2009-06-04-11:24:10.4709 1 1
  • input: /tmp/sandnet.pcap
  • filter: (ip) and ( tcp port 80 and not host 4.5.6.1 )
  • match: GET|POST|HEAD|OPTIONS|JOIN
  • ##########exit
identify the os
Identify the OS
  • Summary report for xxx.xxx-XPSP2-files created at ………
  • OS info>>>
  • kern - Determine OS from a Windows RAM Dump (v.0.1_20060914)
  • Ex: kern <path_to_dump_file>
  • File Description : NT Kernel & System
  • File Version : 5.1.2600.2180 (xpsp_sp2_rtm.040803-2158)
  • Internal Name : ntoskrnl.exe
  • Original File Name :
  • Product Name : Microsoft® Windows® Operating System
  • Product Version : 5.1.2600.2180
analyzing network traffic fauxdns
Analyzing Network Traffic – fauxdns
  • DNS>>>
  • request: name=sslrapidshare.or.tp, class=IN, type=A, peer=4.5.6.7
  • responseIP: 4.3.2.51
  • responseIP: 4.3.2.154
  • response: rcode=NOERROR, ans=… …, auth=, add=, aa=1
  • request: name=gfmd1.or.tp, class=IN, type=A, peer=4.5.6.7
  • responseIP: 4.3.2.104
  • responseIP: 4.3.2.240
  • response: rcode=NOERROR, ans=… …, auth=, add=, aa=1
  • request: name=time.windows.com, class=IN, type=A, peer=4.5.6.7
  • responseIP: 4.5.6.1
  • response: rcode=NOERROR, ans=…, auth=, add=, aa=1
analyzing network traffic fauxftp
Analyzing Network Traffic – fauxftp
  • Connection from 4.5.6.7
  • USER 0wn@sickbassline.com
  • PASS smokeweed
  • TYPE A
  • PORT 4,5,6,7,4,7
  • STOR User.mps
analyzing network traffic fauxirc
Analyzing Network Traffic – fauxirc
  • IRC>>>
  • 2009-05-27-16:49:17: Connection from 4.5.6.7
  • 2009-05-27-16:49:17: PASS lammers
  • 2009-05-27-16:49:17: NICK [00|USA|296161]
  • 2009-05-27-16:49:18: USER XP-8165 * 0 :ATT
  • 2009-05-27-16:49:18: MODE [00|USA|296161] +iB-x
  • 2009-05-27-16:49:18: JOIN #WiFi-a Crypt
  • 2009-05-27-17:00:13: QUIT System shutting down.
  • 2009-05-27-17:00:15: QUIT Leaving
analyzing network traffic ipaudit
Analyzing Network Traffic – ipaudit
  • IP traffic>>>
  • srcdst proto sp dp bytes pkts start end 1 / 2
  • 4.5.6.7 4.3.2.516 1046 80 748 346 5 5 2009-05-27-16:49:17.1300
  • 2009-05-27-16:49:17.1473 1 2
  • 4.5.6.7 4.3.2.104 6 1047 4242 816 697 10 10 2009-05-27-
  • 16:49:17.1613 2009-05-27-17:00:15.5921 1 2
  • 4.5.6.7 239.255.255.250 17 1050 1900 0 525 0 3 2009-05-27-16:49:17.3746 2009-05-27-16:49:23.3815 1 1
  • 4.5.6.7 224.0.0.22 2 0 0 0 108 0 2 2009-05-27-17:00:14.2087 2009-05-27-17:00:14.9690 1 1
analyzing network traffic tshark
Analyzing Network Traffic – tshark
  • ===================================================================
  • Protocol Hierarchy Statistics
  • Filter: frame
  • frame frames:602 bytes:733467
  • eth frames:602 bytes:733467
  • ip frames:573 bytes:731979
  • tcp frames:387 bytes:146779
  • http frames:30 bytes:22708
  • short frames:5 bytes:17790
  • data-text-lines frames:3 bytes:644
  • data frames:8 bytes:849
  • udp frames:57 bytes:10014
  • nbdgm frames:11 bytes:2511
  • smb frames:11 bytes:2511
  • mailslot frames:11 bytes:2511
  • browser frames:11 bytes:2511
  • nbns frames:27 bytes:2538
  • dns frames:6 bytes:532
  • http frames:3 bytes:525
  • ntp frames:2 bytes:180
  • bootp frames:8 bytes:3728
  • short frames:127 bytes:575066
  • igmp frames:2 bytes:120
  • arp frames:29 bytes:1488
  • ===================================================================
analyzing network traffic tcptrace
Analyzing Network Traffic – tcptrace
  • HTTP>>>
  • mod_http: Capturing HTTP traffic (port 80)
  • 1 arg remaining, starting with '../small.pcap'
  • Ostermann'stcptrace -- version 6.6.7 -- Thu Nov 4, 2004
  • 10 packets seen, 10 TCP packets traced
  • elapsed wallclock time: 0:00:00.002643, 3783 pkts/sec analyzed
  • trace file elapsed time: 0:00:00.017257
  • Http module output:
  • 4.5.6.7:1046 ==> 4.3.2.51:80 (a2b)
  • Server Syn Time: Wed May 27 16:49:17.130145 2009 (1243457357.130)
  • Client Syn Time: Wed May 27 16:49:17.130085 2009 (1243457357.130)
  • Server Fin Time: Wed May 27 16:49:17.146947 2009 (1243457357.147)
  • Client Fin Time: Wed May 27 16:49:17.147323 2009 (1243457357.147)
  • GET /here2 HTTP/1.0
  • Response Code: 404 (Not Found)
  • Request Length: 66
  • Reply Length: 468
  • Content Length: 289
  • Content Type : text/html;
  • Time request sent: Wed May 27 16:49:17.130584 2009 (…)
  • Time reply started: Wed May 27 16:49:17.146886 2009 (…)
  • Time reply ACKed: Wed May 27 16:49:17.147077 2009 (…)
  • Elapsed time: 16 ms (request to first byte sent)
  • Elapsed time: 16 ms (request to content ACKed)
analyzing disk image aide
Analyzing Disk Image – AIDE
  • ---------------------------------------------------
  • Added files:
  • ---------------------------------------------------
  • added: /mnt/new/WINDOWS/avmont.exe
  • added: /mnt/new/Documents and Settings/All Users/Application Data/TEMP
  • ---------------------------------------------------
  • Removed files:
  • ---------------------------------------------------
  • removed: /mnt/new/WINDOWS/system32/CatRoot2/tmp.edb
  • ---------------------------------------------------
  • Changed files:
  • ---------------------------------------------------
  • changed: /mnt/new/WINDOWS/system32/drivers/etc/hosts
  • changed: /mnt/new/WINDOWS/WindowsUpdate.log
  • changed: /mnt/new/WINDOWS/setupapi.log
analyzing disk image ads
Analyzing Disk Image – ADS
  • Alternate Data Streams>>>
  • /mnt/new/Documents and Settings/All Users/Application Data/TEMP -> 75443743
  • getfattr --absolute-names -n ntfs.streams.list -PR /mnt/new

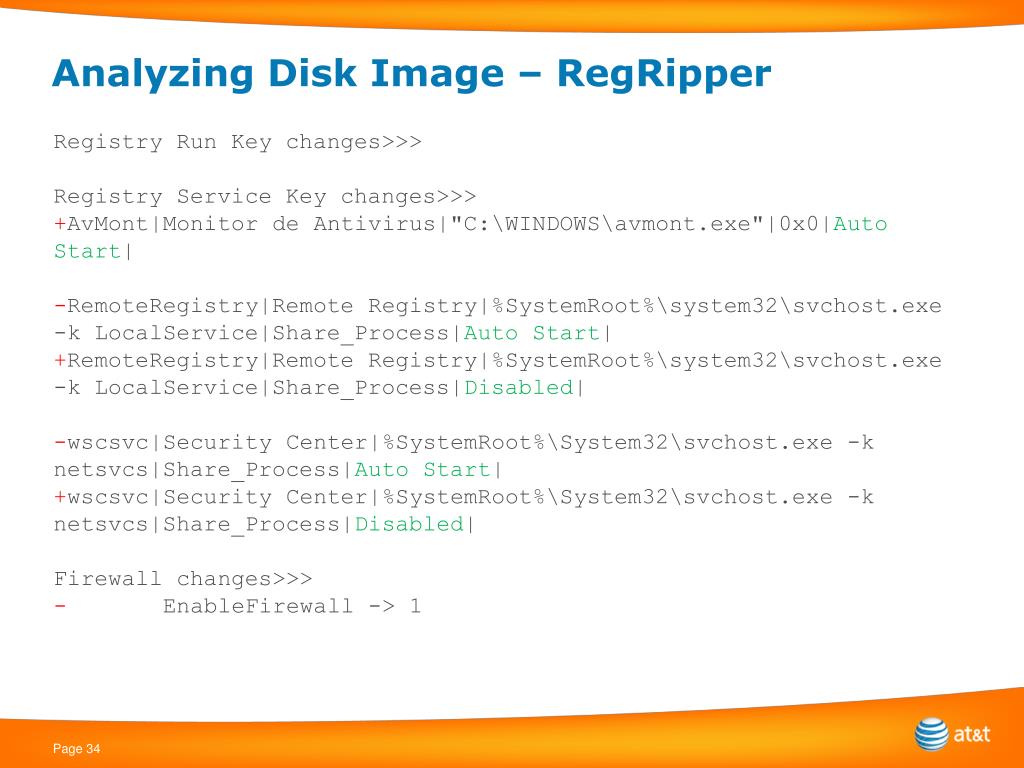

analyzing disk image regripper
Analyzing Disk Image – RegRipper
  • Registry Run Key changes>>>
  • Registry Service Key changes>>>
  • +AvMont|Monitor de Antivirus|"C:\WINDOWS\avmont.exe"|0x0|Auto Start|
  • -RemoteRegistry|Remote Registry|%SystemRoot%\system32\svchost.exe -k LocalService|Share_Process|Auto Start|
  • +RemoteRegistry|Remote Registry|%SystemRoot%\system32\svchost.exe -k LocalService|Share_Process|Disabled|
  • -wscsvc|Security Center|%SystemRoot%\System32\svchost.exe -k netsvcs|Share_Process|Auto Start|
  • +wscsvc|Security Center|%SystemRoot%\System32\svchost.exe -k netsvcs|Share_Process|Disabled|
  • Firewall changes>>>
  • -EnableFirewall -> 1
analyzing disk image hosts file
Analyzing Disk Image – hosts file*
  • Host file changes>>>
  • +
  • +127.0.0.1 www.symantec.com
  • +127.0.0.1 securityresponse.symantec.com
  • +127.0.0.1 symantec.com
  • +127.0.0.1 www.sophos.com
  • +127.0.0.1 sophos.com
  • +127.0.0.1 www.mcafee.com
  • +127.0.0.1 mcafee.com
  • +127.0.0.1 liveupdate.symantecliveupdate.com
  • +127.0.0.1 www.viruslist.com
  • +127.0.0.1 viruslist.com
  • +127.0.0.1 viruslist.com
  • +127.0.0.1 f-secure.com
  • +127.0.0.1 www.f-secure.com
  • +127.0.0.1 kaspersky.com
  • +127.0.0.1 kaspersky-labs.com
  • +127.0.0.1 www.avp.com
  • +127.0.0.1 www.kaspersky.com
  • +127.0.0.1 avp.com

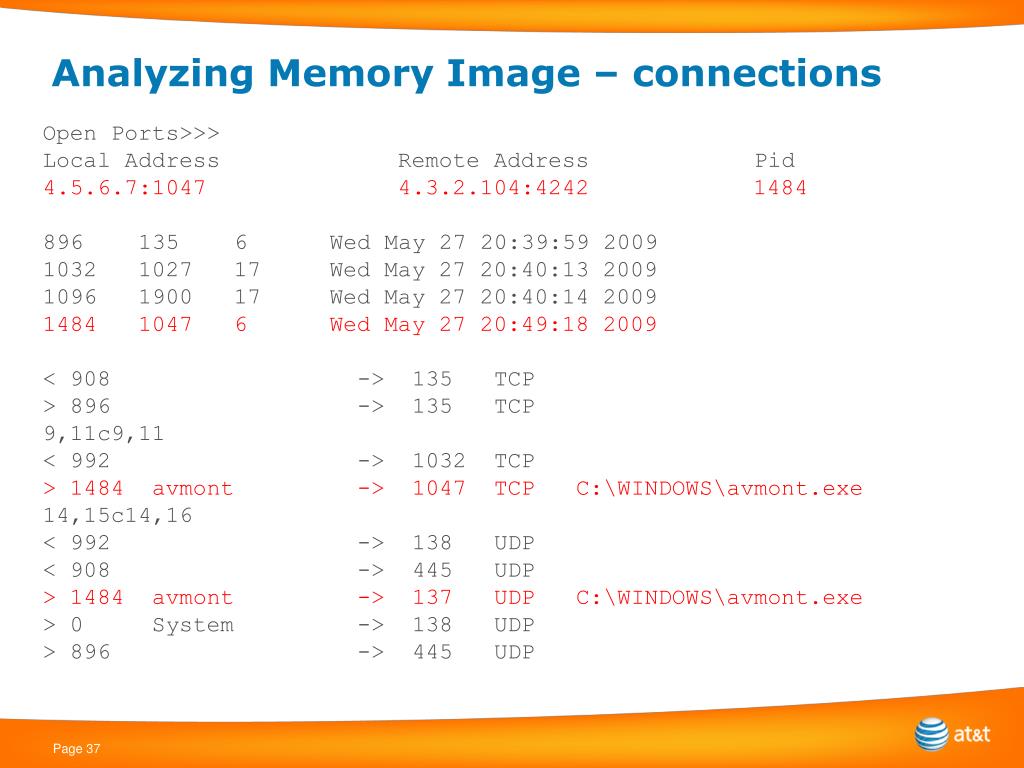

analyzing memory image connections
Analyzing Memory Image – connections
  • Open Ports>>>
  • Local Address Remote Address Pid
  • 4.5.6.7:1047 4.3.2.104:4242 1484
  • 896 135 6 Wed May 27 20:39:59 2009
  • 1032 1027 17 Wed May 27 20:40:13 2009
  • 1096 1900 17 Wed May 27 20:40:14 2009
  • 1484 1047 6 Wed May 27 20:49:18 2009
  • < 908 -> 135 TCP
  • > 896 -> 135 TCP
  • 9,11c9,11
  • < 992 -> 1032 TCP
  • > 1484 avmont -> 1047 TCP C:\WINDOWS\avmont.exe
  • 14,15c14,16
  • < 992 -> 138 UDP
  • < 908 -> 445 UDP
  • > 1484 avmont -> 137 UDP C:\WINDOWS\avmont.exe
  • > 0 System -> 138 UDP
  • > 896 -> 445 UDP
memory static binary analysis ssdeep
Memory/Static Binary Analysis – ssdeep
  • ssdeep info>>>
  • 1536:RVt4qqO5FjciL3KBupEAbAX/e9SP+IaiOW:eu5tciL3KApRbAz+Ia1W,"abod.exe"
  • 768:ruBNNTLa973GMVkIZqqnO5FDvcTsvJesUJDSP+f4/cF1oGoiOWK:YVt4qqO5FjcSe9SP+JaiOW,
  • "/data/forensics/abod.exe-XPSP2-files/0c596000-abod.exe“
  • --------------------------------------------------------------------------------
  • ssdeep info>>>
  • 1536:0BlSTT+JwGgVXGsOkCMGVLwaQyafnSI0OYRr:0BYNlVXGsOtPwFtfm,
  • "1b1e067fdb0f2a44a50d9e290022b9ed.exe"
  • 1b1e067fdb0f2a44a50d9e290022b9ed.exe matches e933dbd16c9509418a2212c9d62c7976.exe (80)
  • 3072:0zhQO2dw847UiImHkwebMPK4wRE4pRThKt/94:09QbViEwEM94TThKt14,
  • "/data/forensics/1b1e067fdb0f2a44a50d9e290022b9ed.exe-XPSP2-files/0ca74000-sandnet.exe"
  • /data/forensics/1b1e067fdb0f2a44a50d9e290022b9ed.exe-XPSP2-files/0ca74000-sandnet.exe matches /data/forensics/e933dbd16c9509418a2212
  • c9d62c7976.exe-XPSP2-files/007bc000-sandnet.exe (96)
static binary analysis binhash
Static Binary Analysis – binhash
  • BinHash info>>>
  • File: [/forensics/exes/abod.exe] b826d0f222242c1e48f4e1ebe778a534
  • PE Phdr: af86103672ba3bba2d21f2691465520f
  • PE Opt Hdr: f8ea55a399eeec409874af01ca0cf01d
  • Import [1] Offset: (f570) Size: (180): 93f613363a9cb87c3a20e3f2e1fc47b7
  • Import [12] Offset: (f000) Size: (608): eafa58275a218a26f92631bf75b10b8f
  • [0] (.text)
  • (VirtualAddress: 00001000) (PtrToData: 00001000) (SizeOfData: 0000e000)
  • Shdr: aaa4cacbb1cc38713961cc2e5931b982
  • Shdr Data: f571948f8203e66d09c87b00ae748c8d
  • [1] (.rdata)
  • (VirtualAddress: 0000f000) (PtrToData: 0000f000) (SizeOfData: 00002000)
  • Shdr: 46aa637bbc2c0335c427f6ca42021df9
  • Shdr Data: 3b10f3f4c6012e87d46686464575926c
  • [2] (.data)
  • (VirtualAddress: 00011000) (PtrToData: 00011000) (SizeOfData: 00003000)
  • Shdr: cff63d398711731f58eee390a6ce8513
  • Shdr Data: 71cc6a0ff1c18b313d21f1f03229738e
static binary analysis packerid py

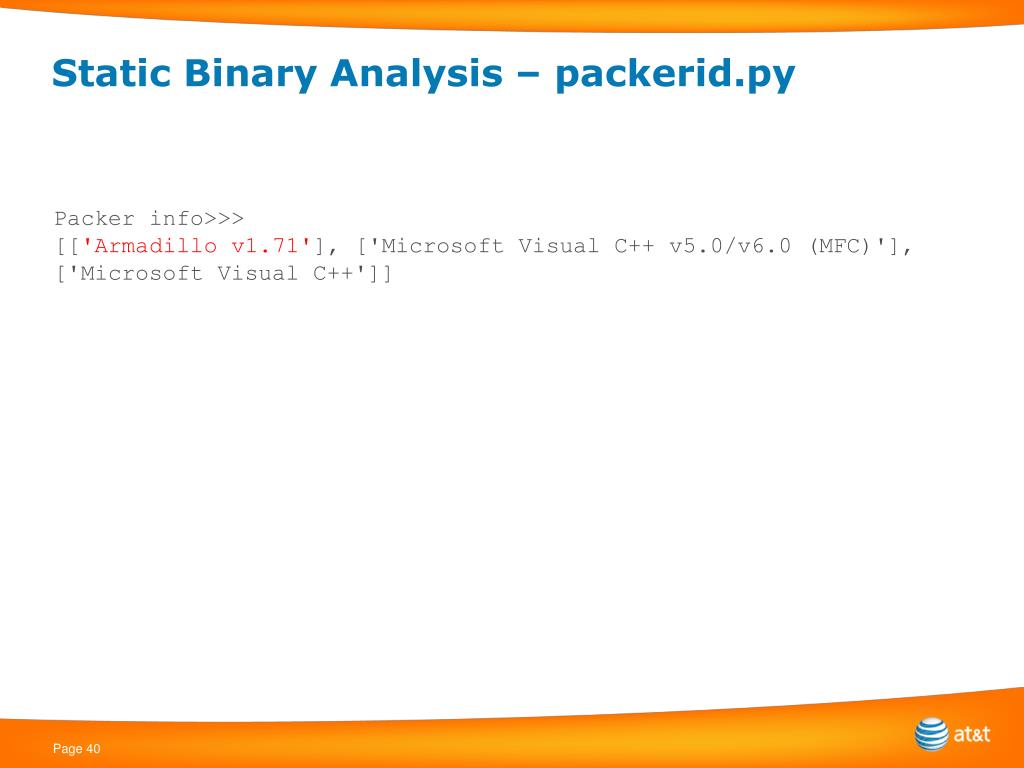

Static Binary Analysis – packerid.py
  • Packer info>>>
  • [['Armadillo v1.71'], ['Microsoft Visual C++ v5.0/v6.0 (MFC)'], ['Microsoft Visual C++']]
static binary analysis volatility malfind py

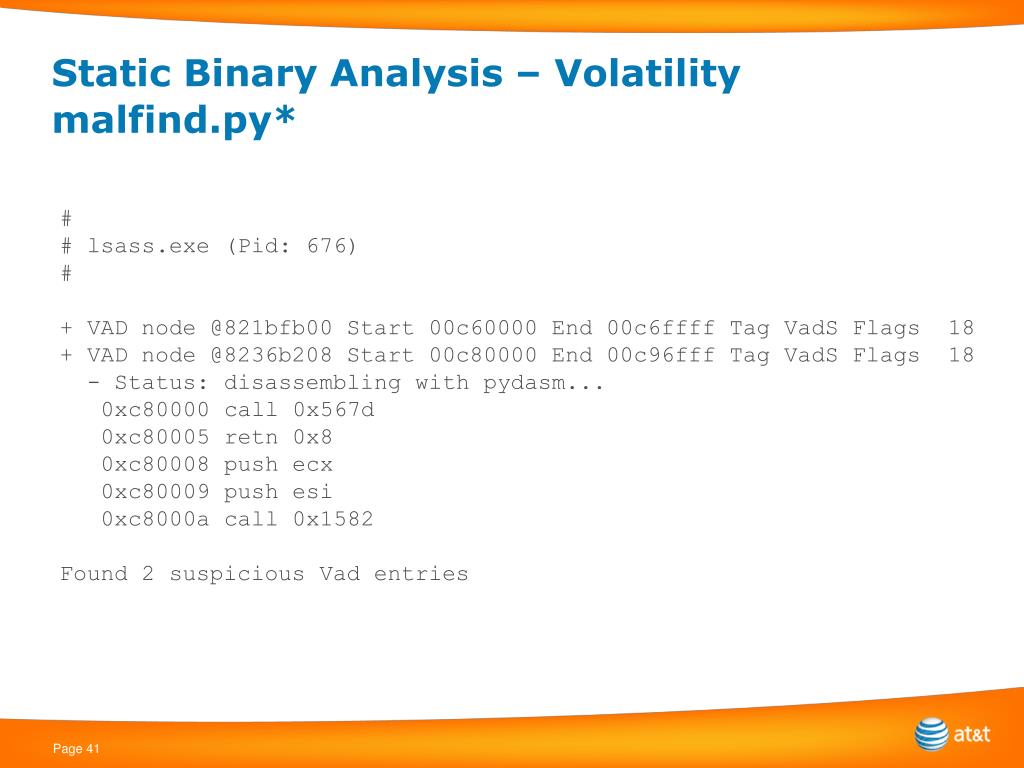

Static Binary Analysis – Volatility malfind.py*
  • #
  • # lsass.exe (Pid: 676)
  • #
  • + VAD node @821bfb00 Start 00c60000 End 00c6ffff Tag VadS Flags 18
  • + VAD node @8236b208 Start 00c80000 End 00c96fff Tag VadS Flags 18
  • - Status: disassembling with pydasm...
  • 0xc80000 call 0x567d
  • 0xc80005 retn 0x8
  • 0xc80008 push ecx
  • 0xc80009 push esi
  • 0xc8000a call 0x1582
  • Found 2 suspicious Vad entries
questions
Questions?
  • E-mail: jac@att.com or jclausing@isc.sans.org
sans mentor class sec 508 forensics
SANS Mentor Class – SEC 508 (Forensics)
  • For those of you from central OH (or folks you work with), I’ll be facilitating another mentor class in the fall.
  • Thursday evenings from 6:30-8:30PM in Reynoldsburg, OH running 10 Sep-12 Nov.
  • http://www.sans.org/mentor/details.php?nid=19458
