TIMI GRADING OF FLOW THROMBUS COLLATERALS SCAD DISSECTION PERFORATION

TIMI THROMBUS GRADE<br>TIMI BLOOD FLOW GRADE<br>TIMI MPG<br>RENTROPS CLASSIFICATION OF CORONARY COLLATERALS<br>CC GRADE OF COLLATERALS IN CTO<br>IATROGENIC CORONARY ARTERY DISSECTIONS<br>SPONTANEOUS CORONARY ARTERY DISSECTIONS<br>CORONARY PERFORATION

drrx2009
Download Presentation

TIMI GRADING OF FLOW THROMBUS COLLATERALS SCAD DISSECTION PERFORATION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

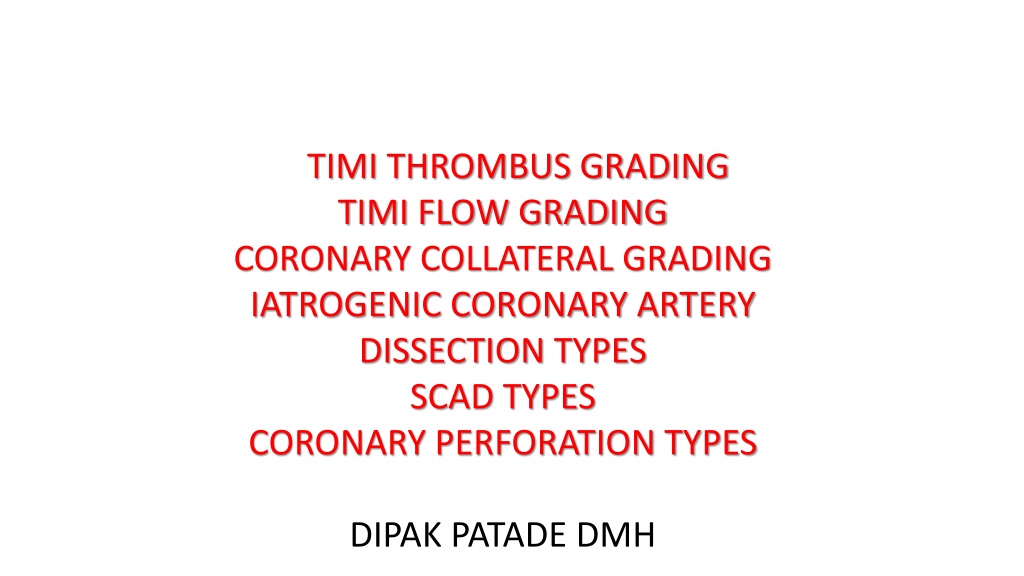

  1. TIMI THROMBUS GRADING TIMI FLOW GRADINGCORONARY COLLATERAL GRADING IATROGENIC CORONARY ARTERY DISSECTION TYPES SCAD TYPES CORONARY PERFORATION TYPES DIPAK PATADE DMH

  2. TIMI THROMBUS GRADING

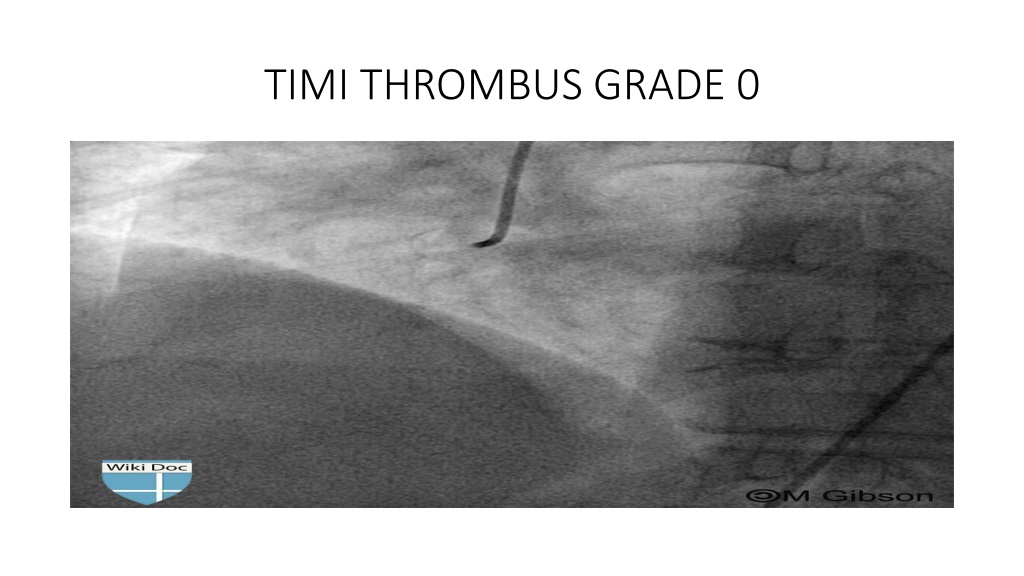

  3. TIMI THROMBUS GRADE 0

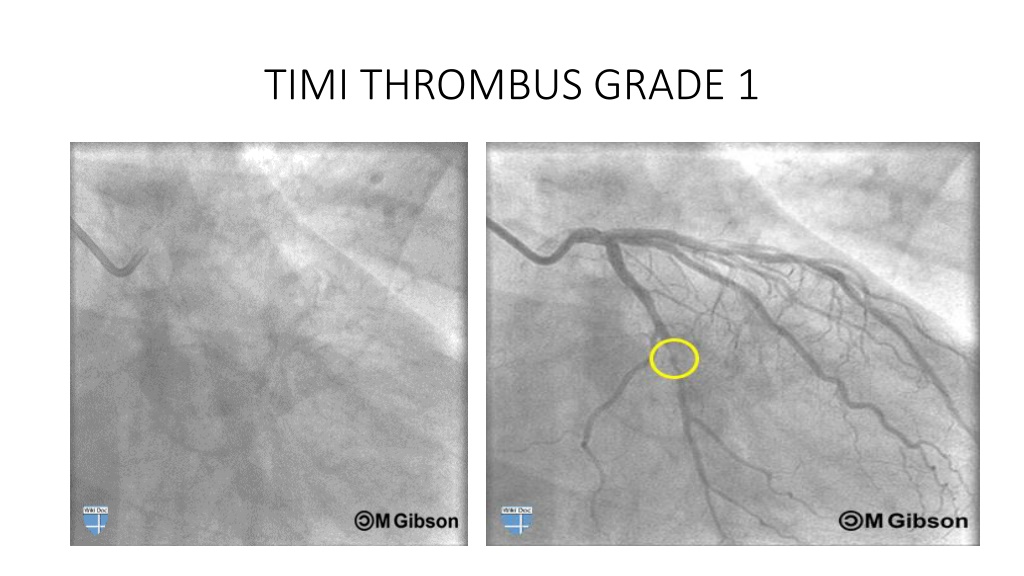

  4. TIMI THROMBUS GRADE 1

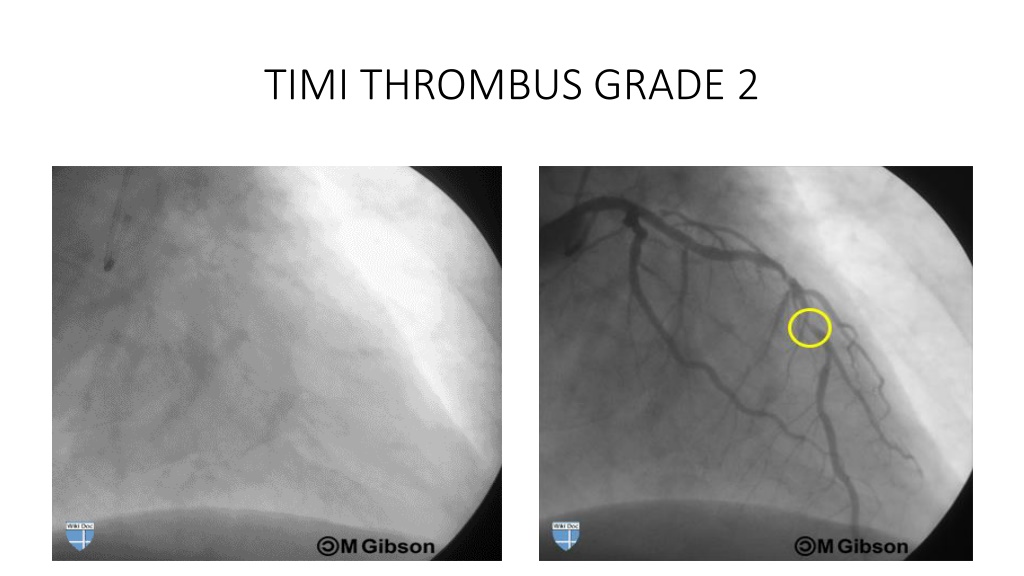

  5. TIMI THROMBUS GRADE 2

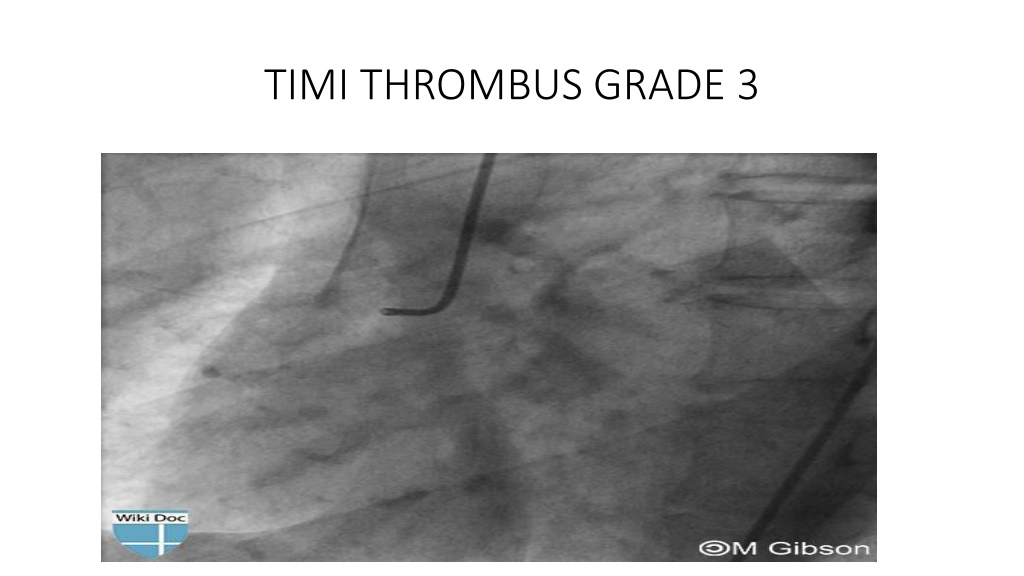

  6. TIMI THROMBUS GRADE 3

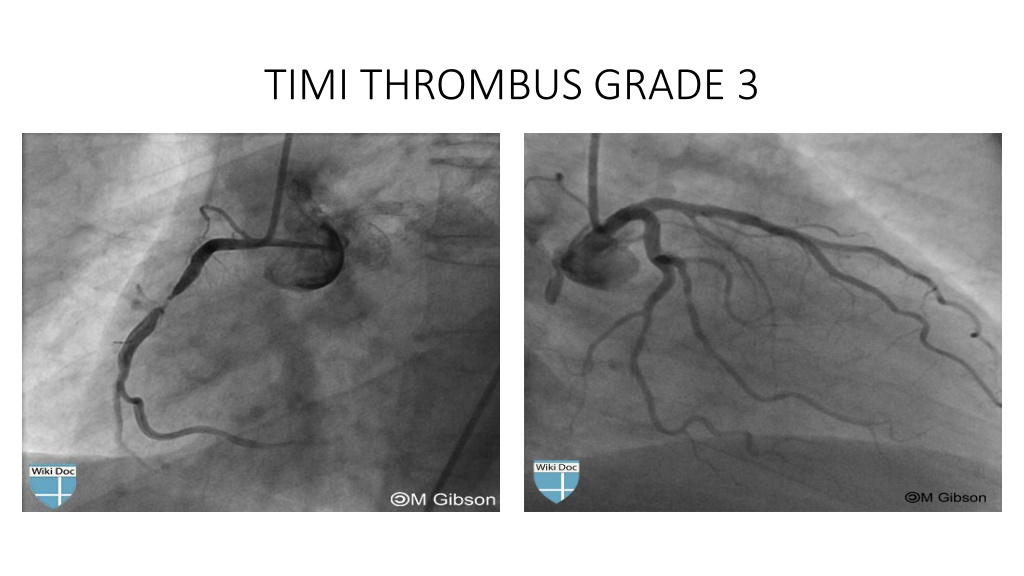

  7. TIMI THROMBUS GRADE 3

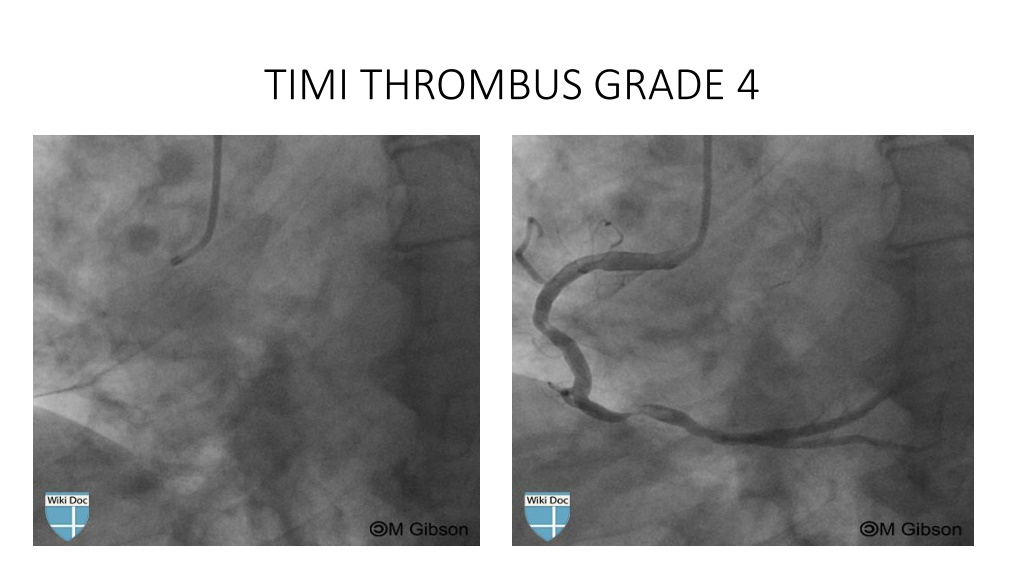

  8. TIMI THROMBUS GRADE 4

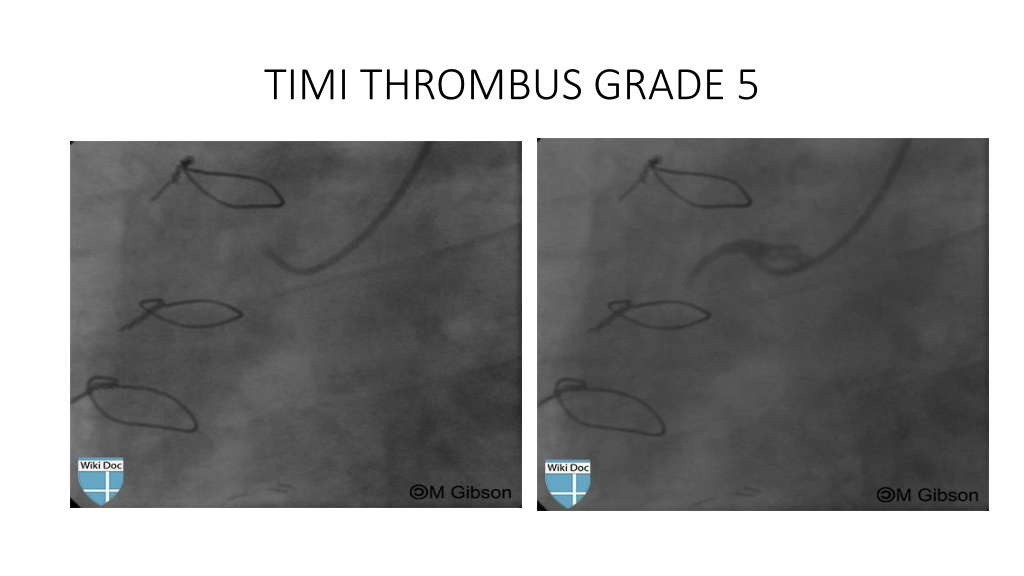

  9. TIMI THROMBUS GRADE 5

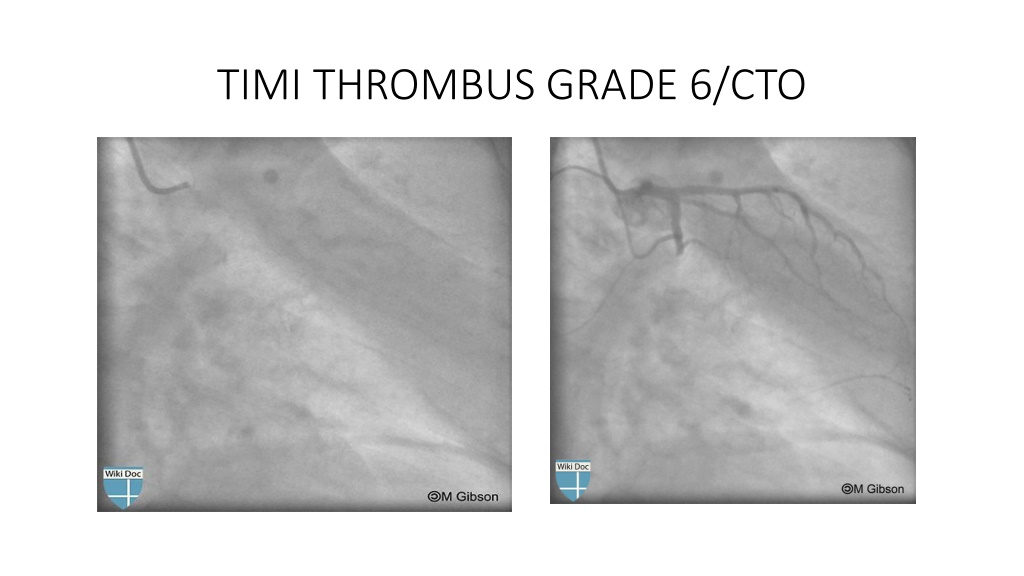

  10. TIMI THROMBUS GRADE 6/CTO

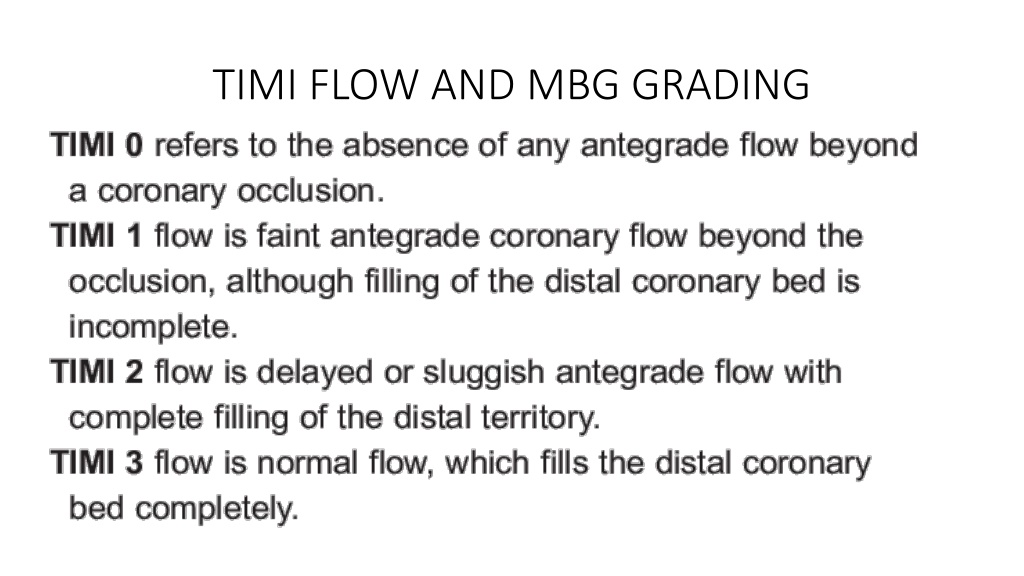

  11. TIMI FLOW AND MBG GRADING

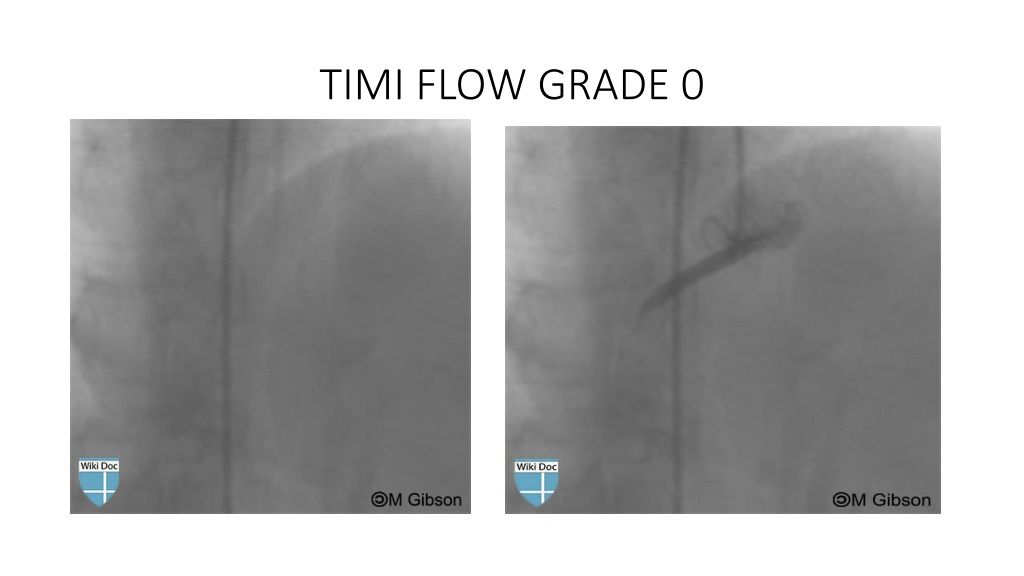

  12. TIMI FLOW GRADE 0

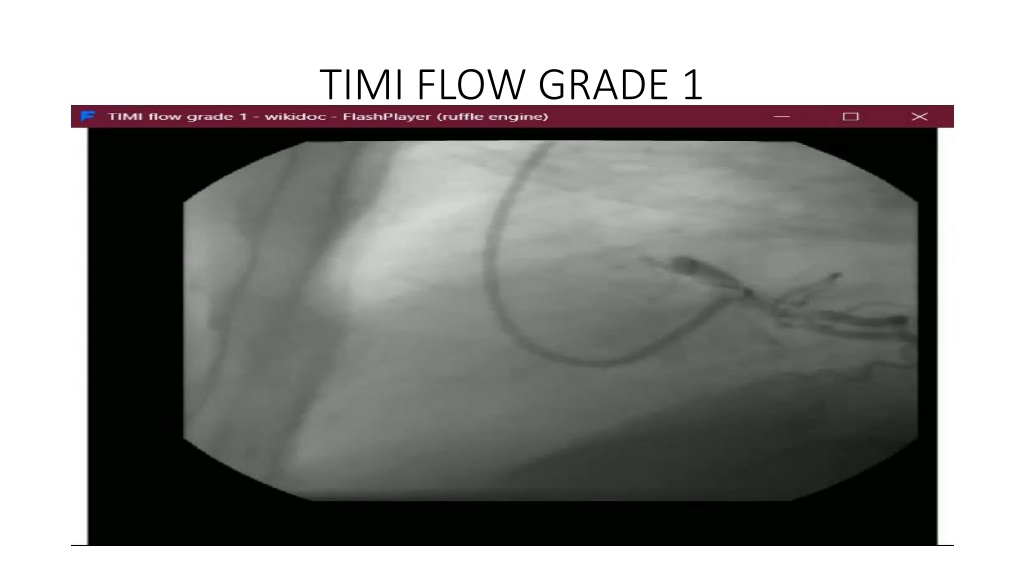

  13. TIMI FLOW GRADE 1

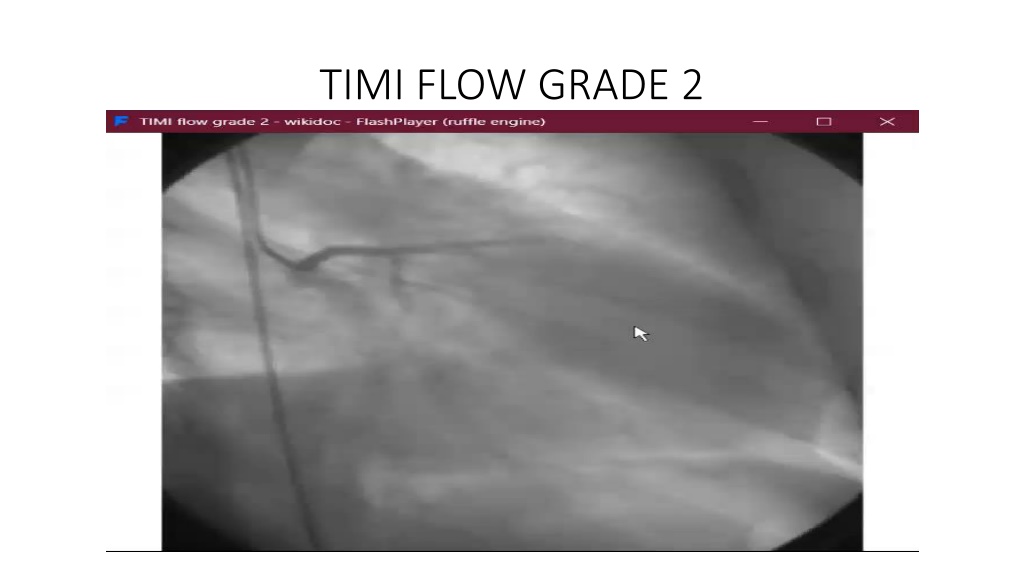

  14. TIMI FLOW GRADE 2

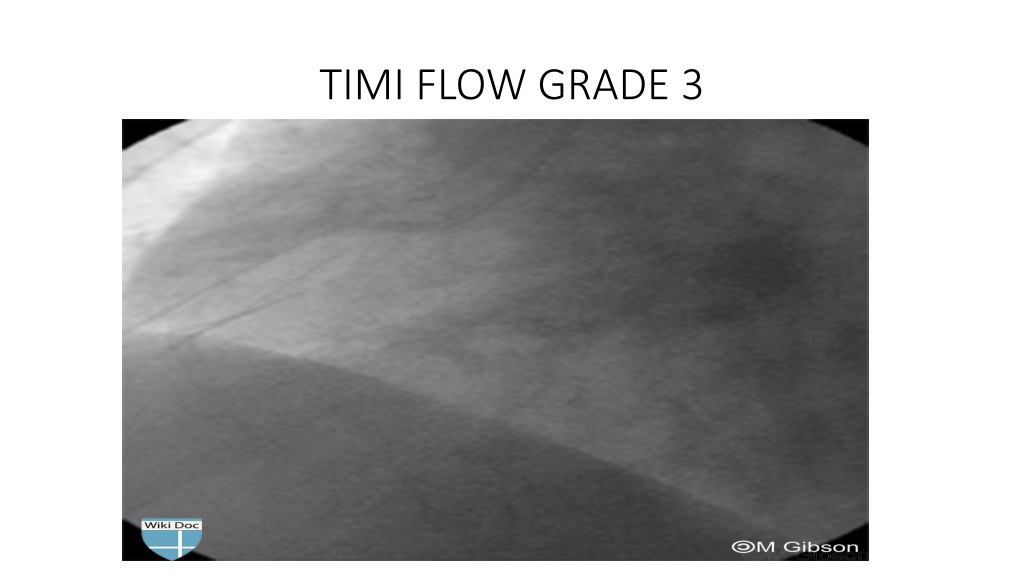

  15. TIMI FLOW GRADE 3

  16. TIMI MYOCARDIAL BLUSH/PERFUSION GRADING

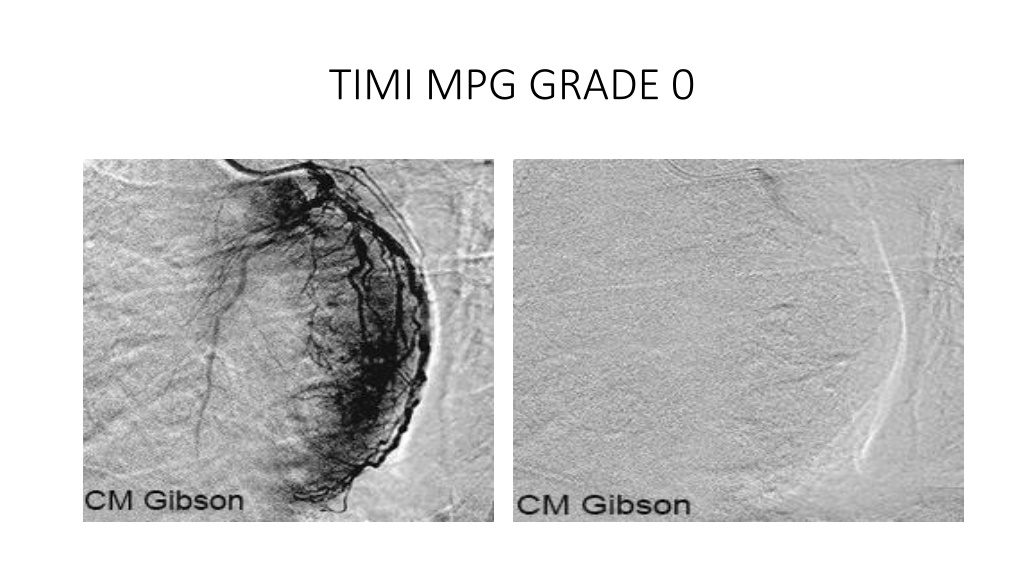

  17. TIMI MPG GRADE 0

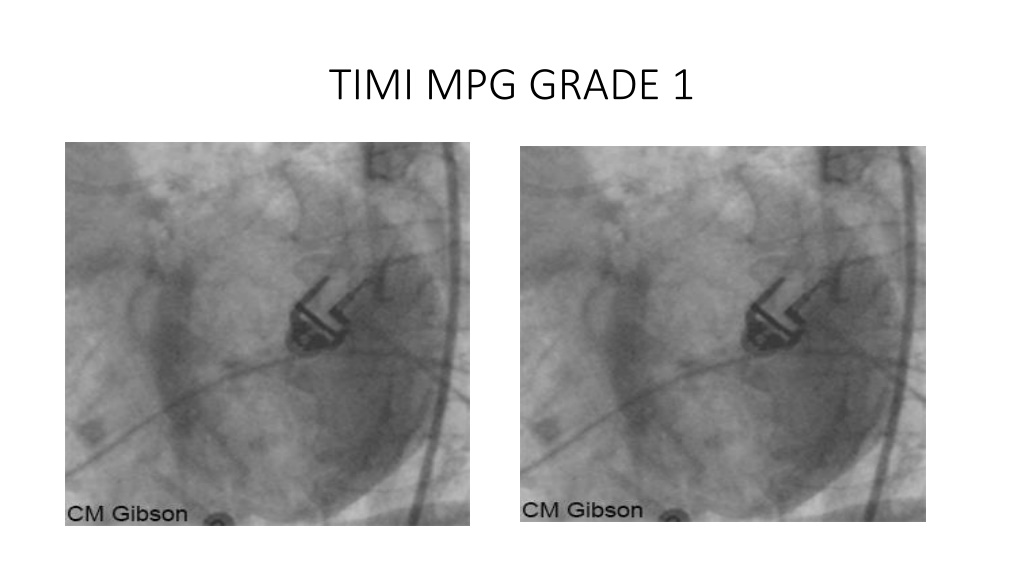

  18. TIMI MPG GRADE 1

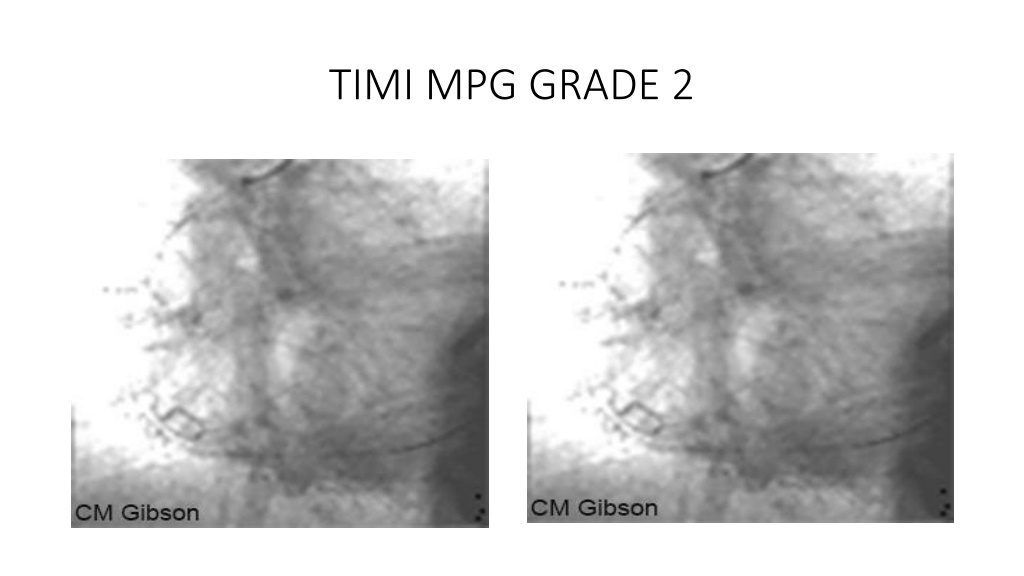

  19. TIMI MPG GRADE 2

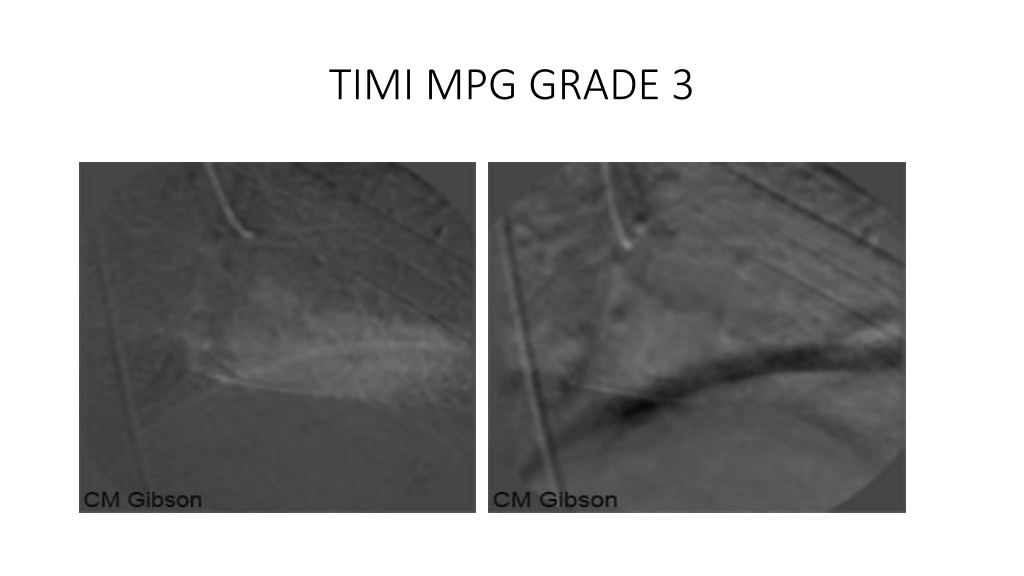

  20. TIMI MPG GRADE 3

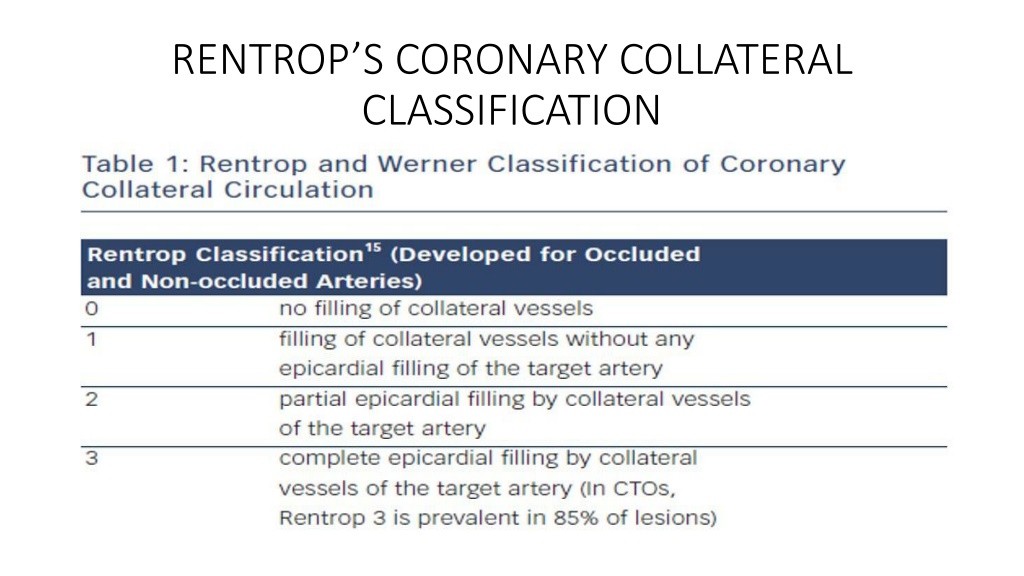

  21. RENTROP’S CORONARY COLLATERAL CLASSIFICATION

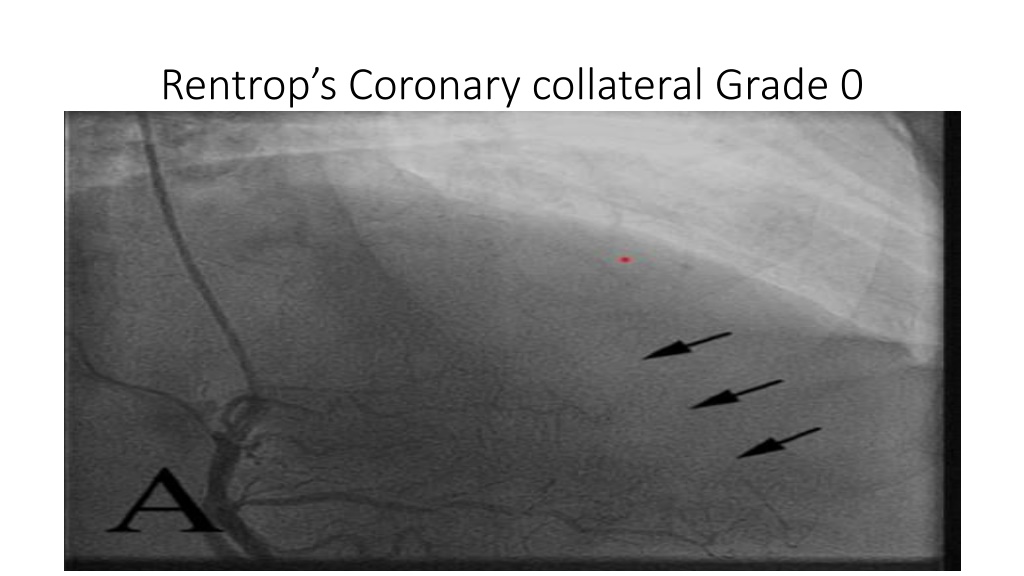

  22. Rentrop’s Coronary collateral Grade 0

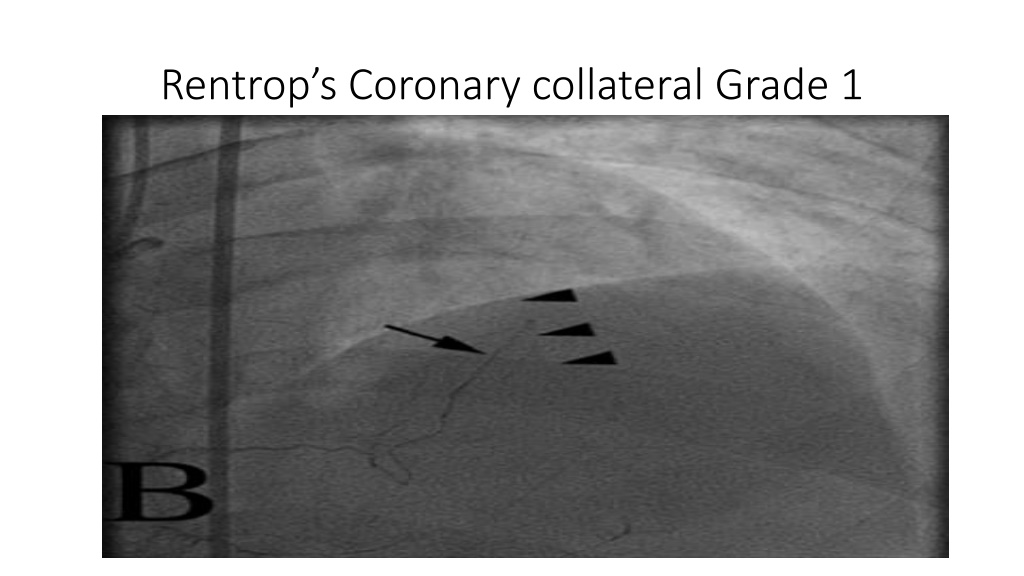

  23. Rentrop’s Coronary collateral Grade 1

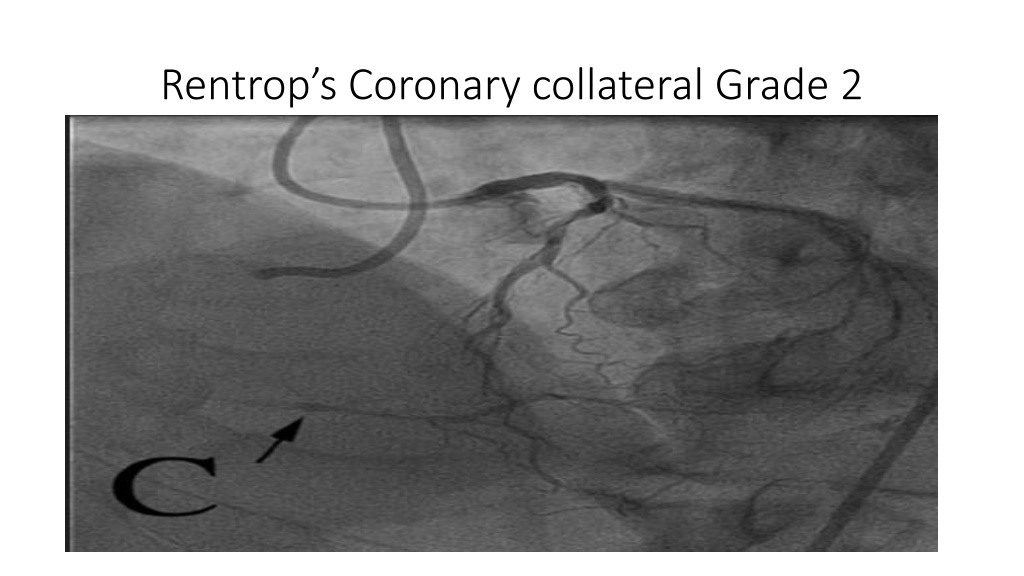

  24. Rentrop’s Coronary collateral Grade 2

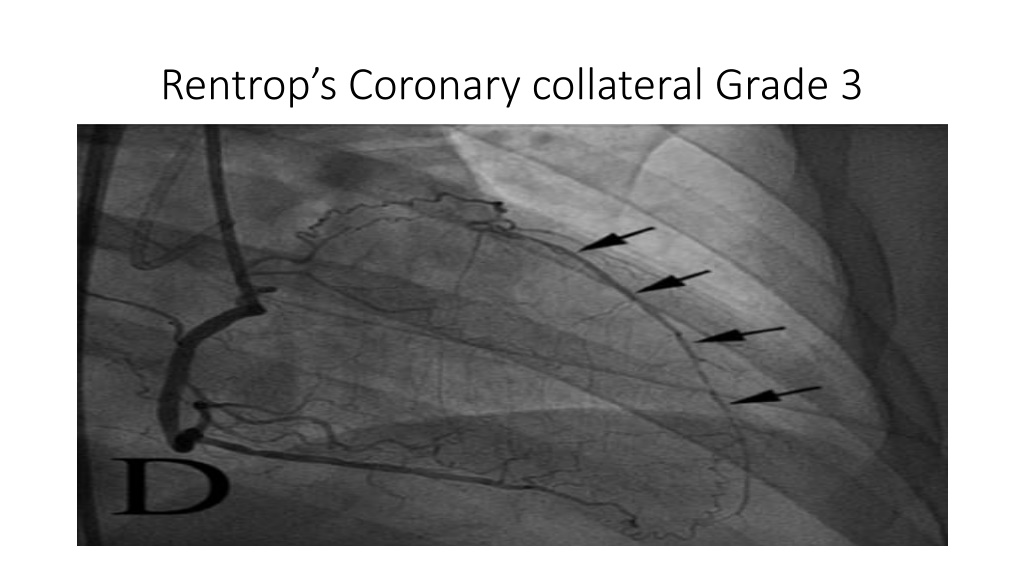

  25. Rentrop’s Coronary collateral Grade 3

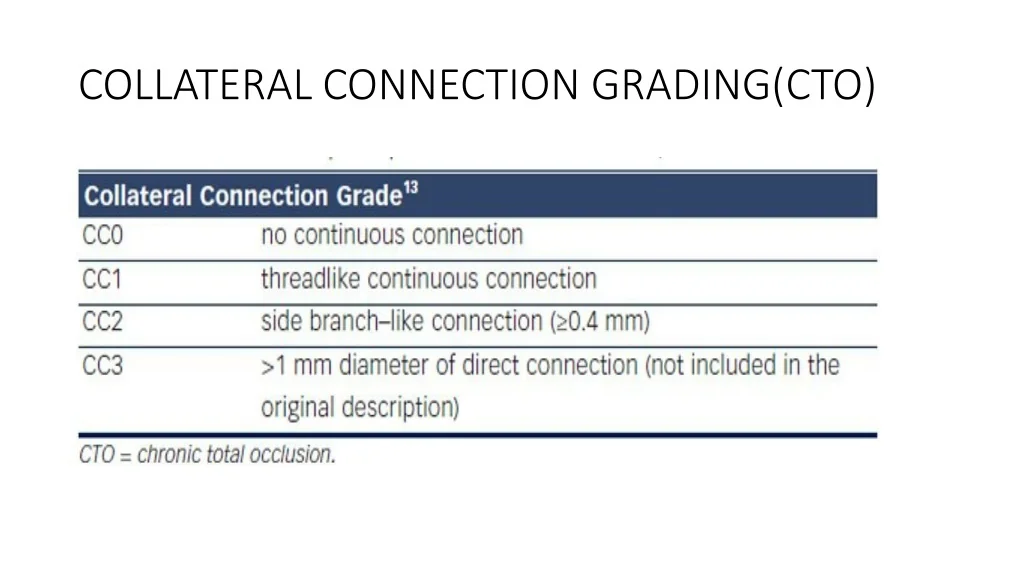

  26. COLLATERAL CONNECTION GRADING(CTO)

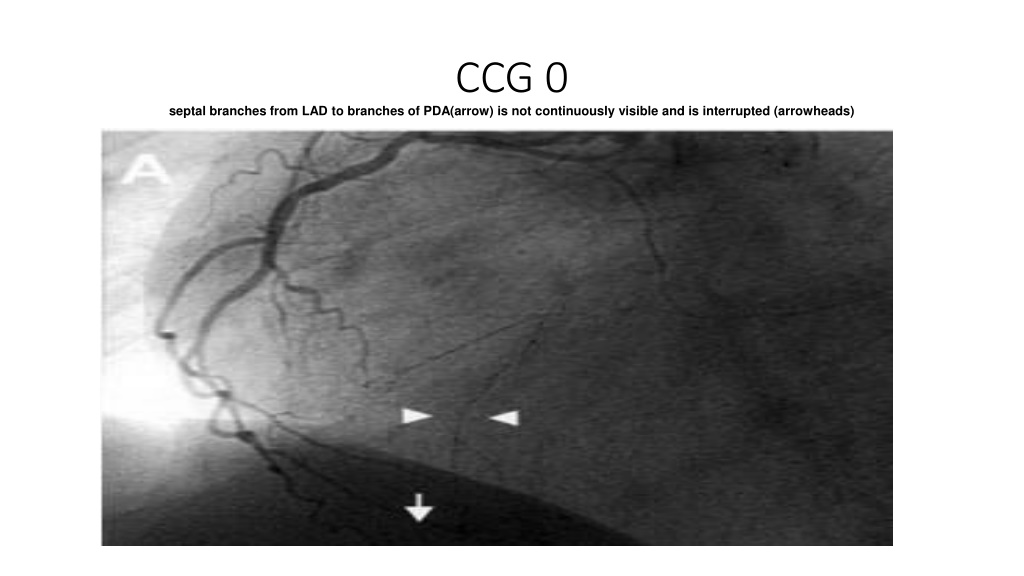

  27. CCG 0 septal branches from LAD to branches of PDA(arrow) is not continuously visible and is interrupted (arrowheads)

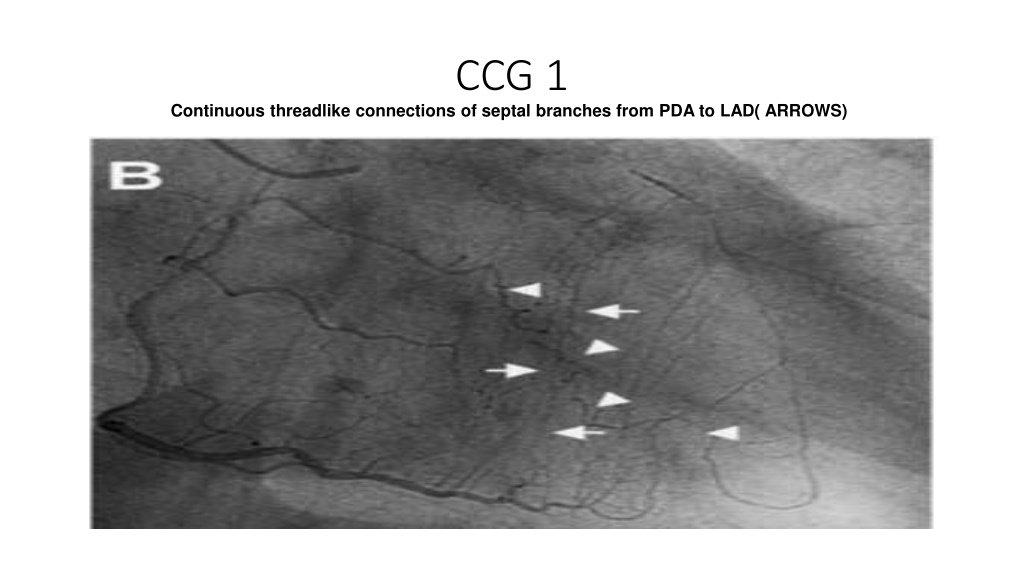

  28. CCG 1 Continuous threadlike connections of septal branches from PDA to LAD( ARROWS)

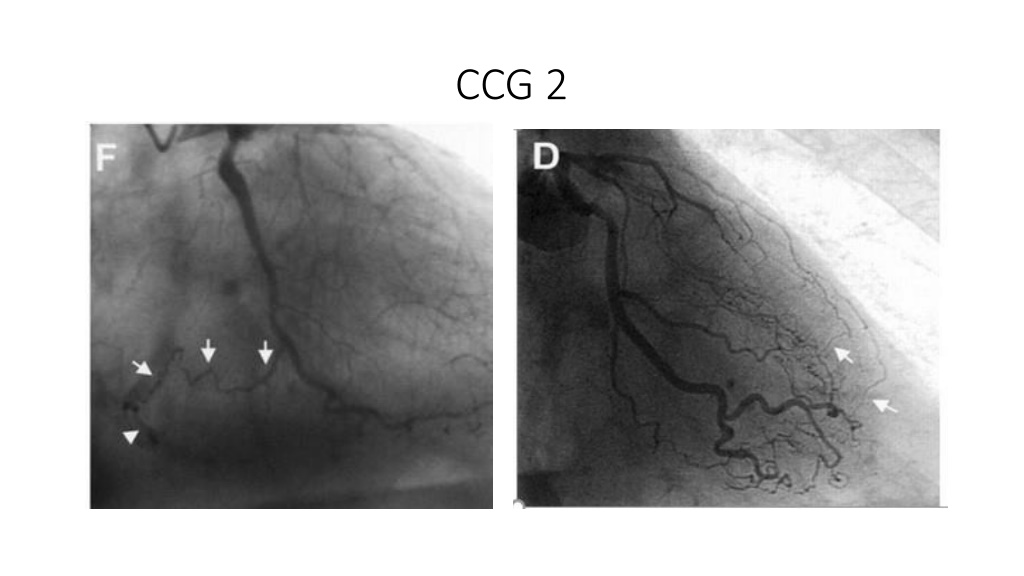

  29. CCG 2

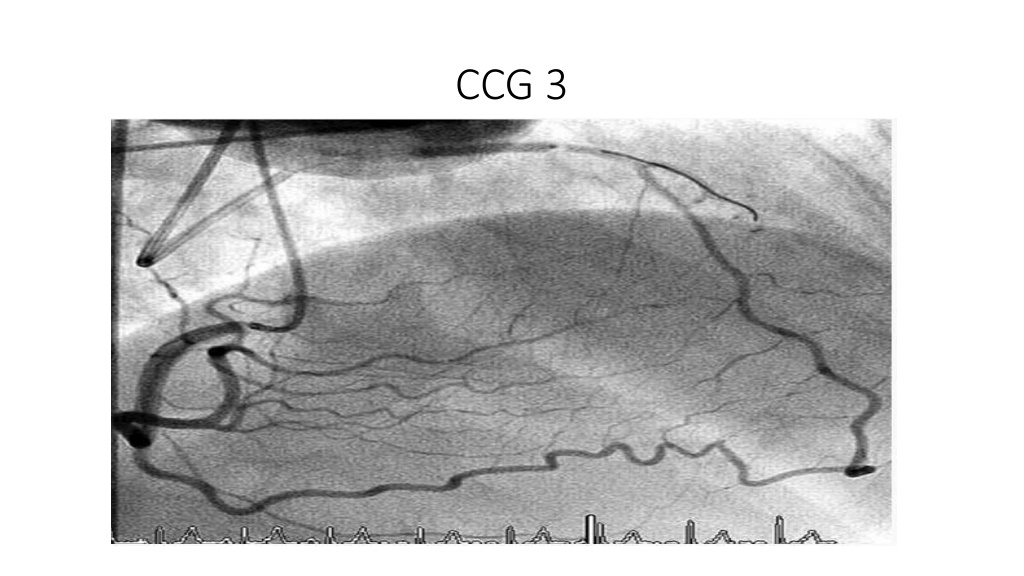

  30. CCG 3

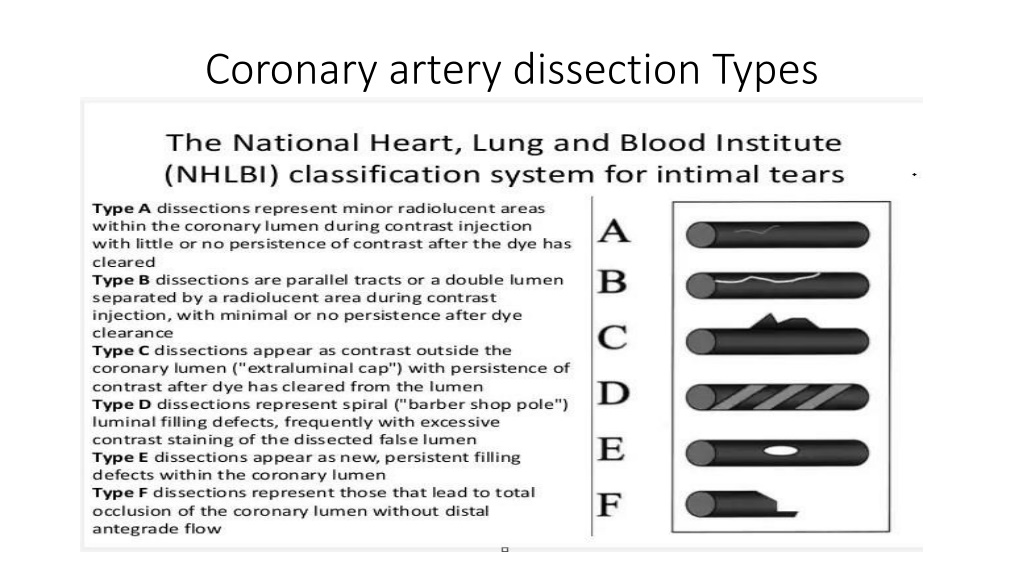

  31. Coronary artery dissection Types

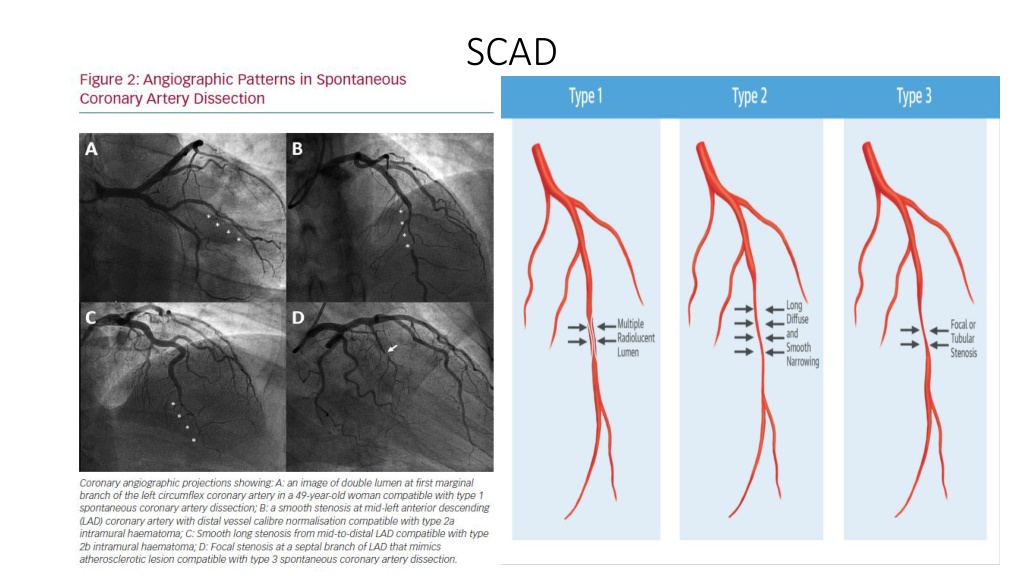

  32. SCAD

  33. SCAD 1

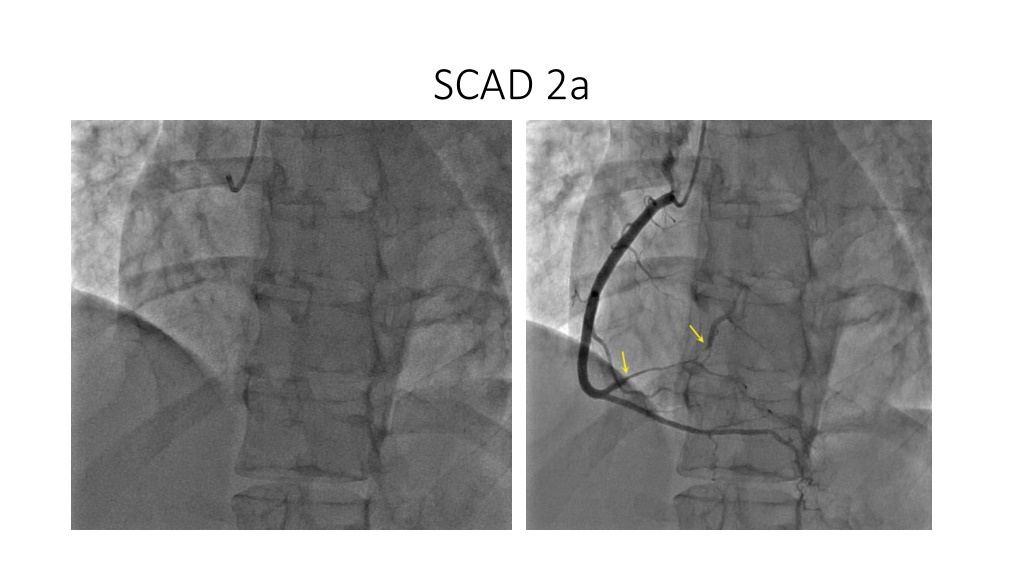

  34. SCAD 2a

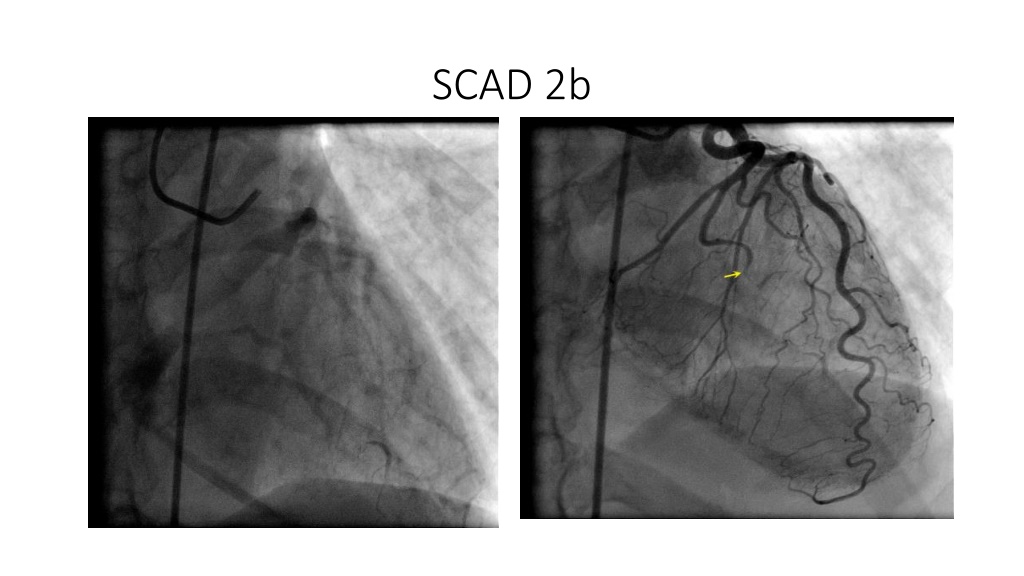

  35. SCAD 2b

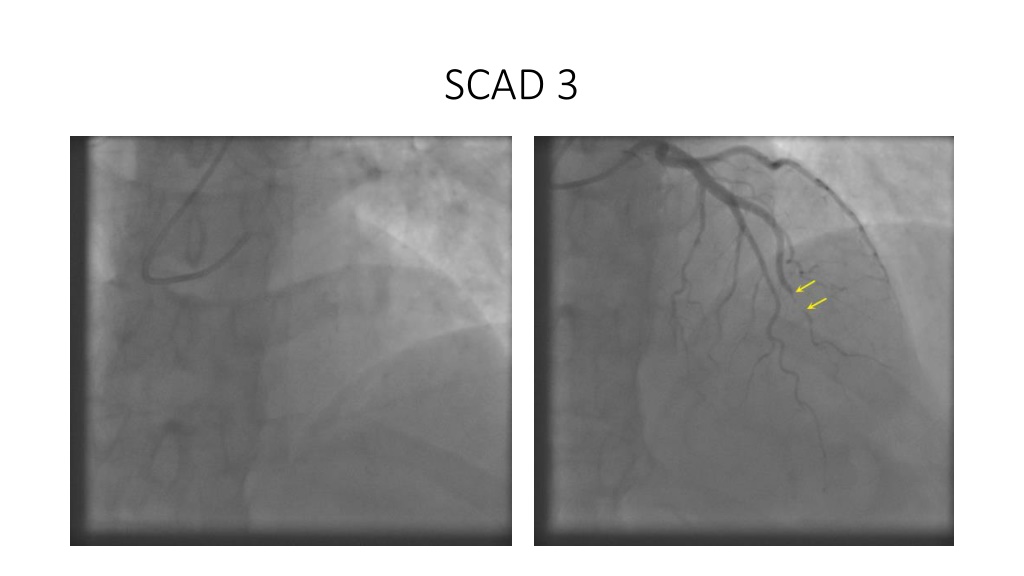

  36. SCAD 3

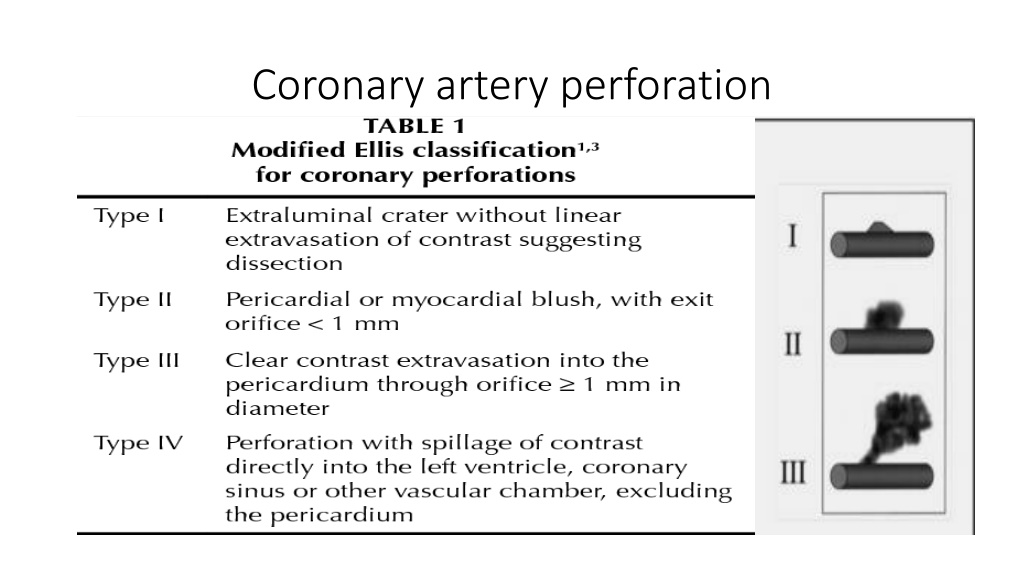

  37. Coronary artery perforation

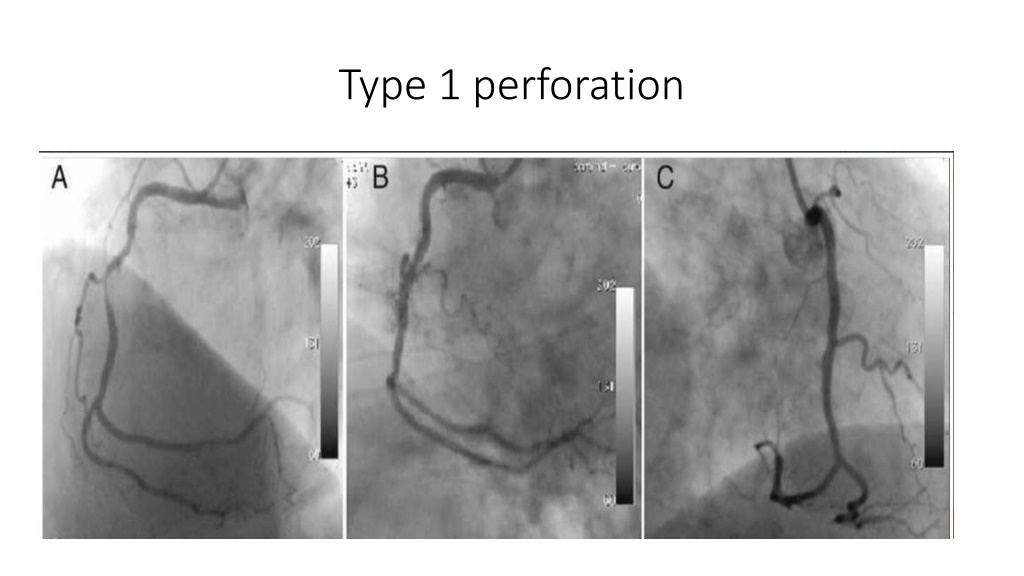

  38. Type 1 perforation

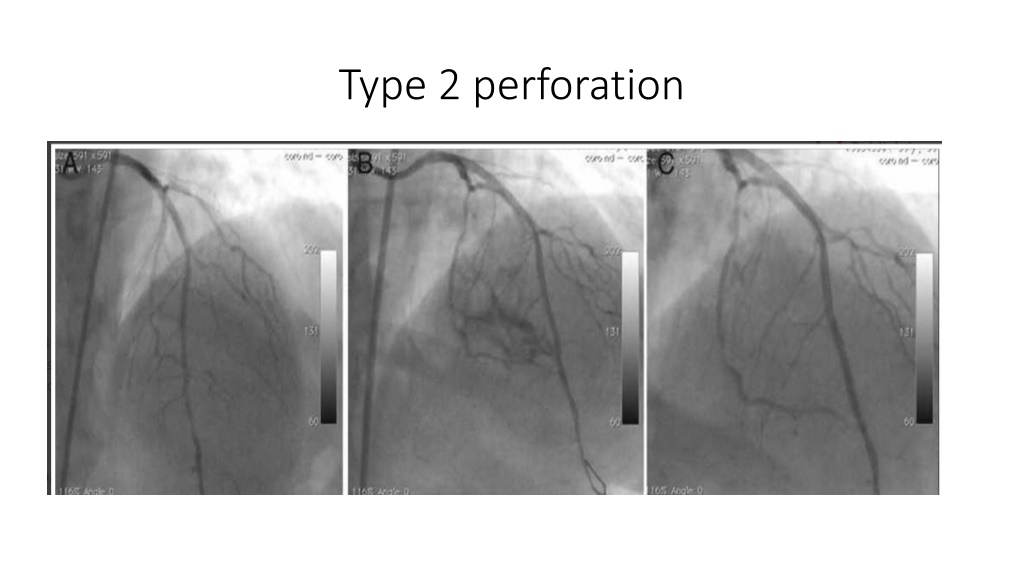

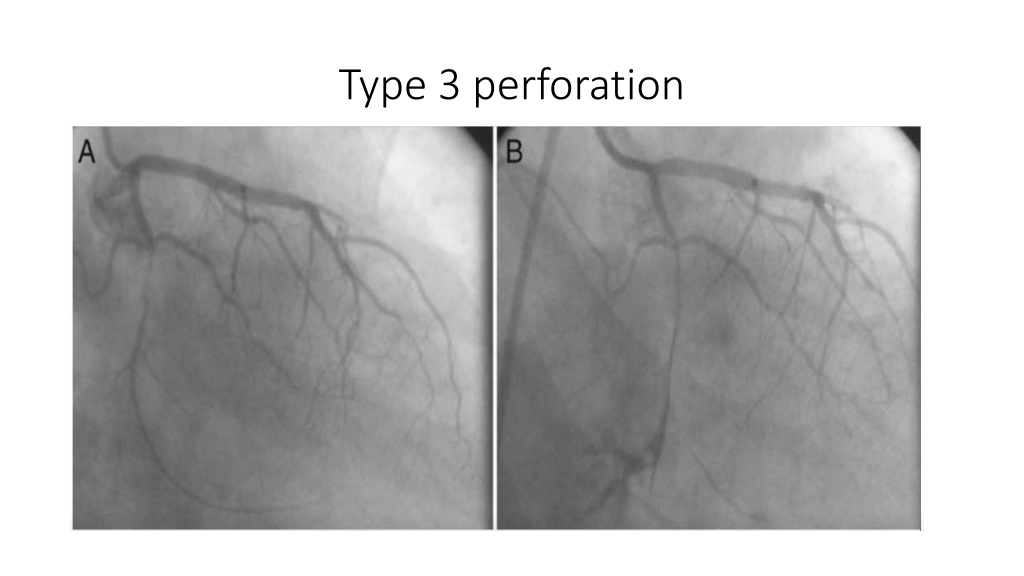

  39. Type 2 perforation

  40. Type 3 perforation

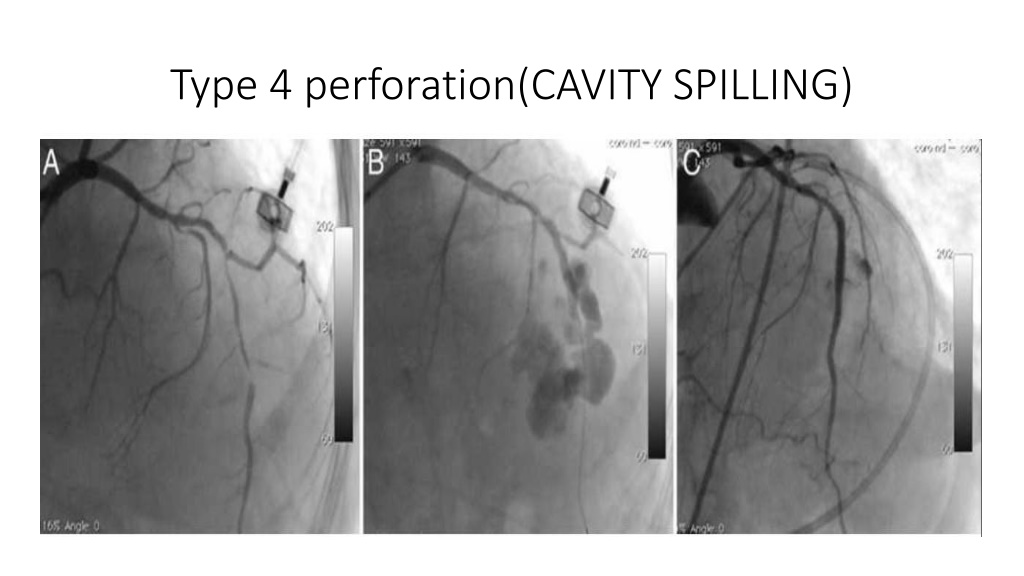

  41. Type 4 perforation(CAVITY SPILLING)
