  1. Compression Information Management Lawrence Ibarria, CS7491

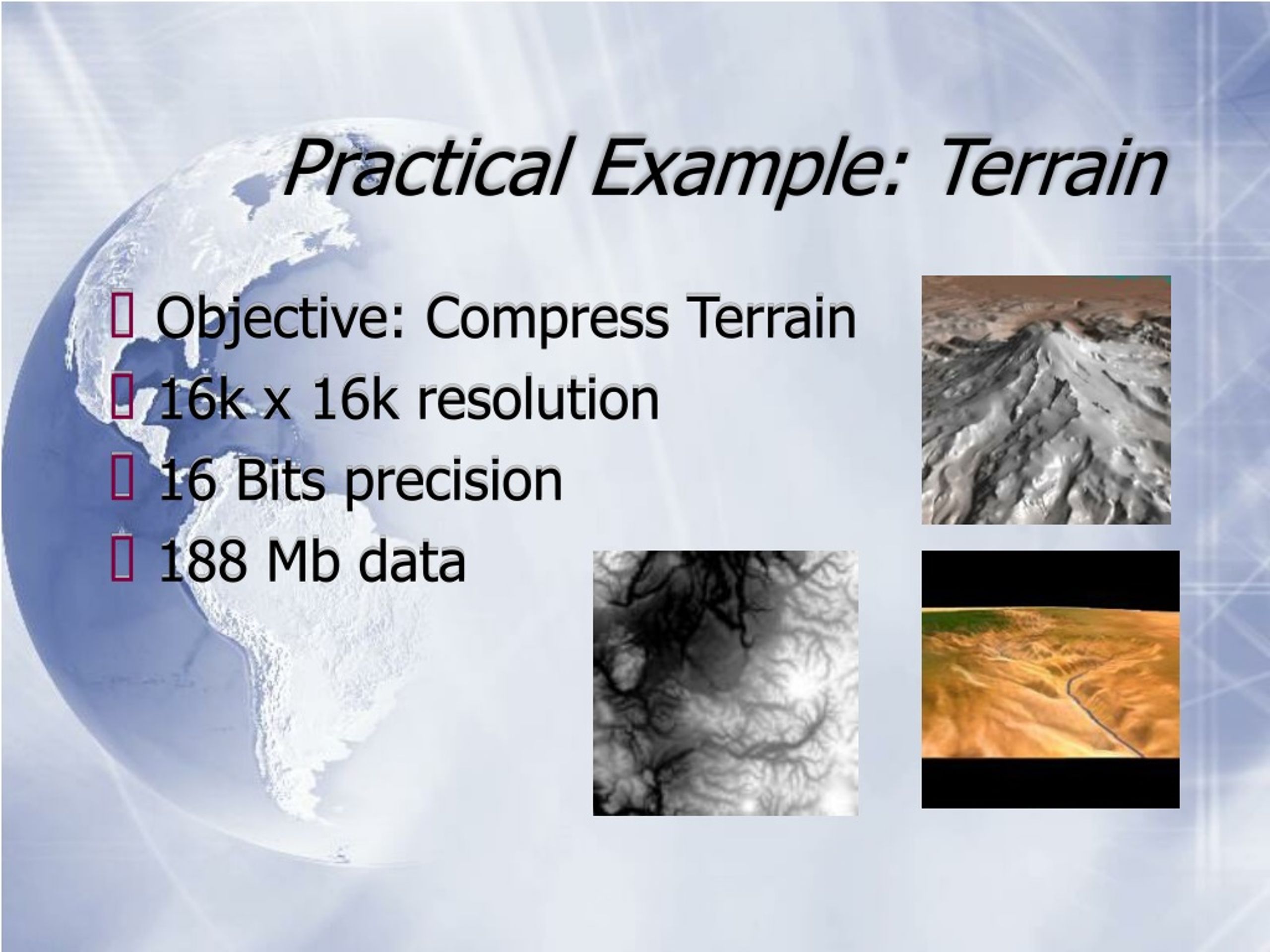

  2. Practical Example: Terrain • Objective: Compress Terrain • 16k x 16k resolution • 16 Bits precision • 188 Mb data

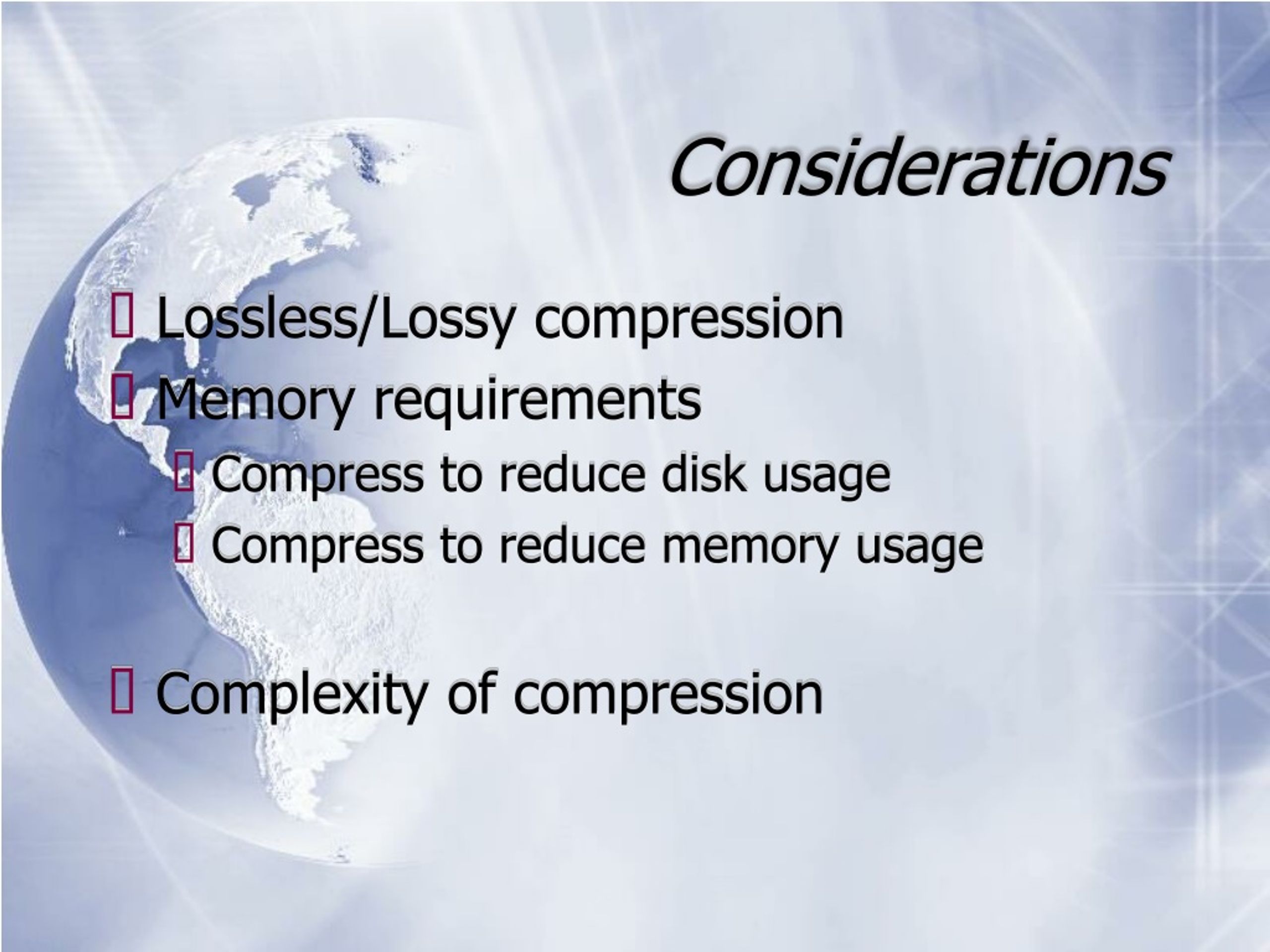

  3. Considerations • Lossless/Lossy compression • Memory requirements • Compress to reduce disk usage • Compress to reduce memory usage • Complexity of compression

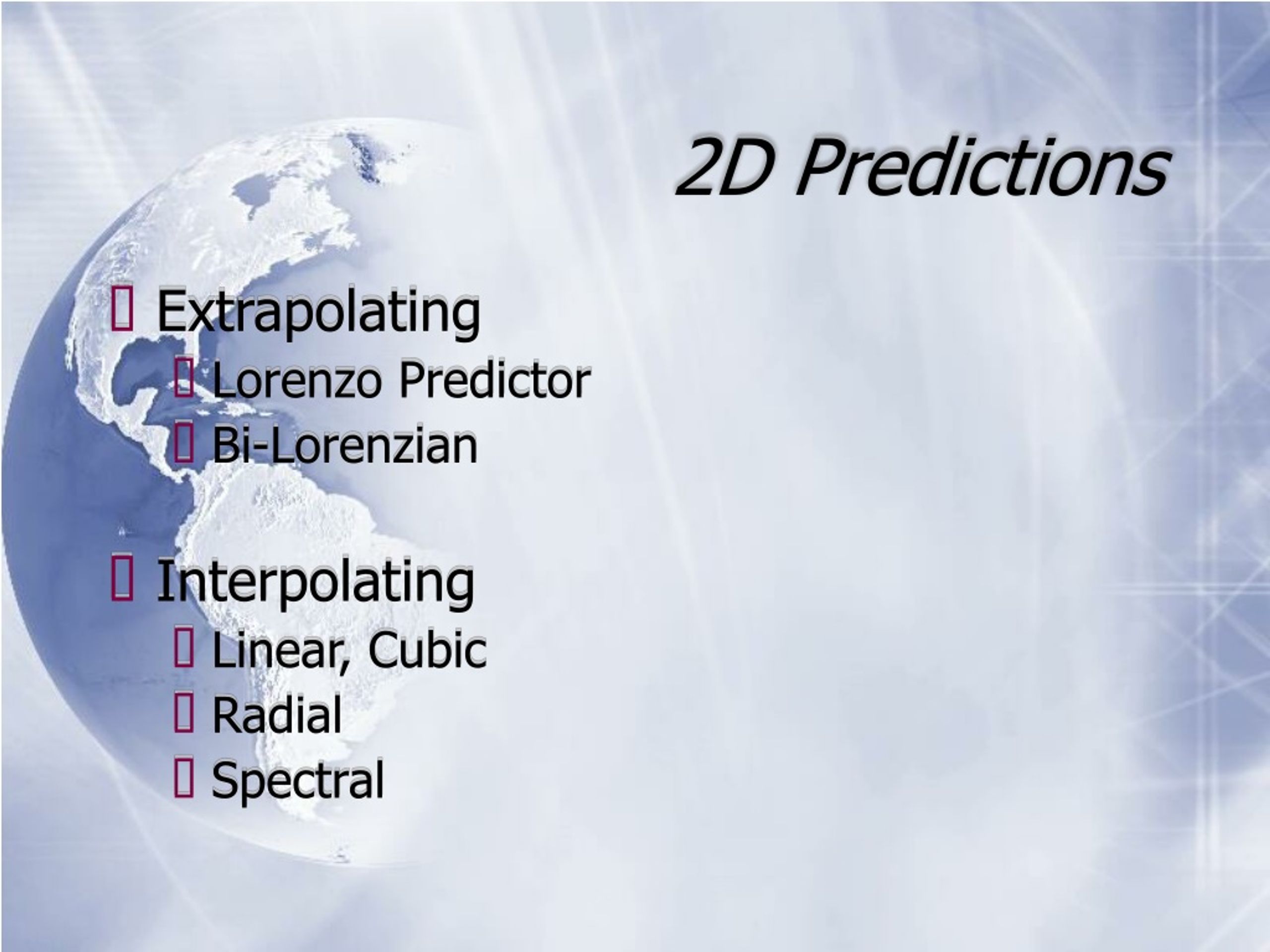

  4. 2D Predictions • Extrapolating • Lorenzo Predictor • Bi-Lorenzian • Interpolating • Linear, Cubic • Radial • Spectral

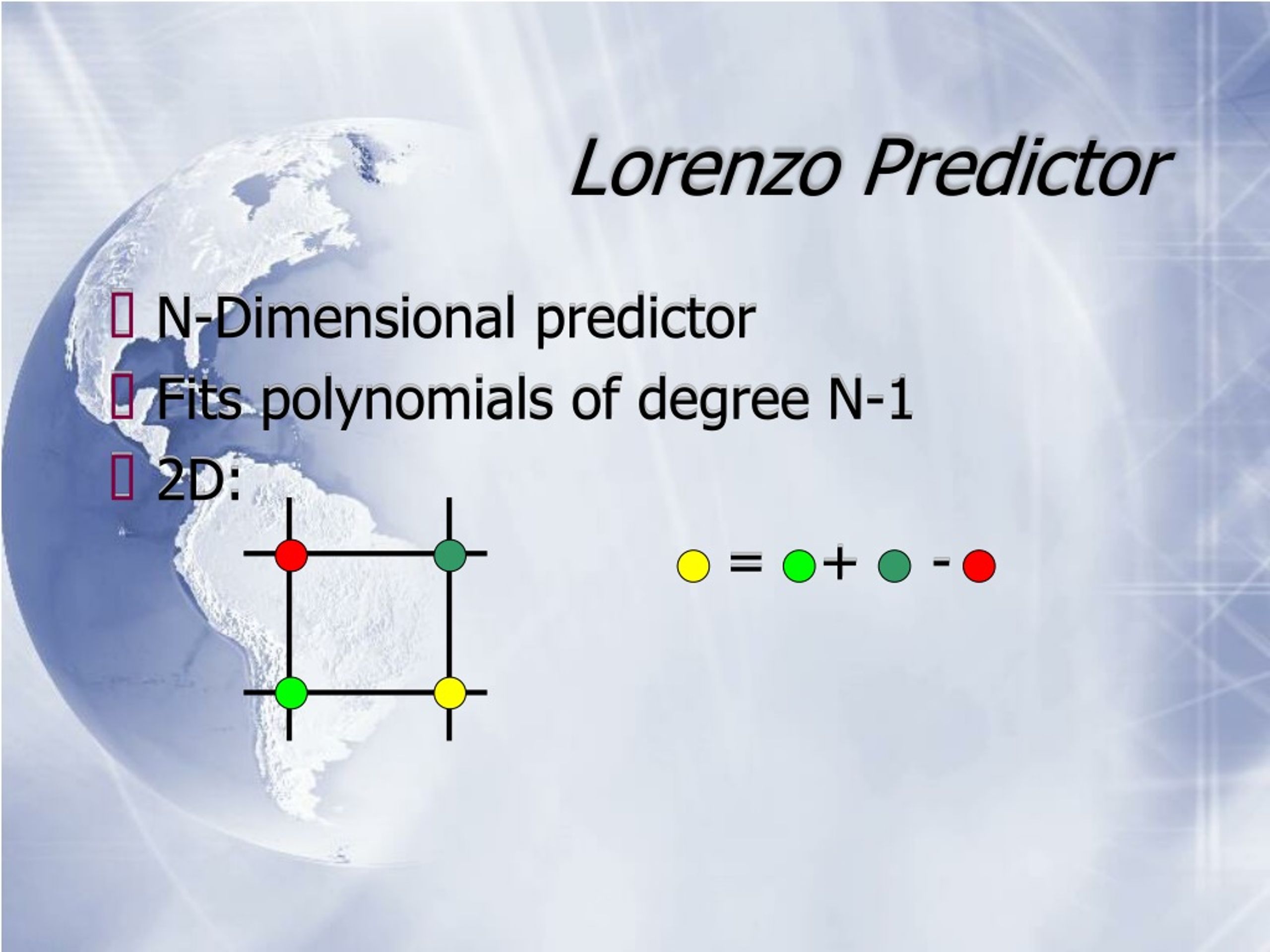

  5. Lorenzo Predictor • N-Dimensional predictor • Fits polynomials of degree N-1 • 2D: = + -

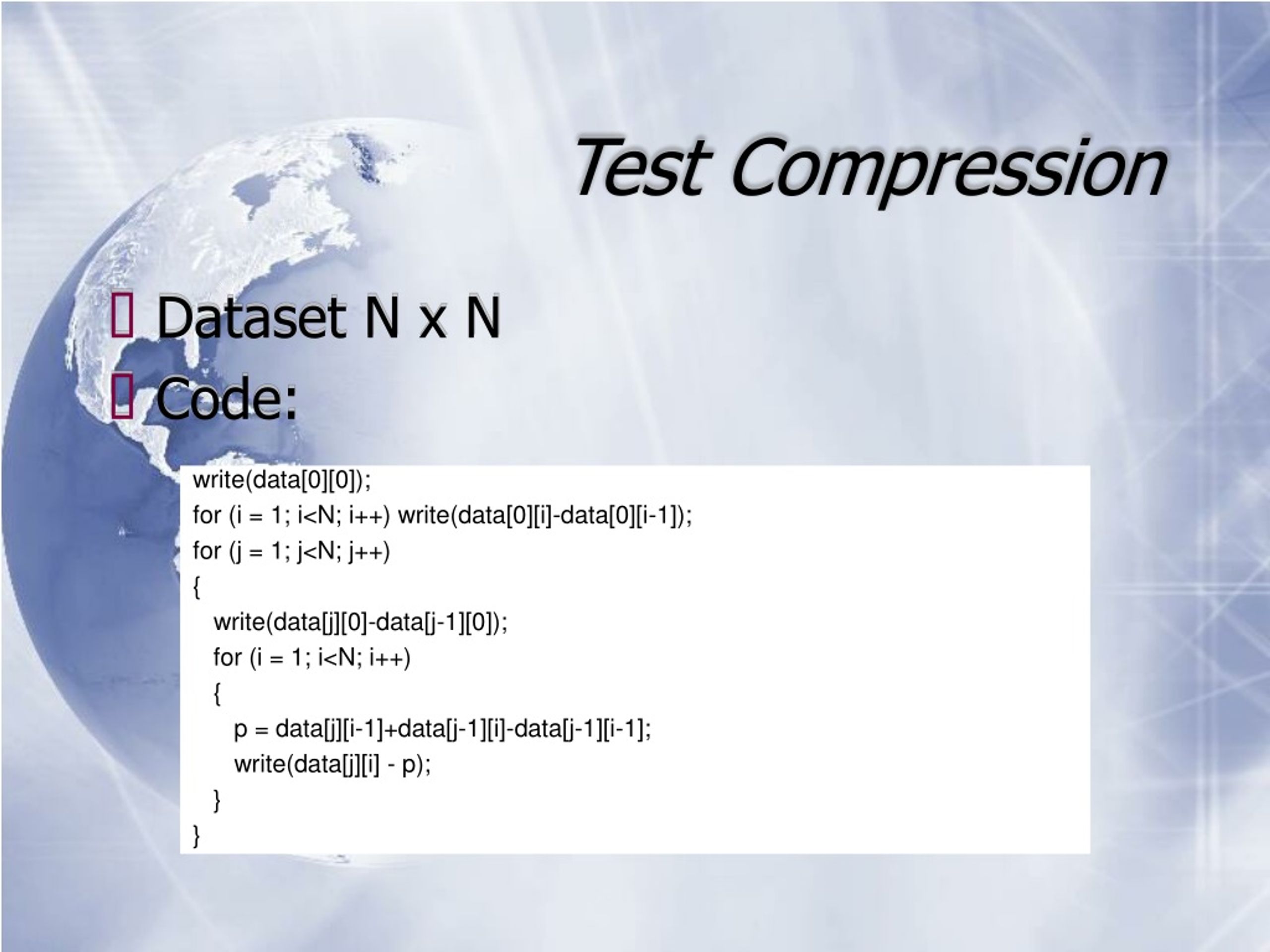

  6. Test Compression • Dataset N x N • Code: write(data[0][0]); for (i = 1; i<N; i++) write(data[0][i]-data[0][i-1]); for (j = 1; j<N; j++) { write(data[j][0]-data[j-1][0]); for (i = 1; i<N; i++) { p = data[j][i-1]+data[j-1][i]-data[j-1][i-1]; write(data[j][i] - p); } }

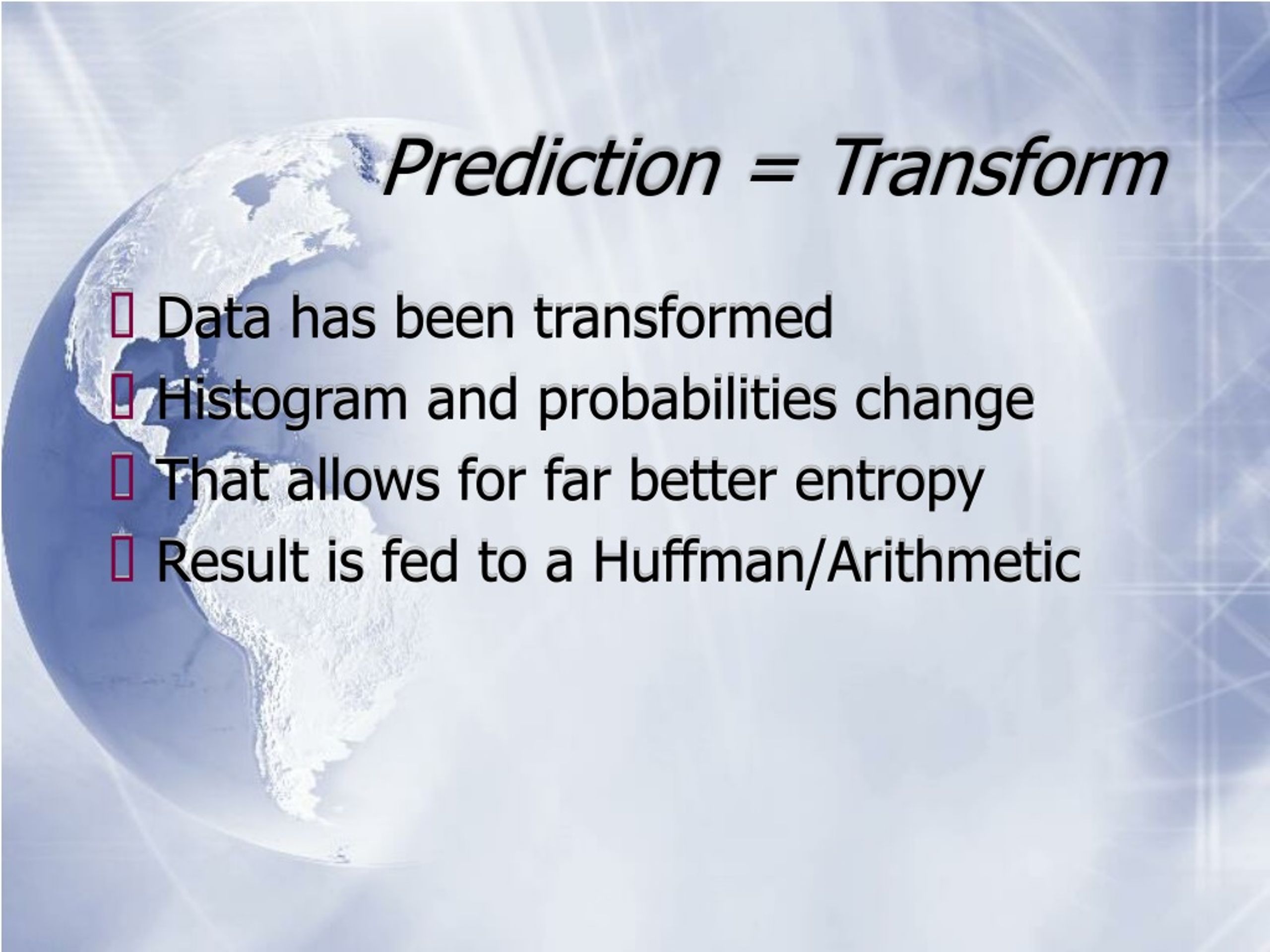

  7. Prediction = Transform • Data has been transformed • Histogram and probabilities change • That allows for far better entropy • Result is fed to a Huffman/Arithmetic

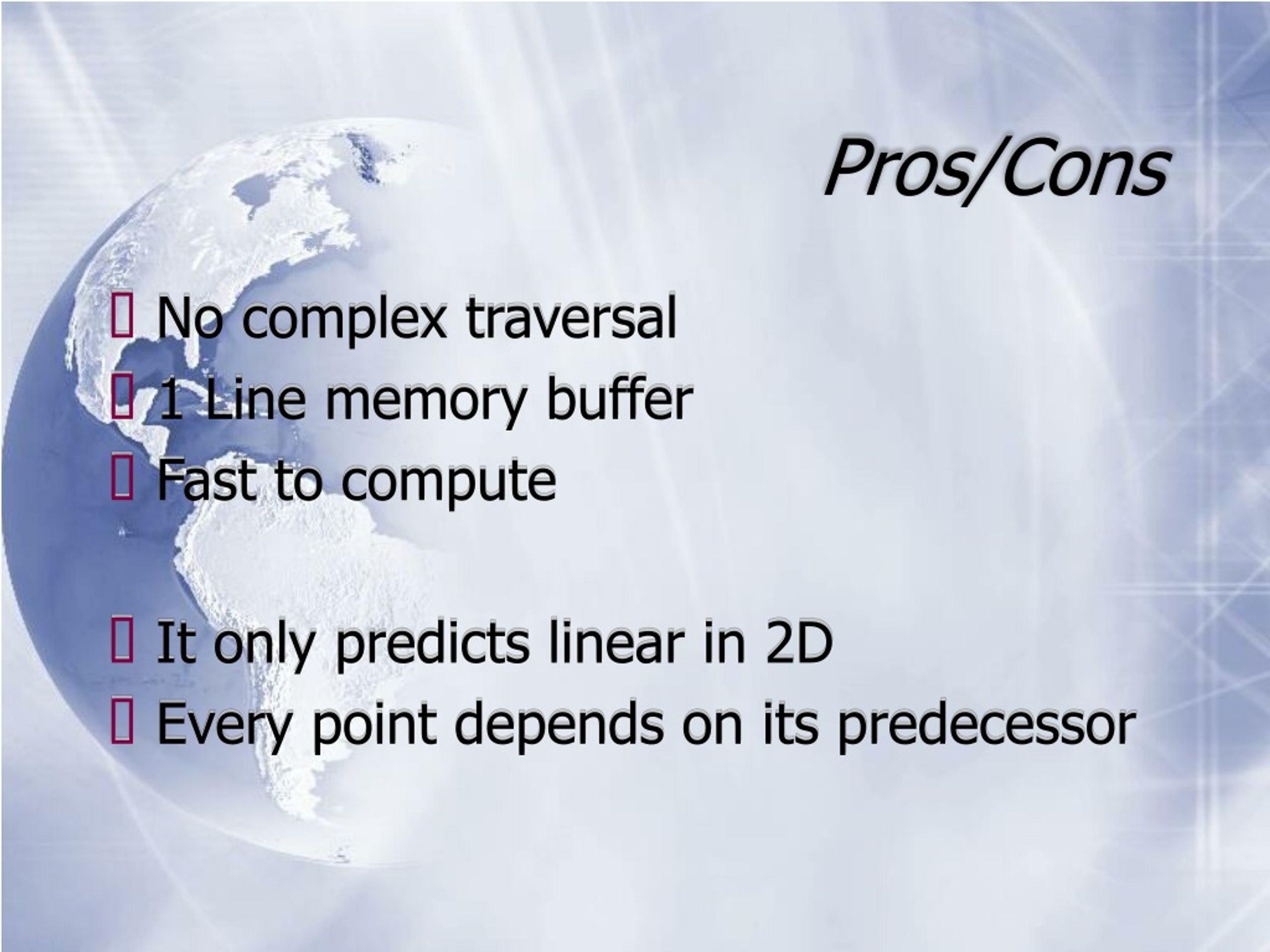

  8. Pros/Cons • No complex traversal • 1 Line memory buffer • Fast to compute • It only predicts linear in 2D • Every point depends on its predecessor

  9. Bi-Lorenzian • Increase the number of points • Higher degree prediction

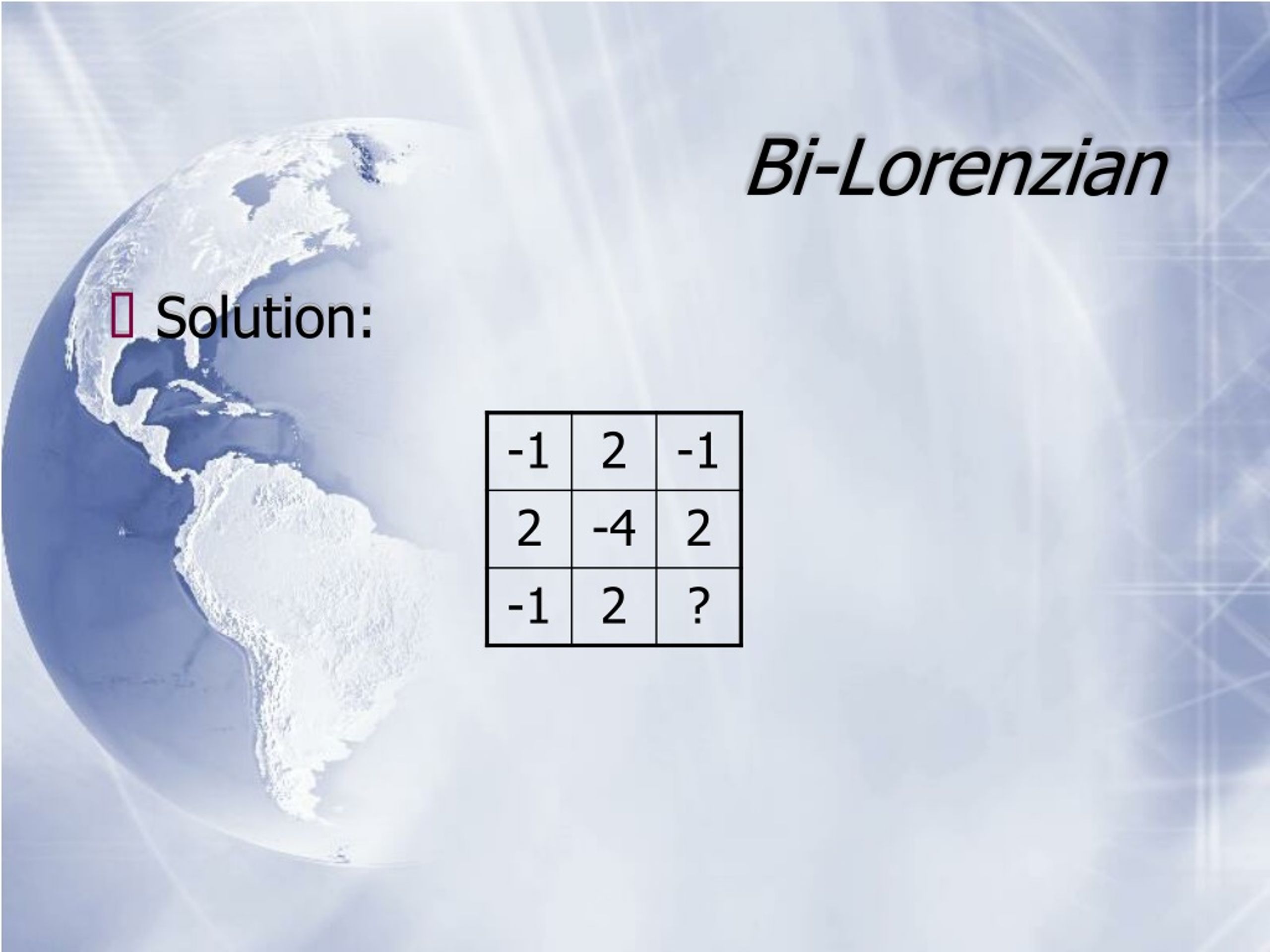

  10. Bi-Lorenzian • Solution:

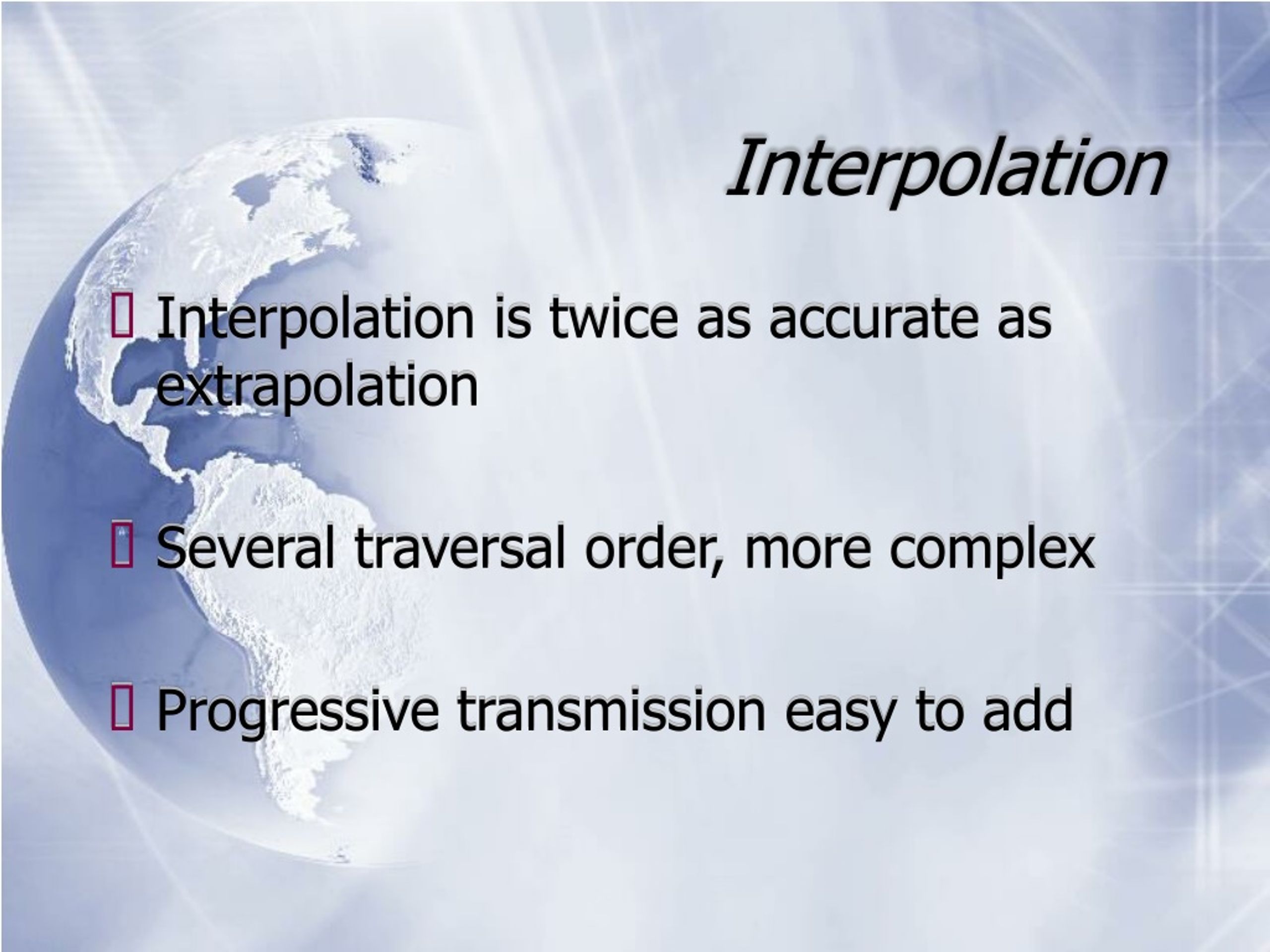

  11. Interpolation • Interpolation is twice as accurate as extrapolation • Several traversal order, more complex • Progressive transmission easy to add

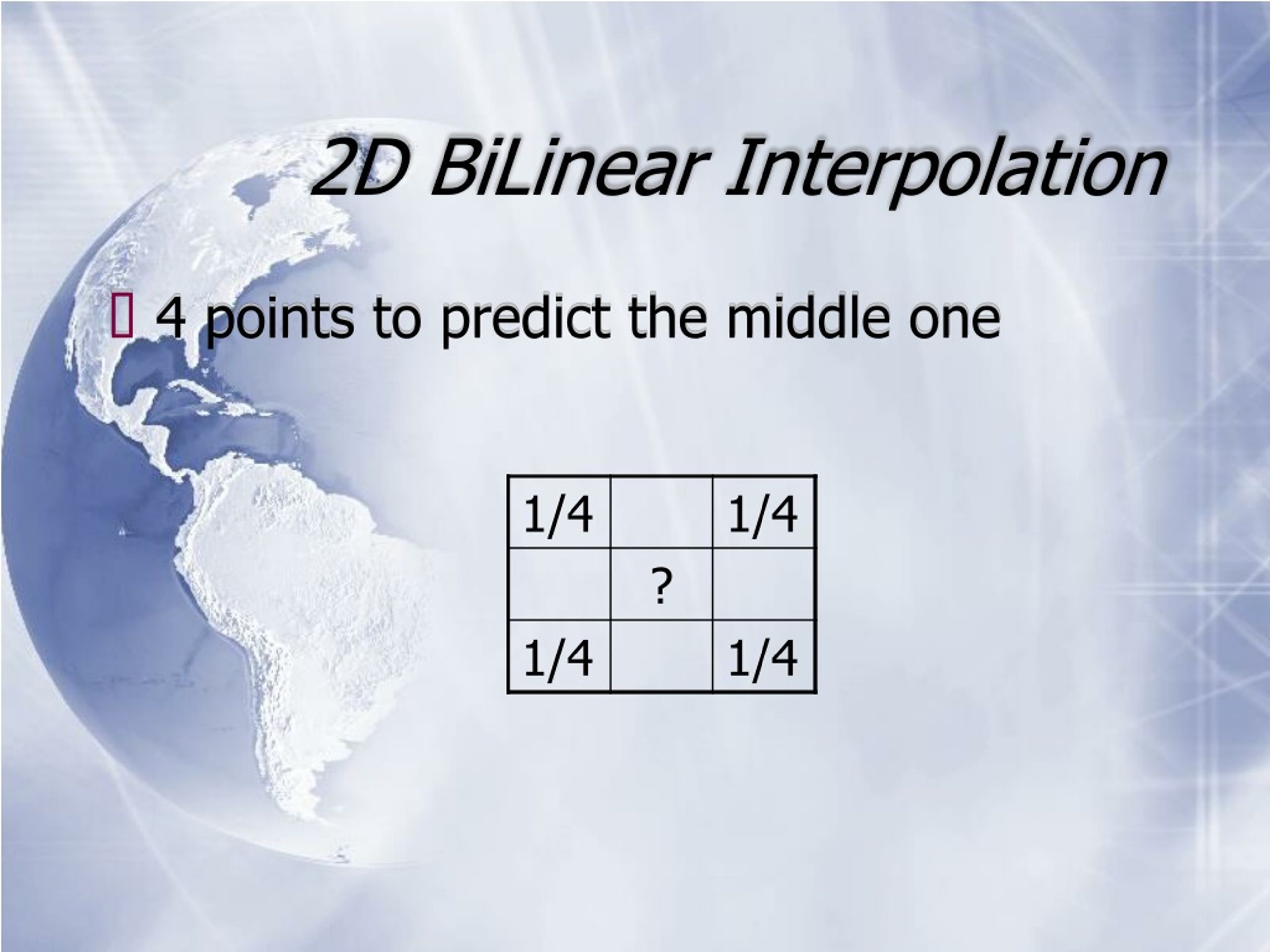

  12. 2D BiLinear Interpolation • 4 points to predict the middle one

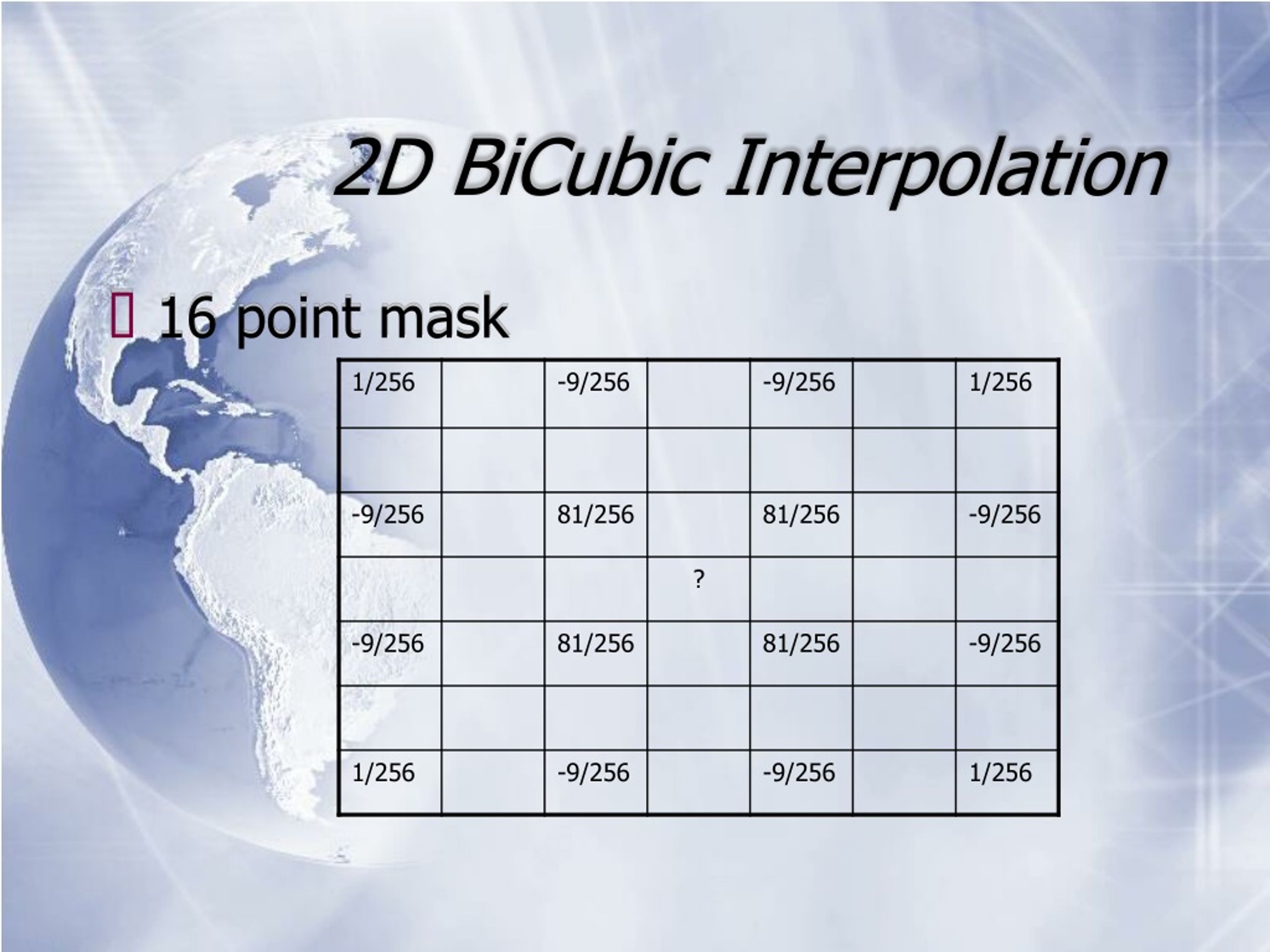

  13. 2D BiCubic Interpolation • 16 point mask

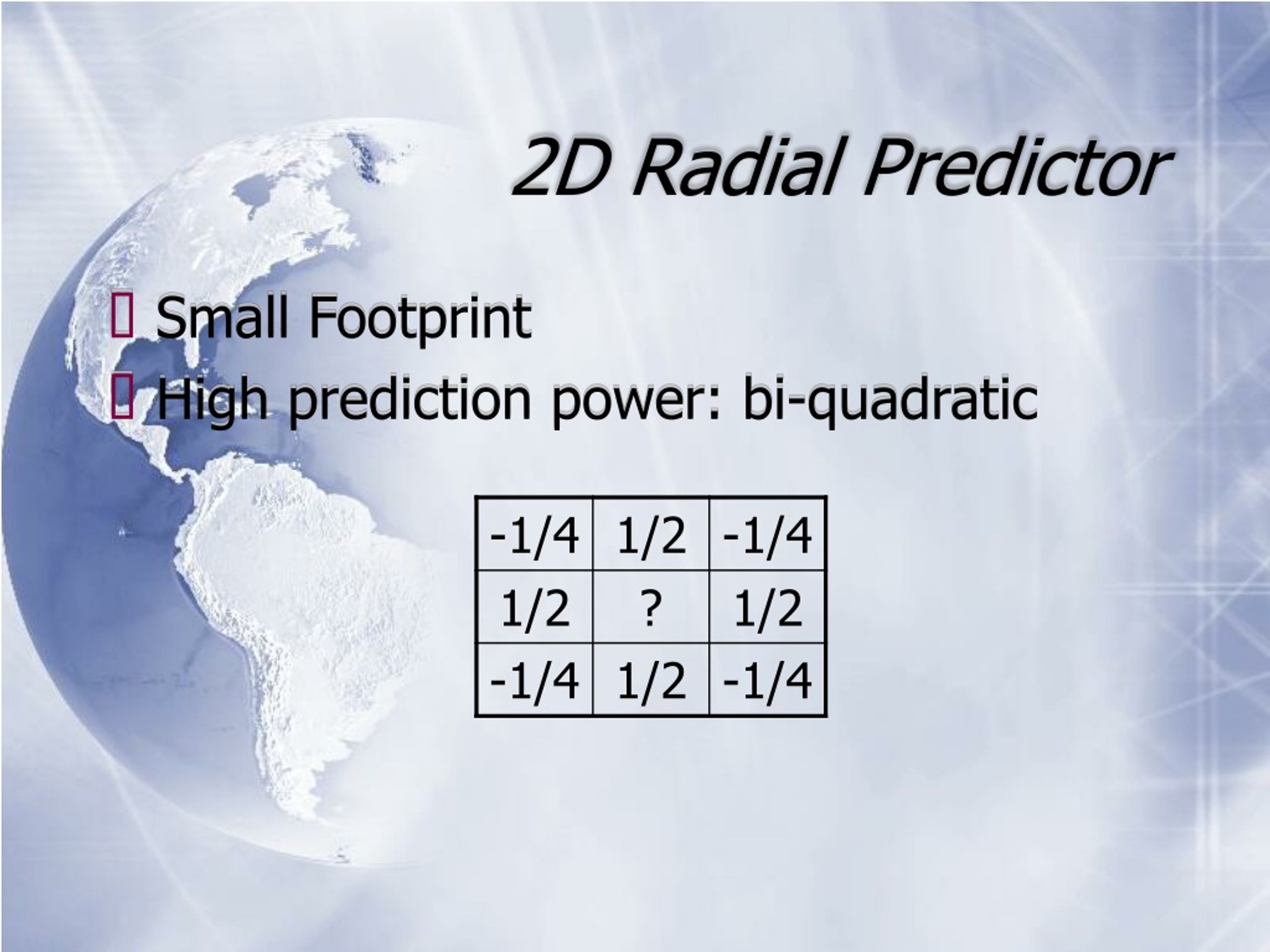

  14. 2D Radial Predictor • Small Footprint • High prediction power: bi-quadratic

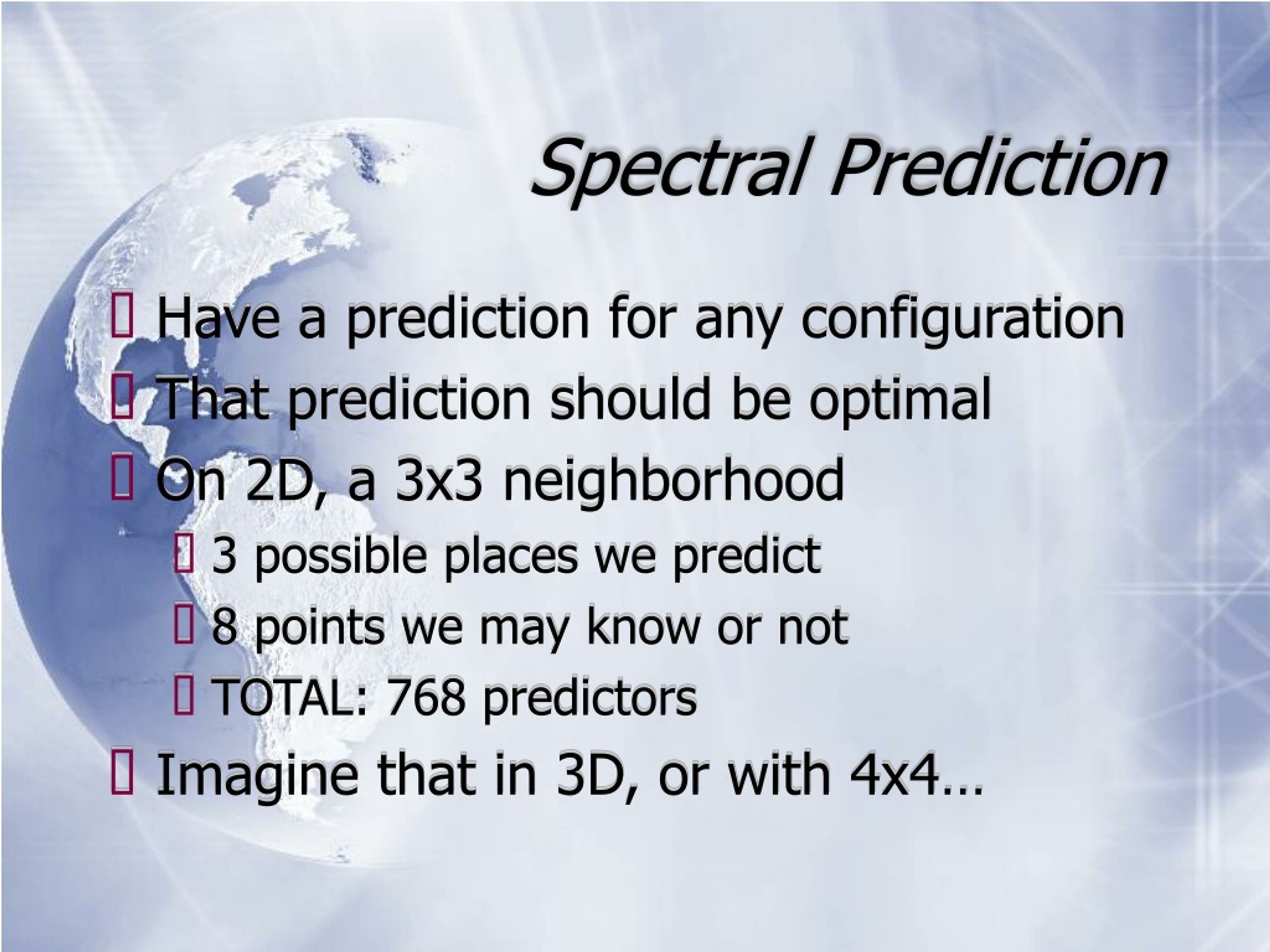

  15. Spectral Prediction • Have a prediction for any configuration • That prediction should be optimal • On 2D, a 3x3 neighborhood • 3 possible places we predict • 8 points we may know or not • TOTAL: 768 predictors • Imagine that in 3D, or with 4x4…

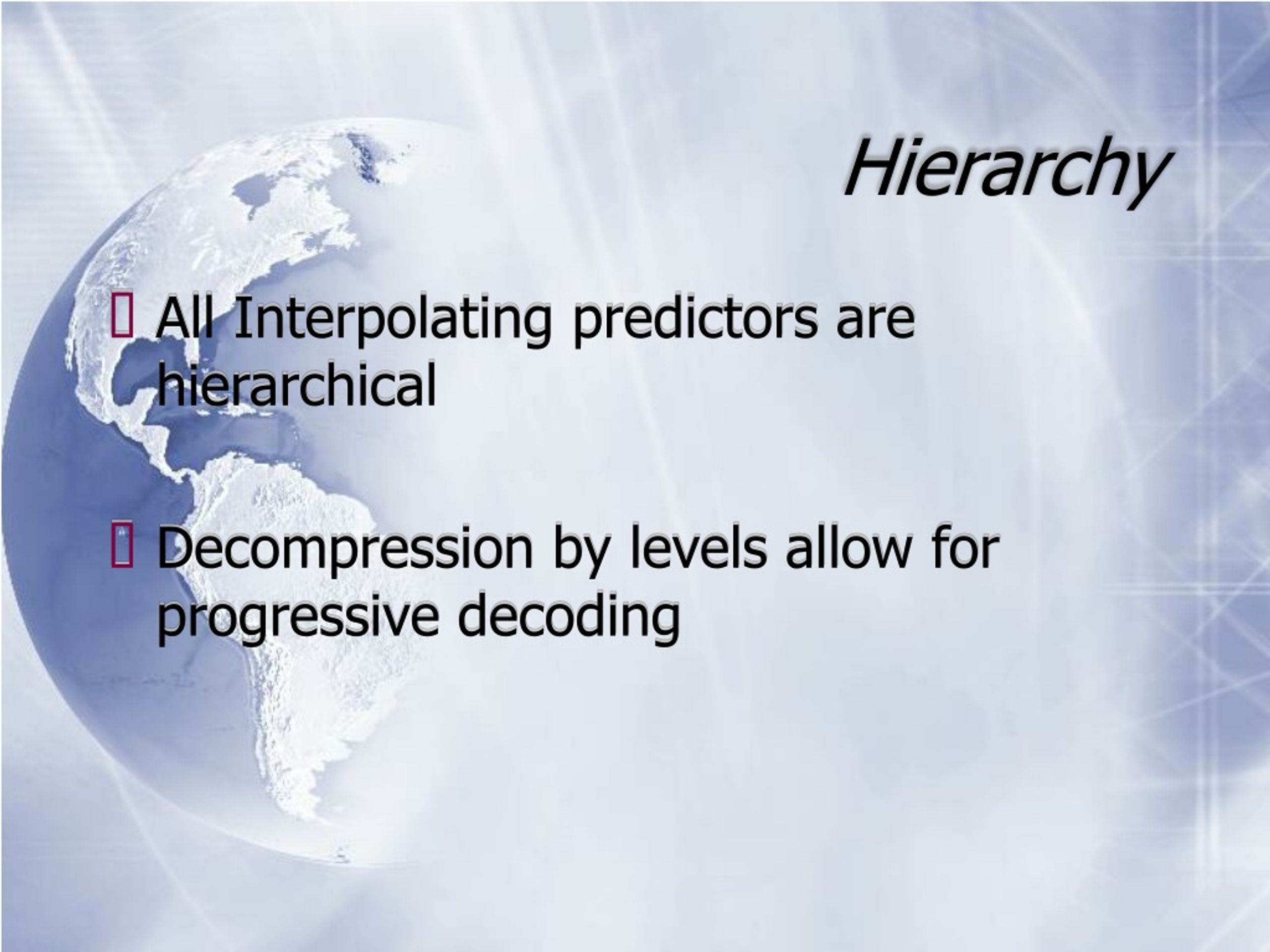

  16. Hierarchy • All Interpolating predictors are hierarchical • Decompression by levels allow for progressive decoding

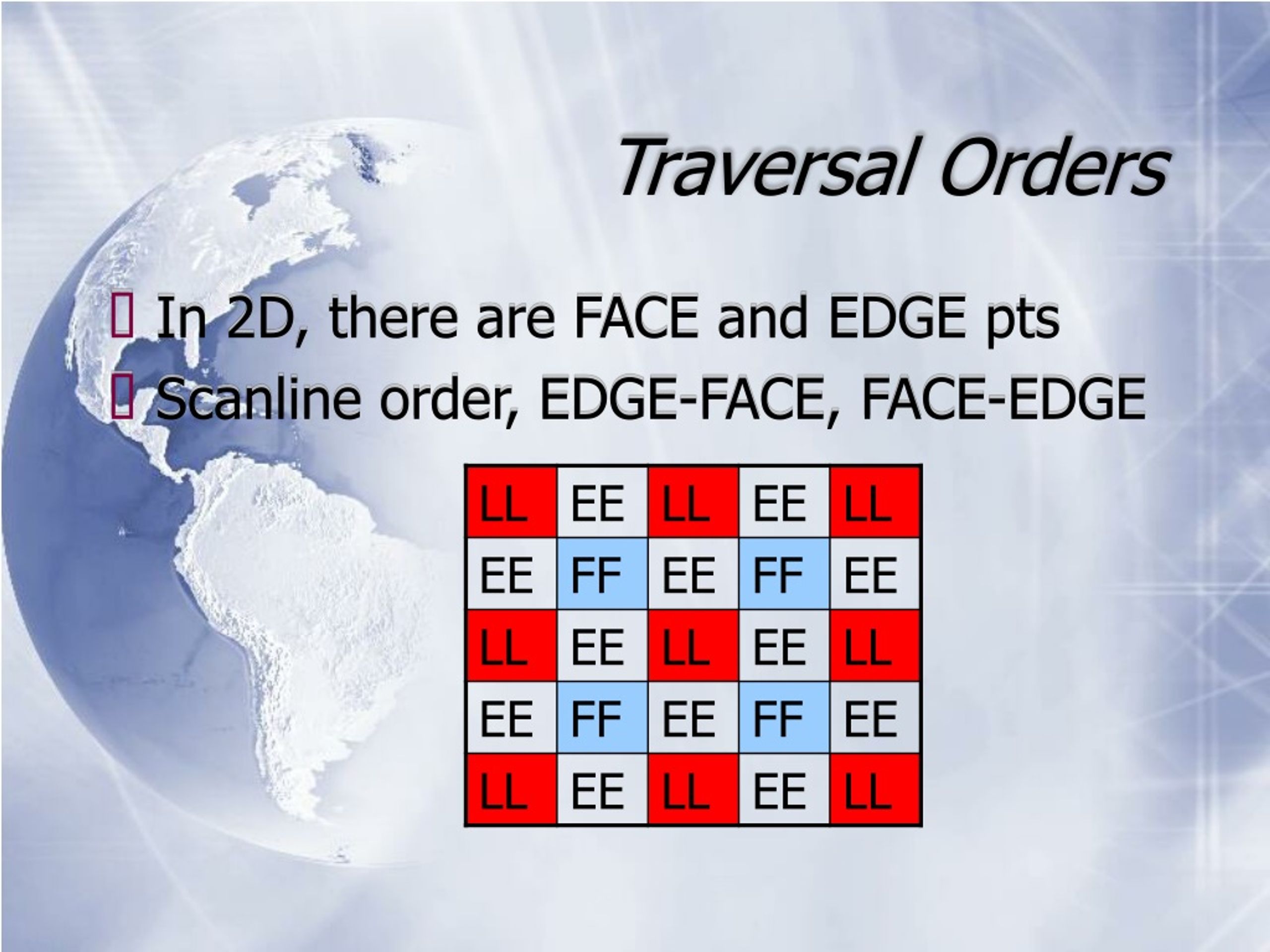

  17. Traversal Orders • In 2D, there are FACE and EDGE pts • Scanline order, EDGE-FACE, FACE-EDGE

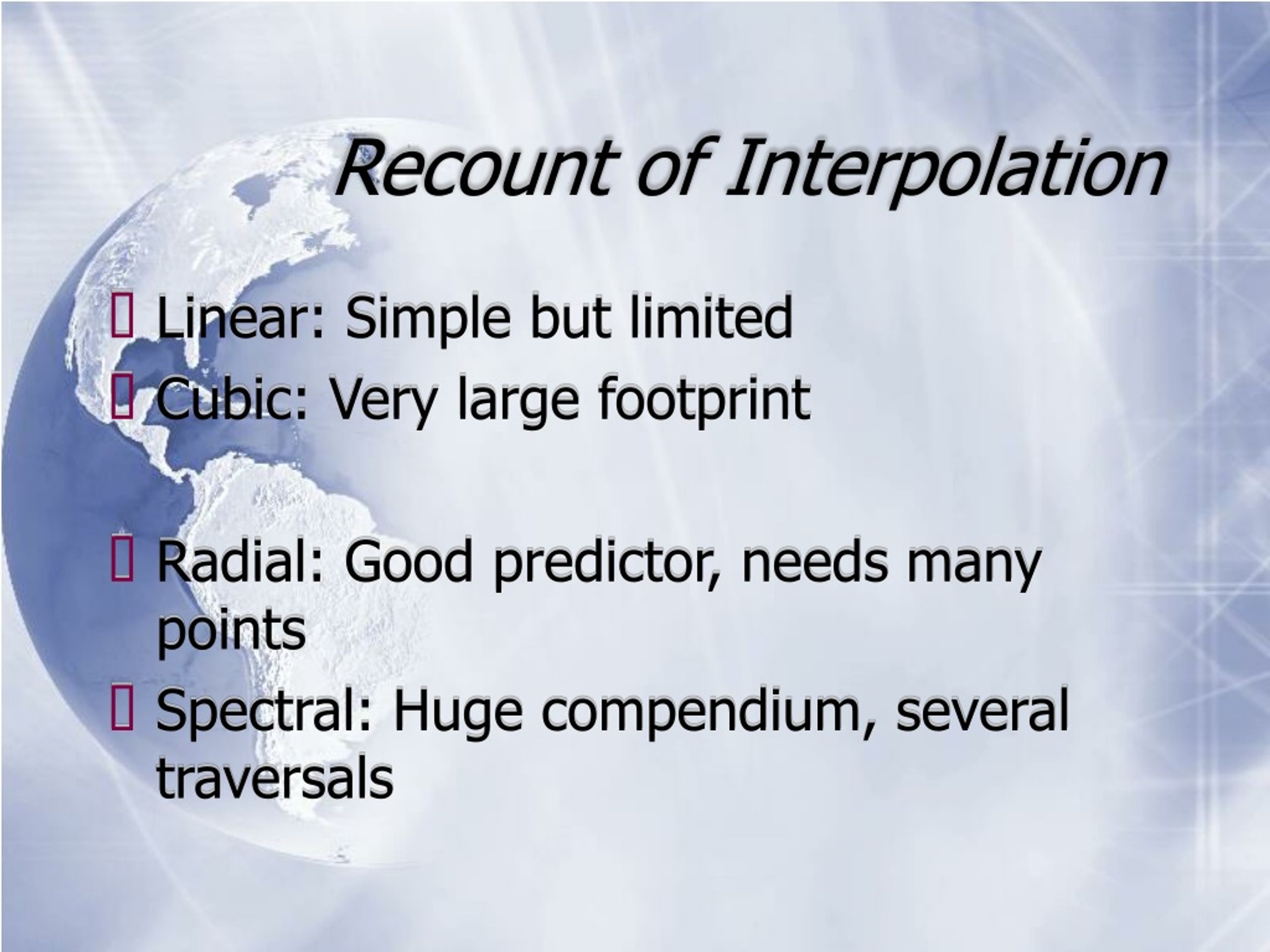

  18. Recount of Interpolation • Linear: Simple but limited • Cubic: Very large footprint • Radial: Good predictor, needs many points • Spectral: Huge compendium, several traversals

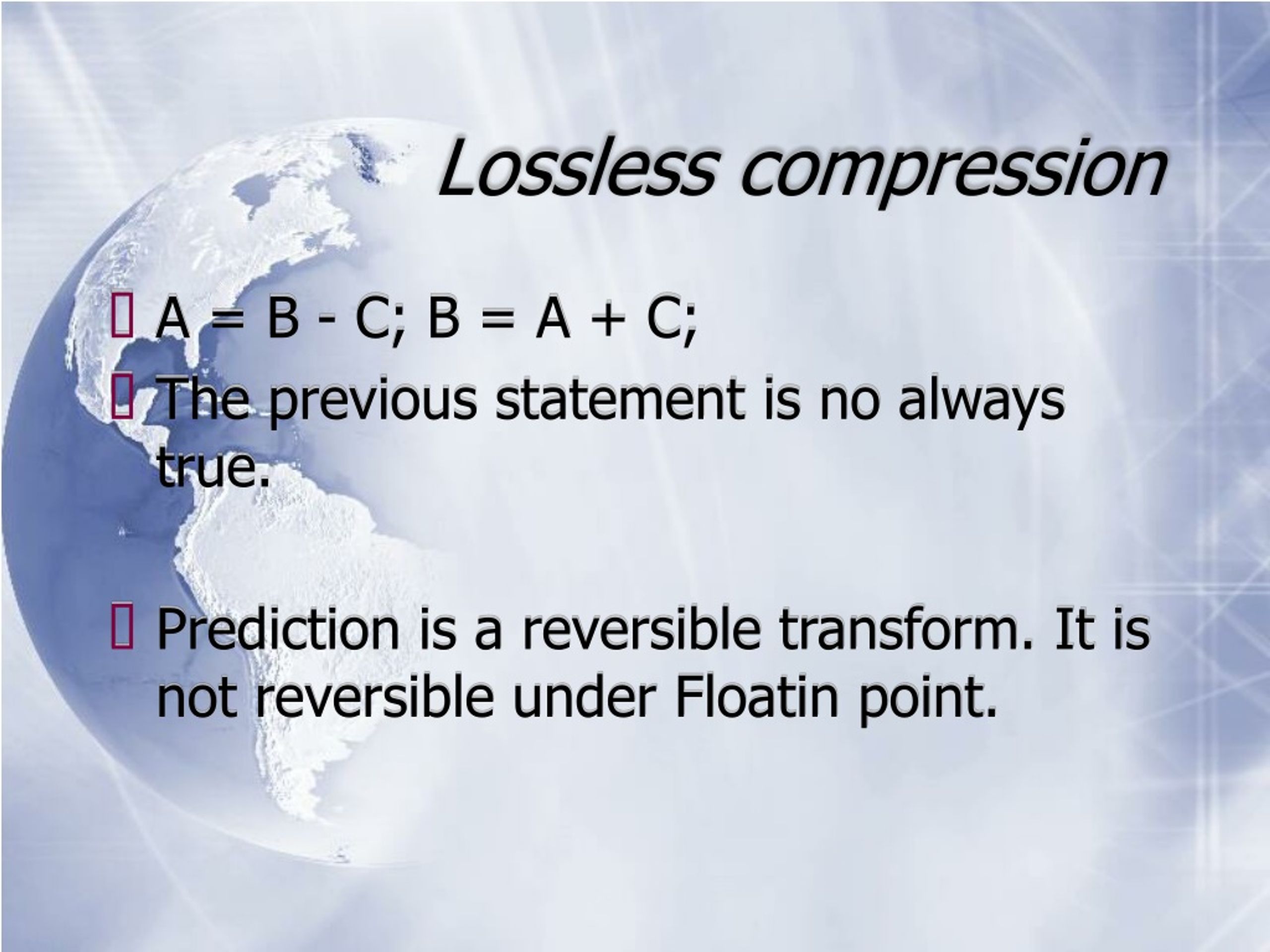

  19. Lossless compression • A = B - C; B = A + C; • The previous statement is no always true. • Prediction is a reversible transform. It is not reversible under Floatin point.

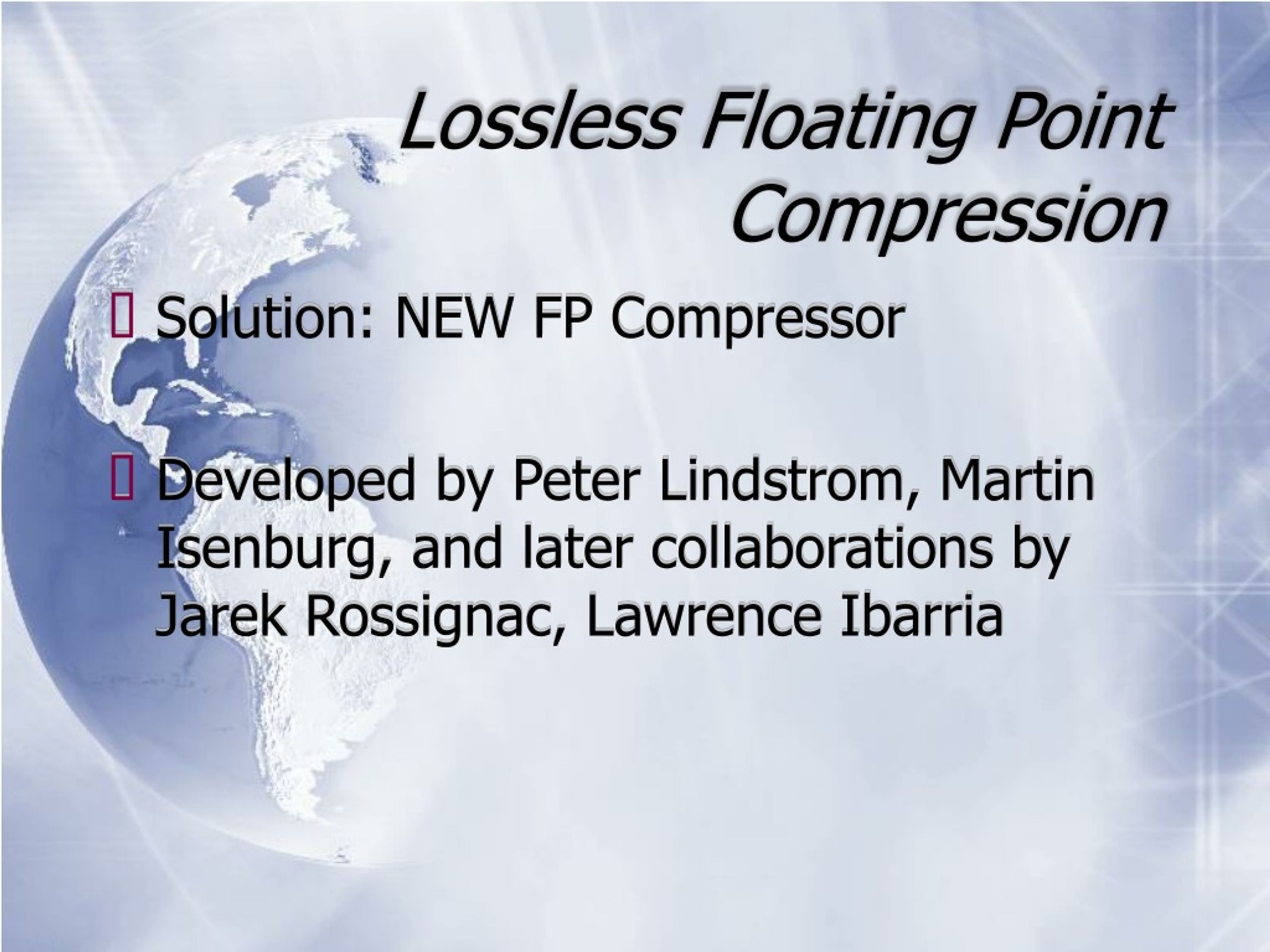

  20. Lossless Floating Point Compression • Solution: NEW FP Compressor • Developed by Peter Lindstrom, Martin Isenburg, and later collaborations by Jarek Rossignac, Lawrence Ibarria

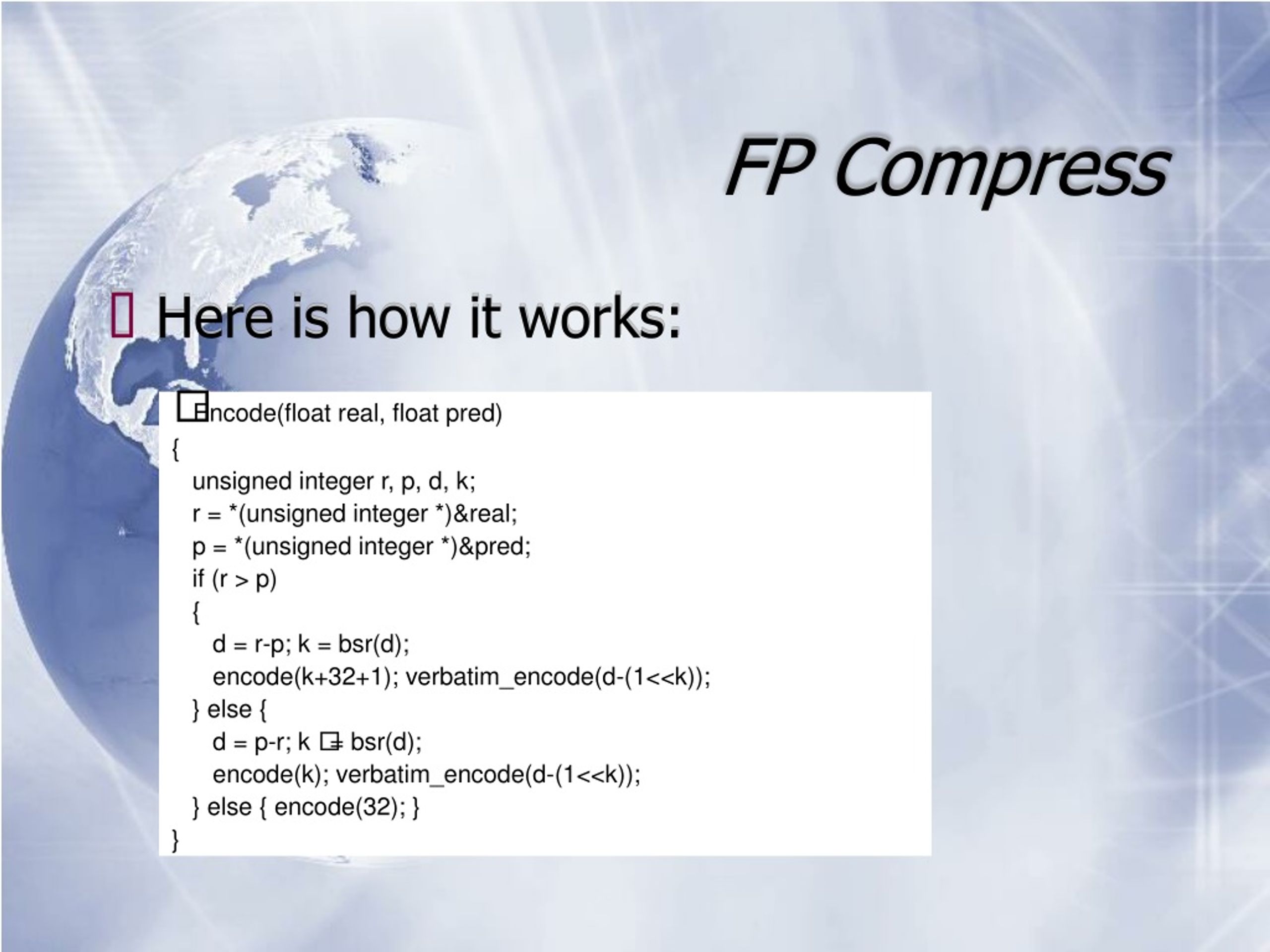

  21. FP Compress • Here is how it works: Encode(float real, float pred) { unsigned integer r, p, d, k; r = *(unsigned integer *)&real; p = *(unsigned integer *)&pred; if (r > p) { d = r-p; k = bsr(d); encode(k+32+1); verbatim_encode(d-(1<<k)); } else { d = p-r; k = bsr(d); encode(k); verbatim_encode(d-(1<<k)); } else { encode(32); } }

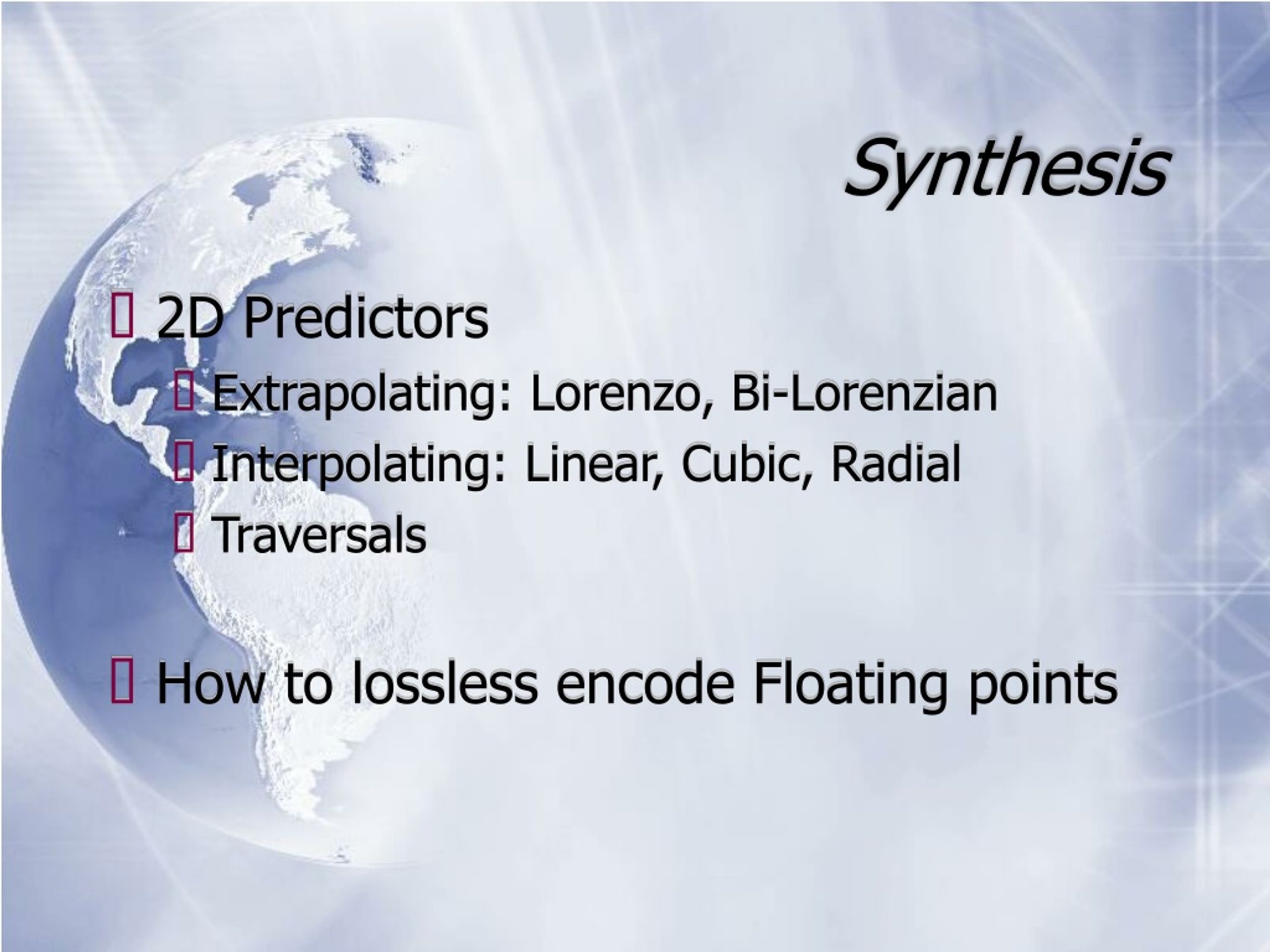

  22. Synthesis • 2D Predictors • Extrapolating: Lorenzo, Bi-Lorenzian • Interpolating: Linear, Cubic, Radial • Traversals • How to lossless encode Floating points

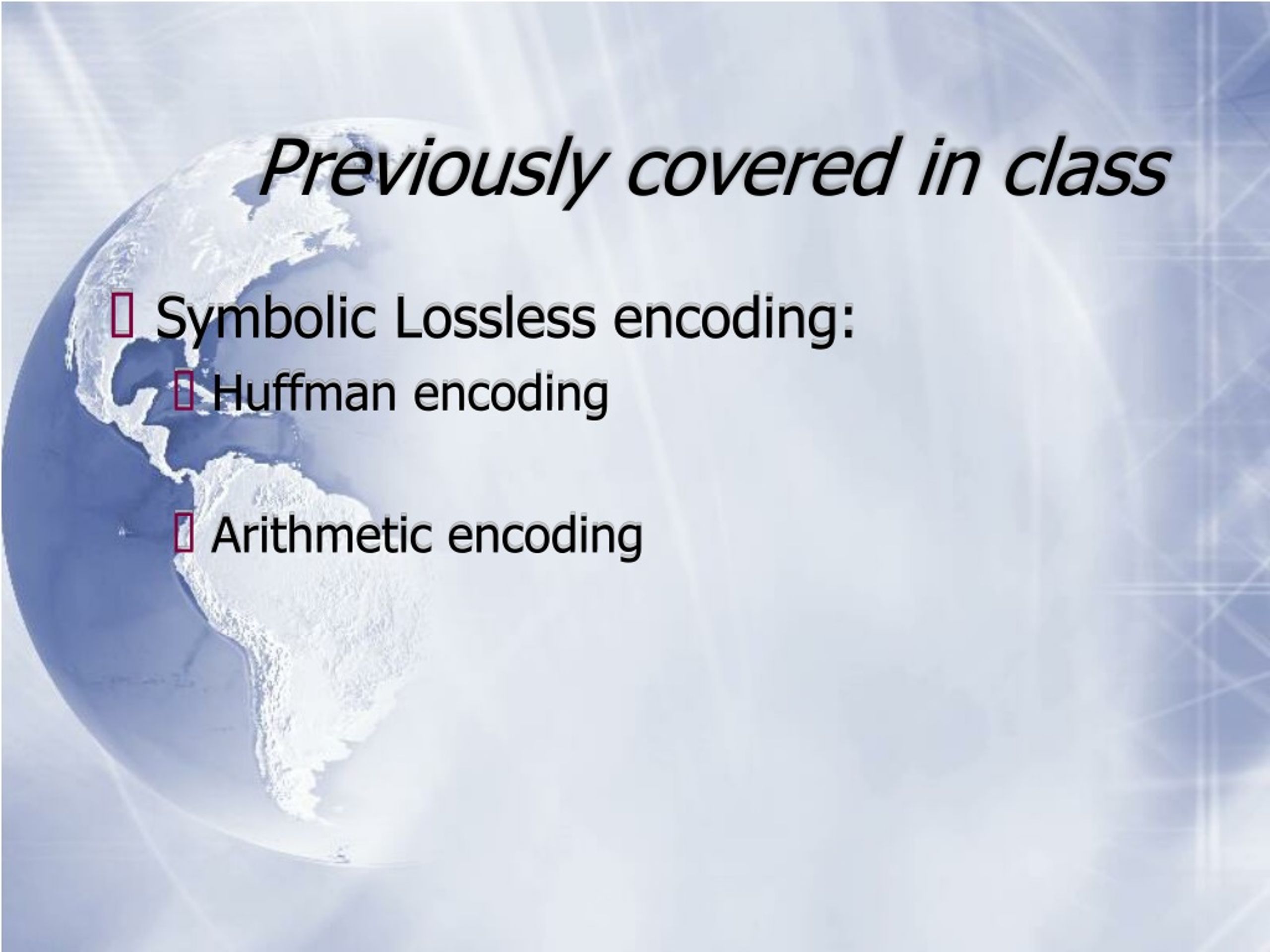

  23. Previously covered in class • Symbolic Lossless encoding: • Huffman encoding • Arithmetic encoding

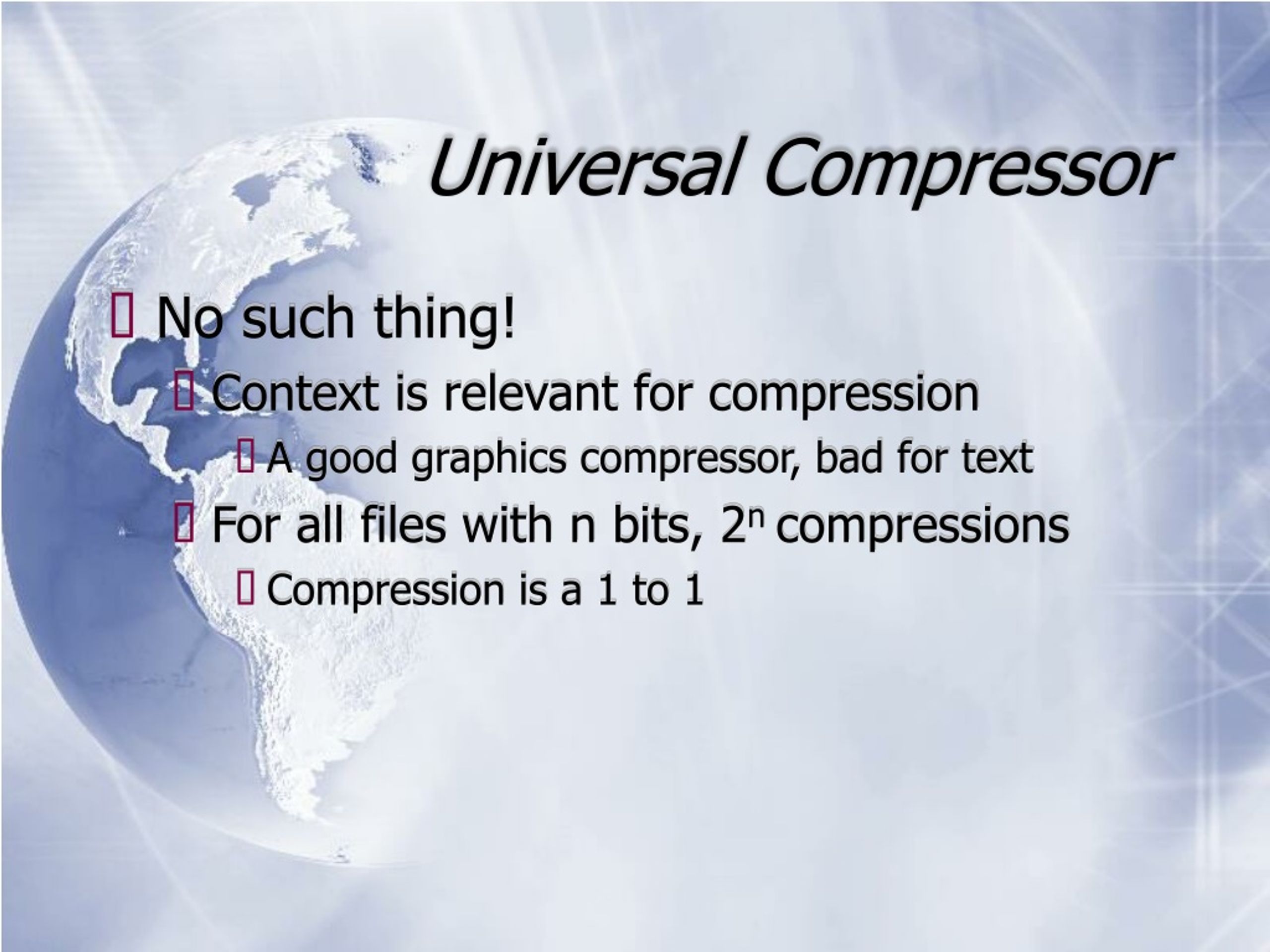

  24. Universal Compressor • No such thing! • Context is relevant for compression • A good graphics compressor, bad for text • For all files with n bits, 2n compressions • Compression is a 1 to 1

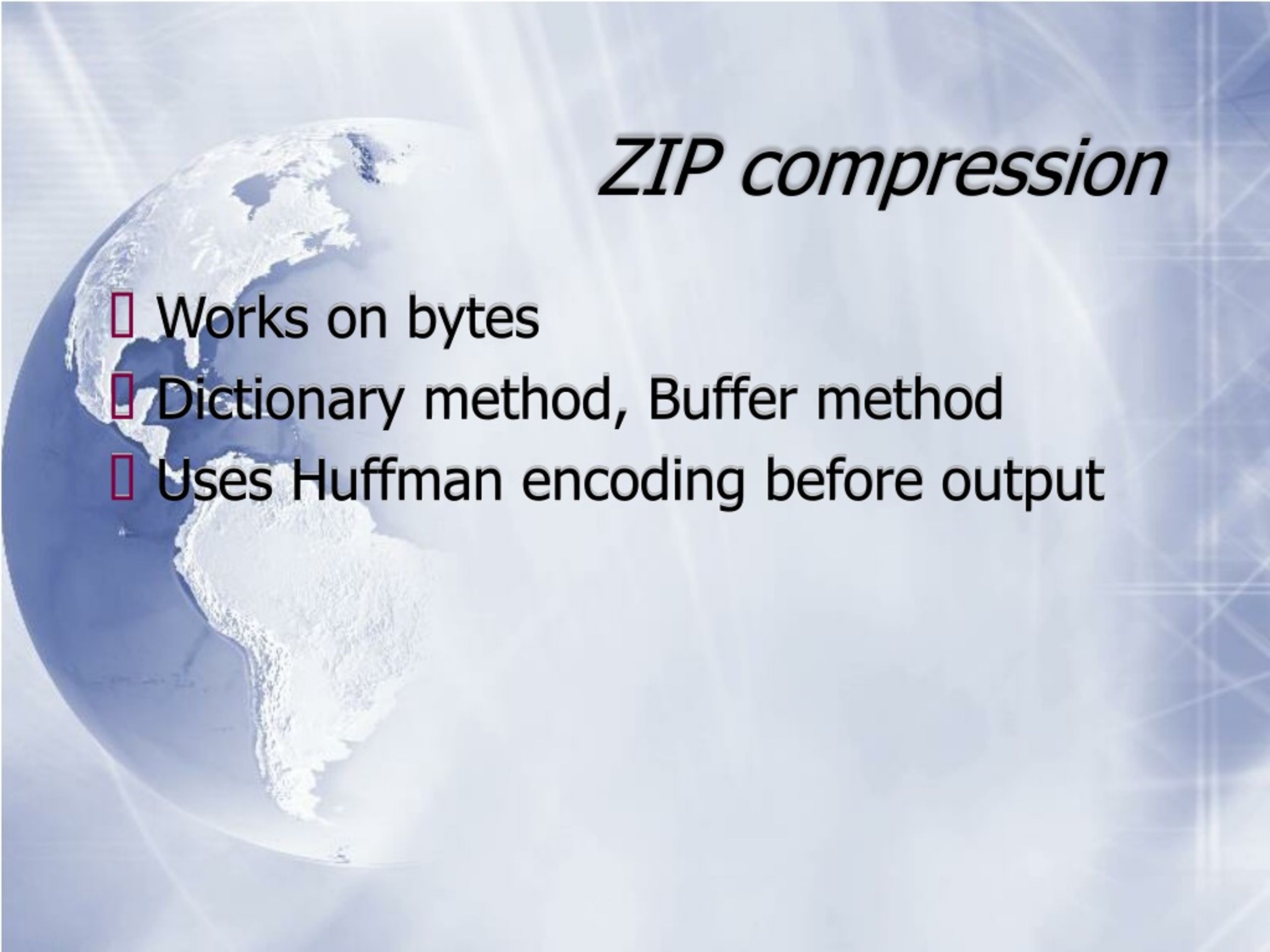

  25. ZIP compression • Works on bytes • Dictionary method, Buffer method • Uses Huffman encoding before output

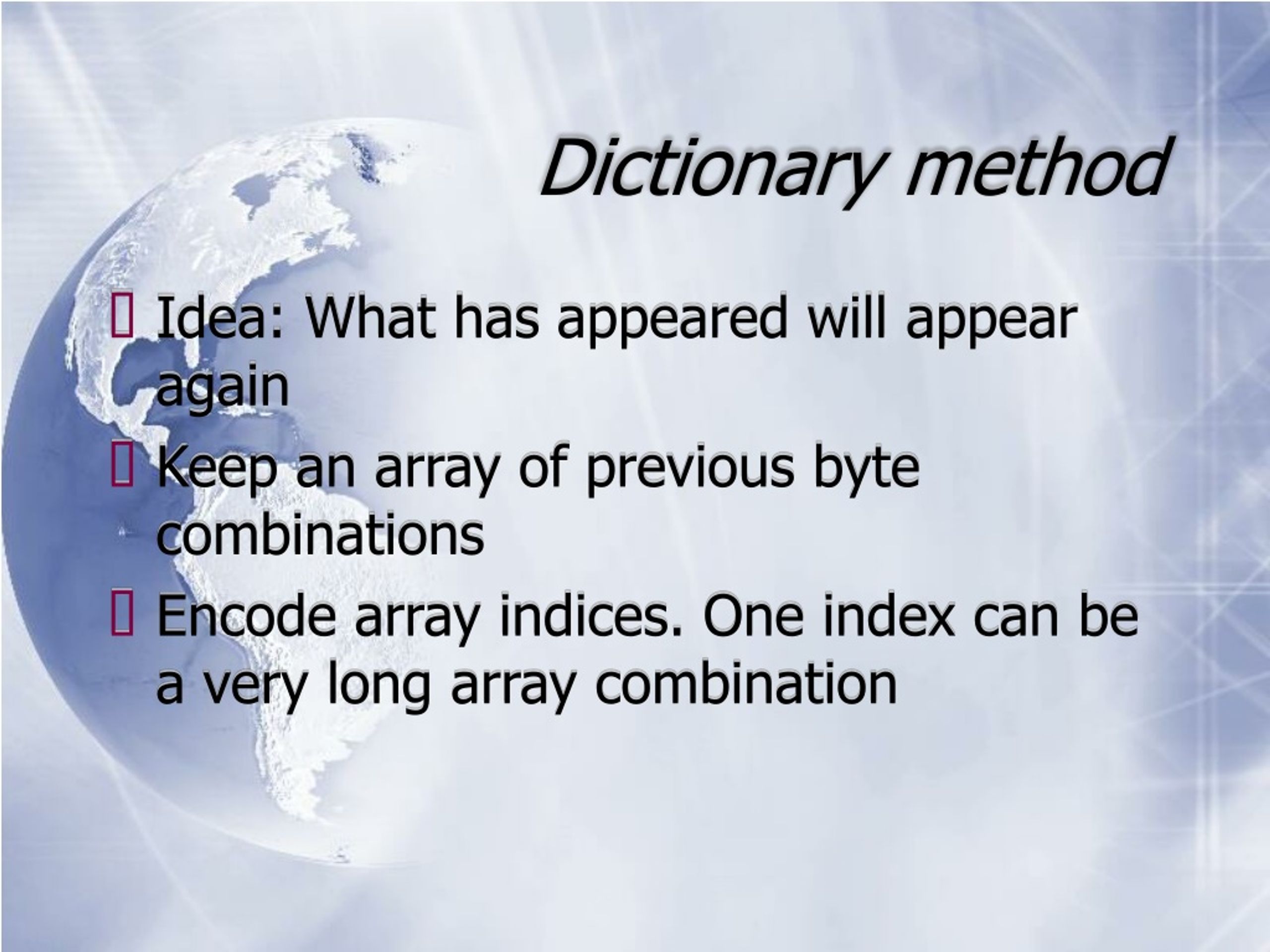

  26. Dictionary method • Idea: What has appeared will appear again • Keep an array of previous byte combinations • Encode array indices. One index can be a very long array combination

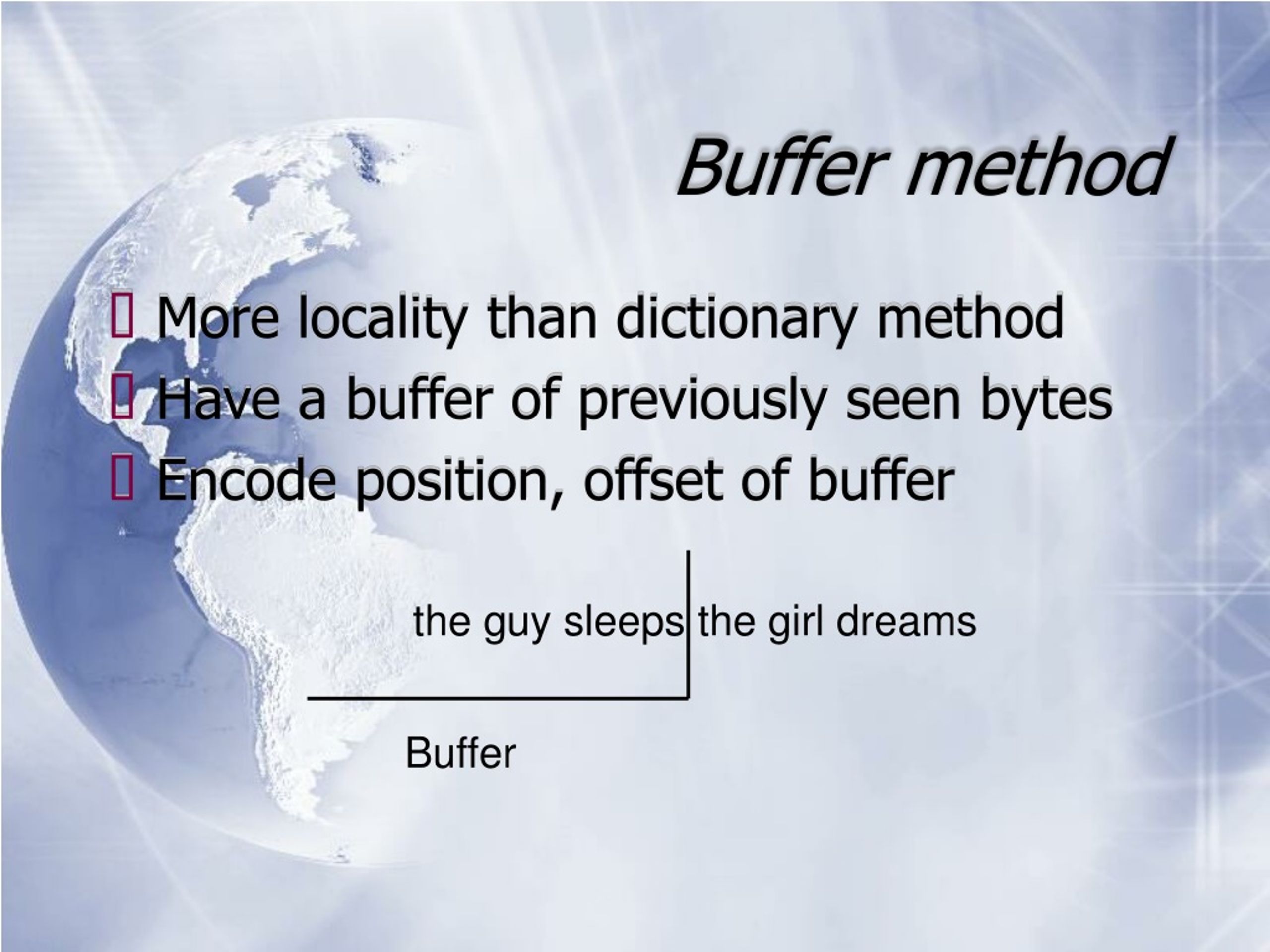

  27. Buffer method • More locality than dictionary method • Have a buffer of previously seen bytes • Encode position, offset of buffer the guy sleeps the girl dreams Buffer

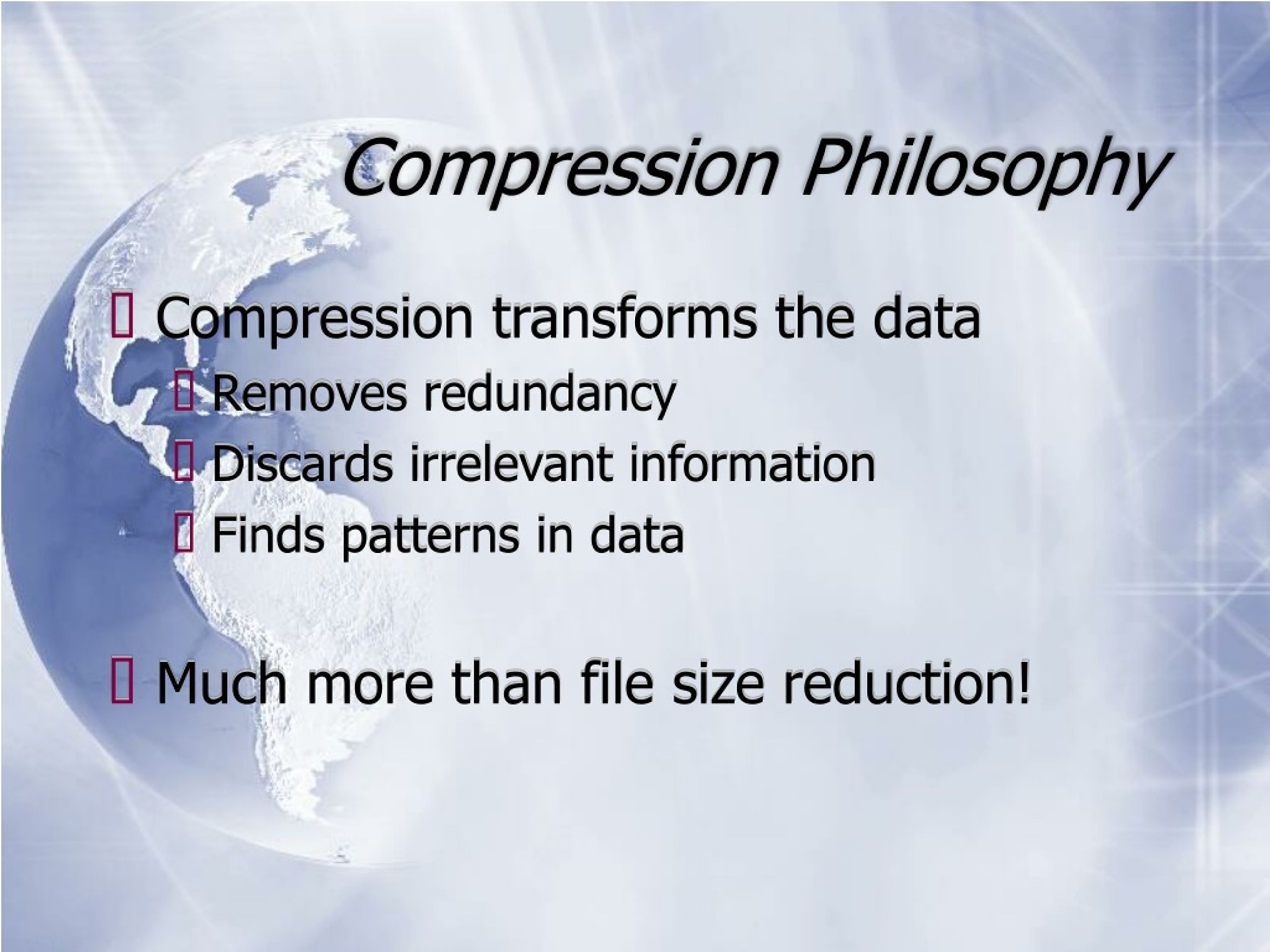

  28. Compression Philosophy • Compression transforms the data • Removes redundancy • Discards irrelevant information • Finds patterns in data • Much more than file size reduction!

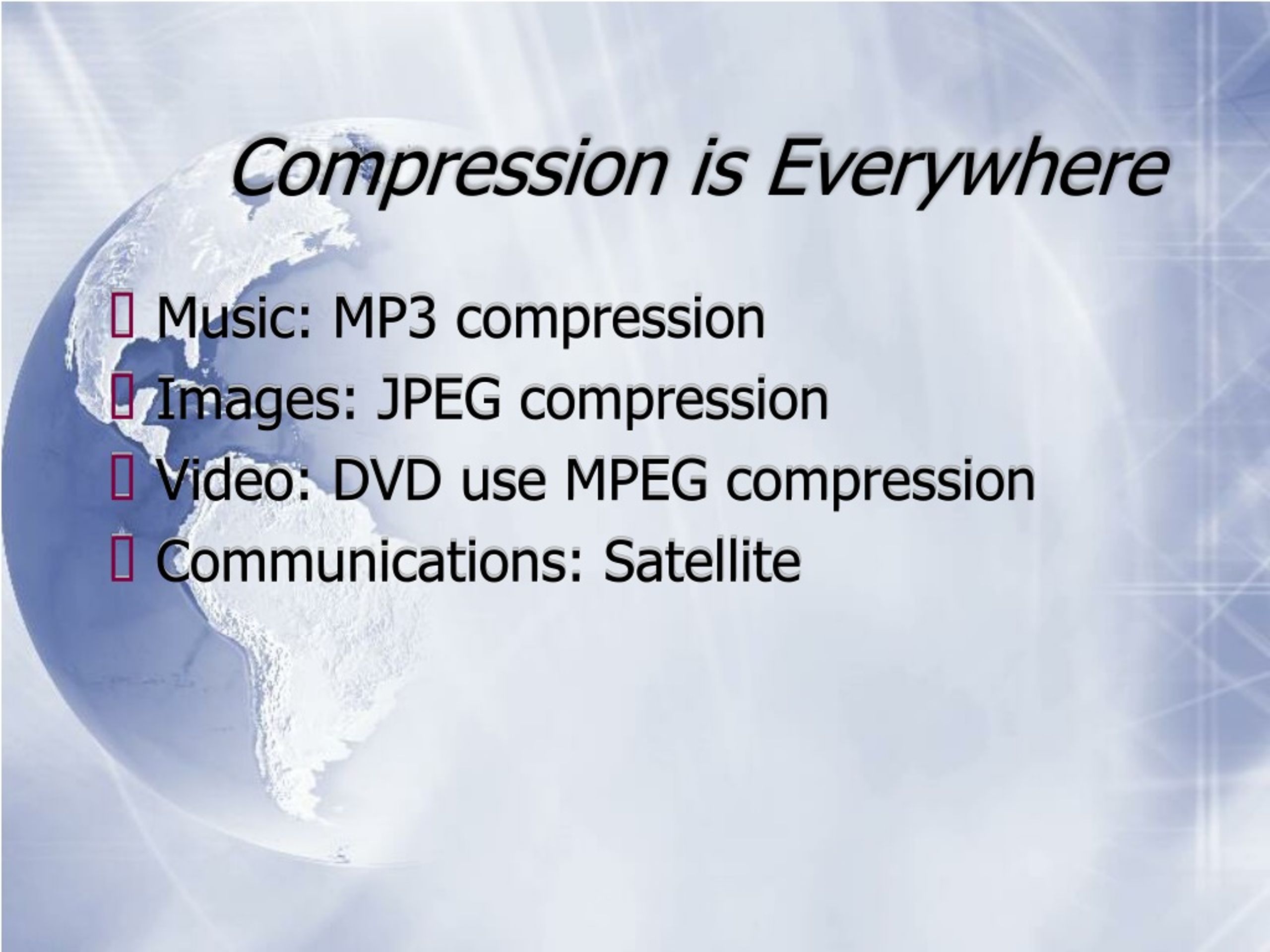

  29. Compression is Everywhere • Music: MP3 compression • Images: JPEG compression • Video: DVD use MPEG compression • Communications: Satellite

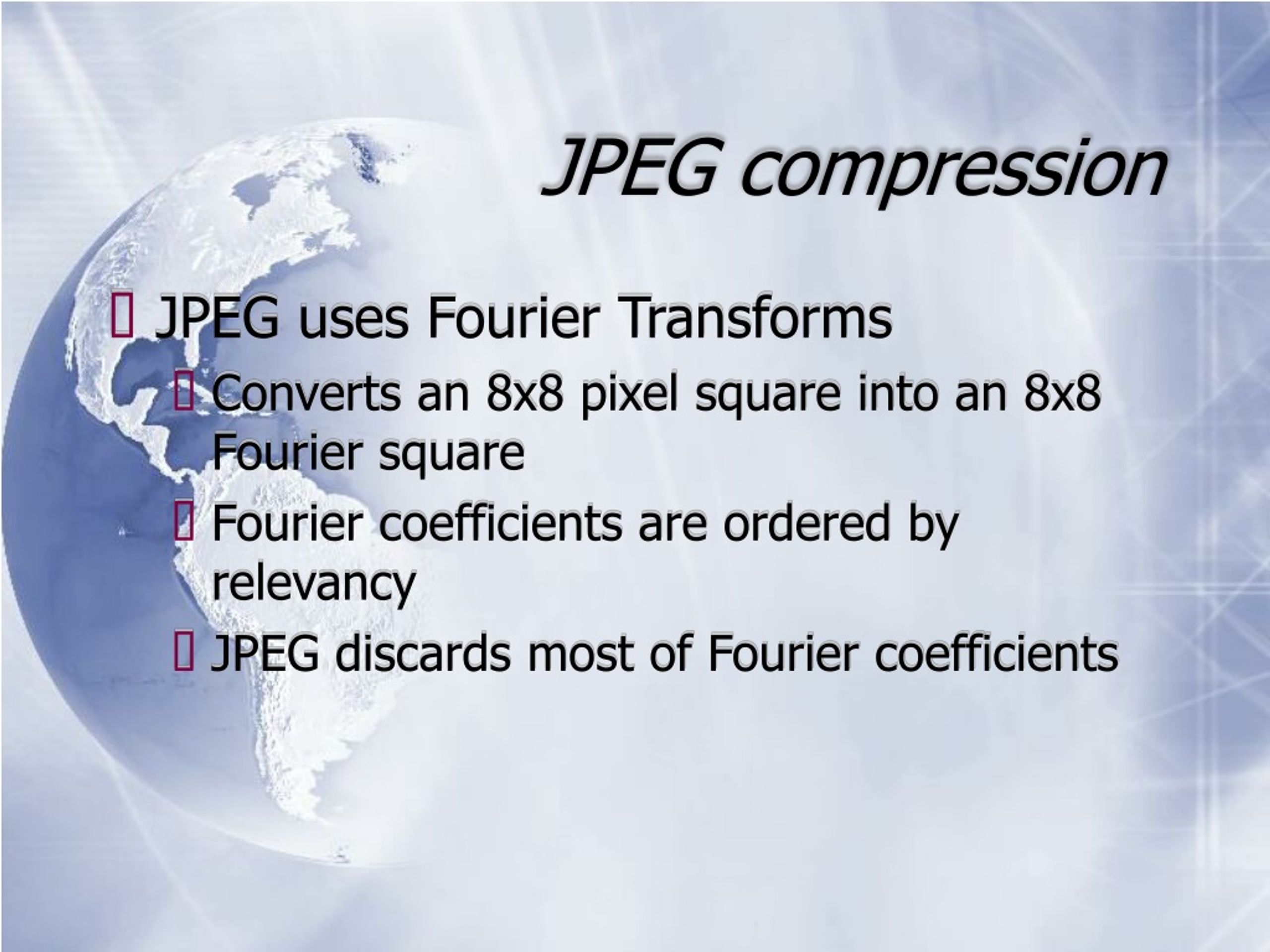

  30. JPEG compression • JPEG uses Fourier Transforms • Converts an 8x8 pixel square into an 8x8 Fourier square • Fourier coefficients are ordered by relevancy • JPEG discards most of Fourier coefficients
