silhouette clipping

Silhouette Clipping

Pedro V. Sander

Xianfeng Gu

Steven J. Gortler

Harvard University

Hugues H. Hoppe

John M. Snyder

Microsoft Research

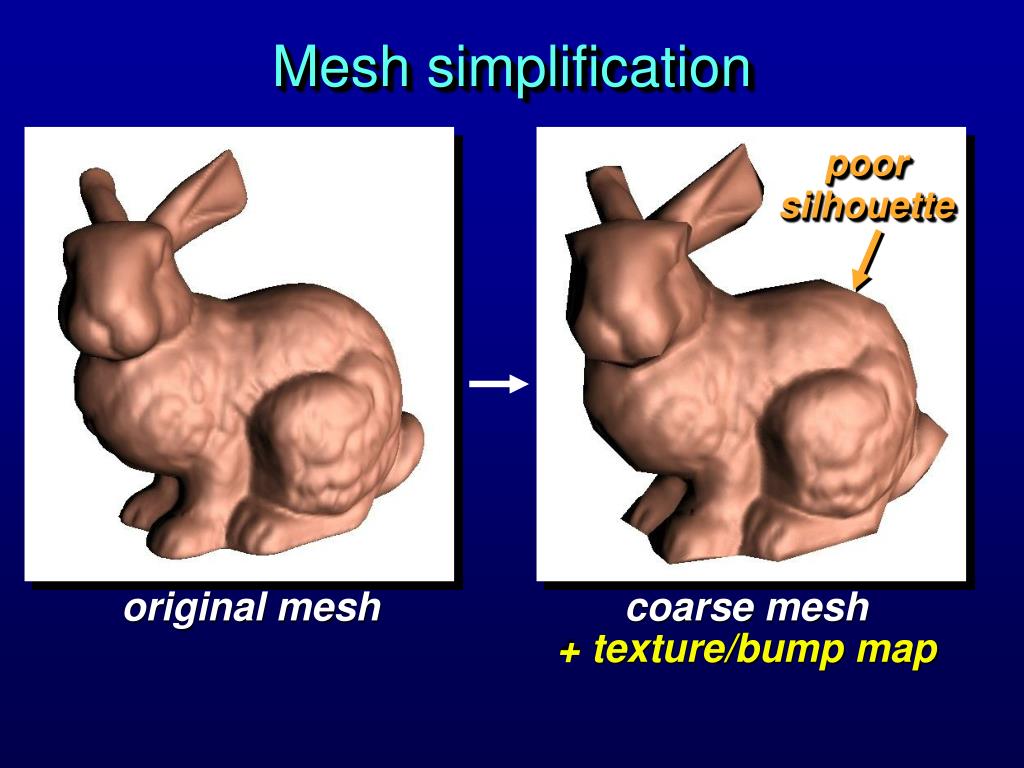

mesh simplification

poorsilhouette

+ texture/bump map

Mesh simplification

original mesh

coarse mesh

silhouette clipping3
Silhouette clipping

original mesh

coarse mesh

+ texture/bump map

silhouette clipped

silhouette clipping4

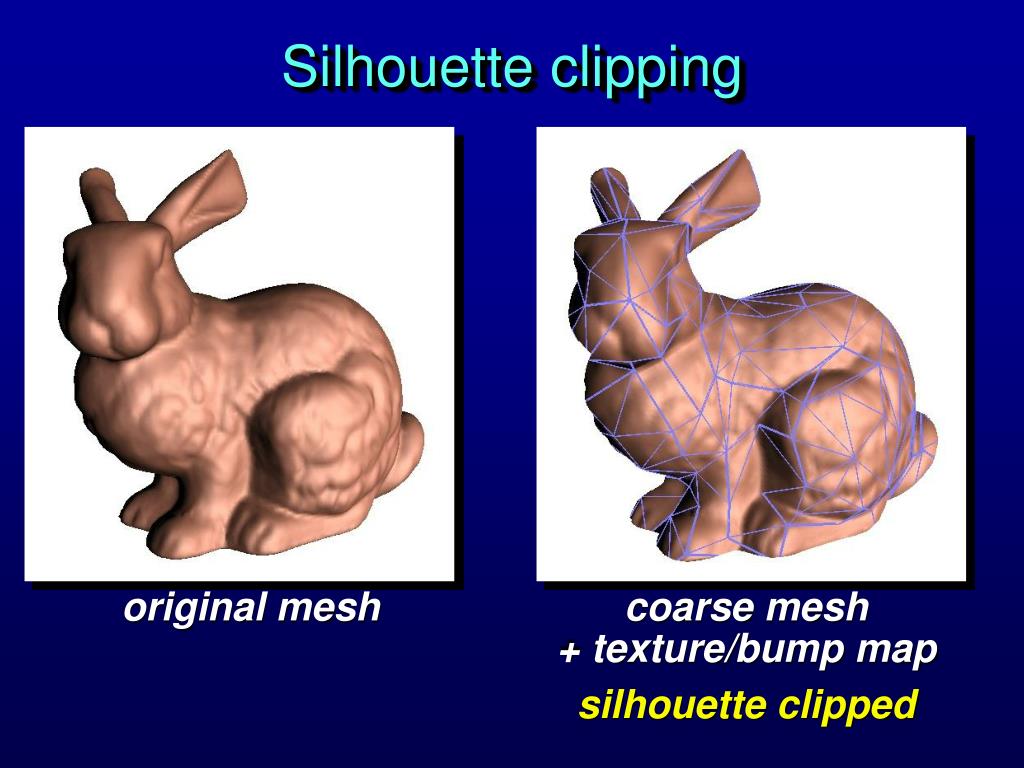

Silhouette clipping

original mesh

coarse mesh

+ texture/bump map

silhouette clipped

overview

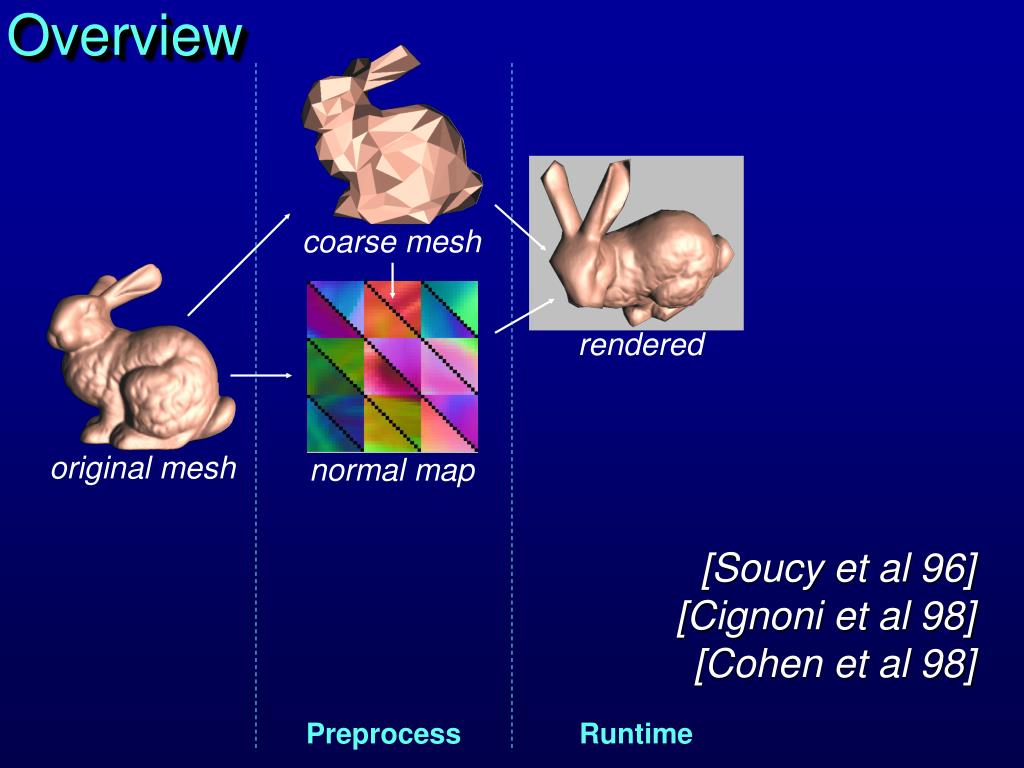

Overview

coarse mesh

rendered

original mesh

normal map

[Soucy et al 96]

[Cignoni et al 98]

[Cohen et al 98]

Preprocess

Runtime

overview7
Overview

coarse hull

rendered

original mesh

normal map

stencil mask

2D silhouette

edge hierarchy

Preprocess

Runtime

overview8

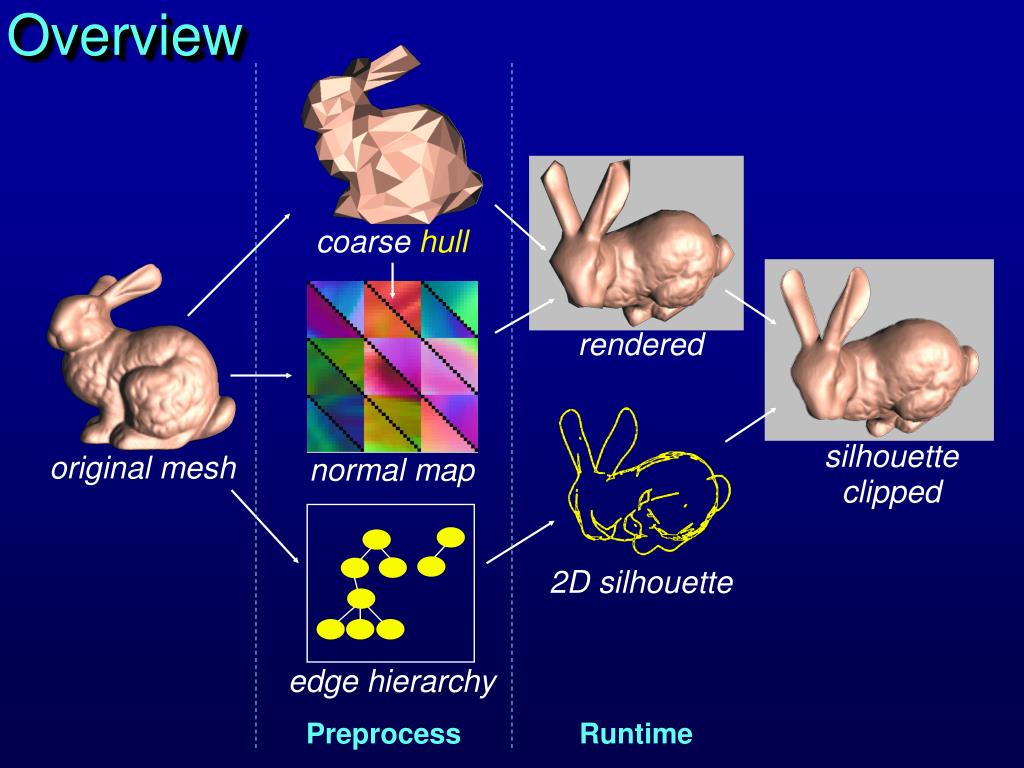

Overview

coarse hull

rendered

silhouetteclipped

original mesh

normal map

2D silhouette

edge hierarchy

Preprocess

Runtime

major contributions

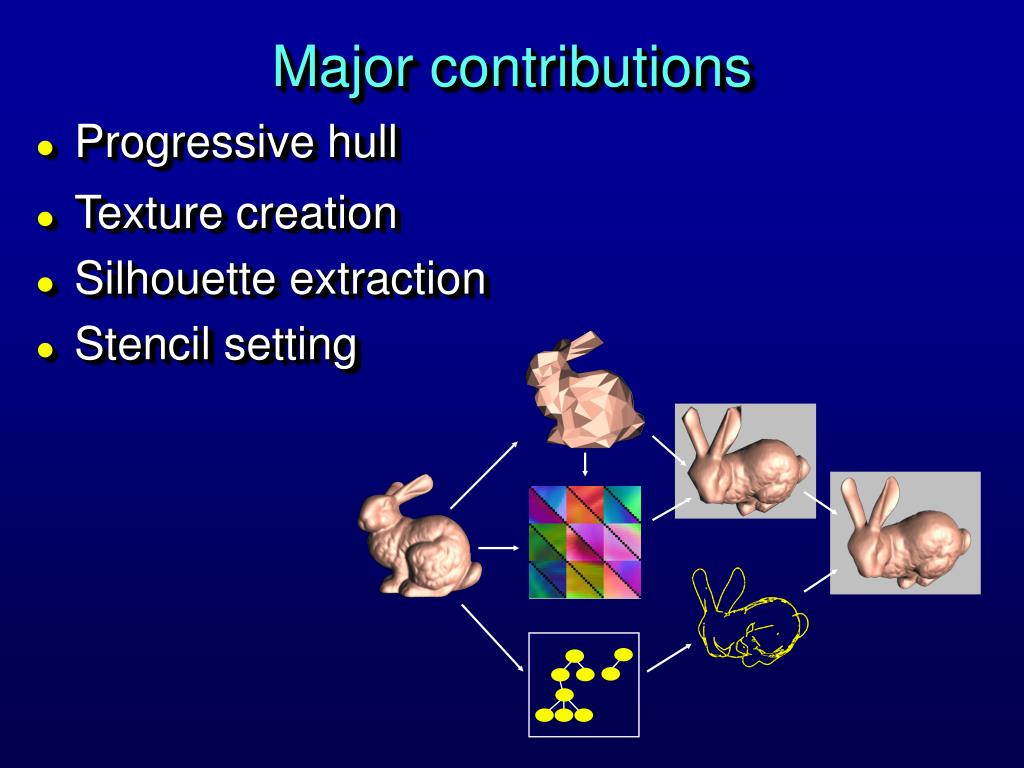

Major contributions
  • Progressive hull
  • Texture creation
  • Silhouette extraction
  • Stencil setting
major contributions10

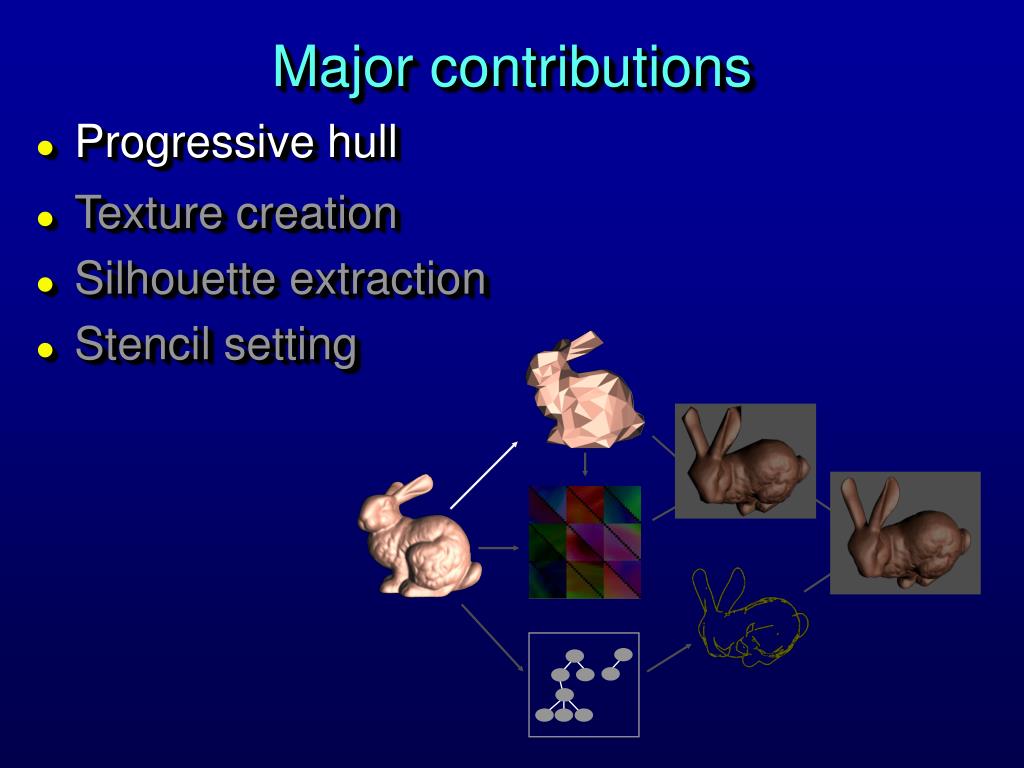

Major contributions
  • Progressive hull
  • Texture creation
  • Silhouette extraction
  • Stencil setting

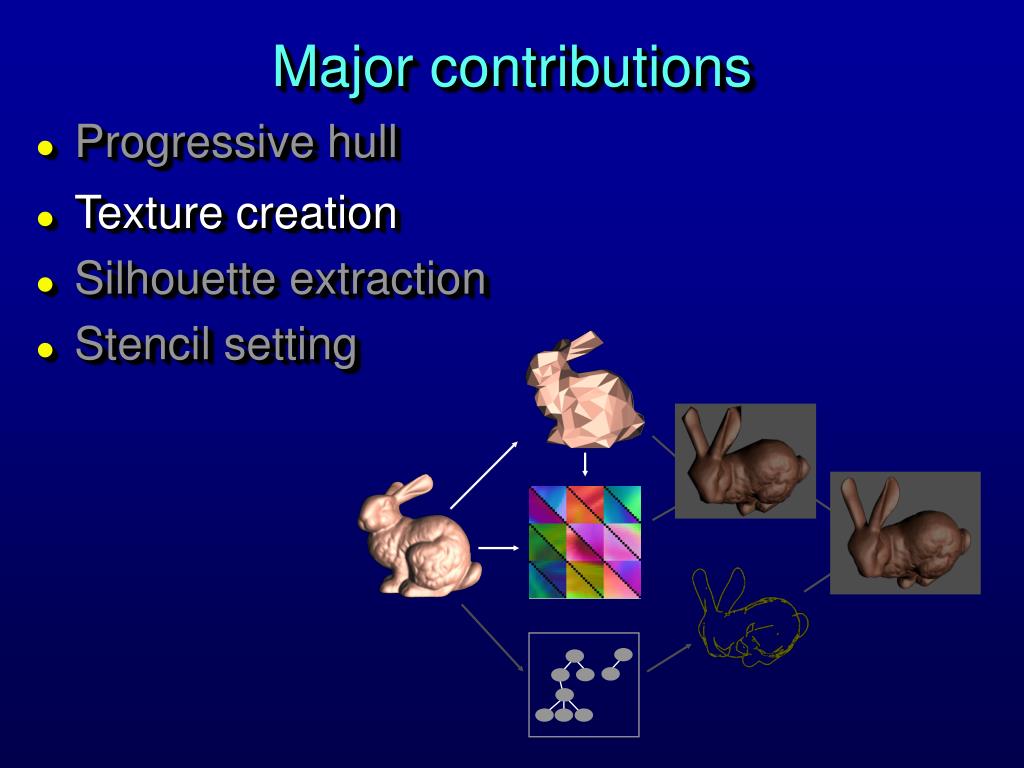

major contributions11
Major contributions
  • Progressive hull
  • Texture creation
  • Silhouette extraction
  • Stencil setting

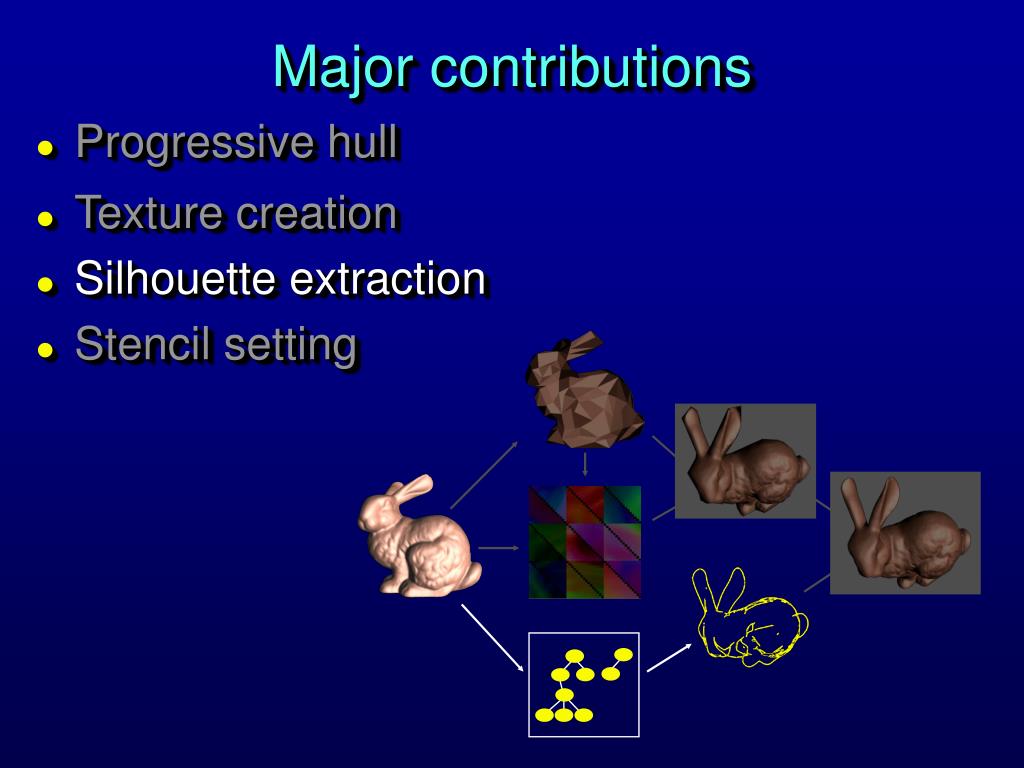

major contributions12
Major contributions
  • Progressive hull
  • Texture creation
  • Silhouette extraction
  • Stencil setting
major contributions13

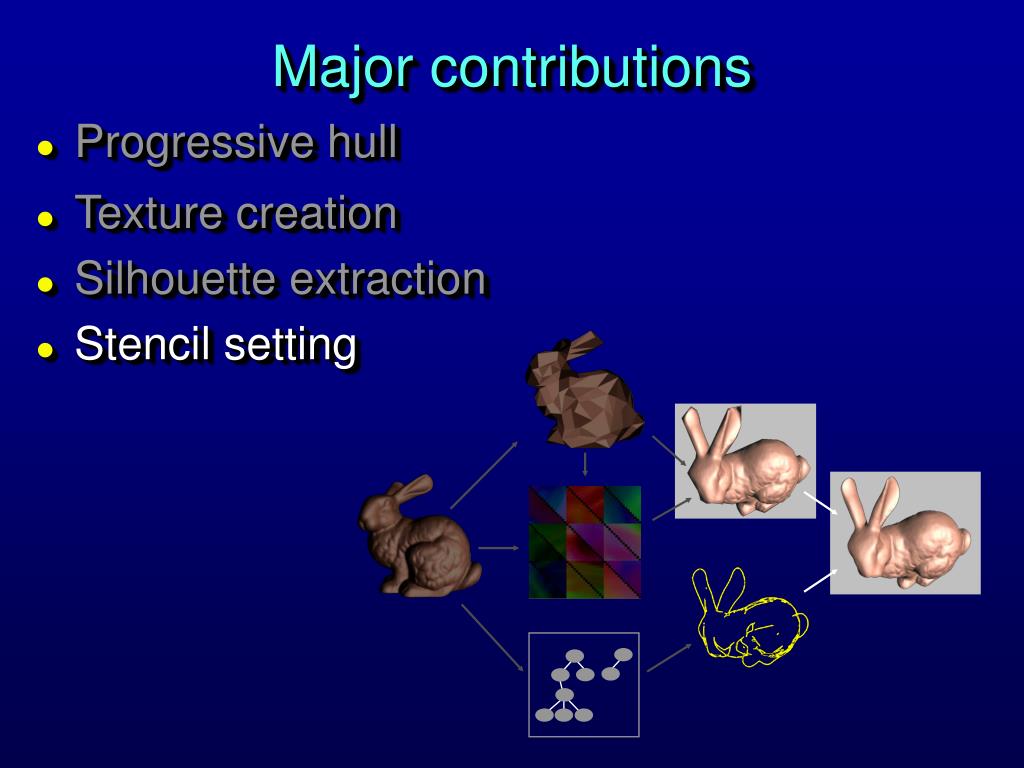

Major contributions
  • Progressive hull
  • Texture creation
  • Silhouette extraction
  • Stencil setting
coarse hull

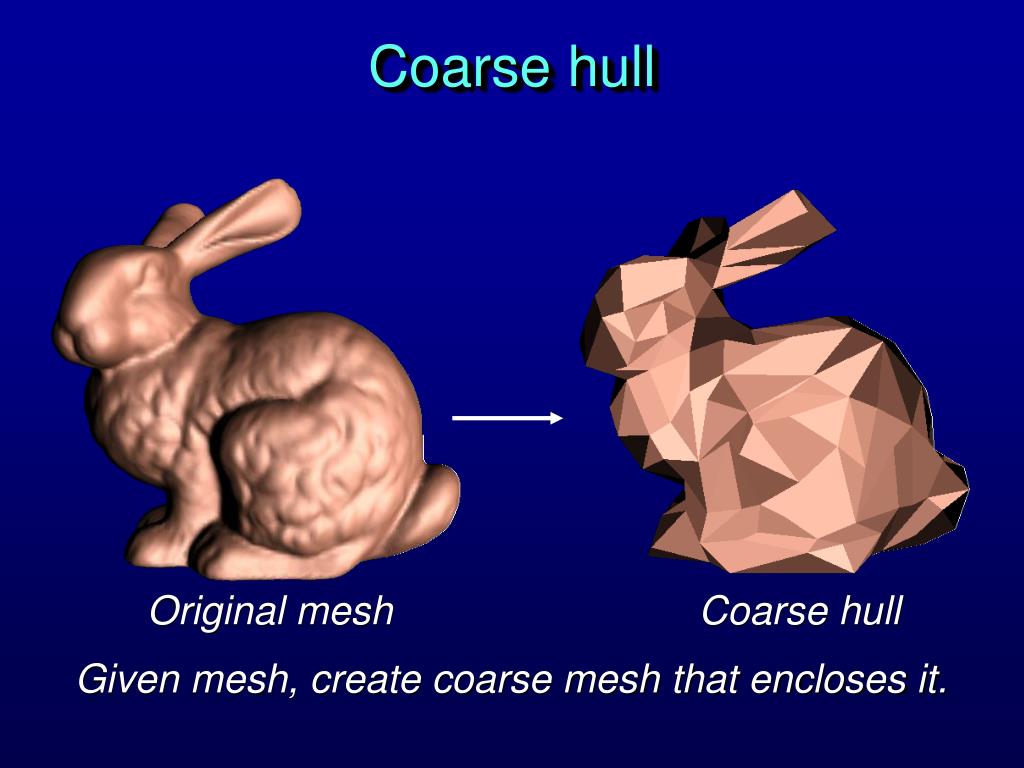

Coarse hull

Original mesh

Coarse hull

Given mesh, create coarse mesh that encloses it.

progressive hull

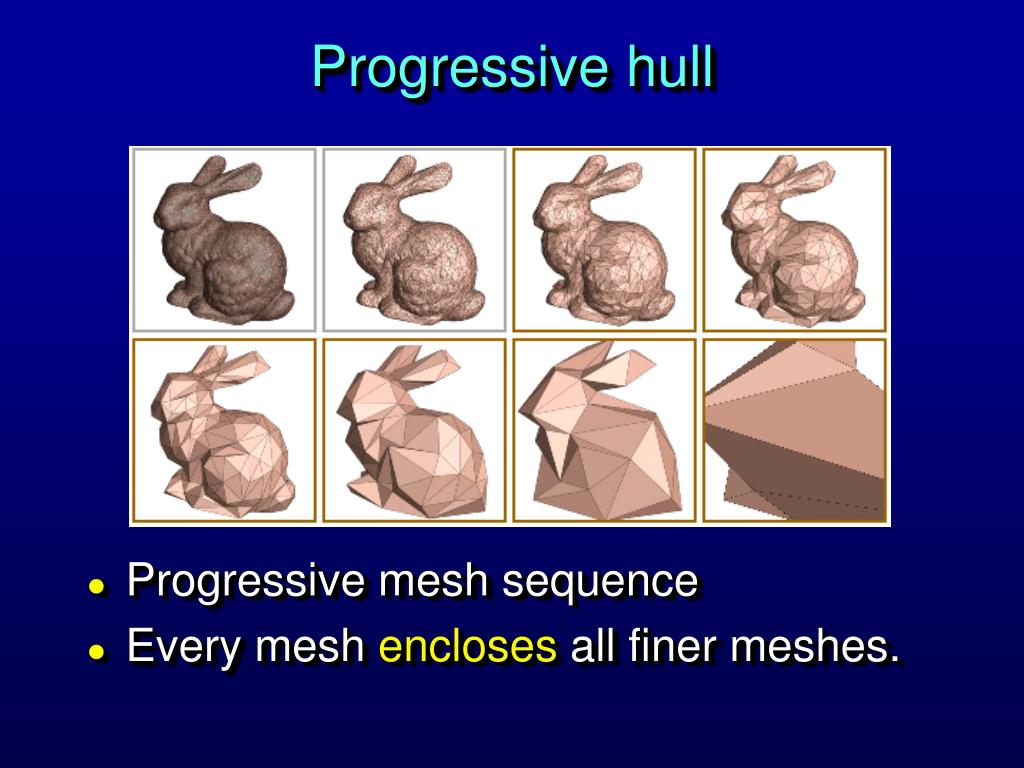

Progressive hull
  • Progressive mesh sequence
  • Every mesh encloses all finer meshes.
edge collapse

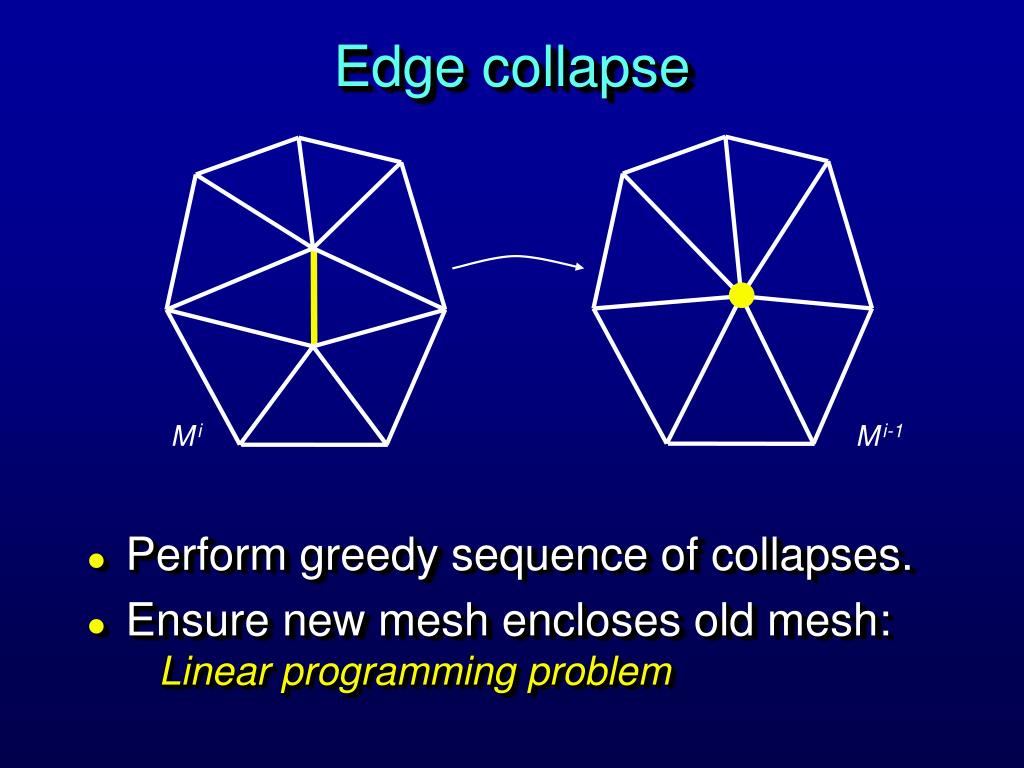

Edge collapse
  • Perform greedy sequence of collapses.
  • Ensure new mesh encloses old mesh: Linear programming problem

Mi

Mi-1

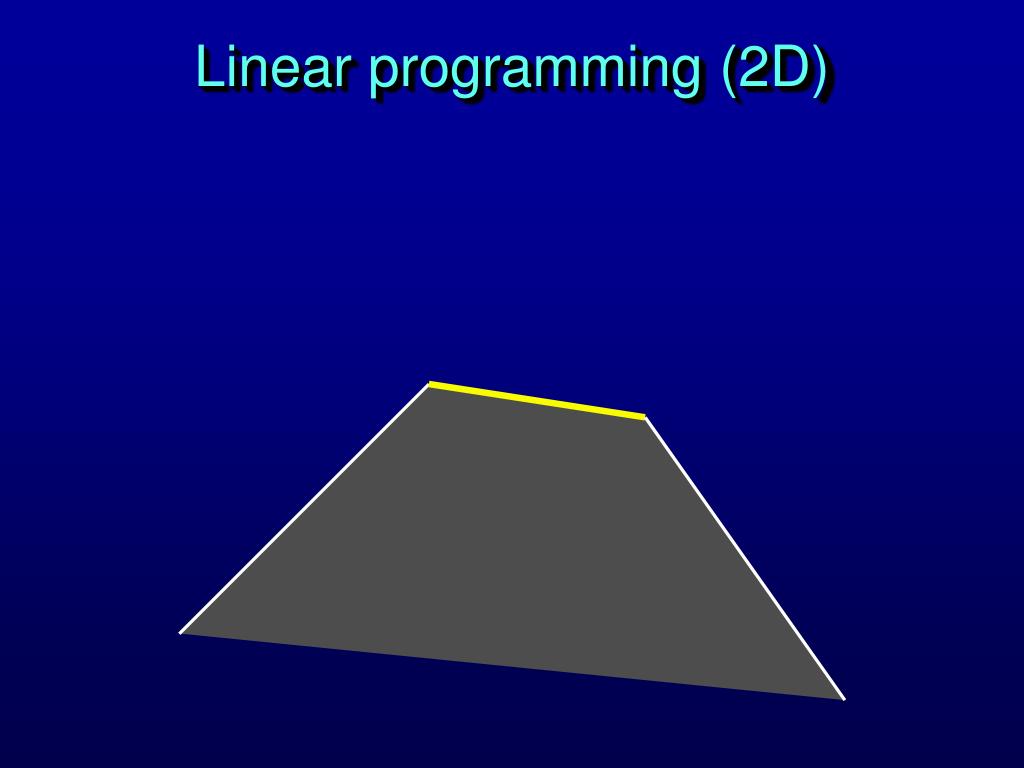

linear programming 2d23

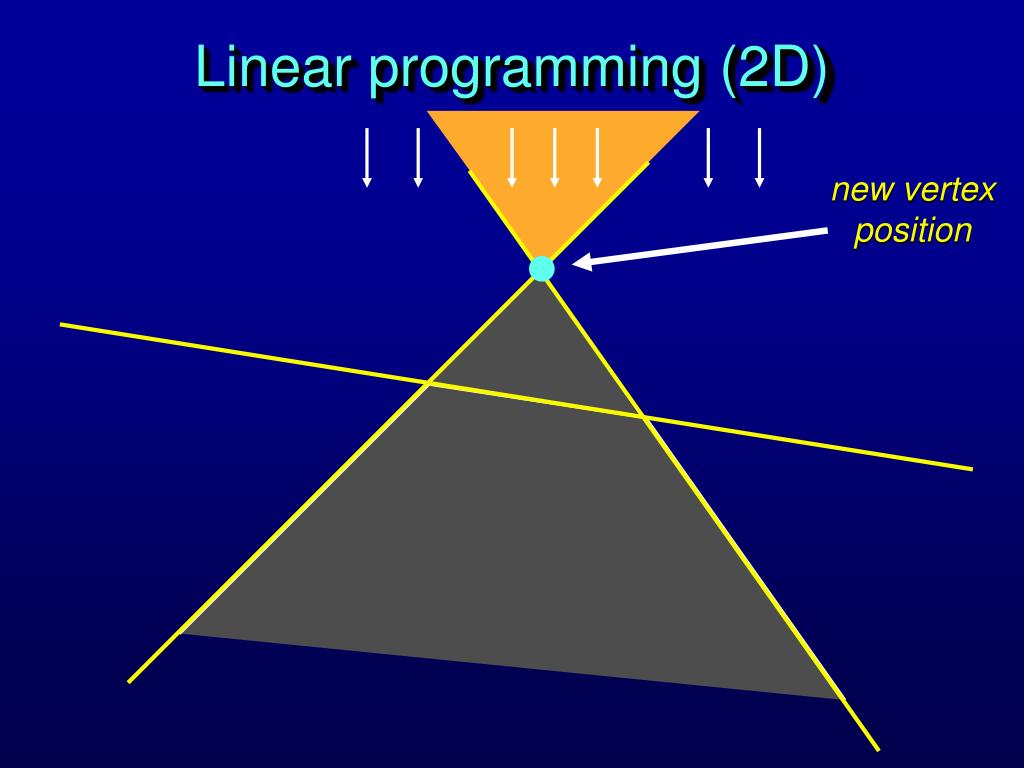

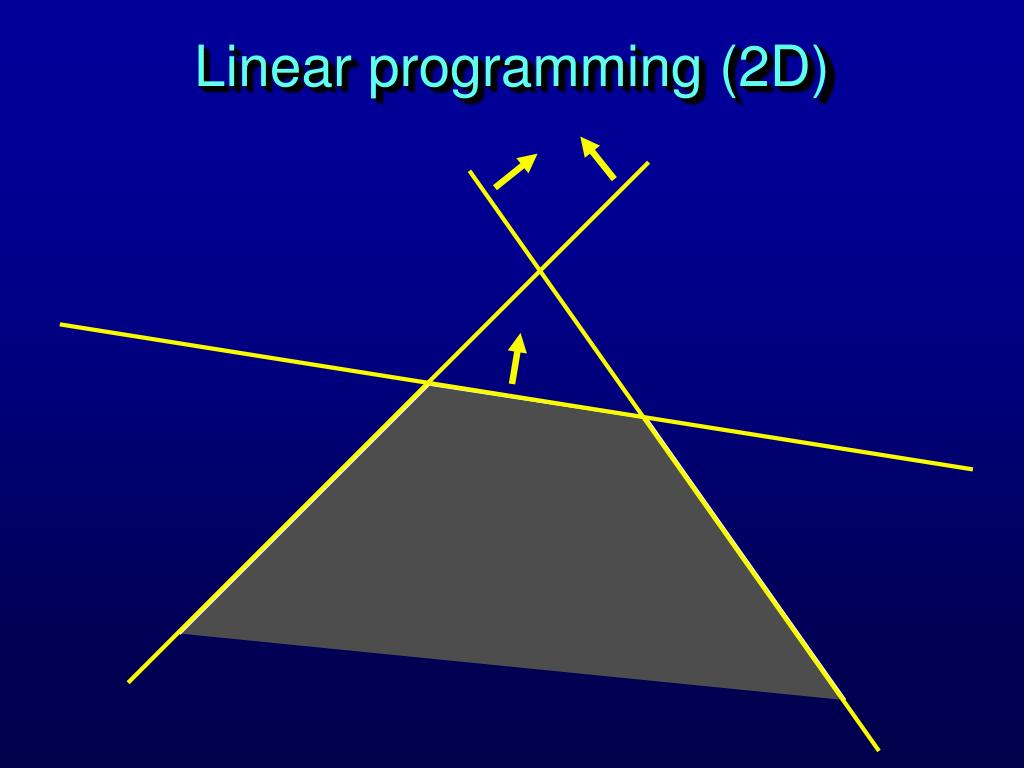

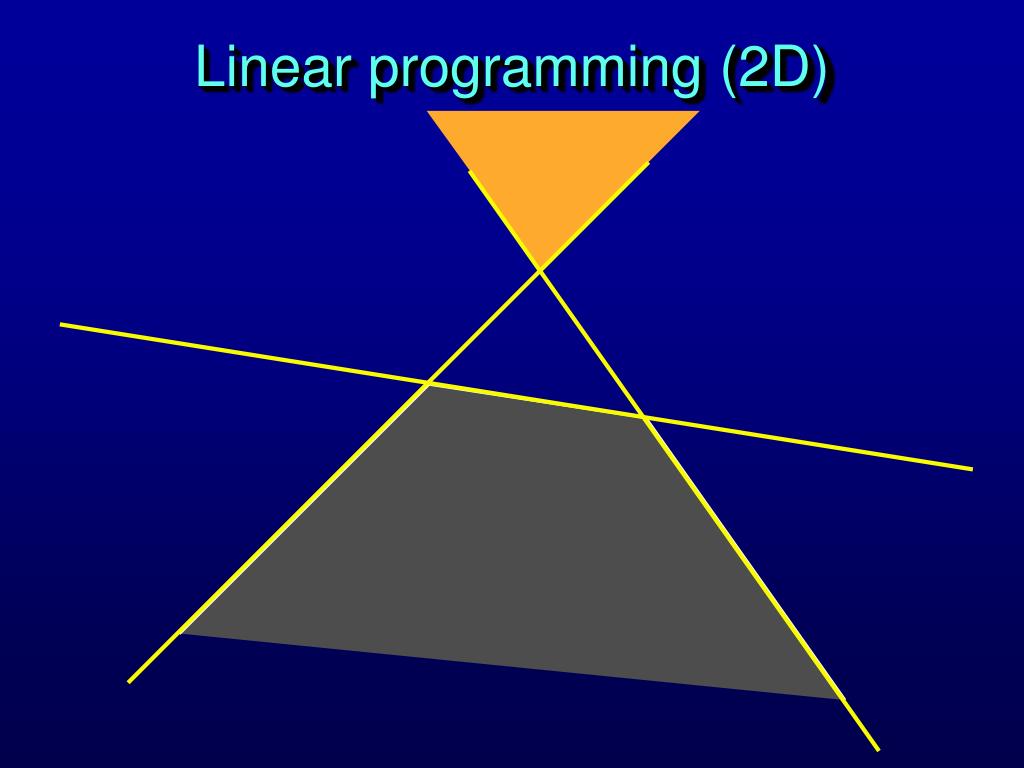

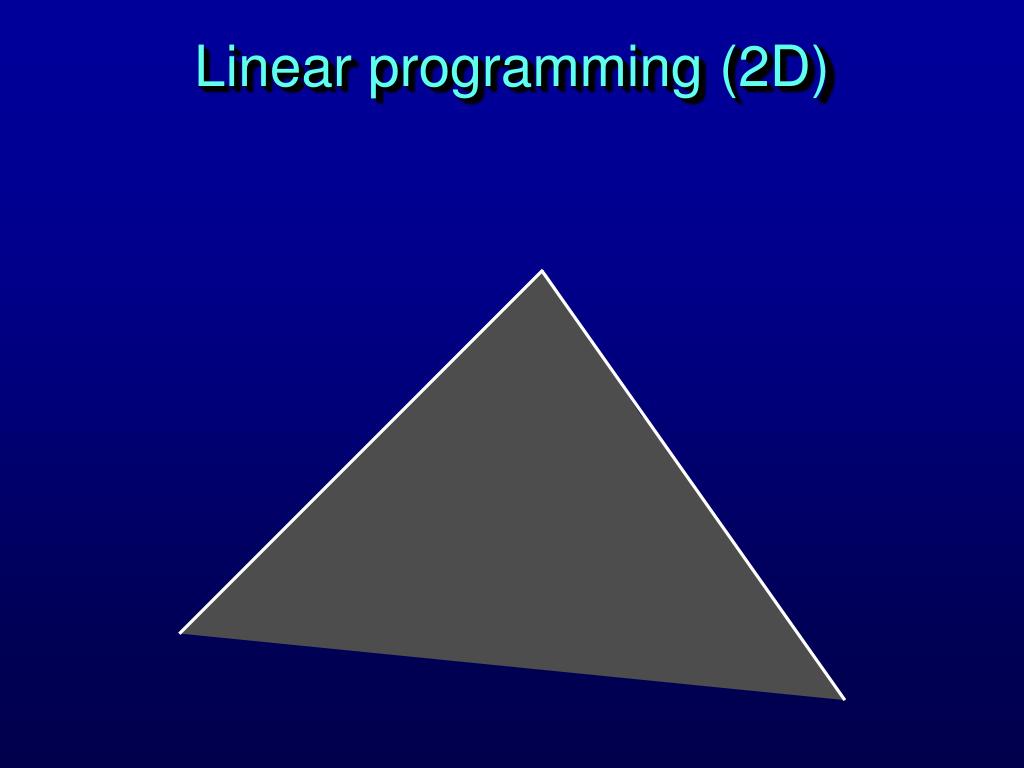

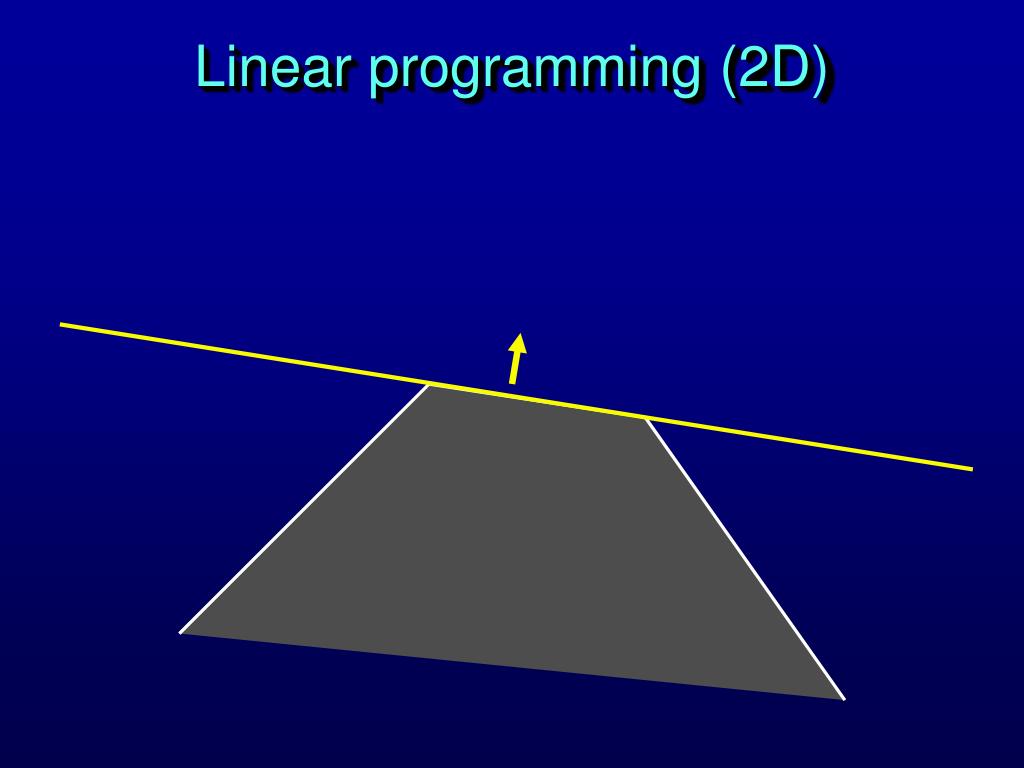

Linear programming (2D)

new vertexposition

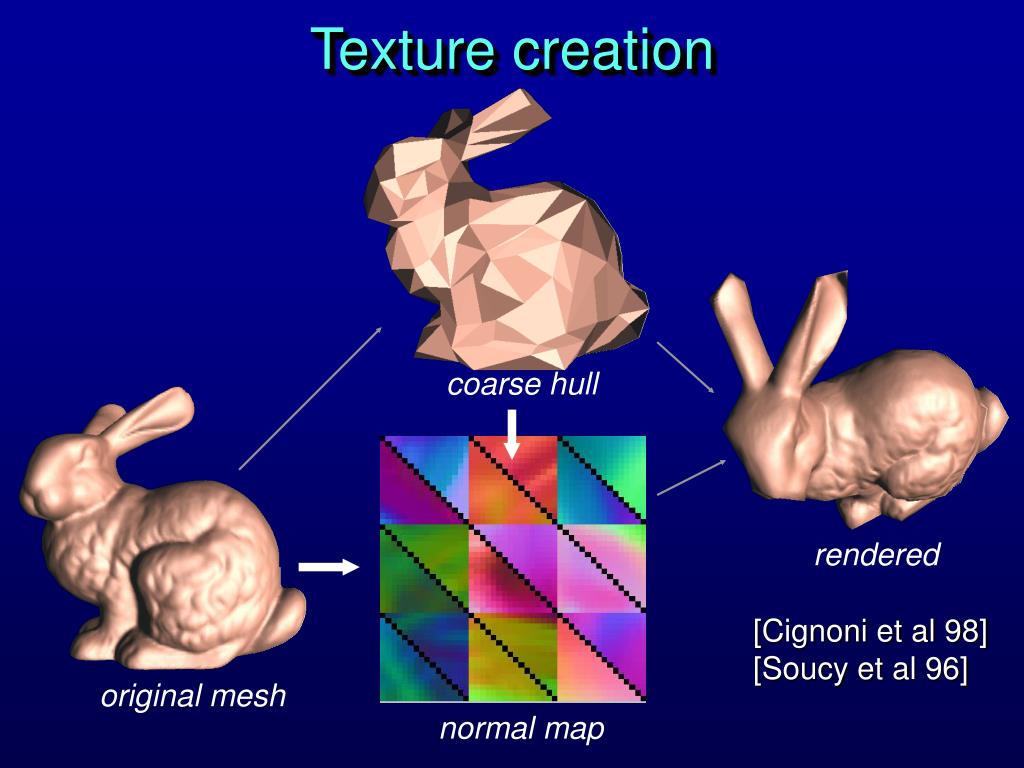

texture creation
Texture creation

coarse hull

rendered

[Cignoni et al 98]

[Soucy et al 96]

original mesh

normal map

texture creation27

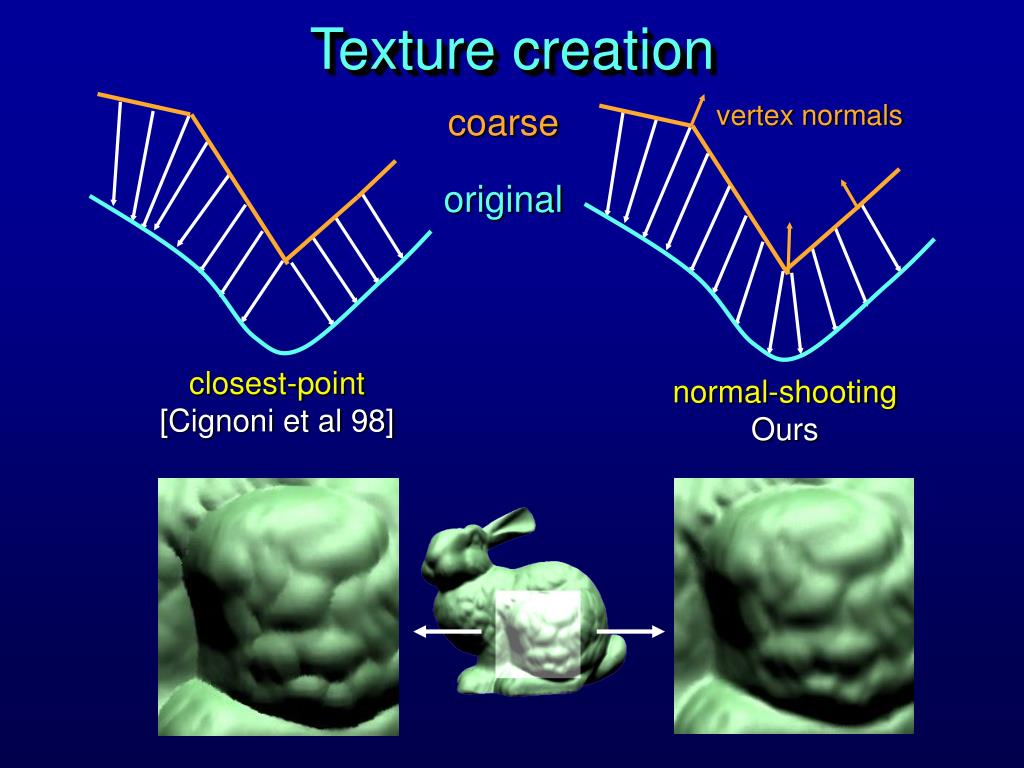

Texture creation

vertex normals

coarse

original

closest-point

[Cignoni et al 98]

normal-shooting

Ours

silhouette extraction

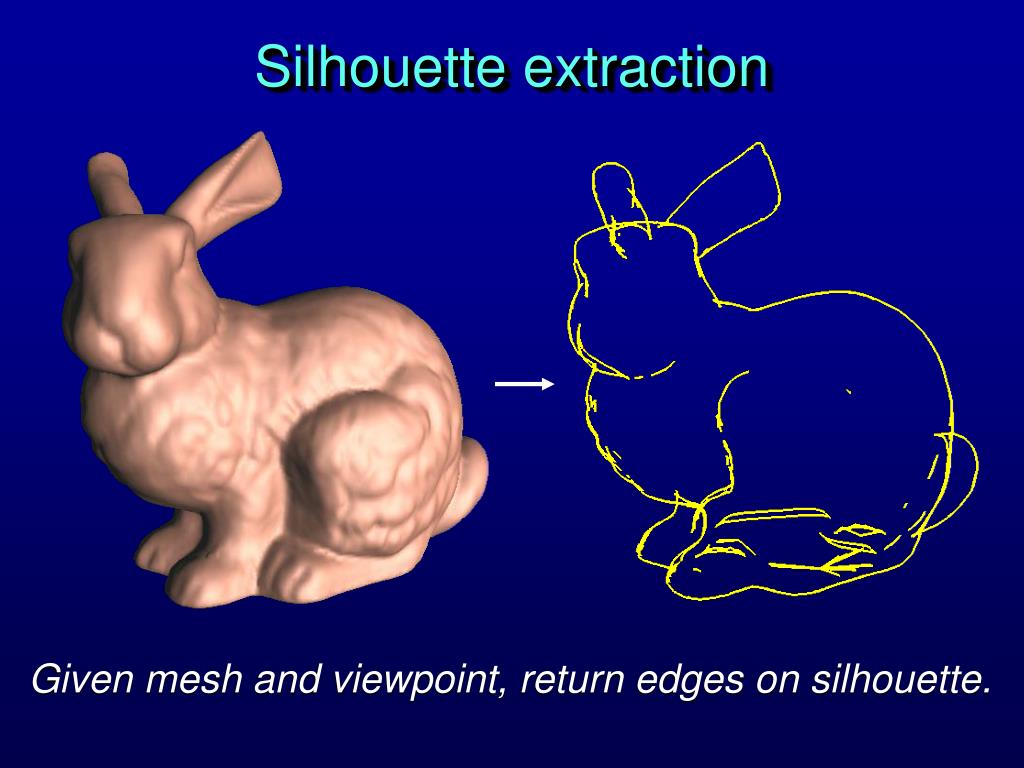

Silhouette extraction

Given mesh and viewpoint, return edges on silhouette.

what is a silhouette edge

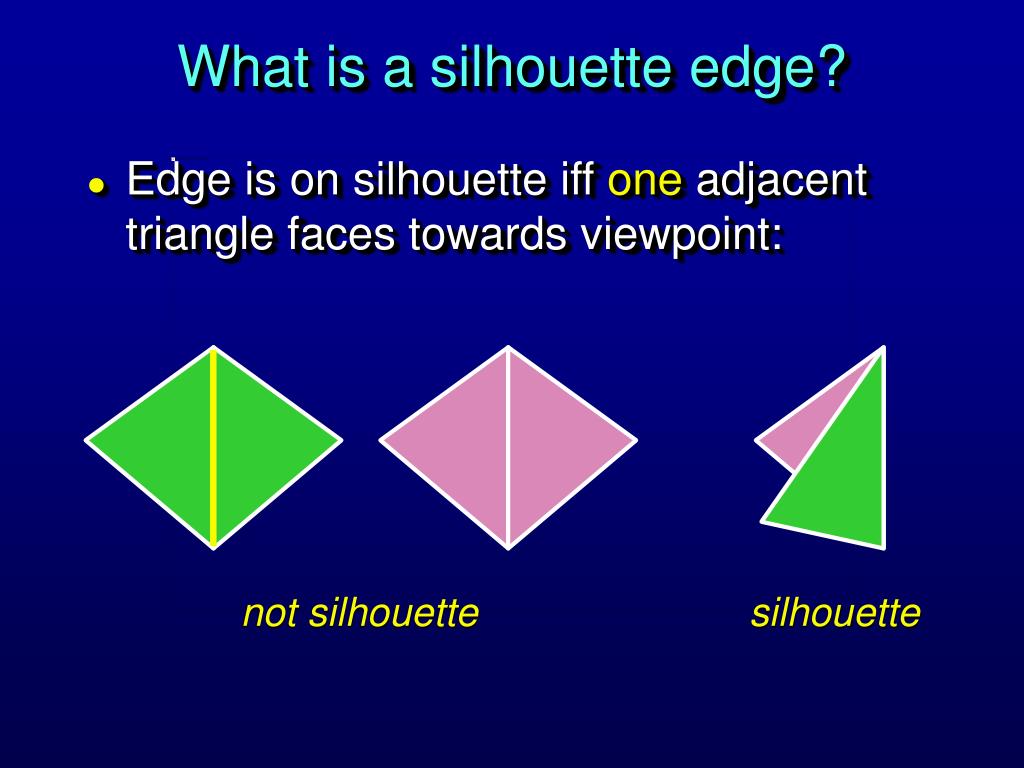

What is a silhouette edge?
  • Edge is on silhouette iff one adjacent triangle faces towards viewpoint:

not silhouette

silhouette

related schemes

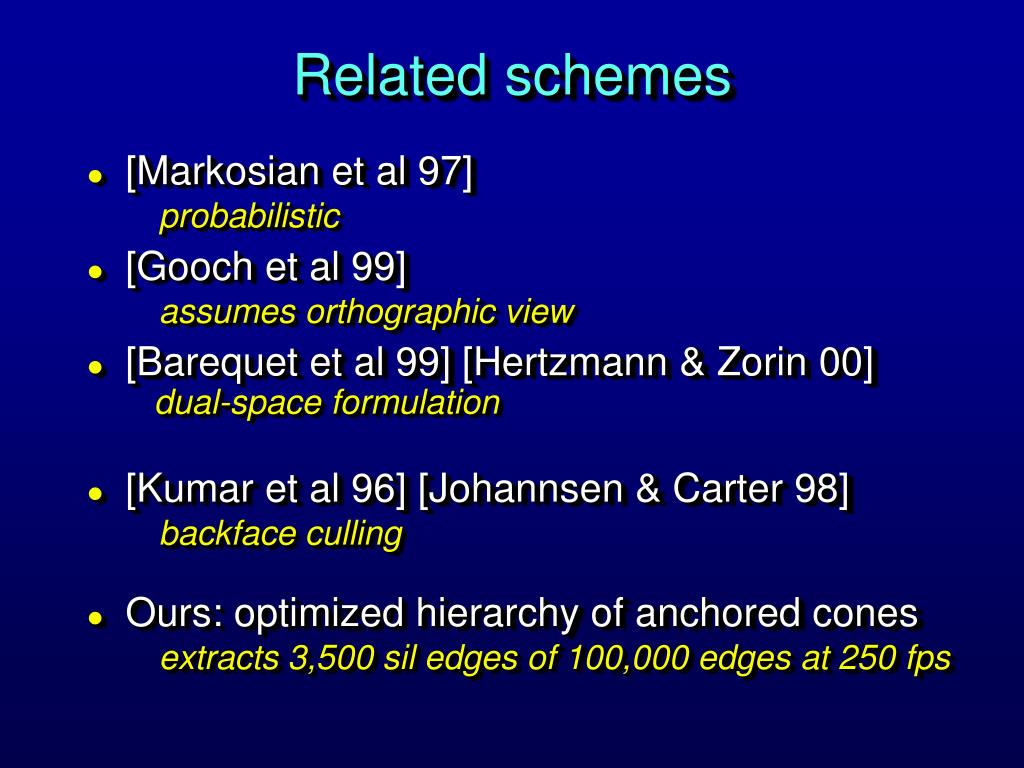

Related schemes
  • [Markosian et al 97]probabilistic
  • [Gooch et al 99] assumes orthographic view
  • [Barequet et al 99] [Hertzmann & Zorin 00] dual-space formulation
  • [Kumar et al 96] [Johannsen & Carter 98] backface culling
  • Ours: optimized hierarchy of anchored conesextracts 3,500 sil edges of 100,000 edges at 250 fps
hierarchical culling
Hierarchical culling
  • Each node contains:
    • cluster of mesh edges
    • spatial culling primitive
hierarchical culling32

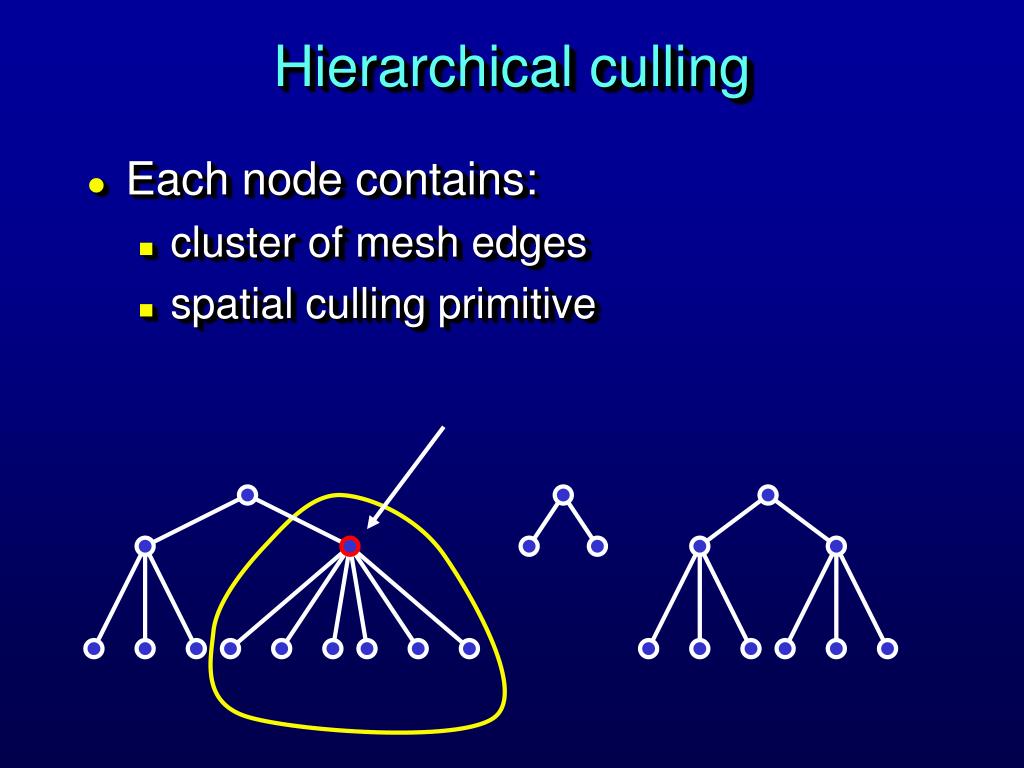

Hierarchical culling
  • Each node contains:
    • cluster of mesh edges
    • spatial culling primitive
spatial culling primitive

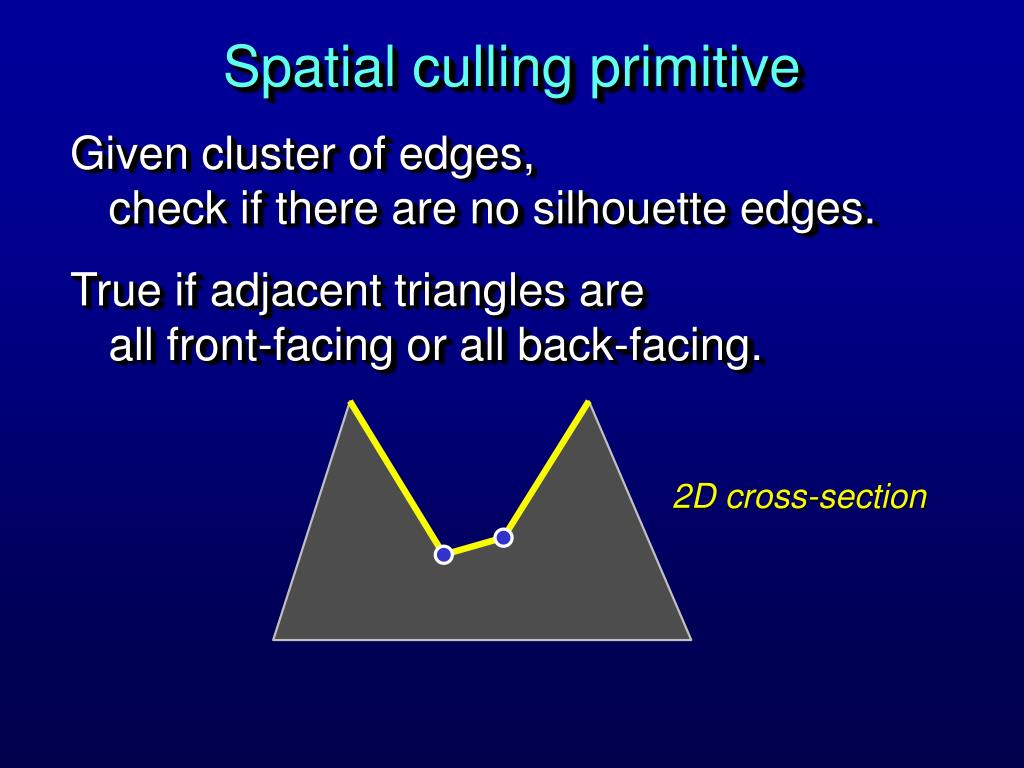

Spatial culling primitive

Given cluster of edges,check if there are no silhouette edges.

True if adjacent triangles are all front-facing or all back-facing.

2D cross-section

spatial culling primitive34

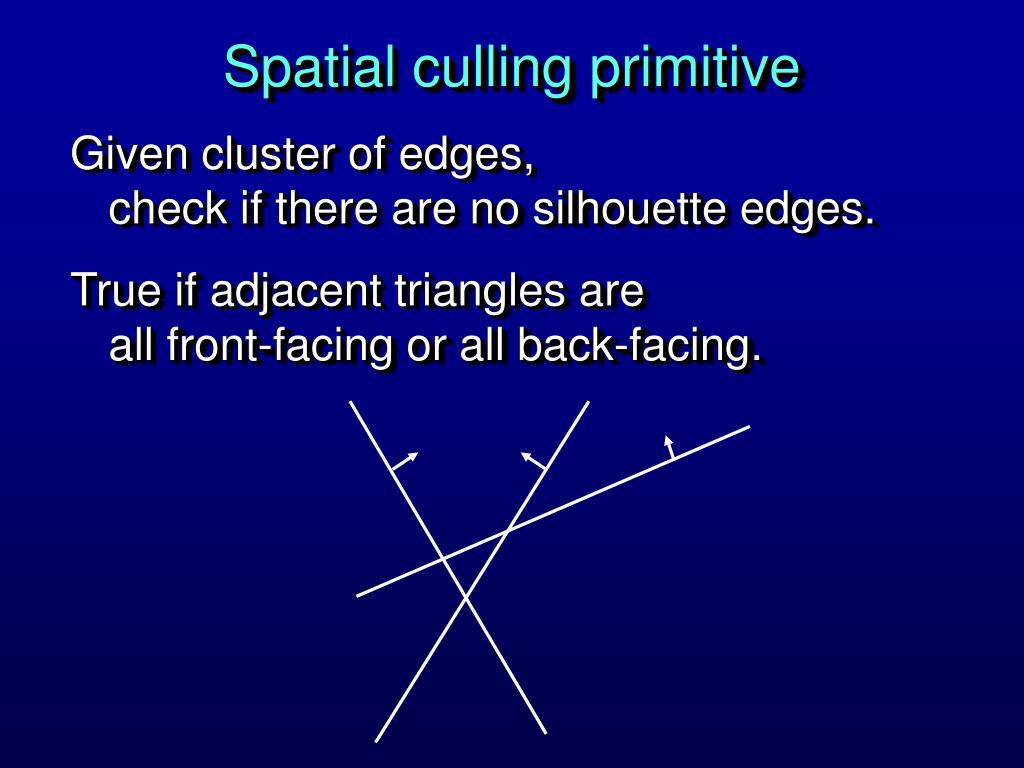

Spatial culling primitive

Given cluster of edges,check if there are no silhouette edges.

True if adjacent triangles are all front-facing or all back-facing.

2D cross-section

spatial culling primitive35
Spatial culling primitive

Given cluster of edges,check if there are no silhouette edges.

True if adjacent triangles are all front-facing or all back-facing.

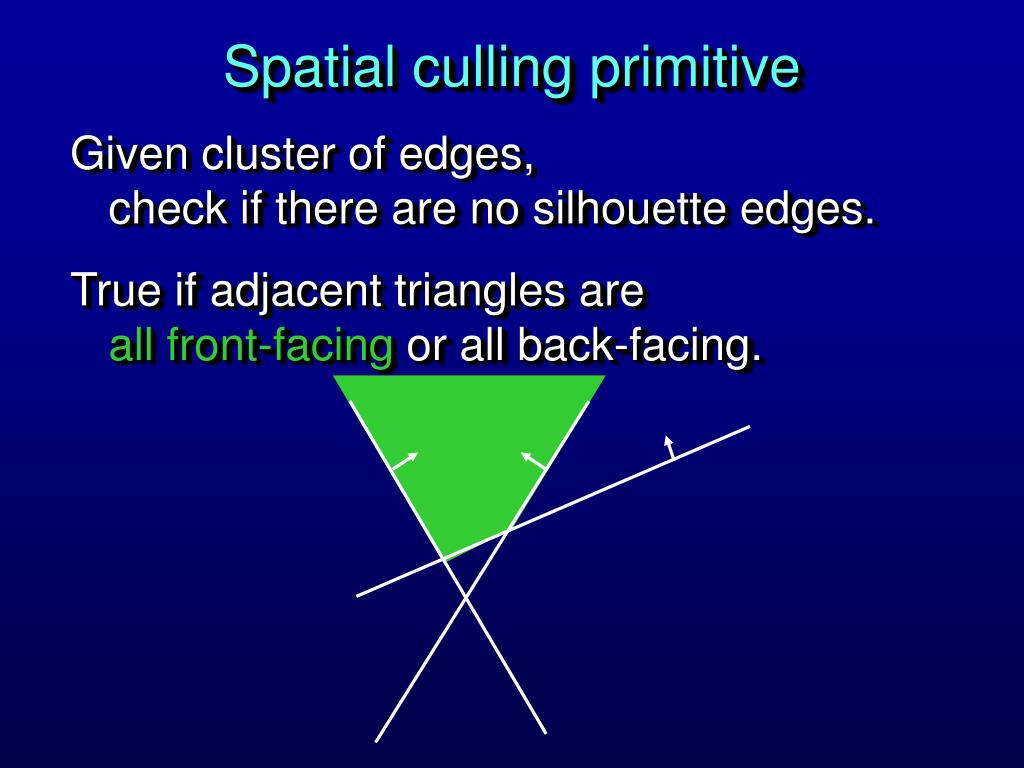

spatial culling primitive36
Spatial culling primitive

Given cluster of edges,check if there are no silhouette edges.

True if adjacent triangles are all front-facing or all back-facing.

spatial culling primitive37

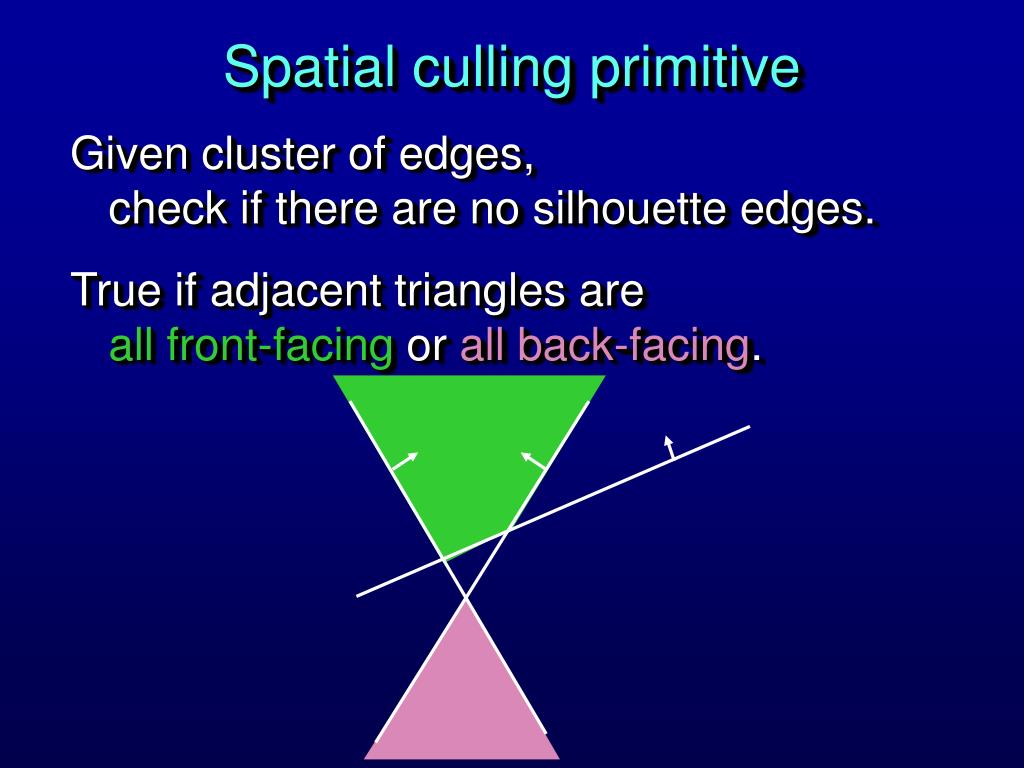

Spatial culling primitive

Given cluster of edges,check if there are no silhouette edges.

True if adjacent triangles are all front-facing or all back-facing.

anchored cone primitive

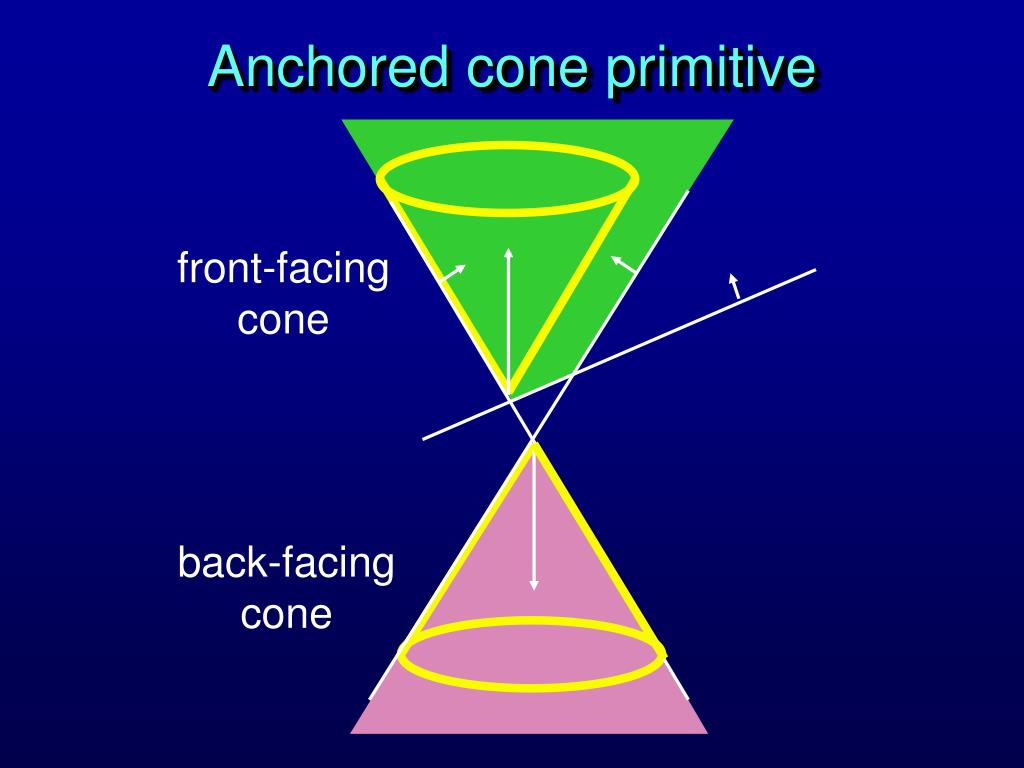

Anchored cone primitive

front-facing

cone

back-facing

cone

anchored cone primitive39

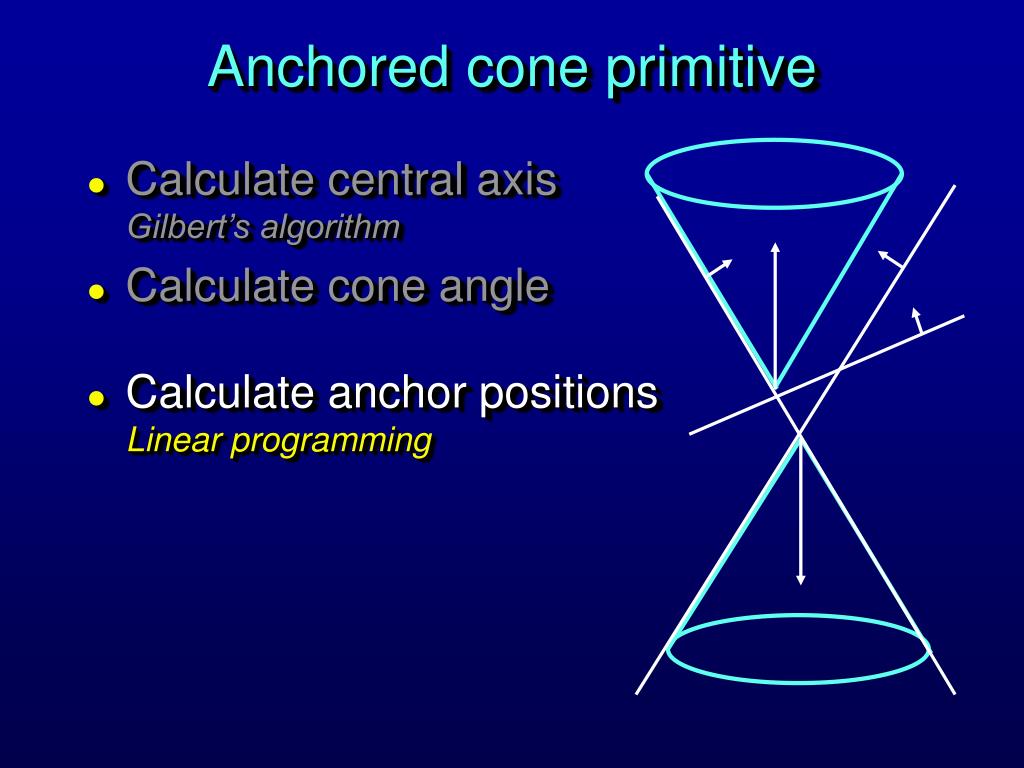

Anchored cone primitive
  • Calculate central axisGilbert’s algorithm
  • Calculate cone angle
  • Calculate anchor positionsLinear programming
anchored cone primitive40

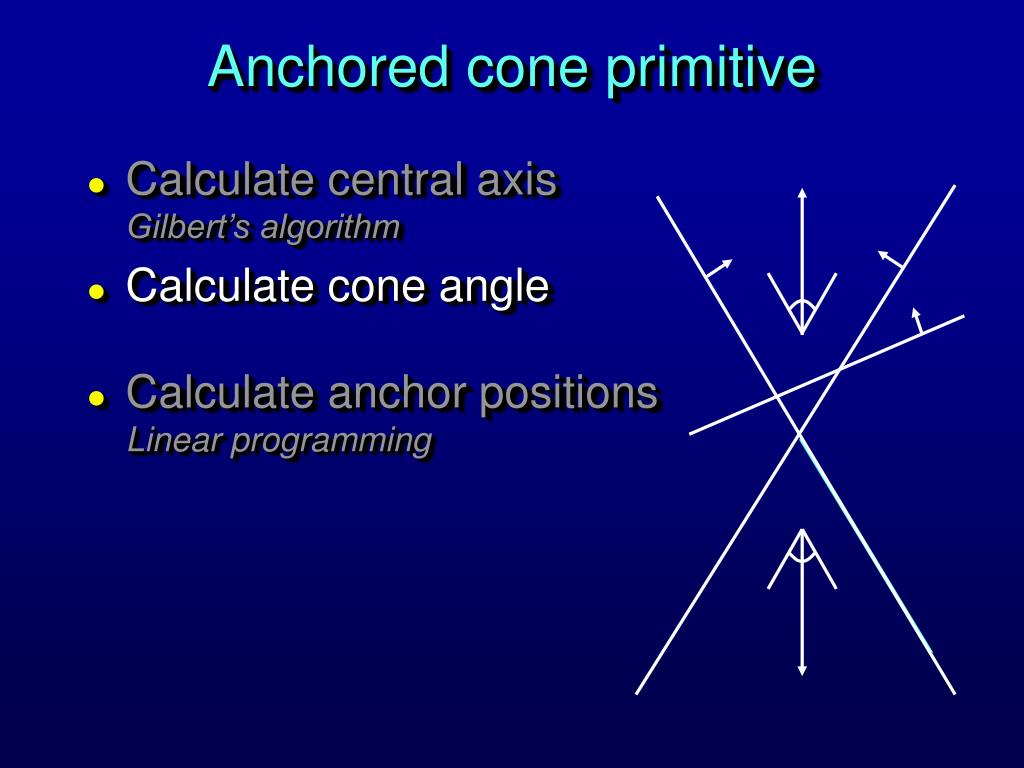

Anchored cone primitive
  • Calculate central axisGilbert’s algorithm
  • Calculate cone angle
  • Calculate anchor positionsLinear programming
anchored cone primitive41
Anchored cone primitive
  • Calculate central axisGilbert’s algorithm
  • Calculate cone angle
  • Calculate anchor positionsLinear programming
hierarchy construction

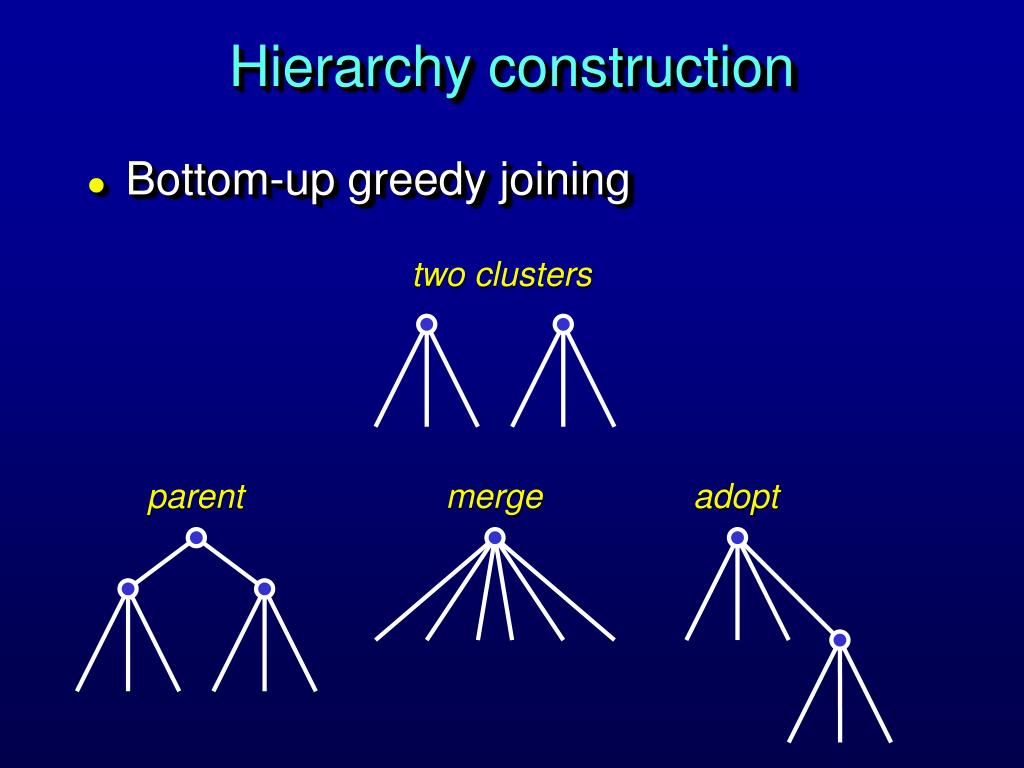

Hierarchy construction
  • Bottom-up greedy joining

two clusters

parent

merge

adopt

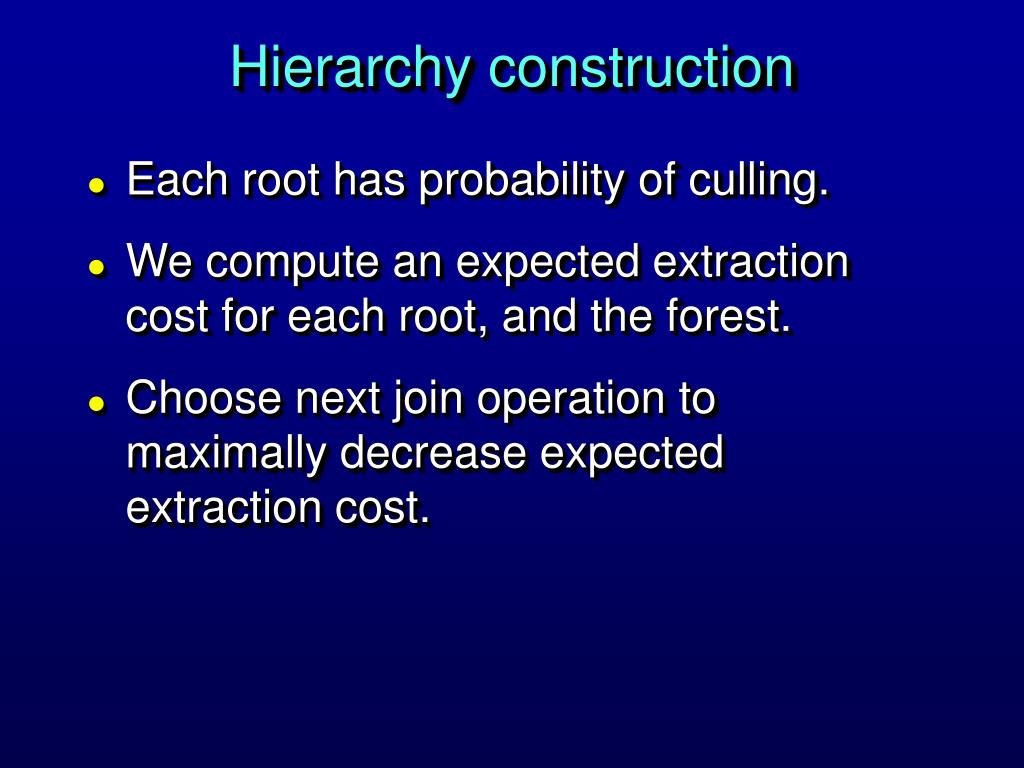

hierarchy construction43
Hierarchy construction
  • Each root has probability of culling.
  • We compute an expected extraction cost for each root, and the forest.
  • Choose next join operation to maximally decrease expected extraction cost.

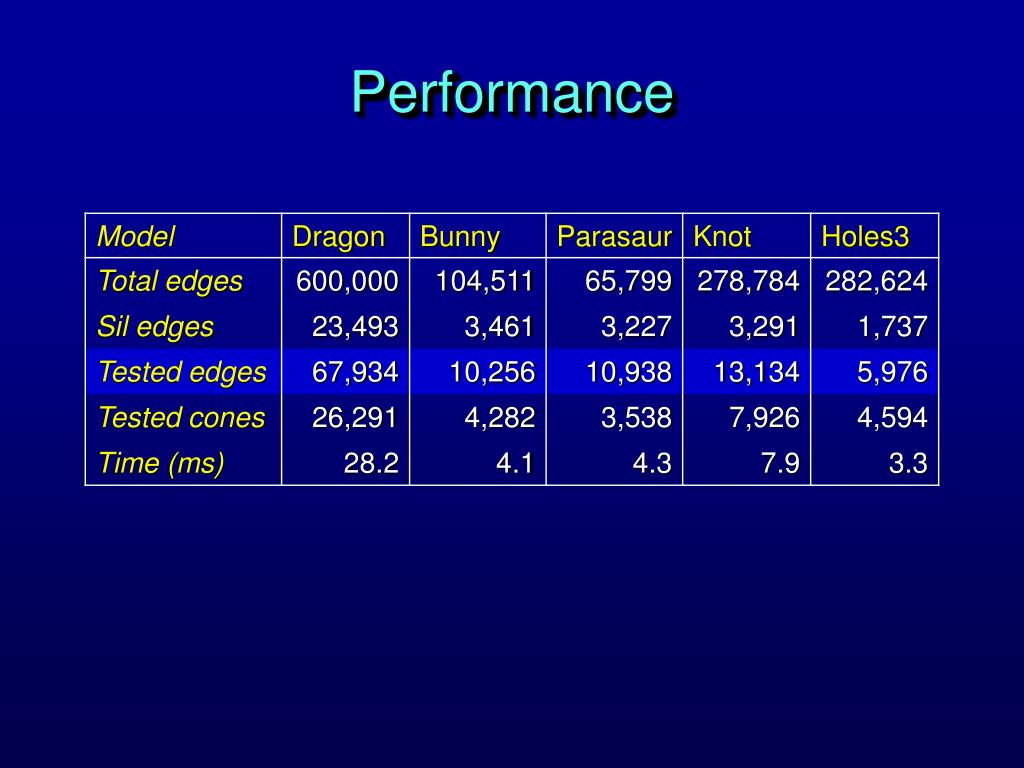

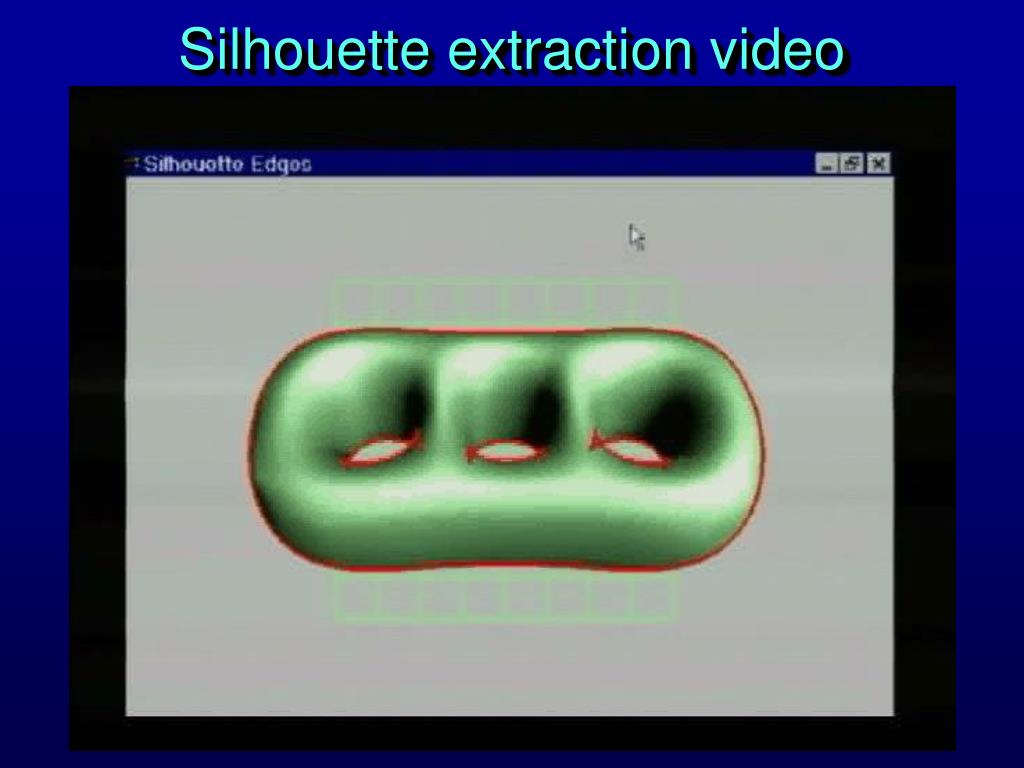

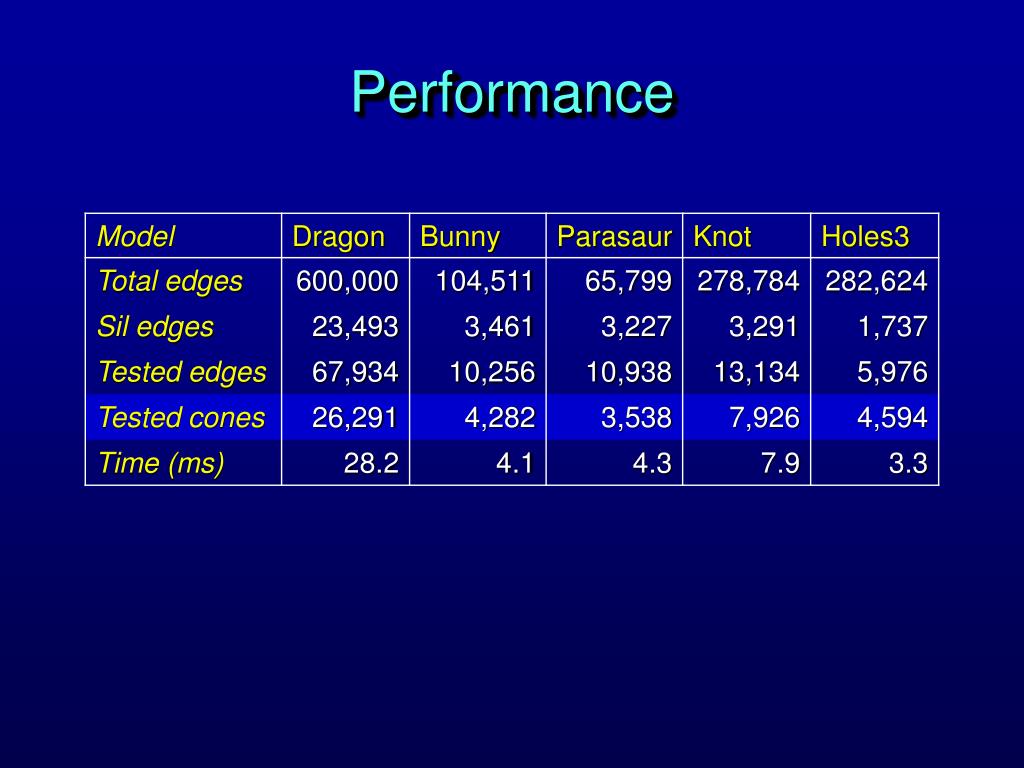

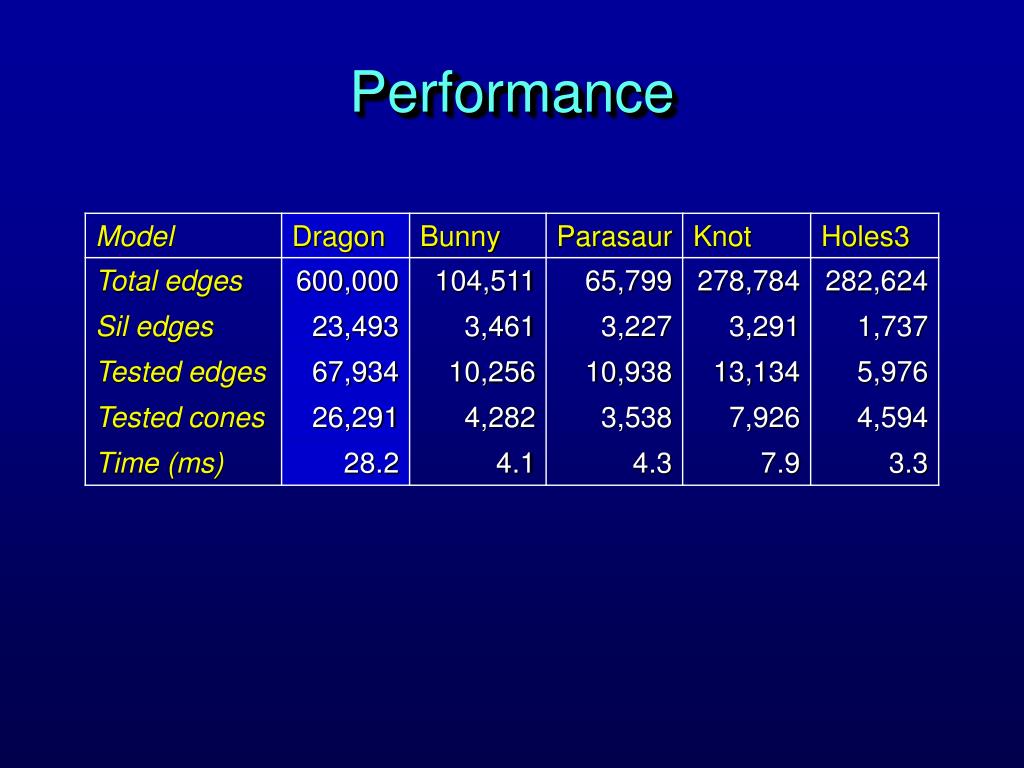

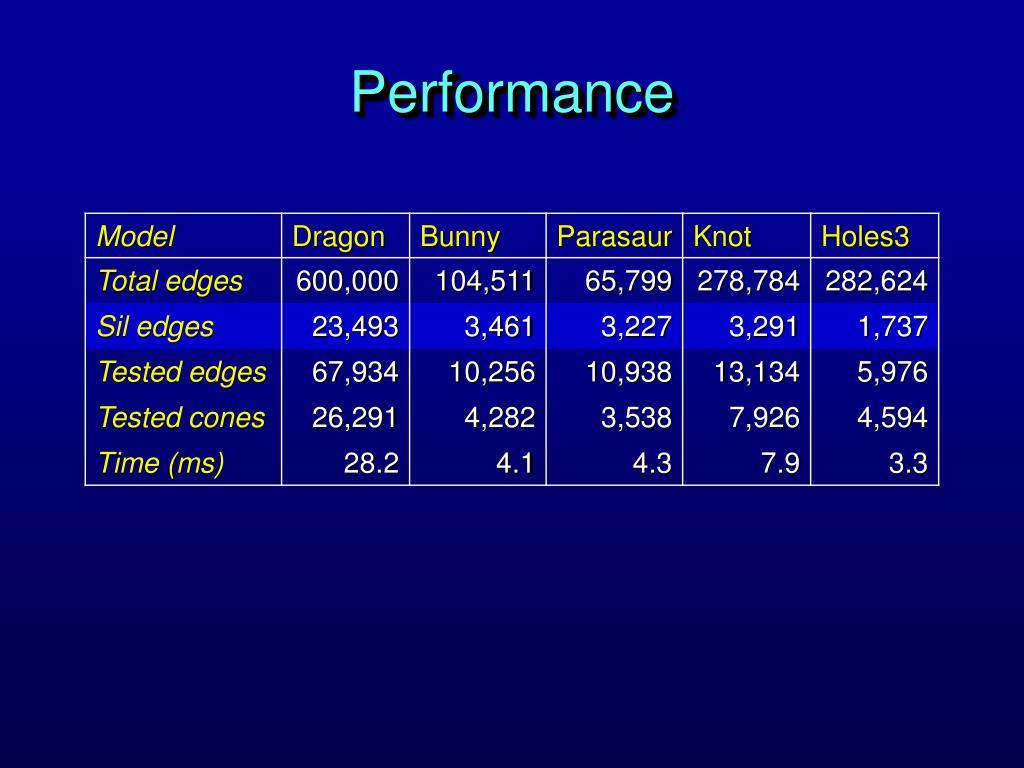

stencil setting algorithm
Stencil setting algorithm
  • Algorithm inspired by concave polygon-filling algorithm.
  • Order silhouette edges into loops.
  • Each loop drawn as fan of triangles:
    • Triangle front-facing  stencil += 1
    • Triangle back-facing  stencil –= 1
silhouette antialiasing
Silhouette antialiasing
  • Transfer stencil to alpha buffer: stencil = 0  alpha = 0.0 stencil = 1  alpha = 1.0
  • Render silhouette edges in alpha buffer as antialiased line segments.
  • Render coarse hull subject to alpha buffer.
silhouette clipping demos
Silhouette clipping demos

Parasaur

3x speedup

Knot

8x speedup

timing analysis

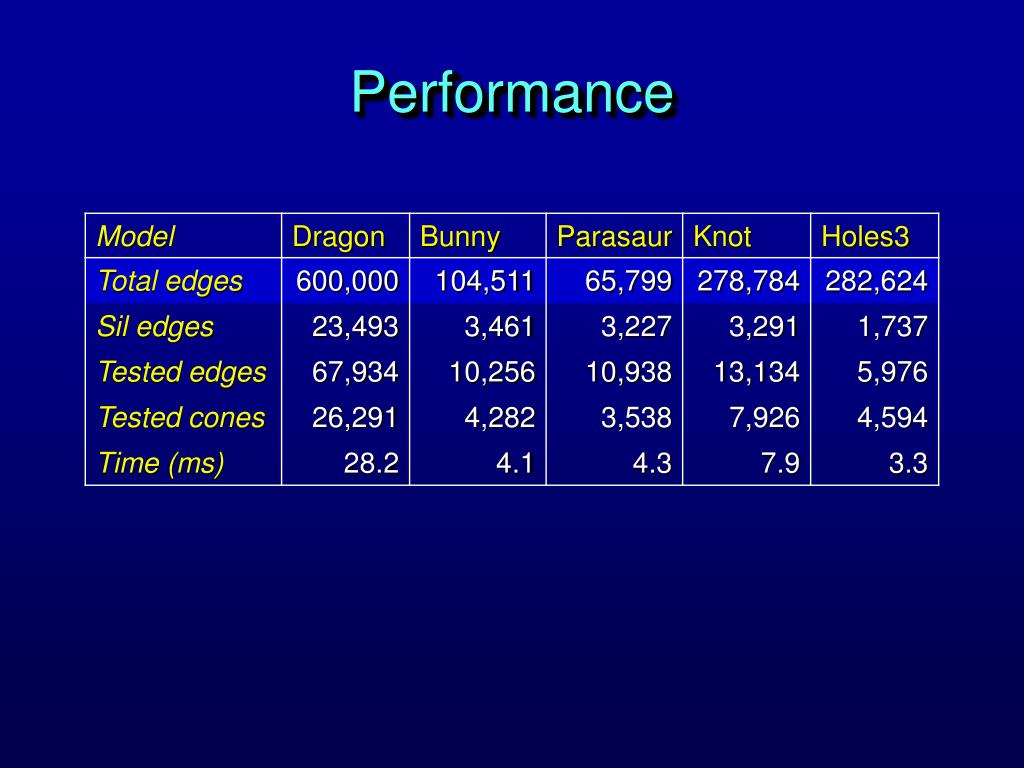

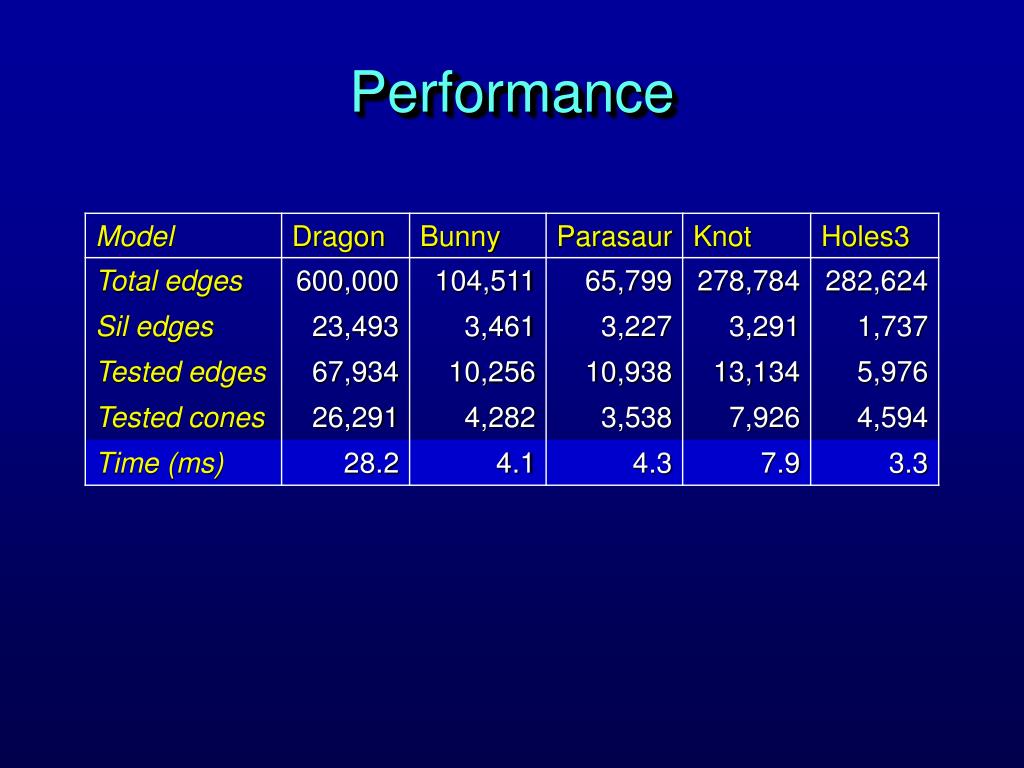

Timing analysis

All times in milliseconds

timing analysis70
Timing analysis

All times in milliseconds

timing analysis71
Timing analysis

All times in milliseconds

timing analysis72
Timing analysis

All times in milliseconds

summary
Summary
  • Silhouette clipping & antialiasing
  • Progressive hull
  • Normal-shooting parametrization
  • Fast silhouette extraction
future work
Future work
  • Handle internal silhouettes
  • Silhouette level-of-detail
  • Visual hull simplification
