State Space 3 Chapter 4

1. State Space 3Chapter 4 Heuristic Search

2. Backtrack • Depth First • Breadth First All work if we have well-defined: • Goal state • Start state • State transition rules But could take a long time Three Algorithms

3. An informed guess that guides search through a state space • Can result in a suboptimal solution Heuristic

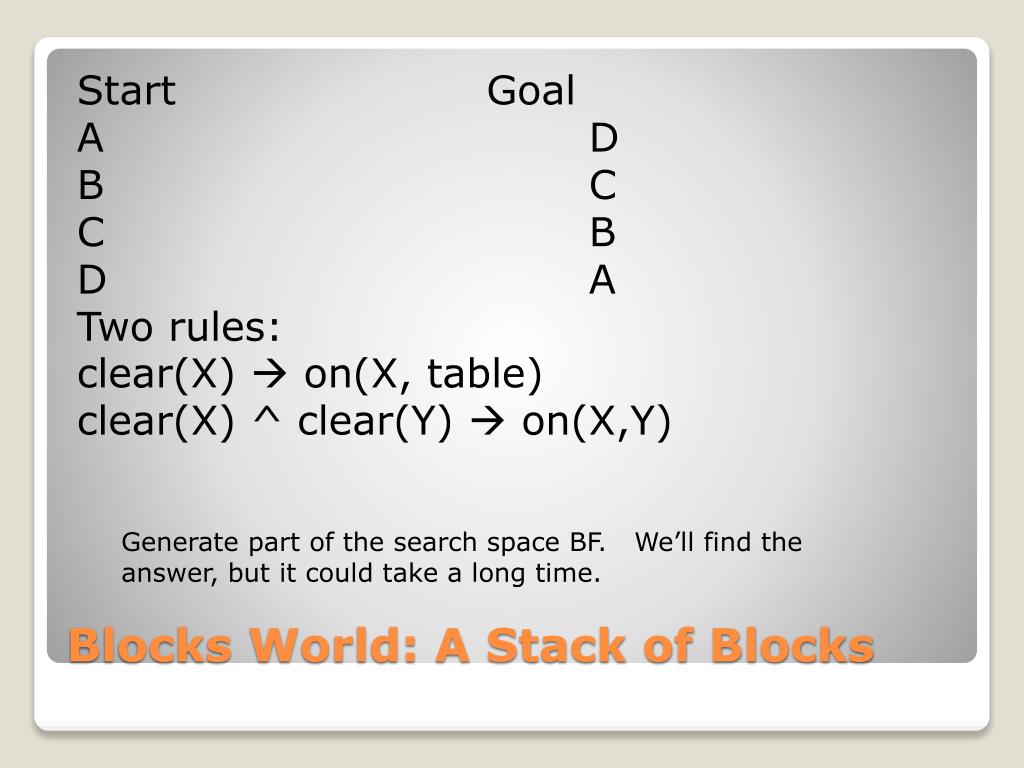

4. Start Goal A D B C C B D A Two rules: clear(X)  on(X, table) clear(X) ^ clear(Y)  on(X,Y) Generate part of the search space BF. We’ll find the answer, but it could take a long time. Blocks World: A Stack of Blocks

5. For each block that is resting where it should, subtract 1 • For each block that is not resting where it should, add 1 Heuristic 1

6. At every level, generate all children • Continue down path with lowest score Define three functions: f(n) = g(n) + h(n) Where: h(n) is the heuristic estimate for n--guides the search g(n) is path length from start to current node—ensures that we choose node closest to root when more than 1 have same h value Hill Climbing

8. Given C and CB B DA A D At level n The f(n) of each structure is the same f(n) = g(n) = (1+1-1-1) = g(n) But which is actually better Problem: heuristic is local

9. C B A D • Must be entirely undone • Goal Requires 6 moves CBDA • Goal requires only two moves Problem with local heuristics

10. Takes the entire structure into account • Subtract 1 for each block that has correct support structure • Add 1 for each block in an incorrect support structure Global Heuristic

11. Goal: D C B A C f(n) = g(n) + (3+2+1+0) =g(n) + 6 B A D CB f(n) = g(n) + (1 + 0 -1+ 0) = g(n) DA So the heuristic correctly chose the second structure Seems to Work

12. The Road Not Taken • Open contains current fringe of the search • Open: priority queue ordered by f(n) • Closed: queue of states already visited • Nodes could contain backward pointers so that path back to root can be recovered Best First

13. path best_first(Start) { open = [start], closed = []; while (!open.isEmpty()) { cs = open.serve(); if (cs == goal) return path; generate children of cs; for each child { case: { child is on open; //node has been reached by a shorter path if (g(child) < g(child) on open) g(child on open) = g(child); break; child is on closed; if (g(child < g(child on closed)) { //node has been reached by a shorter path and is more attractive remove state from closed; open.enqueue(child); } break; default: { f(child) = g(child) + h(child);//child has been examined yet open.enqueue(child); } } } closed.enqueue(cs);//all cs’ children have been examined. open.reorder();//reorder queue because case statement may have affected ordering } return([]); //failure }

15. Admissible Search Algorithms • Find the optimal path to the goal if a path to the goal exists • Breadth-First: Admissible • Depth-First: Not admissible Admissibility

16. Uses • Best First • f(n) = g(n) + h(n) Algorithm A

17. f*(n) = g*(n) + h*(n) Where • g*(n) is the cost of the shortest path from start to n • h*(n) is the cost of the shortest path from n to goal So, f*(n) is the actual cost of the optimal path Can we know f*(n)? f*

18. Not without having exhaustively searched the graph • Goal: Approximate f*(n) The Oracle

19. g(n) – actual cost to n • g*(n) – shortest path from start to n So g(n) >= g*(n) When g*(n) = g(n), the search has discovered the optimal path to n Consider g*(n)

20. Often we can know • Ifh(n) is bounded above by h*(n) • (This sometimes means finding a function h2(n) such that h(n) <= h2(n) <= h*(n)) • Meaning: the optimal path is more expensive than the one suggested by the heuristic • Turns out this is a good thing (within bounds) Consider h*(n)

21. 283 123 164 -> 8 4 7 5 765 Invent two heuristics: h1 and h2 h1(n): number of tiles not in goal position h1(n) = 5 (1,2,6,8,B) h2(n): number of moves required to move out-of-place tiles to goal T1 = 1, T2 = 1, T6 = 1, T8 = 2, TB = 1 h2(n) =6 h1(n) <= h2(n) ? An 8-puzzle Intuition

22. h2(n) <= h*(n) • Each out-of-place tile has to be moved a certain distance to reach goal h1(n) <= h2(n) • h2(n) requires moving out-of-place tiles at least as far as h1(n) So, h1(n) <= h2(n) <=h*(n) h1(n) is bounded above by h*(n)

23. A* If algorithm A uses a heuristic that returns a value h(n) <= h*(n) for all n, then it is called A* What does this property mean? Leads to a Definition

24. It means that the heuristic estimate chosen never thinks a path is better than it is goal • Suppose: h(rst) = 96 • But we know it is really 1 (i.e. h*(rst) = 1) because we’re the oracle • Suppose: h(lst) = 42 • Left branch looks better than it really is • This makes the left branch seem better than it actually is

25. Suppose: • h(n) = 0 and so <= h*(n) Search will be controlled by g(n) If g(n) = 0, search will be random: given enough time, we’ll find an optimal path to the goal If g(n) is the actual cost to n, f(n) becomes breadth-first because the sole reason for examining a node is its distance from start. We already know that this terminates in an optimal solution Claim: All A* Algorithms are admissible

26. h(n) = h*(n) Then the algorithm will go directly to the goal since h*(n) computes the shortest path to the goal Therefore, if our algorithm is between these two extremes, our search will always result in an optimal solution Call h(n) = 0, h’(n) So, for any h such that h’(n) <= h(n) <= h*(n) we will always find an optimal solution The closer our algorithm is to h’(n), the more extraneous nodes we’ll have to examine along the way

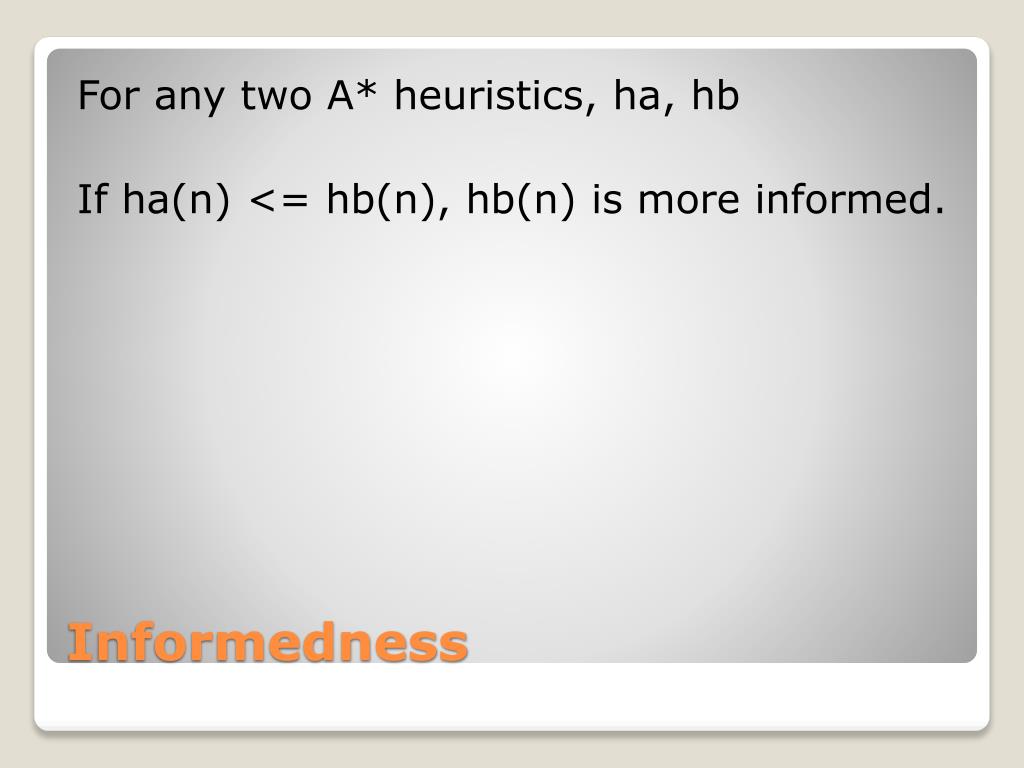

27. For any two A* heuristics, ha, hb If ha(n) <= hb(n), hb(n) is more informed. Informedness

28. Comparison of two solutions that discover the optimal path to the goal state: • BF: h(n) = 0 • h(n) = number of tiles out of place The better informed solution examines less extraneous information on its path to the goal Comparison
