Overview of bayesian methods for safety assessment

Overview of Bayesian Methods for Safety Assessment

Karen L. Price, PhD

Eli Lilly and Company

On behalf of the DIA Bayesian Scientific Working Group (BSWG)


Brief overview of DIA BSWG

Overview of use of Bayesian methods for safety assessment

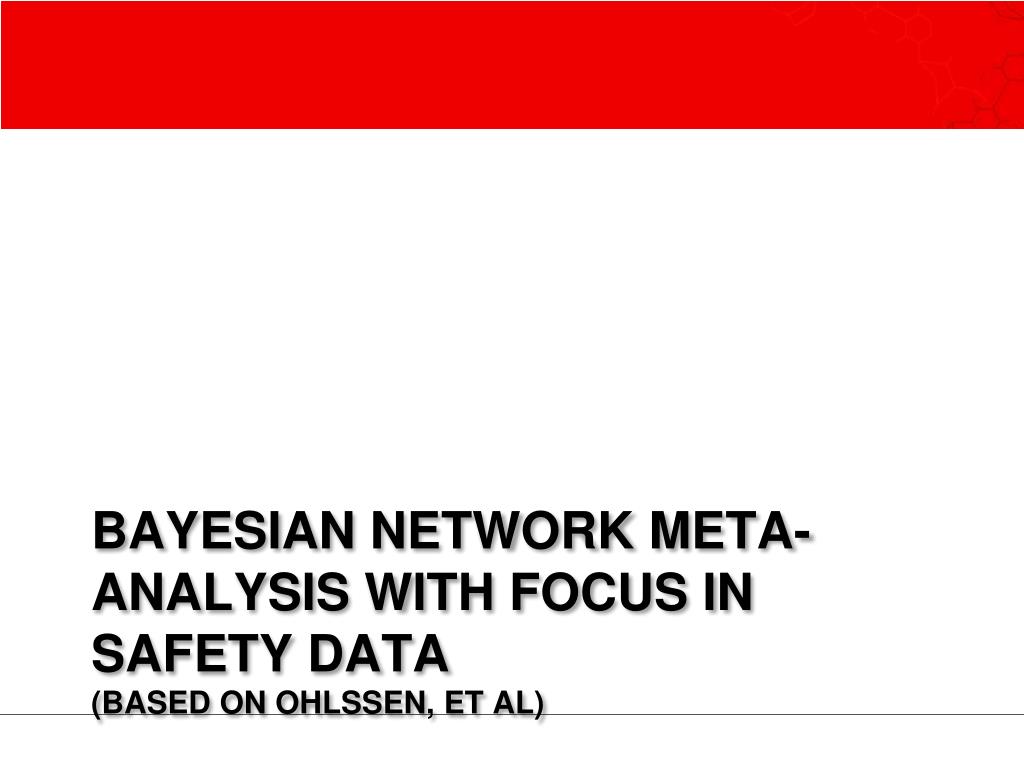

Bayesian network meta-analysis with focus in safety data

Bayesian methods for safety trials


Who are we
Who are we?

  • facilitate appropriate use of the Bayesian approach

  • contribute to progress of Bayesian methodology throughout medical product development

Group of representatives from Regulatory, Academia, and Industry, engaging in scientific discussion/collaboration


To facilitate the appropriate use of Bayesian methods and contribute to progress by:

  • Creating a scientific forum for the discussion and development of innovative methods and tools.

  • Providing education on best practices for Bayesian methods.

  • Engaging in dialogue with industry leaders, the scientific community, and regulators.

  • Fostering diversity in membership and leadership.

Opportunity statement
Opportunity Statement

  • Provides opportunity to influence proactively by engaging in scientific discussion.

  • Improvedpatient outcomes.

Bayesian methods provide framework to leverage prior information and data from diverse sources.

Bringing together academic, industrial, and regulatory representatives is essential to overcome hurdles.

Safety subteam
Safety Subteam

  • Opportunity/Goals

    • Current analytical approaches may be oversimplified and knowledge of/experience with proper methods inadequate

    • Some statistical challenges include: power, multiplicity, complexity of data, continual assessment, signal refinement

    • Bayes provides great promise

  • 3 initial areas of focus

    • Meta-analysis/Evidence Synthesis: chair David Ohlssen

    • Safety Trials: chair Karen Price

    • Signal Detection: chair Larry Gould

  • Initial deliverables: white papers, publications, sessions

Some advantages of bayesian methods
Some Advantages of Bayesian Methods

  • Ability to incorporate prior information

  • Natural for evidence synthesis or meta-analysis

  • Handling multiplicity through borrowing strength and hierarchical modeling

  • Appealing in dealing with rare events as the model modulates the extremes

  • Ability to handle complex problems via unified modeling, taking all the uncertainty into account

  • Allowing direct probability inferences on different scales

Overview of bayesian methods for safety assessment

“Safety assessment is one area where frequentist strategies have been less applicable. Perhaps Bayesian approaches in this area have more promise.”-- Chi, Hung, and O’Neill; Pharmaceutical Report, 2002“If I were to predict where Bayesian ideas will have great impact in the years ahead I would highlight drug safety – not only during the development of a drug but also post-marketing.” -- Grieve; Pharmaceutical Statistics, 2007

Overview of some areas of implementation
Overview of Some Areas of Implementation

Safety signal detection

Safety signal evaluation

Meta-analysis for analyzing adverse event data

Continuously monitor an event of interest in an ongoing trial

Joint modeling for evaluation of safety/efficacy outcomes

Estimating the dose-response relationship of adverse events

Mixed treatment comparisons or network meta-analysis for safety data

Safety Trials

Screen shot of pharmaceutical statistics special issue
Screen shot of Pharmaceutical Statistics Special Issue


Recent publications from dia bswg
Recent Publications from DIA BSWG

Pharmaceutical Statistics Special Issue:Bayesian Methods in Medical Product Development and Regulatory Review

  • The current state of Bayesian methods in medical product development: Survey results and recommendations from the DIA Bayesian Scientific Working Group:Fanni Natanegara, Beat Neuenschwander, John W. Seaman, Nelson Kinnersley, Cory R. Heilmann, David Ohlssen, George Rochester

  • Bayesian Methods for Design and Analysis of Safety Trials: Karen Price, H Amy Xia, Mani Lakshminarayanan, David Madigan, David Manner, John Scott, James Stamey, Laura Thompson

  • Guidance on the implementation and reporting of a drug safety Bayesian network meta-analysis:David Ohlssen, Karen Price, H Amy Xia, Hwanhee Hong, Jouni Kerman, Haoda Fu, George Quartey, Cory Heilmann, Haijun Ma, Bradley Carlin

  • Use of Historical Control Data for Assessing Treatment Effects in Clinical Trials: Kert Viele, Scott Berry, Beat Neuenschwander, Billy Amzal, Fang Chen, Nathan Enas, Brian Hobbs, Joseph G Ibrahim, Nelson Kinnersley, Stacy Lindborg, Sandrine Micallef, Satrajit Roychoudhury, Laura Thompson

    Therapeutic Innovation and Regulatory Science, submitted

  • Methods and Issues to Consider for Detection of Safety Signals from Spontaneous Reporting Databases. Report of the DIA Bayesian Safety Signal Detection Working Group. Larry Gould, Ted Lystig, Yun Lu, Haoda Fu, Haijun Ma, and David Madigan

Network meta analysis
Network meta-analysis

Future study

Study 1

Study 2

Additional Studies








PL vs A: B

PL vs C

Of Interest Cvs A

AC: Active Comparator

Mtc random effects model taken from nice dsu documents
MTC : Random Effects Model(taken from NICE DSU documents)

kth arm in study I


Relative treatment effect between 1st arm and kth arm

First arm in study i

treatment effect of 1st arm

Consistency assumption

between trial standard deviation

Overview of bayesian methods for safety assessment
Network meta-analysis Trelle et al (2011) Cardiovascular safety of non-steroidal anti-inflammatory drugs

  • Primary Endpoint was myocardial infarction

  • Data synthesis 31 trials in 116 429 patients with more than 115 000 patient years of follow-up were included.

  • A Network random effects meta-analysis were used in the analysis

  • Critical aspect – the assumptions regarding the consistency of evidence across the network

  • How reasonable is it to rank and compare treatments with this technique?

Trelle, Reichenbach, Wandel, Hildebrand, Tschannen, Villiger, Egger, and Juni. Cardiovascular safety of non-steroidal anti-inflammatory drugs network meta-analysis. BMJ 2011; 342: c7086. Doi: 10.1136/bmj.c7086

Poisson network meta analysis model based on the work of lu and ades la 2006 2009
Poisson network meta-analysis modelBased on the work of Lu and Ades (LA) (2006 & 2009)

b is the control treatment associated with trial i

  • μiis the effect of the baseline treatment b in trial i and δibkis the trial-specific treatment effect of treatment k relative to treatment to b (the baseline treatment associated with trial i)

  • Note baseline treatments can vary from trial to trial

  • Different choices for µ’s and  ’s. They can be: common (over studies), fixed (unconstrained), or “random”

  • Consistency assumptions required among the treatment effects

  • Prior distributions required to complete the model specification

Comments on trelle et al
Comments on Trelle et al

  • Drug doses could not be considered (data not available)

  • Average duration of exposure was different for different trials

  • Therefore, ranking of treatments relies on the strong assumption that the risk ratio is constant across time for all treatments

  • The authors conducted extensive sensitivity analysis and the results appeared to be robust

Key aspects of ohlssen et al
Key Aspects of Ohlssen, et al.

  • Summarizes Bayesian network meta-analysis

  • Extends the Lu and Ades (LA) model via a variety of alternative model parameterizations

    • Particularly in the context of rare events, estimation of model parameters can be challenging for LA model

    • Outcomes can be particularly sensitive to the choice of model, emphasizing need for sensitivity analysis and transparency regarding assumptions/limitations

  • Highlights benefit Bayesian approach provides for decision making (including with multiple outcomes)

  • Provides reporting guidelines

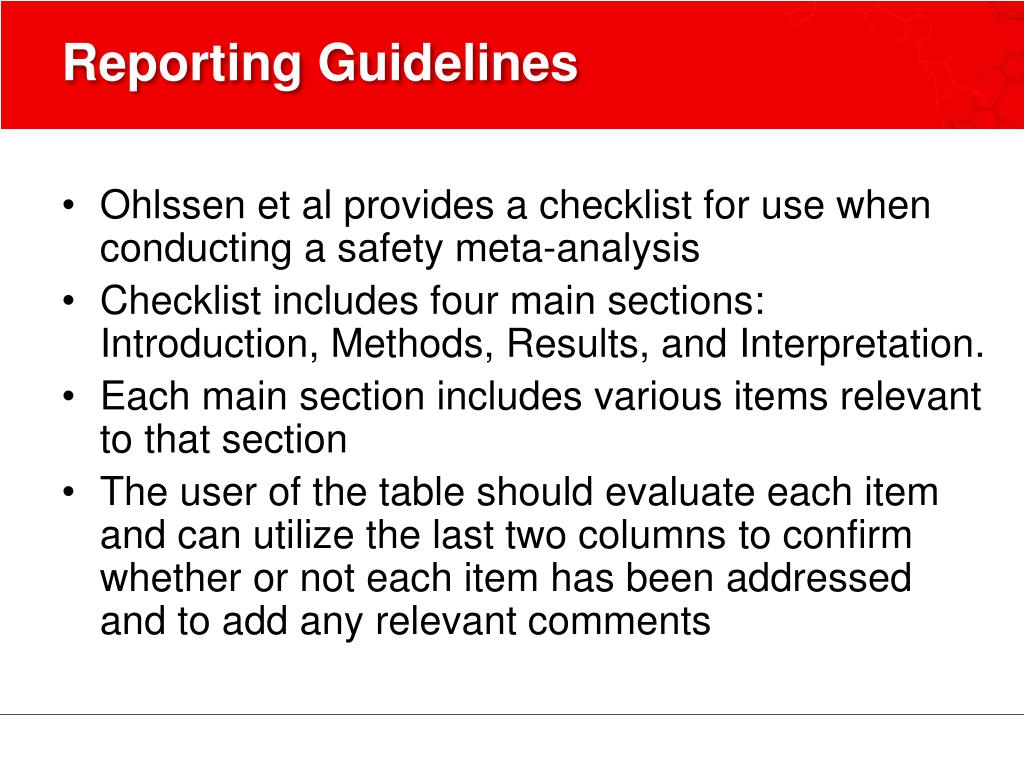

Reporting guidelines
Reporting Guidelines

Ohlssen et al provides a checklist for use when conducting a safety meta-analysis

Checklist includes four main sections: Introduction, Methods, Results, and Interpretation.

Each main section includes various items relevant to that section

The user of the table should evaluate each item and can utilize the last two columns to confirm whether or not each item has been addressed and to add any relevant comments

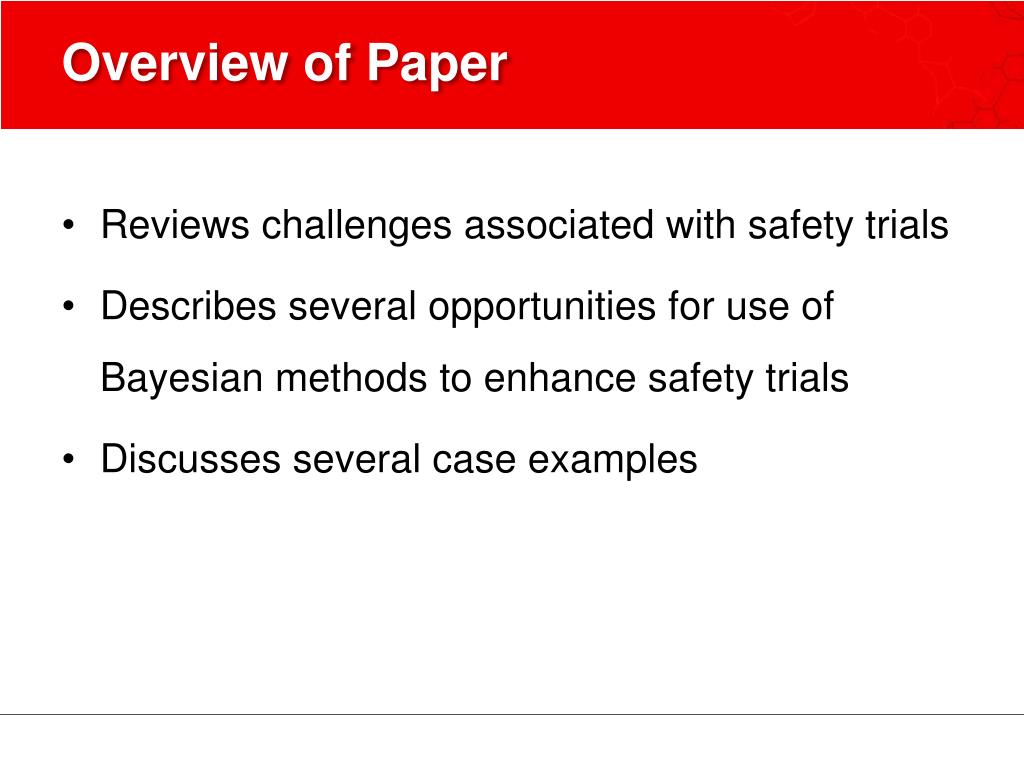

Overview of paper
Overview of Paper

Reviews challenges associated with safety trials

Describes several opportunities for use of Bayesian methods to enhance safety trials

Discusses several case examples

Recommendations overview of bayesian opportunities for safety trials
Recommendations: Overview of Bayesian Opportunities for Safety Trials

Recommendations overview of bayesian opportunities for safety trials1
Recommendations: Overview of Bayesian Opportunities for Safety Trials

Recommendations overview of bayesian opportunities for safety trials2
Recommendations: Overview of Bayesian Opportunities for Safety Trials

Case example sequential monitoring of aes
Case Example: Sequential Monitoring of AEs

Sequential Bayesian methods enable regular updating of knowledge as data accumulate

Cheng and Madigan illustrated this approach with Vioxx

Presented a Bayesian sequential meta-analysis of the placebo-controlled trials

The analysis began with a “family of priors”

Proposed a simple graphical summary of the meta-analysis showing the posterior probability over time that the true relative risk of CVT events exceeds two particular thresholds

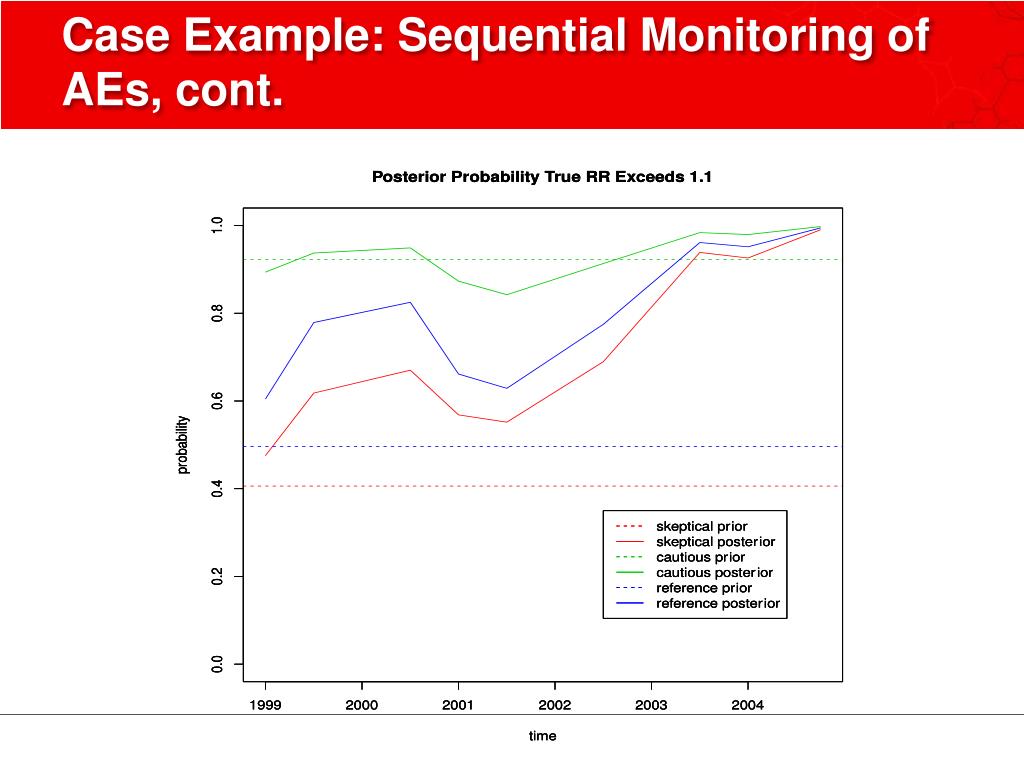

The following figure shows the posterior probability that the true relative risk exceeds 1.1 over time

Moving forward
Moving Forward

Safety Meta-analysis guidance from FDA (draft published, opportunity to comment)

Continued growth in use for signal assessment

Opportunities for increased use for safety trials

Expanded use for evaluation of benefit/risk profile (at least for key benefits/risks)


Safety assessment is complex with numerous statistical challenges

DIA BSWG is actively working to ensure the use of Bayesian methods in the context of safety are appropriately used by increasing awareness and providing best practice guidelines

Bayesian methods provide advantages in the context of safety signal assessment

Mtc case example code random effects
MTC Case Example: Code(random effects)

procmcmc data=b missing=ac nmc=10000 diag=ess outpost=o1;

parmssd /slice;

parms m;

parmssd_m /slice;

   prior sdsd_m ~ uniform(0, 100);

   prior m ~ normal(0, prec=0.0001);


   tau = 1 / (sd * sd);

tau_phi_prec = 1 / (sd_m * sd_m);


   random mu ~ norm(m, prec=tau_phi_prec) subject = study monitor=(mu);

   random d2 ~ normal(0, prec=0.0001) subject = trt2 monitor=(d2);

Mtc case example code random effects1
MTC Case Example: Code(random effects)

random delta2 ~ norm(d2, prec=tau) subject = study monitor=(delta2);

random d3 ~ normal(0, prec=0.0001) subject = trt3 monitor=(d3) zero="0";

if rep eq 3 then do;

taud = tau * 2 * 2 / 3;

      w2 = delta2 - d2;

      sw3 = w2 / 3;

      md3 = d3 + sw3;


   else do;

      md3 = 0;

taud = 1;


random delta3 ~ norm(md3, prec=taud) subject = trt3 monitor=(delta3) zero="0";

Mtc case example code random effects2
MTC Case Example: Code(random effects)

ph = logistic(mu);   /* control arm */

   model r1 ~ binomial(n1, ph);

ph = logistic(mu + delta2);

   model r2 ~ binomial(n2, ph);

   if rep = 3 then do;

ph = logistic(mu + delta3);

llike = lpdfbin(r3, n3, ph);


   else do;

llike = 0;


   model general(llike);
