Presentation Transcript
slide1

How do we process text with spatial information?

Marijn E. Struiksma*, Matthijs L. Noordzij**,

Bas F.W. Neggers*** & Albert Postma*

*Universiteit Utrecht

**Radboud Universiteit Nijmegen

*** Universitair Medisch Centrum Utrecht

spatial language

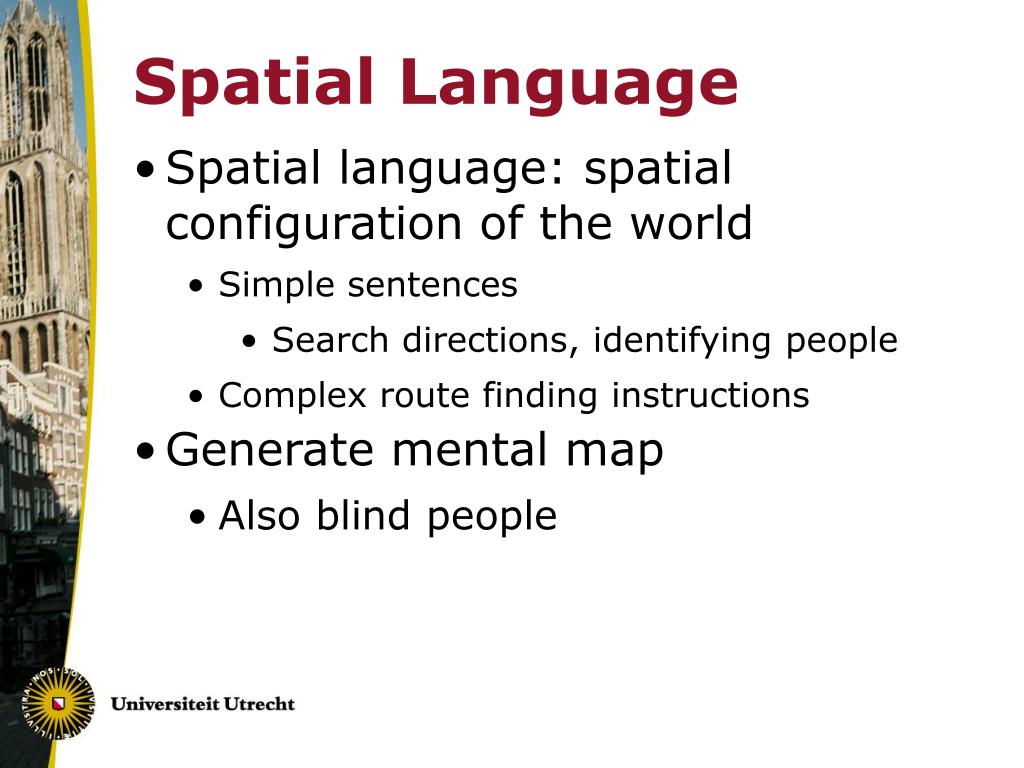

Spatial Language
  • Spatial language: spatial configuration of the world
    • Simple sentences
      • Search directions, identifying people
    • Complex route finding instructions
  • Generate mental map
    • Also blind people
slide3

Spatial Language

  • Aim: gain insight in underlying process and nature of mental representations
    • Research with sighted and blind
    • Different input modalities
slide4

Spatial Language Processing

  • Propositional model
    • Verbal strategy
  • Strategic model
    • Verbal strategy

or

    • Visuo-spatial strategy
slide5

Different Strategies

  • Noordzij et al. (2005)
  • Sentence-sentence
  • Sentence-picture
  • 80% expectancy
slide6

triangle left of circle

80%

20%

Different Strategies

+

triangle

left of

circle

+

Spatial condition

slide7

triangle and circle

20%

80%

Different Strategies

+

triangle

and

circle

+

Non-spatial condition

different strategies

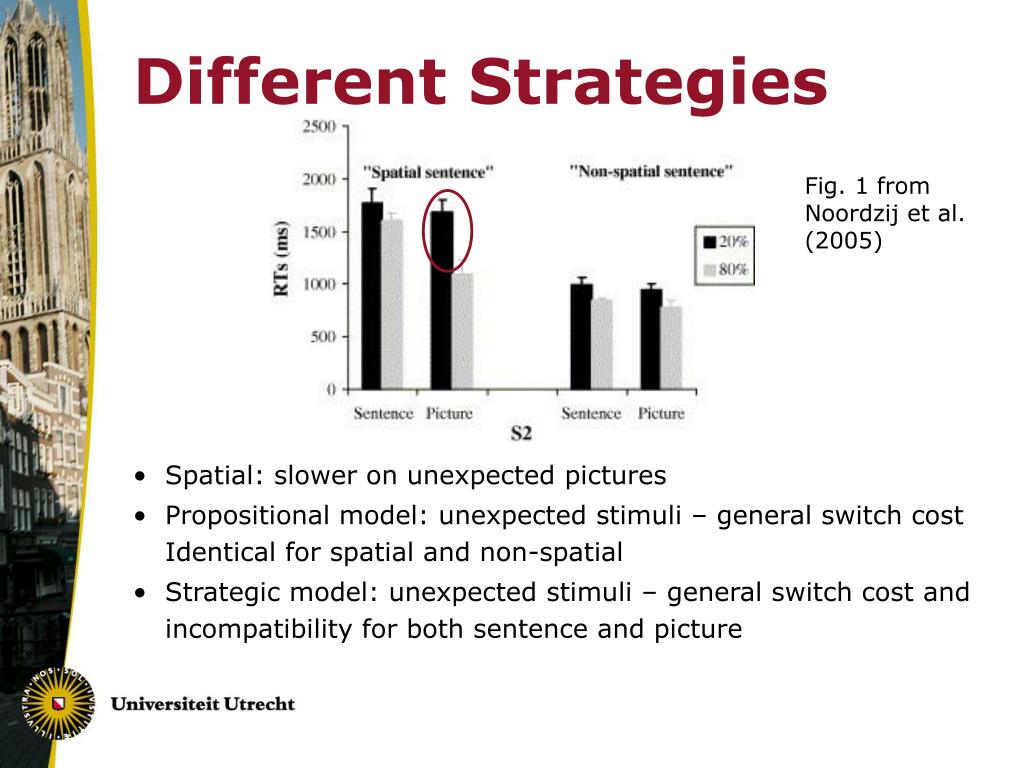

Different Strategies

Fig. 1 from Noordzij et al. (2005)

  • Spatial: slower on unexpected pictures
  • Propositional model: unexpected stimuli – general switch cost Identical for spatial and non-spatial
  • Strategic model: unexpected stimuli – general switch cost and incompatibility for both sentence and picture
slide9

Dual-representational model

  • Automatic propositional representation
  • Additional visual-spatial representation
    • Strategically dependent on context
  • Neuroimaging parietal areas:
    • Understanding spatial terms
    • Visual-spatial representation
slide10

EEG: processing spatial sentences

  • Noordzij et al. 2006
  • Similar sentence-sentence and sentence-picture paradigm
  • Similar behavioral pattern
  • Event-related potentials (ERPs)
slide11

EEG: processing spatial sentences

  • ERPs

Fig. 4 from Noordzij et al. (2006)

Parieto-occipital activation for spatial sentences, expecting a picture.

visual-spatial strategy

slide12

fMRI: processing spatial sentences

  • Sentence-sentence and sentence-picture paradigm
  • 100% expectancy for S2
  • RT faster for picture than sentence, especially for spatial
slide13

fMRI: processing spatial sentences

  • fMRI

Fig. 2 from Noordzij et al. (2008)

Spatial > Non-spatial for both stimulus modalities: activity in left Supramarginal gyrus (SMG)

nature of mental representations

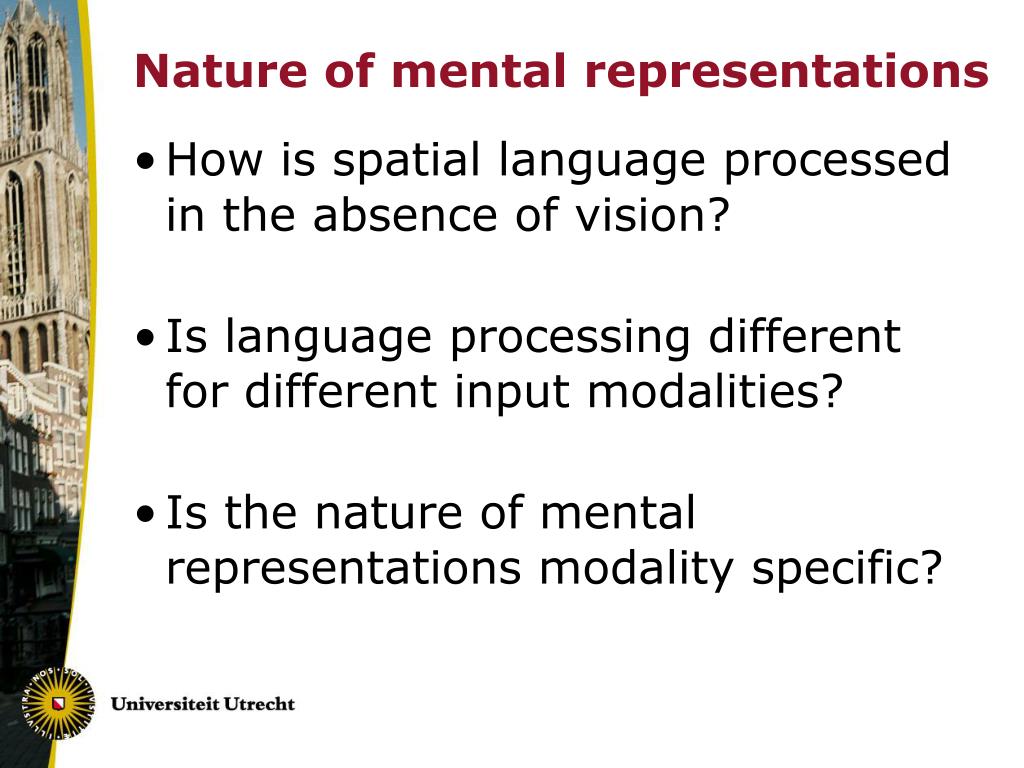

Nature of mental representations
  • How is spatial language processed in the absence of vision?
  • Is language processing different for different input modalities?
  • Is the nature of mental representations modality specific?
fmri blind sighted
fMRI blind & sighted
  • Sentence-sentence paradigm
    • Comparing spatial and non-spatial
  • Auditory version
  • Scanner-details:
    • 3T Philips Achieva scanner
    • PRESTO-SENSE sequence
    • TR = 500ms
    • Voxel-size: 4*4*4 mm
subjects
Subjects
  • 13 congenitally blind
    • Age 36.5 ± 9.8
    • 7 male, 6 female
    • 5 right-handed, 5 left-handed, 3 ambidexter
  • 13 sighted controls
    • Age 37.2 ± 11.2
    • 8 male, 5 female
    • 6 right-handed, 4 left-handed, 3 ambidexter
spatial sentence comprehension

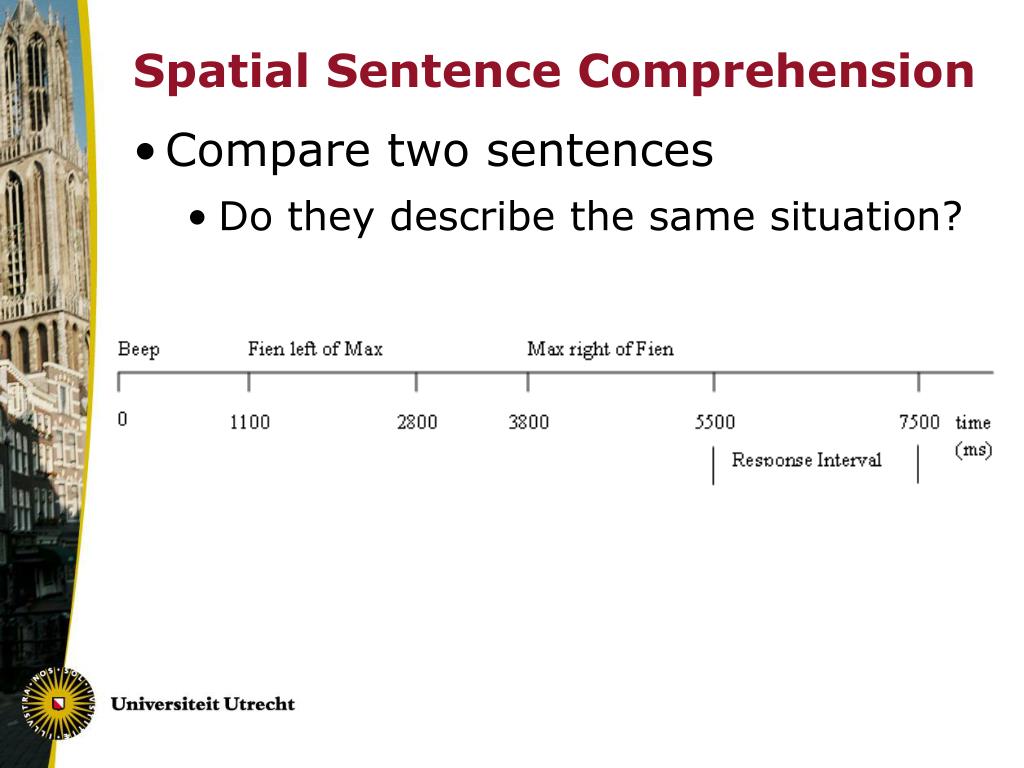

Spatial Sentence Comprehension
  • Compare two sentences
    • Do they describe the same situation?
spatial sentence comprehension1
Spatial Sentence Comprehension
  • Block-design: 4 sessions, 18 blocks per session, 2 trials of 7.5s per block
  • 4 conditions
spatial sentence comprehension2
Spatial Sentence Comprehension

Position = Left of/Right of

Size = Taller than/Smaller than

Conjunction = Together with

Age = Older than/Younger than

Position(15s)

Size(15s)

Conjunction(15s)

Interval (6-9s)

Age(15s)

Interval (6-9s)

Interval (6-9s)

Interval (6-9s)

Presented pseudo-randomly

performance
Performance
  • Performance is good
  • No difference CB or SC
behavioral results rt
Behavioral Results: RT
  • Main effects of Space and Category
  • No group difference
results supramarginal gyrus
Results: Supramarginal Gyrus
  • Contrast: Position > Combination
  • ROI around SMG from Noordzij et al. (2008)
  • Conjunction CB and SC

ROI, T=2.5, p = .045 (corrected)

results supramarginal gyrus1
Results: Supramarginal Gyrus
  • Contrast: Relational > Combination
  • ROI around SMG from Noordzij et al. (2008)
  • Conjunction CB and SC

ROI, T=2.5, p = .045 (corrected)

fmri results
fMRI results
  • Evidence for reorganization
    • Difference CB and SC for task vs. rest
  • Occipital areas
  • No dimension modulation

Whole brain, T=4.0,k=10 voxels, p < 0.03

conclusions 1
Conclusions 1
  • Behavioral results: sighted can generate propositional and visual-spatial representations
  • Target area: left SMG
  • Left SMG not influenced by
    • context (picture or sentence)
    • input modality (visual or auditory)
conclusions 2
Conclusions 2
  • Blind also activate left SMG and visual areas
  • Visual areas are not modulated by Space or Category
  • Left SMG important for processing spatial prepositions
    • Other function: ordering on 1 dimension
  • Activation in left SMG is modality-independent + hardwired
verb generation
Verb Generation
  • Block-design
  • 3 types of blocks
    • Rest
    • Non-words
    • Words
results

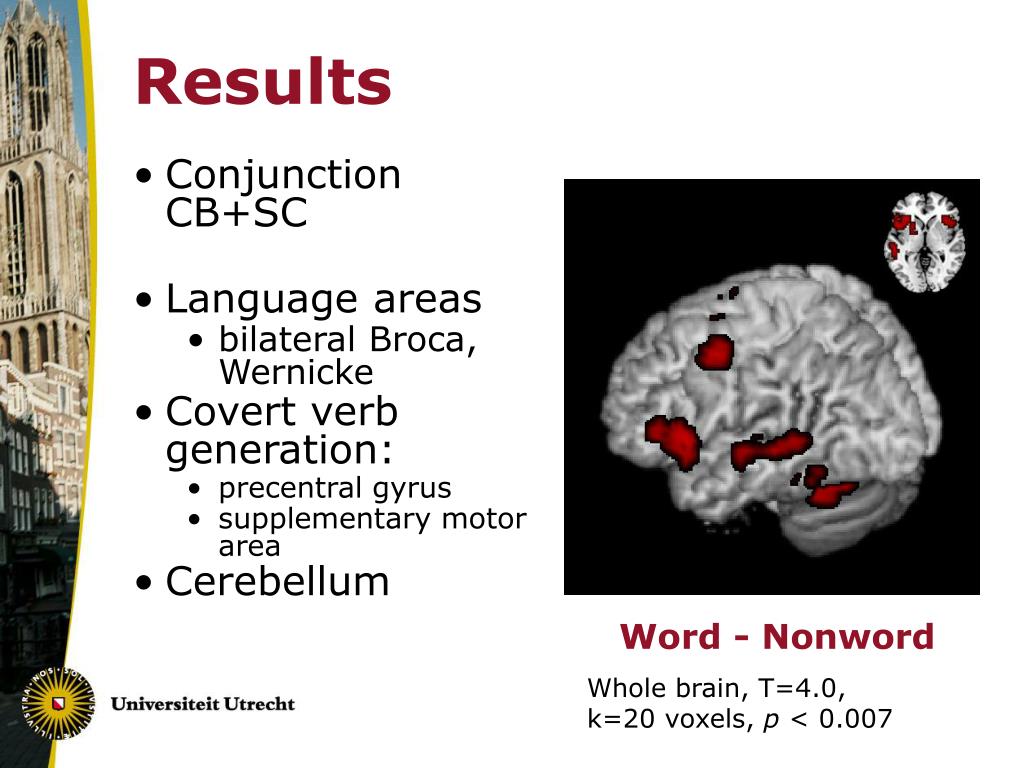

Results
  • Conjunction CB+SC
  • Language areas
    • bilateral Broca, Wernicke
  • Covert verb generation:
    • precentral gyrus
    • supplementary motor area
  • Cerebellum

Word - Nonword

Whole brain, T=4.0,k=20 voxels, p < 0.007

results reorganization

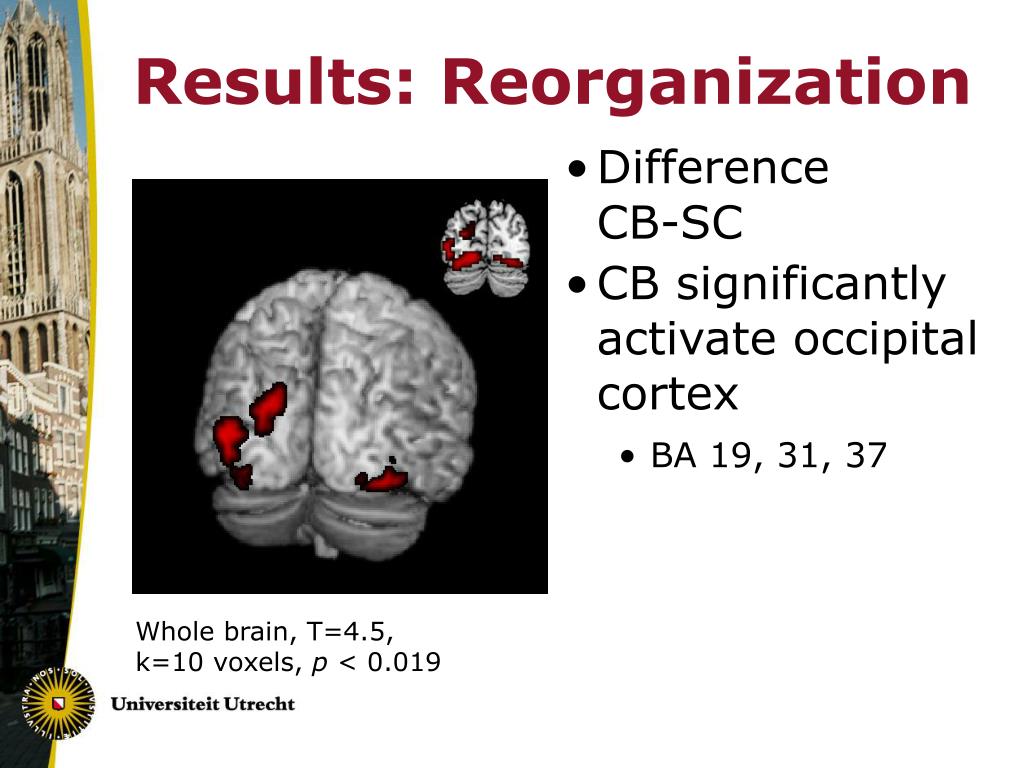

Results: Reorganization
  • Difference CB-SC
  • CB significantly activate occipital cortex
    • BA 19, 31, 37

CB vs. SC

Whole brain, T=4.5, k=10 voxels, p < 0.019
