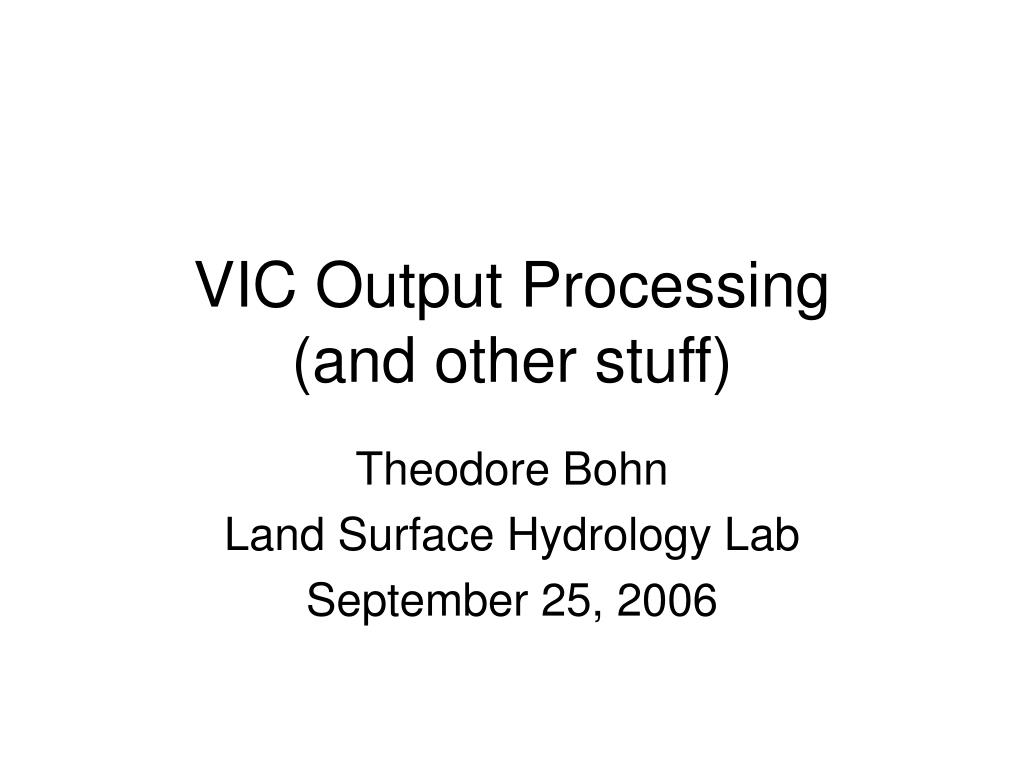

VIC Output Processing (and other stuff). Theodore Bohn Land Surface Hydrology Lab September 25, 2006. Overview. Why process VIC output? VIC assumptions & routing Overview: how to run VIC VIC output files How to get a hydrograph Routing program Input files Basin delineation

dorjan
Download Presentation

VIC Output Processing (and other stuff)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VIC Output Processing(and other stuff) Theodore Bohn Land Surface Hydrology Lab September 25, 2006

  2. Overview • Why process VIC output? • VIC assumptions & routing • Overview: how to run VIC • VIC output files • How to get a hydrograph • Routing program • Input files • Basin delineation • How to run rout • Output files • Aggregation • Customizing VIC output • Future versions of VIC

  3. Why process VIC output? What we typically want: • Hydrograph at various points in stream network • Monthly average water and/or energy budget of a basin What VIC (currently) gives us: • Moisture and energy fluxes and states for individual grid cells • Output interval = model time step We generally must process VIC’s output before we can use it

  4. VIC assumptions & routing • Most other models run in “image” mode • For each time step, they compute fluxes and state for all grid cells • VIC currently runs in “vector” mode • For each grid cell, it runs the entire simulation period (all time steps) • This means each grid cell’s water and energy balance is independent of its neighbors

  5. Why can VIC get away with this behavior? Assumptions: • The vast majority of grid cell runoff goes into the grid cell’s local channel network • Very little runoff goes from one grid cell’s soil to its neighbor’s soil • Water from the channel does not recharge into the soil (water transport is one-way)

  6. Why can VIC get away with this behavior? These assumptions are valid if: • Grid cells are large (typically we have 1/8 degree; 12.5 km on a side) • Groundwater flow is small relative to surface and near-surface flow • Lakes/wetlands do not have significant channel inflows • Flooding (over banks) is insignificant These conditions hold most of the time

  7. Consequences • VIC gives us a separate set of output files for each grid cell • VIC does not (currently) perform channel routing of runoff • VIC does not give us a hydrograph • Routing is performed by a stand-alone program (“rout”) • A benefit: VIC uses very little memory • system only needs to store state and fluxes of one grid cell at a time

  8. Overview: how to run VIC VIC inputs: • Forcing files (1 per grid cell): • Meteorological inputs (precip, tmin, tmax, wind speed, etc) • Soil parameter file: • Soil porosity, hydraulic conductivity, VIC calibration parameters, etc. • Veg parameter file: • Number of veg tiles for each grid cell, and the types of vegetation in each tile • Veg library file: • Characteristics of each veg type, e.g. LAI, architectural resistance, roughness, albedo • Lake parameter file (version 4.1.0 only): • Lake depth-area relationship, etc • Snow_band file (optional): • Break each grid cell into portions (“bands”) with different elevations • For each band: list area fraction, elevation, precipitation fraction • Mainly useful in mountainous regions with snowmelt-driven streamflow • State file (optional): • Initial model state of each grid cell, e.g. soil moisture and temperature, snow water equivalent, etc

  9. Overview: how to run VIC • Global parameter file: • Tells VIC where to find the other input files • Simulation options • Start/end date/time • Time step length • Modes of operation • Full energy balance or just water balance • Whether to run with snow bands • etc • Input options • Whether to start from initial state file or “cold” • Baseflow parameter format • etc • Output options • Whether to save a state file and at what point to do so • Binary or ascii • etc • An example global parameter file is included with the VIC code

  10. Example global param file ####################################################################### # Simulation Parameters ####################################################################### TIME_STEP 3 # model time step in hours (set to 24 if FULL_ENERGY = FALSE, set to < 24 if FULL_ENERGY = TRUE) SNOW_STEP 3 # time step in hours for which to solve the snow model (should = TIME_STEP if TIME_STEP < 24) STARTYEAR 2000 # year model simulation starts STARTMONTH 01 # month model simulation starts STARTDAY 01 # day model simulation starts STARTHOUR 00 # hour model simulation starts ENDYEAR 2000 # year model simulation ends ENDMONTH 12 # month model simulation ends ENDDAY 31 # day model simulation ends FULL_ENERGY TRUE # TRUE = calculate full energy balance; FALSE = compute water balance only FROZEN_SOIL TRUE # TRUE = calculate frozen soils QUICK_FLUX FALSE # TRUE = use simplified ground heat flux method of Liang et al (1999); FALSE = use finite element method of Cherkauer et al (1999) NO_FLUX FALSE # TRUE = use no flux lower boundary for ground heat flux computation; FALSE = use constant flux lower boundary condition. If NO_FLUX = TRUE, QUICK_FLUX MUST = FALSE DIST_PRCP FALSE # TRUE = use distributed precipitation CORRPREC FALSE # TRUE = correct precipitation for gauge undercatch MIN_WIND_SPEED 0.1 # minimum allowable wind speed (m/s) PREC_EXPT 0.6 # exponent for use in distributed precipitation eqn (only used if DIST_PRCP is TRUE) MAX_SNOW_TEMP 0.5 # maximum temperature (C) at which snow can fall MIN_RAIN_TEMP -0.5 # minimum temperature (C) at which rain can fall ####################################################################### # State Files and Parameters ####################################################################### #INIT_STATE (put the initial state path/filename here) # Initial state path/file #STATENAME (put the path/prefix of output state file here) # Output state file path/prefix. The date (STATEYEAR,STATEMONTH,STATEDAY) will be appended to the prefix automatically in the format yyyymmdd. #STATEYEAR 2000 # year to save model state #STATEMONTH 12 # month to save model state #STATEDAY 31 # day to save model state #BINARY_STATE_FILE FALSE # TRUE if state file should be binary format; FALSE if ascii

  11. Example global param file (cont) ####################################################################### # Forcing Files and Parameters # # All FORCING filenames are actually the pathname, and prefix # for gridded data types: ex. DATA/forcing_ # Latitude and longitude index suffix is added by VIC # # There must be 1 FORCE_TYPE entry for each variable (column) in the forcing file # # If FORCE_TYPE is BINARY, each FORCE_TYPE must be followed by: # SIGNED/UNSIGNED SCALE_FACTOR # For example (BINARY): # FORCE_TYPE PREC UNSIGNED 40 # or (ASCII): # FORCE_TYPE PREC ####################################################################### FORCING1 (put the forcing path/prefix here) # Forcing file path and prefix, ending in "_" GRID_DECIMAL 4 # Number of digits after decimal point in forcing file names FORCE_FORMAT BINARY # BINARY or ASCII FORCE_ENDIAN LITTLE # LITTLE (PC/Linux) or BIG (SUN) N_TYPES 4 # Number of variables (columns) FORCE_TYPE PREC UNSIGNED 40 FORCE_TYPE TMAX SIGNED 100 FORCE_TYPE TMIN SIGNED 100 FORCE_TYPE WIND SIGNED 100 FORCE_DT 24 # Forcing time step length (hours) FORCEYEAR 1915 # Year of first forcing record FORCEMONTH 01 # Month of first forcing record FORCEDAY 01 # Day of first forcing record FORCEHOUR 00 # Hour of first forcing record WIND_H 10.0 # height of wind speed measurement (m) MEASURE_H 2.0 # height of humidity measurement (m)

  12. Example global param file (cont) ####################################################################### # Land Surface Files and Parameters ####################################################################### NLAYER 3 # number of soil layers NODES 10 # number of soil thermal nodes SOIL (put the soil parameter path/file here) # Soil parameter path/file BASEFLOW ARNO # ARNO = columns 5-8 are the standard VIC baseflow parameters; NIJSSEN2001 = columns 5-8 of soil file are baseflow parameters from Nijssen et al (2001) ARC_SOIL FALSE # TRUE = read soil parameters from ARC/INFO ASCII grids VEGPARAM (put the veg parameter path/file here) # Veg parameter path/file GLOBAL_LAI TRUE # TRUE = read LAI from veg param file; FALSE = read LAI from veg library file ROOT_ZONES 3 # Number of root zones (must match format of veg param file) VEGLIB (put the veg library path/file here) # Veg library path/file SNOW_BAND 1 # Number of snow bands; if number of snow bands > 1, you must insert the snow band path/file after the number of bands (e.g. SNOW_BAND 5 my_path/my_snow_band_file) COMPUTE_TREELINE FALSE # TRUE = replace any overstory veg types with the default understory veg type in all snow bands for which the average July Temperature <= 10 C; if TRUE, you must specify the default understory veg type after it (e.g. COMPUTE_TREELINE TRUE 11) ####################################################################### # Output Files and Parameters ####################################################################### RESULT_DIR (put the result directory path here) # Results directory path (with trailing "/") OUT_STEP 0 # Output interval (hours); if 0, OUT_STEP = TIME_STEP SKIPYEAR 0 # Number of years of output to omit from the output files COMPRESS FALSE # TRUE = compress input and output files when done BINARY_OUTPUT FALSE # TRUE = binary output files ALMA_OUTPUT FALSE # TRUE = ALMA-compliant output variable units PRT_SNOW_BAND FALSE # TRUE = write a "snowband" output file, containing band-specific values of snow variables

  13. Overview: how to run VIC To run VIC: • Get VIC code cp –r /nfs/ontario/home/build/models/vic/VIC_4.0.6_r1 . • Compile VIC cd VIC_4.0.6_r1 make • At the command line, type: vicNl –g global_param_file where global_param_file = name (with path!) of your VIC global parameter file

  14. Overview: how to run VIC Note: • There are some simulation options that are set in the source file user_def.h, and NOT in your global parameter file • To change them, you must edit user_def.h and then recompile VIC To see what these options are set to, type vicNl –o To see what version of VIC you have, type vicNl -v

  15. VIC output files Current versions of VIC produce the following files: • fluxes: water & energy budget terms (actually, both fluxes and states) • snow: details of snow fluxes and states If FROZEN_SOIL = TRUE in global parameter file: • fdepth: soil freeze/thaw depths If PRT_SNOW_BANDS = TRUE in global parameter file: • snowbands: fluxes/states for each snow band If STATEFILE is specified in global parameter file: • state: model state Version 4.1.0 only: • lake: details of lake fluxes and states

  16. VIC output files • For all output files except the state file, one file is produced per grid cell, e.g. fluxes_44.3175_-114.0625 • Format can be either binary or ascii, depending on setting of BINARY_OUTPUT in global parameter file • Typical ASCII fluxes file has following format: year month day prec evap runoff baseflow ... (more data...) • Units/dimensionality: • Moisture fluxes: total amount (depth over grid cell) (mm) over interval • Moisture states: depth (mm) over grid cell • Energy fluxes: rate (W/m2) • Energy states: temperatures in C (mostly; radiative temperature in K)

  17. How to get a hydrograph Routing program: “rout” • Takes VIC fluxes files for all cells in basin • Reads daily runoff and baseflow totals • Convolves local (runoff+baseflow) with unit hydrograph response function • Adds local hydrograph response to flow from upstream • Propagates flow downstream Runoff + baseflow Runoff + baseflow Runoff + baseflow Runoff + baseflow

  18. Input files for routing • Fraction file: how much of each cell in basin? • Flow direction file: direction of flow in each cell • Unit hydrograph file: shape of unit hydrograph • VIC daily fluxes files • Must be ASCII • Must have following format: year month day prec evap runoff baseflow … • Year, month and day must be columns 1-3 • Runoff and baseflow must be columns 6 and 7 • All other columns are ignored • Must be daily totals • Global parameter file • Tells rout location of input files, simulation modes, etc

  19. Example fraction file ncols 128 nrows 96 xllcorner -125.000000 yllcorner 41.000000 cellsize 0.125000 NODATA_value 0 0 0 0 0 0 0 0 0.16 0.23 0.12 0.81 1 1 0.89 0.400 0 0 0 0 0 0 0 0 0 0 0.33 1 1 1 1 1 1 1 1 0.54 0 0 0 0 0 0 0 0 0 0.78 1 1 1 1 1 1 1 1 1 0.28 0 0 0 0

  20. Example flow direction file ncols 128 nrows 96 xllcorner -125.000000 yllcorner 41.000000 cellsize 0.125000 NODATA_value -1 -1 -1 -1 -1 -1 -1 -1 5 5 5 3 4 5 6 7 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 3 3 3 1 7 4 5 5 7 6 -1 -1 -1 -1 -1 -1 -1 -1 -1 3 1 1 1 3 5 7 7 5 5 5 -1 -1 -1 -1

  21. Example unit hydrograph file day fraction of runoff 0 0.0100 1 0.2400 2 0.3300 3 0.1800 4 0.1200 5 0.0500 6 0.0200 7 0.0100 8 0.0100 9 0.0100 10 0.0100 11 0.0100

  22. Example Global Parameter File - routing # salmon Routing Information # NAME OF FLOW DIRECTION FILE /my_path/salmon/params/route/pnw_125.flowd.final # NAME OF VELOCITY FILE .false. 2.00 # NAME OF DIFF FILE .false. 800 # NAME OF XMASK FILE .false. 12500 # NAME OF FRACTION FILE .true. /my_path/salmon/params/route/pnw_125.fract # NAME OF STATION FILE /my_path/salmon/params/route/pnw_125.stnloc.SALMO # NAME OF UNIT HYDROGRAPH FILE /my_path/salmon/params/route/UH_ALL # PATH OF INPUT FILES AND PRECISION /my_path/salmon/results/fluxes_ .4 # INPUT FORMAT IS NETCDF (=.true.) OR VIC (=.false.) .false. # GRID_TYPE (LATLON or EQAREA) and RESOLUTION (cell width in degrees or cell area in km2) LATLON 0.125 # LAT and LON files - only necessary if input files are EQAREA #/my_path/salmon/params/route/latitude.salmon #/my_path/salmon/params/route/longitude.salmon # UNITS ARE ALMA (=.true) OR STANDARD (=.false) .false. # PATH OF OUTPUT FILES /my_path/salmon/results/route/ # YEAR AND MONTH OF VIC OUTPUT TO ROUTE & ROUTED OUTPUT TO WRITE 1949 01 1999 12 1949 01 1999 12 # OUTPUT UNITS ARE ft**3/sec (=.true.) or m**3/sec (=.false.) .false. # AREA FILE /my_path/salmon/results/route/area.txt

  23. Basin delineation • To create basin mask, fraction file, flow direction file, etc, we must delineate the basin • This involves using arc/info and the Hydro1k global DEM • For details, please see Jenny’s tutorial at: http://www.ce.washington.edu/~jenny/web_tutorial/tutorial.htm • Nathalie also has information: http://www.ce.washington.edu/~nathalie/arcinfo.html

  24. How to run “rout” To run rout: • Get rout code cp –r /nfs/ontario/home/build/models/route/route_1.1 . • Compile VIC cd route_1.1 make • At the command line, type: rout global_param_file where global_param_file = name (with path!) of your routing global parameter file

  25. Output files from routing Daily, monthly, and annual discharge, in both volumetric units (m3/s or cfd) and mm over the basin Example: SALMO.day 1949 01 01 0.049014 1949 01 02 1.391608 1949 01 03 7.281677 SALMO.day_mm 1949 01 01 0.00012604 1949 01 02 0.00357849 1949 01 03 0.01872469 SALMO.month 1949 01 52.7108 1949 02 66.7425 1949 03 106.1719

  26. Aggregation • Temporal • Typical examples: • VIC sub-daily to daily (for use by routing program) • VIC daily to monthly • Methods: • Moisture fluxes: accumulate the amount (mm) over the new interval • Energy fluxes: average the rate (W/m2) over the new interval • Moisture and energy states: • to preserve the water/energy budget, take the end-of-interval value • depending on your goal, you may want to take the average (e.g. for temperature or albedo over the interval) instead • Spatial • Typical example: • Averaging over a basin • Simply average all values over the basin • If grid cells differ significantly in area across the basin, you may need to weight the average by grid cell area • Compositing • Typical example: monthly average • For each month, average that month’s values over all years

  27. Aggregation • In general you’ll need to write your own shell script to do aggregation • However, many people in the lab have written aggregation scripts – just ask

  28. Customizing VIC output • Currently, VIC writes MANY variables to the output files, yet may not write the variable you’re interested in. • This means that VIC output files take up a lot of space, and you won’t use most of the data. • What can you do? You can modify your copy of VIC to make the output you want. • VIC output functions: • put_data.c: gathers fluxes and states into one output structure • write_data.c: writes these values to the output files • But wait! Help is on the way…

  29. Future versions of VIC In the latest versions of VIC (4.0.6_r1 and 4.1.0_r4), you can control VIC output with your global parameter file: • Number and names of output files • Which variables to put in each output file • What output interval to use • This only aggregates from sub-daily to daily • Useful for sub-daily full energy balance runs

  30. Future versions of VIC Example: if you are running VIC at a 3-hour time step and want to output just the basic water and energy balance terms aggregated to daily interval, you could put this in your global parameter file: OUT_STEP 24 # Output interval (hours); if 0, OUT_STEP = TIME_STEP N_OUTFILES 2 OUTFILE wbal 7 OUTVAR OUT_PREC OUTVAR OUT_EVAP OUTVAR OUT_RUNOFF OUTVAR OUT_BASEFLOW OUTVAR OUT_SWE OUTVAR OUT_WDEW OUTVAR OUT_SOIL_MOIST OUTFILE ebal 7 OUTVAR OUT_NET_SHORT OUTVAR OUT_NET_LONG OUTVAR OUT_LATENT OUTVAR OUT_SENSIBLE OUTVAR OUT_GRND_FLUX OUTVAR OUT_SNOW_FLUX OUTVAR OUT_DELTACC number of output files number of variables name of output file (_lat_lon will be appended) names of variables (see vicNl_def.h for complete list)

  31. Versions of VIC VIC 4.0.3 VIC 4.0.4 VIC 4.1.0_r1 Latest official version VIC 4.0.5 VIC 4.1.0_r3 Currently under testing; has flexible output configuration VIC 4.0.6_r1 VIC 4.1.0_r4 Currently under testing; has flexible output configuration 4.1.x: Lakes/wetlands Canopy energy balance Permafrost dynamics 4.0.x: “Traditional” features
