Ergonomic Principles for Dental Hygienists

Ergonomic Principles for Dental Hygienists. Speaker: Karen W. Clark, OTR/L, CEAS II Ergo Rx, PLLC. Outline. Introduction to ERGONOMICS and General Anatomy Risk Factors Body Mechanics Exercises for Life and Work Recommended Equipment/Compensatory T echniques Questions and Answers.

dorit
Download Presentation

Ergonomic Principles for Dental Hygienists

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ergonomic Principles for Dental Hygienists Speaker: Karen W. Clark, OTR/L, CEAS II Ergo Rx, PLLC

  2. Outline • Introduction to ERGONOMICS and General Anatomy • Risk Factors • Body Mechanics • Exercises for Life and Work • Recommended Equipment/Compensatory Techniques • Questions and Answers

  3. What is Ergonomics?Wikipedia states: • Human factors and ergonomics (HF&E), aka comfort design, functional design, and user-friendly systems,[1] is a multidisciplinary field incorporating contributions from psychology, engineering, biomechanics, mechanobiology, industrial design, physiology and anthropometry. In essence it is the study of designing equipment and devices that fit the human body and its cognitive abilities. The two terms "human factors" and "ergonomics" are essentially synonymous.

  4. Merriam-Webster Dictionary • 1 • : an applied science concerned with designing and arranging things people use so that the people and things interact most efficiently and safely —called also biotechnology, human engineering, human factors • 2 • : the design characteristics of an object resulting especially from the application of the science of ergonomics

  5. “Fitting the Job to the Worker” Basic ERGONOMIC principles: • Reduce Musculoskeletal Disorders • Reduce wasteful motions • Decrease fatigue • Increase productivity • Increase time efficiency • Decrease rate of errors in job

  6. Bones Spinal column-33 total vertebrae Skeletal system- 206 bones

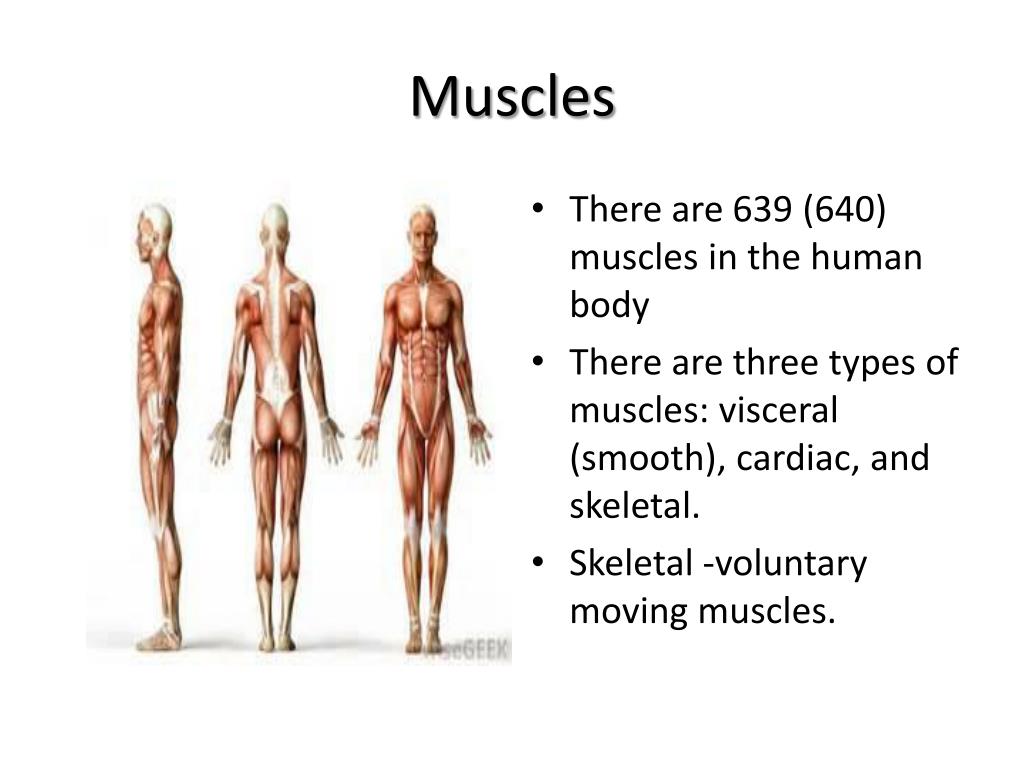

  7. Muscles • There are 639 (640) muscles in the human body • There are three types of muscles: visceral (smooth), cardiac, and skeletal. • Skeletal -voluntary moving muscles.

  8. Lymphatic System • There are between 400 and 700 lymph nodes and vessels in the body. • They are the body’s “trash collectors” . • The lymphatic vessels move one way- from distal to heart.

  9. Q: How does this all go together?????Q: Why does it matter???? • Nutrient Pathway Disorders occur due to static and or awkward postures, force, repetition, vibration and contact stress. • The above systems are blocked, inhibited or stressed to the point of skin break down, muscle atrophy, paralysis and/or neurological deficits. • Other involved system- Cardiopulmonary

  10. Genetic or Congenital Risk vs. Other Health Issues • Age • History of Heart Disease • History of Diabetes • Gender • Compliance of worker • Skeletal disorders (scoliosis) CANNOT CHANGE • Overweight • Lack of sleep/rest (6 hrs or less of sleep per CDC) • Poor diet • Poor habits (i.e. smoking) • Poor endurance, flexibility strength CAN CHANGE!!!

  11. #1 Risk factor • Force of grip or pinch during cleanings • Examples: holding scaling tools, polishing,flossing

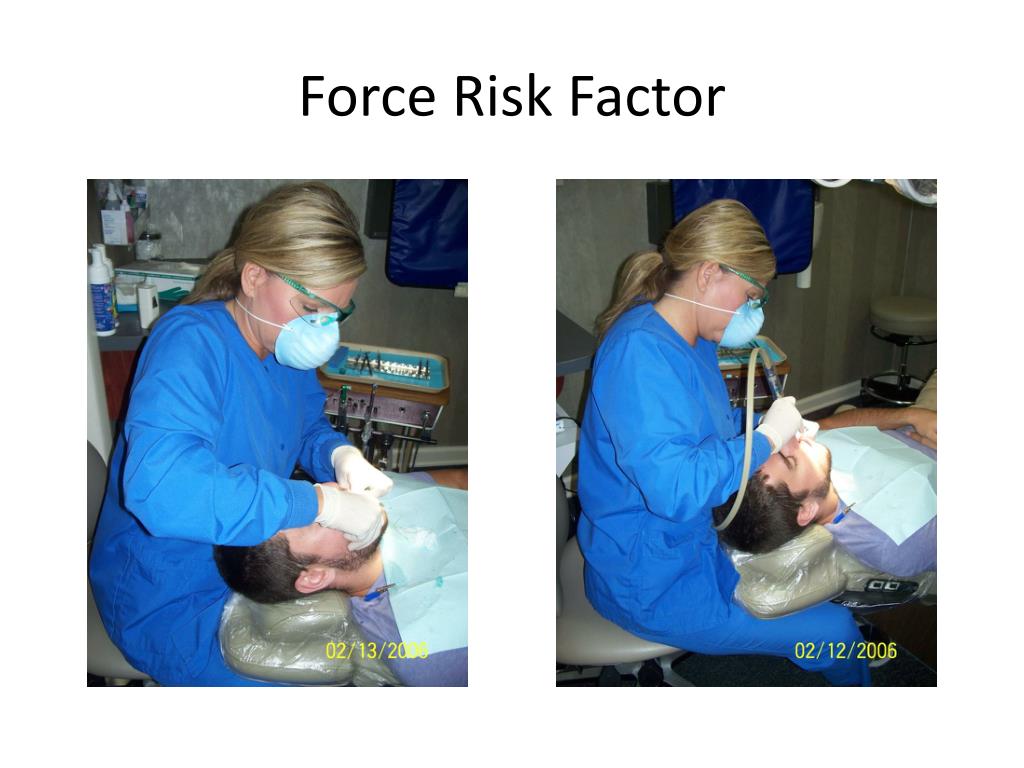

  12. Force Risk Factor

  13. #2 Risk factor • Prolonged vibration of tools • Examples: hand piece • Study from Journal of Professional Excellence Dimensions of Dental Hygiene.

  14. #3 Risk factor • Awkward Postures • Examples: General cleaning and especially cleaning the upper teeth. • Reference page: Study completed by Marquette University- Feb. 2005 Journal of California Dental Association.

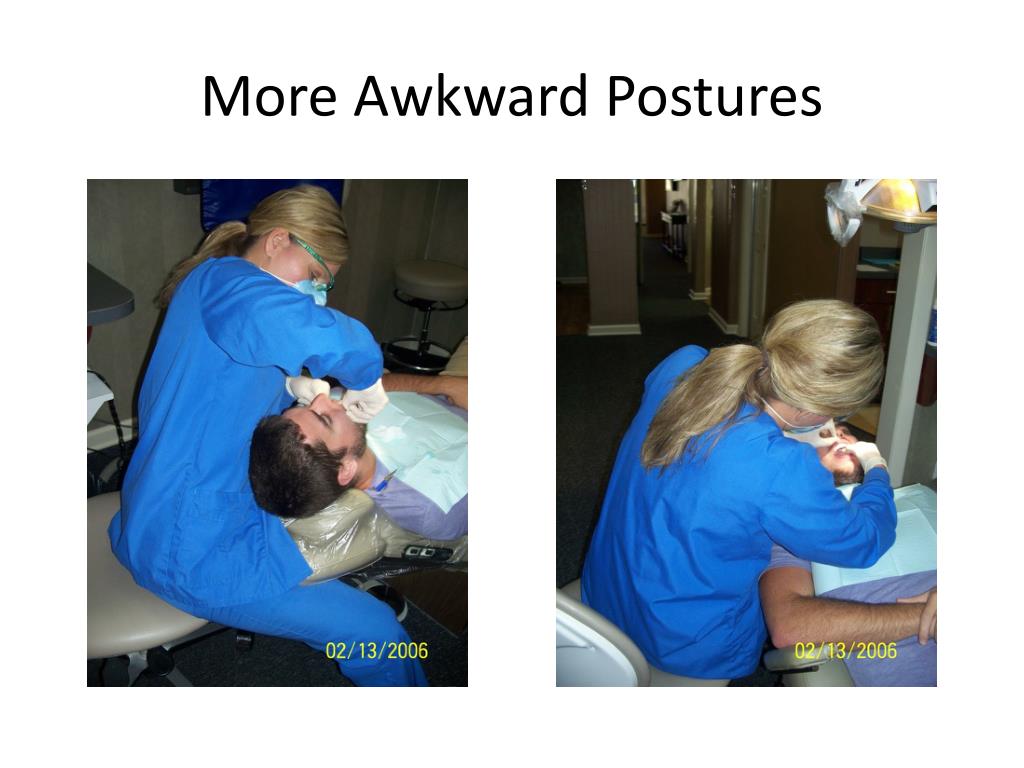

  15. More Awkward Postures

  16. #4 Risk Factor • Repetition of tasks • Examples: (2 hours or more of the same motion without break), patient who has not had prior dental care and has excessive build up. • Study in Journal of Occupational and Environmental Medicine June 2005. Vol. 47 Issue 6

  17. #5 Risk Factor • Contact Stress • Examples: the pressure against the palm applied by tools or the pressure applied to the posterior aspect of the leg or knee (popliteal) while seated

  18. Contact StressOperatory Chair hydrolics had failed- had to sit like this for 35 mins!!!!

  19. Warning Signs of MSD’s • Decreased strength with gripping instruments • Decreased Range of Motion (ROM) in the turning of head to side or reaching arms over head, behind back or back of head. • Numbness or tingling in fingers, elbow or neck. • Over sensitivity on the posterior surface of the forearm and boney aspects of elbow.

  20. Top MSD’s For Dental Professionals • Carpal Tunnel- numbness, pain in hand/wrist, and forearm. Wake up with stiff hands • Chronic Low Back Pain- tight feeling, burning, and aching of lower back muscles. • Trapezius Myalgia- pain, tenderness and trigger points on upper traps. • Rotator Cuff Impingment- pain in shoulder when reaching overhead. • Lateral Epicondylitis(tennis elbow)- pain at elbow, especially when gripping and lifting combined. • Tension neck syndrome- pain in shoulders and neck due to stress and constant elevation of shoulders.

  21. Other Contributing Risk Factors • Stressful working environment- Type A personality- perfectionist- less tolerable to change- hurried- impatient- competitive • Poor lighting • Lack of space • Older equipment • Broken equipment

  22. What to do now??? As Hygienist you teach your patients daily prevention is the key to good dental health.

  23. Proper Body Mechanics General Rules • Push, Don’t Pull. • Lift With Your Legs. • 90, 90, 90. (More Like 100,100,100.) • Keep Spine Aligned. • Limit Twisting or Bending at Waist. • Change Positions Often!!!! • Keep Neutral Hand/Shoulder positions.

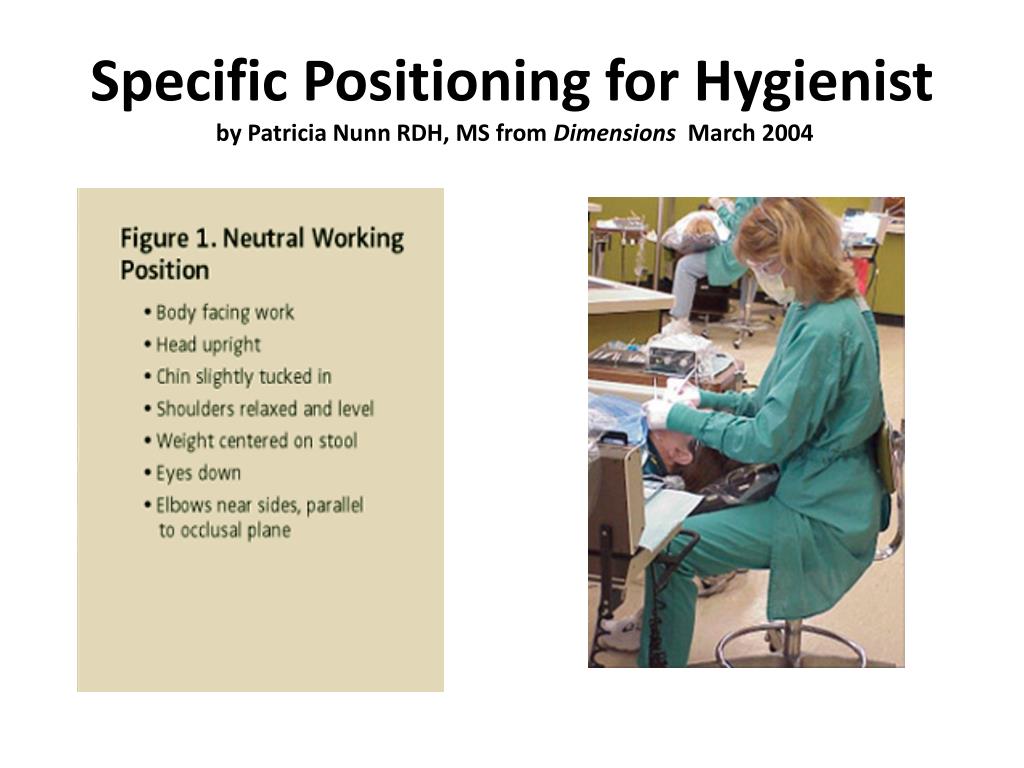

  24. Specific Positioning for Hygienist by Patricia Nunn RDH, MS from Dimensions March 2004

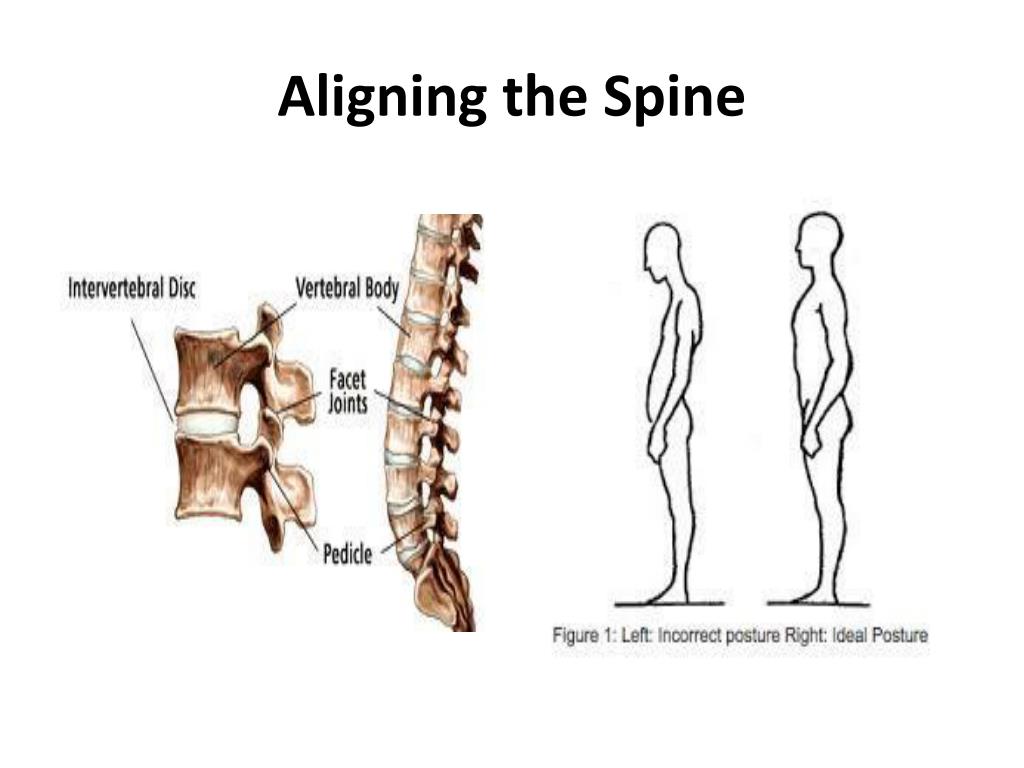

  25. Aligning the Spine

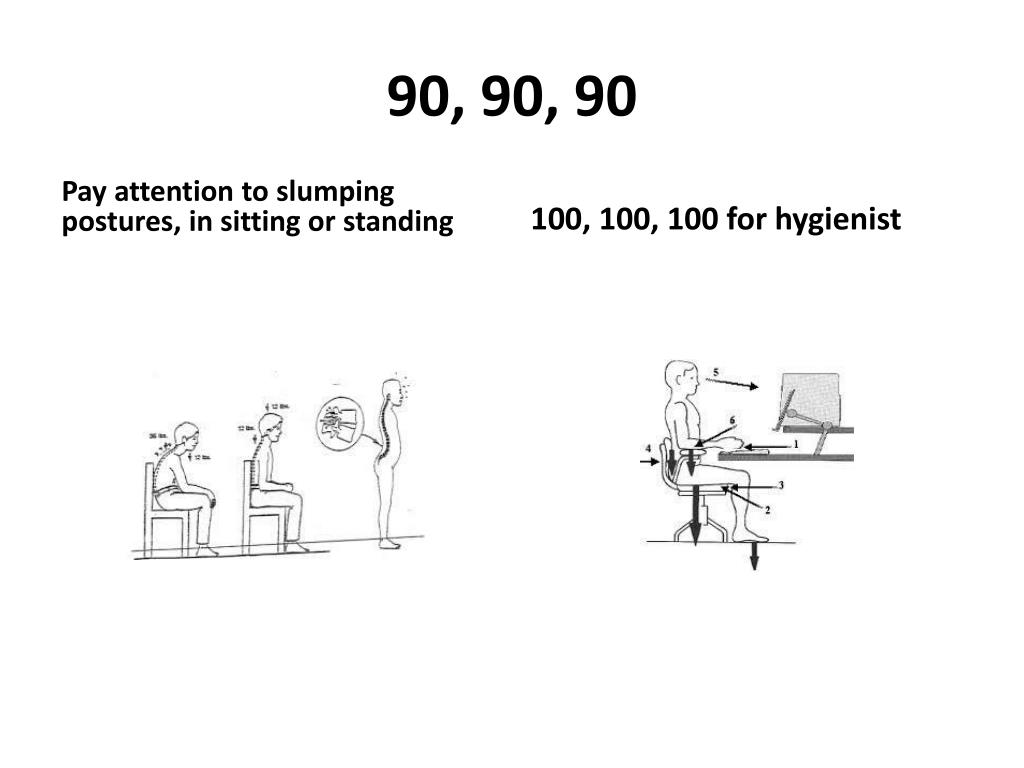

  26. 90, 90, 90 Pay attention to slumping postures, in sitting or standing 100, 100, 100 for hygienist

  27. Pictures and descriptions by Patricia Nunn RDH, MS in March 2004 Dimensions “Preventive Positioning”

  28. Push, Don’t Pull

  29. Limit Bending and Twisting at Waist

  30. Keep Changing Positions • Sit to stand often • Stand while charting if you have been sitting for a long time. • Go for a walk during lunch even if it is for 10 minutes. Walk the stairs 5 times. • Complete “Ergo Break” stretches or “Chairside Stretches”. (see last pages for graphics)

  31. Lift With Your Legs

  32. WHAT DO YOU SEE??? Cleaning room and tools Check out angle of neck & knees

  33. ANYTHING WRONG HERE??? Charting and X-ray station This hygienist is working on a child; what are risk factors?

  34. Dentist and assistant WHAT IS THE “RISK FACTOR”??

  35. Attention: Anyone with prior history of illness or injury!!! -As with all exercise programs, if you have any cardiac, respiratory, or orthopedic problems, consult your physician first!!! Do not begin any new exercise without his/her approval. -The following exercises are considered low stress and low impact. However, the holding of positions without proper breathing CAN raise your blood pressure. Again, please consult your doctor first. -Always begin any exercise with 10 minutes or more of slow stretching of all muscle groups. -Always count out loud to assist proper breathing.

  36. A quote from Ben Franklin “An ounce of prevention is worth a pound of cure.”

  37. ERGO BREAK

  38. Exercises for Life CORE EXERCISES 1.Paraspinal Squeeze- Stomach in, back and up. While sitting, standing or lying down. Goal: to hold for 30 seconds and be able to talk during the exercise! Repeat 10- 20 times in a day. 2.Side lying leg lifts- In side lying on floor, lift both feet off floor as high as you are able (without straining)and hold for 10 seconds. Goal 30 seconds. Repeat 5 times, 3days/wk.

  39. Cont. Core Exercises • Large ball exercises- Sit on ball with feet supported on floor or hooked under the bed. Cross arms on chest and lean back until muscles in stomach contract. Hold and deep breathe for 10-30 seconds. Return to neutral, rest if needed and repeat 5-10 times. Do 3 times wkly. • Any Yoga class will do. Start with beginners. It is harder than it looks!!!! • Plank- Fully extend body on floor, raise to “push up” position and hold for 20-30 seconds. Rest and repeat up to 10 times. 3x’s a wk.

  40. Neck- Stretches 1. No “Turtle Neck” Please- while driving or sitting in a chair. Look straight ahead (no tucking chin) and push head back into head rest. That is what it’s for!! Hold for 5 seconds, repeat up to 20 times. Note: if you do this in the car, only do it during the red lights please!!!!! Set your mirrors while in this position to keep your head in proper position during driving. You wont be able to see out mirrors if you start to slouch.

  41. Neck/Pec Stretches • Upper trap/levator stretch- While sitting place on hand behind back (over lower back). Next, slowly turn head away from arm that is behind until stretch is felt. For greater stretch, slowly look down. Hold for 10 secs, slowly return to neutral. Repeat up to 5 times. Do each side. Warning: DO NOT COMPLETE THIS STRETCH IF YOU HAVE ANY NECK INJURIES, SPINAL STENOSIS, BULGING/HERNIATED DISC OR CAROTID ARTERY BLOCKAGE.

  42. Legs • The “Sonicare” Squat- During the two minutes you brush your teeth you can bend slightly at the knees and hold. Be sure to breath comfortably. Don’t worry about holding it the entire 2 minutes the first go around. Two minutes is your goal. Repeat twice daily (and floss!!!!) • Take the stairs or park further from building. Not a problem if you don’t have a BLUE lot parking pass!! Every little bit helps. • Piriformis Stretch- Laying or standing. Watch demo.

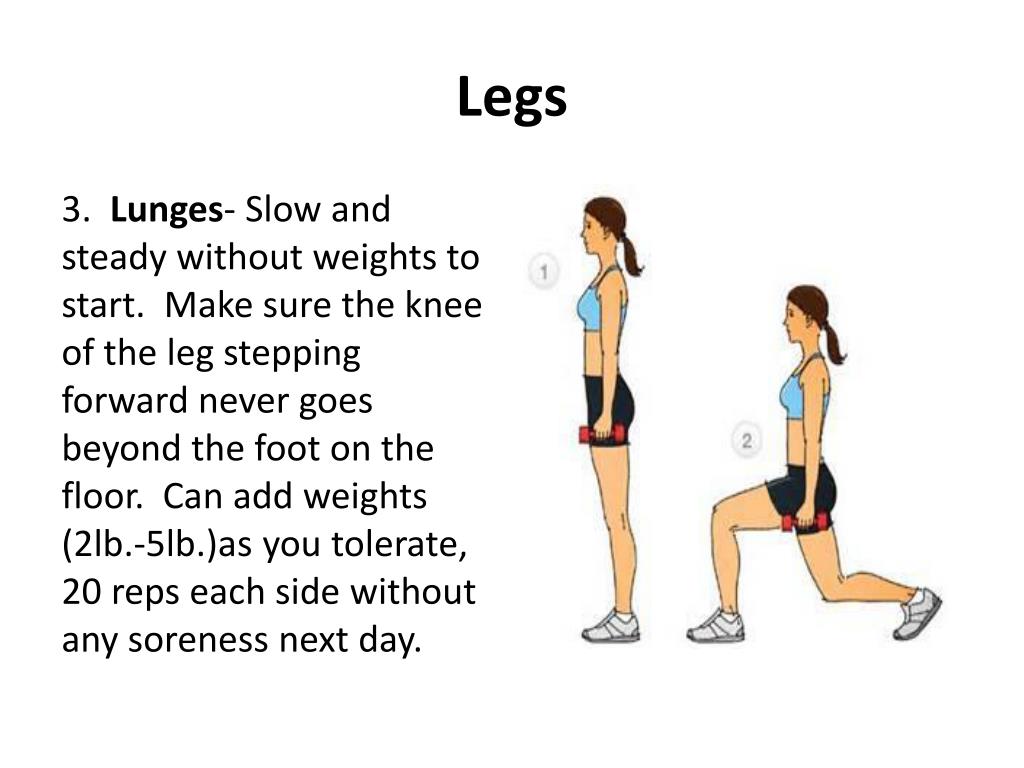

  43. Legs 3. Lunges- Slow and steady without weights to start. Make sure the knee of the leg stepping forward never goes beyond the foot on the floor. Can add weights (2lb.-5lb.)as you tolerate, 20 reps each side without any soreness next day.

  44. Shoulder/Arms 1. Corner Push ups- Stand in a corner, place arms on opposite walls at shoulder height and at comfortable distance apart. Slowly bend elbows, while keeping head in neutral until scapula’s touch. Hold for 10 sec, return to start, and repeat x’s 20. 3x’s wkly. (Hold longer for stretch, less reps. 2. Bench press- Lying on floor or firm bed with knees bent comfortably. Grasp rod with both hands (mop or broom) and lift straight up toward ceiling. This should be slow and smooth. Once fully extended hold for count of 10, return to start and repeat x’s 20. 3x’s wkly.

  45. Arms/Shoulders 3. Ball or balloon toss- Can play with the kids for 15 minutes hitting a beach ball or balloon in the air. To make it harder add 1lb. wrist weights. Any task completed with arms above the shoulders is two times as stressful on the heart. Take breaks as needed. 4. Tricep/Sawing logs- Start with 15oz can of food or a bottle of water in one hand. Lean onto table with other hand for support. Move hand with bottle back and forth from floor to ceiling in a “sawing motion”, slowly repeat 20 times. 3x’s wkly.

  46. Aerobic Exercise • Walking is the best low impact aerobic exercise. You can do it anywhere. Make sure you keep a swift pace (WHERE’S THE FIRE) and swing your arms forward and back. When they come forward you should bend slightly at elbow. This works biceps and triceps. • Low impact aerobics, Swiss ball, Pilates and low impact circuit training are all good.

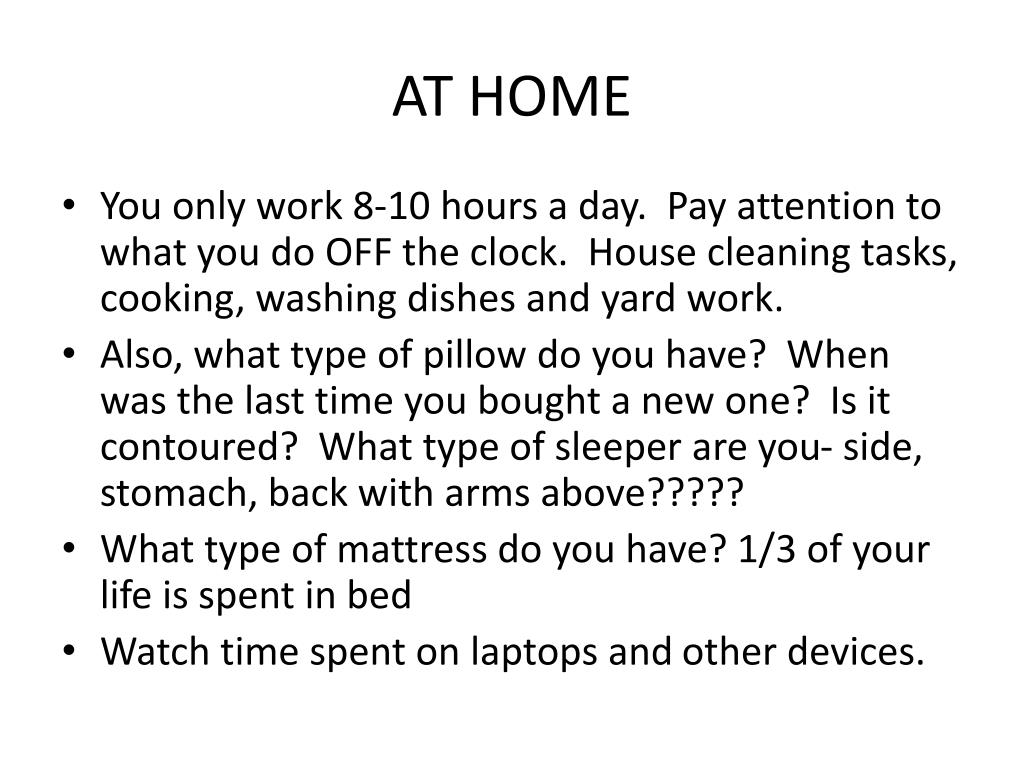

  47. AT HOME • You only work 8-10 hours a day. Pay attention to what you do OFF the clock. House cleaning tasks, cooking, washing dishes and yard work. • Also, what type of pillow do you have? When was the last time you bought a new one? Is it contoured? What type of sleeper are you- side, stomach, back with arms above????? • What type of mattress do you have? 1/3 of your life is spent in bed • Watch time spent on laptops and other devices.

  48. Recommended Equipment Saddle Stool Loupes

  49. Recommended Equipment • Blue Boa Suction System • Tools with VERA system • Ultrasonic tools • Other Magnification systems- procedure scope, surgical operating microscopes, generic magnification lenses • Seat cushions which give a slight forward tilt. For example: Fit-Sit found online at ergonomic-products.com. You sit ¾ of your day. Swiss ball stools and those with adjustable arm rest and backs are also wonderful. Trade with others at lunch.

  50. RecommendedTechniques • Use the 12 o’clock method- over the head. • Use your mirror for upper teeth cleaning. • Change sides or positions often, if possible. • Position the patient to better suit you- get your stool set for you first, then adjust patient to elbow height. • Take Ergo Breaks after every cleaning. Should only take 2 minutes tops. • Arrange tools within 16” of center, at the most 24” for less used tools. Adjust height of tray at elbow height.
