  1. NOVA Extrusion Test Results ─ Prototype Test Device

  2. NOVA Extrusion Test Results ─ Test Device Gasket Detail Holes for 1/2” All-thread Rod Fill Holes for Cells Test Sample

  3. NOVA Extrusion Test Results ─

  4. NOVA Extrusion Test Results ─

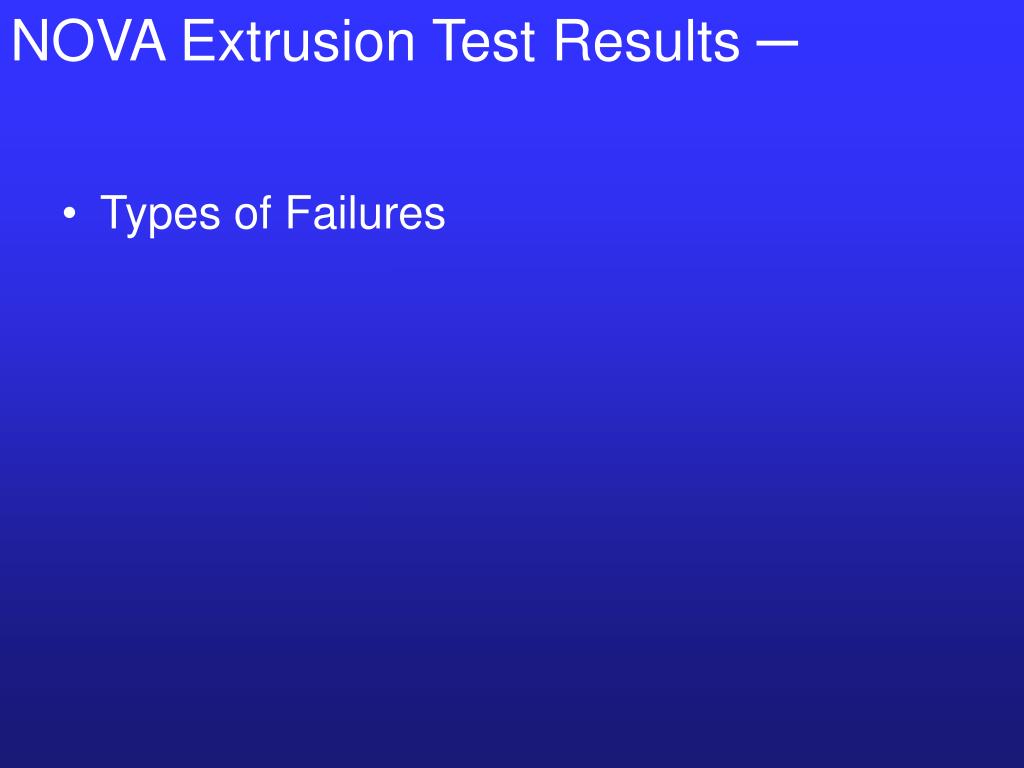

  5. NOVA Extrusion Test Results ─ Types of Failures

  6. NOVA Extrusion Test Results ─ Types of Failures  Side Wall

  7. NOVA Extrusion Test Results ─ Types of Failures  Side Wall  Root

  8. NOVA Extrusion Test Results ─ Types of Failures  Side Wall  Root  Web

  9. NOVA Extrusion Test Results ─ Types of Failures  Side Wall  Root  Web  Combination

  10. NOVA Extrusion Test Results ─ ►Sample 1. ● Material: Nova 27 ● Failure pressure: 180 psi ● Failure type: Side wall

  11. NOVA Extrusion Test Results ─ ►Sample 2. ● Material: Nova 27 ● Failure pressure: 100 psi ● Failure type: Root and side wall

  12. NOVA Extrusion Test Results ─ ►Sample 3. ● Material: Nova 27 ● Failure pressure: 130 psi ● Failure type: Root and side wall

  13. NOVA Extrusion Test Results ─ ►Sample 4. ● Material: Nova 27 ● Failure pressure: 110 psi ● Failure type: Root and side wall

  14. NOVA Extrusion Test Results ─ ►Sample 5. ● Material: Nova 27 ● Failure pressure: 160 psi ● Failure type: Side wall

  15. NOVA Extrusion Test Results ─ ►Sample 6. ● Material: Nova 27 ● Failure pressure: 160 psi ● Failure type: Root and side wall

  16. NOVA Extrusion Test Results ─ ►Sample 7. ● Material: Nova 22 ● Failure pressure: 45 psi ● Failure type: Root

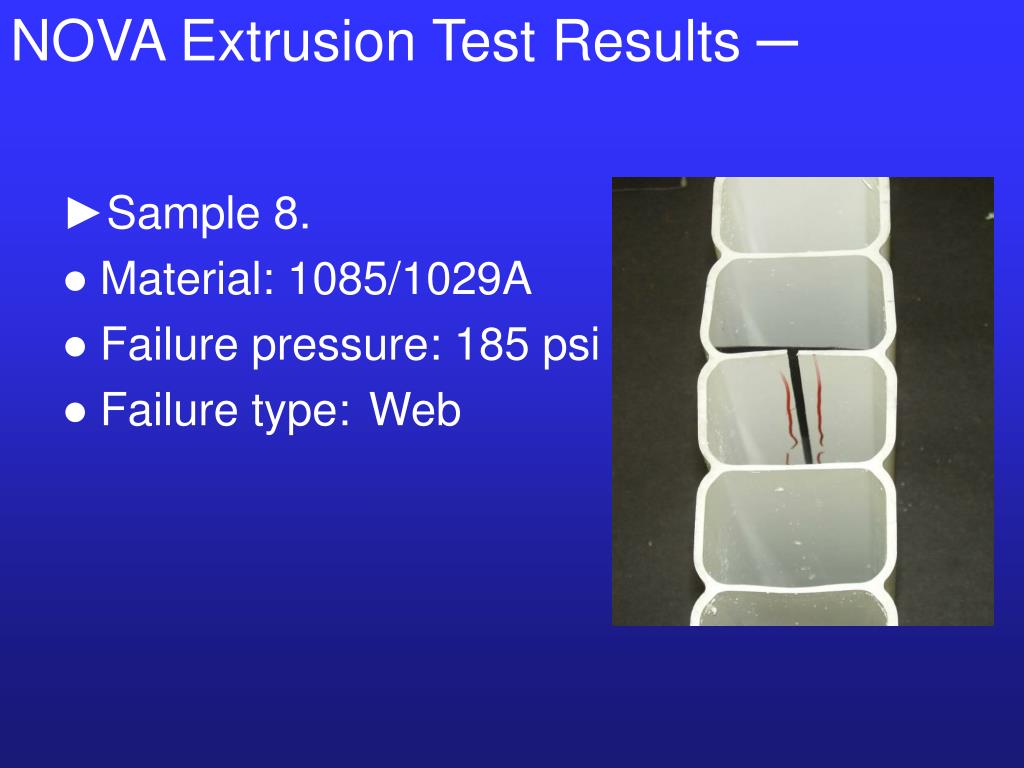

  17. NOVA Extrusion Test Results ─ ►Sample 8. ● Material: 1085/1029A ● Failure pressure: 185 psi ● Failure type: Web

  18. NOVA Extrusion Test Results ─ ►Sample 9. ● Material: 1085/1029A ● Failure pressure: 200 psi ● Failure type: Web

  19. NOVA Extrusion Test Results ─ ►Sample 10. ● Material: Nova 19 ● Failure pressure: 60 psi ● Failure type: Root

  20. NOVA Extrusion Test Results ─ ►Sample 11. ● Material: Nova 19 ● Failure pressure: 85 psi ● Failure type: Root

  21. RPVC Extrusion Test Results ─ Lee and Jostlein, 2005

  22. NOVA Extrusion Test Results ─ Next phase:

  23. NOVA Extrusion Test Results ─ Next phase: ● Completion of a hazard analysis.

  24. NOVA Extrusion Test Results ─ Next phase: ● Completion of a hazard analysis. ● Construction of a more efficient test device.

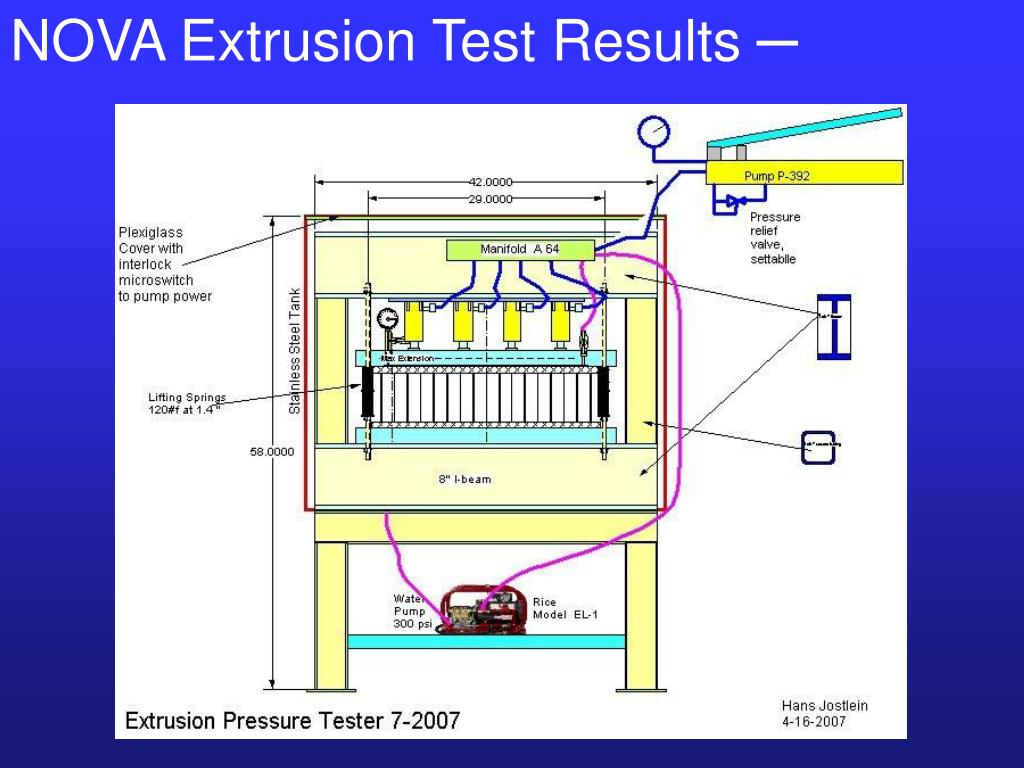

  25. NOVA Extrusion Test Results ─

  26. NOVA Extrusion Test Results ─ Next phase: ● Completion of a hazard analysis. ● Construction of a more efficient test device. ● Testing more samples.
