  1. Г. Е. Шульман Физиолого-биохимические индикаторы состояния гидробионтов

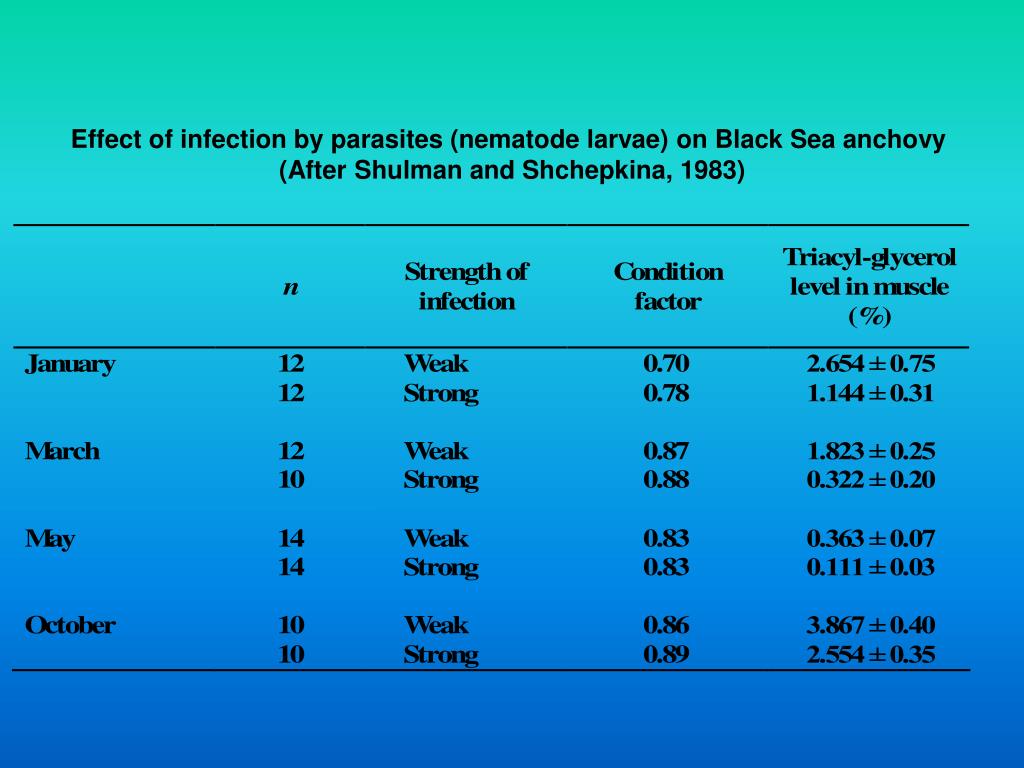

  2. Effect of infection by parasites (nematode larvae) on Black Sea anchovy (After Shulman and Shchepkina, 1983)

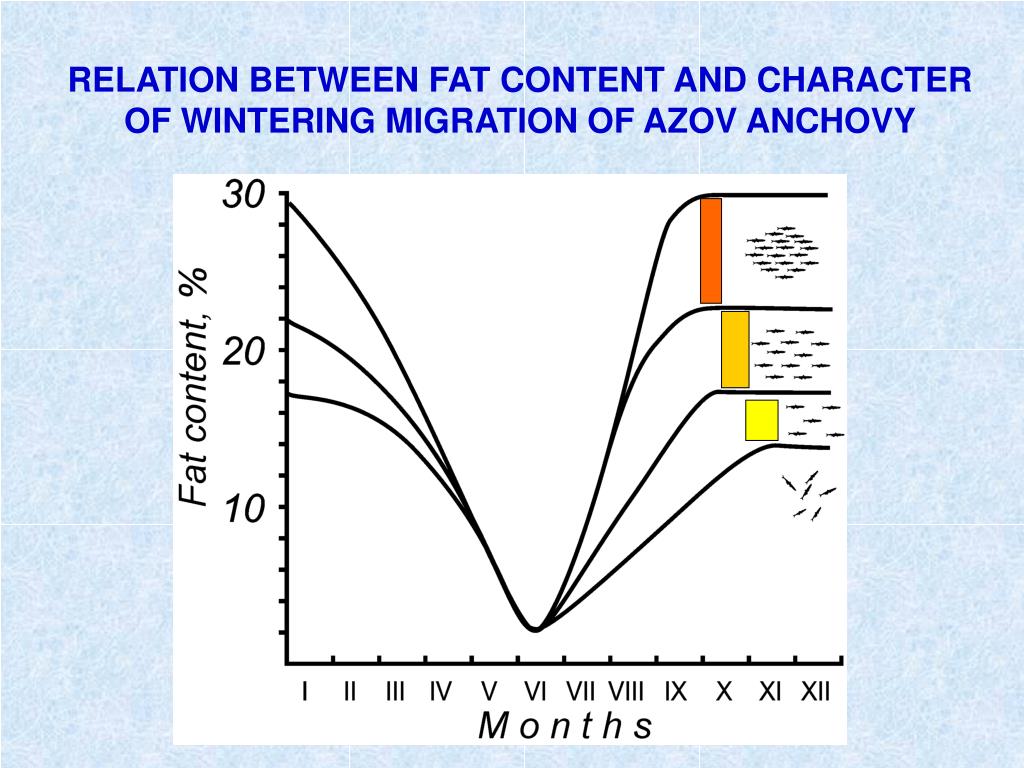

  3. RELATION BETWEEN FAT CONTENT AND CHARACTER OF WINTERING MIGRATION OF AZOV ANCHOVY

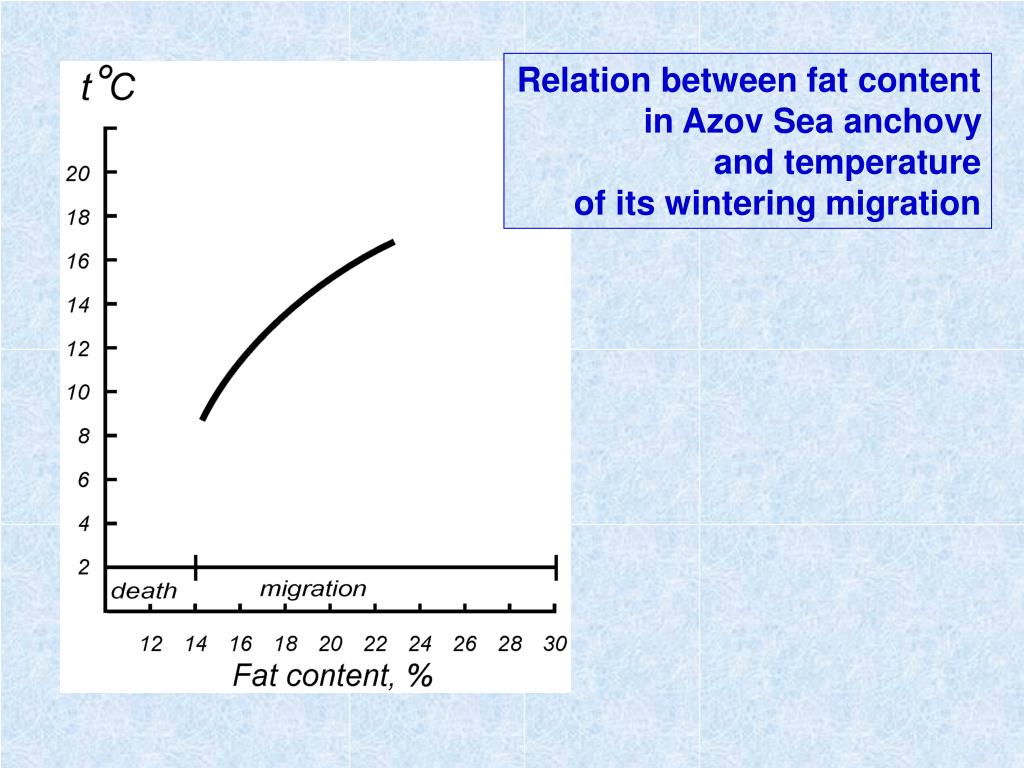

  4. Relation between fat content in Azov Sea anchovy and temperature of its wintering migration

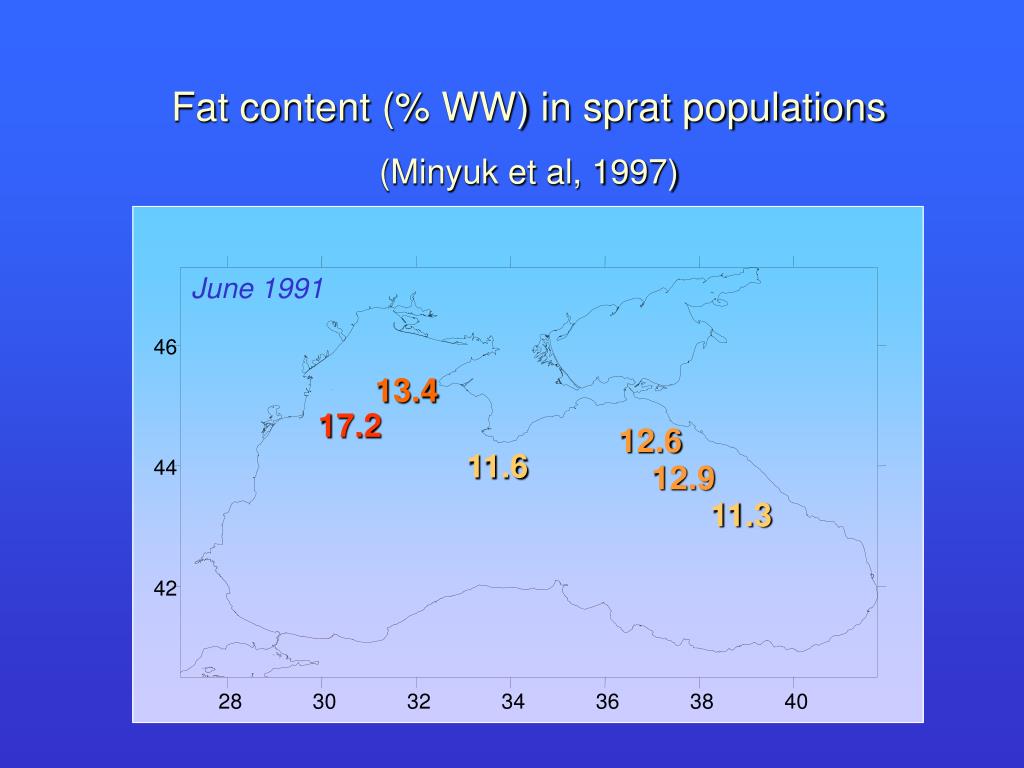

  5. Fat content (% WW) in sprat populations (Minyuk et al, 1997) June 1991 46 13.4 17.2 12.6 11.6 44 12.9 11.3 42 28 30 32 34 36 38 40

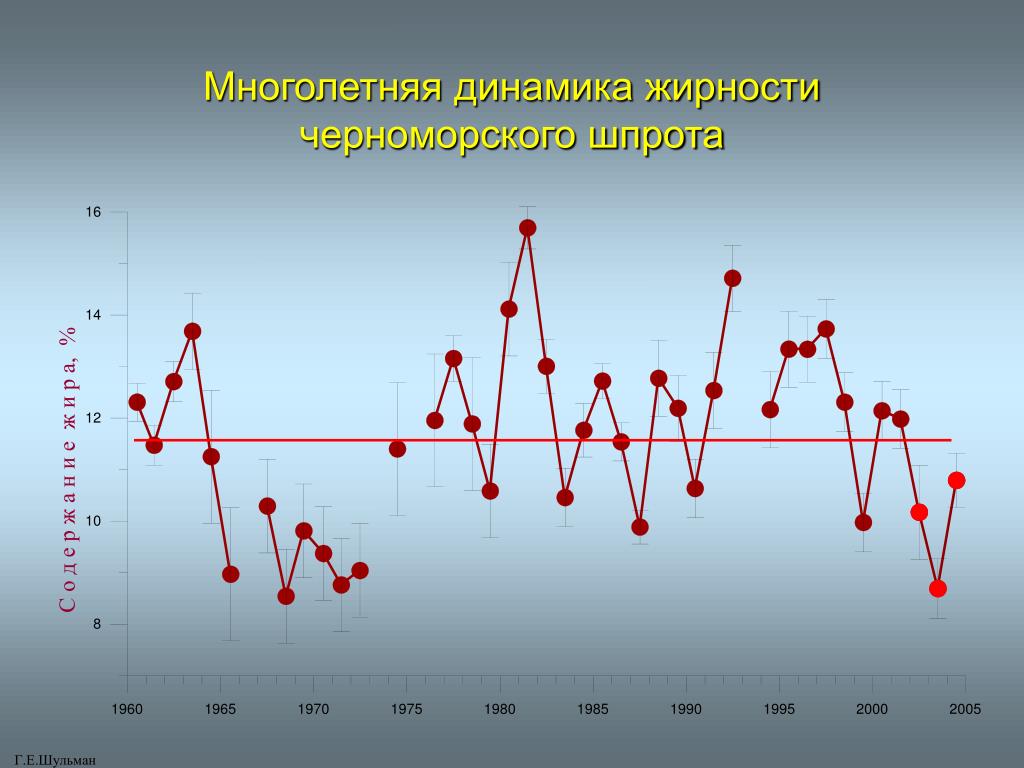

  6. Г.Е.Шульман Многолетняя динамика жирности черноморского шпрота С о д е р ж а н и е ж и р а, %

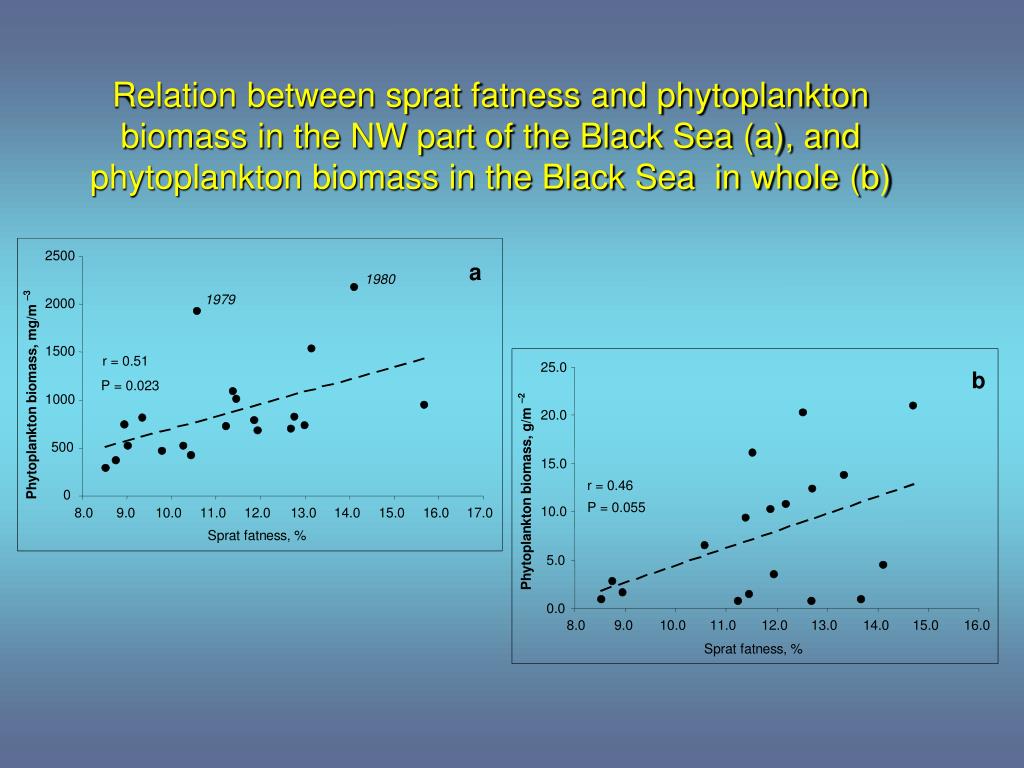

  7. Relation between sprat fatness and phytoplankton biomass in the NW part of the Black Sea (a), and phytoplankton biomass in the Black Sea in whole (b)

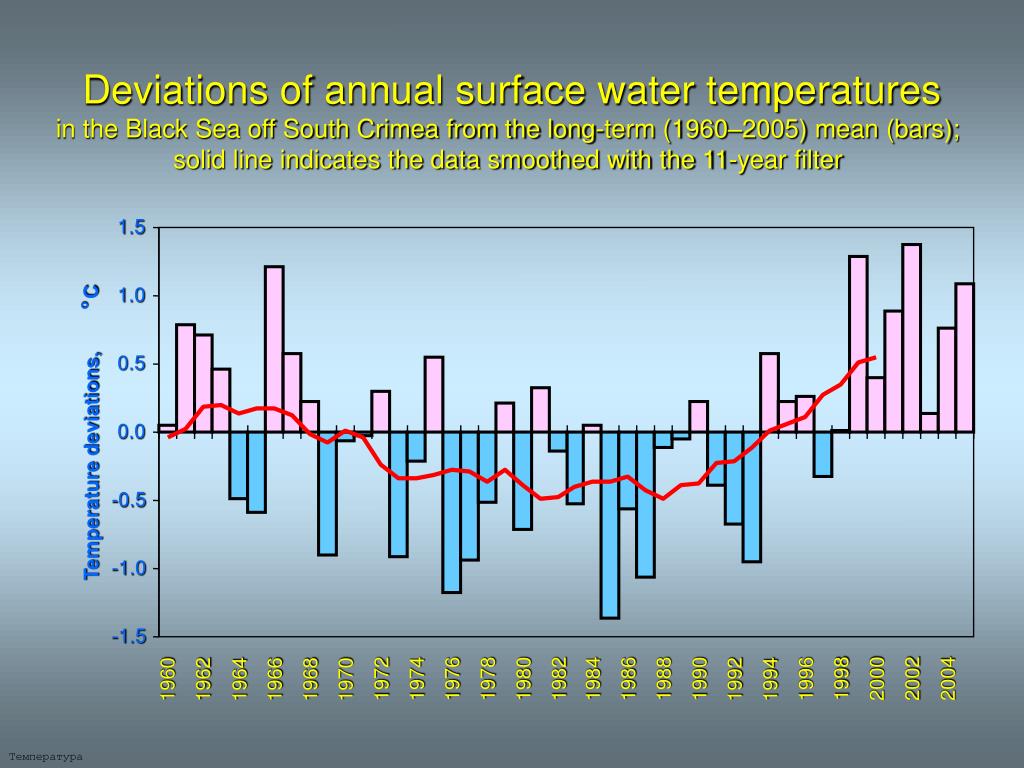

  8. Температура 1.5 С 1.0 о 0.5 0.0 Temperature deviations, -0.5 -1.0 -1.5 1998 2000 2002 2004 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1996 1960 1962 1964 1966 1968 1970 1992 1994 Deviations of annual surface water temperatures in the Black Sea off South Crimea from the long-term (1960–2005) mean (bars); solid line indicates the data smoothed with the 11-year filter

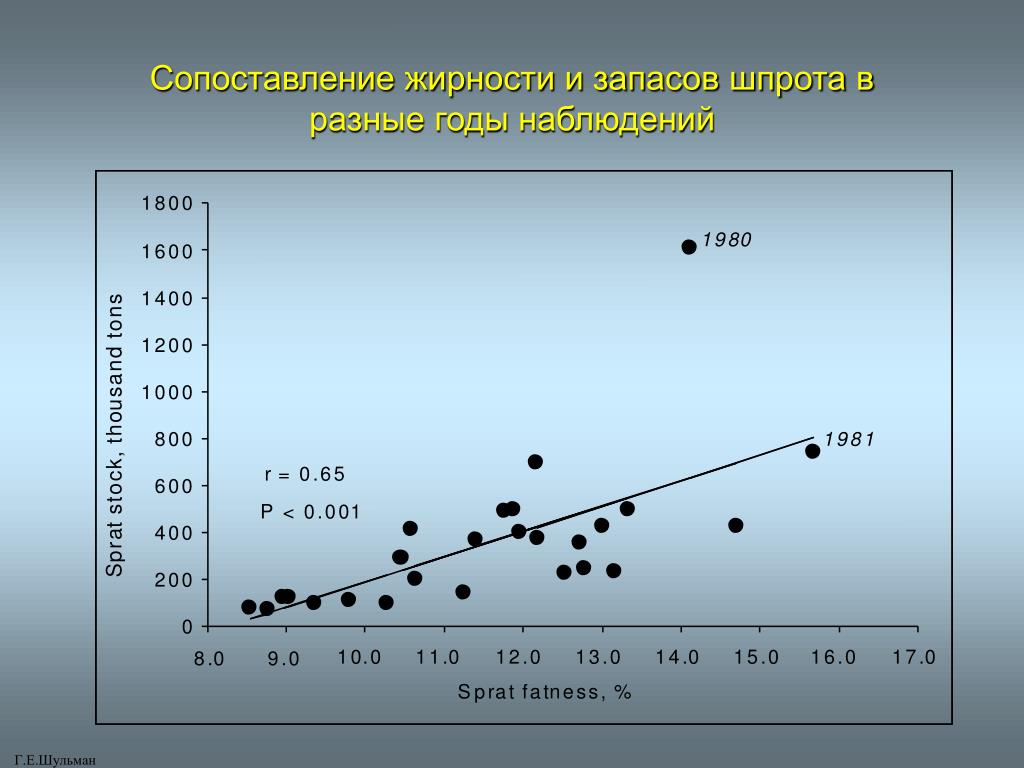

  9. Сопоставление жирности и запасов шпрота в разные годы наблюдений Г.Е.Шульман

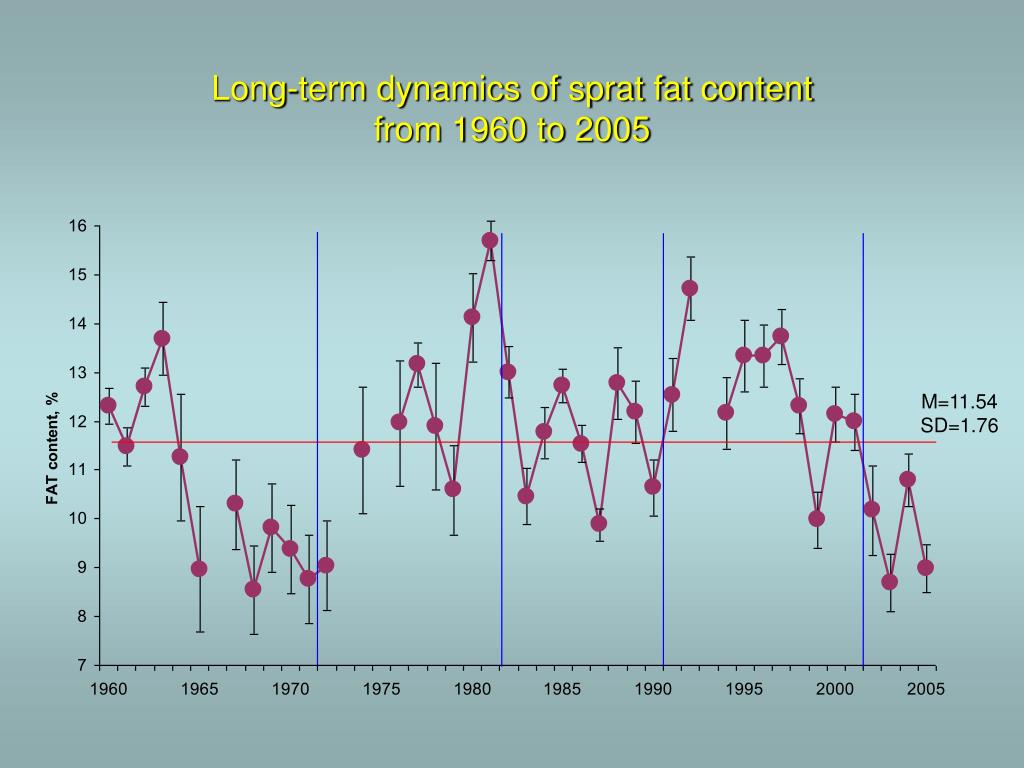

  10. Long-term dynamics of sprat fat content from 1960 to 2005 M=11.54 SD=1.76

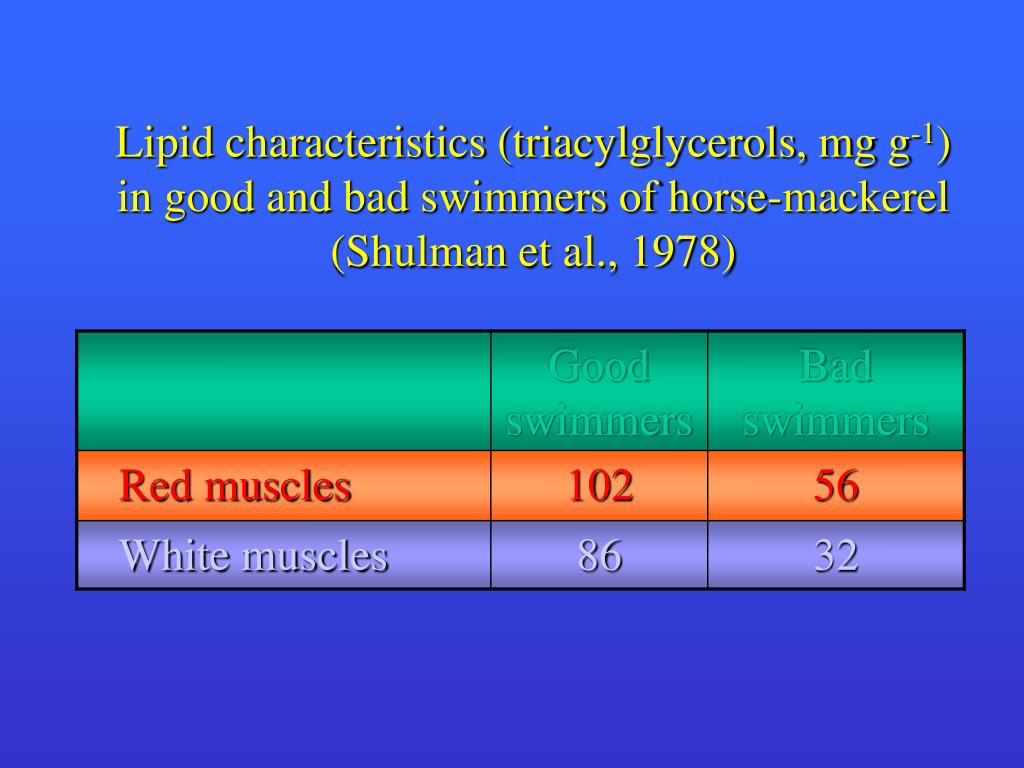

  11. Lipid characteristics (triacylglycerols, mg g-1)in good and bad swimmers of horse-mackerel (Shulman et al., 1978)

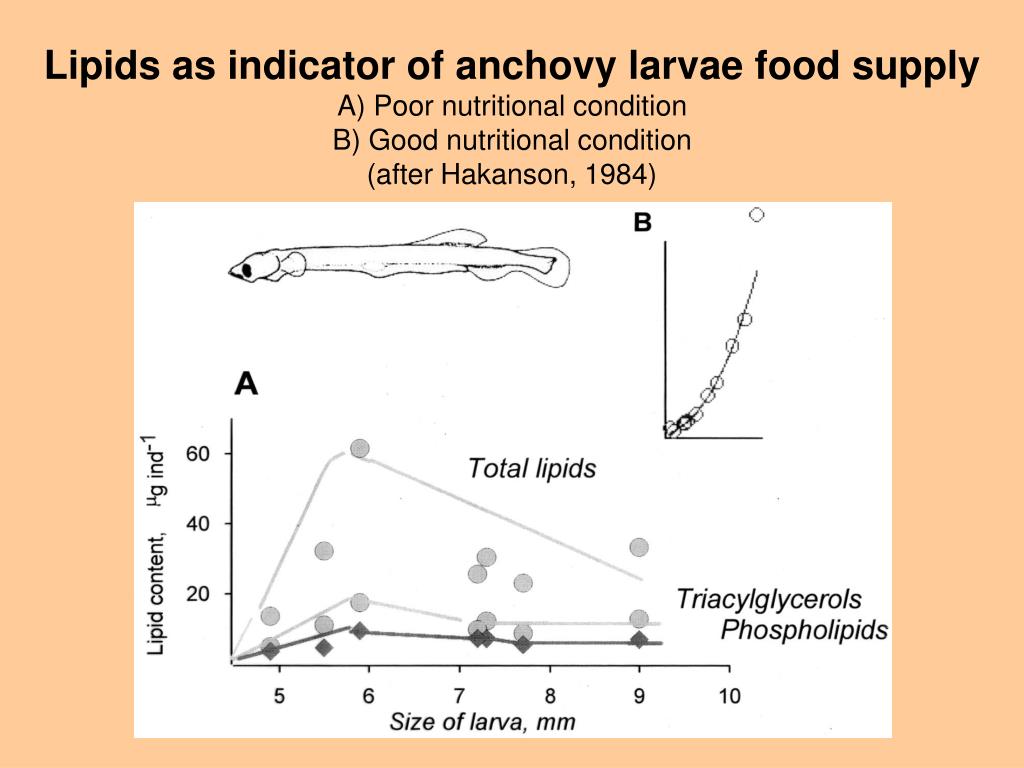

  12. Lipids as indicator of anchovy larvae food supplyA) Poor nutritional conditionB) Good nutritional condition (after Hakanson, 1984)

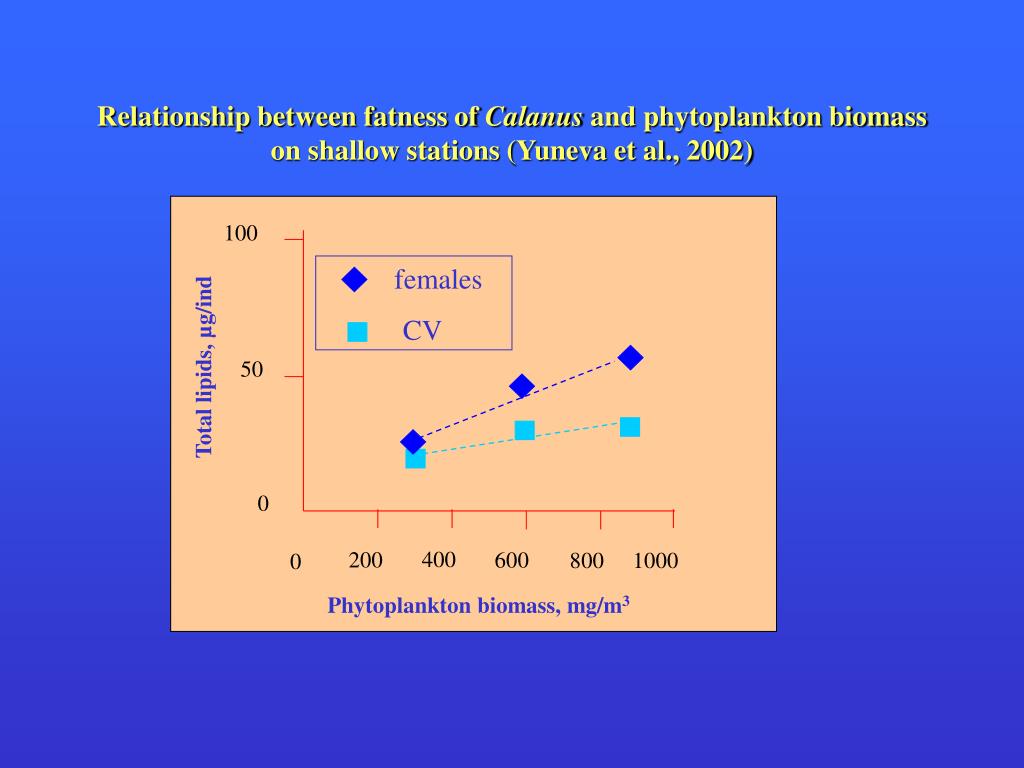

  13. Relationship between fatness of Calanus and phytoplankton biomass on shallow stations (Yuneva et al., 2002) 100 females CV Total lipids, µg/ind 50 0 400 200 600 800 1000 0 Phytoplankton biomass, mg/m3

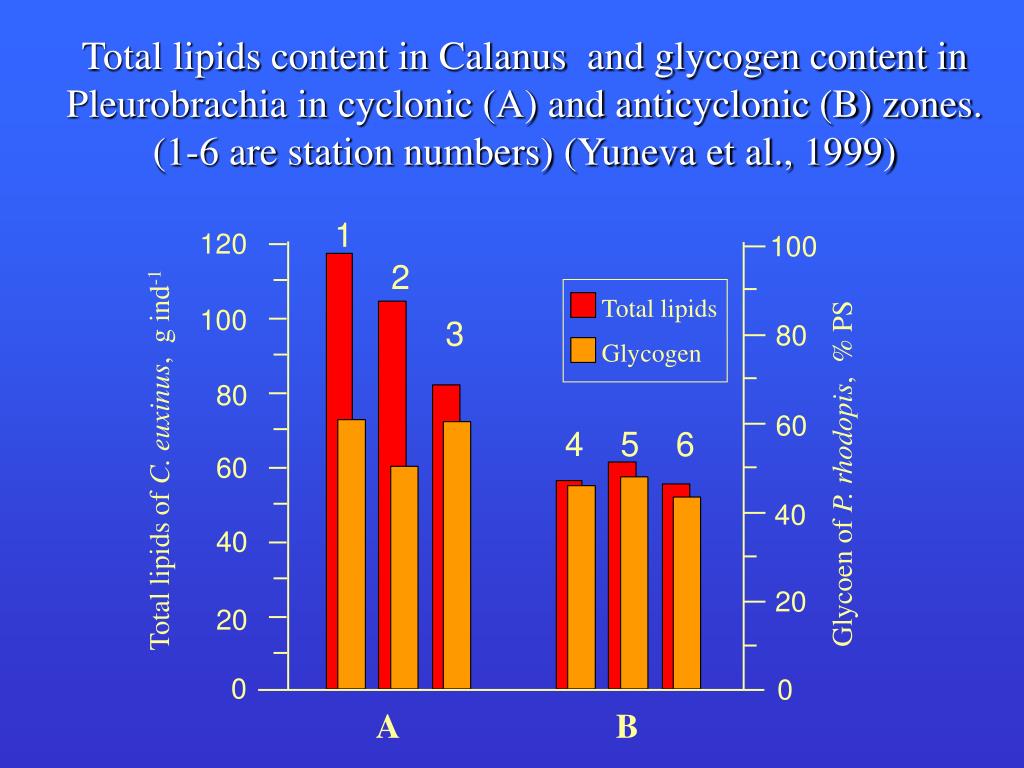

  14. Total lipids content in Calanus and glycogen content in Pleurobrachia in cyclonic (A) and anticyclonic (B) zones. (1-6 are station numbers) (Yuneva et al., 1999) 1 120 100 2 Total lipids 100 3 80 Glycogen Total lipids of C. euxinus, g ind-1 80 60 4 5 6 Glycoen of P. rhodopis, % PS 60 40 40 20 20 0 0 A B

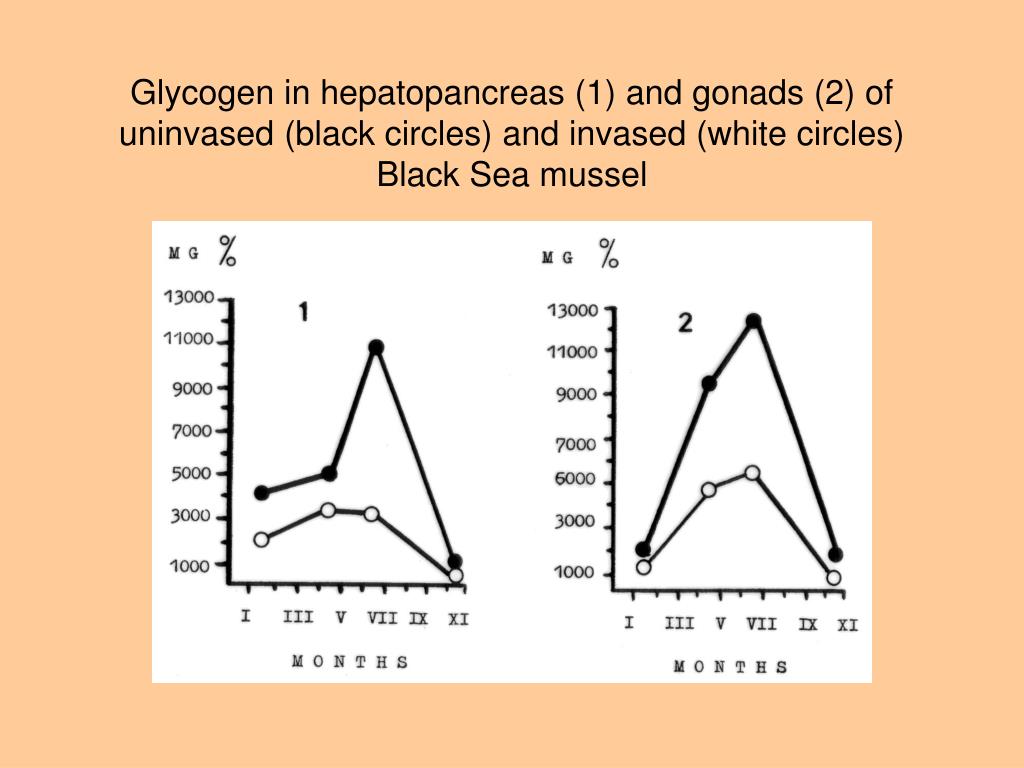

  15. Glycogen in hepatopancreas (1) and gonads (2) of uninvased (black circles) and invased (white circles) Black Sea mussel

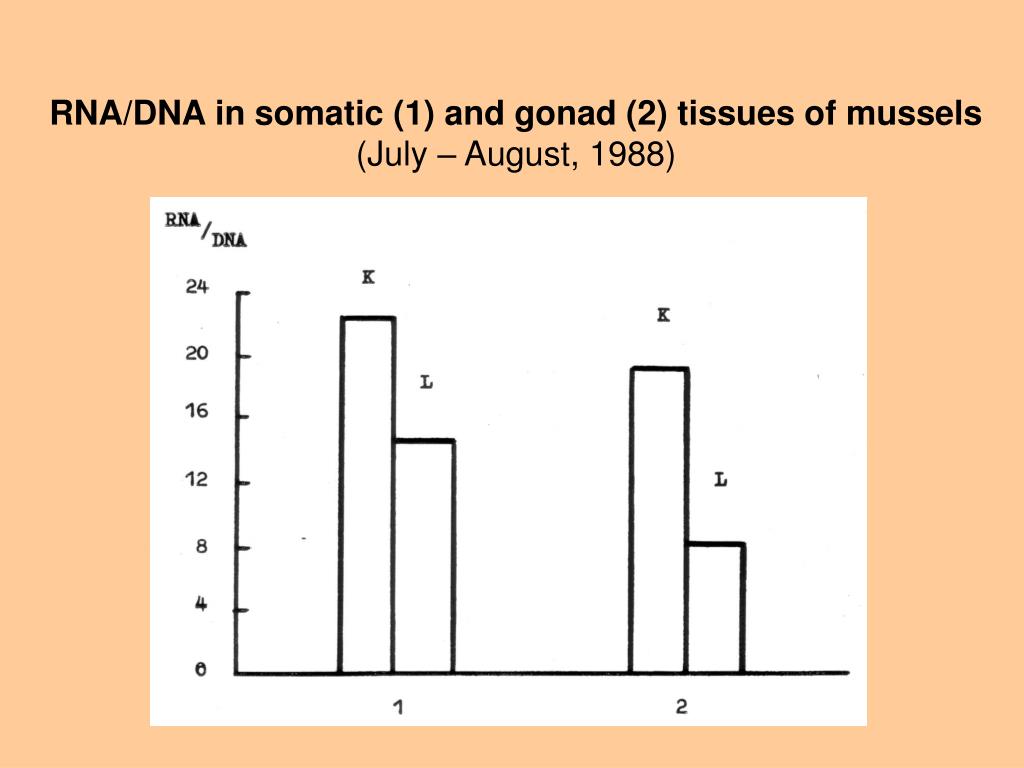

  16. RNA/DNA in somatic (1) and gonad (2) tissues of mussels (July – August, 1988)
