Federal XML Naming and Design Rules and Guidelines NDRG

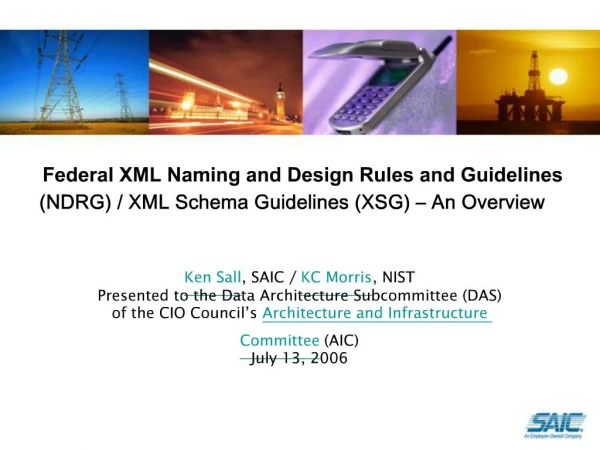

1. Federal XML Naming and Design Rules and Guidelines (NDRG) / XML Schema Guidelines (XSG) � An Overview Ken Sall, SAIC / KC Morris, NIST Presented to the Data Architecture Subcommittee (DAS) of the CIO Council�s Architecture and Infrastructure Committee (AIC) July 13, 2006

2. 2 Agenda What/Who: NDR is? / Background / Status of NDRG / Participants Why: Interoperability / Reuse /Sharing / Proliferation of NDRs How: Approach for Going Forward / Quality of Design (QOD) Tool / XML Schema Guidelines (XSG) / Authoring and Sharing Environment Where: CORE.gov, NIST, SourceForge

3. 3 What is an �NDR�? Naming and Design Rules Any of a series of rules documents since 2003 that restrict XML Schema flexibility by proscribing which features should, may, may not, should not, must, or must not be used Focuses only on XML Schema not DTDs, RELAX NG, XSLT, XSL-FO, DOM, SAX, etc. Tends to be very specific and integrated; adopt as a whole, not partially � debatable! Original impetus was E-Commerce (UN/CEFACT and UBL)

4. 4 What is an NDR? � Naming Rules�. Naming rules: the names are the [XML] tags used by the exchange file Names represent information to be exchanged Names vary between the systems being integrated A single common name for a given concept is adopted for the integration Consistently representing those names helps usability of the XML Schema

5. 5 What is an NDR? � � and Design Rules Design Rules address how information is structured Superstructures: namespaces Microstructures: global vs local elements

6. 6 Why is an NDR needed? Many features of XML (in general) and XML Schema are optional, so developers have many choices to make: lowercase, camelCase, UpperCamelCase, UPPERCASE? Namespaces as URLs or URNs? Local or global scope for elements? Versioning, modularity, extensions? Highly structured, consistent, and clear rules or guidelines promote reusability, interoperability and information sharing both within an organization and across organizations.

7. 7 Benefits of NDR Encoding NDR can be computationally enforced! Encoding of rules results in better rules The process of encoding tests the rules Executing the rules results in better XML Schemas The benefits of the NDR are achieved Cycle time from requirements for a schema to production XML is reduced [Korean group reduced time from 2 weeks to 3 days]

8. 8 NDRG Background and Status [1] NDR = (XML) Naming and Design Rules � generic term NDRG = (Federal XML) Naming and Design Rules and Guidelines May 2005: Work initially funded by GSA/OGP, under the XML Community of Practice (Owen Ambur, co-chair). LMI: authors/editors. A dozen participants. 5 drafts circulated over about 9 months. Many open issues. No code examples until last version. Participation varied, only a few agencies represented. Mar. 6, 2006: Cease Work Instruction issued by GSA.

9. 9 NDRG Background and Status [2] Mar. 15, 2006: Going Forward - XML CoP presentations at NIST: NIST Quality of Design Tool (QOD) Lessons Learned from Encoding the DON NDR Potential Next Steps Since May 2006 � Bi-weekly telecons hosted by NIST. Quality of Design Tool (QOD) progressing nicely XML Schema Guidelines (XSG) � outline only Using CORE.gov for docs: NDRG/XSG Community Using SourceForge for QOD development Few participants July 19, 2006: KC Morris presenting to DoD Metadata WG

10. 10 NDRG / XSG: Participants (partial list) Key Current Participants KC Morris � kcm@nist.gov Serm Kulvatunyou � serm@nist.gov Josh Lubell � lubell@nist.gov Betty Harvey, ECC, Inc. - harvey@eccnet.com Ken Sall, SAIC � sallk@saic.com (for ODNI CIO/ICEA) Joe Pantella, FGM, Inc. - joe@fgm.com (for DISA/DoD Metadata Registry) Owen Ambur - Owen_Ambur@ios.doi.gov (XML CoP co-chair) New Participants Priscilla Walmsley, Datypic � former member, W3C XML Schema and XQuery Working Group (confirmed) Webb Roberts, GTRI for NIEM (not yet confirmed)

11. 11 NDRG / XSG: Participants (partial list) [2] Previous Participants Paul Macias and Greg Wilson, LMI (authors of draft NDRG through Mar. 2006) Sol Safran, IRS Mike Grimley, DoN Chris Traver, DoJ Joe Chiusano, BAH SSgt Rebecca Wilde, USAF Winchel "Todd" Vincent III, xmlLegal.org Marion Royal, GSA/OGP Mark Crawford, SAP (formerly LMI)

12. 12 20 NDRG Rule Categories

13. 13 One NDR That Rules Them All? [1] U.S. Government EPA Exchange Network XML Design Rules and Conventions Federal XML Naming and Design Rules Project Global Justice XML Data Model (GJXDM) Naming and Design Rules IRS XML Naming and Design Rules US Department of the Navy XML Naming and Design Rules Education: Federal Student Aid - XML Registry Links from Cover Page on NDR. [With apologies to J.R.R. Tolkien.]

14. 14 One NDR That Rules Them All? [2] International Danish XML Project: OIOXML Naming and Design Rules Hong Kong OGCIO Interoperability Framework for E-Government OAGIS Naming and Design Rules (NDR) OASIS LegalXML Exchange Document Methodology, Naming, and Design Rules (MNDR) Subcommittee Universal Business Language (UBL) Naming and Design Rules UN/CEFACT XML Naming and Design Rules Technical Specification AIAG (Automotive Industry Action Group) Others?

15. 15 NIST Quality of Design Testing Tool (QOD) Surveyed naming and design rules documents Coded some of the rules Developed a harness for executing rules Available as a web-based serviceSurveyed naming and design rules documents Coded some of the rules Developed a harness for executing rules Available as a web-based service

16. 16 Why QOD? Addresses proliferation of NDRs Overlapping NDR standards Supports reusability of rules Highlights ambiguous rules Provides an explicit structure for rules in NDRs [Betty Harvey is developing an XML Schema for NDR rule structure and another for NDR document structure] Automates rule enforcement Enables versioning and traceability

17. 17 Quality of Design Tool � Testing Environment

18. 18 QOD is a Database of Rules Where we are: QOD as a Testing Tool Tool is available online with an account Database contains sampling of rules from DON, UBL, AIAG Users may submit others Where we are going: NDR Authoring and Sharing Environment Tool being developed at NIST XML Schema Guidelines (XSG) being developed within XML CoP � help is needed!

19. 19 NDR Authoring and Sharing Environment Work in progress [One] XML Schema for rule [description] and exchange [Another] XML Schema for NDR documentation XML Schema Guidelines for expansion of rule base Reuse of rules by new COIs [Clone or Modify] Traceability and versioning of rules

20. 20 Quality of Design Tool � w/ Authoring and Sharing Env.

21. 21 Benefits of NDR Authoring and Sharing Environment Makes an NDR real Executable rules are integral to NDR Schemas can be tested for consistency with NDR Problems in written rules are [uncovered] as they are developed Reduce time spent on formatting Multiple output [formats] from same source (HTML, PDF, �) Promote reuse Make it easier to extract rules from document Make it easier to tailor an existing NDR to meet new requirements Improve traceability

22. 22 Goals and Objectives of the Current Federal XML NDRG / XSG [1] Common source of XML Schema rules that may be applied (to varying degrees) across most US government XML efforts. Derived from UN/CEFACT, ISO, and OASIS �NDR� standards. Customizable for adoption at various organizational levels: federal, department, agency, and project. That is, IRS, DoN, Education, DoJ, EPA, IC, etc. can each have their own NDR derived from (and traceable to) the common source. Provides varying degrees of interoperability across these levels, proportional to the degree of strictness of rule selection.

23. 23 Goals and Objectives of the Current Federal XML NDRG / XSG [2] Set guidelines for use of xsd:documentation to facilitate XML Registry Services integration. Facilitate practical use of the NDRG by providing tools for customization of the common source, and for testing how well specific XML Schemas adhere to their respective organization�s NDRs (via the NIST Quality of Design tool). Develop QOD NDR Authoring and Sharing Environment at NIST.
