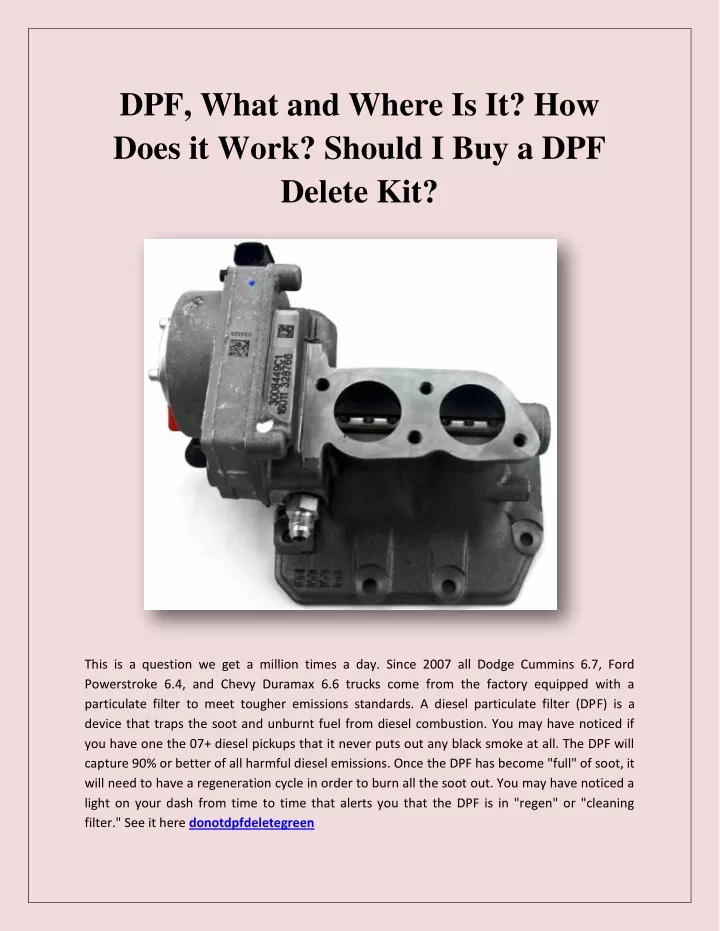

1. DPF, What and Where Is It? How Does it Work? Should I Buy a DPF Delete Kit? This is a question we get a million times a day. Since 2007 all Dodge Cummins 6.7, Ford Powerstroke 6.4, and Chevy Duramax 6.6 trucks come from the factory equipped with a particulate filter to meet tougher emissions standards. A diesel particulate filter (DPF) is a device that traps the soot and unburnt fuel from diesel combustion. You may have noticed if you have one the 07+ diesel pickups that it never puts out any black smoke at all. The DPF will capture 90% or better of all harmful diesel emissions. Once the DPF has become "full" of soot, it will need to have a regeneration cycle in order to burn all the soot out. You may have noticed a light on your dash from time to time that alerts you that the DPF is in "regen" or "cleaning filter." See it here donotdpfdeletegreen

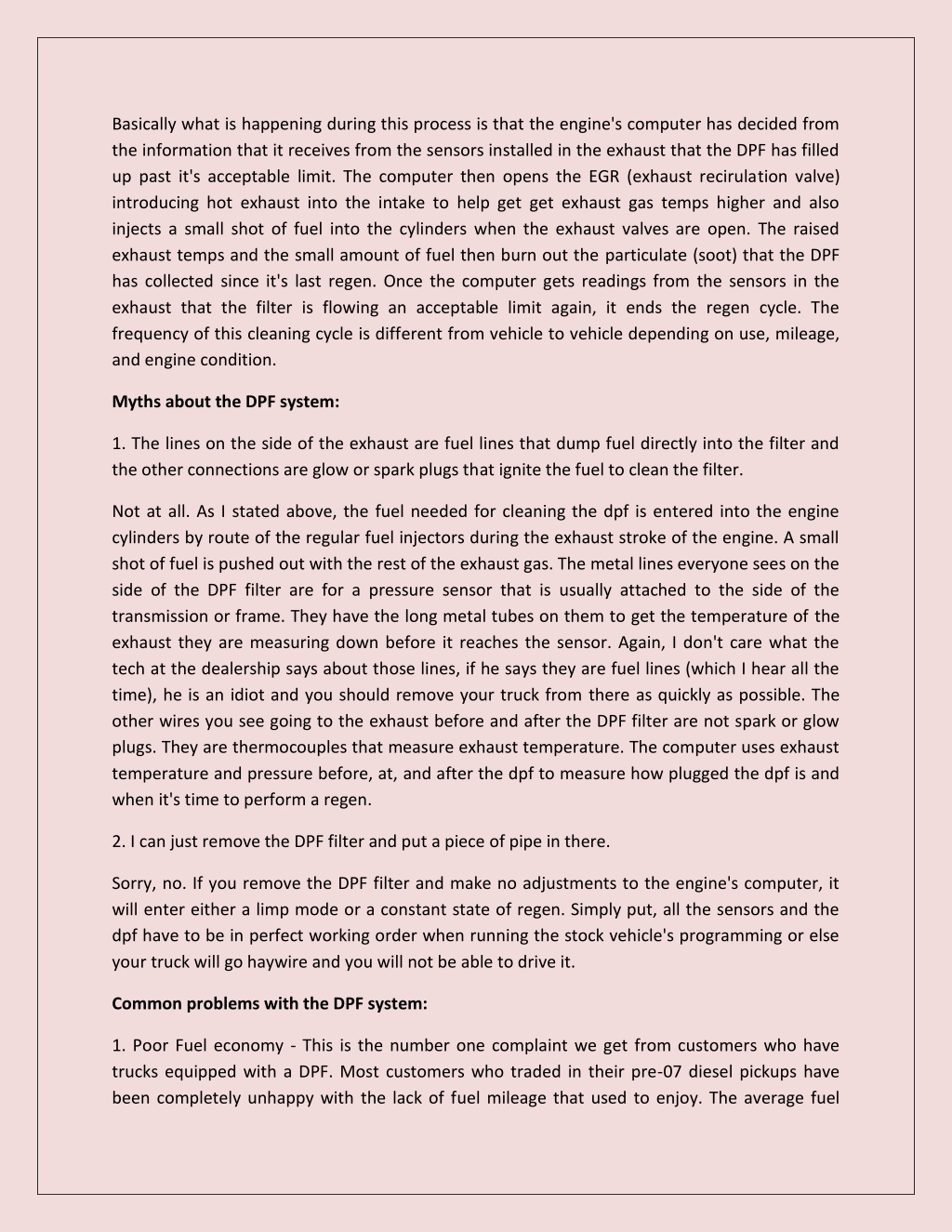

2. Basically what is happening during this process is that the engine's computer has decided from the information that it receives from the sensors installed in the exhaust that the DPF has filled up past it's acceptable limit. The computer then opens the EGR (exhaust recirulation valve) introducing hot exhaust into the intake to help get get exhaust gas temps higher and also injects a small shot of fuel into the cylinders when the exhaust valves are open. The raised exhaust temps and the small amount of fuel then burn out the particulate (soot) that the DPF has collected since it's last regen. Once the computer gets readings from the sensors in the exhaust that the filter is flowing an acceptable limit again, it ends the regen cycle. The frequency of this cleaning cycle is different from vehicle to vehicle depending on use, mileage, and engine condition. Myths about the DPF system: 1. The lines on the side of the exhaust are fuel lines that dump fuel directly into the filter and the other connections are glow or spark plugs that ignite the fuel to clean the filter. Not at all. As I stated above, the fuel needed for cleaning the dpf is entered into the engine cylinders by route of the regular fuel injectors during the exhaust stroke of the engine. A small shot of fuel is pushed out with the rest of the exhaust gas. The metal lines everyone sees on the side of the DPF filter are for a pressure sensor that is usually attached to the side of the transmission or frame. They have the long metal tubes on them to get the temperature of the exhaust they are measuring down before it reaches the sensor. Again, I don't care what the tech at the dealership says about those lines, if he says they are fuel lines (which I hear all the time), he is an idiot and you should remove your truck from there as quickly as possible. The other wires you see going to the exhaust before and after the DPF filter are not spark or glow plugs. They are thermocouples that measure exhaust temperature. The computer uses exhaust temperature and pressure before, at, and after the dpf to measure how plugged the dpf is and when it's time to perform a regen. 2. I can just remove the DPF filter and put a piece of pipe in there. Sorry, no. If you remove the DPF filter and make no adjustments to the engine's computer, it will enter either a limp mode or a constant state of regen. Simply put, all the sensors and the dpf have to be in perfect working order when running the stock vehicle's programming or else your truck will go haywire and you will not be able to drive it. Common problems with the DPF system: 1. Poor Fuel economy - This is the number one complaint we get from customers who have trucks equipped with a DPF. Most customers who traded in their pre-07 diesel pickups have been completely unhappy with the lack of fuel mileage that used to enjoy. The average fuel

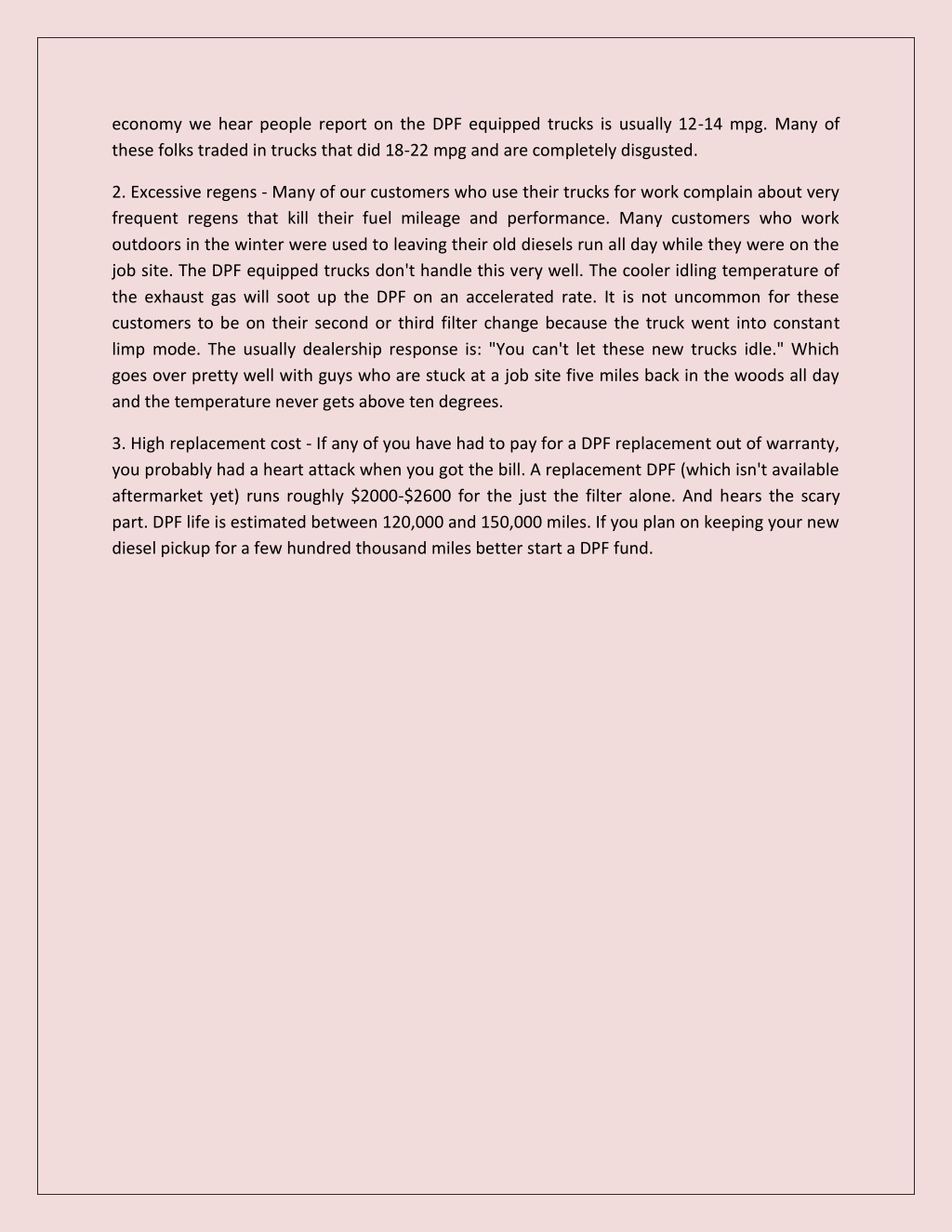

3. economy we hear people report on the DPF equipped trucks is usually 12-14 mpg. Many of these folks traded in trucks that did 18-22 mpg and are completely disgusted. 2. Excessive regens - Many of our customers who use their trucks for work complain about very frequent regens that kill their fuel mileage and performance. Many customers who work outdoors in the winter were used to leaving their old diesels run all day while they were on the job site. The DPF equipped trucks don't handle this very well. The cooler idling temperature of the exhaust gas will soot up the DPF on an accelerated rate. It is not uncommon for these customers to be on their second or third filter change because the truck went into constant limp mode. The usually dealership response is: "You can't let these new trucks idle." Which goes over pretty well with guys who are stuck at a job site five miles back in the woods all day and the temperature never gets above ten degrees. 3. High replacement cost - If any of you have had to pay for a DPF replacement out of warranty, you probably had a heart attack when you got the bill. A replacement DPF (which isn't available aftermarket yet) runs roughly $2000-$2600 for the just the filter alone. And hears the scary part. DPF life is estimated between 120,000 and 150,000 miles. If you plan on keeping your new diesel pickup for a few hundred thousand miles better start a DPF fund.
