  1. Enabling Automated Integration Testing of Cloud Application Services in Virtualized Environments Tariq M. King, Annaji S. Ganti, and David Froslie

  2. Outline • Introduction • Background • Research Problem • Approach • Prototype • Discussion • Related Work • Conclusion & Future Work

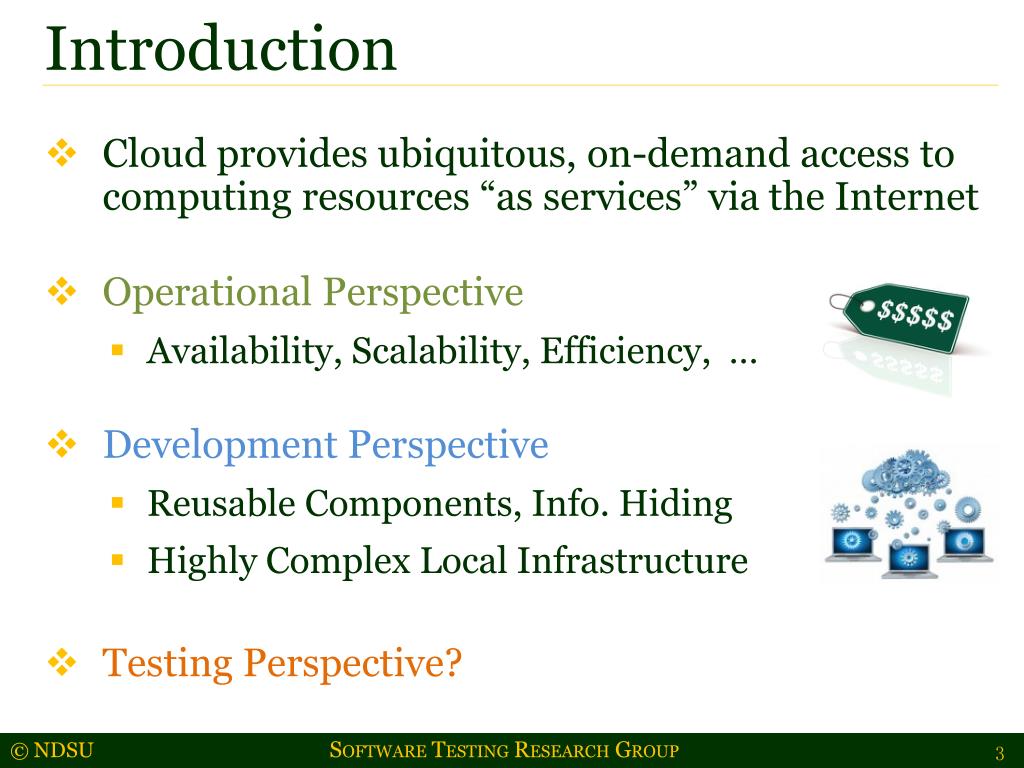

  3. Introduction • Cloud provides ubiquitous, on-demand access to computing resources “as services” via the Internet • Operational Perspective • Availability, Scalability, Efficiency, … • Development Perspective • ReusableComponents, Info. Hiding • Highly Complex Local Infrastructure • Testing Perspective?

  4. Introduction Motivation • Cloud poses several new testing challenges but also brings a number of benefits to software testing Challenges of Testing Cloud Applications • High Complexity, Remoteness, Information Hiding, Autonomy, High Performance and Dependability… Benefits of Software Testing In The Cloud (STITC) • Computational Power and Storage • Virtualization Theme: Use Benefits to Overcome Challenges

  5. Introduction RESEARCH Position “Enabling Automated Integration Testing of Cloud Application Services in Virtualized Environments” • STITC is an emerging discipline with potential to significantly change how we do testing • STITC 2010Workshop focused on three key areas: • Testing IN the Cloud – leveraging the cloud for test execution and testing in a virtualized environment • Testing OF the Cloud – validating applications that are hosted and deployed in the cloud • Testing TO the Cloud – moving the testing process and other assets to the cloud

  6. Background Cloud Computing • “Services” in cloud computing typically fall intothree categories: Software-as-a-Service| Google Docs, Office Web Apps Platform-as-a-Service| Google App Engine, Windows Azure Infrastructure-as-a-Service | Amazon EC2, Rackspace

  7. Background Virtualization • Many cloud platforms offer Virtualization support • Creating abstract computing resources from more powerful physical resources Hosted Architecture • Hypervisor Architecture

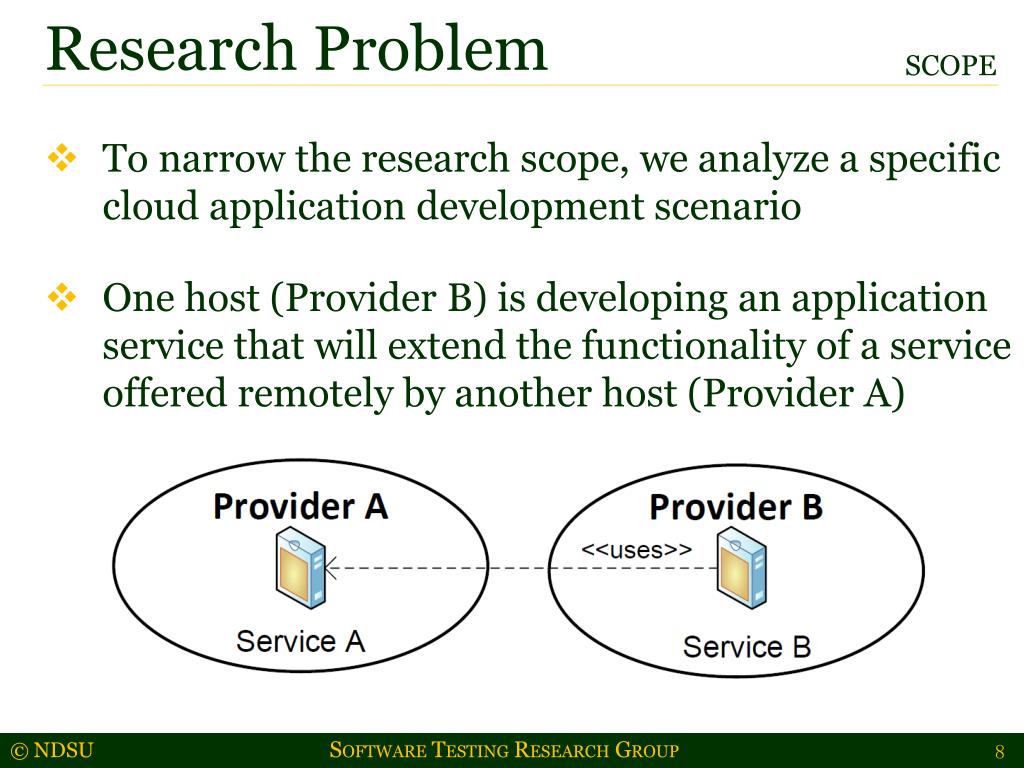

  8. Research Problem SCOPE • To narrow the research scope, we analyze a specific cloud application development scenario • One host (Provider B) is developing an application service that will extend the functionality of a service offered remotely by another host (Provider A)

  9. Research Problem ISSUES • Even with its limited scope, the scenario reveals many integration testing issues and challenges: • Difficult for Provider B to Setup Some Tests for his application since he does not have full control and observation of Service A. Possible Solutions? • Developing Accurate Stubs is Hard since Provider B has no knowledge of Service A’s implementation • Provider B Limited to Black Box Testing of those parts of his application implemented by Service A • Service B can Change w/oProvider B’s Knowledge i.e., Update to Service A Need to Retest Service B

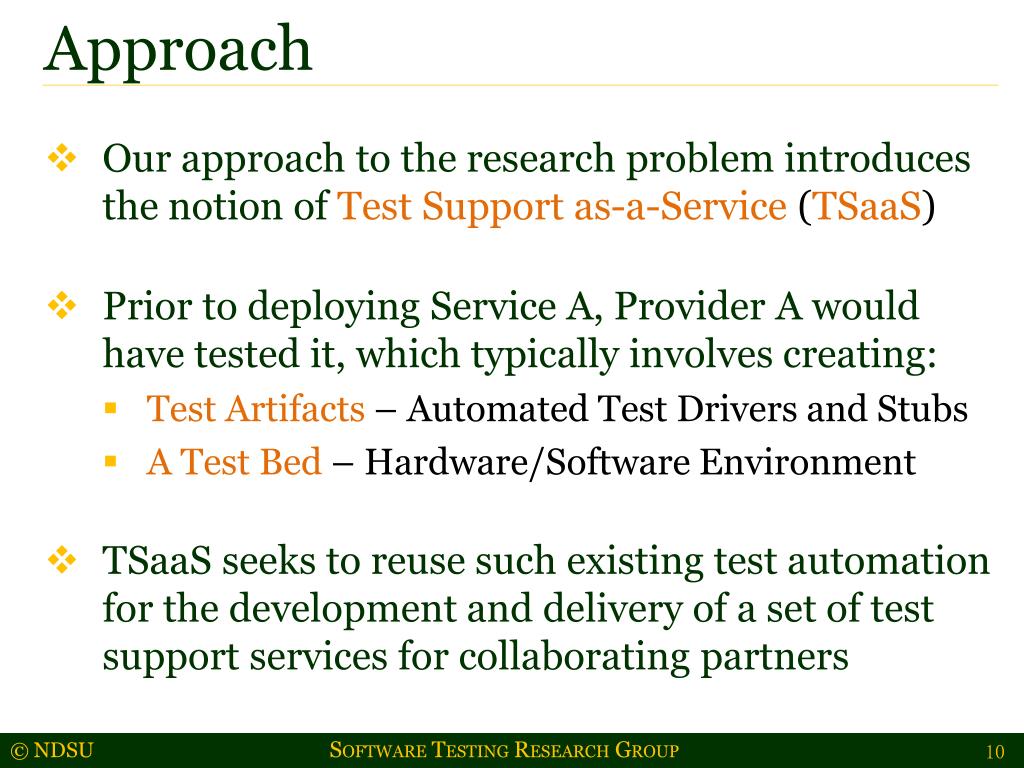

  10. Approach • Our approach to the research problem introduces the notion of Test Support as-a-Service (TSaaS) • Prior to deploying Service A, Provider A would have tested it, which typically involves creating: • Test Artifacts – Automated Test Drivers and Stubs • A Test Bed – Hardware/Software Environment • TSaaS seeks to reuse such existing test automation for the development and delivery of a set of test support services for collaborating partners

  11. Approach Overview • Provider Bhas full access to a test copy of Service A • Test hooks, instrumentation, and scaffolding reuse • Test data (non-confidential) can be made available • Testing does not interrupt service in production • Concerns: Maintenance, Scalability, Security Provider A exposes TSaaS to Provider B

  12. Approach ARCHITECTURE Hypervisor-Based Virtualization and Secure Access

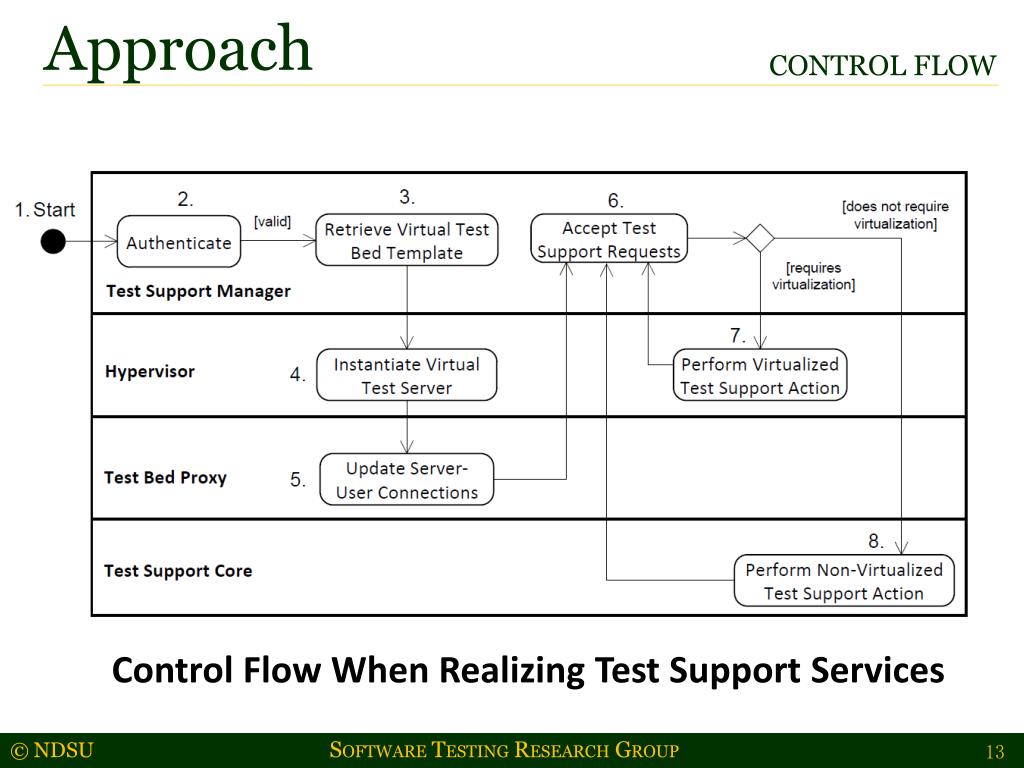

  13. Approach CONTROL FLOW Control Flow When Realizing Test Support Services

  14. Prototype Proof of concept • Designed with goal of making its components easily deployable to Windows Azure® • Web & Worker Roles (ASP.NET, IIS7, WCF Services) • VM Role (Windows 2008 R2 Server Image) • Application Domain: Credit Reporting/Banking

  15. Discussion The primary reason for developing the prototype was to investigate the feasibility of implementing TSaaS Successes • Able to quickly develop and expose a cross section of test support operations for the credit service by reusing its existing test artifacts and tooling • Test authoring and execution, code coverage, error reporting, and server-side diagnostics • Facilitates independently setting up preconditions, applying inputs, making assertions, doing cleanup

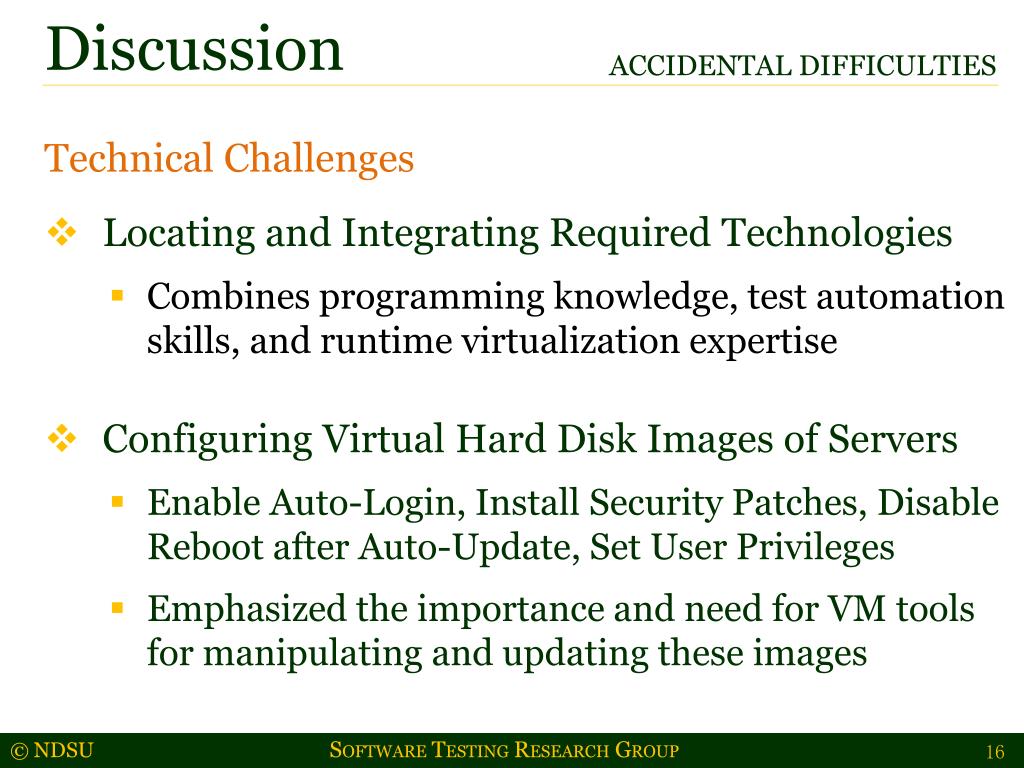

  16. Discussion Accidental difficulties Technical Challenges • Locating and Integrating Required Technologies • Combines programming knowledge, test automation skills, and runtime virtualization expertise • Configuring Virtual Hard Disk Images of Servers • Enable Auto-Login, Install Security Patches, Disable Reboot after Auto-Update, Set User Privileges • Emphasized the importance and need for VM tools for manipulating and updating these images

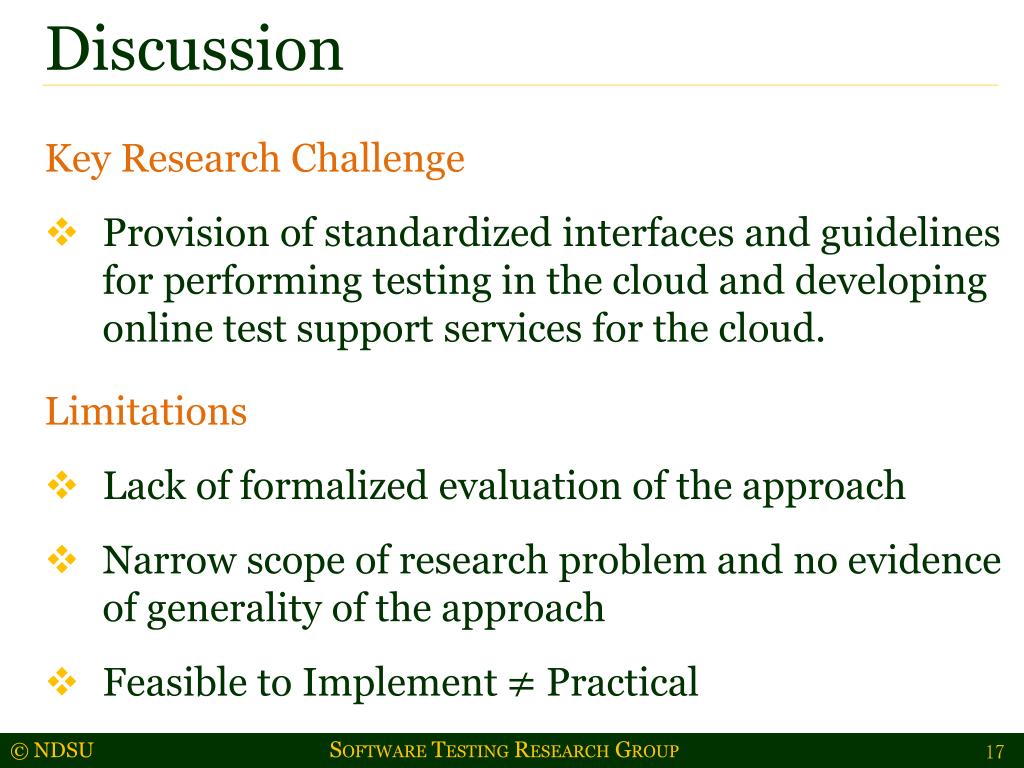

  17. Discussion Key Research Challenge • Provision of standardized interfaces and guidelines for performing testing in the cloud and developing online test support services for the cloud. Limitations • Lack of formalized evaluation of the approach • Narrow scope of research problem and no evidence of generality of the approach • Feasible to Implement Practical

  18. Related Work • Formal modeling and model-based testing criteria for cloud applications (Chan 2009) • Model-driven approach to security testing of cloud applications (Zech2011) • Industry challenges for runtime integration and testing for software services (Greiler 2009) • Many works on testing and testability of SOA(Mei 2008, O’Brien 2007,Tsai 2006)

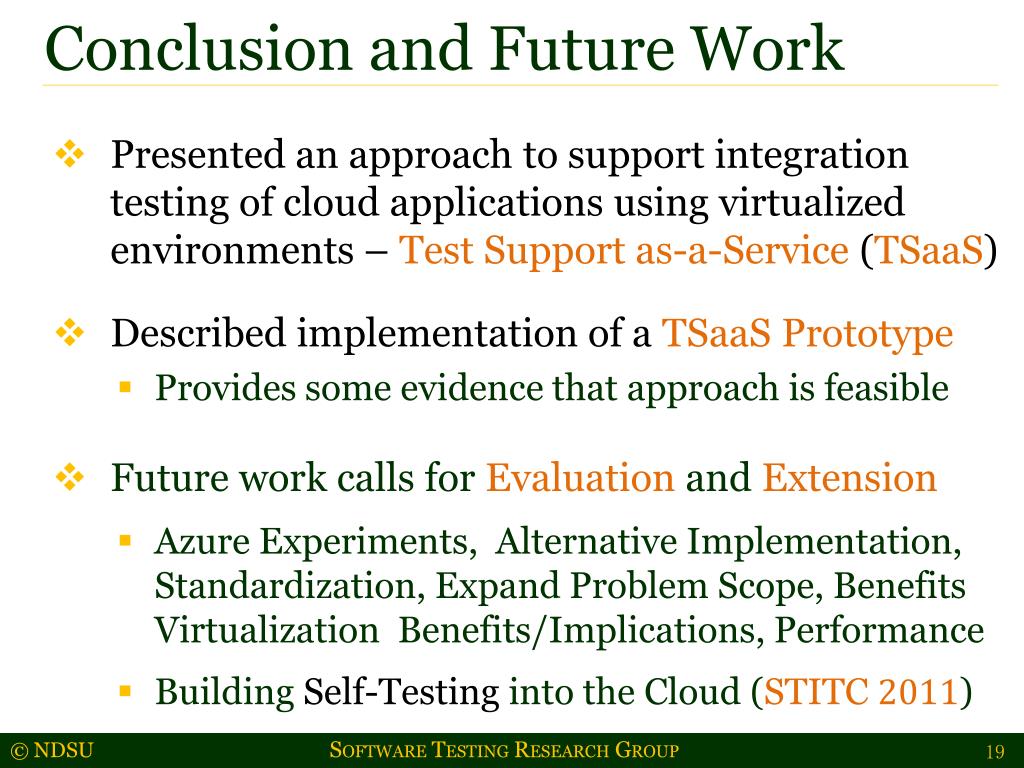

  19. Conclusion and Future Work • Presented an approach to support integration testing of cloud applications using virtualized environments – Test Support as-a-Service (TSaaS) • Described implementation of a TSaaS Prototype • Provides some evidence that approach is feasible • Future work calls for Evaluation and Extension • Azure Experiments, Alternative Implementation, Standardization, Expand Problem Scope, Benefits Virtualization Benefits/Implications, Performance • Building Self-Testing into the Cloud (STITC 2011)

  20. Acknowledgements • Neha Kale, MS Student (NDSU) • Dr. Scott Tilley, Professor (Florida Tech), and the participants of STITC 2010 • Alisson Sol, Knowledge Engineer (Microsoft) and the participants of 2011 Microsoft Fargo Engineering Day Excellence Expo • CASCON 2011 Reviewers

  21. Thank You! Questions?¿Preguntas?問題Sawwalвопросы質問domandeερωτήσεις
