Application Development Presentation/Course Teaser

1. Ericsson Network Resource Gateway Application DevelopmentPresentation/Course Teaser Florin van Slingerland Software EngineerDU Service Layer Development

2. Network Resource Gateway

3. NRG 3.0 NETWORK Acts as an application integrator for a network improving the ability to quickly adapt to changing market demands RESOURCE Simplified application development combining the network resources for new compelling applications GATEWAY It is a gateway for a controlled and secure interface to the Telecoms network

4. Application environment Applications ApplicationsServers • Availability of different interfaces (versions) on the AS • Multiple integration • Hard to reuse SMPP PAP SMTP MM7 MMC SMS-C WAP GW Email Server

5. Business Monitoring and Surveillance: Detailed statistics based on used functionaity WAPGW EmailServer MMS-C MPC AAA HLR SMS-C Application Integration through Common Gateway Common IT base API NRG 3.0 (Common GW) Business Rules: Limit network functionality usages Limit the capacity usages One Time Integration MSC HLR AAA MPC SMS-C WAP GW MMS-C Email Server Charging/Billing System SSF

6. Trusted Applications Application servers GSM GPRS WCDMA Wireline CS/PS IP network Operator Domain The internet NRG Parlay/OSA ’Firewall’ Application Servers Third Party Applications Parlay/OSA Parlay/OSA Application servers

7. WAP GW MMC MMC NRG Overview Application server Application Parlay/OSA framework Service capability server(s)

8. SMSC Msg. WAP HLR CSE server server Framework • Authentication • Authorisation • Service discovery • Obtaining a service manager • Establishment of SLA • SLA enforcement

9. Multi Party Call Control Call Control features Two Party Calls Multi Party Calls Network Initiated Calls Application Initiated Calls Charging User Interaction Play Announcements Collecting digits Can be done towards multiple parties towards single party SMSC Msg. WAP HLR CSE server server Call Handling Kit

10. User Status Request User Status User Location Request User Location SMSC Msg. WAP HLR CSE server server Information Kit

11. Generic User Interaction Sending Messages: SMS MMS WAP-push E-mail Receive messages SMS Generic Messaging Manage a mailbox Notification Management Create and Delete Notifications: supervision of a mailbox for new messages Receive Notifications: at regular intervals for new messages Message Retrieval Management List Messages Retrieve Messages (whole message, header only etc.) Delete Messages SMSC Msg. WAP HLR CSE server server Messaging Kit

12. PIM Contact Create contact Retrieve contact Modify contact Delete contact PIM Calendar Create event Retrieve event Modify event Delete event Create ToDo Retrieve ToDo Modify ToDo Delete ToDo SMSC Msg. WAP HLR CSE server server User KitPersonal Information Management

13. Parlay/OSA

14. What is Parlay? NRG • Def.: A mediator API between Telecom networks and 3rd Party applications • Open standards • Specified by the Parlay Group and 3GPP, ETSI, OSA • Secure interface • Applications connect to the NRG via a secure, measured and billable interface. ’Firewall’ Parlay/OSA Application servers Third Party Applications

15. Who is Parlay? Members: • Parlay Group created in March 1998 • In June 2000, became anopen multi vendor forum to standardize and promote open application programming interfaces. • Has over 68 members as of October 2003 • Operators • Telco vendors • IP vendors • Developers (www.parlay.org) …and more

16. For Operator/Service Provider Reduced Time to Market Address New Market Segments Higher revenues Reduced cost & churn For the Developers Faster development Lower costs Reduced complexity Reduced risk Higher revenues Benefits of PARLAY/OSA

17. SDK

18. The SDK contains the following API’s: • Core APIThe Core SDK is a Java implementation of the H-OSA protocol. • Utility APIThe Utility SDK goes one step further as it offers an abstraction from not only CORBA but also H-OSA. It does so by combining a series of H-OSA invocations and responses and offering this series through a simplified, proprietary API. • Test APIThe Test SDK can be used at design time to simulate the NRG.

19. NRG Software Development Kit (SDK) Application Application ApplicationServer(s) Java SDK CORBA CORBA NRG

20. Demonstration • How to configure JBuilder

21. NRG Software Development Kit (SDK) Application Application ApplicationServer(s) Java SDK CORBA CORBA NRG

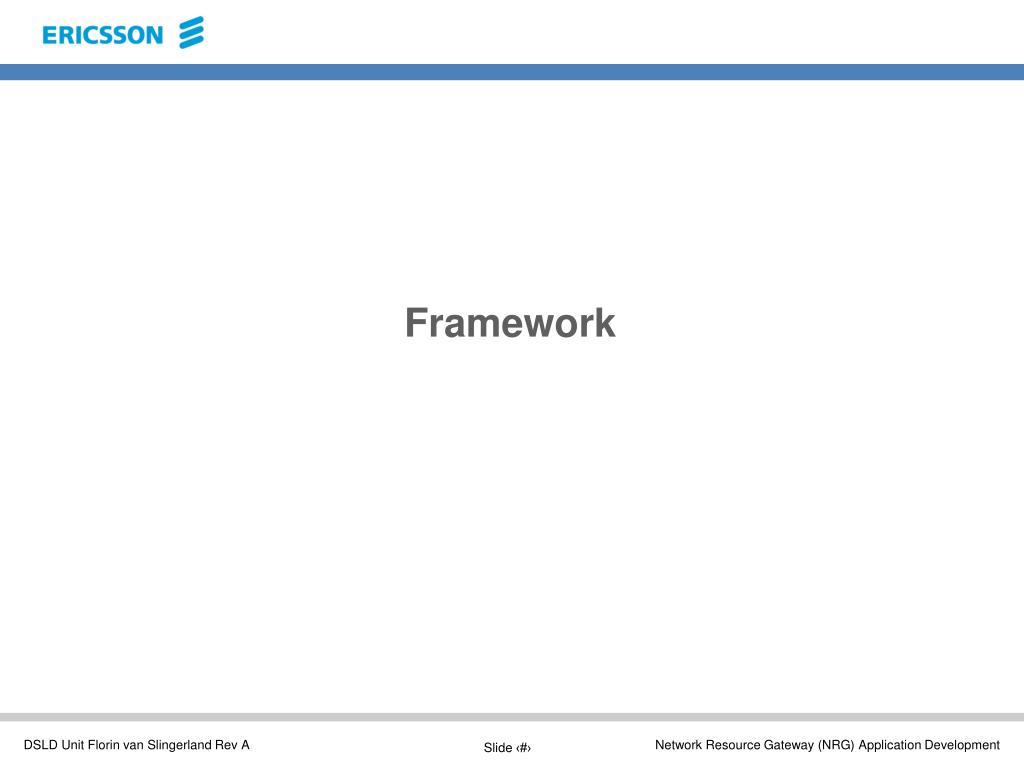

22. Framework

23. 1 5++ 4 2 3 Initialising an Parlay/NRG application Client Application Framework Required Service

24. Framework • Secure access from applications to the telecom network • Most important functions: • Authentication • Authorization • Service Discovery • Establishment of service agreement

25. Service Level Agreement (SLA) examples • calls per second / simultaneous calls allowed • # MMS messages per second • trigger ranges allowed • charging impact allowed • etc. Service Level Agreement Agreement between operator and 3rd party Protection and security of network Business agreement

26. Service Level Agreement Client Application Framework User Location User Status User Interaction Registered Services

27. Application Life Cycle • Obtain access to the framework • Obtain the needed services • Handle multiple transactions • Release the used services • End the access to the framework Initialization phase Execution phase Termination phase

28. Obtaining a Service

29. Demonstration • Framework Demo Application

30. Messaging

31. Sequence Diagrams Where Do You Start ?

32. Sequence Diagrams Supported message types Receiving a Message

33. User Status Service

34. Sequence Diagrams Where Do You Start ?

35. User Location Service

36. Sequence Diagrams Where Do You Start ?

37. Multi Party Call Control

38. Speech Network Incomming Leg Outgoing leg Marie John Call Object What Are Legs & Calls ?

39. Application 3 2 1 4 Marie John Network What Are Network Initiated Calls?

40. Application 1 3 Marie John 4 2 Network What Are Application Initiated Calls?
