  1. BENEFITS & FEATURES: • Lightweight & Long Lasting Materials • Sturdy Construction • Ease of Mount and Removal • Stores Conveniently Out of The Way • Motorized for Greater User Independence

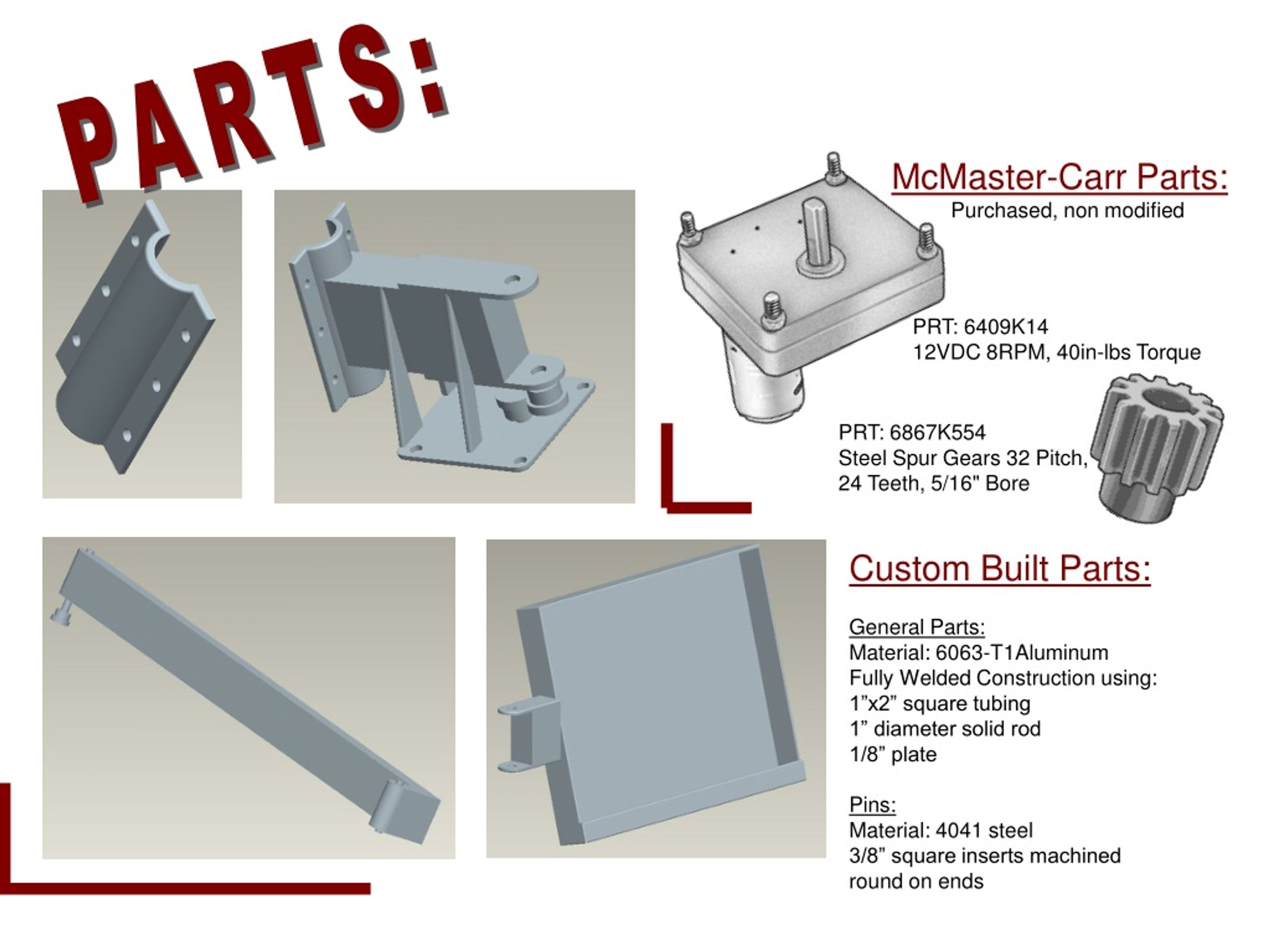

  2. PARTS: McMaster-Carr Parts: Purchased, non modified PRT: 6409K14 12VDC 8RPM, 40in-lbs Torque PRT: 6867K554 Steel Spur Gears 32 Pitch,24 Teeth, 5/16" Bore Custom Built Parts: General Parts:Material: 6063-T1AluminumFully Welded Construction using:1”x2” square tubing1” diameter solid rod1/8” plate Pins:Material: 4041 steel 3/8” square inserts machined round on ends

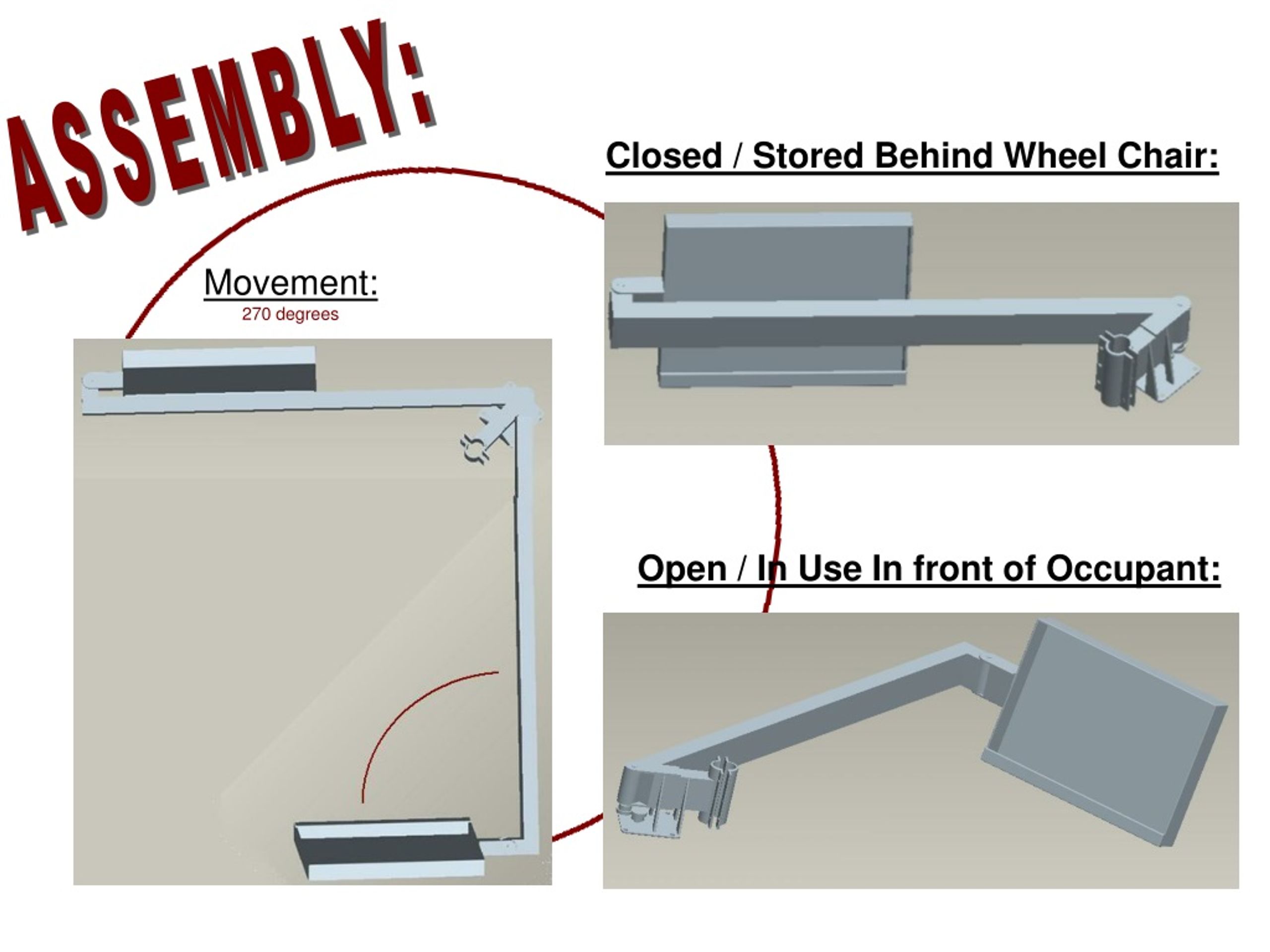

  3. ASSEMBLY: Closed / Stored Behind Wheel Chair: Movement:270 degrees Open / In Use In front of Occupant:

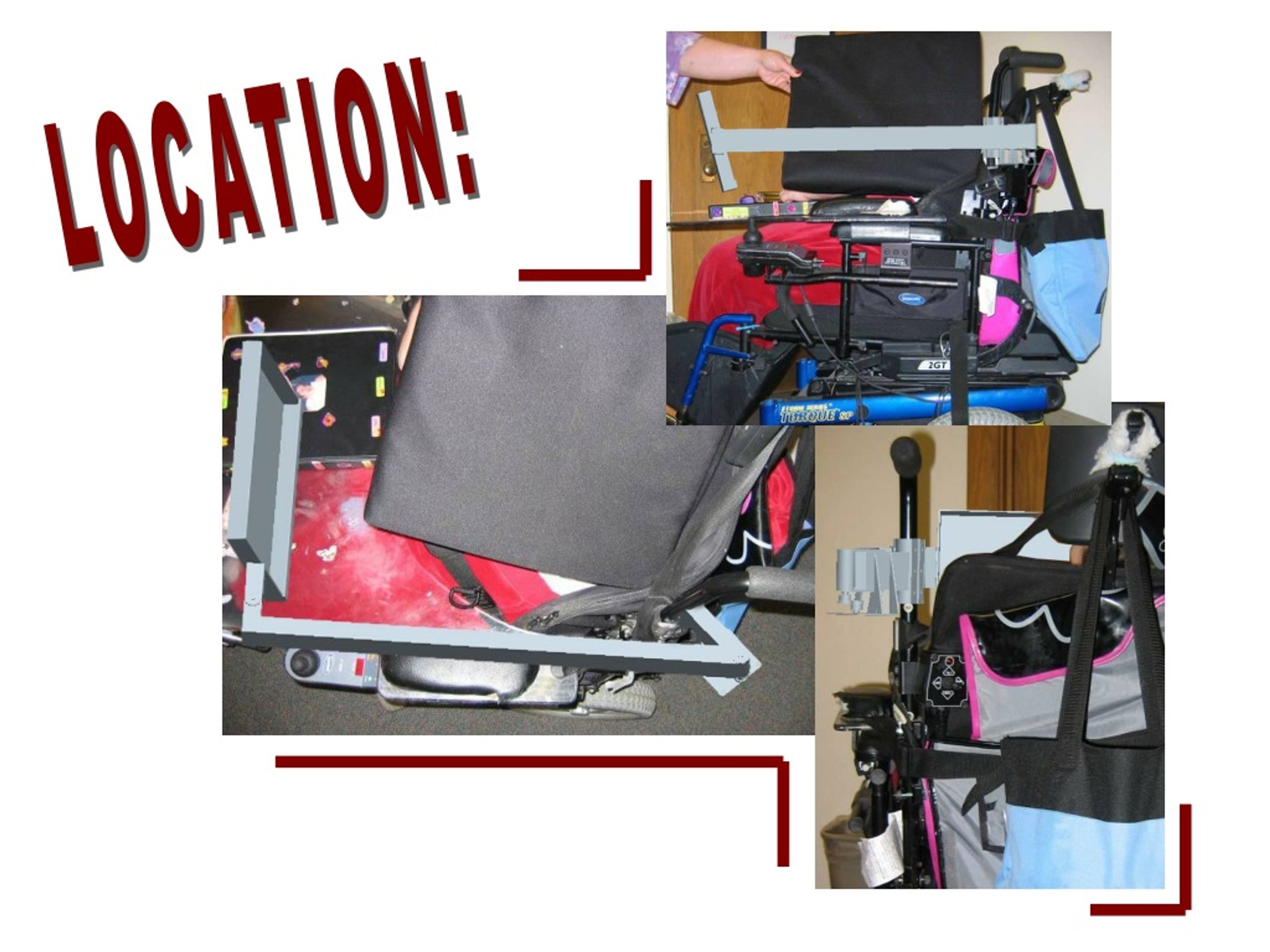

  4. LOCATION:
