This problem explores the movement of a swing that oscillates between two points. The swing moves a total distance of 2 meters, completing one full swing in π seconds, starting at point A. The horizontal distance from the center is defined by the equation d = Cos(4t), where d represents the distance at time t in seconds. The challenge is to determine the first instance when the swing is 0.6 meters from point A. Using the equation, we find that this occurs at t = 0.29 seconds (to 2 decimal places), demonstrating the relationship between time and position in harmonic motion.

donkor

Download Presentation

Understanding Swing Movement: Calculating Distance and Time in a Pendulum Swing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

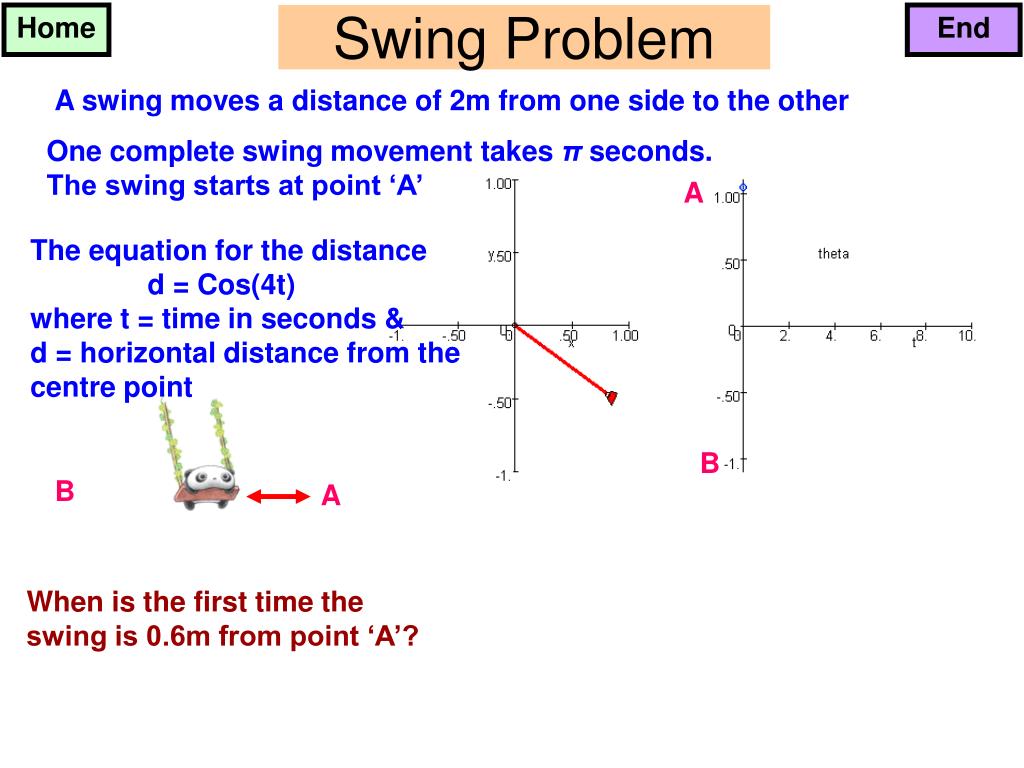

Home End Swing Problem A swing moves a distance of 2m from one side to the other One complete swing movement takes πseconds. The swing starts at point ‘A’ A The equation for the distance d = Cos(4t) where t = time in seconds & d = horizontal distance from the centre point B B A When is the first time the swing is 0.6m from point ‘A’?
Home End Swing Problem A swing moves a distance of 2m from one side to the other One complete swing movement takes πseconds. The swing starts at point ‘A’ A 0.6m The equation for the distance d = Cos(4t) where t = time in seconds & d = horizontal distance from the centre point d = 0.4 B B A Solve 0.4 = Cos(4t) 4t = Cos-1 0.4 When is the first time the swing is 0.6m from point ‘A’? 4t = 1.159 t = 1.159 ÷ 4 = 0.29sec (2dp)
