  1. An overview of the Globally Harmonized System for the HHW/CESQG OperatorKari Meyer, Hazardous Waste SpecialistMetro, Portland Oregon6/24/14

  2. Essential elements • Background – Scope and Development of the GHS as an International System • Hazard Classification – Physical Hazards – Health Hazards – Environmental Hazards • Hazard Communication Elements • Labeling – Pictograms – Signal Words – Hazard Statements – Precautionary Statements • Safety Data Sheets

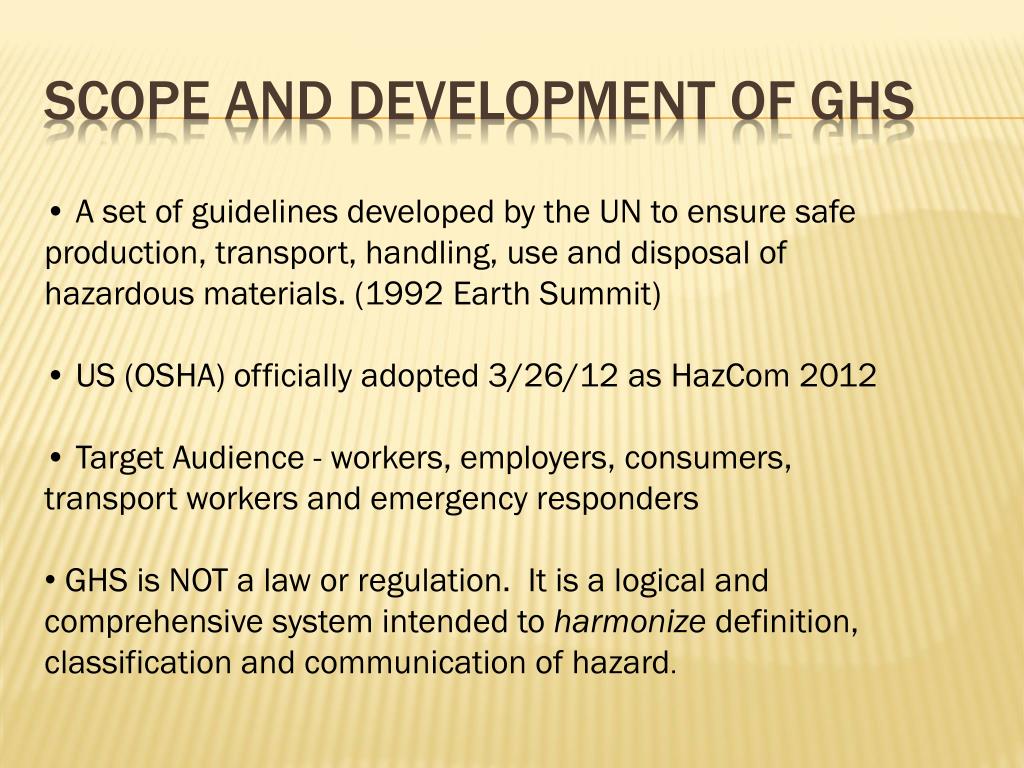

  3. Scope and Development of GHS • • A set of guidelines developed by the UN to ensure safe production, transport, handling, use and disposal of hazardous materials. (1992 Earth Summit) • • US (OSHA) officially adopted 3/26/12 as HazCom 2012 • • Target Audience - workers, employers, consumers, transport workers and emergency responders • GHS is NOT a law or regulation. It is a logical and comprehensive system intended to harmonize definition, classification and communication of hazard.

  4. HAZARD CRITERIA Hazard Criteria, Class and Category • Hazard Class – The nature of the physical or health hazard (environmental not in OSHA scope) • Hazard Category – The division of the criteria within each hazard class – Categories compare hazard severity within the class

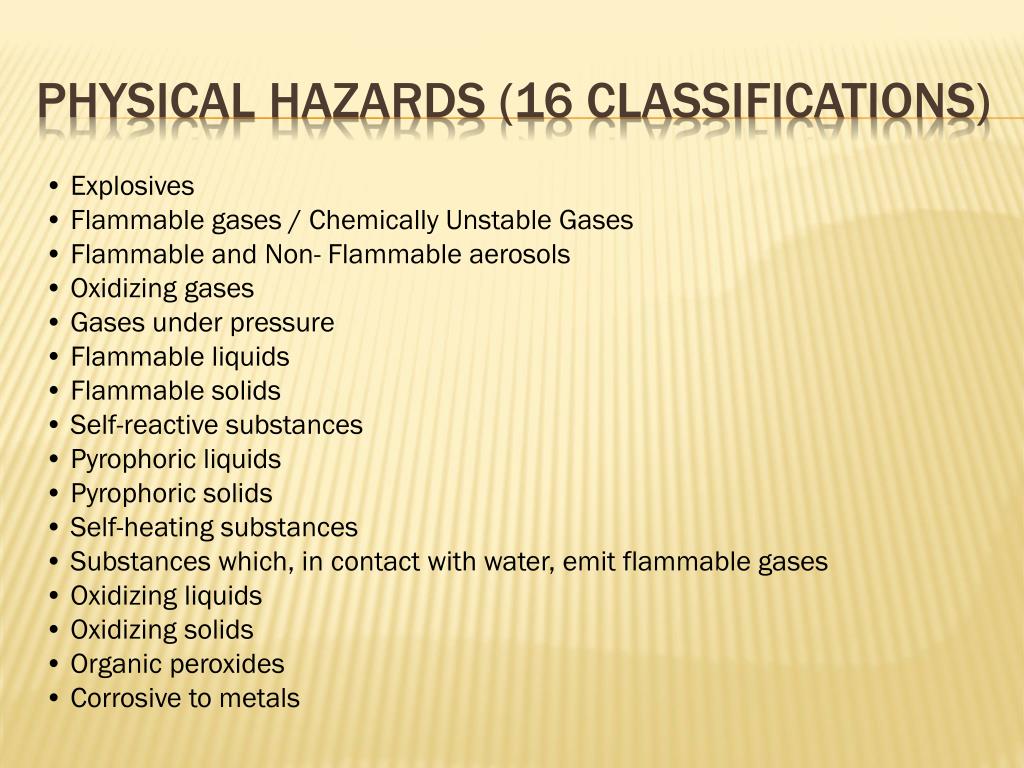

  5. Physical Hazards (16 classifications) • Explosives • Flammable gases / Chemically Unstable Gases • Flammable and Non- Flammable aerosols • Oxidizing gases • Gases under pressure • Flammable liquids • Flammable solids • Self-reactive substances • Pyrophoric liquids • Pyrophoric solids • Self-heating substances • Substances which, in contact with water, emit flammable gases • Oxidizing liquids • Oxidizing solids • Organic peroxides • Corrosive to metals

  6. GHS - Physical Hazards • Substances and Mixtures – generally same criteria • Same criteria as current for transport classes (some additional categories added) • Most hazard classes are divided into categories • In general categories = transport packing groups

  7. GHS Health Hazards • Acute toxicity • Skin corrosion/ Irritation • Serious eye damage/ Eye irritation • Sensitization • Germ cell mutagenicity • Reproductive toxicity • Carcinogenicity • Specific target organ toxicity (STOT) – Single Exposure – Repeat Exposure • Aspiration Toxicity

  8. Environmental Hazards • Currently only Aquatic Toxicity (acute and chronic) and Hazardous to the Ozone Layer

  9. Symbols (hazard pictograms) • A composition that is intended to convey specific physical, health, and environmental hazard information (GHS hazard class and category) • Eight pictograms are adopted in Hazcom 2012 – Red border, black symbol, white background

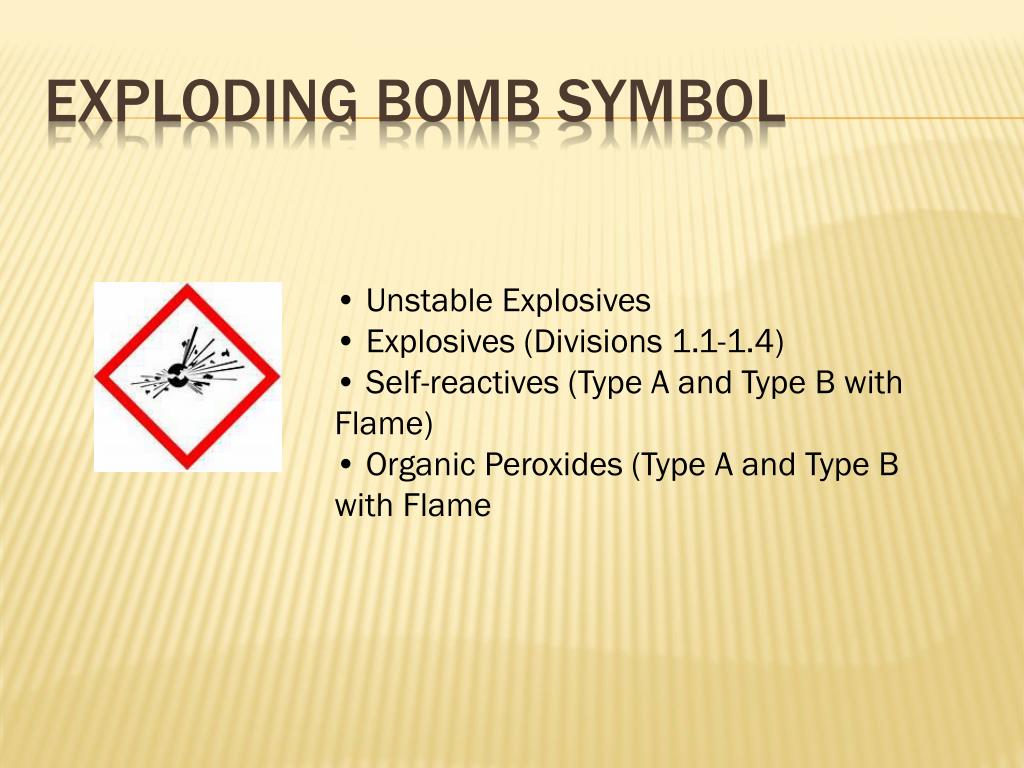

  10. Exploding Bomb Symbol • Unstable Explosives • Explosives (Divisions 1.1-1.4) • Self-reactives (Type A and Type B with Flame) • Organic Peroxides (Type A and Type B with Flame

  11. Flame Symbol • Flammable Gases • Flammable Aerosols • Flammable Liquids (Categories 1-3) • Flammable Solids • Self-Reactives (Type B with bomb, Types C-F) • Pyrophoric liquids and solids • Self-heating substances • Substances which in contact with water emit flammable gases • Organic Peroxides (Type B with bomb, Types C-F)

  12. Flame over Circle Symbol • Oxidizing Gases • Oxidizing Liquids • Oxidizing Solids

  13. Gas Cylinder Symbol • Compressed Gas • Liquefied Gas • Refrigerated Liquefied Gas • Dissolved Gas

  14. Corrosion Symbol • Corrosive to Metals (steel or aluminum >6.25 mm/year at 55C) • Skin corrosion/ irritation – category 1 (A, B and C) • Serious eye damage/irritation – Category 1

  15. Skull and Crossbones Symbol • Acute Toxicity –Categories 1-3 (oral, inhalation or dermal routes)

  16. Exclamation Mark Symbol • Acute Toxicity – Category 4 (oral, inhalation or dermal routes) • Skin Irritation/ Corrosion – Category 2 • Serious Eye damage/ irritation – Category 2A • Skin Sensitizer • STOST (single exposure) – Category 3 (respiratory tract irritation, narcotic effects) • Hazardous to the Ozone Layer

  17. Health Hazard Symbol • Respiratory Sensitizer • Germ Cell Mutagenicity • Carcinogenicity • Toxic to Reproduction • STOST (single exposure) – Categories 1-2 • STOST (repeated exposure) – Categories 1-2 • Aspiration Hazard

  18. Environment Symbol • Acute hazards to the aquatic environment – Category 1 (Categories 2 and 3 no symbol or signal word) • Chronic hazards to the aquatic environment – Categories 1 and 2 (Categories 3 and 4 no symbol or signal word)

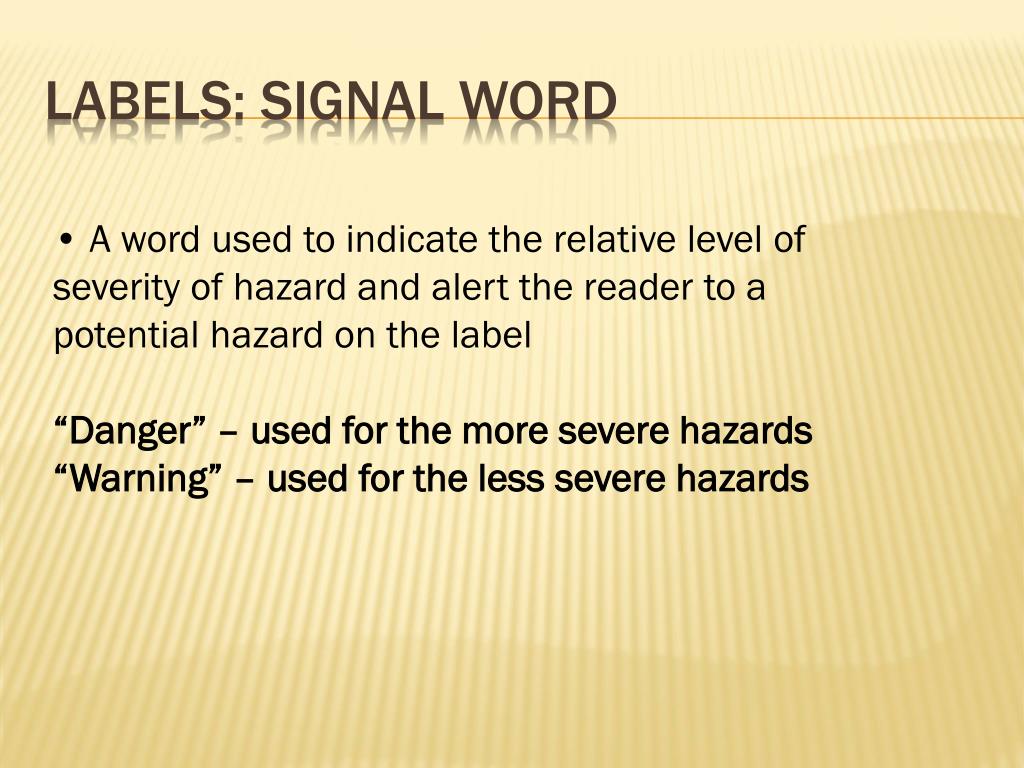

  19. Labels: Signal word • A word used to indicate the relative level of severity of hazard and alert the reader to a potential hazard on the label “Danger” – used for the more severe hazards “Warning” – used for the less severe hazards

  20. Labels: Hazard statements • Hazard statement for each level of hazard (category) within each hazard class HAZARD: Category 1 highest 2 high 3 medium 4 low Example: Flammable liquids • Category 1: Extremely flammable liquid and vapour • Category 2: Highly flammable liquid and vapour • Category 3: Flammable liquid and vapour • Category 4: Combustible liquid Note: This is in reverse order to NMIS/NFPA

  21. Labels: Precautionary Statements • Precautionary statement means a phrase that describes recommended measures that should be taken to minimize or prevent adverse effects. • There are 4 types of precautionary statements – Prevention – Response – Storage – Disposal The precautionary phrases are numbered in the GHS but not the Hazcom Standard.

  22. Symbols (hazard pictograms) assigned to GHS hazard class and category • Signal words (danger or warning) • Hazard statements • Precautionary statements • Product identifier (ingredient disclosure) • Supplier identification • Supplemental information Essential elements of GHS label

  23. Labels: Arrangement • Label elements located together on the label, tag or mark • Pictograms must have red border wide enough to be visible and must not be blank • Where a DOT label appears on a shipped container, the same OSHA pictogram shall not appear. • Must not conflict with DOT regulations. • Labels must be in English (other languages also permitted)

  24. Safety data sheets • Chemical manufacturers and importers shall obtain or develop a safety data sheet for each hazardous chemical they produce or import. • Employers shall have a safety data sheet in the workplace for each hazardous chemical which they use. • Must be in English (additional languages permitted) • If no relevant information for a sub-heading, must be marked to indicate no data • SDS can cover similar mixtures

  25. Safety data sheets 1. Identification 2. Hazard(s) identification 3. Composition/information on ingredients 4. First-aid measures 5. Fire-fighting measures 6. Accidental release measures 7. Handling and storage 8. Exposure control/ personal protection 9. Physical and chemical properties 10. Stability and reactivity 11. Toxicological information 12. Ecological information 13. Disposal considerations 14. Transport information 15. Regulatory information 16. Other information
