E LECTRO M AGNETIC F ORCE driving A CTUATOR. E LECTRO M AGNETIC F ORCE driving A CTUATOR. 20061016. EMFA 7.2kV-365kV. Next Generation Actuator. for Middle & High Voltage Circuit Breaker. Head office : EMATECH San 56-1 Shillim-dong Kwanak-Gu Seoul Korea Phone : 82-2-875-0487.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

EMFA 7.2kV-365kV


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
  1. ELECTRO MAGNETIC FORCE drivingACTUATOR ELECTRO MAGNETIC FORCE drivingACTUATOR 20061016 EMFA 7.2kV-365kV Next Generation Actuator for Middle & High Voltage Circuit Breaker Head office : EMATECH San 56-1 Shillim-dong Kwanak-Gu Seoul Korea Phone : 82-2-875-0487 U.S. office : EMFA-LAB 3943 Irvine Blvd #113 Irvine blvd 92602 Phone : 1-714-418-7764 1-714-338-6197 EMATECH Co., Ltd.

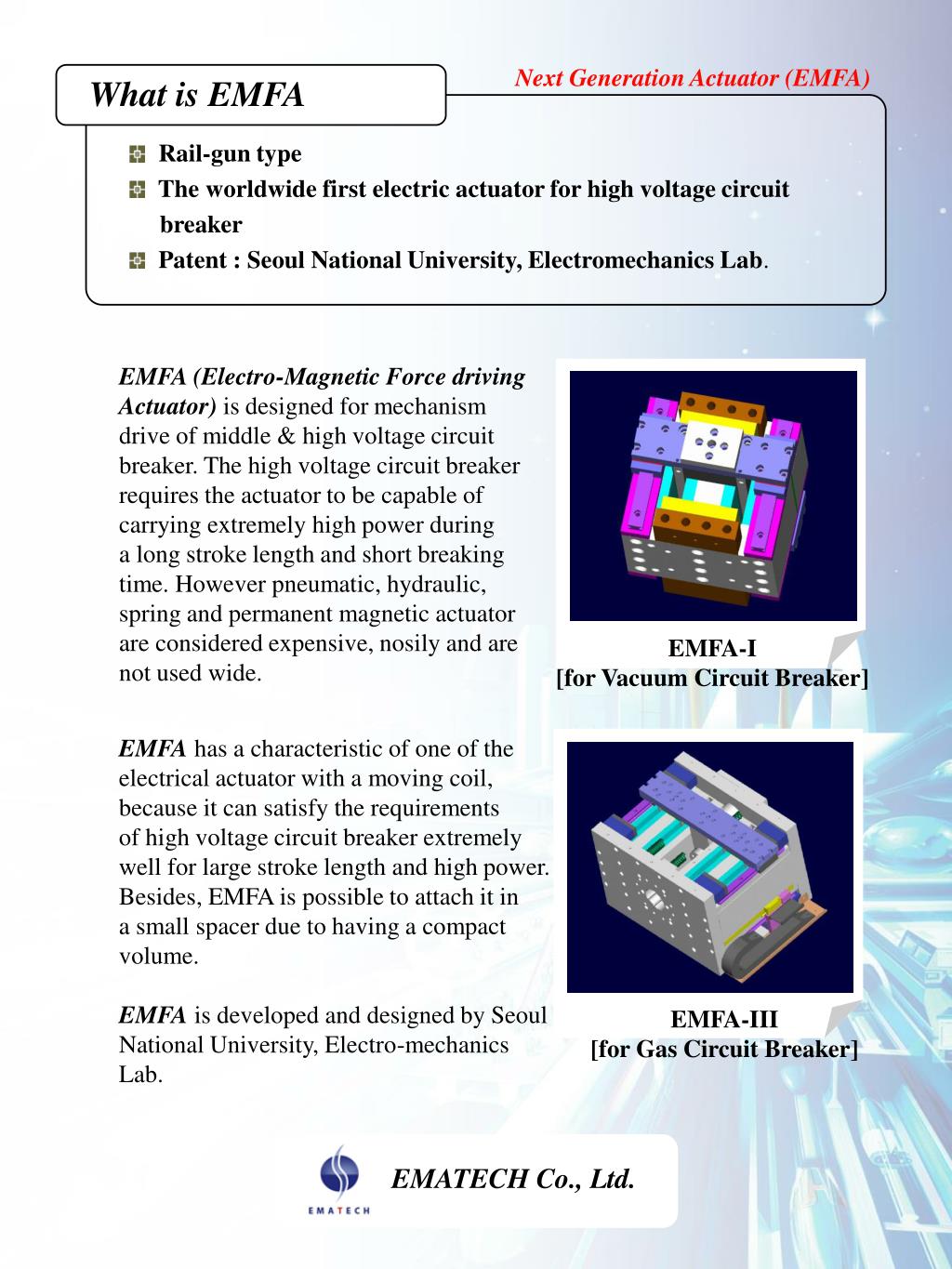

  2. Next Generation Actuator (EMFA) What is EMFA • Rail-gun type • The worldwide first electric actuator for high voltage circuit breaker • Patent : Seoul National University, Electromechanics Lab. EMFA (Electro-Magnetic Force driving Actuator) is designed for mechanism drive of middle & high voltage circuit breaker. The high voltage circuit breaker requires the actuator to be capable of carrying extremely high power during a long stroke length and short breaking time. However pneumatic, hydraulic, spring and permanent magnetic actuator are considered expensive, nosily and are not used wide. EMFA-I [for Vacuum Circuit Breaker] EMFA has a characteristic of one of the electrical actuator with a moving coil, because it can satisfy the requirements of high voltage circuit breaker extremely well for large stroke length and high power. Besides, EMFA is possible to attach it in a small spacer due to having a compact volume. EMFA is developed and designed by Seoul National University, Electro-mechanics Lab. EMFA-III [for Gas Circuit Breaker] EMATECH Co., Ltd.

  3. Station iron core Station iron core Station iron core Next Generation Actuator (EMFA) Basic structure • Planner and tubular type • Coil moving type actuator • Latch itself using by auxiliary permanent magnet • 4 parts - laminated iron core, permanent magnet, inserted iron core, coil Auxiliary Permanent Magnet Inserted Iron Core Sing Coil Main PermanentMagnet [ Structure of EMFA ] [Cross section of EMFA ] S-45 steel [Magnetic flux density on the iron core ] EMATECH Co., Ltd.

  4. Next Generation Actuator (EMFA) EMFA series • EMFA - I for 50kV class Vacuum Circuit Breaker • EMFA - II for 72kV class Gas Circuit Breaker • EMFA - III for 145kV class Gas Circuit Breaker EMATECH Co., Ltd.

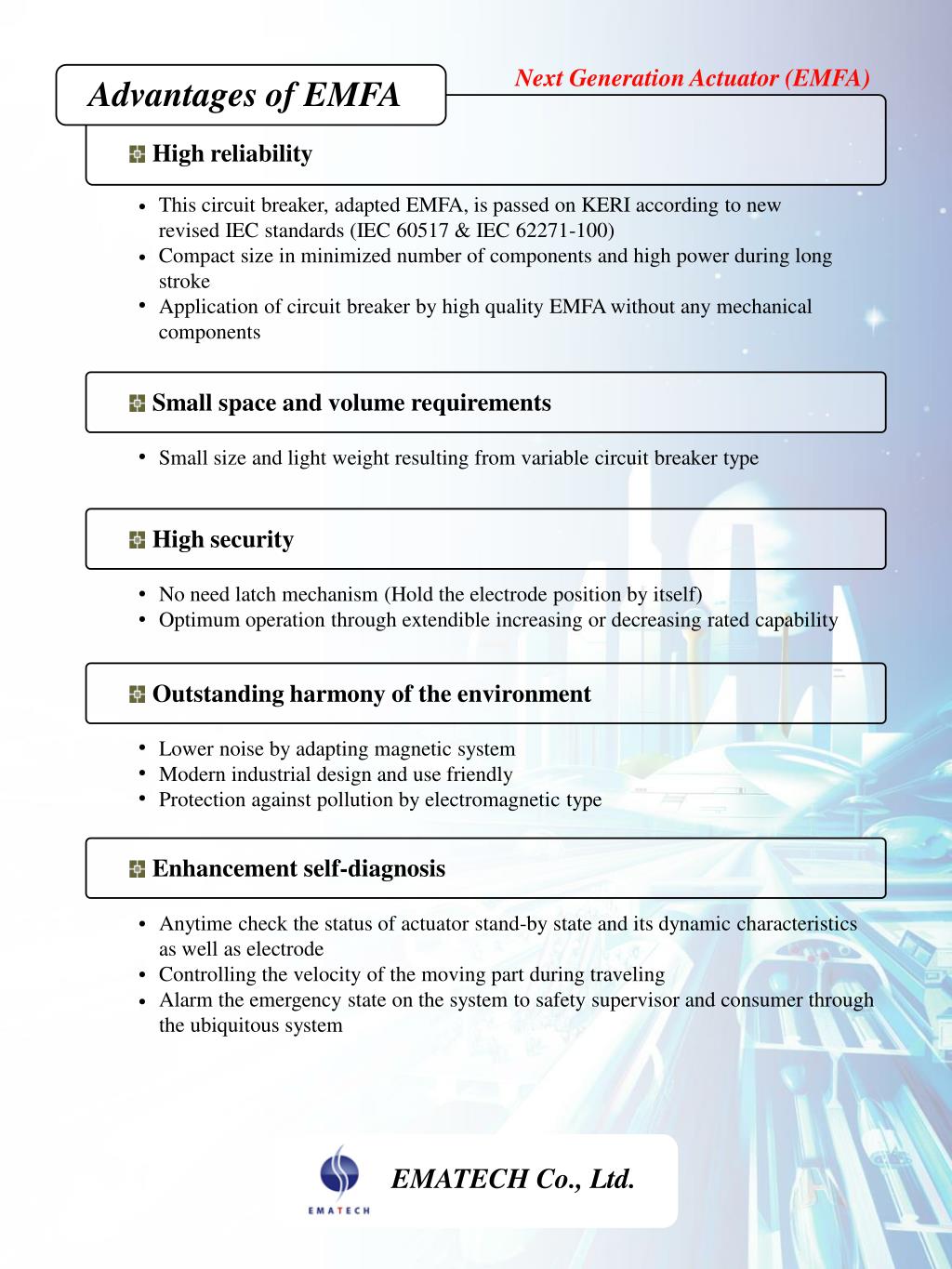

  5. Next Generation Actuator (EMFA) Advantages of EMFA • High reliability This circuit breaker, adapted EMFA, is passed on KERI according to new revised IEC standards (IEC 60517 & IEC 62271-100) Compact size in minimized number of components and high power during long stroke Application of circuit breaker by high quality EMFA without any mechanical components ● ● ● • Small space and volume requirements Small size and light weight resulting from variable circuit breaker type ● • High security No need latch mechanism (Hold the electrode position by itself) Optimum operation through extendible increasing or decreasing rated capability ● ● • Outstanding harmony of the environment Lower noise by adapting magnetic system Modern industrial design and use friendly Protection against pollution by electromagnetic type ● ● ● • Enhancement self-diagnosis Anytime check the status of actuator stand-by state and its dynamic characteristics as well as electrode Controlling the velocity of the moving part during traveling Alarm the emergency state on the system to safety supervisor and consumer through the ubiquitous system ● ● ● EMATECH Co., Ltd.

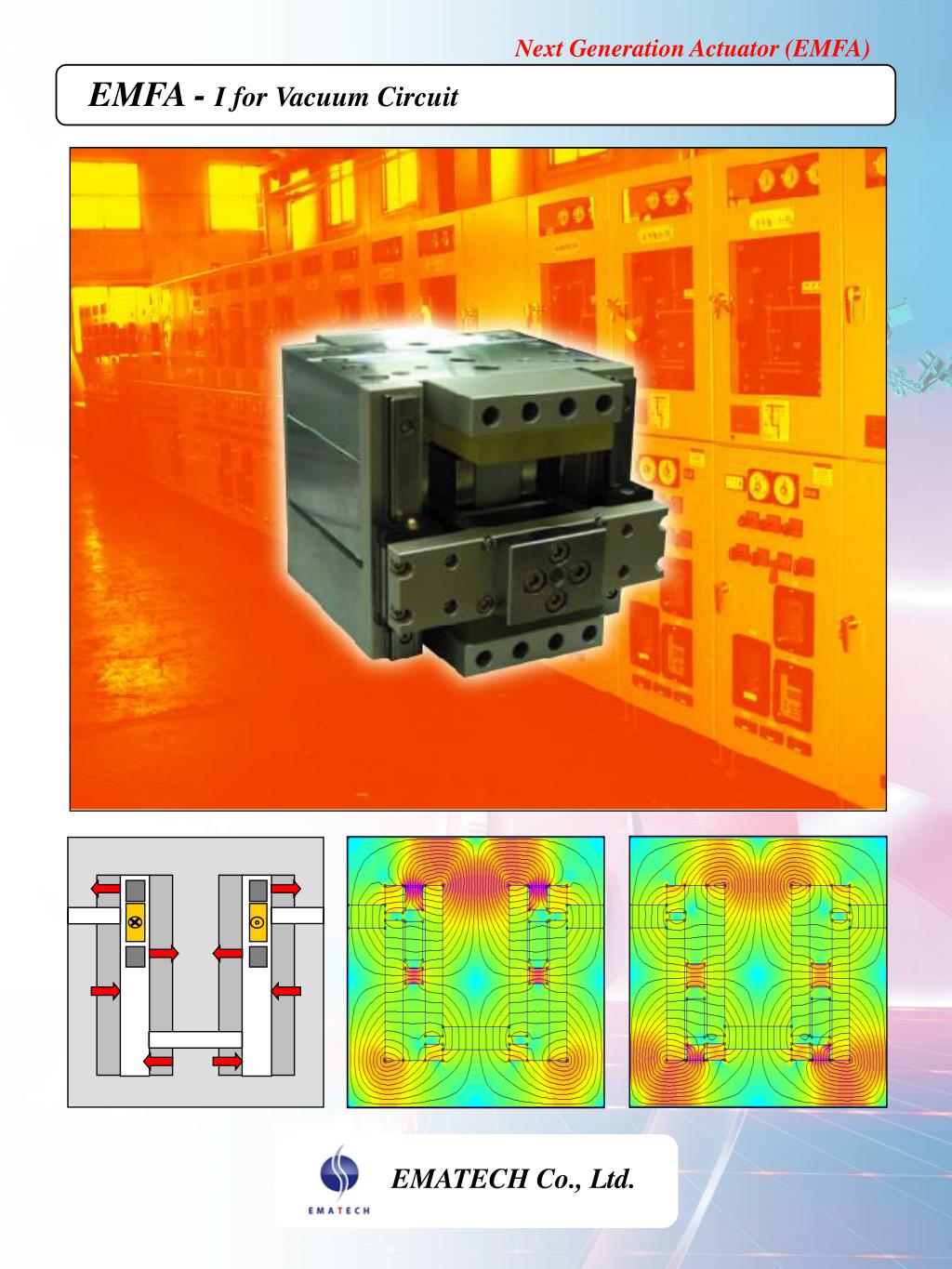

  6. Next Generation Actuator (EMFA) EMFA - I for Vacuum Circuit EMATECH Co., Ltd.

  7. Next Generation Actuator (EMFA) General Features of EMFA - I for Vacuum Circuit Breaker • Patented system with better performance than Motor Spring Actuator and Permanent Magnetic Actuator Smaller than 30% volume size Higher energy efficiency 40% over other electrical actuators ● ● • Ability to vary speed and self-adjust time according to the environment, programmable and maintenance-free • Much more dependable and less prone to breakage and failure • Only one component working to opening or closing the electrodes Enhancement the maintenance-free system ● • Uses far less energy than other electrical actuators 160 170 150 160 EMATECH Co., Ltd.

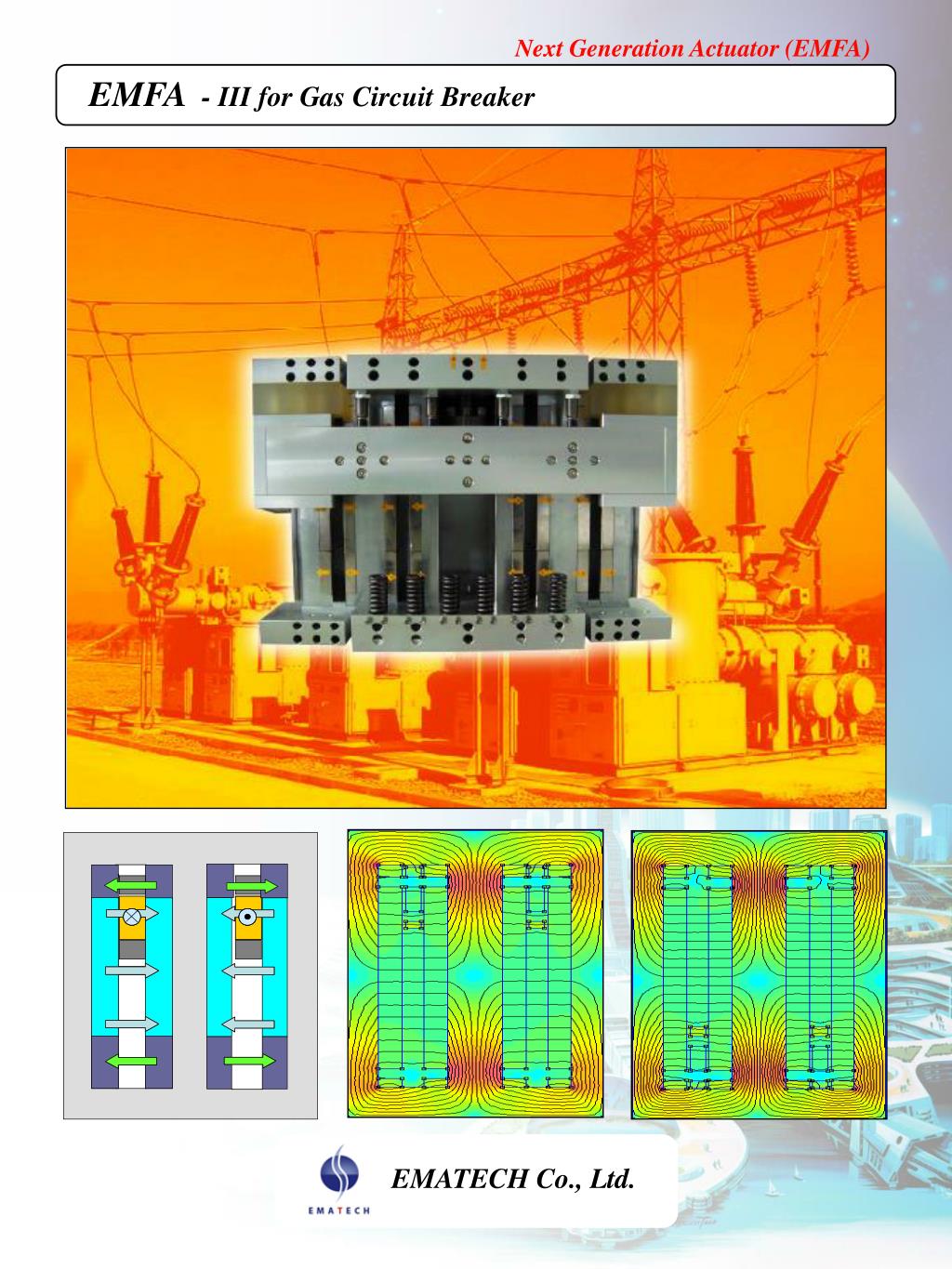

  8. Next Generation Actuator (EMFA) EMFA - III for Gas Circuit Breaker EMATECH Co., Ltd.

  9. Next Generation Actuator (EMFA) General Features of EMFA - III for Vacuum Circuit Breaker • The worldwide first electric actuator for high voltage circuit breaker (IEC 60517 & IEC 62271-100) • Patented system with better performance than Motor Spring Actuator and Hydraulic Actuator Smaller than half of volume size Higher energy efficiency 40% over other electrical actuators ● ● • Ability to vary speed and self-adjust time according to the environment, programmable and maintenance-free • Enhancement self-diagnosis Anytime check the status of actuator stand-by state and its dynamic characteristics as well as electrode Controlling the velocity of the moving part during traveling ● ● 220 220 430 250 EMATECH Co., Ltd.

  10. Next Generation Actuator (EMFA) EMFA control system • EMFA is controlling the electrodes during its working on opening or closing by adapting DC/DC converter • EMFA driver system is very sensitive as well as actuator itself, due to high efficiency AC Capacitor Unit Converter Unit Charging Unit DC Actuator Resolver Control Unit I/O Unit Trip signal 00100 I O Close mm Power supply Main signal Control signal Signal from sensor Open msec Stroke Curve of EMFA EMATECH Co., Ltd.

  11. CB DB server B/L server C/S server Distribution System Web server Fire wall Monitoring Next Generation Actuator (EMFA) Information Technology on Power system • Increasing management of Power System through the networking system By adapting power system total solution, consumption administer and security of power system as well as supplying company High quality power can be supplied to consumers ● ● Communication Relay System Local Optical Communication LAN Consumption Administer Security of Power System Global Optical Communication LAN iKEN Center EMATECH Co., Ltd.

  12. EMATECH Elector-Magnetic Actuator Technology Co., Ltd. Head Office San 56-1(130-301) Shillim-dong Kwanak-Gu Seoul Korea, Phone : 82-2-875-0487 Fax : 82-2-875-0486 Website : http://www.ema21.com E-mail : ema21@ema21.com U.S. Office (EMFA_LAB) 3943 Irvine Blvd #113 Irvine blvd 92602 Phone : 1-714-418-7764, 1-714-338-6197 E-mail : briankim@emfa-lab.com Research Center San 56-1(301-614) Shillim-dong Kwanak-Gu Seoul Korea Phone : 82-2-880-7262 Cel : 82-11-1783-8637 Fax : 82-2-878-1452 Website : http://elecmech.snu.ac.kr E-mail : feelfree@elecmech.snu.ac.kr Copyright ⓒ 2007 EMATECH Co., Ltd. All rights reserved. Seoul National University, Electro-mechanics Lab. EMATECH Co., Ltd.
