  1. 感生电动势大小分析

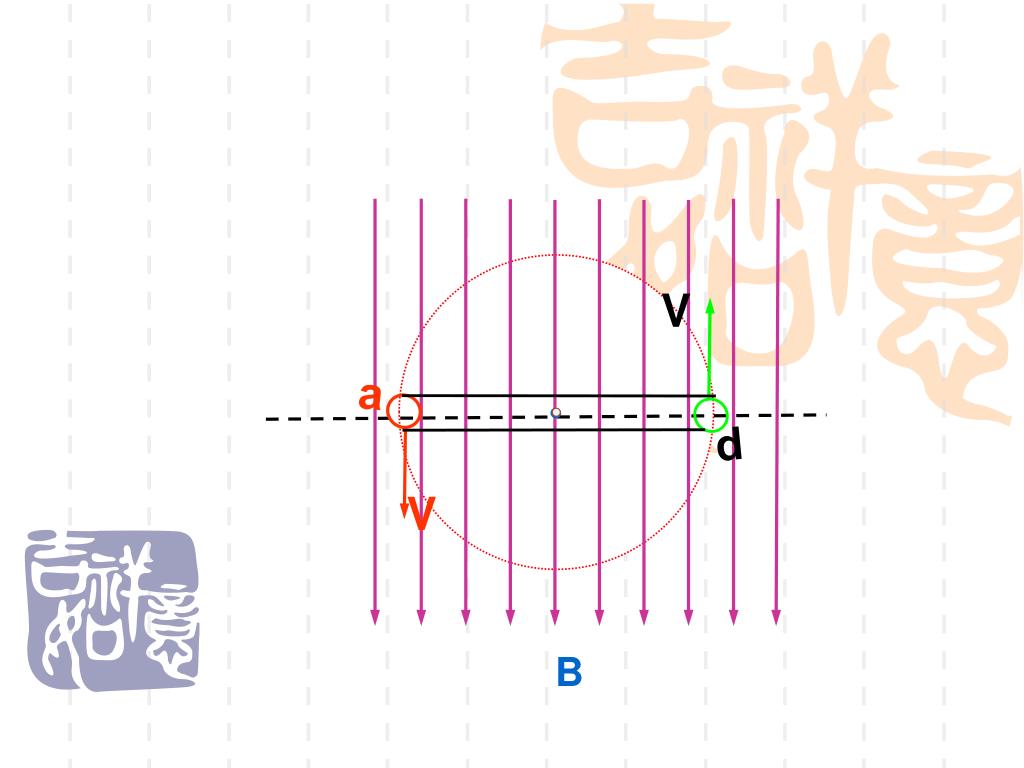

  2. V a d V B

  3. V a d V B

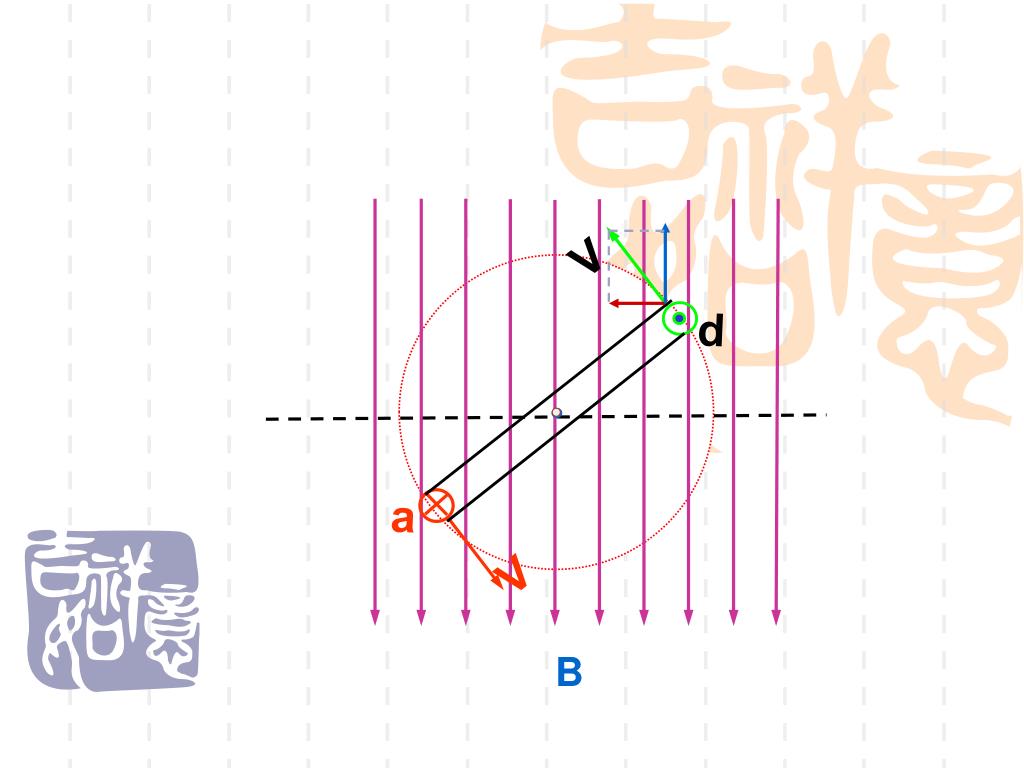

  4. V a d V B

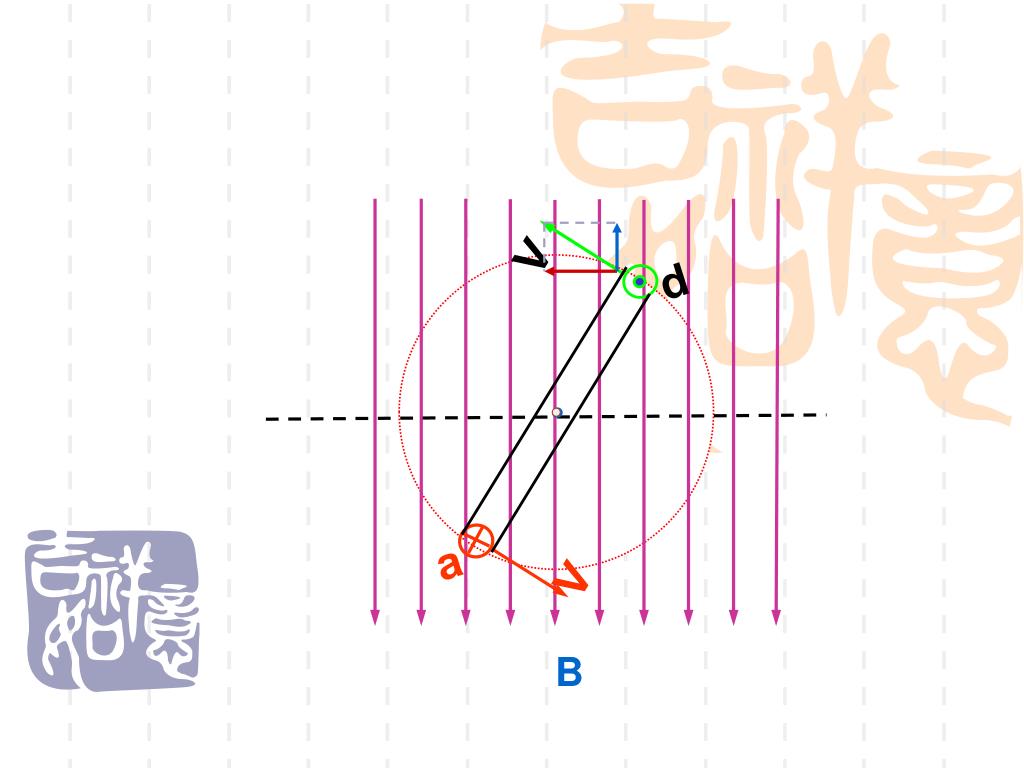

  5. V a d V B

  6. V a d V B

  7. V a d V B

  8. V a d V B

  9. V a d V B

  10. V d a V B

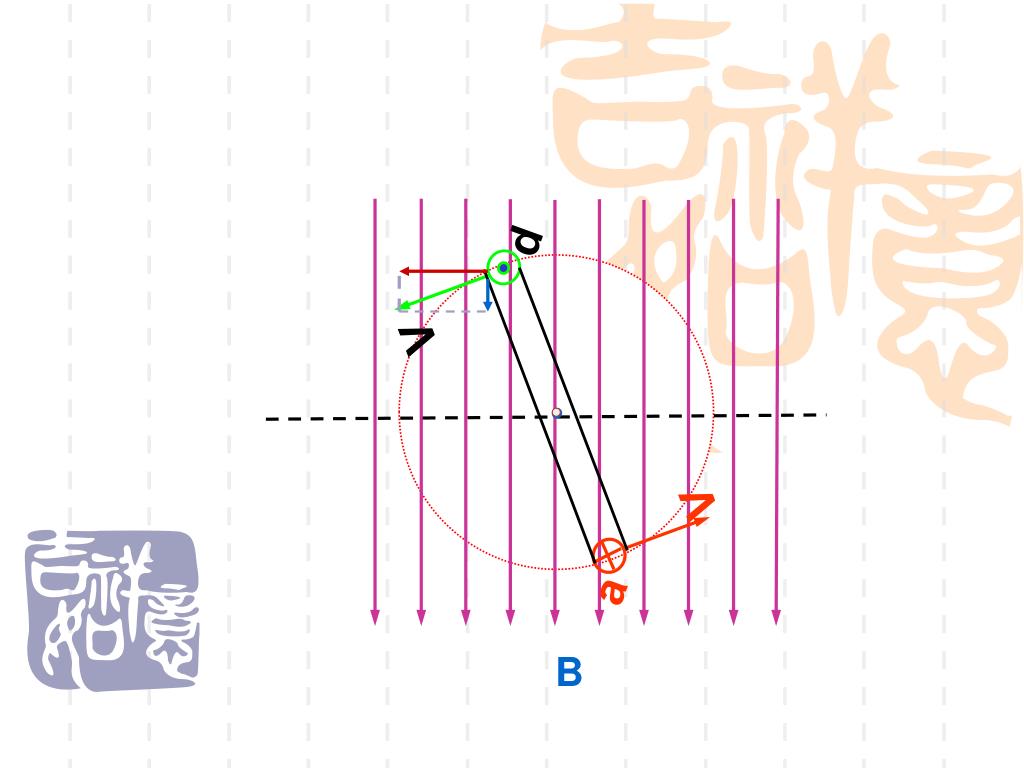

  11. V d a V B

  12. V d V a B

  13. V a d V B

  14. V a d V B

  15. V a d V B

  16. V a d V B

  17. V a d V B

  18. V ωt a 中性面 d V B 线圈平面 ωt

  19. 从中性面开始转动，角速度是ω ，经过时间t，线圈转过的角度是ωt ，ab边的线速度v的方向跟磁感线的夹角也是ωt.ab边的长度为lab,则ab边中的感应电动势是： V ωt a 中性面 d V 线圈平面 B V=ωad/2 ωt V//=Vsinωt eab=Blabvsinωt

  20. 2.大小变化规律------电动势的瞬时值 cd边中的感应电动势跟ab边中的大小相同，而且两边又是串联的，所以线圈中总感应电动势为 eab=2Blvsinωt 令 Em=2Blv=BSω 叫电动势的最大值 线圈的电动势的瞬时值：e=Emsinωt

  21. E r S R • 把线圈的电阻组成闭合电路，电路中就有感应电流，实验证明，在只含有电阻的电路中，适用于直流电路的欧姆定律也适用于交流电路。其等效电路图如右： 设闭合电路的总电阻为R，则 电流的瞬时值：i=e/R =Emsimωt/R 得: i=Imsinωt Im=Em/R 这时电路某一段上电压同样是按正弦规律变化的， 电压的瞬时值：u=iR=Imsinωt R 得: u=Umsinωt Um=ImR

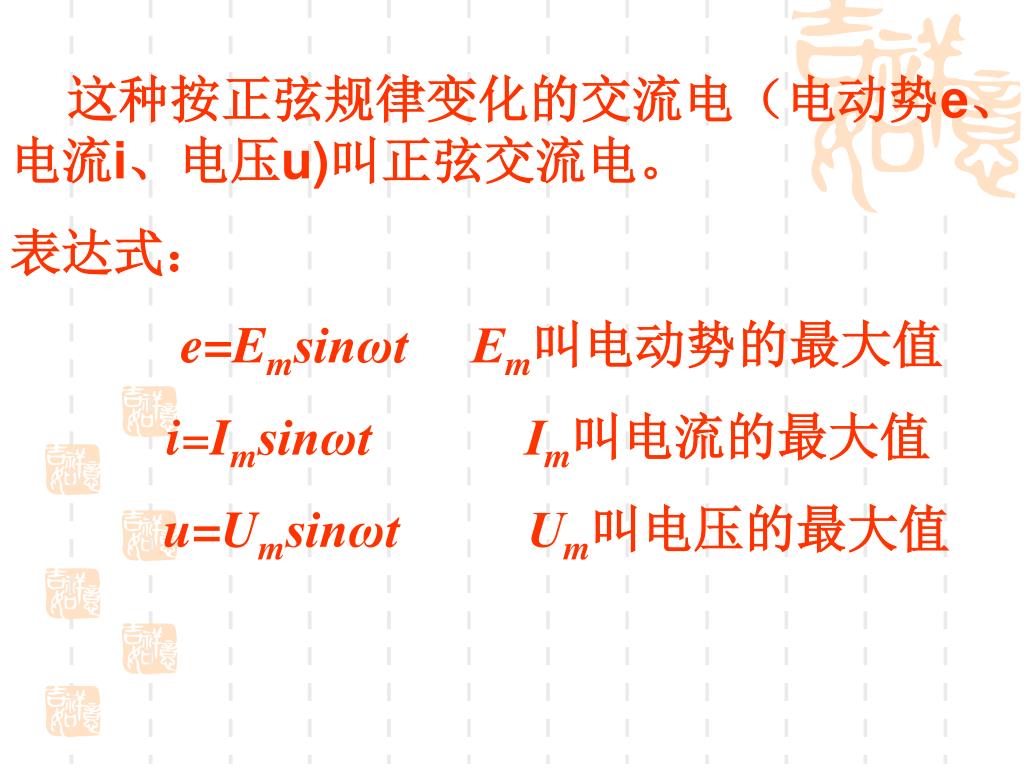

  22. 这种按正弦规律变化的交流电（电动势e、电流i、电压u)叫正弦交流电。这种按正弦规律变化的交流电（电动势e、电流i、电压u)叫正弦交流电。 表达式： e=Emsinωt Em叫电动势的最大值 i=Imsinωt Im叫电流的最大值 u=Umsinωt Um叫电压的最大值
