21 extended assembler
21 - Extended Assembler
  • Pseudoinstructions
    • Instructions defined at assembly level
    • Assembler translates tomachine intsructions
intent
Intent
  • Intent signaling instructions
convenience
Convenience
  • lw : Load word with label
    • Sets up base address/offset
convenience1

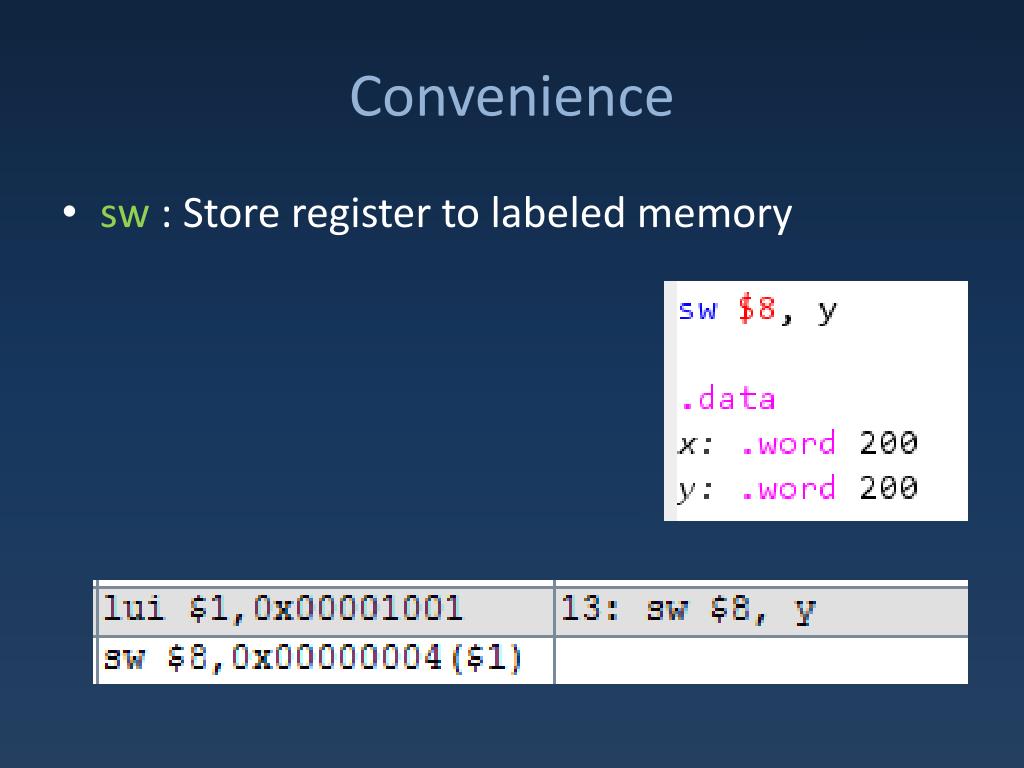

Convenience
  • sw : Store register to labeled memory
load address
Load Address
  • la : Load Address
    • Get memory address of labeled item
    • Assembly pointer
other pseudo tricks 23
Other Pseudo Tricks (23)
  • Immediate value impliesimmediate instruction
  • Convenience math/logic
assembler temporary register
Assembler Temporary Register
  • Instructions requiring multiple steps built using $1
registers
Registers
  • Registers have meanings defined by convention
    • Can use memnonic names instead of numbers
registers1
Registers
  • Tips:
    • Avoid $0, $1and $26-$31
    • $8-$25 safe for now :$t0-$t9 and $s0-$s7
24 more pseudo
24 – More Pseudo
  • Whole bunch o' branches and sets:
indexed addressing
Indexed Addressing
  • Arrays last week:
    • Move baseaddress around
unnatural
Unnatural
  • Offset/Base addressing ofteninconvenient
  • Indexed Addressing
    • Label(Offset)Array[i]
arrays now
Arrays Now
  • Arrays now
    • Change offset, uselabel as baseaddress
interrupts
Interrupts
  • Interrupt: signal to CPU that something needs to happen
    • Hardware Interrupts
      • Input/output ready
      • Ctrl-C
    • Code needs help
      • Trap from math overflow
      • Request for OS
interrupt handling
Interrupt Handling
  • OS take over
    • Saves stateof running program
    • Runs interrupt handler
    • Restores state
22 syscalls
22 - Syscalls
  • syscall: program generated interruptOperating System please do something
    • Use registers to send/receive information
syscalls
Syscalls
  • Syscall codes:
mips cin cout
MIPS cin / cout
  • Read and print integer:
more syscalls
More Syscalls
  • Properly end the program:
print string
Print String
  • Strings usually longer than word
    • Live in memory, not registers
  • String syscalls need pointer to string : $a0
    • Prints bytes until null char (00)
read print int 3
Read Print Int 3

Print promptand answermessages:

read string
Read String
  • Read string code needs
    • Location to write to
    • Space available
