jop java optimized processor

JOPJava Optimized Processor

DI Martin Schöberl

content
Content
  • Targets
  • Java Virtal Machine
  • Three different architectures
  • Datapath of JOP3
  • First results
targets
Targets
  • Small processor
  • Fits in a main stram FPGA
  • Efficient execution of byte codes
  • JVM real time enabled
  • organization of local memory ?
  • Multi processor on a single chip ?
java virtual machine

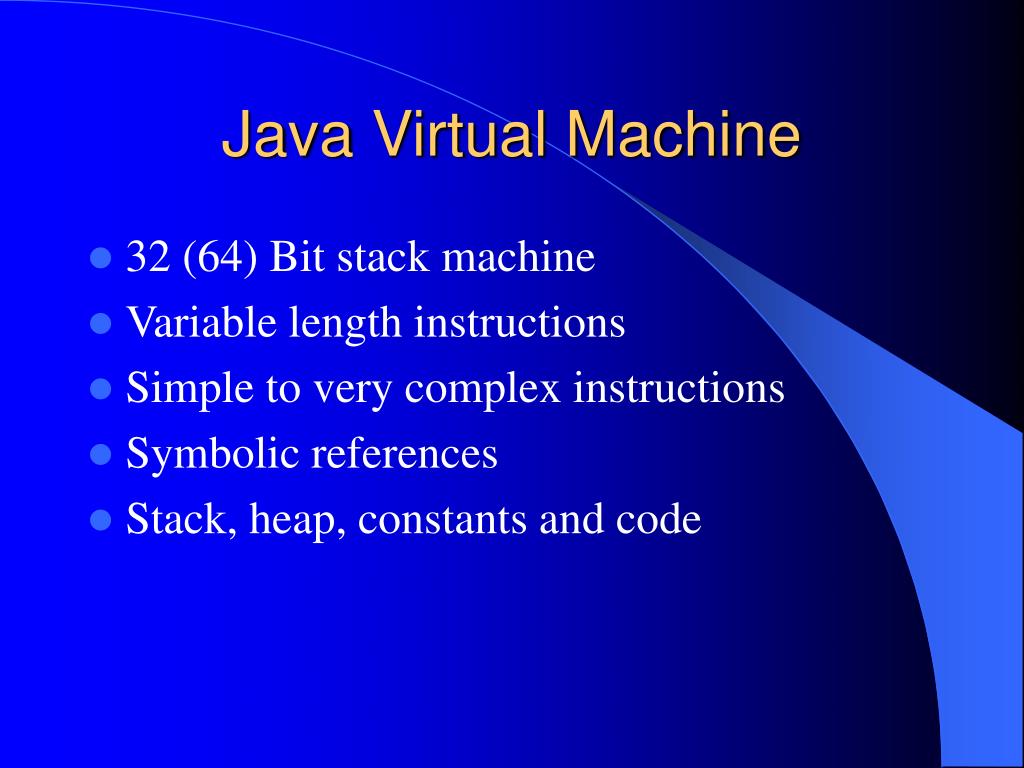

Java Virtual Machine
  • 32 (64) Bit stack machine
  • Variable length instructions
  • Simple to very complex instructions
  • Symbolic references
  • Stack, heap, constants and code
first approach

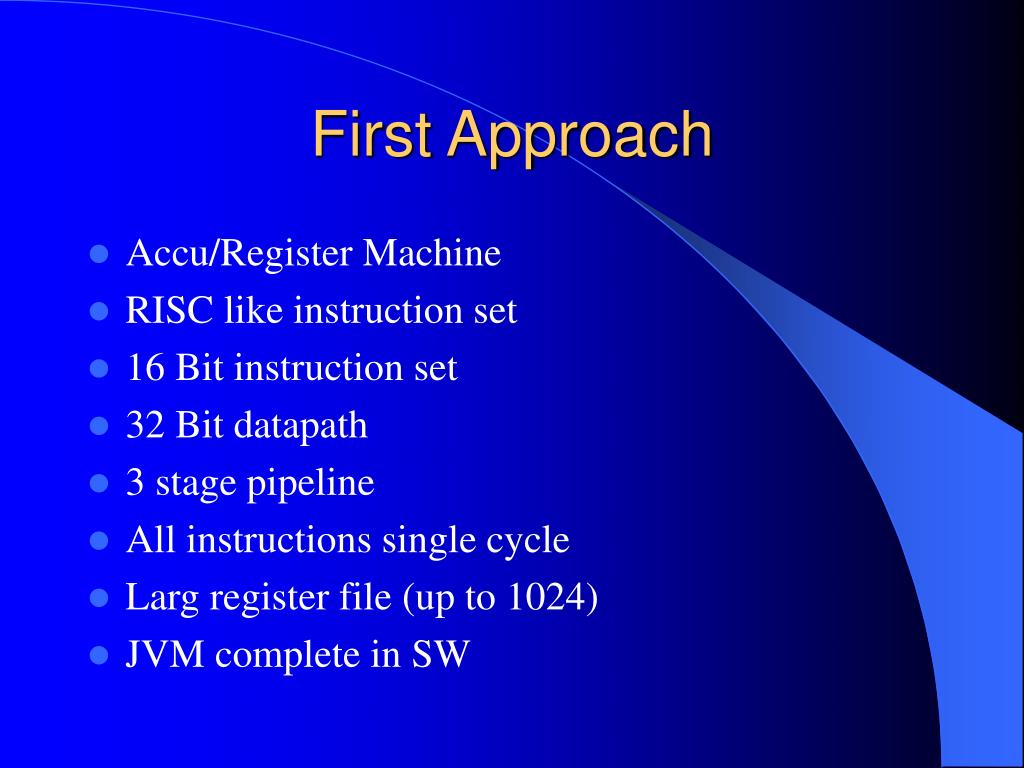

First Approach
  • Accu/Register Machine
  • RISC like instruction set
  • 16 Bit instruction set
  • 32 Bit datapath
  • 3 stage pipeline
  • All instructions single cycle
  • Larg register file (up to 1024)
  • JVM complete in SW
second approach

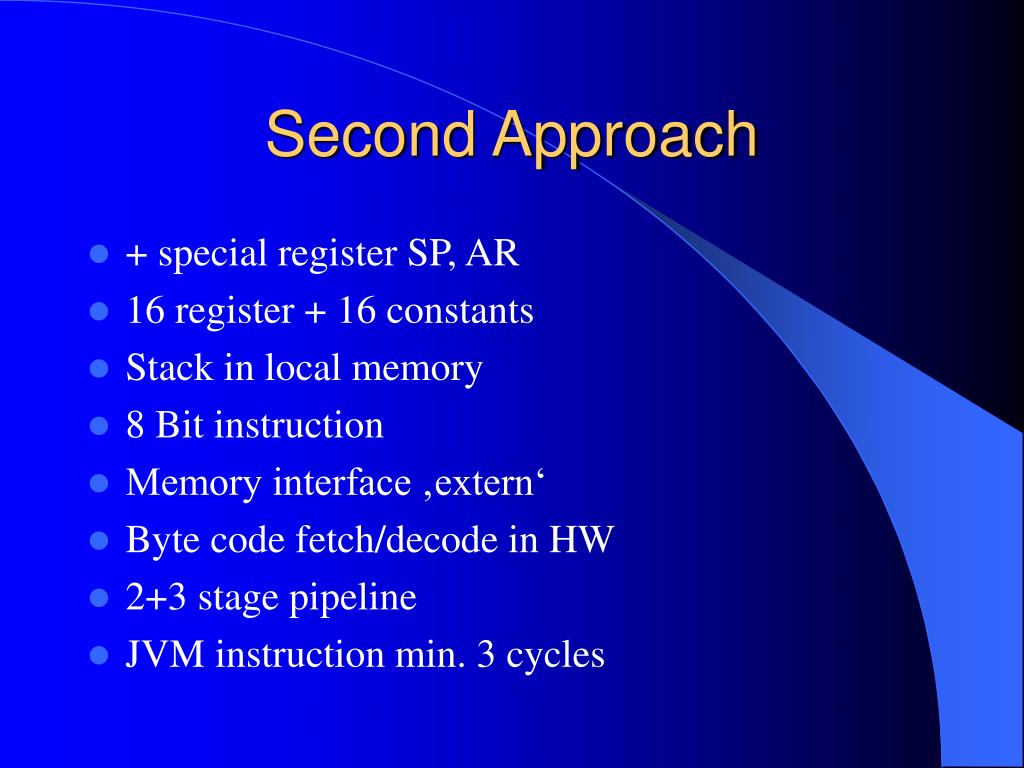

Second Approach
  • + special register SP, AR
  • 16 register + 16 constants
  • Stack in local memory
  • 8 Bit instruction
  • Memory interface ‚extern‘
  • Byte code fetch/decode in HW
  • 2+3 stage pipeline
  • JVM instruction min. 3 cycles
slide7
JOP3
  • Stack machine
  • Byte code is instruction set
  • 8 Bit microcode
  • Basic JVM instructions single cycle
  • 4 stage pipeline
  • No traps for complex instructions
jop3 fetch
JOP3 Fetch

P

C

+

1

RAM

jbc

J

I

N

S

ROM

microcode

I

R

+

J

B

R

J

P

C

A

O

P

D

H

+

-3

1

+

jop3 read write
JOP3 Read/Write

A

SP

vp

1

+

1

SPM

vp

2

+

+

-1

2

SPP

A

vp

3

+

+

1

3

R

D

A

D

D

R

W

R

A

D

D

R

I

R

SPM

vp

ix

J

I

N

S

+

vp

A

cp

ix

+

cp

A

jop3 execute

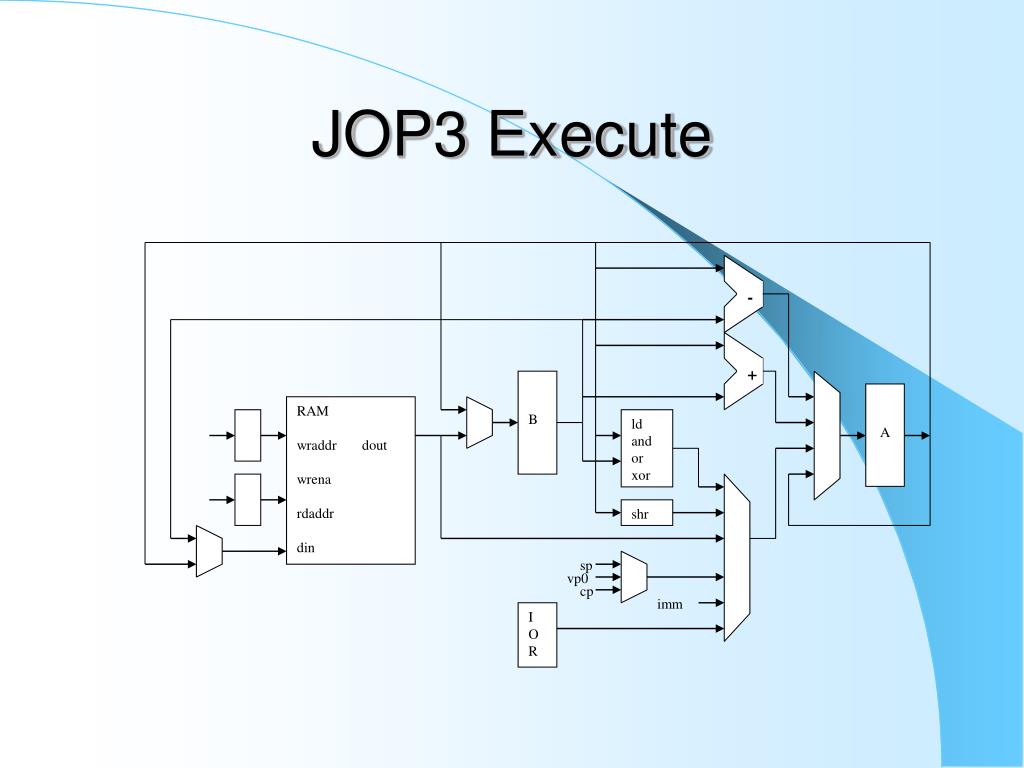

JOP3 Execute

-

+

B

A

RAM

wraddr dout

wrena

rdaddr

din

ld

and

or

xor

shr

sp

vp0

cp

imm

I

O

R

status
Status
  • Cores run on Altera ACEX 1K30-3
  • Periphery: IO port, SRAM- and Flash interface, UART, ECP
  • First real application under development
performance
Performance

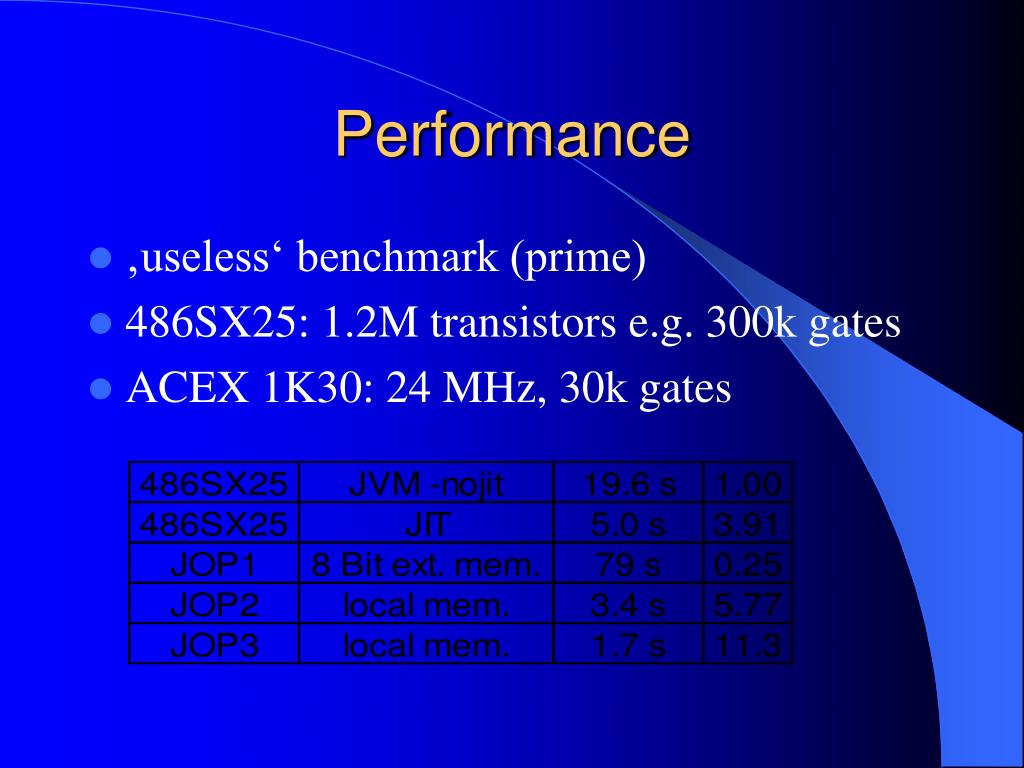

  • ‚useless‘ benchmark (prime)
  • 486SX25: 1.2M transistors e.g. 300k gates
  • ACEX 1K30: 24 MHz, 30k gates
http www jopdesign com
http://www.jopdesign.com/
  • Documentation as HTML
  • All VHDL, ASM and Java sources
  • Actual version for download
