southeast florida roadway transit user cost calculators

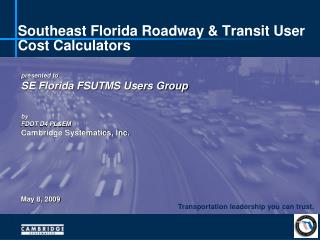

Southeast Florida Roadway & Transit User Cost Calculators

Transportation leadership you can trust.

presented toSE Florida FSUTMS Users Group

by

FDOT D4 PL&EMCambridge Systematics, Inc.

May 8, 2009

agenda
Agenda

Introduction

Travel Time Values

Vehicle Operating Costs

Transit Operating Costs

Calculator

Application Examples

Discussion

2

purpose
Purpose

Better assessment of transportation improvement benefits

Systemwide

LRTP

Corridor alternative comparison

Benefit/Cost Analysis

Operational improvements

Cost of lane closures

Value of early completion

3

the calculator
The Calculator
  • Provides unit costs for various segmentations
  • Provides price escalation trends for future costs
  • Output FL and SE FL values
  • Allows for overwriting default inputs
  • Up to users to decide how to use it
components
Components
  • Travel Time Value (TTV)
    • Auto; Truck
  • Transit User TTV
      • Bus; Tri-Rail; Metrorail
  • Vehicle Operating Cost (VOC)
    • Auto; Truck
  • Transit Operating Cost
    • Bus; Commuter Rail; Light Rail; Demand Response

5

highway components
Highway Components

RUC = TTV + VOC

Road User Cost = Travel Time Value + Vehicle Operating Cost

6

1 travel time values
1: Travel Time Values

Based on hourly wage

Personal trips 50%

Commute trips 60%

On-the-clock trips 100%

Base Figures in 2004$

8

travel time value validation survey
Travel Time Value Validation Survey

Telephone survey, stated preference

5,000 random households

Miami-Dade to Indian River

Dec ’04 - Jan ’05

1,070 successful responses

Work trips: $10 - $13/hr

Non-work: 40% of wage

9

transit user travel time value
Transit User Travel Time Value

Trip purpose segmentation

Personal travel/Visitor

Commute

On-the-clock

Time-of-Day segmentation

Peak; off-peak

Based on transit on-board surveys

1999 SEFL Travel Characteristics Survey

2007 Tri-Rail On-Board Survey

2004 Metro-Rail On-Board Survey

2004 Metrobus On-Board Survey

10

wage projection
Wage Projection

Wage Data is available from 1951 to 2006.

Regression Analysis indicates strong fit (R-square = 0.998).

According to Social Security Online (www.ssa.org), national median wage is about 70% of national average wage.

Future year TTVs are calculated based on projected median wages.

11

travel time values 2004
Travel Time Values (2004)

Annual median wages from 2000 census: SEFL = $21,975; FL = $20,721

Median income is about 70% of average income.

12

commercial vehicle travel time values 2004
Commercial Vehicle Travel Time Values (2004)

Annual median wages from 2000 census: SEFL = $21,975; FL = $20,721

Median income is about 70% of average income.

13

2 vehicle operating costs voc
2: Vehicle Operating Costs (VOC)

Cost Parameters

Adjustment Factors

Depreciation

Financial Charges

Insurance

Stop and Go Conditions

Pavement Roughness

Vehicle Age

Geography

VOC

Fuel Tax

Sales Tax

Licensing and Registration

Fuel Cost

Tires

Maintenance and Repairs

15

vehicle operating cost assumptions
Vehicle Operating Cost Assumptions

Vehicle class types – compact, mid-size, large, SUV, Minivan, and trucks

Driving range – 12,000-15,000 miles per year

Vehicle lifespan – 150,000 mi

Southeast Florida

Urban setting

Flat surface

16

default assumptions
Default Assumptions

Urban settings assumed in South Florida

City conditions generate 35% more fuel consumption than highway conditions

About 3% annual price increase applied to maintenance and repairs based on historical (20-year period) CPI trends

18

vehicle operating costs fuel cost
Vehicle Operating Costs – Fuel Cost

$/gallon = $1.53-$1.65 (2004)

25

vehicle operating costs financial charges
Vehicle Operating Costs – Financial Charges

Average interest rate = 4.45% (2004)

Financial Charges = Interest on vehicle loan

26

vehicle operating costs fuel tax
Vehicle Operating Costs – Fuel Tax

Federal = 18.4 cents/gallon

State = 14.3 cents/gallon

Local = 6-12 cents/gallon

27

transit operating costs
Transit Operating Costs

Service and cost data obtained from National Transit Database (NTD) - Federal Transit Administration

Modes:

Bus; Demand Response; Commuter Rail; Light Rail

Data:

Services: passenger trips; revenue hours; revenue miles

Costs: operators’ wage; material and supplies; utilities; insurance; tax; purchased transportation; ADA related expense; other expenses.

Unit cost = (total costs)/(total services provided)

3 calculators
3. Calculators
  • Auto and Commercial Vehicle User TTV Calculator
  • Transit User TTV Calculator
  • Auto and Commercial VOC Calculator
  • Transit VOC Calculator
purpose of calculators
Purpose of Calculators
  • Provide LOCAL data values
  • Analysis for different years / horizons
  • Ability to change defaults
    • Fuel prices
    • Fleet composition – increase in small vehicles?
    • Others…
auto and commercial vehicle user ttv calculator
Auto and Commercial Vehicle User TTV Calculator
  • Input
    • Current year/target year
    • Wages (optional)
    • Inflation factors (optional)
    • TTV segmentations (optional)
  • Output - Auto and Commercial Vehicle User TTV by
    • Geographic level
    • Trip type
    • Trip purpose
    • Vehicle type
    • Time of day
transit user ttv calculator
Transit User TTV Calculator
  • Input
    • Current Year/Target Year
    • Wages (optional)
    • Inflation factors (optional)
    • TTV markets
  • Output - transit user TTV by
    • Geographic level
    • Transit mode
    • Trip type
    • Trip purpose
    • Waiting and transferring
auto and commercial voc calculator
Auto and Commercial VOC Calculator
  • Key Input
    • Current fuel price
    • Current year / target year
    • Average travel speed
  • Output - annual cost and per mile cost by
    • Cost component
    • Total costs
transit voc calculator
Transit VOC Calculator
  • Input Service Data
    • Mode
    • Route Length
    • Weekday Service Schedule
    • Weekend Service Schedule
    • Update Cost Item (Optional)
  • Output – Transit Vehicle Operating Cost by:
    • Mode
    • Total Annual Service (Revenue Miles)
    • Total Annual Operating Cost
    • Annual Operation Cost per Revenue Mile
transit voc calculator45
Transit VOC Calculator
  • By Region
  • By County
  • By State
  • By Nation

reference data
Reference Data
  • MetroRail Rider Income
  • Vehicle Depreciation
  • Vehicle Speed vs. Fuel Consumption
  • Median/Average Wage
  • CPI
  • Crude Oil Price
  • Gasoline Price
  • Auto Price
  • Vehicle Fleet Composition
  • Transit User Income
  • Bus Rider Income
  • Tri-Rail Rider Income
4 sample applications
4. Sample Applications
  • 1. Lane closure cost calculation
    • Hypothesis scenario
    • Additional cost for roadway users (TTV + VOC) resulted from lane closure
  • 2. Trip cost comparison for Auto and Transit
    • Cost for roadway user (TTV + VOC) and transit user (TTV + fare)
    • Downtown Coral Springs to Fort Lauderdale
sample application 1
Sample Application 1

Left Lane Closure on I-595 from University Dr. to FTPK

Conditions

2009, 2 days, 2.2 miles

AADT 227,000

Average occupancy: 1.2 people per vehicle

Average travel speed reduced from 55mph to 35mph

TTV in 2009: $8.16 per hour

VOC at 35mph: $0.471/mile; VOC at 55mph: $0.461/mile

Costs

TTV increased : (2.2/35 – 2.2/55)*8.16*227,000*1.2*2 = $101,613

VOC increased: ($0.471 – $0.461)*2.2*227,000*2 = $9,988

Total cost = TTV + VOC = $111,601

50

sample application 2
Sample Application 2

Downtown Coral Springs to Fort Lauderdale

Discussion:

what TTV should be used for the transit alternative?

Value of Wait time?

51
