exploiting spin effects to unravel the structure of np at a future lc

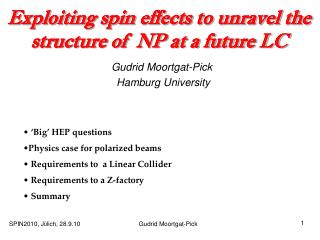

Exploiting spin effects to unravel the structure of NP at a future LC

  • ‘Big’ HEP questions
  • Physics case for polarized beams
  • Requirements to a Linear Collider
  • Requirements to a Z-factory
  • Summary

GudridMoortgat-Pick

Hamburg University

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

big questions and possible answers
‘Big’ questions …and possible answers
  • Shortcomings of the Standard Model
    • Establish electroweak symmetry breaking LC
    • Hierarchy problem?
    • Unification of all interactions?
    • Embedding of gravity in field theory?
    • Baryon asymmetry in Universe?
    • Content of dark matter
    • Neutrino mixing and masses
  • Why is new physics expected at TeVscale?
    • Protect hierarchy between mweak and mplanck
    • Dark matter consistent with sub-TeV scale WIMPs

Higgs mass with respect to large quantum corrections:

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

big questions and possible answers1
‘Big’ questions …and possible answers
  • Shortcomings of the Standard Model
    • Establish electroweak symmetry breaking LC
    • Hierarchy problem? LHC, LC
    • Unification of all interactions? LC
    • Embedding of gravity in field th? cosmo,LHC, LC
    • Baryon asymmetry in Universe? v-, cosmo, LHC, LC
    • Content of dark matter?v-, cosmo, LHC, LC
    • Neutrino mixing and masses v-, cosmo-exp.

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

big questions and possible answers2
‘Big’ questions …and possible answers
  • Shortcomings of the Standard Model
    • Establish electroweak symmetry breaking LC
    • Hierarchy problem? LHC, LC
    • Unification of all interactions? LC
    • Embedding of gravity in field theory? cosmo,LHC, LC
    • Baryon asymmetry in Universe? v-, cosmo, LHC, LC
    • Content of dark matterv-, cosmo, LHC, LC
    • Neutrino mixing and masses v-, cosmo-exp.
  • Goal of a Linear Collider?
    • observe, determine and precisely reveal the structure of the underlying physics model !

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

required features at lhc ilc
Required features at LHC & ILC

LC, today only

LHC, LC: CP e.g.

LC, partially LHC

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

why a linear collider
Characteristics of pp collider

composite particles collide

E(CM) < 2 E(beam)

strong interaction in initial state

`no' polarization applicable

LHC: √s = 14TeV,

used ŝ = x1x2s few TeV

small fraction of events analyzed

multiple triggers

superposition with spectator jets

Large potential for

direct discovery

and of the e +e-(γe, γ γ) collider

Pointlike particles collide

Known E(CM) = 2 E(beam)

well defined initial state

polarized initial e- and e+ beams

ILC: √s = 500 GeV -- 1 TeV, tunable

most events in detector analyzed

no triggers required

clean +fully reconstructable events

Large potential for discovery also via high precision

Why a linear collider?

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

the unique advantage of e e
The unique advantage of e+e-
  • Their clean signatures allow precision measurements
      • Sensitive to the theory at quantum level (i.e. contributions of virtual particles, ‘higher orders’)!
  • Such measurements allow predictions for effects of still undiscovered particles, but whose properties are defined by theory.

Enables powerful discoveries and/or consistency checks and the determination of the underlying structure!

t

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

requirements for such precision frontier
Requirements for such`precision frontier’

ICFA Parameter Group for a future LC:

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

why are polarized beams required
Why are polarized beams required?
  • Please remember: excellent e- polarization ~78% at SLC:
    • led to best measurement of sin2θ=0.23098±0.00026

on basis of L~1030 cm-2s-1

  • Compare with results from unpolarized beams at LEP:
    • sin2θ=0.23221±0.00029 but with L~1031cm-2s-1

See importance and more details later when discussing ‘Z-factory’

  • Comprehensive list of physics examples with polarized beams at a LC: GMP et al., Physics Rept., hep-ph/0507011
    • Only few examples here, has to be weighted wrt LHC expectations!

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

beam polarization at hep colliders
Beam polarization at HEP colliders

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

beams polarization at linear colliders
Beams polarization at linear colliders
  • Polarized e- beams:
    • strained photocathode technologies (SLC, etc. )
    • see talks at PESP@Bonn, W. Hillert
    • expected for the LC P(e-)~80-90%
  • Polarized e+ beams: e+ polarization is an absolute novelty!
    • Expected at ILC P(e+) ~ 60%
    • in RDR baseline already ~30% achievable
      • see talks by A. Schaelicke, K. Laihem
  • Measurement via Compton polarimetry: ΔP/P<0.25% exp.
      • see talks by M. Beckmann, D. Kaefer

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

short overview e sources at ilc
Short overview: e+ sources at ILC

-200m

e+ yield and polarization depends on beam energy and undulator length

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

short overview e sources at ilc1
Short overview: e+ sources at ILC

s

-200m

  • in general: demanding challenges for the e+ source!

e+ yield and polarization depends on beam energy and undulator length

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

physics pol cross sections in general
Physics: pol.cross sections in general

Polarized cross sections can be subdivided in:

σRR, σLL, σRL, σLR are contributions with fully polarized L, R beams.

In case of a vector particle only (LR) and (RL) configurations contribute:

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

effective polarization
Effective polarization
  • Effective polarization:

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

relation between p eff and a lr
Relation between Peffand ALR
  • How are Peffand ALR related?
  • That means:
  • With pure error propagation (and errors uncorrelated), one obtains:
  • With

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

gain in accuracy due to p e
Gain in accuracy due to P(e+)

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

p e sensitive to interaction structure
P(e±) sensitive to interaction structure

Definition: Helicityλ=s * p/|p| ‘projection of spin’

Chirality= handedness is equal to helicity only of m=0!

  • Annihilation channel:

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

complete fixing of initial state via p e
Complete fixing of initial state via P(e+)
  • Scattering channel: direct access to chirality of final state !

from SM processes

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

something new detected at early lhc
Something ‘new’ detected at early LHC
  • Supersymmetry-like signals
    • New physics model with

high predictive power

    • ‘light’ SUSY consis-

tent with precision fits

  • Extra gauge bosons and/or large extra dimensions
    • High precision in indirect searches allow model distinction and couplings determination

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

verify susy properties at ilc
Verify SUSY properties at ILC

in t-channel

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

slepton chiral quantum numbers
Slepton `chiral’ quantum numbers

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

models with extra dimensions
Models with extra dimensions
  • String theory: 10 or 11 dimensions of space-time
    • Extra dimensions ‘compactified’, too small to be detected so far:

To a tightrope walker, the

tightrope is one-dimensional:

he can only move forward or

backward

But to an ant, the rope has an extra dimension: the ant can

travel around the rope as well !

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

searches for extra dimensions
Searches for extra dimensions

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

extra dimensions
Extra dimensions

Distinction between SM and different models of extra dimensions

  • Detect and determine new kind of physics even in the multi-TeV range
  • Transversely-polarized beams require P(e-) and P(e+) !

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

polarimetry requirements
Polarimetry requirements
  • SLC experience: measured ΔP/P=0.5%
    • Compton scattered e- measured in magnetic spectrometer
  • Goal at ILC: measure ΔP/P≤0.25%
    • Dedicated Compton polarimeters and Cherenkov detectors
    • Use upstream and downstream polarimeters
      • Machine feedback and access to luminosity-weighted polarization
    • Use also annihilation data: `average polarization’
      • Longterm absolute calibration scale, up to ΔP/P=0.1%

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

compton polarimetry at ilc
Compton polarimetry at ILC
  • Upstream polarimeter: use chicane system
    • Can measure individual e± bunches
    • Prototype Cherenkov detector tested at ELSA!
  • Downstream polarimeter: crossing angle required
    • Lumi-weighted polarization (via w/o collision)
    • Spin-tracking simulations required

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

expected depolarization effects
Expected depolarization effects
  • In general: two effects cause depolarization
    • Largest Effects during beam-beam interaction
    • Spin precession (T-BMT) and spin-flip (ST) effects
    • Have been compared for ILC and CLIC:
    • Theoretical updates due to strong field environment
    • See also talk by A. Hartin
  • Spin treatment in DR, spin rotators, BDS under work
    • See also talks by D. Barber

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

ew precision measurements@z factory
EW precision measurements@Z-factory
  • GigaZ option at the ILC:
    • high-lumi running on Z-pole/WW
    • 109 Z in 50-100 days of running
    • Needs machine changes (e.g. bypass in the current outline)
  • Dedicated Z-factory:
    • fraction of GigaZ
    • but strong physics case given already now!
  • Both facilities need polarized e- and e+ beams
    • Use of Blondel scheme required to get ΔP/P≤0.1%
  • Measurement of e.g. sin2θW with unprecedented precision achievable!

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

why electroweak precision data
Why electroweak precision data?

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

relevance of ew data today
Relevance of ew data today
  • Most sensitive observables: mW, sin2θeff,(g-2)μ,…
  • Large discrepancy between ALR(l) and AFB(b)
    • world average: sin2θeff=0.23153±0.00016

(central value, errors added in quadrature →brute force)

  • Impact of this measurement ?

←in b’s

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

measuring the ew mixing angle
Measuring the ew mixing angle
  • Measuring the AFB ,

ALR can be interpreted

as measuring sin2θW

  • LEP result:

sin2θW=0.23221±0.00029

  • SLC result:

sin2θW=0.23098±0.00026

    • Discrepancy between AFB and

ALR -> impact on Higgs tests !

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

m w vs central value sin 2 eff
mW vs. central value sin2θeff

→ Consistent with SM and SUSY

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

m w vs sld value sin 2 eff
mW vs. SLD-value sin2θeff

→ not consistent with the SM

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

m w vs lep value sin 2 eff
mW vs. LEP -value sin2θeff

→ not consistent with neither SM nor SUSY

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

what s the role of polarization
What’s the role of polarization?
  • Statistical uncertainty of ALR
    • If only polarized electrons:Δ ALR given by polarimeter uncertainty

→ depends on ΔσL, ΔσR, ΔP/P

→ main uncertainty at LC from ΔP/P~ 0.5 %→ 0. 25%...

    • If both beams are polarized: Blondel scheme

→uncertainty depends on ΔσLL, ΔσLR, ΔσRL, ΔσRR not on ΔP/P !

→Some running in LL and RR required, about 10-20% of the time

SPIN2010, Jülich, 28.9.10 GudridMoortgat-Pick

blondel scheme for gigaz z factory
Blondel scheme for GigaZ / Z-factory

  • Measurement of sin2θ in e+e-→Z→f f :
  • With Blondel Scheme at ILC:
    • (80%,60%) : Δsin2θ= 1.3x10-5
    • but Δmtop= 0.1 GeV required!
  • With Blondel Scheme at a Z-factory:
    • and still Δmtop~1 GeV (i.e. before ILC run): Δsin2θ= 1x10-4 useful!
    • but polarized beams required, i.e. P(e+)≥ 20% !

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

summary
Summary
  • Polarized e- and e+ beams to optimize LC physics potential
    • Not only powerful for ‘chirality’ and couplings of new particles!
  • Physics potential of either GigaZ or Z-factory a.s.a.p.
    • Δsin2θ <1x10-4 seems reasonable now!
  • Special care of machine design needed to exploit polarization
    • High lumi source designs, spin rotators, precise spin tracking
    • Precise Compton polarimetry (up- and downstream)

…. But polarization is these efforts worth ! …

  • Further news on polarization at a LC
    • Webpages: www.ippp.dur.ac.uk/LCsources
    • Further spin effects under work, e.g. CP at LHC, LC, …..

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

relevance in worst case scenarios
Relevance in worst case scenarios
  • Hints for new physics in worst case scenarios:
    • Only Higgs @LHC
    • No hints for SUSY
  • Deviations at Zpole
    • Hints for SUSY
  • Discrepancy

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick

slide40

mtop= 173.3 +- 1.1 GeV

  • Further important input quantities: mass of top
  • δsin2θ ~ 1 x 10-4 would be reasonable now (i.e. before ILC run) !

LHC

ILC

SPIN2010, Jülich, 28.9.10 Gudrid Moortgat-Pick
