PROOFREADING TIPS AND TECHNIQUES

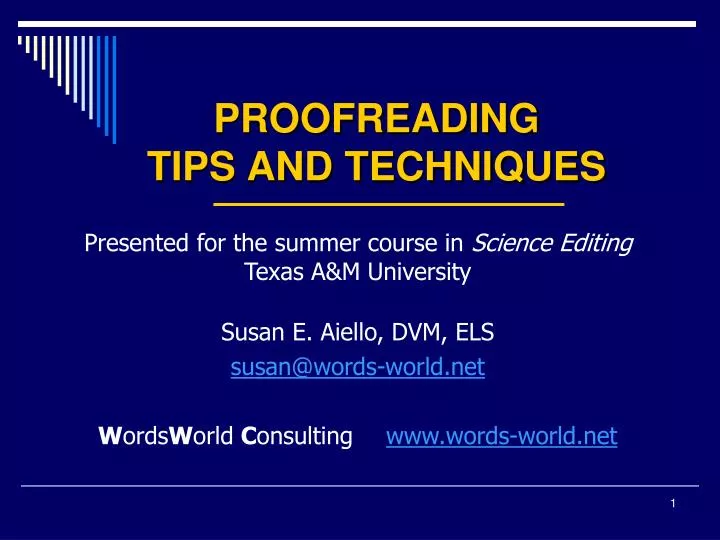

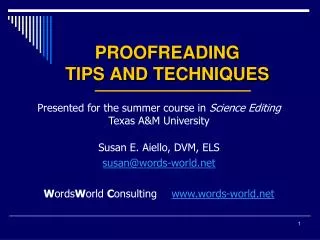

1. PROOFREADING TIPS AND TECHNIQUES Presented for the summer course in Science EditingTexas A&M University Susan E. Aiello, DVM, ELS susan@words-world.net WordsWorld Consulting www.words-world.net

4. Basic Techniques: Comparison Proofreading • Direct word-by-word comparison of “dead” copy (previous version) with “live” copy (new version) • “Live” copy should reflect any changes made to “dead” copy • Ensure no new errors introduced • Can be done solo or as a team

5. Comparison Proofreading: Solo • Most common method • Slowest • Cheapest • Best for short copy or special type (eg, mathematical formulas)

6. Comparison Proofreading: Team • Fastest • Most expensive • Most accurate for tables, long lists of numbers, dead copy that is hard to read • Must read everything – words, punctuation, type description (caps, underline, bold, etc), changes in spacing, changes in indentation • Clear enunciation, steady, near-monotone, soft-spoken to lower fatigue • Can use tape to do yourself, but time disadvantage

7. Basic Techniques: Noncomparison Proofreading • No “dead” copy • Most commonly an electronic file • “Dead” copy is available, but only “live” copy is read word for word Note: Proofing on screen vs on hard copy affects both accuracy and speed!

8. Noncomparison Proofreading • Fast • Cheap • Editorial questions may be unanswered • Is document complete? • Are data accurate? • Are proper names spelled correctly? • Lower accuracy • Easy to miss mistakes, eg, “not” guilty

9. Noncomparison Proofreading • For scientific, medical, or legal material, the proofreader should be knowledgeable in the subject matter; if he or she is not, the material should also be reviewed by a subject matter expert. • Many journals leave final responsibility for accurate live copy with author.

10. Basic Techniques: Proofreading versus Copyediting • Proofreaders have a limited level of authority. • Usually, proofreaders are not subject matter experts. • Authors and editors retain the authority to decide on changes.

11. Basic Techniques: Proofreading versus Copyediting • Copyeditors • Correct an author’s work • Prepare document for next stage in publication process • Proofreaders • Correct keyboard operator’s work • Correct compositor’s work

12. Obstacles to Good Proofreading • Failure to differentiate from editing • Electronic age, the Internet, e-mail • Track Changes • Time constraints, ie, the need for speed • Distractions, eg, visual, sound, etc

13. Complicating Factors • Length and technical level of document • Tables • Figures and legends • References • Type size, font, and quality • Electronically regenerated copy • New copy • Rekeyed copy • Deleting or adding copy (resulting in more or less space)

14. Characteristics of Good Proofreaders • Excellent memory and ability to concentrate • Familiar with relevant editorial style • Exercise good judgment whether to mark, query, or ignore • Exercise good judgment and sensitivity as to different stages of copy, deadlines, other requirements • A proofreader who is also the copyeditor should follow these same guidelines (with greater level of authority).

15. Characteristics of Good Proofreaders • Excellent spelling ability • Thorough understanding of grammar, punctuation, and sentence structure • Understanding of typographic detail; technical knowledge about type, page design, printing, etc

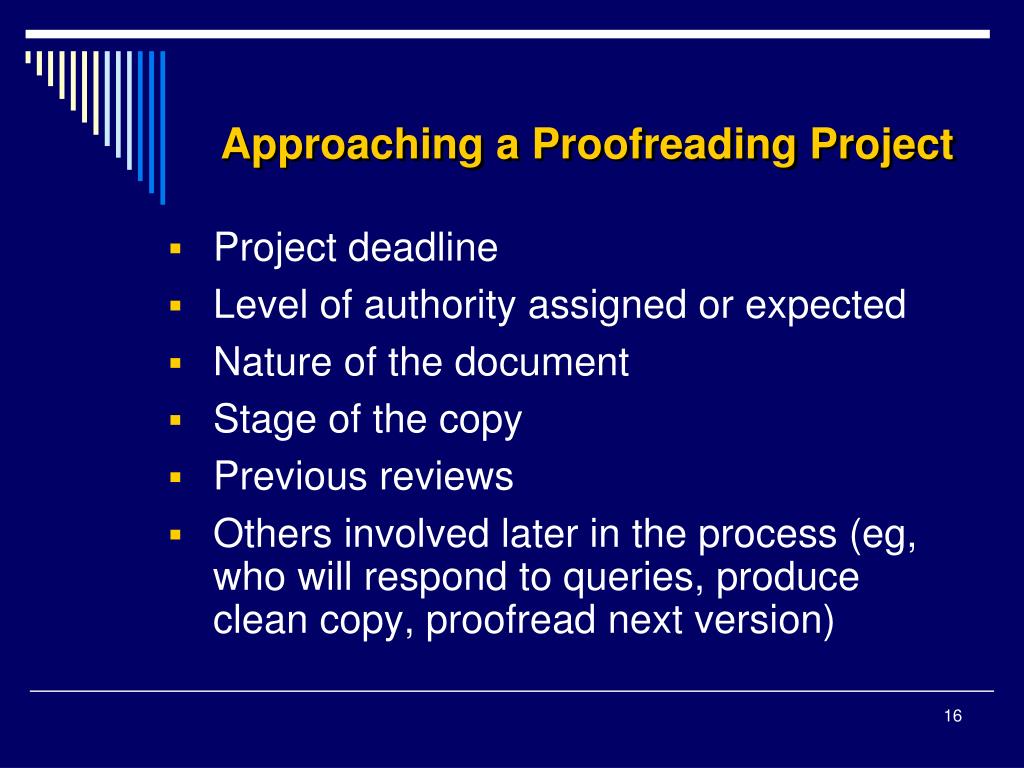

16. Approaching a Proofreading Project • Project deadline • Level of authority assigned or expected • Nature of the document • Stage of the copy • Previous reviews • Others involved later in the process (eg, who will respond to queries, produce clean copy, proofread next version)

17. Proofread for ─ • Deviations from dead copy (if comparison proofread) • Inconsistent editorial style • punctuation • capitalization • Number style • abbreviations • units of measure. • use of italics, bold, etc • references • Sequence errors (alphabetical and numerical)

18. Proofread for ─ • Typos (omissions of letters, transpositions, etc) • Missing or repeated words or lines • Nonstandard grammar or poor exposition (eg, incomplete sentences, obvious omissions or discrepancies) • Incorrect math • Errors in equations and formulas, including symbols • Errors in headings, captions, etc • Errors in references (eg, callout does not correspond) • Errors in tables, graphs, charts (both text and graphics)

19. Proofread for ─ • Type specifications/type style errors • Formatting • misalignment • spacing errors (eg, line, word, or letter spacing; note justification) • line breaks, word division errors • positioning faults (eg, uneven placement of running heads, page numbers, etc)

20. Proofread for ─ • Missing material (pages, tables, illustrations, graphics) • Blanks in text (where items are to be inserted) • Mechanical faults (smudges, uneven ink color, registration, type quality, etc)

21. Proofread a Second Time • Don’t read for sense • Try different methods and find a system • “Read” backward • Read lines from bottom of page up • Read lines from middle to the end, and then from the beginning to the middle

22. Myiasis caused by larval stages of Cochliomyia hominivorax is one of the most important ectoparasitic problems in the New World. It affects domestic and wild animals, including people, in the tropical and subtropical areas of Latin America. It is found from southern Mexico to northern Argentina. Economic losses are difficult to estimate, but different authors have given annual values varying from US $100 to US $330 million (Baumhover, 1966, Horn, 1987). Female flies lay eggs on dry areas around fresh wounds. The eggs hatch quickly and, under proper climatic conditions, the parasite can complete its life cycle in about 21 days (FAO). If the parasite population is high and preventive treatment is not undertaken, most of the castrated, dehorned or newly born calves may suffer myiasis. Untreated, the calves may die, or weight gain will be severely depressed. In late spring/summer, flies can be so numerous that some common practices, such as castration and dehorning, are delayed until colder temperatures reduce the fly population.

23. Myiasis caused by larval stages of Cochliomyia hominivorax is one of the most important ectoparasitic problems in the New World. It affects domestic and wild animals, including people, in the tropical and subtropical areas of Latin America. It is found from southern Mexico to northern Argentina. Economic losses are difficult to estimate, but different authors have given annual values varying from US $100 to US $330 million (Baumhover, 1966, Horn, 1987). Female flies lay eggs on dry areas around fresh wounds. The eggs hatch quickly and, under proper climatic conditions, the parasite can complete its life cycle in about 21 days (FAO). If the parasite population is high and preventive treatment is not undertaken, most of the castrated, dehorned or newly born calves may suffer myiasis. Untreated, the calves may die, or weight gain will be severely depressed. In late spring/summer, flies can be so numerous that some common practices, such as castration and dehorning, are delayed until colder temperatures reduce the fly population.

24. Standard Proofreaders’ Marks • Universally understood • Used to mark errors in text and format, ie, moving type and space • Must be legible • Use different color ink than text on page • No pencil! • No red ink!

25. Standard Proofreaders’ Marks • Mark errors twice • in the text to indicate the location of the correction • in the margin to show the correction itself • If multiple errors, mark from left to right, separating marks by slashes • Use both margins

26. Standard Proofreaders’ Marks • Italics vs underline • Circle all instructions and explanations to indicate that the instruction is not to be typeset • Cross out with a single line so that the deletion can be seen and read

27. Standard Proofreaders’ Marks He had cute appendicitis.

28. Standard Proofreaders’ Marks He had a cute appendicitis. He hada cute appendicitis.

29. Standard Proofreaders’ Marks The epiploic foramen is a natural opening bounded by the caudate lobe of the liver, the portal vein, and the interior vena cava. Linus Pauling lived to be 93 years odd. Einstein’s principal of equivalence states that it is impossible to distinguish between an inertial force and a gravitational one.

30. Standard Proofreaders’ Marks Gingival growths are usually relatively insensitive and have the density of connective fibrous tissue. Its’ associated with diffuse inflammatory infiltrates in the lungs and a pronounced peripheral eosinophilia. What is it? Its pulmonary infiltration with eosinophilia (PIE syndrome.)

31. Standard Proofreaders’ Marks Proteolytic enzymes from the stomach and pancreas degrade protein into short-chain oligopeptides, dipeptides, and proteins amino acids.

32. Standard Proofreaders’ Marks Proteolytic enzymes from the stomach and pancreas degrade protein into short-chain oligopeptides, dipeptides, and proteins amino acids. stet

33. Standard Proofreaders’ Marks Proteolytic enzymes from the stomach and pancreas degrade protein into short-chain oligopeptides, dipeptides, and proteins amino acids. stet

34. Queries • Misspellings (if unsure or cannot verify) • Incorrect arithmetic (Note: If column of numbers does not add up, must determine which number[s] is incorrect.) • Blatantly bad grammar – not style (only if it would embarrass author or editor) • Illogical statements (eg, 33-week vacation) • Inconsistent editorial style, including punctuation

35. Queries • Write in margin on live copy • Post-it™ notes – can fall off, suggest record page number on note • Query list – ask author whether acceptable; list should be typed • Don’t edit or rewrite!

36. Queries • Specify location of problem • Indicate nature of problem • If necessary, explain why it is a problem. Example: “Compare to pg 7, line 17. Different acronym used. Should it be the same?” • “Is this OK?” is not a good query. • “?” is even worse.

37. Proofreading Tables • Check everything checked in regular text • Try different methods and find a system • Proof column heads • Proof stub • Proof columns • Proof rows • Spacing and alignment • align columns according to content • left, center, decimal points, en-dashes

38. Proofreading Tables • Use of rules and straddle rules • Arithmetic • verify calculations • transposition • slide errors, ie, numerals mistakenly added or omitted • Consistency in editorial style • Footnotes – callouts in tables go left to right and top to bottom

39. Frequent Errors • Omissions and repetitions, esp at beginning and end ofof lines • Headlines, titles, headings, etc • Not using a spell checker • Depending on a spell checker • errors that spell other words (eg, food/foot, its/it’s) • words that sound alike, but are spelled differently and have a different meaning (eg, there, their) • two-letter words (eg, in, it, if, is)

40. Proofreading Method Proof separate items separately and use a checklist! • Much easier and much faster to proof for a specific item on all pages than it is to proof for all items on each page. • Combining tasks leads to errors. • Make a list of each item and check off as you complete.

41. Proofreading Method • Headings and subheadings • Running heads • Table of contents – sequence, accurate page numbers • Text • Tables, figures, references – sequence and format consistency • Graphic elements • Page numbers (folios) – sequence, accuracy in references • Consistency of styles (specification [spec] sheet)

42. Proofreading Other Typeset Elements • Line breaks: hyphenation • Page breaks: watch for subheads at bottom of page • Orphans: single word on a new line • Widows: single line on a new page (or column)

43. Proofreading Other Typeset Elements Long ladders (stacks of line-end hyphens) and knotholes (identi-cal characters stacked up on consecutive lines) are never desir-able. How many stacked hyphens are acceptable varies among pub-lishers and type shops and depends on the width of the line mea-sure. Standards for blocks vary with the number of characters and lines involved. They also vary with the typographic factors such as line width and line spacing and are often a matter of judgment rather than of rule.

44. Proofreading Other Typeset Elements • Rivers: vertical white spaces that meander vertically down the page • Lakes: “pools” of white space interspersed throughout text

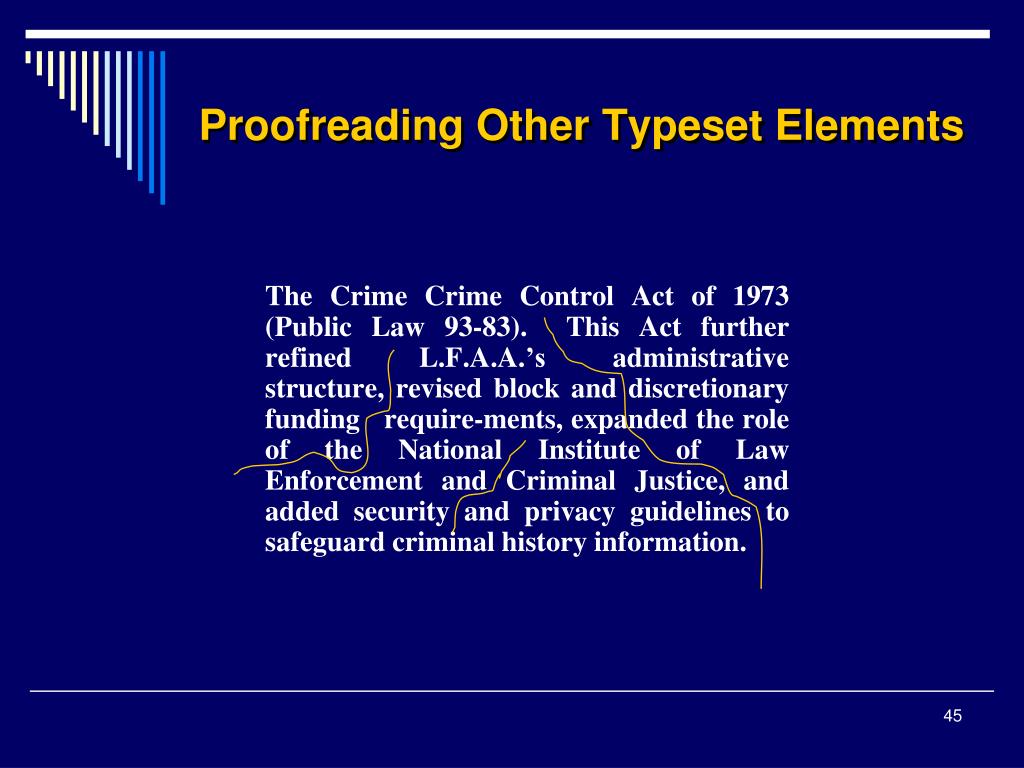

45. Proofreading Other Typeset Elements The Crime Crime Control Act of 1973 (Public Law 93-83). This Act further refined L.F.A.A.’s administrative structure, revised block and discretionary funding require-ments, expanded the role of the National Institute of Law Enforcement and Criminal Justice, and added security and privacy guidelines to safeguard criminal history information.

46. Proofreading Other Typeset Elements The commission, an independent agency of 12 members of Congress and 3 executive branch officials who evaluate and encourage compliance with the 1975 agreement signed by 35 nations, held hearings Wednesday and yesterday on the human rights guarantees of individual “freedom to practice and profess… religion or belief” and “of equality before the law” for minorities.

47. Proofreading Other Typeset Elements Letterspacing • letters within words generally separated from each other by the same amount of space • watch especially for large display type in all caps (headlines, titles, etc) • certain combinations of letters need kerning (eg, AV)

48. Proofreading Other Typeset Elements Letterspacing

49. Proofreading Other Typeset Elements Letterspacing

50. Proofreading Other Typeset Elements Tracking: space between words • normal word spacing is about one-third of an em • all word spacing in a single line should be the same • watch especially when text is justified Leading: space between lines of type • measured in points
