Non-Arc Welding Processes

Introduction. Non-Arc Welding Processes. Resistive heating, chemical reactions, focused light and electrons, sound waves, and friction can also be used to join materials Resistance welding Oxy-Fuel Welding Friction welding (&Solid State) Laser and electron beam welding

dom
Download Presentation

Non-Arc Welding Processes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Introduction Non-Arc Welding Processes • Resistive heating, chemical reactions, focused light and electrons, sound waves, and friction can also be used to join materials • Resistance welding • Oxy-Fuel Welding • Friction welding (&Solid State) • Laser and electron beam welding • Brazing and soldering • Plastics joining • Adhesive bonding

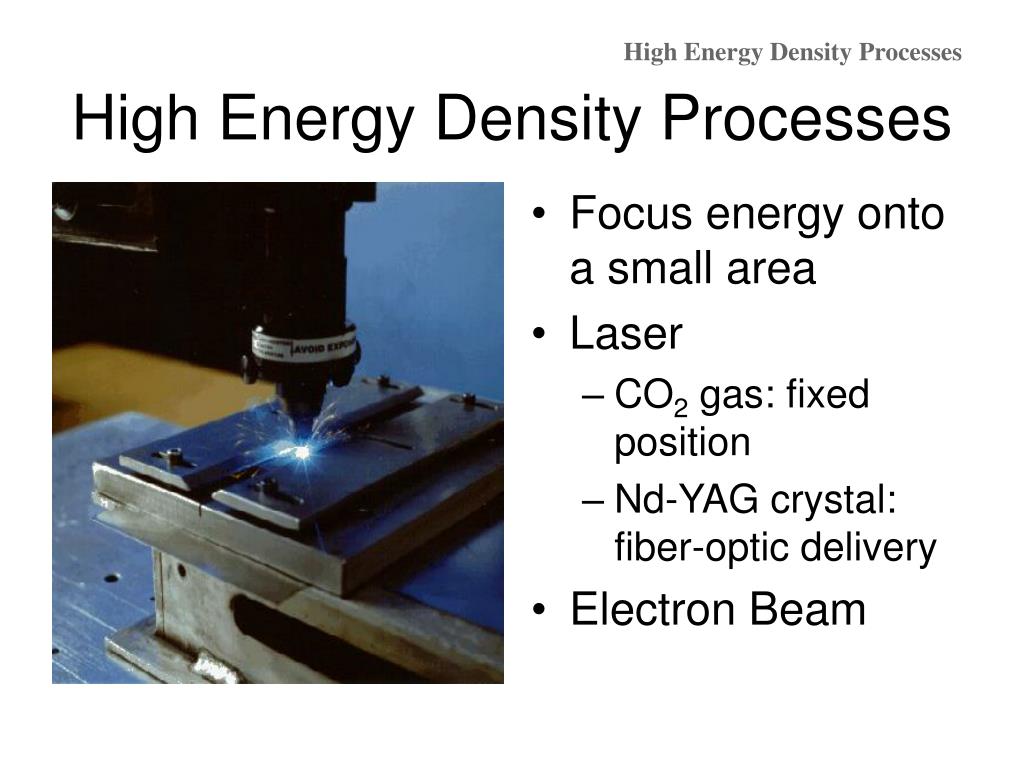

  2. High Energy Density Processes High Energy Density Processes • Focus energy onto a small area • Laser • CO2 gas: fixed position • Nd-YAG crystal: fiber-optic delivery • Electron Beam

  3. High Energy Density Processes • These processes focus the energy onto a small area Examples • Laser - 0.004 inch weld on 1-inch thick stainless steel sheet • Electron Beam - 0.030-inch weld width on 0.5 inch thick steel plate 0.1.1.2.1.T2.95.12

  4. Laser Beam Welding (LBW) Laser 0.1.1.2.1.T3.95.12

  5. shielding gas nozzle (optional) Laser beam Plasma plume Molten material workpiece motion High Energy Density Processes Laser Beam Welding (LBW) Plasma keyhole Keyhole welding

  6. High Energy Density Processes Focusing the Beam Heat Surface Welding Cutting treatment modification

  7. Advantages • Single pass weld penetration up to 3/4” in steel • High Travel speed • Materials need not be conductive • No filler metal required • Low heat input produces low distortion • Does not require a vacuum 0.1.1.2.1.T4.95.12

  8. High Energy Density Processes Limitations • High initial start-up costs • Part fit-up and joint tracking are critical • Not portable • Metals such as copper and aluminum have high reflectivity and are difficult to laser weld • High cooling rates may lead to materials problems

  9. Electron Beam Welding (EBW) EB Applications 0.1.1.2.1.T6.95.12

  10. High Energy Density Processes Electron Beam Welding (EBW) • Deepest single pass weld penetration of the fusion processes • 14-inch-thick steel • Fast travel speeds • Low heat input welds produce low distortion Advantages

  11. High Energy Density Processes Limitations • High initial start-up cost • Not portable • Part size limited by size of vacuum chamber • Produces x-rays • Part fit-up is critical • High cooling rates may lead to materials problems
