What Is Ideal for Concrete Mixing and Pumping

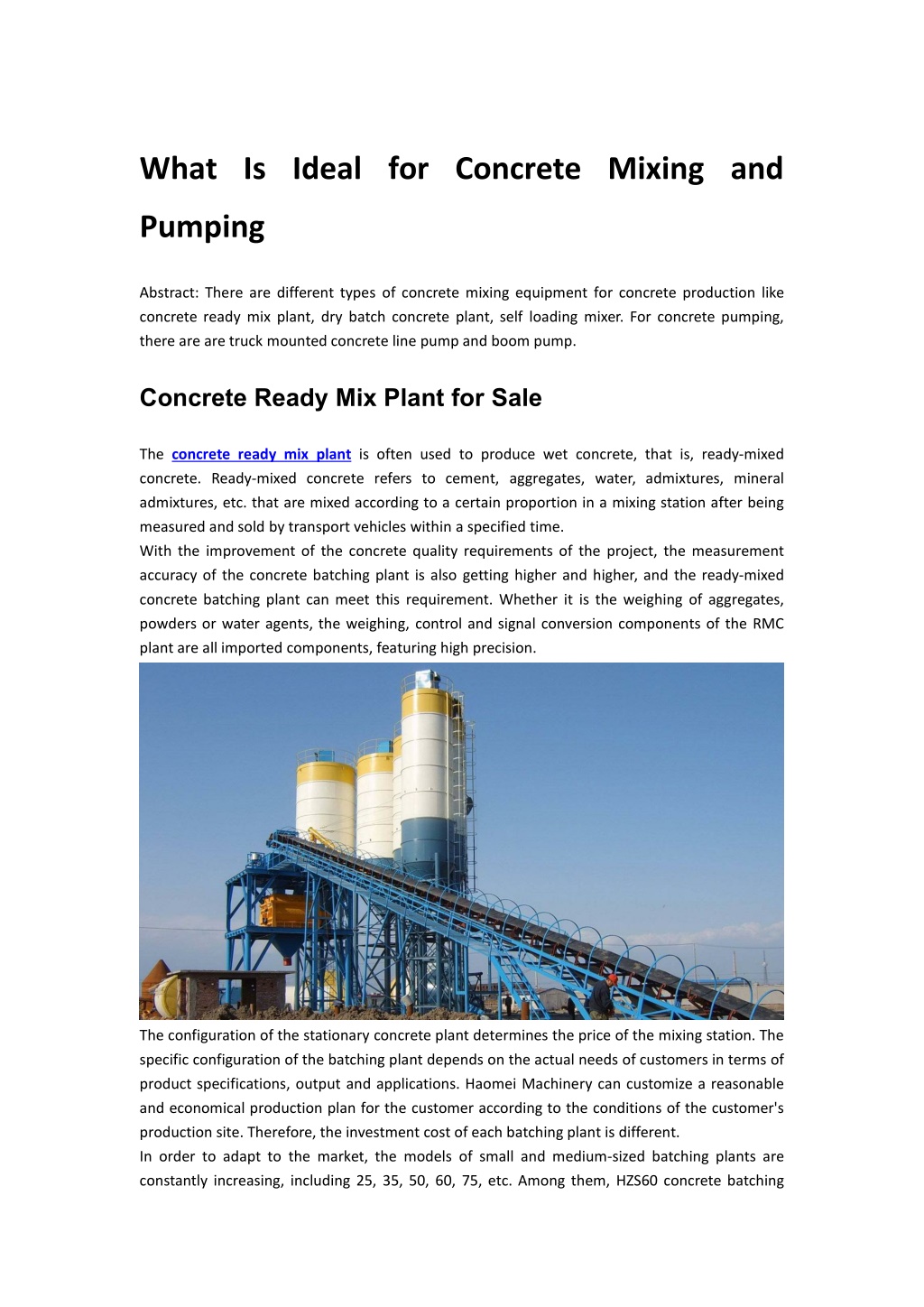

1. What Is Ideal for Concrete Mixing and Pumping Abstract: There are different types of concrete mixing equipment for concrete production like concrete ready mix plant, dry batch concrete plant, self loading mixer. For concrete pumping, there are are truck mounted concrete line pump and boom pump. Concrete Ready Mix Plant for Sale The concrete ready mix plant is often used to produce wet concrete, that is, ready-mixed concrete. Ready-mixed concrete refers to cement, aggregates, water, admixtures, mineral admixtures, etc. that are mixed according to a certain proportion in a mixing station after being measured and sold by transport vehicles within a specified time. With the improvement of the concrete quality requirements of the project, the measurement accuracy of the concrete batching plant is also getting higher and higher, and the ready-mixed concrete batching plant can meet this requirement. Whether it is the weighing of aggregates, powders or water agents, the weighing, control and signal conversion components of the RMC plant are all imported components, featuring high precision. The configuration of the stationary concrete plant determines the price of the mixing station. The specific configuration of the batching plant depends on the actual needs of customers in terms of product specifications, output and applications. Haomei Machinery can customize a reasonable and economical production plan for the customer according to the conditions of the customer's production site. Therefore, the investment cost of each batching plant is different. In order to adapt to the market, the models of small and medium-sized batching plants are constantly increasing, including 25, 35, 50, 60, 75, etc. Among them, HZS60 concrete batching

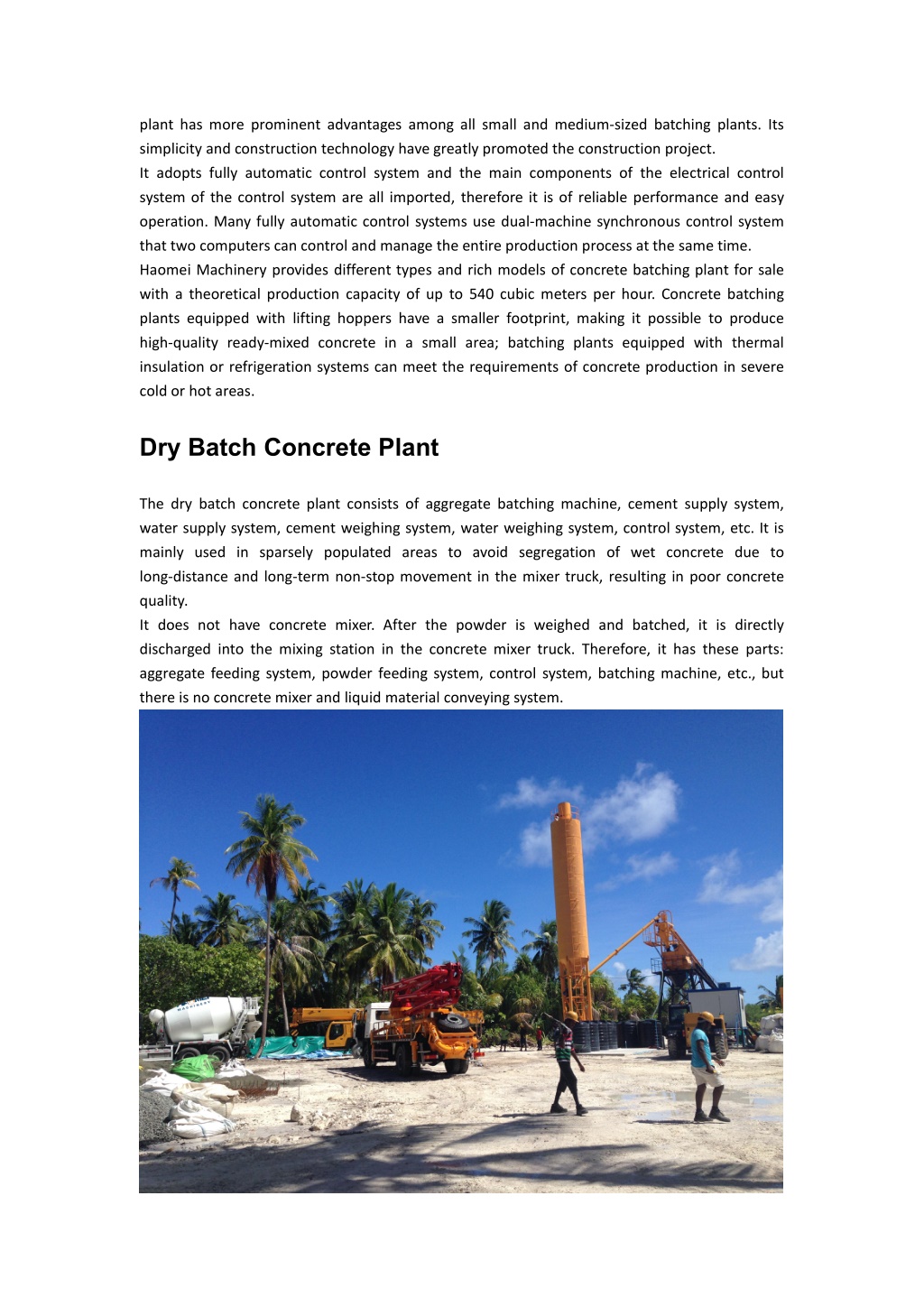

2. plant has more prominent advantages among all small and medium-sized batching plants. Its simplicity and construction technology have greatly promoted the construction project. It adopts fully automatic control system and the main components of the electrical control system of the control system are all imported, therefore it is of reliable performance and easy operation. Many fully automatic control systems use dual-machine synchronous control system that two computers can control and manage the entire production process at the same time. Haomei Machinery provides different types and rich models of concrete batching plant for sale with a theoretical production capacity of up to 540 cubic meters per hour. Concrete batching plants equipped with lifting hoppers have a smaller footprint, making it possible to produce high-quality ready-mixed concrete in a small area; batching plants equipped with thermal insulation or refrigeration systems can meet the requirements of concrete production in severe cold or hot areas. Dry Batch Concrete Plant The dry batch concrete plant consists of aggregate batching machine, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc. It is mainly used in sparsely populated areas to avoid segregation of wet concrete due to long-distance and long-term non-stop movement in the mixer truck, resulting in poor concrete quality. It does not have concrete mixer. After the powder is weighed and batched, it is directly discharged into the mixing station in the concrete mixer truck. Therefore, it has these parts: aggregate feeding system, powder feeding system, control system, batching machine, etc., but there is no concrete mixer and liquid material conveying system.

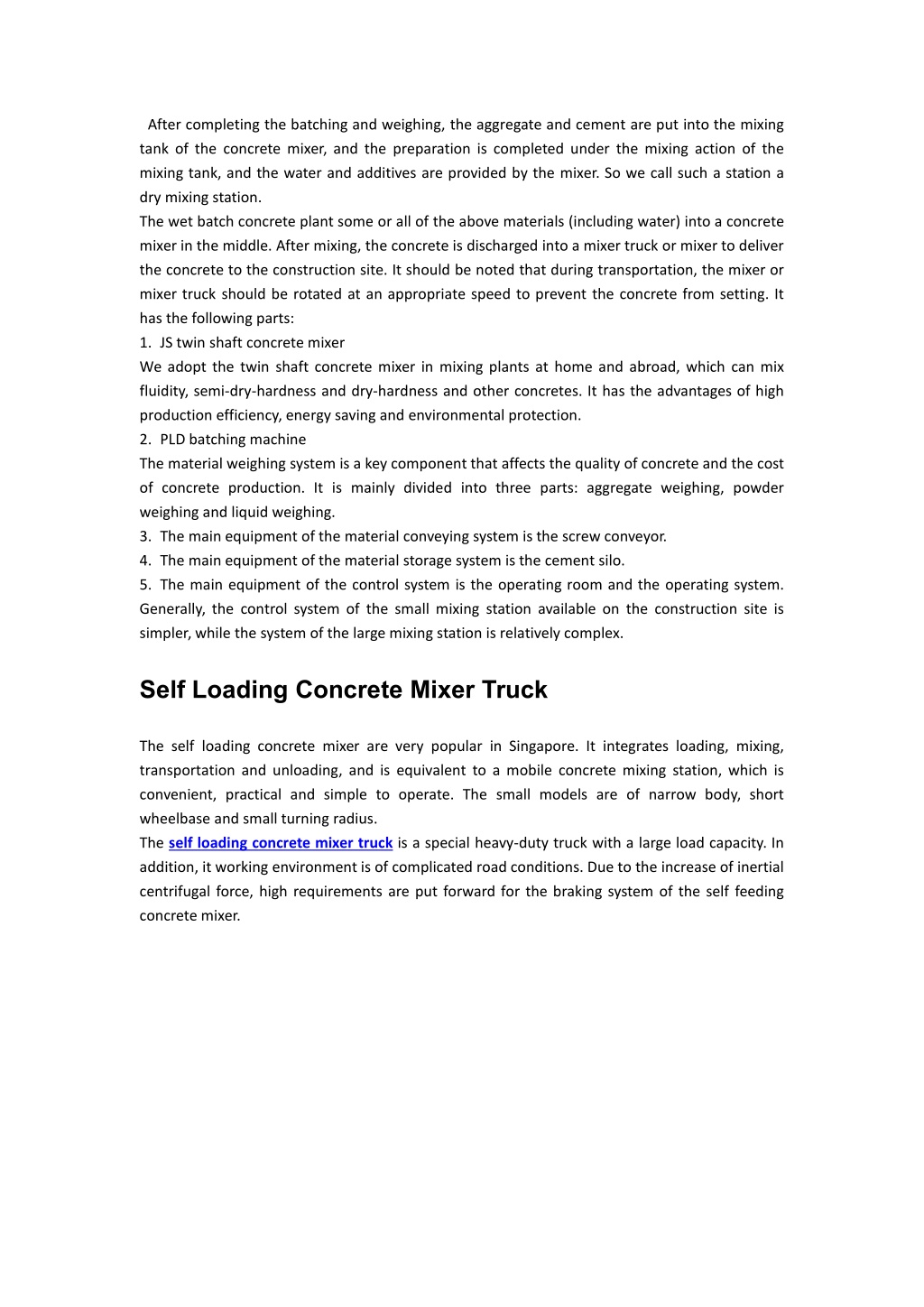

3. After completing the batching and weighing, the aggregate and cement are put into the mixing tank of the concrete mixer, and the preparation is completed under the mixing action of the mixing tank, and the water and additives are provided by the mixer. So we call such a station a dry mixing station. The wet batch concrete plant some or all of the above materials (including water) into a concrete mixer in the middle. After mixing, the concrete is discharged into a mixer truck or mixer to deliver the concrete to the construction site. It should be noted that during transportation, the mixer or mixer truck should be rotated at an appropriate speed to prevent the concrete from setting. It has the following parts: 1. JS twin shaft concrete mixer We adopt the twin shaft concrete mixer in mixing plants at home and abroad, which can mix fluidity, semi-dry-hardness and dry-hardness and other concretes. It has the advantages of high production efficiency, energy saving and environmental protection. 2. PLD batching machine The material weighing system is a key component that affects the quality of concrete and the cost of concrete production. It is mainly divided into three parts: aggregate weighing, powder weighing and liquid weighing. 3. The main equipment of the material conveying system is the screw conveyor. 4. The main equipment of the material storage system is the cement silo. 5. The main equipment of the control system is the operating room and the operating system. Generally, the control system of the small mixing station available on the construction site is simpler, while the system of the large mixing station is relatively complex. Self Loading Concrete Mixer Truck The self loading concrete mixer are very popular in Singapore. It integrates loading, mixing, transportation and unloading, and is equivalent to a mobile concrete mixing station, which is convenient, practical and simple to operate. The small models are of narrow body, short wheelbase and small turning radius. The self loading concrete mixer truck is a special heavy-duty truck with a large load capacity. In addition, it working environment is of complicated road conditions. Due to the increase of inertial centrifugal force, high requirements are put forward for the braking system of the self feeding concrete mixer.

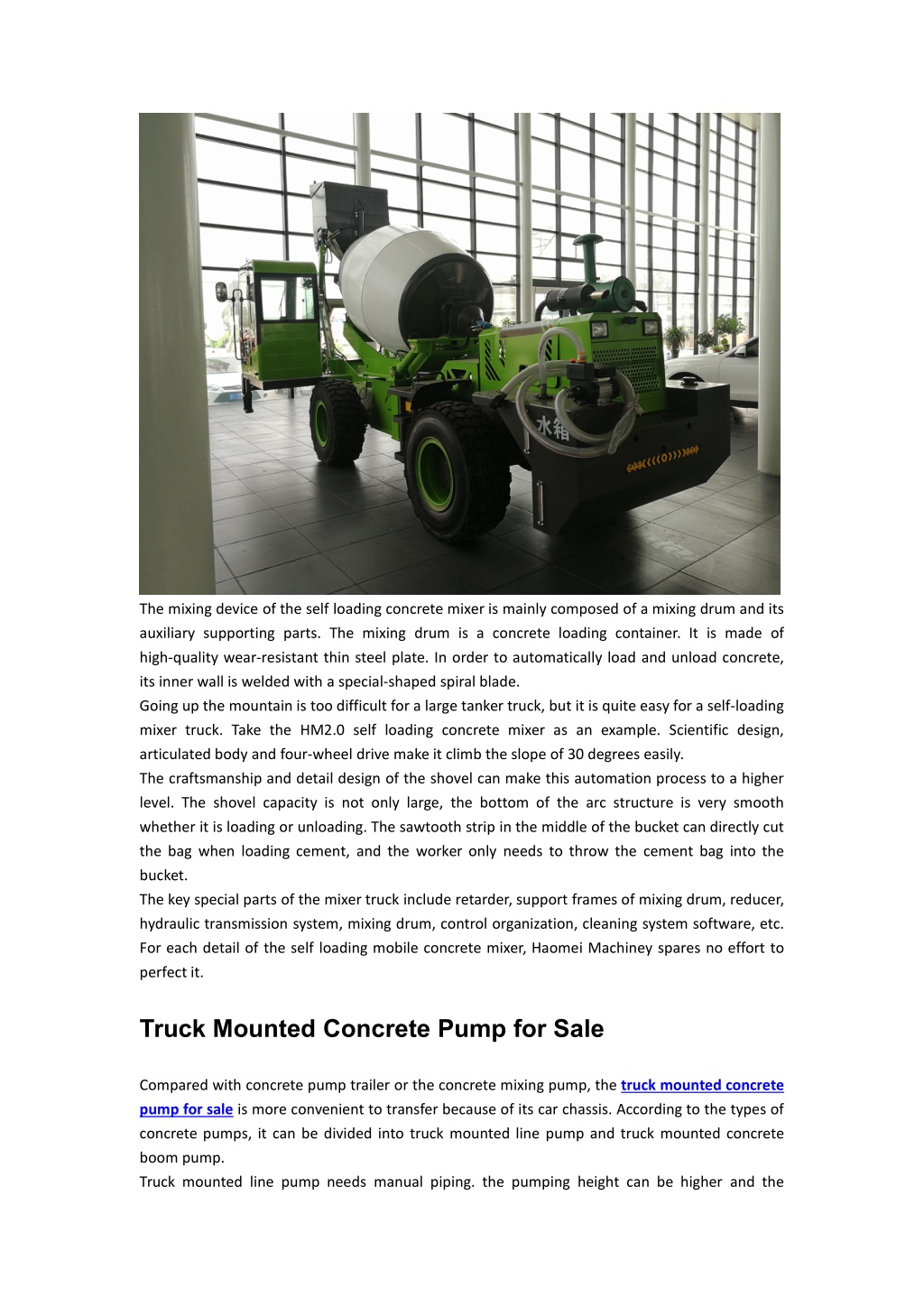

4. The mixing device of the self loading concrete mixer is mainly composed of a mixing drum and its auxiliary supporting parts. The mixing drum is a concrete loading container. It is made of high-quality wear-resistant thin steel plate. In order to automatically load and unload concrete, its inner wall is welded with a special-shaped spiral blade. Going up the mountain is too difficult for a large tanker truck, but it is quite easy for a self-loading mixer truck. Take the HM2.0 self loading concrete mixer as an example. Scientific design, articulated body and four-wheel drive make it climb the slope of 30 degrees easily. The craftsmanship and detail design of the shovel can make this automation process to a higher level. The shovel capacity is not only large, the bottom of the arc structure is very smooth whether it is loading or unloading. The sawtooth strip in the middle of the bucket can directly cut the bag when loading cement, and the worker only needs to throw the cement bag into the bucket. The key special parts of the mixer truck include retarder, support frames of mixing drum, reducer, hydraulic transmission system, mixing drum, control organization, cleaning system software, etc. For each detail of the self loading mobile concrete mixer, Haomei Machiney spares no effort to perfect it. Truck Mounted Concrete Pump for Sale Compared with concrete pump trailer or the concrete mixing pump, the truck mounted concrete pump for sale is more convenient to transfer because of its car chassis. According to the types of concrete pumps, it can be divided into truck mounted line pump and truck mounted concrete boom pump. Truck mounted line pump needs manual piping. the pumping height can be higher and the

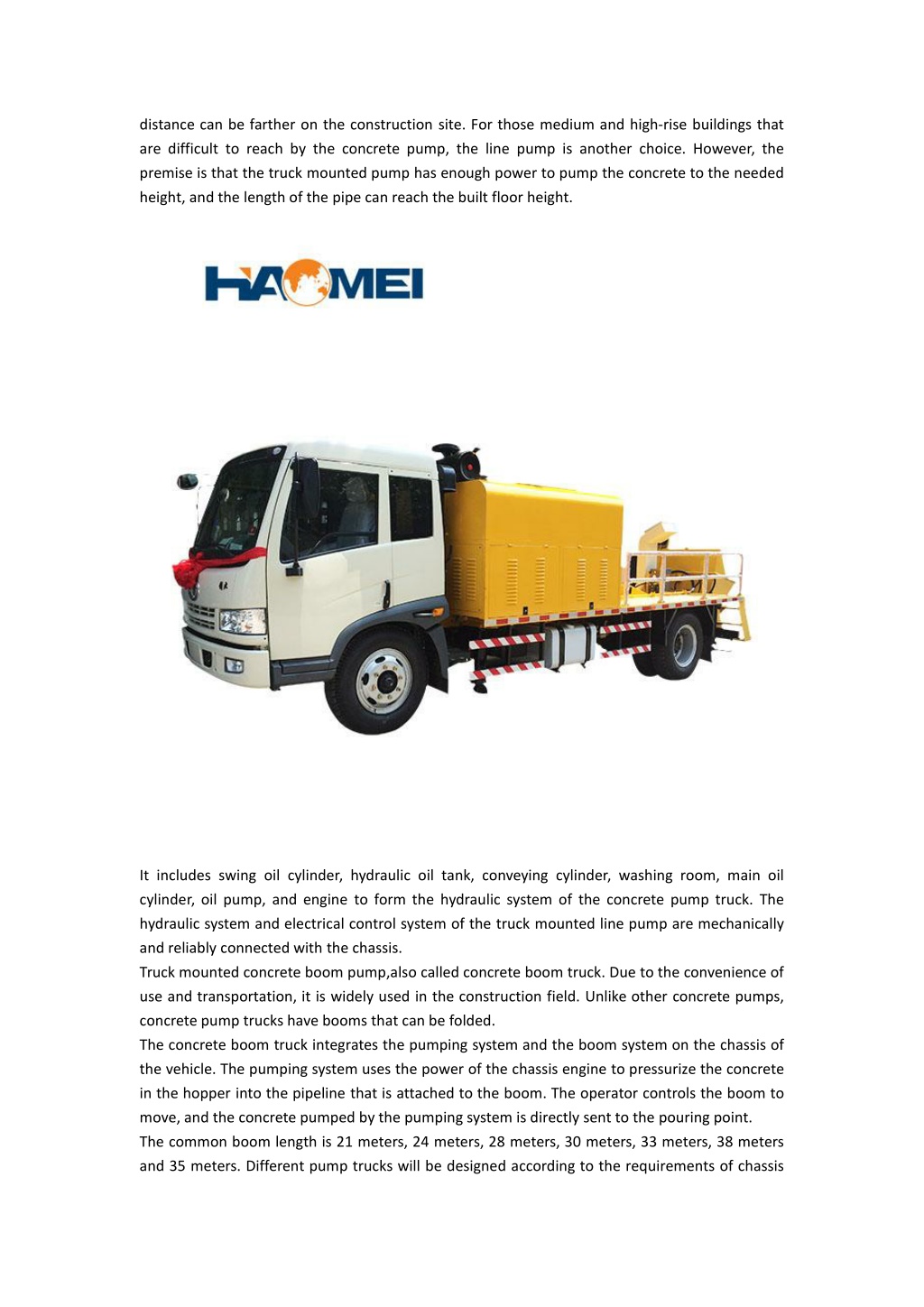

5. distance can be farther on the construction site. For those medium and high-rise buildings that are difficult to reach by the concrete pump, the line pump is another choice. However, the premise is that the truck mounted pump has enough power to pump the concrete to the needed height, and the length of the pipe can reach the built floor height. It includes swing oil cylinder, hydraulic oil tank, conveying cylinder, washing room, main oil cylinder, oil pump, and engine to form the hydraulic system of the concrete pump truck. The hydraulic system and electrical control system of the truck mounted line pump are mechanically and reliably connected with the chassis. Truck mounted concrete boom pump,also called concrete boom truck. Due to the convenience of use and transportation, it is widely used in the construction field. Unlike other concrete pumps, concrete pump trucks have booms that can be folded. The concrete boom truck integrates the pumping system and the boom system on the chassis of the vehicle. The pumping system uses the power of the chassis engine to pressurize the concrete in the hopper into the pipeline that is attached to the boom. The operator controls the boom to move, and the concrete pumped by the pumping system is directly sent to the pouring point. The common boom length is 21 meters, 24 meters, 28 meters, 30 meters, 33 meters, 38 meters and 35 meters. Different pump trucks will be designed according to the requirements of chassis

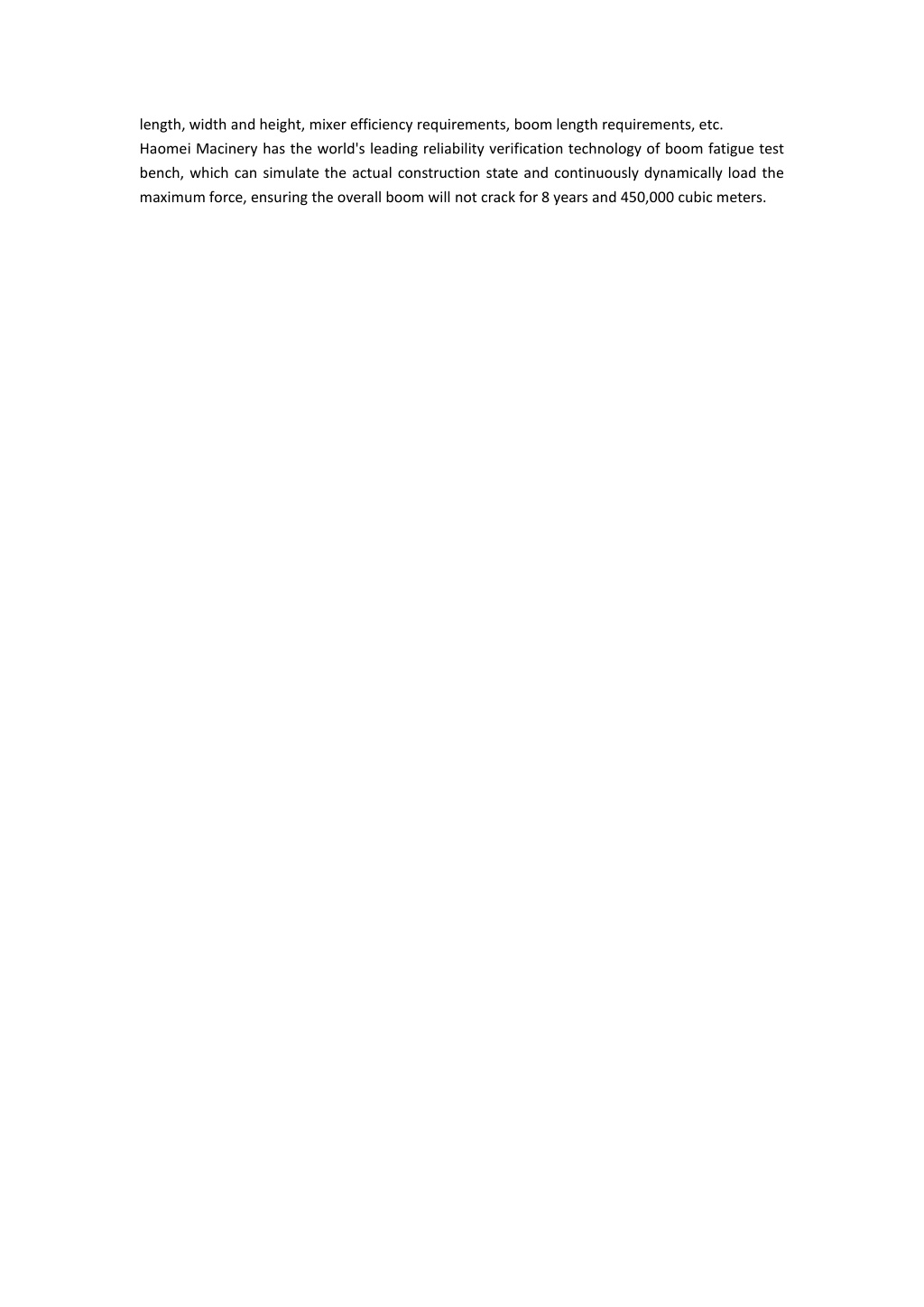

6. length, width and height, mixer efficiency requirements, boom length requirements, etc. Haomei Macinery has the world's leading reliability verification technology of boom fatigue test bench, which can simulate the actual construction state and continuously dynamically load the maximum force, ensuring the overall boom will not crack for 8 years and 450,000 cubic meters.
