The High-end Application of Aluminum Alloy

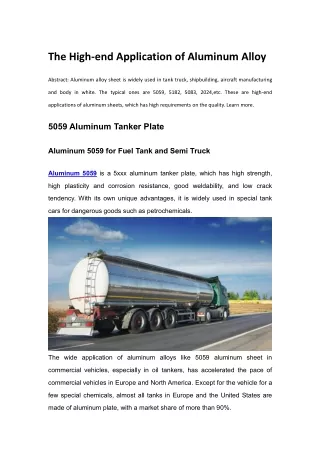

1. The High-end Application of Aluminum Alloy Abstract: Aluminum alloy sheet is widely used in tank truck, shipbuilding, aircraft manufacturing and body in white. The typical ones are 5059, 5182, 5083, 2024,etc. These are high-end applications of aluminum sheets, which has high requirements on the quality. Learn more. 5059 Aluminum Tanker Plate Aluminum 5059 for Fuel Tank and Semi Truck Aluminum 5059 is a 5xxx aluminum tanker plate, which has high strength, high plasticity and corrosion resistance, good weldability, and low crack tendency. With its own unique advantages, it is widely used in special tank cars for dangerous goods such as petrochemicals. The wide application of aluminum alloys like 5059 aluminum sheet in commercial vehicles, especially in oil tankers, has accelerated the pace of commercial vehicles in Europe and North America. Except for the vehicle for a few special chemicals, almost all tanks in Europe and the United States are made of aluminum plate, with a market share of more than 90%.

2. The oil tankers is a common transportation vehicles. In order to prevent the body from rusting, the choice of materials is more important. In order to ensure the normal operation of the tanker body, the chosen material is necessary to be of light weight, low density and strong corrosion resistance as far as possible. 5059 aluminum plate for oil tankers is such a choice. In addition to oil tankers, 5059 aluminum plate is also used to make different types of semi trucks. An aluminum alloy semi-trailer is a trailer whose axle is placed behind the center of gravity of the vehicle (when the vehicle is evenly loaded) and is equipped with a coupling device that can transmit horizontal and vertical forces to the tractor. The use of 5059 aluminum plate can effectively realize the overall lightweight of the vehicle, which improves the carrying performance and improves the transportation efficiency. At the same time, a lighter tank body contributes to improving fuel economy and reducing emissions. What Is Aluminum 5059 Price The 5xxx aluminum alloy has relatively good corrosion resistance and tensile strength, and becomes an ideal choice of raw materials for tankers and ships. Aluminum 5059, 5754, 5083, 5182 are the typical ones. Of them, 5059 aluminum alloy has high strength, high plasticity and corrosion resistance, good weldability, and low crack tendency. With its own unique advantages, it is a main alumium plate for tankers, widely used in special tank truck for dangerous goods such as petrochemicals.

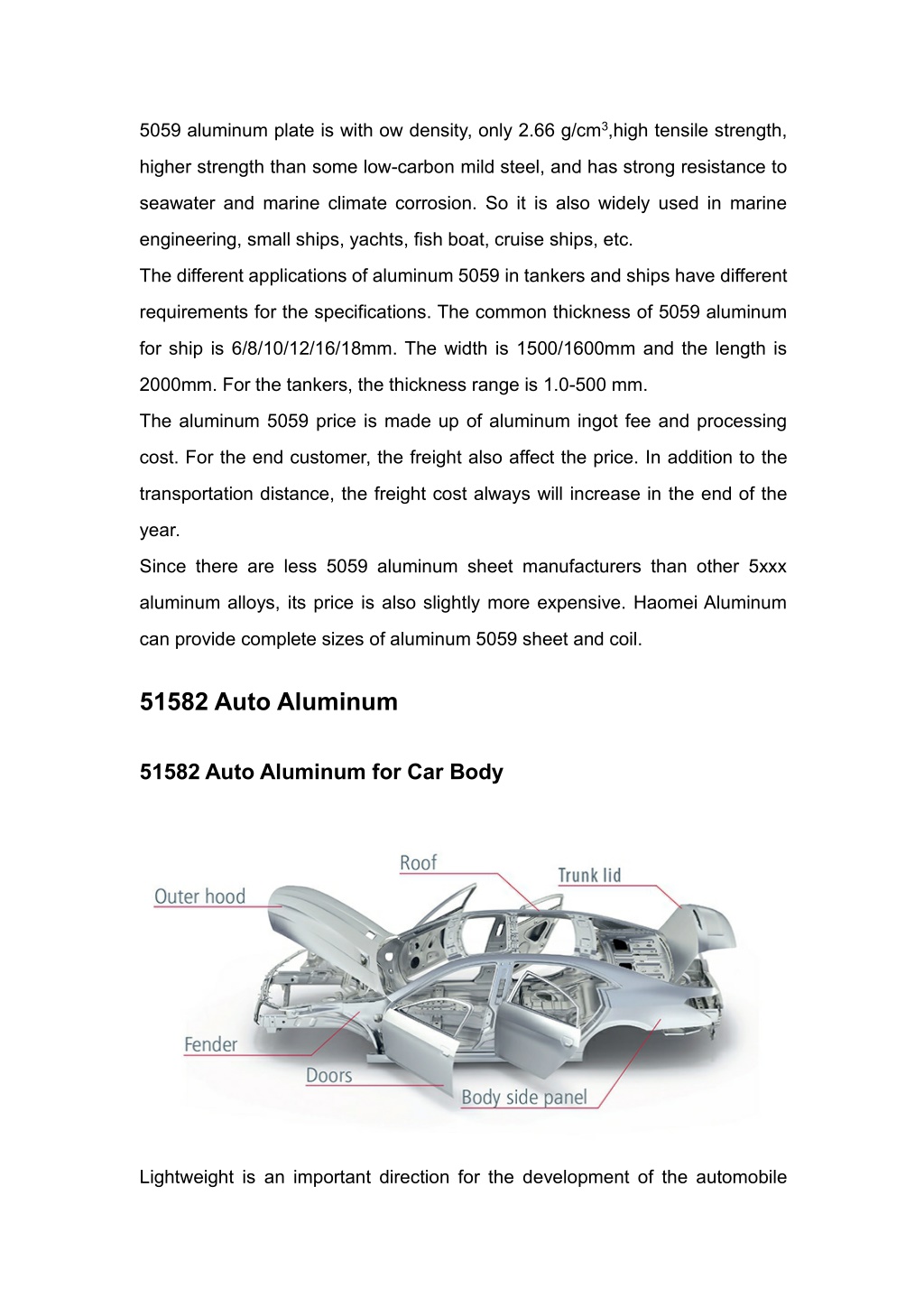

3. 5059 aluminum plate is with ow density, only 2.66 g/cm3,high tensile strength, higher strength than some low-carbon mild steel, and has strong resistance to seawater and marine climate corrosion. So it is also widely used in marine engineering, small ships, yachts, fish boat, cruise ships, etc. The different applications of aluminum 5059 in tankers and ships have different requirements for the specifications. The common thickness of 5059 aluminum for ship is 6/8/10/12/16/18mm. The width is 1500/1600mm and the length is 2000mm. For the tankers, the thickness range is 1.0-500 mm. The aluminum 5059 price is made up of aluminum ingot fee and processing cost. For the end customer, the freight also affect the price. In addition to the transportation distance, the freight cost always will increase in the end of the year. Since there are less 5059 aluminum sheet manufacturers than other 5xxx aluminum alloys, its price is also slightly more expensive. Haomei Aluminum can provide complete sizes of aluminum 5059 sheet and coil. 51582 Auto Aluminum 51582 Auto Aluminum for Car Body Lightweight is an important direction for the development of the automobile

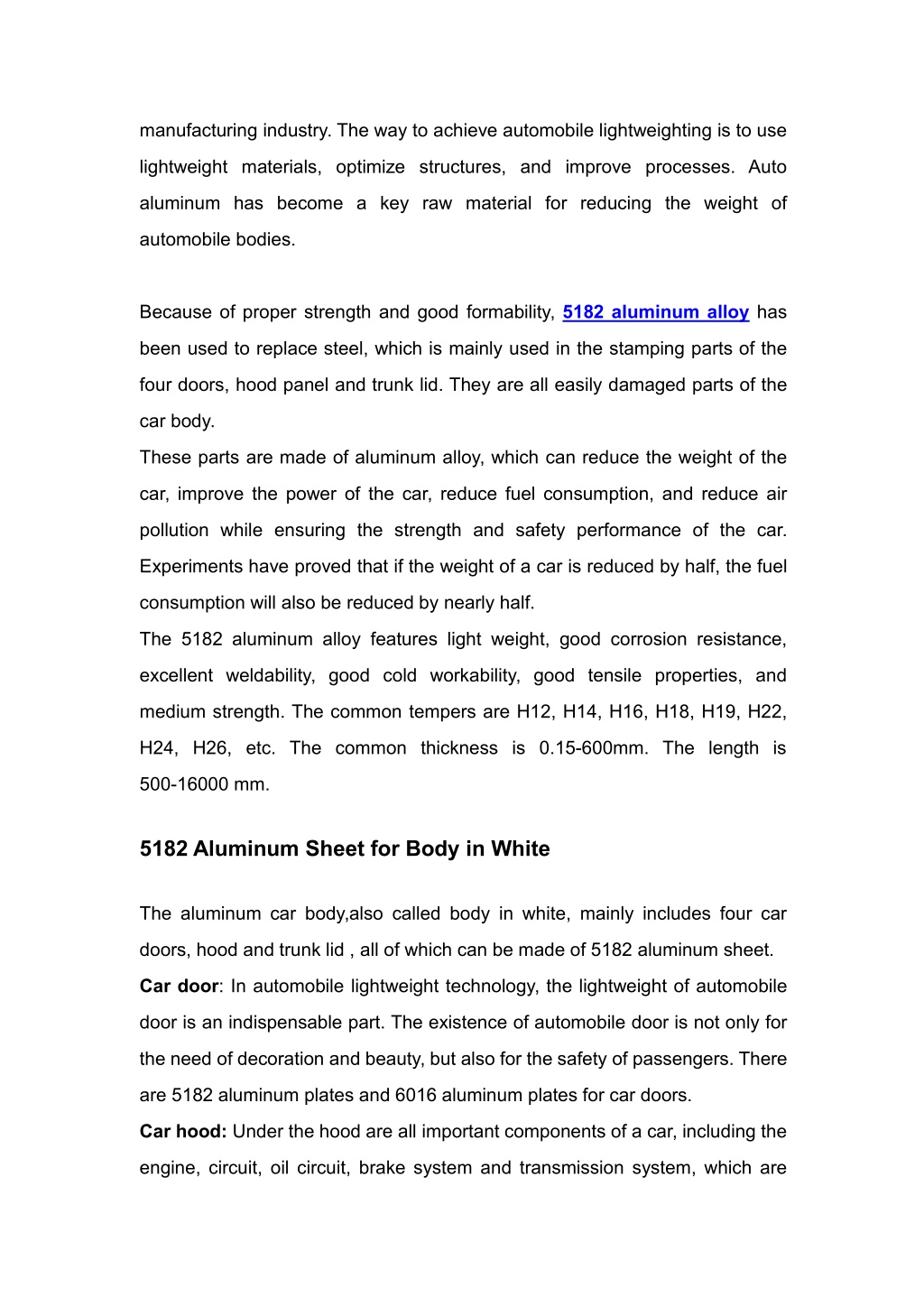

4. manufacturing industry. The way to achieve automobile lightweighting is to use lightweight materials, optimize structures, and improve processes. Auto aluminum has become a key raw material for reducing the weight of automobile bodies. Because of proper strength and good formability, 5182 aluminum alloy has been used to replace steel, which is mainly used in the stamping parts of the four doors, hood panel and trunk lid. They are all easily damaged parts of the car body. These parts are made of aluminum alloy, which can reduce the weight of the car, improve the power of the car, reduce fuel consumption, and reduce air pollution while ensuring the strength and safety performance of the car. Experiments have proved that if the weight of a car is reduced by half, the fuel consumption will also be reduced by nearly half. The 5182 aluminum alloy features light weight, good corrosion resistance, excellent weldability, good cold workability, good tensile properties, and medium strength. The common tempers are H12, H14, H16, H18, H19, H22, H24, H26, etc. The common thickness is 0.15-600mm. The length is 500-16000 mm. 5182 Aluminum Sheet for Body in White The aluminum car body,also called body in white, mainly includes four car doors, hood and trunk lid , all of which can be made of 5182 aluminum sheet. Car door: In automobile lightweight technology, the lightweight of automobile door is an indispensable part. The existence of automobile door is not only for the need of decoration and beauty, but also for the safety of passengers. There are 5182 aluminum plates and 6016 aluminum plates for car doors. Car hood: Under the hood are all important components of a car, including the engine, circuit, oil circuit, brake system and transmission system, which are

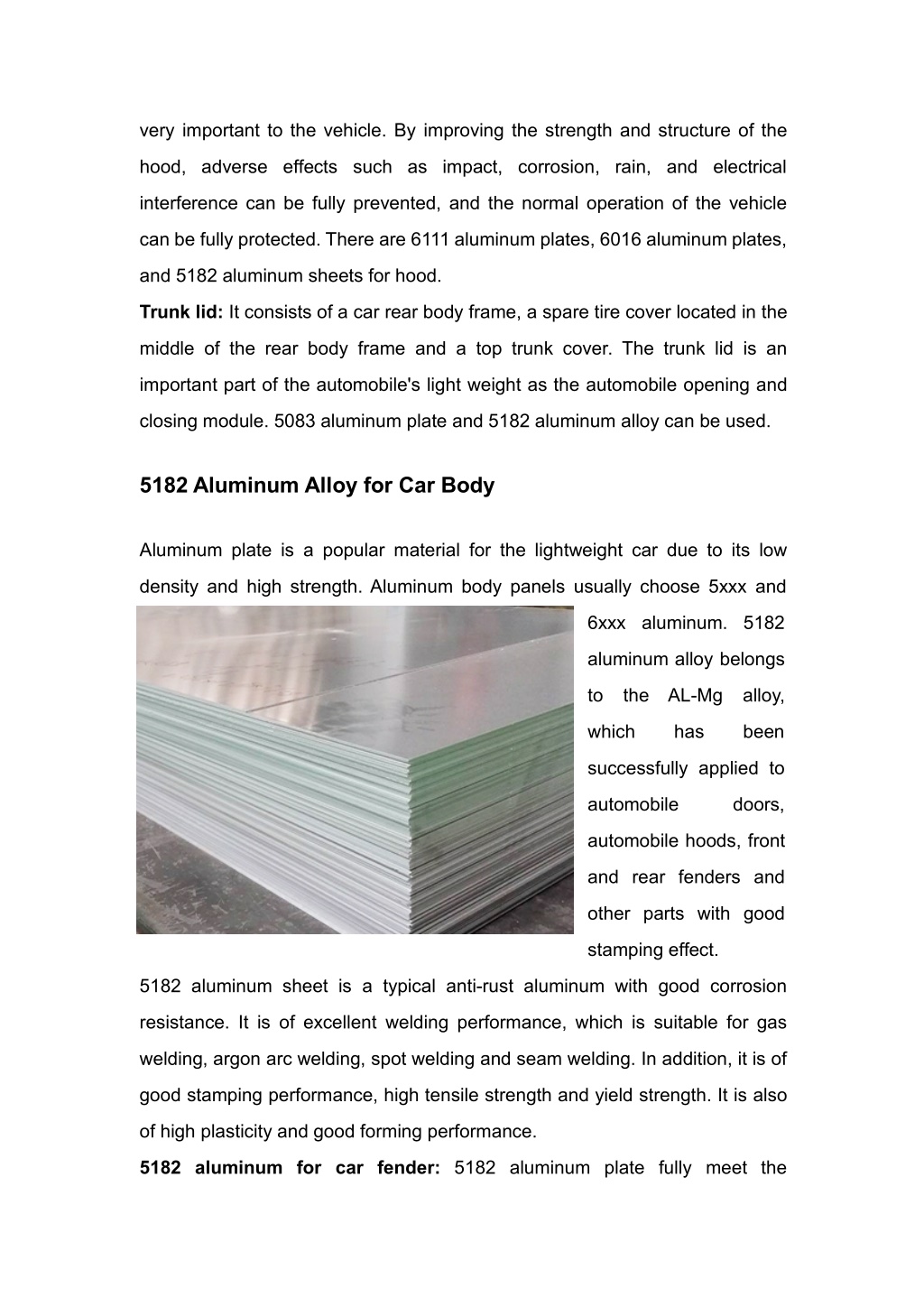

5. very important to the vehicle. By improving the strength and structure of the hood, adverse effects such as impact, corrosion, rain, and electrical interference can be fully prevented, and the normal operation of the vehicle can be fully protected. There are 6111 aluminum plates, 6016 aluminum plates, and 5182 aluminum sheets for hood. Trunk lid: It consists of a car rear body frame, a spare tire cover located in the middle of the rear body frame and a top trunk cover. The trunk lid is an important part of the automobile's light weight as the automobile opening and closing module. 5083 aluminum plate and 5182 aluminum alloy can be used. 5182 Aluminum Alloy for Car Body Aluminum plate is a popular material for the lightweight car due to its low density and high strength. Aluminum body panels usually choose 5xxx and 6xxx aluminum. 5182 aluminum alloy belongs to the AL-Mg alloy, which has been successfully applied to automobile doors, automobile hoods, front and rear fenders and other parts with good stamping effect. 5182 aluminum sheet is a typical anti-rust aluminum with good corrosion resistance. It is of excellent welding performance, which is suitable for gas welding, argon arc welding, spot welding and seam welding. In addition, it is of good stamping performance, high tensile strength and yield strength. It is also of high plasticity and good forming performance. 5182 aluminum for car fender: 5182 aluminum plate fully meet the

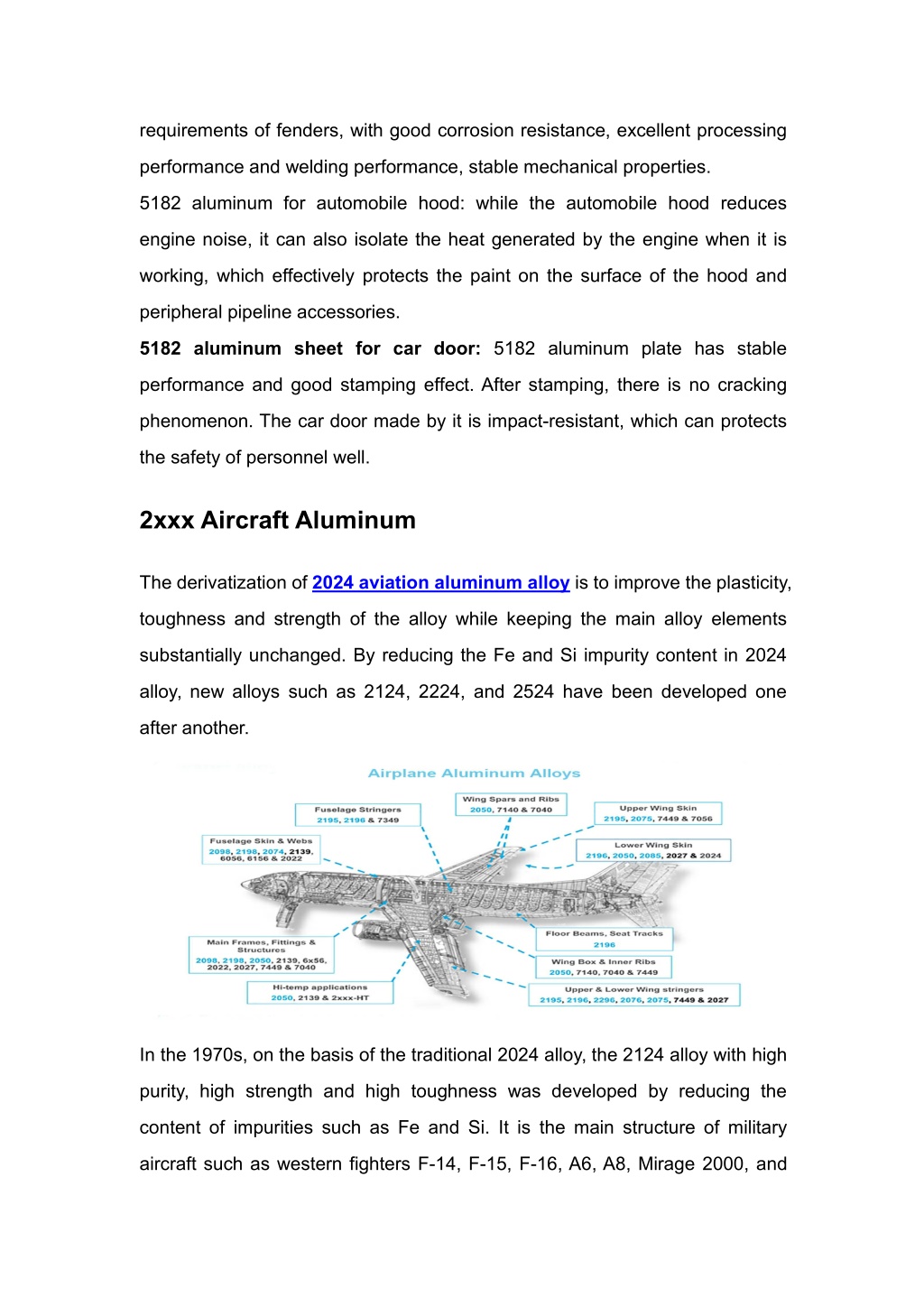

6. requirements of fenders, with good corrosion resistance, excellent processing performance and welding performance, stable mechanical properties. 5182 aluminum for automobile hood: while the automobile hood reduces engine noise, it can also isolate the heat generated by the engine when it is working, which effectively protects the paint on the surface of the hood and peripheral pipeline accessories. 5182 aluminum sheet for car door: 5182 aluminum plate has stable performance and good stamping effect. After stamping, there is no cracking phenomenon. The car door made by it is impact-resistant, which can protects the safety of personnel well. 2xxx Aircraft Aluminum The derivatization of 2024 aviation aluminum alloy is to improve the plasticity, toughness and strength of the alloy while keeping the main alloy elements substantially unchanged. By reducing the Fe and Si impurity content in 2024 alloy, new alloys such as 2124, 2224, and 2524 have been developed one after another. In the 1970s, on the basis of the traditional 2024 alloy, the 2124 alloy with high purity, high strength and high toughness was developed by reducing the content of impurities such as Fe and Si. It is the main structure of military aircraft such as western fighters F-14, F-15, F-16, A6, A8, Mirage 2000, and

7. civil aircraft such as Boeing 737, Boeing 747, and Airbus A320。 2124 alloy is generally used in the temper of T851, which has good high-temperature fracture toughness and good strength durability at temperatures as high as 177 ℃. There are 99 pieces of 2124-T851 thick plate used on F-16, and the weight is about Is 1 ton. At present, the 2124 is still widely used in the main structural parts of the US fourth-generation fighters F-22 and F-35, and has broad application prospects in future military and civilian aircraft. The 2224 alloy, which was successfully developed in 1978, was further purified by adjusting the alloy composition on the basis of the 2024 alloy. 2224 alloy is mainly used to produce extruded parts in the state of T3511, and has been used to manufacture structural parts of Boeing 757 and 767 aircraft. The 2524-T3 alloy was used on the F-35 fighter that was developed in 1995 and first flew in 2000. 2524 aluminum alloy is a high-purity aluminum alloy. Its Fe and Si impurity content is significantly reduced compared to 2024, the Cr content is also significantly reduced, the Cu content range is reduced.

8. Its Mg and Mn content has been adjusted to ensure the strength and other properties equivalent to those of 2024 T3 aluminum while its fatigue strength is increased by 10%, the fracture toughness is increased by 20%, and the fatigue crack growth rate of the material is specified in the AMS standard for the first time, making the alloy a real damage tolerance alloy. Development of 2XXX Aircraft Aluminum Sheets There are at least dozens of wrought aluminum alloys used in aircraft, mainly Al-Cu and Al-Zn alloys. Al-Cu alloy,that is 2xxx aluminum, is of medium-high strength, high fatigue and high corrosion resistance, inluding 2024, 2124, 2224,2324, 2524 and so on. Al-Zn alloy, that is 7xxx aluminum, is of high-strength and high fatigue resistance, including 7050, 7055, 7075 and so on. The corrosion resistance of 7xxx alloy is not as good as that of 2xxx alloy, especially the stress corrosion resistance, so 7xxx aluminum needs a special heat treatment process to improve the corrosion resistance.

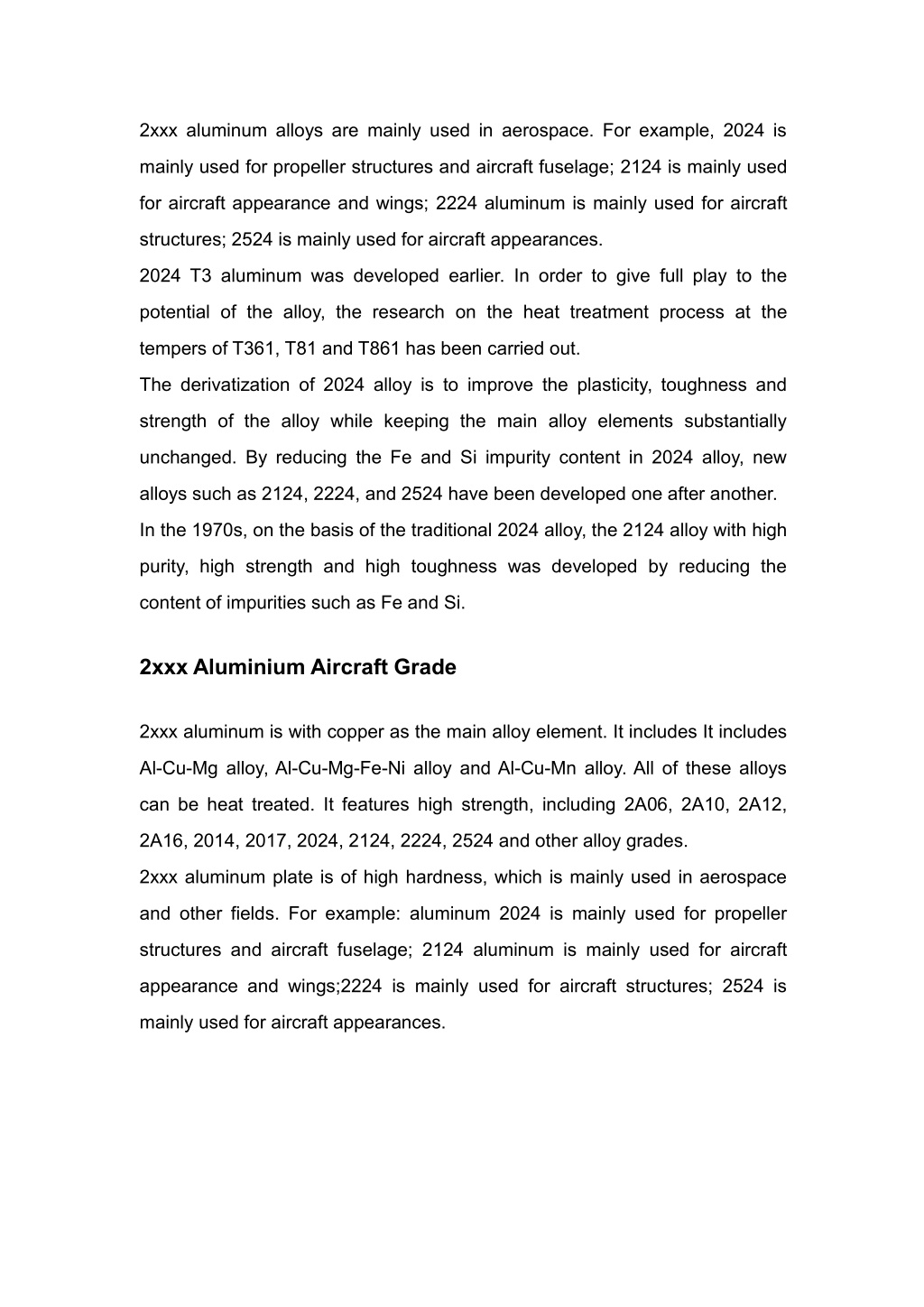

9. 2xxx aluminum alloys are mainly used in aerospace. For example, 2024 is mainly used for propeller structures and aircraft fuselage; 2124 is mainly used for aircraft appearance and wings; 2224 aluminum is mainly used for aircraft structures; 2524 is mainly used for aircraft appearances. 2024 T3 aluminum was developed earlier. In order to give full play to the potential of the alloy, the research on the heat treatment process at the tempers of T361, T81 and T861 has been carried out. The derivatization of 2024 alloy is to improve the plasticity, toughness and strength of the alloy while keeping the main alloy elements substantially unchanged. By reducing the Fe and Si impurity content in 2024 alloy, new alloys such as 2124, 2224, and 2524 have been developed one after another. In the 1970s, on the basis of the traditional 2024 alloy, the 2124 alloy with high purity, high strength and high toughness was developed by reducing the content of impurities such as Fe and Si. 2xxx Aluminium Aircraft Grade 2xxx aluminum is with copper as the main alloy element. It includes It includes Al-Cu-Mg alloy, Al-Cu-Mg-Fe-Ni alloy and Al-Cu-Mn alloy. All of these alloys can be heat treated. It features high strength, including 2A06, 2A10, 2A12, 2A16, 2014, 2017, 2024, 2124, 2224, 2524 and other alloy grades. 2xxx aluminum plate is of high hardness, which is mainly used in aerospace and other fields. For example: aluminum 2024 is mainly used for propeller structures and aircraft fuselage; 2124 aluminum is mainly used for aircraft appearance and wings;2224 is mainly used for aircraft structures; 2524 is mainly used for aircraft appearances.

10. The tensile strength of 2××× aluminum alloy is 400~500 MPa, which is lower than the room temperature strength of 7××× aluminum alloy, but its heat resistance, fatigue resistance, especially fatigue crack growth resistance are all higher than 7xxx aluminum. Among the 2xxx aluminum alloy, the 2024 alloy invented in 1939 is the more commonly used one. 2024 alloy has brought great changes to the structure and performance of aircraft, and also laid the foundation for the development of 2xxx aluminum aircraft grade. The main alloy element of 2024 aluminum alloy are Cu, Mg, Mn, and Fe and Si are the main impurities. 2024 T3 Aluminum is a common temper, which high plasticity, fatigue resistance, fracture toughness and fatigue crack growth resistance, but its corrosion resistance is poor. 2024 aluminum plate mainly used on fuselages, wings, shear ribs and webs, and other structural parts that require high strength. Artificial aging can be used to improve the corrosion resistance, heat resistance and yield strength of 2024 alloy, but the plasticity and fatigue fracture resistance will decrease, and

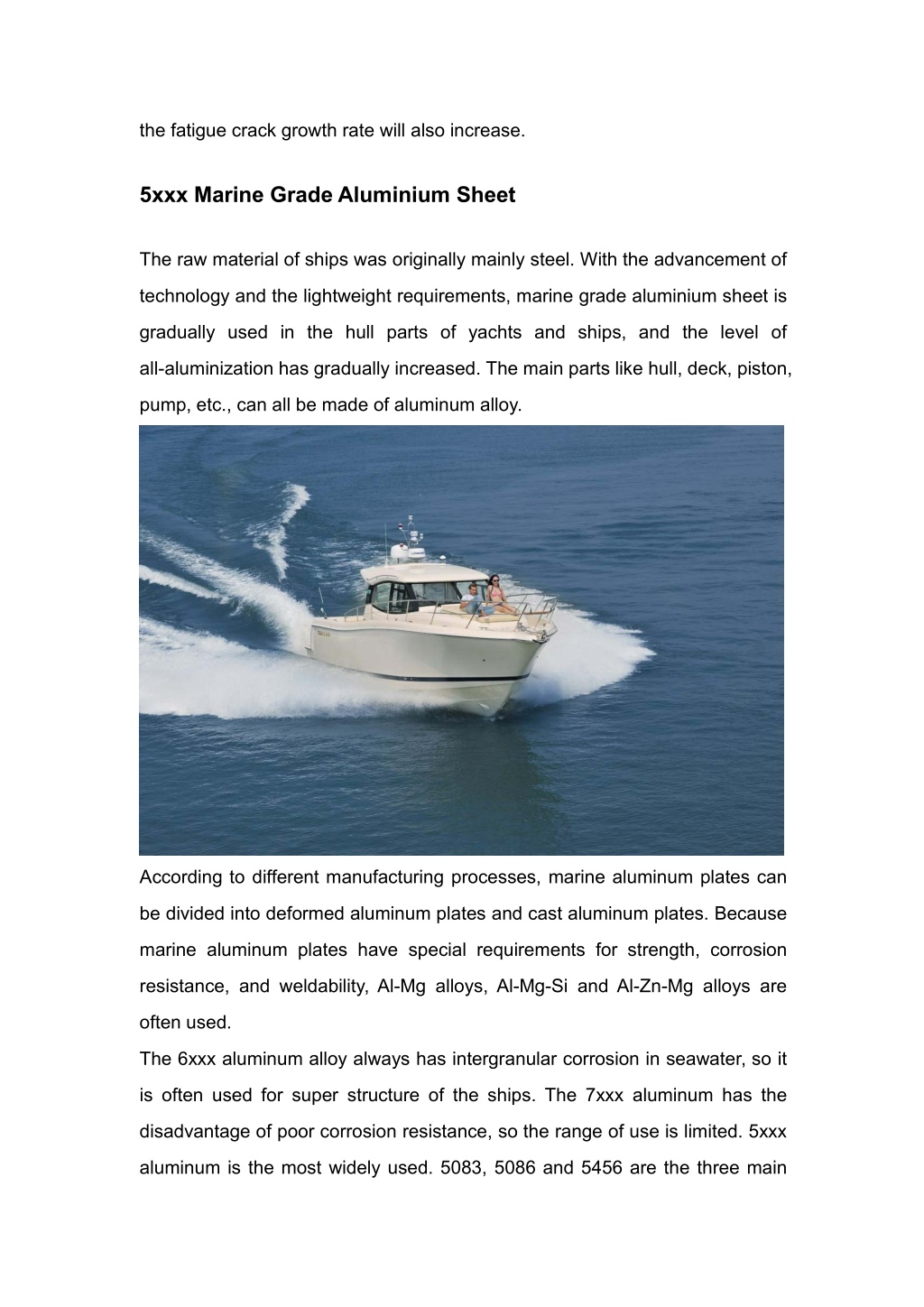

11. the fatigue crack growth rate will also increase. 5xxx Marine Grade Aluminium Sheet The raw material of ships was originally mainly steel. With the advancement of technology and the lightweight requirements, marine grade aluminium sheet is gradually used in the hull parts of yachts and ships, and the level of all-aluminization has gradually increased. The main parts like hull, deck, piston, pump, etc., can all be made of aluminum alloy. According to different manufacturing processes, marine aluminum plates can be divided into deformed aluminum plates and cast aluminum plates. Because marine aluminum plates have special requirements for strength, corrosion resistance, and weldability, Al-Mg alloys, Al-Mg-Si and Al-Zn-Mg alloys are often used. The 6xxx aluminum alloy always has intergranular corrosion in seawater, so it is often used for super structure of the ships. The 7xxx aluminum has the disadvantage of poor corrosion resistance, so the range of use is limited. 5xxx aluminum is the most widely used. 5083, 5086 and 5456 are the three main

12. 5xxx aluminum alloys. Marine grade aluminum 5083 can be regarded as the typical alloy of 5xxx aluminum. The common tempers are O, H111, H112, H116, H321, etc. It has medium strength, good corrosion resistance, good formability, and high fatigue resistance., which is generally used as the main structure of the hull. Other 5xxx aluminum alloys such as 5052, 5086, 5454, 5456, etc., are also mostly used in hull structures, pressure vessels, pipelines, decks. Generally speaking, the thickness of the marine aluminum sheets is determined by the hull structure, ship specifications and parts of use, etc. From the perspective of hull lightweight, thin plates are generally used as much as possible, but the depth of corrosion of the aluminum plates during the use time should also be considered. The price is the most concerned by users during the purchasing process. But the marine grade aluminum sheet price is not constant, which is affected by specification, order amount, aluminum ingot price, processing cost and freight. 5083 Marine Aluminum Sheet The ship’s side and bottom shells require high corrosion resistance. Generally, 5083H116 aluminum plate or 5083H321 high-magnesium alloy is often used for production. 5083-H116 aluminum sheet is commonly used in the field of transportation, like automobile fuel tanks, aircraft fuel tanks, etc. It can also be

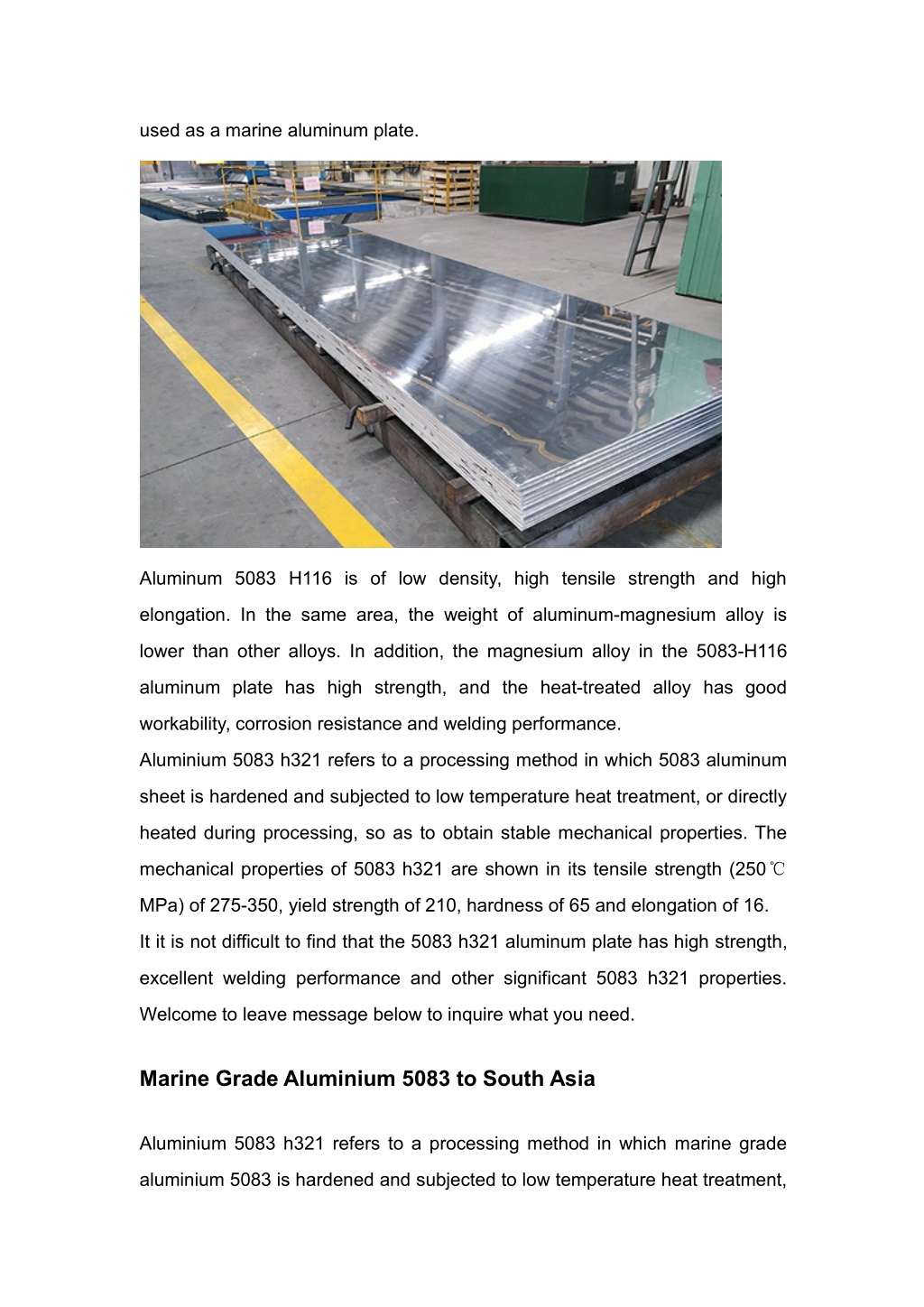

13. used as a marine aluminum plate. Aluminum 5083 H116 is of low density, high tensile strength and high elongation. In the same area, the weight of aluminum-magnesium alloy is lower than other alloys. In addition, the magnesium alloy in the 5083-H116 aluminum plate has high strength, and the heat-treated alloy has good workability, corrosion resistance and welding performance. Aluminium 5083 h321 refers to a processing method in which 5083 aluminum sheet is hardened and subjected to low temperature heat treatment, or directly heated during processing, so as to obtain stable mechanical properties. The mechanical properties of 5083 h321 are shown in its tensile strength (250℃ MPa) of 275-350, yield strength of 210, hardness of 65 and elongation of 16. It it is not difficult to find that the 5083 h321 aluminum plate has high strength, excellent welding performance and other significant 5083 h321 properties. Welcome to leave message below to inquire what you need. Marine Grade Aluminium 5083 to South Asia Aluminium 5083 h321 refers to a processing method in which marine grade aluminium 5083 is hardened and subjected to low temperature heat treatment,

14. or is directly heated during processing, so as to obtain stable mechanical properties. H321 aluminum plate has high strength, excellent welding performance and other remarkable 5083 h321 attributes. It is worth mentioning that 5083-h321 aluminum has better corrosion resistance than the 5052 aluminium sheet. Therefore, 5083-h321 aluminum plate is a special material for marine aluminum plate, which can be widely used in the deck of yachts, grain ships, fishing boats, work boats, sand ships and other ships, as well as components such as engine pedestals, ship sides, and bottom outer plates. At the beginning of this year, a Philippine customer leave customer on our website, inquiring aluminium 5083 h321 for ship building. The thickness is thickness 3/4/5/6/8/10/12/16/20mm, etc. The width of 5083-h321 aluminum plates is mostly 1500mm, and a small part is of 2200mm width. Most of the aluminum plates are of 6m length and the rest is of 9m length. Finally, this customer chose us due to superior quality and considerate service. As a 5083 aluminum supplier, Haomei Aluminum can provide it with rich tempers such as H116, H111, H321, etc. The thickness is mostly 4-12mm, and the commonly used length and width are 2000*6000mm, 1500*6000mm,

15. 2000*8000mm, etc. The commonly used gauge for 5083-h321 aluminum plate is (3-20)*1500*6000mm (T*W*L).
