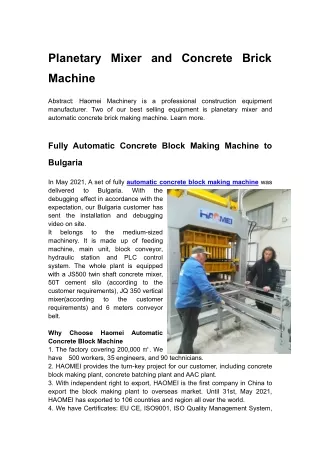

Planetary Mixer and Concrete Brick Machine

1. Planetary Mixer and Concrete Brick Machine Abstract: Haomei Machinery is a professional construction equipment manufacturer. Two of our best selling equipment is planetary mixer and automatic concrete brick making machine. Learn more. Fully Automatic Concrete Block Making Machine to Bulgaria In May 2021, A set of fully automatic concrete block making machine was delivered to Bulgaria. With the debugging effect in accordance with the expectation, our Bulgaria customer has sent the installation and debugging video on site. It belongs to the medium-sized machinery. It is made up of feeding machine, main unit, block conveyor, hydraulic station and PLC control system. The whole plant is equipped with a JS500 twin shaft concrete mixer, 50T cement silo (according to the customer requirements), JQ 350 vertical mixer(according to the customer requirements) and 6 meters conveyor belt. Why Concrete Block Machine 1. The factory covering 200,000 ㎡. We have 500 workers, 35 engineers, and 90 technicians. 2. HAOMEI provides the turn-key project for our customer, including concrete block making plant, concrete batching plant and AAC plant. 3. With independent right to export, HAOMEI is the first company in China to export the block making plant to overseas market. Until 31st, May 2021, HAOMEI has exported to 106 countries and region all over the world. 4. We have Certificates: EU CE, ISO9001, ISO Quality Management System, Choose Haomei Automatic

2. ISO14001 and Environmental Management System. 5. 50 technicians work overseas to do the service for our customers in different countries. Two Sets of Planetary Mixer to South America In April, one set of JN330 and JN1500 planetary mixer were packed in the factory and shipped to South America. The discahrging capacity of JN330 is 330 L and that of JN1500 IS 1500L. The planetary mixer is a kind of concrete mixer that applies planetary operation concept in vertical shaft mixer. With quality raw material and advanced equipment accessories, the vertical shaft planetary concrete mixer achieves high efficiency and perfect mixing efficiency. It has the following advantagess: 1. The counter-current mixer is precast concrete (PC components, pipe piles, sleepers, subway segments, floor tiles, ladders, etc.), light industry, heavy chemical industry (glass, ceramics), slag, coal ash and other raw materials. 2. Reasonable mixing speed and complex motion track design make the mixing of various materials more violent, more uniform, and more efficient. 3. .The specially designed mixing device makes the stirring speed faster and the stirring more uniform. The mixing blade is more resistant to wear. 4. The newly developed gearbox has the characteristics of low noise, large torque and strong durability. Even under harsh production conditions, the power balance can be effectively distributed to each mixing device, so as to ensure the normal operation of the concrete mixer.

3. There is no direct contact between the mixing materials and the output part of the transmission, and there is no problem of slurry leakage. The Main Strucure of Planetary Mixer The planetary mixer is widely used in concrete industry, refractory industry, the ceramic industry, the building material industry, and the block brick industry, etc., featuring high mixing quality. What are its main structure? Let’s have a look. Transmission Device Haemei Machinery adopts the hard gear reducer specially designed by our company for transmission. n the design and development process, large professional three-dimensional drawing software such as kiss soft, ANSYS, SMT, CAtia, SIM PACK are used. The selection of working conditions is worse than actual. The gears are processed by German NILES and LIEBHERR high-precision gear grinding machines to ensure that the various parameters of the gears are well guaranteed. The newly developed gearbox has the characteristics of low noise, large torque, and strong durability. Motion track The revolution and rotation of the mixing blade are determined through in-depth research and continuous testing, so that the mixer can achieve maximum productivity without segregating aggregates of various particle sizes and specific gravity, and the material movement trajectory in the mixing drum is smooth and continuous. Mixing device When the planetary shaft with blades installed in the mixing drum rotates, the compound action such as squeezing and turning of the material happens at the same time. The mixing blade is designed as a rhombus structure, which is

4. our patented design. The customers can rotate 180° according to the actual wear condition for repeated use, which effectively improves the utilization and life of the blade. Discharging device Different discharging methods are available such as pneumatic and hydraulic discharging door. We have effectively strengthened the support structure and strength of the discharge door according to the industry working conditions. The number of discharge doors can be opened up to three. Automatic high-pressure cleaning system The planetary cement mixer uses a rotating high-pressure nozzle to thoroughly clean the mixing drum wall, mixing tools, and mixing drum cover within a few minutes, greatly improving the cleaning effect, reducing cleaning time and labor intensity, and improving the working environment.
