Electric Concrete Mixer for Sale

The types of concrete mixers can be divided into electric concrete mixer and diesel concrete mixer according to power. The popular kinds of electric concrete mixers are twin shaft concrete mixer, Sicoma concrete mixer and planetary mixer. The diesel concrete mixer is widely used in those areas with a lack of electricity.

dollygao
Download Presentation

Electric Concrete Mixer for Sale

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

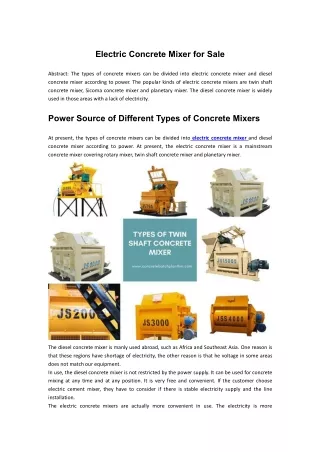

  1. Electric Concrete Mixer for Sale Abstract: The types of concrete mixers can be divided into electric concrete mixer and diesel concrete mixer according to power. The popular kinds of electric concrete mixers are twin shaft concrete mixer, Sicoma concrete mixer and planetary mixer. The diesel concrete mixer is widely used in those areas with a lack of electricity. Power Source of Different Types of Concrete Mixers At present, the types of concrete mixers can be divided into electric concrete mixer and diesel concrete mixer according to power. At present, the electric concrete mixer is a mainstream concrete mixer covering rotary mixer, twin shaft concrete mixer and planetary mixer. The diesel concrete mixer is manly used abroad, such as Africa and Southeast Asia. One reason is that these regions have shortage of electricity, the other reason is that he voltage in some areas does not match our equipment. In use, the diesel concrete mixer is not restricted by the power supply. It can be used for concrete mixing at any time and at any position. It is very free and convenient. If the customer choose electric cement mixer, they have to consider if there is stable electricity supply and the line installation. The electric concrete mixers are actually more convenient in use. The electricity is more

  2. economical and easier to obtain than diesel in most places. The electric concrete mixer price is also much cheaper. As a popular kind, it has rich models for the customers to choose from. For diesel concrete mixer, Haomei Machinery has JZC/JZM rotary mixer; for electric concrete mixer,we have JS twin shaft concrete mixer, Sicoma concrete mixer and planetary mixer. An Overview of Diesel Concrete Mixer The diesel concrete mixer is specially designed for remote areas without electricity where the mechanized construction can’t be realized. Its main model is JZC350, of which the power is 15kw. It also can provide lighting for the night working. At present, the diesel concrete mixer mainly refers to the rotary mixer. It is used to make plastic and low-fluidity concrete. Each discharging volume is 350l. The small diesel concrete mixer is used for general small and medium-sized construction projects such as town roads, bridges, water conservancy projects and concrete components plant. JZC350 diesel concrete mixer is a double-cone reverse-discharge rotary mixer. The mixing drum rotates forward for mixing and reverses for discharge. It has the advantages of simple structure, high efficiency, light weight, convenient operation and maintenance, etc. After getting a diesel concrete mixer, how to maintain it? There are some tips. 1. Regularly check the oil level of the gear box, and fill and replace with new oil. 2. Regularly check the wear of the supporting roller, and replace with a new one if necessary. 3. Fill each nozzle with lubricating oil regularly. 4. During overhaul, the main parts should be checked carefully including the gears of the reduction box, various bearing, feeding mechanism, mixing mechanism, power supply mechanism, transmission frame, walking wheel and electrical control system. Electric Concrete Mixer for Sale The twin shaft concrete mixer is popular kind of electric concrete mixers for sale. High efficiency is the biggest feature of the twin shaft mixer. The mixing cycle is 60s. It seems that its mixing cycle is same with the rotary mixer.

  3. But the rotary mixer can only mix fluid and semi-rigid concrete. The mixing of the concrete itself is relatively simple. The twin shaft concrete mixer is applicable for most kinds of concrete such as hard and plastic concrete with good mixing quality and high strength. The twin shaft concrete mixer is often used as the mixing host of the concrete batching plant. Since it has two mixing shafts, it is also equipped with two mixing motors. Each mixer is equipped with a reducer, which generates a steady stream of power for the mixing work. For the hopper-lifting concrete mixing plant, it is necessary to add a hoist motor to the mixer. The mixing motor is not used for lifting, and the belt conveyor does not need additional power from the mixer to transport the aggregate, ensuring the original power output of the mixing motor. For the JZC concrete mixer, the mixing motor is integrated with the lifting motor, and the mixing power will be affected. Because this electric concrete mixer adopts the bottom discharge mode and with the customize supporting legs, the mixer truck can easily receive the material being discharged from the mixing drum. This is also an important reason why JDC concrete mixer is not used as the mixing host. The JDC concrete mixer needs to tilt the material, which increases the discharging difficulty. As a big twin shaft concrete mixer manufacturer, Haomei Machinery has complete models and considerate after-sale service. Portable Electric Cement Mixer JZC/JZM concrete mixer is a kind of portable electric cement mixer. The mixing drum is driven by a gear ring, It rotates forward for mixing and reversely for the discharging. It is an economic

  4. choice for buildings, rural bridges and small RMC plants. The features of portable electric cement mixer: 1. It is driven by the electric motor. 2. The mixing drum is driven by a gear ring, which has the advantages of low noise, low energy consumption, no skidding in rain and fog, and easy operation. 3. In addition to JZM750, all the other models of JZC/JZM concrete mixers are equipped with two tires. They are portable. 4. It is equipped with a lifting hopper, which is convenient for loading and feeding. Working principle of electric drum concrete mixer The concrete mixer is equipped with a gear ring arranged around the drum barrel and a gear meshing with the gear ring is arranged on the transmission shaft. The inner side of the mixing drum is equipped with spiral mixing blades. When working, it depends on the rotation of the mixing drum and the gravity of the internal mixture realizes forward mixing and reverse discharge. The JZC series concrete mixer can be pulled by the trailer and moved to other construction sites. The Specification Of JZC/JZM Concrete Mixer Charging Capacity Discharging Capacity Aggregate Size Item Productivity Overall Dimension 3930*2040*3140 mm JZC250 350L 250L 7-10 m3/h 60 mm 4010*2140*3340 mm JZC350A 560L 350L 10-14 m3/h 60 mm JZC 350B 4010*2140*3340 mm 560L 350L 10-14 m3/h 60 mm 5230*2300*5450 mm JZC500 800L 500L 18-20 m3/h 60 mm 5130*2400*5550 mm JZM500 800L 500L 18-20 m3/h 60 mm 20-22.5 m3/h 6107*2050*6070 mm JZM750 1200L 750L 60 mm

  5. JS1500 Large Concrete Mixer JS1500 concrete mixer is a kind of large concrete mixer, with strong production capacity, reliable quality and excellent mixing performance. It belongs to a popular model of twin shaft concrete mixers, which can mix various concrete and mortar. Its body is made of thick wear-resistant steel plate, with advanced welding technology, therefore JS1500 is of longer service life than before. Due to its stable operation and superior performance, It is loved by the majority of concrete mixing plant users. This large concrete mixer can be used alone or form a simple concrete mixing plant with PLD batching machine. It can also be used as the mixing host of HZS90 concrete batching plant. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as highways, bridges, water conservancy and wharves. As a well known twin shaft concrete mixer manufacturer, Haomei Machinery adheres to provide considerate after-sale service besides the quality machines. It attaches great importance to international technical exchanges and cooperation. It has successively introduced advanced technologies and processes from the European Union and other countries, has more than 100 sets of production equipment, and has established an internationally advanced production line. JS750 Electric Concrete Mixer Machine JS750 concrete mixer is a kind of popular electric concrete mixer machine. It is suitable for all kinds of small and medium-sized prefabricated component factories and industrial and civil construction projects such as highways, bridges, water conservancy, ports,etc. Let’s have a look of its advantages: 1. Good mixing performance. With two mixing shafts and several groups of mixing blades, the

  6. mixture can be fully mixed in the mixing drum. 2. Compact structure. The unloading door is driven by an imported hydraulic system. Compared with the traditional drive form, it has the characteristics of compact structure, stable operation and precise opening positioning. 3. Good sealing performance. The use of three seals and aggregate holder seals and hydraulic system oil supply pumps can effectively prevent the main neck shaft from being rapidly worn and causing slurry leakage. 4. The cycle time is short. The speed of the blade of the general concrete mixer is 26 rpm, and the speed of the JS750 mixer is 29.3 rpm. 5. Convenient operation. Whether it is loading, unloading, or supplying water, it is of high automation. All the motor control parts are in the electric box, which is safe and reliable to use, and easy to operate and maintain. JS500 Small Electric Concrete Mixer The small electric concrete mixer of 500L is widely used for many projects. It has many types, of which the JS500 concrete mixer is the most popular. It discharges 500L of concrete each time, which is also called 4 bag concrete mixer. The hourly production capacity of JS500 twin shaft mixer is 25-30m³/h, and the power of the mixing motor is 18.5KW. It can be either used as the mixing host of HZS25 concrete batching plant or used with PLD batching machine. It has been a primary choice of small and medium-sized construction projects.

  7. Structural advantages Its structure mainly includes mixing drum, hopper loading frame, lifting mechanism, mixing blade, mixing shaft and mixing arm, discharge mechanism, fuel supply, water supply system and electrical system. It is suitable for mixing plastic, dry hard, lightweight aggregate concrete and various mortars. Performance advantage JS500 electric concrete mixer features high automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharge speed, long service life of inner tank and blade, and convenient maintenance. In the automatic discharge mode, the whole machine has the advantages of convenient water supply control, high power and low power consumption. JS500 electric concrete mixer price There are many factors that affect the electric concrete mixer. Generally speaking, the JS500 concrete mixer price of big manufacturers is higher than that of small manufacturers because the former provides better quality and after-sales service. Another main factor is configuration. Even if the model is the same(js500), he higher the configuration, the higher the concrete mixer price.
