An Overview of Self Loading Concrete Mixer Machine

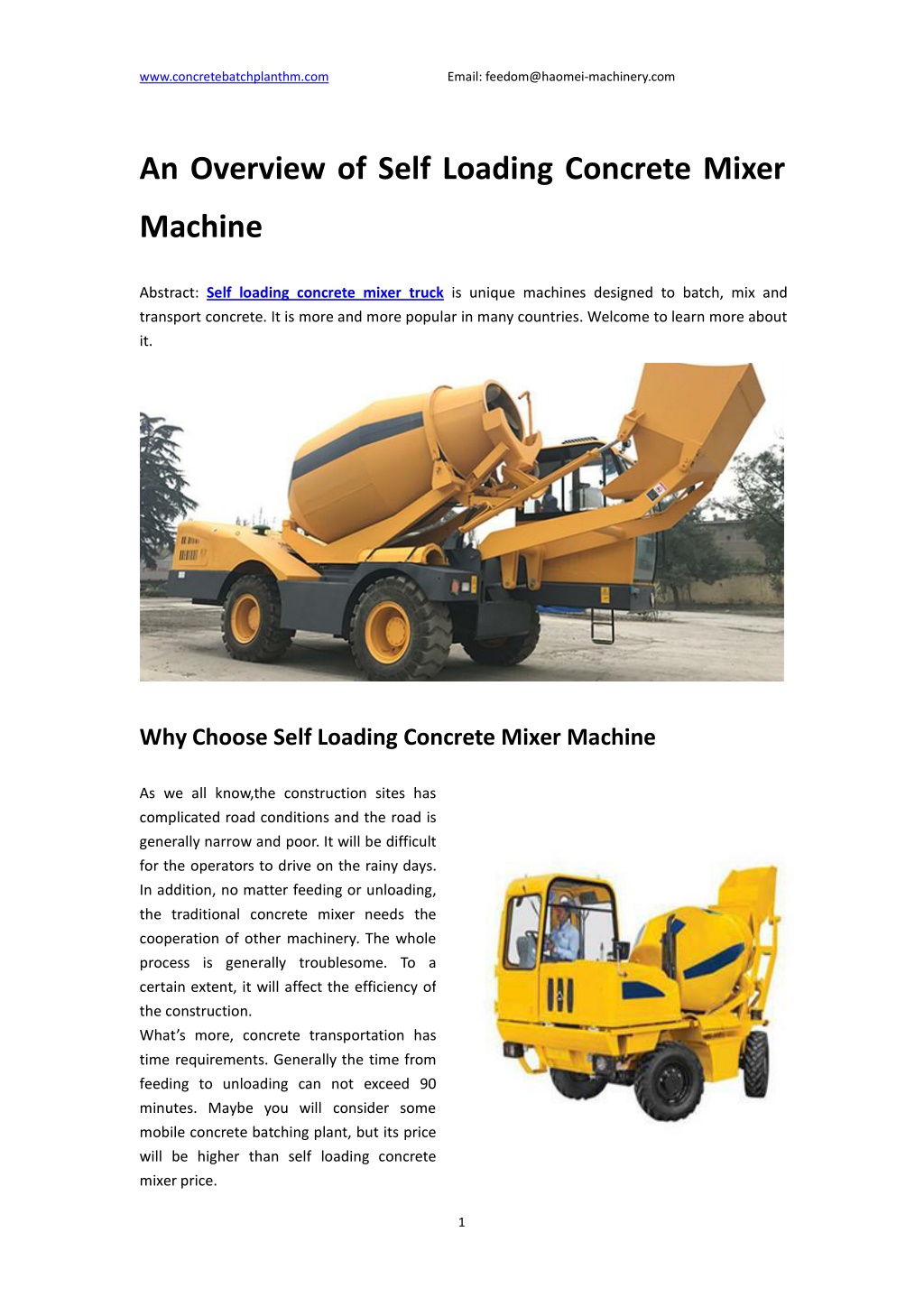

1. www.concretebatchplanthm.com Email: feedom@haomei-machinery.com An Overview of Self Loading Concrete Mixer Machine Abstract: Self loading concrete mixer truck is unique machines designed to batch, mix and transport concrete. It is more and more popular in many countries. Welcome to learn more about it. Why Choose Self Loading Concrete Mixer Machine As we all know,the construction sites has complicated road conditions and the road is generally narrow and poor. It will be difficult for the operators to drive on the rainy days. In addition, no matter feeding or unloading, the traditional concrete mixer needs the cooperation of other machinery. The whole process is generally troublesome. To a certain extent, it will affect the efficiency of the construction. What’s more, concrete transportation has time requirements. Generally the time from feeding to unloading can not exceed 90 minutes. Maybe you will consider some mobile concrete batching plant, but its price will be higher than self loading concrete mixer price. 1

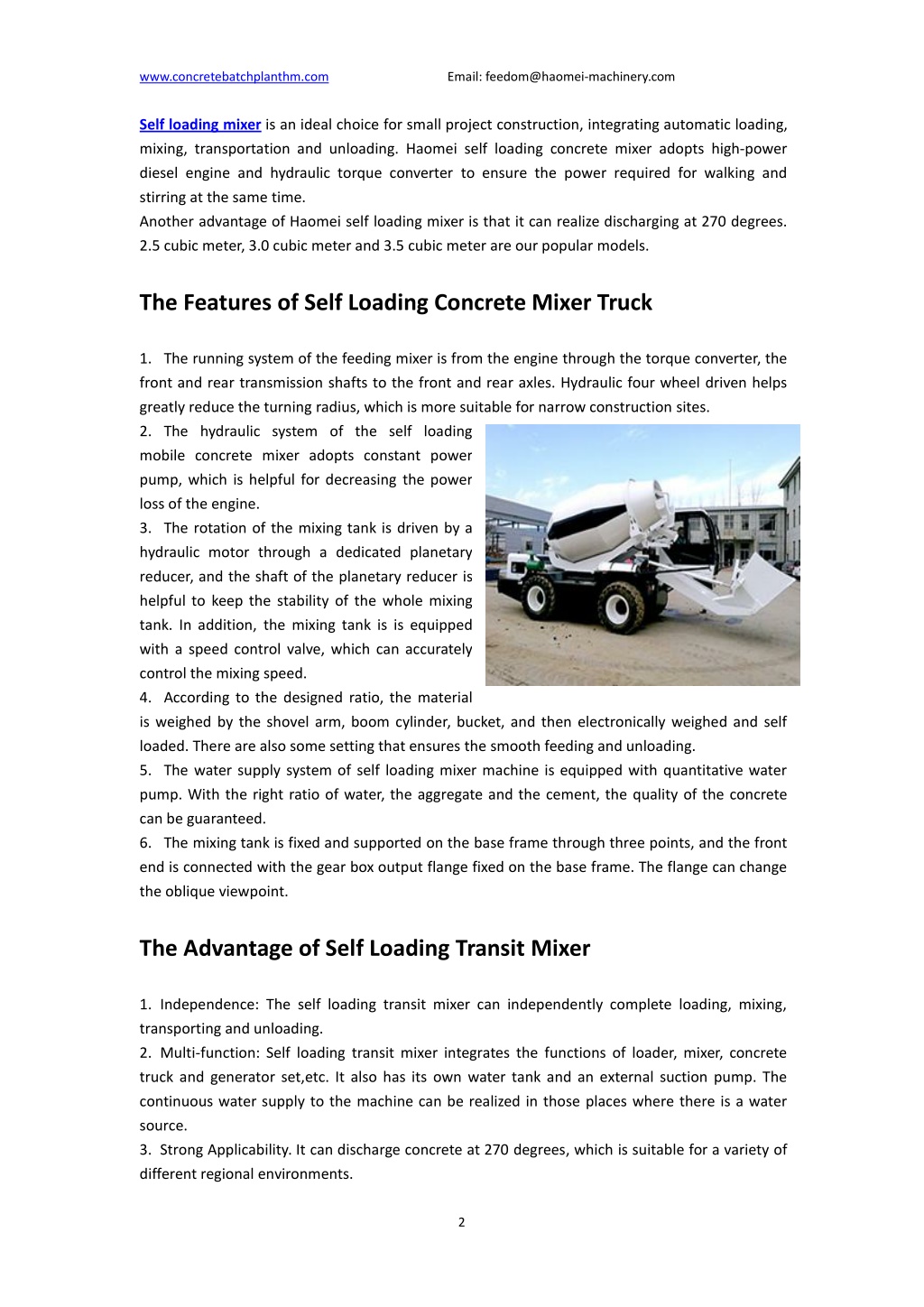

2. www.concretebatchplanthm.com Email: feedom@haomei-machinery.com Self loading mixer is an ideal choice for small project construction, integrating automatic loading, mixing, transportation and unloading. Haomei self loading concrete mixer adopts high-power diesel engine and hydraulic torque converter to ensure the power required for walking and stirring at the same time. Another advantage of Haomei self loading mixer is that it can realize discharging at 270 degrees. 2.5 cubic meter, 3.0 cubic meter and 3.5 cubic meter are our popular models. The Features of Self Loading Concrete Mixer Truck 1. The running system of the feeding mixer is from the engine through the torque converter, the front and rear transmission shafts to the front and rear axles. Hydraulic four wheel driven helps greatly reduce the turning radius, which is more suitable for narrow construction sites. 2. The hydraulic system of the self loading mobile concrete mixer adopts constant power pump, which is helpful for decreasing the power loss of the engine. 3. The rotation of the mixing tank is driven by a hydraulic motor through a dedicated planetary reducer, and the shaft of the planetary reducer is helpful to keep the stability of the whole mixing tank. In addition, the mixing tank is is equipped with a speed control valve, which can accurately control the mixing speed. 4. According to the designed ratio, the material is weighed by the shovel arm, boom cylinder, bucket, and then electronically weighed and self loaded. There are also some setting that ensures the smooth feeding and unloading. 5. The water supply system of self loading mixer machine is equipped with quantitative water pump. With the right ratio of water, the aggregate and the cement, the quality of the concrete can be guaranteed. 6. The mixing tank is fixed and supported on the base frame through three points, and the front end is connected with the gear box output flange fixed on the base frame. The flange can change the oblique viewpoint. The Advantage of Self Loading Transit Mixer 1. Independence: The self loading transit mixer can independently complete loading, mixing, transporting and unloading. 2. Multi-function: Self loading transit mixer integrates the functions of loader, mixer, concrete truck and generator set,etc. It also has its own water tank and an external suction pump. The continuous water supply to the machine can be realized in those places where there is a water source. 3. Strong Applicability. It can discharge concrete at 270 degrees, which is suitable for a variety of different regional environments. 2

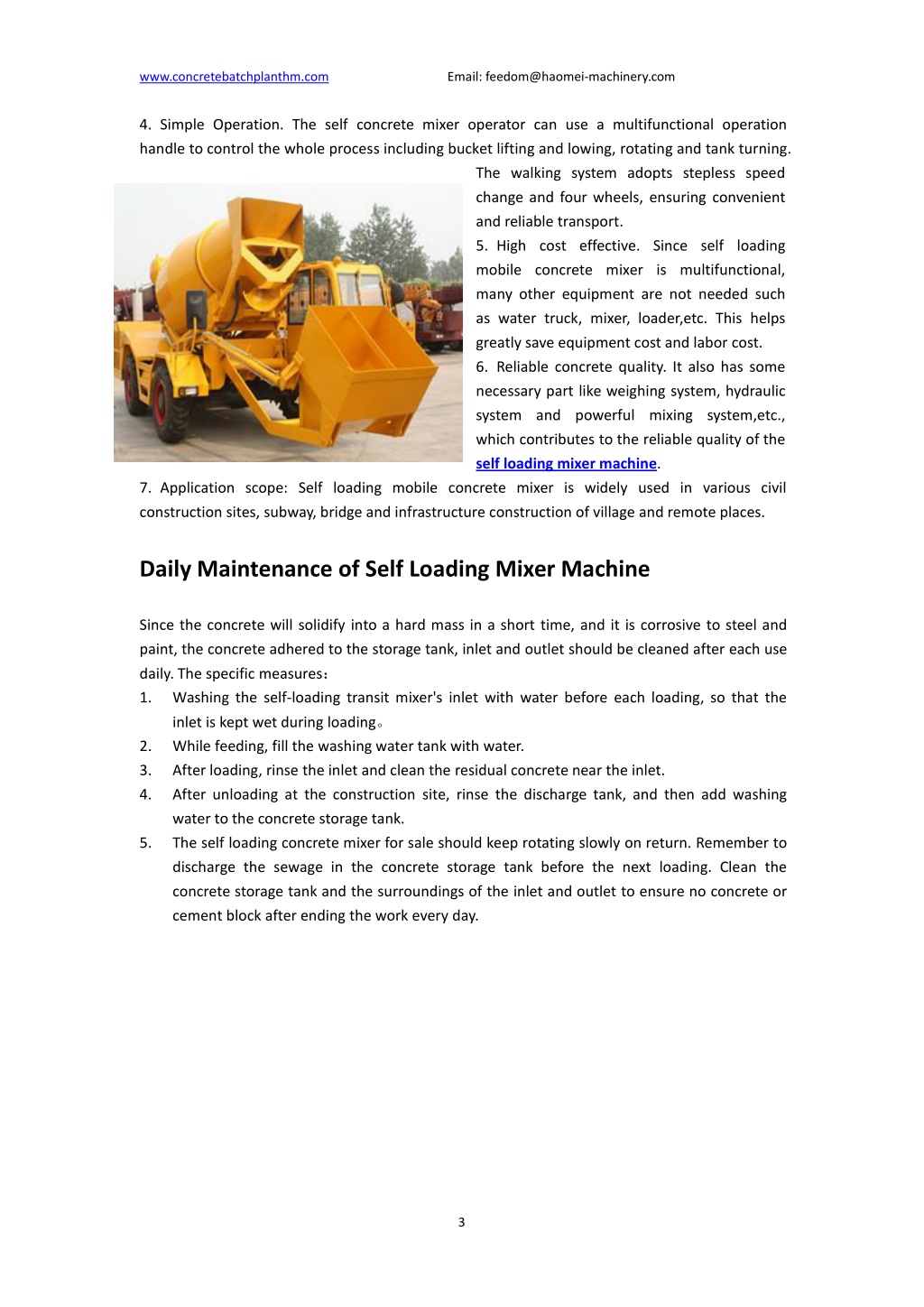

3. www.concretebatchplanthm.com Email: feedom@haomei-machinery.com 4. Simple Operation. The self concrete mixer operator can use a multifunctional operation handle to control the whole process including bucket lifting and lowing, rotating and tank turning. The walking system adopts stepless speed change and four wheels, ensuring convenient and reliable transport. 5. High cost effective. Since self loading mobile concrete mixer is multifunctional, many other equipment are not needed such as water truck, mixer, loader,etc. This helps greatly save equipment cost and labor cost. 6. Reliable concrete quality. It also has some necessary part like weighing system, hydraulic system and powerful mixing system,etc., which contributes to the reliable quality of the self loading mixer machine. 7. Application scope: Self loading mobile concrete mixer is widely used in various civil construction sites, subway, bridge and infrastructure construction of village and remote places. Daily Maintenance of Self Loading Mixer Machine Since the concrete will solidify into a hard mass in a short time, and it is corrosive to steel and paint, the concrete adhered to the storage tank, inlet and outlet should be cleaned after each use daily. The specific measures： 1. Washing the self-loading transit mixer's inlet with water before each loading, so that the inlet is kept wet during loading。 2. While feeding, fill the washing water tank with water. 3. After loading, rinse the inlet and clean the residual concrete near the inlet. 4. After unloading at the construction site, rinse the discharge tank, and then add washing water to the concrete storage tank. 5. The self loading concrete mixer for sale should keep rotating slowly on return. Remember to discharge the sewage in the concrete storage tank before the next loading. Clean the concrete storage tank and the surroundings of the inlet and outlet to ensure no concrete or cement block after ending the work every day. 3
